User’s Guide

MAVOWATT20

ENERGY PLATFORM

3-349-587-03

1/2.10

MAVOWATT 20

ENERGY PLATFORM

Energy PlatformTM

USER GUIDE

WARNING

Death, serious injury, or fire hazard could result from improper connection of this instrument. Read and understand this manual before connecting this instrument. Follow all installation and operating instructions while using this instrument.

Connection of this instrument must be performed in compliance with the National Electrical Code (ANSI/ NFPA 70-2008) of USA and any additional safety requirements applicable to your installation.

Installation, operation, and maintenance of this instrument must be performed by qualified personnel only. The National Electrical Code defines a qualified person as “one who has the skills and knowledge related to the construction and operation of the electrical equipment and installations, and who has received safety training on the hazards involved.”

Qualified personnel who work on or near exposed energized electrical conductors must follow applicable safety related work practices and procedures including appropriate personal protective equipment in compliance with the Standard for Electrical Safety Requirements for Employee Workplaces (ANSI/NFPA 70E-2009) of USA and any additional workplace safety requirements applicable to your installation.

GMC-I 0HVVWHFKQLNGmbH Repair and Replacement Parts Service

Südwestpark 15 Phone: +49 911 817718-0 90449 Nürnberg Phone: +49 911 8602-111 E-Mail service@gossenmetrawatt.com Fax: +49 911 8602-777 E-Mail: info@gossenmetrawatt.com Product Support Hotline Web site: www.gossenmetrawatt.com Phone +49 911 8602-0

• Germany Fax: +49 911 817718-253

Fax +49 911 8602-709 E-Mail support@gossenmetrawatt.com

Published by Dranetz-BMI 1000 New Durham Road Edison, NJ 08818-4019 USA Telephone: 1-800-372-6832 or 732-287-3680 Fax: 732-248-1834 Web site: www.dranetz-bmi.com

No part of this book may be reproduced, stored in a retrieval system, or transcribed in any form or by any means—electronic, mechanical, photocopying, recording, or otherwise—without prior written permission from the publisher, Dranetz-BMI, Edison, NJ 08818-4019.

Printed in the United States of America.

P/N UG-EP1 Rev. A

ADVERTENCIA

na conexión incorrecta de este instrumento puede producir la muerte, lesiones graves y riesgo de incendio. Lea y entienda este manual antes de conectar. Observe todas las instrucciones de instalación y operación durante el uso de este instrumento.

La conexión de este instrumento a un sistema eléctrico se debe realizar en conformidad con el Código Eléctrico Nacional (ANSI/NFPA 70-2008) de los E.E.U.U., además de cualquier otra norma de seguridad correspondiente a su establecimiento.

La instalación, operación y mantenimiento de este instrumento debe ser realizada por personal calificado solamente. El Código Eléctrico Nacional define a una persona calificada como "una que esté familiarizada con la construcción y operación del equipo y con los riesgos involucrados."

El personal cualificado que trabaja encendido o acerca a los conductores eléctricos energizados expuestos debe seguir prácticas y procedimientos relacionados seguridad aplicable del trabajo incluyendo el equipo protector personal apropiado en conformidad con el estándar para los requisitos de seguridad eléctricos para los lugares de trabajo del empleado (ANSI/NFPA 70E-2009) de los E.E.U.U. y cualquier requisito de seguridad adicional del lugar de trabajo aplicable a su instalación.

AVERTISSEMENT

Si l'instrument est mal connecté, la mort, des blessures graves, ou un danger d'incendie peuvent s'en suivre. Lisez attentivement ce manuel avant de connecter l'instrument. Lorsque vous utilisez l'instrument, suivez toutes les instructions d'installation et de service.

Cet instrument doit être connecté conformément au National Electrical Code (ANSI/NFPA 70-2008) des Etats-Unis et à toutes les exigences de sécurité applicables à votre installation.

Cet instrument doit être installé, utilisé et entretenu uniquement par un personnel qualifié. Selon le National Electrical Code, une personne est qualifiée si "elle connaît bien la construction et l'utilisation de l'équipement, ainsi que les dangers que cela implique."

Le personnel qualifié qui travaillent dessus ou s'approchent des conducteurs électriques activés exposés doit suivre des pratiques en matière et des procédures reliées par sûreté applicable de travail comprenant le matériel de protection personnel approprié conformément à la norme pour des conditions de sûreté électriques pour les lieux de travail des employés (ANSI/NFPA 70E-2009) des Etats-Unis et toutes les conditions de sûreté additionnelles de lieu de travail applicables à votre installation.

WARNUNG

Der falsche Anschluß dieses Gerätes kann Tod, schwere Verletzungen oder Feuer verursachen. Bevor Sie dieses Instrument anschließen, müssen Sie die Anleitung lesen und verstanden haben. Bei der Verwendung dieses Instruments müssen alle Installation- und Betriebsanweisungen beachtet werden.

Der Anschluß dieses Instruments muß in Übereinstimmung mit den nationalen Bestimmungen für Elektrizität (ANSI/NFPA 70-2008) der Vereinigten Staaten, sowie allen weiteren, in Ihrem Fall anwendbaren Sicherheitsbestimmungen, vorgenommen werden.

Installation, Betrieb und Wartung dieses Instruments dürfen nur von Fachpersonal durchgeführt werden. In dem nationalen Bestimmungen für Elektrizität wird ein Fachmann als eine Person bezeichnet, welche "mit der Bauweise und dem Betrieb des Gerätes sowie den dazugehörigen Gefahren vertraut ist."

Qualifiziertes Personal, das an bearbeiten oder herausgestellte angezogene elektrische Leiter sich nähern, muß anwendbare Sicherheit bezogener Arbeit Praxis und Verfahren einschließlich passende persönliche schützende Ausrüstung gemäß dem Standard für elektrische Sicherheitsauflagen für Angestellt-Arbeitsplätze (ANSI/NFPA 70E-

2009) der Vereinigten Staaten und alle zusätzlichen Arbeitsplatzsicherheitsauflagen folgen, die auf Ihre Installation anwendbar sind.

iii

Safety Summary

Definitions

Symbols

Definiciones

WARNING statements inform the user that certain conditions or practices could result in loss of life or physical harm.

CAUTION statements identify conditions or practices that could harm the Energy Platform, its data, other equipment, or property.

NOTE statements call attention to specific information.

The following International Electrotechnical Commission (IEC) symbols are marked on the top and rear panel in the immediate vicinity of the referenced terminal or device:

Las ADVERTENCIAS informan al usuario de ciertas condiciones o prácticas que podrían producir lesiones mortales o daño físico.

Las PRECAUCIONES identifican condiciones o prácticas que podrían dañar la Energy Platform, sus datos, otros equipos o propiedad.

Caution, refer to accompanying documents (this manual).

Direct current (DC) operation of the terminal or device.

Power Switch

Símbolos

Las NOTAS llaman la atención hacia la información específica.

Los siguientes símbolos de la Comisión Internacional Electrotécnica (IEC) aparecen marcados en el panel superior y el posterior inmediatos al terminal o dispositivo en referencia:

Precaución, consulte los documentos adjuntos (este manual).

Operación de corriente continua (CC) del terminal o dispositivo.

Interruptor de encendido

Continued on next page

Safety Summary,

Continued

Définitions

Symboles

Definitionen

Les messages d’AVERTISSEMENT préviennent l’utilisateur que certaines conditions ou pratiques pourraient entraîner la mort ou des lésions corporelles.

Les messages de MISE EN GARDE signalent des conditions ou pratiques susceptibles d’endommager “Energy Platform”, ses données, d’autres équipements ou biens matériels.

Les messages NOTA attirent l’attention sur certains renseignements spécifiques.

Les symboles suivants de la Commission électrotechnique internationale (CEI) figurent sur le panneau arrière supérieur situé à proximité du terminal ou de l’unité cité:

WARNUNGEN informieren den Benutzer darüber, daß bestimmte Bedingungen oder Vorgehensweisen körperliche oder tödliche Verletzungen zur Folge haben können.

Mise en garde, consultez les documents d’accompagnement (ce manual).

Fonctionnement du terminal ou de l’unité en courant continu (CC).

Interrupteur de tension

Symbole

VORSICHTSHINWEISE kennzeichnen Bedingungen oder Vorgehensweisen, die zu einer Beschädigung von Energy Platform, seiner Daten oder anderer Geräte bzw. von Eigentum führen können.

HINWEISE machen auf bestimmte Informationen aufmerksam.

Die folgenden Symbole der Internationalen Elektrotechnischen Kommission (International Electrotechnical Commission; IEC) befinden sich auf der Abdeck- und Seitenplatte unmittelbar am betreffenden Terminal oder Gerät.

Vorsichtshinweis, siehe Begleitdokumente (dieses Handbuch).

Gleichstrombetrieb im Terminal oder Gerät.

Netzschalter

Continued on next page

Safety Summary,

Continued

Safety precautions

The following safety precautions must be followed whenever any type of voltage or current connection is being made to the Energy Platform.

• Wear proper Personal Protective Equipment, including safety glasses and insulated gloves when making connections to power circuits.

• Hands, shoes and floor must be dry when making any connection to a power line.

• Before each use, inspect all cables for breaks or cracks in the insulation. Replace immediately if defective.

• Set the Energy Platform power switch to Off.

• Before connecting to electric circuits to be monitored, open their related circuit breakers or disconnects. DO NOT install any connection of the Energy Platform to live power lines.

• Connections must be made to the Energy Platform first, then connect to the circuit to be monitored.

• If the equipment is used in a manner not specified in this user’s guide, the protection provided by the equipment may be impaired. These safety precautions are repeated where appropriate throughout this manual.

These safety precautions are repeated where appropriate throughout this manual.

Statements and Notices

Statement of warranty

Statement of reliability

Notice regarding FCC compliance

All products of Dranetz-BMI are warranted to the original purchaser against defective material and workmanship for a period of one year from the date of delivery. DranetzBMI will repair or replace, at its option, all defective equipment that is returned, freight prepaid, during the warranty period. There will be no charge for repair provided there is no evidence that the equipment has been mishandled or abused. This warranty shall not apply to any defects resulting from improper or inadequate maintenance, buyersupplied hardware/software interfacing, unauthorized modification or misuse of the equipment, operation outside of environmental specifications, or improper site preparation or maintenance.

The information in this manual has been reviewed and is believed to be entirely reliable, however, no responsibility is assumed for any inaccuracies. All material is for informational purposes only and is subject to change without prior notice.

This device has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense.

Notice regarding proprietary rights

This publication contains information proprietary to Dranetz-BMI. By accepting and using this manual, you agree that the information contained herein will be used solely for the purpose of operating equipment of Dranetz-BMI.

Continued on next page

vii

Statements and Notices,

Continued

Trademarks

This publication is protected under the Copyright laws of the United States, Title 17 et seq. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form, by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written consent of Dranetz-BMI, 1000 New Durham Road, Edison, New Jersey 08818.

Energy Platform, Scope Mode and DranView are registered trademarks of DranetzBMI.

viii

Safety Summary .................................................................................................................... iv

Statements and Notices.......................................................................................................... vii

CHAPTER 1 - Getting Started

Overview ............................................................................................................................... 1-1

Unpacking the Energy Platform ............................................................................................ 1-3

Standard Accessories............................................................................................................. 1-4

Energy Platform Controls, Indicators, and Connectors......................................................... 1-5

Top and Side Views ........................................................................................................ 1-6

Front View ...................................................................................................................... 1-7

Bottom View................................................................................................................... 1-8

Rear View ....................................................................................................................... 1-9

Upgrading Firmware from a Data Card................................................................................. 1-10

Energy Platform Features ...................................................................................................... 1-12

Basic Operation ..................................................................................................................... 1-14

Power-on Sequence......................................................................................................... 1-15

Home Screen Icons ......................................................................................................... 1-16

CHAPTER 2 - Voltage Measurement Cable and Current Probe Connections

Overview ............................................................................................................................... 2-1

Connecting Voltage Measurement Cables ............................................................................ 2-4

Connecting Current Probes.................................................................................................... 2-9

CHAPTER 3 - View Real Time Data

Overview ............................................................................................................................... 3-1

Section A -Scope Mode ............................................................................................................... 3-2

Overview ............................................................................................................................... 3-2

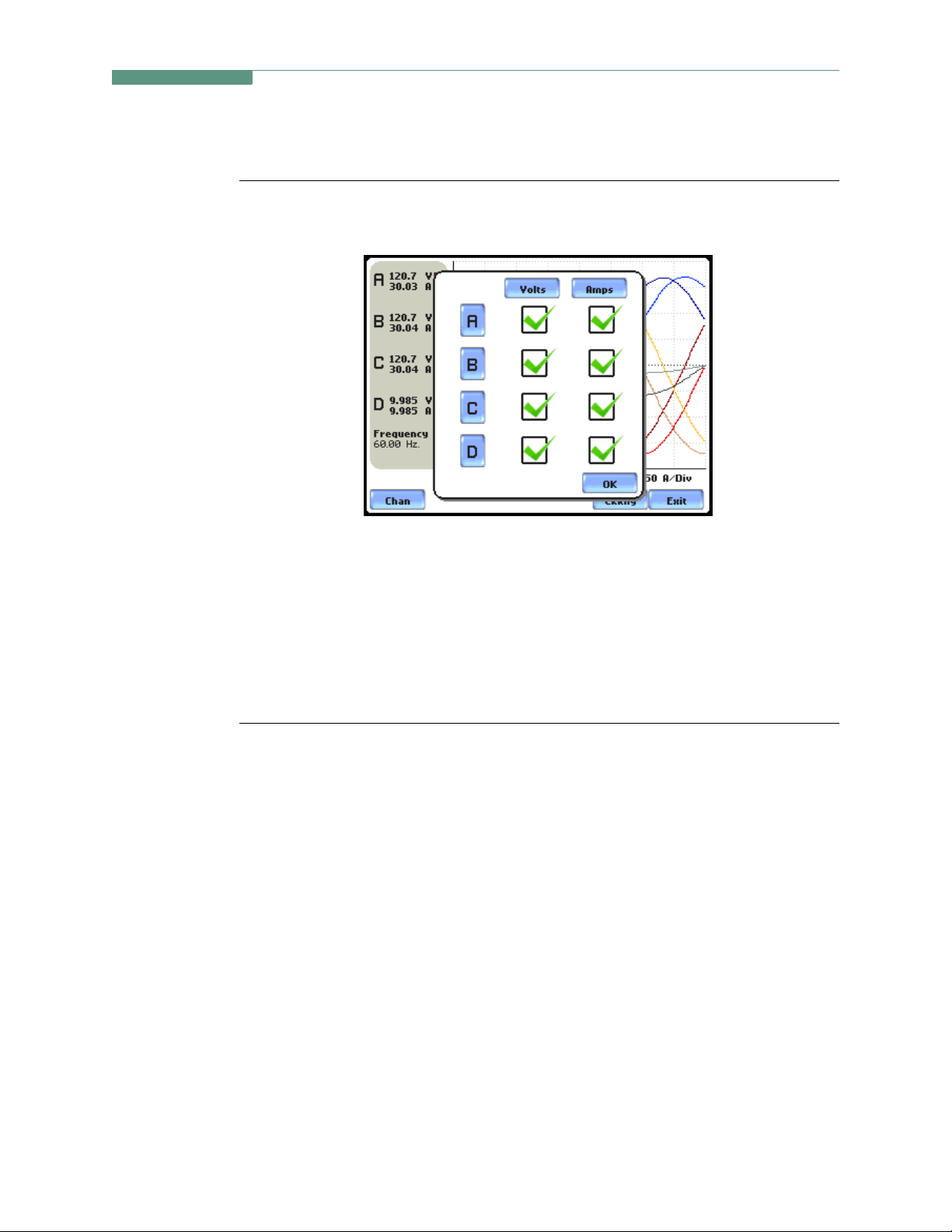

Turning Channels On/Off...................................................................................................... 3-3

Checking Input Range ........................................................................................................... 3-4

Section B -Meter Mode................................................................................................................ 3-5

Overview ............................................................................................................................... 3-5

Standard Meter Tab ............................................................................................................... 3-6

Distortion Meter Tab ............................................................................................................. 3-8

Advanced Meter Tab ............................................................................................................. 3-10

Section C -Harmonics .................................................................................................................. 3-12

Overview ............................................................................................................................... 3-12

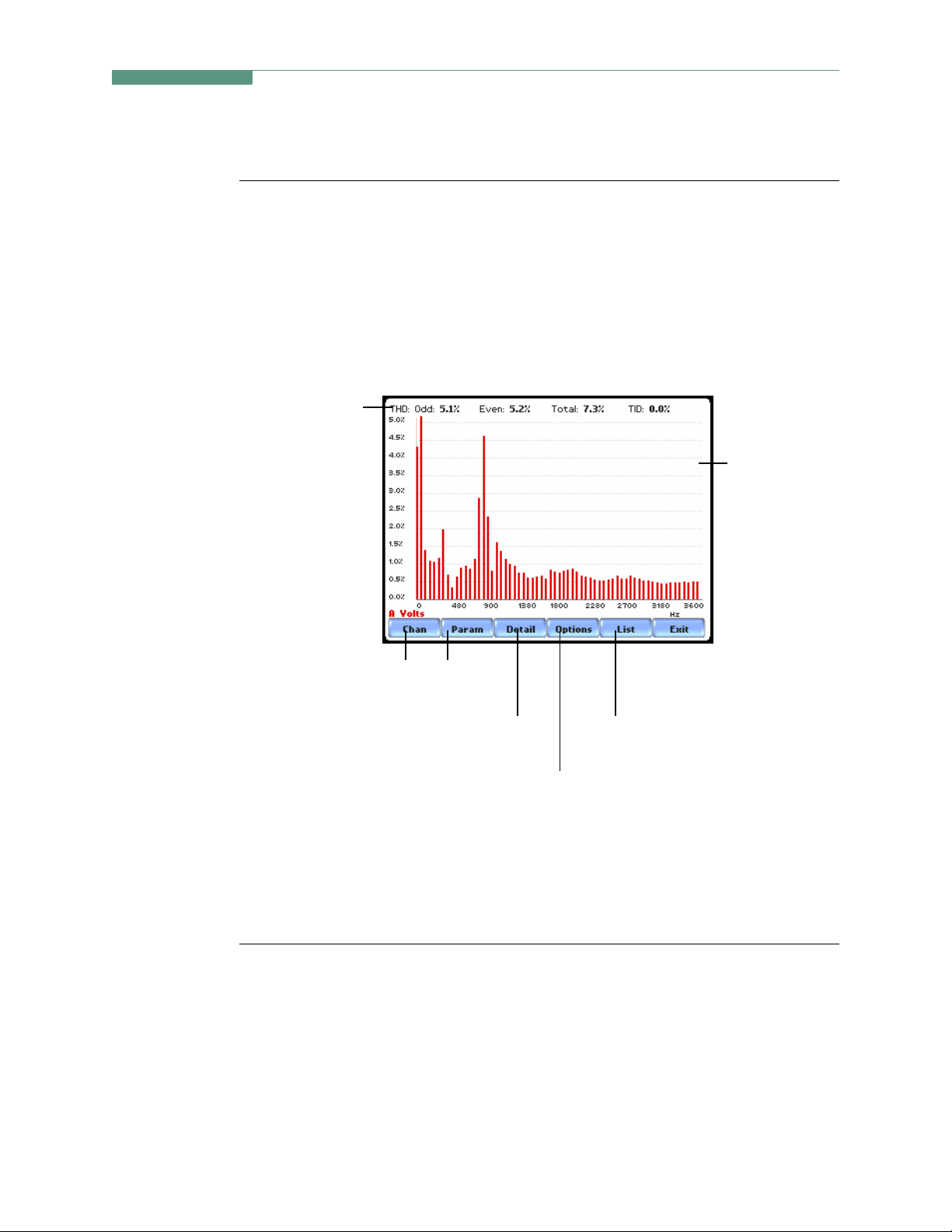

Harmonic Graph .................................................................................................................... 3-13

Harmonic Detail .................................................................................................................... 3-14

Harmonic Options.................................................................................................................. 3-15

Harmonic List........................................................................................................................ 3-17

Section D -Voltage and Current Phasor....................................................................................... 3-18

Overview ............................................................................................................................... 3-18

Phasor Screen ........................................................................................................................ 3-19

Phasor Rotation...................................................................................................................... 3-20

Phasor Parameter/Channel Selection..................................................................................... 3-22

Table of Contents,

CHAPTER 4 - Instrument Settings

Overview ............................................................................................................................... 4-1

Access Instrument Settings Menu ......................................................................................... 4-2

Time and Date Settings..........................................................................................................4-3

Select Language..................................................................................................................... 4-5

Set Display Preferences......................................................................................................... 4-6

Touch Screen Calibration...................................................................................................... 4-7

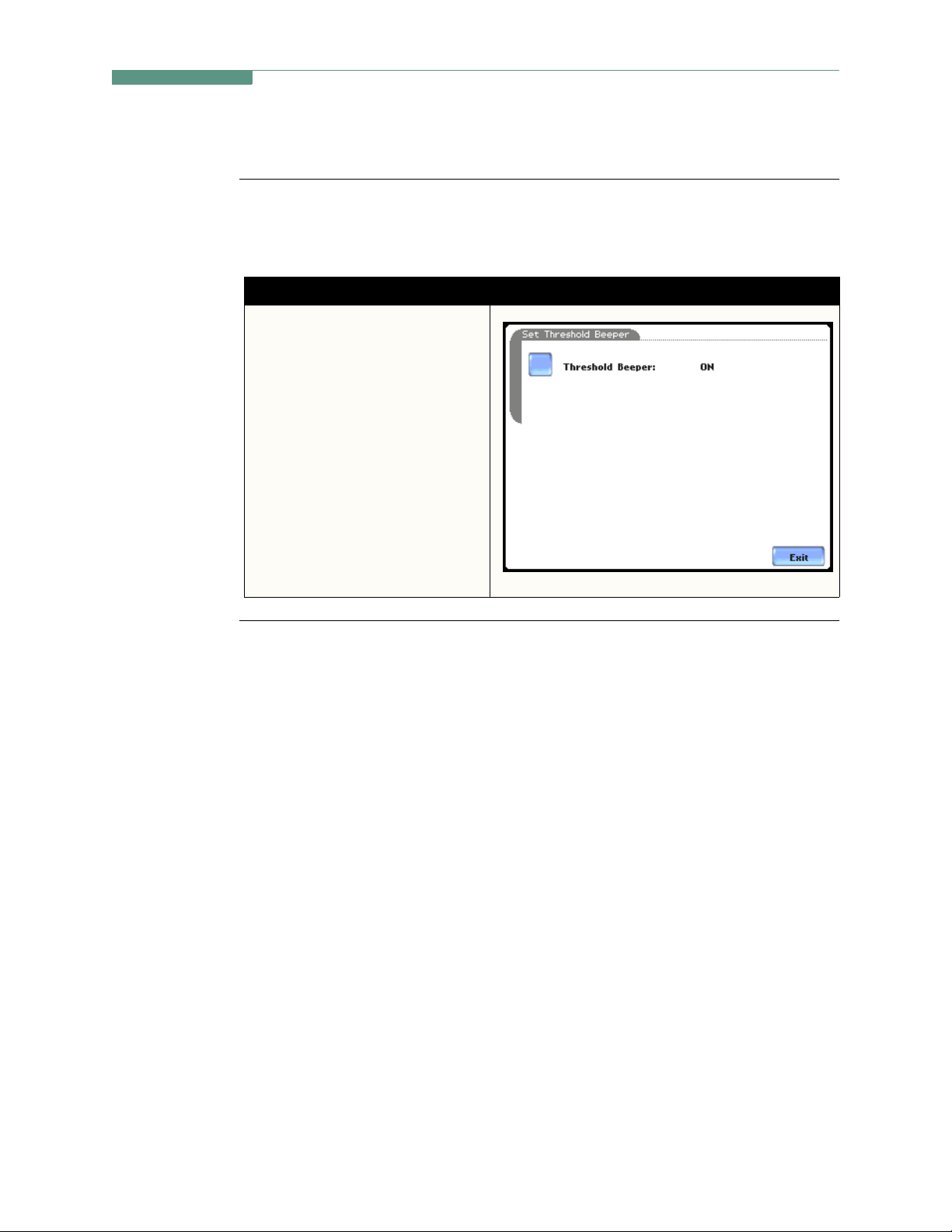

Turn Threshold Beeper On/Off ............................................................................................. 4-9

Communications.................................................................................................................... 4-10

Data Card............................................................................................................................... 4-12

Reset to Factory Configuration.............................................................................................. 4-15

CHAPTER 5 - Start Menu

Overview ............................................................................................................................... 5-1

Section A -Automatic Setup......................................................................................................... 5-3

Section B -Wizard Setup.............................................................................................................. 5-6

Overview ............................................................................................................................... 5-6

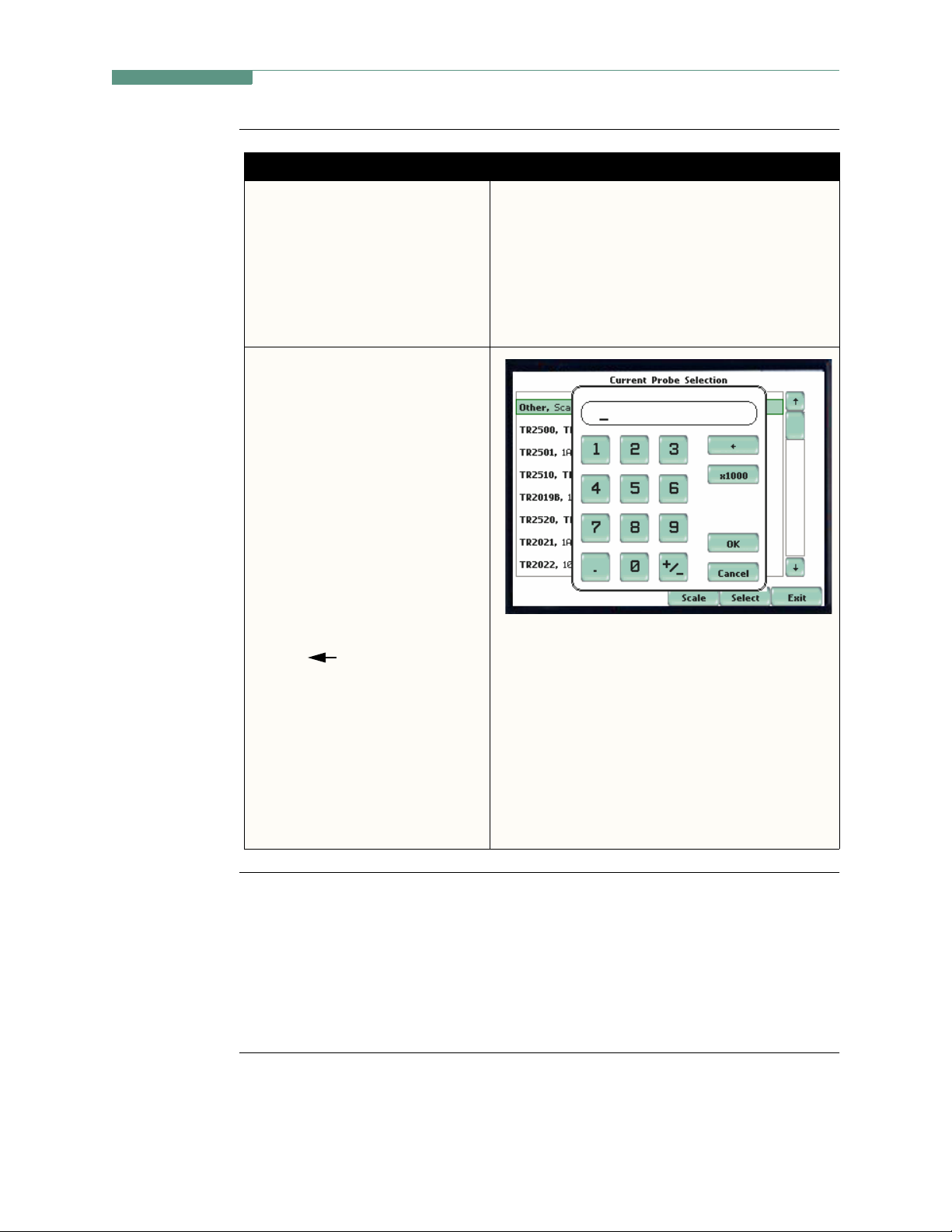

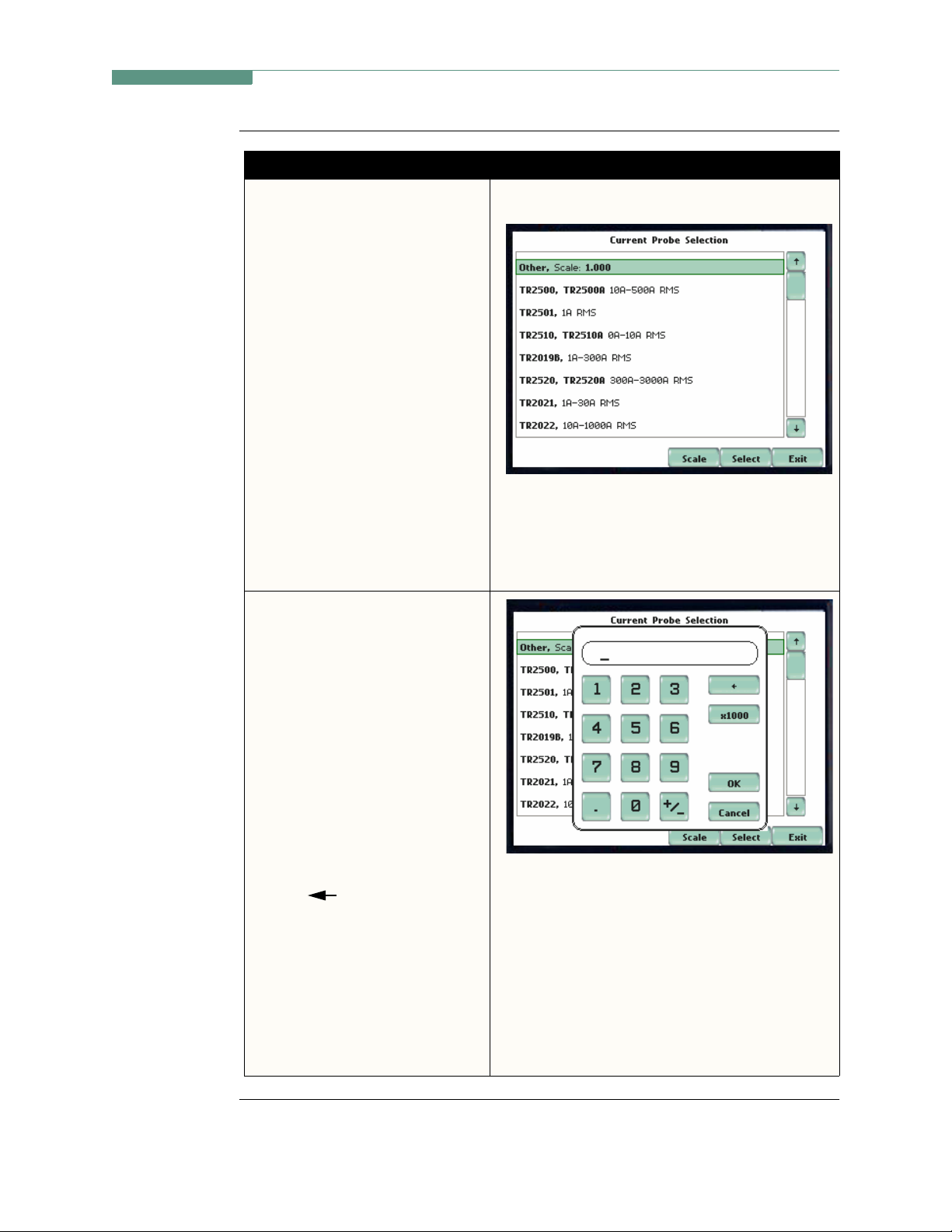

Current Probe Selection.........................................................................................................5-8

Scale Factor Setup ................................................................................................................. 5-10

Circuit Type Selection........................................................................................................... 5-12

Nominal Values ..................................................................................................................... 5-14

Mode of Operation................................................................................................................. 5-17

Monitoring Mode................................................................................................................... 5-18

Advanced Options ................................................................................................................. 5-19

Site Name/Memory Card....................................................................................................... 5-20

Section C -Monitor Same Circuit.................................................................................................5-24

Overview ............................................................................................................................... 5-24

Turning Monitoring On/Off................................................................................................... 5-25

Monitoring at a Specified Time and Date ............................................................................. 5-28

Modify Trigger Parameters and Intervals.............................................................................. 5-33

Section D -Load Setup Template from Card................................................................................ 5-34

Section E -Load Data from Card..................................................................................................5-35

Overview ............................................................................................................................... 5-35

Loading Data from Card........................................................................................................ 5-35

Card Error Messages ............................................................................................................. 5-36

Continued

CHAPTER 6 - Advanced Setup Options

Overview ............................................................................................................................... 6-1

Advanced Options Menu....................................................................................................... 6-2

RMS Variation Limit.............................................................................................................6-3

Table of Contents,

Demand Parameters............................................................................................................... 6-5

Journal Limit.......................................................................................................................... 6-8

Journal Interval for Timed Readings..................................................................................... 6-12

CHAPTER 7 - View Event Data

Overview ............................................................................................................................... 7-1

Section A -Event List................................................................................................................... 7-4

Overview ............................................................................................................................... 7-4

Section B -Trend .......................................................................................................................... 7-5

Overview ............................................................................................................................... 7-5

Trend Display ........................................................................................................................ 7-6

Trend Setup............................................................................................................................ 7-7

CHAPTER 8 - Reports

Overview ............................................................................................................................... 8-1

Demand and Energy Report .................................................................................................. 8-2

CHAPTER 9 - Downloading Events

Continued

Overview ............................................................................................................................... 9-1

Viewing Events via EPRW.................................................................................................... 9-2

Viewing Events via DranView.............................................................................................. 9-3

DranView with HASP ........................................................................................................... 9-4

APPENDIX A - Optional Accessories

Overview ............................................................................................................................... A-1

Hardware Accessories List & Descriptions........................................................................... A-2

Software Accessories List ..................................................................................................... A-7

APPENDIX B - Technical Specifications

Overview ............................................................................................................................... B-1

General................................................................................................................................... B-2

Interfaces ............................................................................................................................... B-3

Measured Parameters............................................................................................................. B-4

Computed Parameters............................................................................................................ B-5

Parameter Settings in Each Monitoring Mode ...................................................................... B-9

TR2500 Current Probe........................................................................................................... B-10

TR2510 Current Probe........................................................................................................... B-11

DRANFLEX 3000XL/6000XL Current Probes.................................................................... B-12

DRANFLEX 3003XL/6003XL Current Probes.................................................................... B-13

Table of Contents,

APPENDIX C - Battery Specifications and Replacement Procedure

Overview ............................................................................................................................... C-1

Battery Specifications............................................................................................................ C-2

Battery Pack Safety Precautions............................................................................................ C-3

Battery Pack Replacement..................................................................................................... C-4

APPENDIX D - User Replaceable Parts List

APPENDIX E - Common Circuit Connections

Overview ............................................................................................................................... E-1

Verifying Voltage and Current Connections......................................................................... E-5

Single Phase........................................................................................................................... E-7

Split Phase ............................................................................................................................. E-8

3 Phase, Four Wire Wye........................................................................................................ E-9

3 Phase 2-Watt Delta............................................................................................................. E-10

2 1/2 Element Without Voltage Channel B........................................................................... E-11

2 1/2 Element Without Voltage Channel C........................................................................... E-12

Connecting to a Potential Transformer (PT) ......................................................................... E-13

Connecting to a Current Transformer (CT)........................................................................... E-15

Connecting to an Isolated Current Transformer (ISO).......................................................... E-16

Continued

APPENDIX F - Event Classification

APPENDIX G - Energy Platform Menu Structure

xii

MAVOWATT 20

ENERGY PLATFORM

xiii

 Dranetz-BMI Energy Platform



xiii

xiv

Overview

CHAPTER 1

Getting Started

Energy Platform description

Energy Platform firmware

The Dranetz-BMI Energy Platform

is a portable, hand-held, eight-channel demand and energy meter/monitor. This advanced power instrument is designed with a color liquid crystal display (LCD) 1/4 VGA, using touch screen technology. It can monitor, record and display data on four voltage channels and four current channels simultaneously.

The Energy Platform is designed to allow the user to easily conduct a complete demand and energy audit of a facility, a distribution circuit, or an individual piece of equipment. In addition, it simultaneously provides basic power quality (PQ) information about the system being monitored.

The firmware for the Energy Platform is contained on internal FLASH memory. It has an operating system capable of performing multiple applications. When an updated version of the firmware is released, the user can upgrade the internal program by putting the latest Energy Platform firmware program card in the appropriate slot of the mainframe. See page 1-10 for instructions on how to upgrade the Energy Platform

firmware from a data card.

The Energy Platform firmware can monitor demand and energy parameters for energy audits, efficiency studies and cost reduction programs. It can carry out long-term statistical studies to establish performance baselines, and perform field-based equipment testing and evaluation for commissioning and maintenance. The firmware integrates an intuitive instrument setup procedure to ensure the capture of all relevant data for additional post process analysis, report writing, and data archiving using other

compatible Dranetz-BMI software applications such as the Energy Platform

and DranView®.

Writer

Report

This manual

This manual contains instructions for operating the Dranetz-BMI Energy Platform.

1-1

Overview, continued

In this chap ter

The following topics are covered in this chapter.

Topic See Page

Unpacking the Energy Platform 1-3 Standard Accessories 1-4 Energy Platform Controls, Indicators and Connectors 1-5 Upgrading Firmware from a Data Card 1-10 Energy Platform Features 1-12 Basic Operation 1-14

1-2

Unpacking the Energy Platform

CH 1/ Getting Started

Introduction

Unpacking

Shipping damage inspection

For maximum protection against possible shipping damage, the Energy Platform has been sealed in a two-piece, plastic suspension pack, enclosed within a durable shipping carton. After opening the carton, inspect the contents for possible shipping damage and check the carton inventory.

Unpack the Energy Platform from the carton as follows:

Step Action

1 Remove any remaining literature inside the top of the carton. 2 Carefully remove the Energy Platform from its shipping carton. 3 Remove all accessories inside the carton. Check that all of the standard

accessories (see page 1-4) are included.

Visually inspect the Energy Platform for possible shipping damage. If any damage exists, first notify and file an insurance claim with your carrier or underwriter or both. Then notify Dranetz-BMI Customer Service Department of your intentions to return the unit. DO NOT return the Energy Platform without prior instructions from DranetzBMI Customer Service Department. Dranetz-BMI Customer Service Department can be reached at (732) 287-3680 or 1-800-372-6832.

Repacking for return shipment

Return notice

If the unit must be returned to Dranetz-BMI for service or repair, wrap the unit securely in heavy packaging material and place in a well padded box or crate to prevent damage. Do not return the Energy Platform in an unpacked box. Dranetz-BMI will not be responsible for damage incurred during transit due to inadequate packing on your part.

Notify Dranetz-BMI Customer Service of your intention of returning the unit. Do not return the unit without prior instructions from Dranetz-BMI. Dranetz-BMI Customer Service Department can be reached at (732) 287-3680 or 1-800-372-6832.

1-3

Standard Accessories

Standard accessories

Optional accessories

The following table lists the Energy Platform's standard accessories.

Description Part Number

Standard Software Accessories

Energy Platform

Report Writer (EPRW) 118070-G1

Standard Hardware Accessories

Cable Set 116042-G6 Easel 116038-G1 AC Adapter 117029-G1 *US Power Cord USSTDCORD (900744) *European Power Cord EUROSTDCORD (115369-G2) *United Kingdom Power Cord UKSTDCORD (115368-G2) *Australian Power Cord AUSTDCORD (901347) Notice: Charge Battery 899156 Energy Platform User Guide (CD) UG-EP1 Energy Platform Quick Reference Guide QR-EP1 *User specified, one standard only.

Refer to Appendix A for the list of hardware and software optional accessories available for use with Energy Platform.

Batteries

Replaceable parts

Calibration

Refer to Appendix C for the description and replacement of the batteries contained in Energy Platform.

Refer to Appendix D for the user replaceable parts.

The recommended calibration interval for this unit is once every 12 months.

We recommend that you return the unit to the factory for calibration. If you decide to do so, first contact the Dranetz-BMI Customer Service Department to obtain an Authorization Number.

Telephone: (732) 287-3680 or 1-800-372-6832 FAX: (732) 248-9240

Fill out the Repair/Service Order form enclosed in the shipping carton and ship it along with the unit to the Dranetz-BMI Repair Department. (If this form is missing, ask the Dranetz-BMI Customer Service Department for a replacement.)

1-4

Energy Platform Controls, Indicators, and Connectors

CH 1/ Getting Started

Dimensions

Energy Platform is a self-contained, portable instrument weighing less than 4 pounds and measuring 8" (20.3 cm) deep by 12" (30.5 cm) wide by 2.5" (6.4 cm) high. This section identifies and describes the controls, indicators, and connectors on all panels of the Energy Platform shown with rubber boot installed.

PROBE

Top View

Front View

VOLTAGE

INPUTS

600V RMS MAX

INPUTS

CONNE CT ON LY

DRANE TZ -B M I

ACCESSORIES

Va Ia Vb Ib Vc Ic Vd (+) IdVd (-)NEUTRAL

Rear View

Bottom View

1-5

Energy Platform Controls, Indicators, and Connectors, continued

Top and Side views

The top (circuit connection) view features the input voltage and current connectors. The left side contains the optical interface port. The right side contains the AC adapter input connector. Both sides have rings for attaching the supplied carrying strap. See below for descriptions of the top and side connectors.

1 2 3 5

PROBE

VOLTAGE

INPUTS

600V RMS MAX

Va Ia Vb Ib Vc Ic Vd (+) IdVd (-)NEUTRAL

INPUTS

CONNECT ONLY

DRANETZ-BMI ACCESSORIES

11 12

6 7 8 9

104

Parts table

1-6

Part Function

1 CH A, Voltage Input Connector; color red. 2 CH A, PROBE, Current Input Connector. 3 CH B, Voltage Input Connector; color yellow. 4 CH B, PROBE, Current Input Connector. 5 CH C, Voltage Input Connector; color blue. 6 Neutral, Voltage Input Connector; color white. 7 CH C, PROBE, Current Input Connector. 8 CH D, + Differential Voltage Input Connector; color grey.

9 CH D, - Differential Voltage Input Connector; color white. 10 CH D, PROBE, Current Input Connector. 11 Optical Serial Data Port 12 AC Adapter/Battery Charger Input Connector.

CH 1/ Getting Started

Front view

The front view primarily shows the color touch screen LCD. See below for descriptions of the Energy Platform front panel.

Parts table

Part Function

1 Mainframe Protective Rubber Boot Enclosure

2 Liquid Crystal Display (LCD). Provides 3.75 x 4.75 inches display

consisting of 1/4 VGA size screen of text and graphic information. The color LCD is equipped with touch screen technology, operable using the finger and/or PDA stylus. Touch screen display permits menu selection, alphanumeric data entry, and has a compact fluorescent (CCFL) backlighting that is always on for low light level viewing.

The following are some basic care instructions for the LCD monitor

• Use and store the unit within the specified temperature and humidity range. The LCD screen may be adversely affected by exposure to high temperature or humidity. Condensation or moisture produced by sudden temperature changes may also damage the LCD screen. Clean any moisture from surface immediately.

• Be careful when cleaning or removing stains on the LCD surface. Gently wipe the surface with a soft cloth or cotton pad. Isopropyl alcohol may be used, but make sure that all solvent residue is removed.

• Do not apply excessive force to the LCD surface. The LCD screen contains sensitive electronic components that may be damaged due to strong impact.

1-7

Energy Platform Controls, Indicators, and Connectors, continued

Bottom view

Parts table

The bottom view features a slot to hold the data card.

The bottom also features LED indicators and the On/Off power button. See below for descriptions of the data card slot, indicators, and power button.

1 2 4 53

Part Function

1 Data Card Slot. Holds and connects data card to internal circuitry. Eject data

card by pushing data card release.

2 Battery Charge Indicator. LED will light steadily while battery is fast

charging and blink when fully charged.

3 Status Indicator. LED will light steadily when abnormal condition is detected.

The unit is operating normally when light is off.

4 Power Indicator. LED will blink in a heartbeat fashion (once per second) when

the unit is operating normally.

5 On/Off Power Button. Push for on, push for off.

1-8

CH 1/ Getting Started

Rear view

The rear view shows the battery compartment and the easel studs to mount the unit to desired angular position for use on a flat surface or to hang from a panel.

1-9

Upgrading Firmware from a Data Card

Energy Platform firmware web upgrade

Copy firmware program in data card

Users can upgrade the Energy Platform internal program by downloading the latest firmware update release from the web and installing it into the Energy Platform internal memory. Refer to the instructions below on how to upgrade the Energy Platform firmware.

Firmware upgrades for the Energy Platform can be downloaded from the Dranetz- BMI website. Log on to w ww.dranetz-bmi.com for the latest information on Energy Platform firmware update releases.

The procedure below specifies how to download the latest Energy Platform firmware from the web and copy it into a data card.

Step Action

1 Locate the latest version of the firmware upgrade (in data file format

“hostcode.bin”) from the Dranetz-BMI website www.dranetz-bmi.com. Dranetz-BMI regularly posts the latest information and instructions regarding Energy Platform firmware upgrade releases.

2 Format the Compact Flash data card using the Memory Card options in

Energy Platform. The card must be formatted before it can be written to. Refer to Chapter 5 Start Menu - Site Name/Memory Card for instructions on how to format data card.

NOTE: All data and setups stored in card will be lost when you format the data card. Copy any files that you want to save to a computer first before formatting card.

3 Insert the Compact Flash data card into the appropriate slot in the

computer. If the computer does not accommodate a Compact Flash card in its native format, use a compatible PC card adapter to be able to read/ write data into the card.

4 Download and copy the latest version of the Energy Platform firmware

upgrade program (data file “hostcode.bin”) from the Dranetz-BMI website to the data card.

Refer to page 1-11 for instructions on how to install the data card containing the latest firmware upgrade to the Energy Platform.

1-10

CH 1/ Getting Started

Install data card to Energy Platform

The procedure below specifies how to install the data card containing the latest firmware upgrade to the Energy Platform.

Step Action

1 Make sure that the unit is off. If not, press the Energy Platform On/Off

power button to turn unit off.

2 Remove the data card from its protective holder and check that the plug

end of card is clean and free of any obstruction.

NOTE: If plug end of card is dirty, clean with static-free, dry, low pressure air to remove any foreign material causing obstruction of the plug holes.

3 At the bottom of the unit, position the data card with the label facing up

and the plug end facing the Data Card Slot.

4 Insert the card fully into the data card slot until resistance is felt, then

press firmly until card engagement is felt.

NOTE: Do not force the card further into the slot if no card engagement is felt. Remove card and check if there is foreign object on or in the plug end of the card. Remove any obstruction. Reinsert program card and repeat card engagement. If card cannot be engaged, STOP all further action and call Dranetz-BMI Technical Support at 1-800-372-6832 for assistance.

5 Turn the unit on by pushing the on/off button. The loader should display

“Booting from program card”. If not, call Dranetz-BMI Technical Support for assistance.

6 The instrument will prompt the user to verify whether or not to upgrade

the firmware. Press Yes and the upgrade procedure will commence. Do not turn the power off nor remove the data card while firmware upgrade is in progress.

7 If no errors were detected, a window displaying “Installation Complete”

will pop up. Remove the data card from the unit.

1-11

Energy Platform Features

Touch screen function

Scope mode

Meter mode

Harmonics

All Energy Platform functions described below are operable using a color LCD touch screen technology. Users may use a finger and/or a PDA stylus to apply pressure to the LCD screen to result in touch screen recognition. The touch screen display is also workable with lineman gloves on. Touch screen buttons will appear in reverse-video to show visual feedback of contact along with audible feedback. In order to reduce power consumption, the backlight of the LCD screen times-out after a specified programmable time of no user activity. The backlight reactivates by touching any part of the screen.

Scope mode functions as an oscilloscope, displaying real-time waveforms of voltage and current for up to eight channels simultaneously, with one second update rate. The colors of waveform display are user programmable. Scope mode also provides a textual display of rms values, division for axis values, and frequency.

Meter mode functions as a true rms voltmeter and a true rms clamp-on ammeter. Voltage and current measurements, along with other calculated parameters, are displayed on the Meter mode screens in both textual and graphical format.

Harmonics display the amplitude and phase of each harmonic to the 63rd harmonic in both graphical and textual format.

Phasor diagram

Event

The phasor screen displays a graph that indicates phase relations between voltage and current based upon the angles at the fundamental frequency, as determined by Fourier analysis. Phasor diagram displays voltage and current phasors for all channels. Functioning as a phase angle meter, the unit can display system imbalance conditions and provides such information in textual form also. The phase angle display can also verify if monitoring connections have been made correctly. Animated phasor demo rotations demonstrating resistive, inductive and capacitive loads can be displayed.

Energy Platform features an Event List screen which shows a summary of all captured events in the order that they occurred. An event occurs when a programmed threshold limit is crossed. Energy Platform is able to record three types of events namely sag, swell or aggregate snapshot.

Continued on next page

1-12

CH 1/ Getting Started

Monitoring capacity

Automatic setup, Wizard setup, or Advanced setup

Trend

The Energy Platform can monitor the following power configurations:

• Single Phase • 3 Phase 2-Watt Meter Delta

• Split Phase • 2 1/2 Element without V

• 3 Phase Wye • 2 1/2 Element without V

While monitoring any of the above configurations, the Energy Platform can also be connected to monitor neutral to ground voltage and neutral or ground current, where applicable.

Setup is a configuration of parameter thresholds that control the data recorded by the Energy Platform. Users may perform instrument setup in three ways: via Automatic Setup which utilizes auto-configured settings and allows users to proceed directly with data monitoring; via Wizard Setup which follows a step-by-step sequence where users go through a series of circuit setup screens; or via Advanced setup which allows users to modify trigger parameters and intervals or tweak threshold settings under the Advanced Options.

Users can generate plots for all journalled data combined with min/max recordings of that parameter. Most journal parameters have multiple channels to plot.

Reports

Data Card

Energy Platform features a summary report for Demand and Energy parameters in easy to read format. The data is displayed via the report panels. The panel is color coded such that green indicates the parameter is within limits, yellow means parameter is moderately out of limits, while red means parameter severely exceeds the monitoring limits.

Energy Platform supports the use of Compact Flash data card with part number CFDATA-DB. The user replaceable data card is used as primary storage for data. Data monitoring CANNOT proceed without the data card. The Energy Platform is designed to accommodate the Compact Flash card in its native format, and does not require the use of a PC card adapter. However, a PC card adapter can be used to read the data into a laptop or other computer with a PC card slot.

1-13

Basic Operation

Introduction

Battery pack

The normal power source for the Energy Platform is its internal battery pack. The AC Adapter/Battery Charger is used to charge the battery. Always charge the battery fully before use. The Energy Platform will always operate on the charger and is designed to do so, regardless of the state of charge of the battery.

Type:

Sealed, rechargeable NiMH (Nickel Metal Hydride) cells.

Length of operation for more than two (2) hours with the backlight on. When the backlight is turned off, the unit can operate for more than three (3) hours. For information on how to turn backlight on or off, see Chapter 4 Instrument Settings - Set Display Preferences.

Charging Charger to the Energy Platform. A screen warning will appear during operation when battery charge is low. A depleted battery pack can be recharged in six (6) hours whether the unit is on or off. The Battery Charge Indicator glows steadily while charging, and flashes when fully charged.

NOTE: The Battery Charge Indicator functions whenever the AC Adapter/Battery Charger is properly connected.

: The battery pack can be charged by connecting the AC Adapter/Battery

: The Energy Platform can operate on a fully charged battery pack

AC power source

The Energy Platform can be operated from a 50/60 Hz 120/230V AC power source with or without the battery pack installed.

Connect the AC Adapter output cable to the Input Connector on the right side of the Energy Platform. Connect the AC Adapter power cord to an appropriate outlet.

Refer to Appendix C for the specifications and replacement of the batteries contained in Energy Platform.

1-14

CH 1/ Getting Started

Power on sequence

Follow these steps to turn on the Energy Platform and display the Home screen.

Step Action

1 Connect ac adapter/battery charger plug into the right side of Energy Platform. 2 Plug the ac adapter into an ac power source. 3 Press the Energy Platform On/Off power button to turn the unit on.

Result

: The Home screen will be displayed.

EP001

Home screen features

Home screen is frequently referenced as the starting point for all major functionalities of the Energy Platform.

The date and time appear on the top right corner of the Home screen. Both can be configured to appear in a different format. See page 4-3 for the procedure on how to set and reformat time and date.

The unit name and model, Energy Platform program revision level, and status messages appear in the upper portion of the Home screen. Pertinent information that appear in the status message area are the monitoring status, circuit configuration, percentage of data card used while monitoring, site/file name, number of event cycles saved, and number of timed intervals saved.

MONITORING STATUS: OFF indicates that the instrument is not actively monitoring data. The monitoring status message will change to ON, DONE or ARMED, depending upon the state of data monitoring. See page 5-25 for the procedure on how to turn monitoring on/off.

Home screen contains the icons used to access the various Energy Platform functions. See page 1-16 for the description of each icon found in Home screen.

1-15

Basic Operation, continued

Home screen icons

Home screen contains the following icons used to access various Energy Platform functions:

- Scope mode shows real-time voltage and current waveforms of the signals on

Scope the measuring inputs. See Chapter 3 View Real Time Data - Section A Scope Mode.

- Meter mode displays voltage and current measurements, along with other

Meter calculated parameters. See Chapter 3 View Real Time Data - Section B Meter Mode.

Harmonics

- Harmonic screen displays a spectral graph and textual matrix featuring the amplitude and phase of each voltage and current harmonic to the 63rd harmonic. See Chapter 3 View Real Time Data - Section C Harmonics.

- Phasor diagrams indicate phase relations between voltage and current based

Phasor upon the angles of the fundamental. See Chapter 3 View Real Time Data - Section D Voltage and Current Phasor.

Preferences

- Users can set instrument preferences like time and date, threshold alarm feedback, language selection, communications, LCD display, and data card operation. See Chapter 4 Instrument Settings.

- Events are displayed only after monitoring has been turned on or upon reading

Events a stored file from the data card. See Chapter 7 View Event Data - Section A Event List.

- Trend allows users to view plots of journalled data along with min/max

Trend measurements over the interval. See Chapter 7 View Event Data - Section B Trend.

Reports

- The Energy Platform allows users to view Demand or Energy status via the report panels. The color coded panel indicates whether or not a parameter is within limits. See Chapter 8 Reports.

Start/Setup

- Users have the option to use Automatic Setup and proceed directly with data monitoring or they can configure the instrument step-by-step using the Wizard Setup. Users can also do advanced setups to modify trigger parameters and intervals or tweak threshold settings under the Advanced Setup Options. See Chapter 5 Start Menu and Chapter 6 Advanced Setup Options.

1-16

CHAPTER 2

Volt age Measurement Cable and Current Probe Connections

Overview

Introduction

In this chap ter

WARNING Death, serious injury, or fir e hazard could r esult from impr oper conn ection of this

This section describes how to connect the Energy Platform to make basic single phase voltage measurements. For multi-phase connection diagrams, refer to Appendix E.

The following topics are covered in this c

Topic See Page

Connecting Voltage Measurement Cables 2-4 Connecting Current Probes 2-9

instrument. Read and understand this manual before connecting this instrument. Follow all installation and operating instructions while using this instrument.

Connection of this instrument must be performed i n compliance wi th the National Electrical Code (ANSI/NFPA 70-2008) and any additional safety requirements applicable to your installation.

Installation, operation, and maint enance of this ins trument must be perfor med by qualified personnel only. The National Electrical Code defines a qualified person as “one who has the skills and knowledge related to the construction and operation of the electrical equipment and installations, and who has received safety training on the hazards involved.”

hapter.

Qualified personnel who work on or near exposed energized electr ic al conductors must follow applicable safety related work practices and procedures including appropriate personal protective equipment in compliance with the Standard for Electrical Safety Requ ireme nts for Employe e W orkplac es (ANSI/NFPA 70E-20 09) of USA and any additional workplace safety requirements applicable to your installation.

Continued on next page

2-1

Overview, continued

ADVERTENCIA

Una conexión incorrecta de este instrumento puede producir la muerte, lesiones graves y riesgo de incendio. Lea y enti enda este manual antes de conectar. Observe todas las instrucciones de instalación y operación durante el uso de este instrumento.

La conexión de este instrumento debe ser hecha de acuerdo con las normas del Código Eléctrico Nacional (ANSI/NFPA 70-2008) de EE. UU., además de cualquier otra norma de seguridad correspondiente a su establecimiento.

La instalación, operación y mantenimiento de este inst rument o de be ser realizada por personal calificado solamente. El Código Eléctrico Nacional define a una persona calificada como “una que esté familiarizada con la construcción y operación del equipo y con los riesgos involucrados.”

2009) de los E.E.U.U. y cualquier requisito de seguridad adicional del lugar de trabajo aplicable a su instalación.

AVERTISSEMENT

Cet instrument doit être connecté conformément au National Electrical Code (ANSI/NFPA 70-2008) des Etats-Unis et à toutes les exigences de sécurité applicables à votre installation.

Cet instrument doit être inst allé, util isé et entre tenu uniquement par un perso nnel qualifié. Selon le National Electrical Code, une personne est qualifiée si “elle connaît bien la construction et l'utilisation de l'équipement, ainsi que les dangers que cela implique.”

2-2

CH 2/ Voltage Measurement Cables and Current Probe Connections

WARNUNG Der falsche Anschluß dieses Gerätes kann Tod, schwere Verletzungen oder Feuer

verursachen. Bevor Sie dieses Instrument anschließen, müssen Sie die Anleitung lesen und verstanden haben . Bei der Verwendung dieses In str ument s müssen alle Installation- und Betriebsanweisungen beachtet werden.

Installation, Betrieb und Wartung dieses Instruments dürfen nur von Fachpersonal durchgeführt werden. In dem nationalen Bestimmungen für Elektrizität wird ein Fachmann als eine Person bezeichnet, welche “mit der Bauweise und dem Betrieb des Gerätes sowie den dazugehörigen Gefahren vertraut ist.”

Qualifiziertes Personal, das an bearbeiten oder herausgestellte angezogene elektrische Leiter sich nähern, muß anwendbare Sicherheit bezogener Arbeit Praxis und Verfahren einschließlich passende persönliche schützende Ausr üstung gemäß dem Standard für elektrische Sicherheitsauflagen für AngestelltArbeitsplätze (ANSI/NFPA 70E-2009) der Vereinigten Staaten und alle zusätzlichen Arbeitsplatzsicherheitsauflagen folgen, die auf Ihre Installation anwendbar sind.

Safety precautions

The following safety precautions must be followed whenever any type of voltage or current connection is being made to the Energy Platform.

• Wear proper Personal Protective Equipment, including safety glasses and insulated gloves when making connections to power circuits.

• Hands, shoes and floor must be dry when making any connection to a power line.

• Before each use, inspect all cables for breaks or cracks in the insulation. Replace immediately if defective.

• Set the Energy Platform On/Off power button to Off.

• Before connecting to electric circuits to be monitored, open their related circuit breakers or disconnects. DO NOT install any connection of the Energy Platform to live power lines.

• Connections must be made to the Energy Platform first, then connect to the circuit to be monitored.

Continued on next page

2-3

Connecting Voltage Measurement Cables

Measurement cable set

Optional fused voltage adapter

Description stored in a cable pouch as part of the measurement cable set, P/N 116042-G6. Each cable set consists of a cable and alligator clip.

Voltage Rating Vrms max. For measuring voltages greater than 600 Vrms, potential transformers (PTs) must be used.

Contents to their actual use). A cable set consists of six, 6-foot channel measurement cable assemblies (probes), each with a detachable, alligator jaw, safety clip assembly (maximum jaw opening, 3/4 in (20 mm)). The safety clip assemblies are red (+) and black (-) for each of the four channels. One cable each of red (channel A), yellow (channel B), blue (channel C), and grey (channel D), and two each of white are provided.

A pouch for storage of the cables and the AC adapter/battery charger is included in the contents of the measurement cable set, but is not shown in the figure.

There are two optional fuse accessory kits available for use with the measurement cables. One kit (P/N FVA-1) contains one fused voltage adapter and one measurement connecting Red cable 50 cm in length. The other kit (P/N FVA-4) contains four voltage adapters and four measurement connecting cables 50 cm in length (one Red, one Yellow, one Blue, and one Grey).

: Voltage measurement cables are provided as standard accessories and are

: Direct connection of all voltage measurement cables are rated at 600

: The voltage measurement cables are shown on page 2-5 (positioned relative

2-4

The single fuse voltage adapter kit is used for one single voltage measurement input. While the four fuse voltage adapter kit is used for a three phase and neutral voltage measurement inputs.

Continued on next page

Measurement cable set w ith optional fuse diagram

CH 2/ Voltage Measurement Cables and Current Probe Connections

WARNING

EP-11.vsd

To avoid the risk of electric shock or burns, always connect the safety (or earth) ground before making any other connections.

To reduce the risk of fire, electrical shock, or physical injury it is strongly recommended to fuse the voltage measurement inputs. Fuses must be located as close to the load as possible to maximize protection.

For continued protection against risk of fire or shock hazard replace only with same type and rating of recommended fuse. Use only fast blow type fuse which is rated 600V. Recommended fuse type is Littelfuse, part number KLKD0.30 rated 600V AC/DC, 0.3A fast blow.

Do not replace fuse again if failure is repeated. Repeated failure indicates a defective condition that will not clear with replacement of the fuse. Refer condition to a qualified technician.

Contact Dranetz-BMI Customer Service for more information on the fused voltage adapter. Refer to Dranetz-BMI Information Sheet titled Model FVA - Fuse Voltage Adapter, P/N 899107.

2-5

Connecting Voltage Measurement Cables, continued

Connection guidelines

Example: Single phase connection

Follow these guidelines when making voltage connections.

• Refer to the measurement cable set figure for color coding of probes that connect to input channel connectors A, B, C, and D.

• Channel D input has plus (+) and minus (-) differential inputs. All voltage inputs have a range of 1 to 600 Vrms max.

The following figure shows a voltage connection to a single phase circuit for channel A.

2-6

EP-12.vsd

Continued on next page

CH 2/ Voltage Measurement Cables and Current Probe Connections

Example: Neutral to ground connection

The following figure shows a voltage connection using channel D as a differential input for measuring neutral to ground voltage. Connections are identical for split phase and wye configurations. One probe connects the source neutral line to the D+ input. Another probe connects the ground to the D- input.

EP-13.vsd

2-7

Connecting Voltage Measurement Cables, continued

Safety precautions

WARNING

ADVERTENCIA

AVERTISSEMENT

The following safety precautions apply to current probe connections in addition to those safety precautions stated on page 2-3.

• DO NOT attempt to measure current in any circuit in which the circuit to ground voltage exceeds the insulation rating of the current probe (600 Vrms max).

• Make sure the jaws of the current probe are tightly closed. Keep mating surfaces clean and free from foreign matter.

DO NOT USE non-insulated current probe cores around a non-insulated wire. Probes of this type are designed for use around insulated wires only. Use only completely insulated probe cores with no exposed conductive areas of the core around non-insulated wires.

NO UTILIZAR transformadores de corriente sin material aislante al rededor de conductores sin material aislante. Los Transformadores de corriente de este tipo están diseñados para ser utilizados solamente con conductores con aislamiento eléctrico. Utilizar transformadores de corriente completamente aislados alrededor de conductores sin aislamiento.

N'EMPLOYEZ PAS les noyaux courants non-isolés de sonde autour d'un fil nonisolé. Des sondes de ce type sont concues pour l'usage autour des fils isolés seulement. L'utilisatio n seul ement a compl ét ement iso lé des noyaux de sonde sans des secteurs conducteurs exposés du noyau autour des fils non-isolés.

WARNUNG

VERWENDEN Sie keine Stromzangen mit nicht isolierten Ferritkernen bei Messungen an nicht isolierten Leitungen. Stromzangen dieses Typs sind nur für Messungen an isolierten Leitern geeignet. Bitte verwenden Sie zur Messung an nicht isolierten Leitungen Stromzangen mit vollständig isoliertem Kernmaterial.

Continued on next page

2-8

Connecting Current Probes

CH 2/ Voltage Measurement Cables and Current Probe Connections

Current probes

Several Dranetz-BMI current probes can be used with the Energy Platform. Typical current probes are illustrated on page 2-10. Refer to Appendix A for descriptions and part numbers of probes and adapter cables. Refer to Appendix B for specifications of current probe models TR2500, TR2510, DRANFLEX 3000XL/6000XL, and DRANFLEX 3003XL/6003XL.

Probe positioning position the probe with the arrow pointing towards the load when monitoring the line conductor. Correct position of the probe is necessary for correct power measurements, where in-phase voltage and current measurements are necessary. A positive watts reading indicates that the probe is pointed towards the load, and a negative reading indicates that the probe is pointed towards the source.

: An arrow marking on the handle is a guide to ensure that you

Continued on next page

2-9

Connecting Current Probes, continued

Typical current probes

2-10

EP-14.vsd

NOTE: Current probes TR2500 can be used interchangeably with TR2500A, TR2510 with TR2510A, and TR2520 with TR2520A.

Continued on next page

CH 2/ Voltage Measurement Cables and Current Probe Connections

Typical current probes (continued)

Actual photos of TR series probes and part numbers are shown below to aid users in probe identification. Contact Dranetz-BMI Customer Service Department for more information on current probes, pricing and availability.

P/N TR-2500

P/N TR-2510 P/N TR-2520

P/N TR-2500A P/N TR-2510A P/N TR-2520A

Continued on next page

2-11

Connecting Current Probes, continued

Typical current probes (continued)

Photos of DRANFLEX probes are also shown below. These types of probes are available in lengths of 24, 36 and 48 inches and in two maximum ranges of 3000A RMS and 6000A RMS. Contact Dranetz-BMI Customer Service Department for more information on current probes, pricing and availability.

DRANFLEX Current Probes DRANFLEX 3000XL/6000XL current probes allow current measurements in the range of 0.5 to 3000 A full scale, or 0.5 to 6000 A full scale. Available in three sizes: 24” probe length - conductor(s) up to 8” diameter; 36” probe length - conductor(s) up to 11” diameter; 48” probe length - conductor(s) up to 17” diameter.

P/N 3000XL/24 (24” probe length)

DRANFLEX 3-Phase Current Probes DRANFLEX 3003XL/6003XL are 3-Phase current probes that allow current measurements in 3 Phase circuits in the range of 0.5 to 3000 A full scale, or 0.5 to 6000 A full scale. Available in three sizes: 24” probe length - conductor(s) up to 8” diameter; 36” probe length - conductor(s) up to 11” diameter; 48” probe length - conductor(s) up to 17” diameter.

2-12

P/N 3003XL/24 (24” probe length)

CH 2/ Voltage Measurement Cables and Current Probe Connections

Single phase current probe connection example

The following figure shows how to connect a current probe to channel A for current monitoring of a single phase line.

The current probe may be connected to the return line if desired to measure the return current when checking for load current leakage, loop current relationships, etc. If measuring power, position the probe with the arrow pointing towards the load.

EP-15.vsd

NOTE: The connection shown above is not recommended without a voltage connection to ensure frequency synchronization. If this configuration is used, then an internal frequency reference must be entered. Refer to pages 5-14 to 5-16.

2-13

This page intentionally left blank.

2-14

Overview

CHAPTER 3

View Real Time Data

Introduction

Access to real time data

The Energy Platform allows users to view demand/energy quality phenomena as it happens, when it happens. The instrument is able to capture and process data in real time, and allows users to view it in Scope mode, Meter mode, Harmonics, and Phasor display.

Icons for Scope mode, Meter mode, Harmonics and Phasor display are available in the Home screen. Follow these steps to display the Home screen.

Action... Result...

STEP 1: Press the Energy Platform On/Off power button to turn the unit on. The Home screen will be displayed.

In this chap ter

EP001

This chapter is divided into four sections.

Section Title See Page

A Scope Mode 3-2 B Meter Mode 3-5 C Harmonics 3-12 D Voltage and Current Phasor 3-18

3-1

Overview

Section A

Scope Mode

Introduction

Scope mode screen

Scope mode allows you to view real-time voltage and current waveforms for up to eight channels simultaneously.

The Scope mode screen can be displayed by pressing the Scope key on the Home screen.

Volts/Amps channel labels and RMS val ues for displayed waveforms

Frequency

Voltage scale Current scale

MARK201

Turn channels on/off (p. 3-3)

Show channels input range (p. 3-4)

Return to Home screen

Display one cycle of selected waveforms which are scaled relative to the largest peak value. V & I are scaled separately.

In this section

3-2

The following topics are covered in this section.

Topic See Page

Turning Channels On/Off 3-3 Checking Input Range 3-4

Turning Channels On/Off

CH 3/ View Real Time Data

Select channels to display

From the Scope mode screen, press Chan to turn Volts/Amps channel selection on/off.

MARK202

Any of the following will turn channels on/off:

• Press the desired Volts/Amps channel to turn it on/off.

• Press Volts or Amps button to turn on/off all channels of that parameter.

• Press A, B, C, D to turn on/off both the Volts and Amps for that channel.

Press OK to accept channel selection.

3-3

Checking Input Range

Input range

Input range description

The Input Range screen is displayed by pressing the CkRng key on the Scope mode screen. Input Range shows the detected range for all channels. The number after the status shows the percentage of the input of the instrument’s full range.

MARK205

The input range can only be viewed, not changed. Press OK when done viewing the input range.

The following table describes the messages that may register on the Input Range screen. The instrument is able to detect the input range for voltage and current channels A, B, C, and D.

3-4

Input Range Description

OK Within Range

OVER Over Range

UNDER Under Range

N/A Channel Disabled

CLIP Clipping

If input range is OVER, UNDER, or CLIP, then the rms readings will not be accurate. Using CTs below 10% of Full Scale may also cause inaccuracies in amplitude, phase and harmonic distortion readings.

Overview

Section B

Meter Mode

CH 3/ View Real Time Data

Introduction

Metered parameters display

In this section

Meter mode allows you to view real-time meter data. The metered parameters available are logically separated into Standard, Distortion and Advanced tabs. Meter screens are displayed in tabular form.

NOTE: Meter mode operation does not interfere with any of Energy Platform’s other monitoring or recording functions. The individual voltage and current channel meter readings are not affected by the monitoring setup. Turning monitoring of individual channels off does not affect meter readings. Meter and Scope data is NOT available if you are viewing a stored file from the data card.

The Energy Platform is designed to provide setup as well as data display. Metered parameters are available for display regardless if they are being journalled under Setup New Circuit > Advanced Options > Journal Limit Setup. Users can trend journal entries by limits (Very High, High, Low, Very Low) or by time (users can set the time interval of how often rms and waveform snapshots will be recorded even when no disturbances occur). For the procedure on how to set entries under journal parameters, go to Chapter 6 Advanced Setup Options - Journal Limit.

The following topics are covered in this section.

Topic See Page

Standard Meter Tab 3-6 Distortion Meter Tab 3-8 Advanced Meter Tab 3-10

3-5

Standard Meter Tab

St andard Meter Tab

Standa rd meter list

Meter mode can be displayed by pressing the Meter icon on the Home screen. At startup, meter mode defaults in the Standard tab featuring the basic power quality parameters available. The standard metering properties include Basic Voltage & Amps, Computed Basic, Power, Demand, Energy, Harmonics, and Advanced Energy as shown below.

EP301

Standard Tab Parameter Name Label

Basic

(for A, B, C, D)

Vo l t s NOTE: Some voltage channel meter

Vo l t s

values are derived based on the circuit type selection. The values will change depending on the wiring configuration setup.

Ampere Amps

3-6

Computed

Basic

Vector Displacement Power Factor Vector Displacement PF Arithmetic Displacement Power

Factor

Arithmetic Displacement

PF Residual Current Residual Current Net Current Net Current

Power

(for A, B, C, D,

Watts W Vo lt s A m p er e VA

Total)

Volts Ampere Reactive VAR True Power Factor TPF Displacement Power Factor DPF

NOTE: See Appendix B Technical Specifications - Computed Parameters for definition of parameters.

Continued on next page

Standa rd meter list (continued)

CH 3/ View Real Time Data

Standard Tab Parameter Name Label

Demand Active Power Demand Active Power Demand

Apparent Power Demand Apparent Power Demand Reactive Power Demand Reactive Power Demand RMS Current Demand Phase A RMS Current Demand Ph A RMS Current Demand Phase B RMS Current Demand Ph B RMS Current Demand Phase C RMS Current Demand Ph C RMS Current Demand Average RMS Current Demand Avg

Energy

(for A, B, C, D,

Watt Hours Watt Hrs Volts Ampere Hours VA Hrs

Total)

Volts Ampere Reactive Hours VAR Hrs

Harmonics

(for A, B, C, D)

Voltage Total Harmonic Distortion V THD Current Total Harmonic Distortion I THD Harmonic Power Unsigned Harm Pwr Unsigned

Advanced

Energy (for A,

B, C, D, Total)

Forward Fundamental Frequency Watt Hours

Forward Fundamental Frequency

Fwd Whr

Fwd VAR Hr

Volts Ampere Reactive Hours Reverse Fundamental Frequency

Rev Whr

Watt Hours Reverse Fundamental Frequency

Rev VAR Hr

Volts Ampere Reactive Hours

3-7

Distortion Meter Tab

Distortion meter list

The Energy Platform is able to meter distortions or uncharacteristic changes in the waveform of original signals. Distortion calculations measure the deviation of complex waveshapes from pure sine waves. Harmonics are measured in accordance with IEC 61000-4-7 Class I.

EP311

Distortion Tab Parameter Name Label

THD

(for A, B, C, D)

Voltage Total Harmonic Distortion Fundamental

V THD fund

TID

(for A, B, C, D)

Current Total Harmonic Distortion Fundamental

Voltage Total Harmonic Distortion Root Sum of Square

Current Total Harmonic Distortion Root Sum of Square

Voltage Total Interharmonic Distortion Fundamental

Current Total Interharmonic Distortion Fundamental

Voltage Total Interharmonic Distortion Root Sum of Square

Current Total Interharmonic Distortion Root Sum of Square

I THD fund

V THD RSS

I THD RSS

V TID fund

I TID fund

V TID RSS

I TID RSS

Continued on next page

3-8

Distortion meter list (continued)

CH 3/ View Real Time Data

Distortion Tab Parameter Name Label

TIF

(for A, B, C, D)

Crest Factor

(for A, B, C, D)

Power

(for A, B, C, D)

Transformer

(for A, B, C, D)

Voltage Telephone Influence Factor

V TIF fund

Fundamental Current Telephone Influence Factor

I TIF fund

Fundamental Voltage Telephone Influence Factor

V TIF RMS

RMS Current Telephone Influence Factor

I TIF RMS

RMS Telephone Influence Factor Product TIF Prod Voltage Crest Factor Volts Crest Factor Current Crest Factor Amps Crest Factor Signed Phase Harmonic Power Signed Unsigned Phase Harmonic Power Unsigned Transformer Derating Factor Derating Factor K Factor K Factor

3-9

Advanced Meter Tab

Advanced meter list

Advanced Energy/Demand include various energy parameters on per phase and total basis as well as in forward and reverse mode.

EP341

Advanced Tab Parameter Name Label

Peak Power Peak Watt Demand Peak Watt Demand

Peak Volts Ampere Demand Peak VA Demand Peak Volts Ampere Reactive

Peak VAR Demand

Demand Peak Current Demand Phase A Peak Current Dmd Ph A Peak Current Demand Phase B Peak Current Dmd Ph B Peak Current Demand Phase C Peak Current Dmd Ph C Peak Current Demand Average Peak Current Demand Avg

Predicted Power Predicted Watt Demand Predicted W Demand

Predicted Volts Ampere

Predicted VA Demand

Demand Predicted Volts Ampere

Predicted VAR Demand

Reactive Demand

Continued on next page

3-10

Advanced meter list (continued)

CH 3/ View Real Time Data

Advanced Tab Parameter Name Label

Advanced Energy

(for A, B, C, D,

Total)

Forward Fundamental Frequency Watt Hours

Forward Fundamental

Fwd Whr

Fwd VAR Hr Frequency Volts Ampere Reactive Hours

Reverse Fundamental Frequency Watt Hours

Reverse Fundamental Frequency Volts Ampere Reactive Hours

Rev Whr

Rev VAR Hr

3-11

Overview

Section C

Harmonics

Harmonics display

The Energy Platform allows users to view voltage and current harmonics/ interharmonics in graphical or in list form. Harmonics are waveform distortion, a steady-state deviation from an ideal power frequency sinusoid and is characterized by the spectral content of the waveform. Interharmonics are frequency components between the harmonic frequencies. The IEC 61000-4-7 Standard dictates that harmonic analysis is done using a synchronous window of 10 cycles for 50 Hz, or 12 cycles for 60 Hz. This results in bins which are nominally 5 Hz wide. The actual width of the bins is equal to the actual frequency divided by 10 if the nominal frequency is 50 Hz, and 12 if 60 Hz. For example, if actually operating at 49.9 Hz, the bin is 4.99 Hz, but is labelled “5 Hz” as specified by the standard.

Use the respective touch screen buttons to display the next Channel (Channels A, B, C, D) and the next Parameter (V, I, W) of harmonic data. The number of harmonics/ interharmonics displayed is up to the 60th. Summary values of odd, even and total distortion are displayed. A summary of harmonic distortion as well as interharmonic distortion values per phase/parameter are also available on display.

Users can determine the number or range of harmonic frequencies to trend and view in detail. There is also the option to select how to plot harmonic/interharmonic data and specify the units of measure by which harmonic data is calculated.

Harmonic Graph Users can choose the unit of measure by which harmonic data is calculated and graphed, based on a Percentage of the fundamental value or in Engineering units (volts and amps). Frequency components of harmonic graphs can be displayed either in Hertz or in Harmonic Number. The graphs can be zoomed and rescaled.

: Harmonics are measured in accordance with IEC 61000-4-7 Class 1.

In this section

3-12

Harmonic List measured values: frequency and harmonic number; magnitude in Engineering units and percent of fundamental; phase in degrees (for harmonics only). This list is displayed in order of ascending frequency, and can also be sorted in order of descending magnitude.

The following topics are covered in this section.

Harmonic Graph 3-13 Harmonic Detail 3-14 Harmonic Options 3-15 Harmonic List 3-17

: The list gives a textual display of the following for each of the

Topic See Page

Harmonic Graph

CH 3/ View Real Time Data

Harmonic graph display

Total harmonic distortion (THD) on Odd contribution and Even contribution based on 127 harmonics*

The harmonic graph can be displayed by pressing Harmonics on the Home screen. The screen defaults to a graphical spectrum display, although users have the option to choose between the graph and list form. The screen will show a spectral graph featuring the amplitude of the harmonics relative to the fundamental frequency.

Use the properties under the Options button to select the vertical and horizontal measurement scale. The percent magnitude of the first 60 harmonics are graphed relative to the fundamental.

Display is updated approximately once per second

MARK221

Switch channel display

Switch to V, I, or W

Magnify harmonic graph (p. 3-14)

Set harmonic options (p. 3-15)

Show harmonics text (p. 3-17)

*The odd contribution is the square root of the sum of the squares of the relative amplitudes of harmonics 3, 5, and 7 through N-1, where N is a function of sampling frequency. The even contribution is similar for harmonics 2, 4, and 6 through N. Total value is the square root of the sum of the squares of the odd and even distortions.

3-13

Harmonic Detail

Harmonic detail display

Fundamental exceeds square so bar extends past top

The Energy Platform allows users to determine the numbers or the range of harmonic frequencies to trend. A blue box showing the default zoomed area appears once the Detail button is pressed. Touch any side of the zoom box to activate the drag function. Touch and drag the sides of the zoom box to expand or narrow in on a select number of harmonic/interharmonic graphs. The zoom box moves horizontally only. The vertical scale will autoscale when zoomed.

NOTE: To select whether the vertical is scaled to the fundamental or the greatest harmonic, use the Options key (see page 3-15).

touch and drag zoom box to desired magnification scope

MARK235

3-14

MARK235b

harmonic data plot

(shown in channel color)

interharmonic data plot

(shown in gray)

MARK235c

The magnify buttons serve as zoom function keys, each of which feature a plus sign or a minus sign within. Press Zoom+ to display the zoomed area and view harmonic graphs in greater detail. Users may repeatedly zoom in on a plot for up to seven (7) levels. Press Zoom-(n) to unzoom graph display one increment at a time, where n is the counter of how many times the harmonic graphs have been magnified.

Harmonic Options

CH 3/ View Real Time Data

Harmonic/ Interharmonic data plots

The voltage and current harmonics and/or interharmonics for each phase channel can be trended using the Options button. The properties specified under Harmonic Options apply when harmonic/interharmonic data is viewed in either graph or list form.

Properties under Show Harmonics... pertain to both the graph and the list, and determine how the harmonics and interharmonics are used.

If Show Harmonics... only is enabled, then only the actual harmonics are shown.

If Show Harmonics... and Interharmonics is enabled, the spectrum will include all the (nominal) 5 Hz bins, which includes the actual interharmonics as well. On the graph, the harmonics are shown in the channel color, while interharmonics are shown in gray color. On the text, the harmonics are shown in boldface.

If Show Harmonics... calculated including adjacent interharmonics is enabled, the interharmonics are not explicitly shown but the harmonic values include the adjacent interharmonic values in their calculation, as specified by IEC 61000-4-7.

The IEC 61000-4-7 Standard specifies that the interharmonic bins adjacent to the harmonic be included in the computation of that harmonic. For example, if there was a 3rd harmonic (150 Hz) of 10%, and the value of the 145 Hz bin was 1%, and the value of the 155 Hz bin was 2%, then the value reported in the bin labelled “150 Hz” would also include contributions from the 145 Hz and 155 Hz bins. This would give

222

2110 ++

10.2%, not 10%.

The following graphs illustrate harmonic computation as per IEC 61000-4-7 Standard.

Harmonic Computation for 50 Hz

3.0%

2.5%

2.0%

1.5%

1.0%

0.5%

0.0% … 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200 205 210 215 220 …

3rd harmonic

2 adjacent

interharmonics

4th harmonic

2 adjacent

interharmonics

Continued on next page

3-15

Harmonic Options, continued

Harmonic/ Interharmonic data plots (continued)

Harmonic Computation for 60 Hz

The 5 Hz bins adjacent to the harmonic bin are grouped together for the harmonic magnitude. For example, at 60 Hz, 175+180+185 bins form the 3rd harmonic. All of the rest of the 5 Hz bins in between such are used to compute the interharmonic magnitude.

3.0%

2.5%

2.0%

1.5%

1.0%

0.5%

0.0% … 160 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 …

3rd harmonic

2 adjacent

interharmonics

4th harmonic

2 adjacent

interharmonics

Properties under Graph Uni ts pertain to the way the graph (not the list) is labelled. The vertical scale can be in Percent or Engineering units, and Scale to Fund (full scale) can be chosen to be the fundamental at 100% or the largest component. The engineering unit for voltage is volts and for current is amperes. The horizontal axis can be in Hz or Harmonic Number.

3-16

harmonic data display

measurement scale for frequency (x axis) and amplitude (y axis) of harmonics

full scale graph relative to fundamental frequency

MARK236

Harmonic List

CH 3/ View Real Time Data

Harmonic text display

To view the harmonics magnitude text display, press List from the Harmonic graph screen on page 3-14. The harmonic parameters displayed on list include: (from leftmost column) the harmonic/interharmonic frequency in Hz, frequency in number, voltage rms or maximum load of current (depending on parameter selected), percent amplitude of harmonics, and harmonic phase angle value.

By default, harmonic and interharmonic frequency values are arranged per increment of 5Hz. Use the Sort button to organize harmonic text display according to percent magnitude of the first 63 harmonics relative to the fundamental, followed by the interharmonic values.

Harmonic phase degree values from 1 to 63 are displayed for voltage and current; while phase degree values from 1 to 50 are displayed for harmonic watts. Harmonic phase angle values can be normalized to the phase of the fundamental of the displayed channel. Use the Norm button to show the normalized phase angle values.

Display is updated approximately once per second

Toggle between Normal and UnNormal phase values

MARK237

MARK237b

3-17

Overview

Section D

Voltage and Current Phasor

Phasor display

In this section

The phasor screen displays a graph that indicates the phase relations between the voltage and current based upon the angles of the fundamentals, as determined by Fourier analysis.

Phasor screen shows eight phasors autoscaled with zero degrees to the right (normally channel A voltage) for clockwise rotation and with synchronized channels. Users are allowed to display up to four channels at any one time for either volts or amps, or a single channel for both volts and amps, depending on the phases being monitored.

A touch screen Demo button presents an animated phasor demo rotation for resistive, capacitive and inductive loads.

The following topics are covered in this section.

Topic See Page

Phasor Screen 3-19 Phasor Rotation 3-20 Phasor Parameter/Channel Selection 3-22

3-18

Phasor Screen

CH 3/ View Real Time Data

Phasor screen display

If a channel is less than 20% of the maximum voltage (or current), the phasor is not displayed

The Phasor screen is displayed by pressing Phasor on the Home screen.

The Phasor screen shows eight phasors autoscaled with zero degree to the right for clockwise rotation and with synchronized channels. The left sidebar shows rms values for Volts/Amps for channels A, B, C and D; zero, positive and negative values for Volts/Amps; zero, positive and negative sequence component values for Volts/Amps.

Depending on the phases being monitored, up to four channels may be displayed at any one time for either Volts or Amps, or a single channel for both Volts and Amps. An arrow head and channel label are displayed on the vector.

Correct rotation is clockwise from 0

Sync channel is displayed at 0 normally channel

A voltage

º -

MARK241

Show animated phasor demo rotation for Resistive, Inductive and Capacitive loads (p. 3-20)

3-19

Phasor Rotation

Phasor Rot a tion

Animated phasor rotation

Sample 3-Phase, three wire wye rotation

Graphic illustration in the form of rotating phasors relative to the sine wave graph of a four wire wye circuit is available by pressing the Demo button on the Phasor screen (see page 3-19). The Demo button will be replaced by Start/Stop once phasor rotation has been viewed. Press Start to replay animated phasor rotation. Users can choose to Stop the phasor demo rotation at any time.

Phasor vectors are displayed using a clockwise rotation from the zero degrees reference. Animated phasor demo for Resistive, Inductive and Capacitive loads is available for viewing.

The following diagrams describe the positive phase rotation of voltage and current phasors (for Resistive, Inductive and Capacitive loads) for a three phase, three wire wye connection. An arrow head on the line indicates direction pointing toward the load.

Three phase vectors are displayed as three lines, 120 degrees apart in a Resistive load

3-20

Display parameter/channel selection (p. 3-22)

Start/Stop demo plot waveforms as rotate phasors; press any time

Switch phasor demo rotation between Resistive, Inductive and Capacitive load effects; press any time (p. 3-21)

MARK242

Return to Phasor screen

Continued on next page

CH 3/ View Real Time Data

Sample 3-Phase, three wire wye rotation (continued)

Three phase vectors are displayed as three lines, 120 degrees apart in an Inductive load

MARK243

Three phase vectors are displayed as three lines, 120 degrees apart in a Capacitive load

Phasor diagrams

MARK244

Refer to Appendix E for the diagrams that describe the voltage and current phasors for the standard type of power connections.

3-21

Phasor Parameter/Channel Selection

Parameter/ Channel display

The Parameter/Channel selection screen is displayed by pressing Chan on the phasor Demo screen. Depending on the phases being monitored, up to four channels may be displayed at any one time for either Volts or Amps, or a single channel for both Volts and Amps.

MARK245

Press to enable/disable the parameter/channel for display in the animated phasor rotation. Any of the following will turn channels on/off:

• Press the desired Volts/Amps channel to turn it on/off.

• Press Volts or Amps button to turn on/off all channels of that parameter.

• Press A, B, C, D to turn on/off both the Volts and Amps for that channel.

Press OK to accept channel selection. The phasor Demo rotations will display the parameters/channels enabled.

3-22

Overview

CHAPTER 4

Instrument Settings

Introduction

In this chap ter

This chapter describes the miscellaneous tasks that users can perform to keep the Energy Platform running efficiently. These are tasks that users might perform only occasionally.

The following topics are covered in this chapter.

Topic See Page

Access Instrument Settings Menu 4-2 Time and Date Settings 4-3 Select Language 4-5 Set Display Preferences 4-6 Touch Screen Calibration 4-7 Turn Threshold Beeper On/Off 4-9 Communications 4-10 Data Card 4-12 Reset to Factory Configuration 4-15

4-1

Access Instrument Settings Menu

Preferences menu screen

All functions in this chapter are found under the Instrument Settings menu. Follow these steps to display the Instrument Settings menu screen.

Action... Result...

STEP 1: Press the Energy Platform On/Off power button to turn the unit on. The Home screen will be displayed.

EP001

STEP 2: Press Preferences. The Instrument Settings Setup Menu will be displayed.

4-2

MARK151

Time and Date Settings

CH 4/ Instrument Settings

Time and Date display

Users have the option not only to set the exact time and date, but also to select the format of how time and date will appear on screen.

Action... Result...

STEP 1: From the Instrument Settings Setup Menu screen, press Time and Date.

•Press Time if you want to

change the time settings. Proceed to Step 2 on page 4-4.

•Press Date if you want to

change the date settings. Proceed to Step 3 on page 4-4.

•Press Date Style to select the

format in which you want date displayed on screen. View the three different date format selections each time you press Date Style.

• mm/dd/yy format

• dd/mm/yy format

• yy/mm/dd format

EP152b

•Press Clock Style to select the

format in which you want time displayed on screen. View the three different time format selections each time you press Clock Style.

• analog

• digital using 1 to 12 hr format (AM/PM)

• digital using 1 to 24 hr format

•Press OK to accept new time/

date settings and return to Instrument Settings menu.

•Press Cancel to discard

changes in time/date settings and return to Instrument Settings menu.

Continued on next page

4-3

Time and Date Settings, continued

Time and Date Display (continued)

Action... Result...

STEP 2: Press the field representing hours, minutes, and seconds to change time settings. Use the numeric keypad to enter new time settings. Time should be entered in a 24-hour format (example: 13:00:00 for 1:00 PM).

•Press OK to accept changes in

time settings.

•Press Cancel to discard

changes in time settings.

NOTE: Clock time and format can be changed anytime following this same procedure.

EP153

STEP 3: Press to select the month, day, and year. Enter the year using numbers from the keypad.

•Press OK to accept changes in

date settings.

•Press Cancel to discard

changes in date settings.

NOTE: Date settings and format can be changed anytime following this same procedure.

EP154

4-4

Select Language

CH 4/ Instrument Settings

Select Language

The Energy Platform menu screens appear in the English language by default.

Action... Result...

STEP 1: From the Instrument Settings Setup Menu screen, press Language.

• Check to select the desired language in which you want display screens to appear.

NOTE: Language options vary depending on unit model.

US/Euro model: English, Swedish, Spanish, German, French, Italian, Finnish

Asian model: English, Chinese (Simplified and Traditional), Japanese, Korean, Thai

EP155

•Press OK to accept language selection. The screen will return to Instrument Settings menu.

•Press Cancel to retain present language.

EP155b

4-5

Set Display Preferences

LCD settings

User programmable settings for the LCD screen include the backlight timer, contrast, password protect, parameter/channel colors, and touch screen calibration.

Action... Result...

STEP 1: From the Instrument Settings Setup Menu screen, press Display Preferences.

• Automatic backlight shutoff timer is provided for the LCD display. Press Backlight Timer to automatically turn off backlight after 1, 2, 5, 10 or 15 minutes of no user activity. Set the Backlight Timer to Always On if you do not want the backlight to shut off.

NOTE: The auto-shutoff feature extends the life of the battery and should be duly considered.

• Press Contrast to brighten/dim screen display to preferred percentage.

• Press Password Protect to enable/disable password log in code to the When password protect is enabled and the user reactivates the unit from auto-shutoff, the keypad screen used to enter the password will appear. The user will have to enter the correct password to continue using the

Energy Platform

will appear when an incorrect password is entered.

• Press Channel Colors to change the color of the parameter display. Select desired color from a 28 color selection grid.

• Press Calibrate Touch Screen to calibrate the unit’s touch screen functionalities. Proceed to page 4-7.

• Press Exit to return to Instrument Settings menu.

Energy Platform

. A message

MARK156

4-6

Touch Screen Calibration

CH 4/ Instrument Settings

Calibration procedure

The Energy Platform is able to perform calibration to ensure the proper operation of the unit’s touch screen functionalities. The calibration procedure will correct the problem of out of tolerance touch screen malfunction. Note that errors corrected by this calibration procedure are specific only to touch screen operation.

Action... Result...

STEP 1: From the Display Setup Menu (see page 4-6) screen, press Calibrate Touch Screen.Test if touch screen recognition operates properly by applying pressure on the LCD screen.

•Press Clear to reset LCD screen and delete display markings.

•Press Calib to begin touch screen calibration procedure. Proceed to Step 2.

•Press Cancel to end calibration test and return to Display Setup.

MARK164b

STEP 2: Follow the instruction Tap Center of Target to begin calibration. Target object X is initially located in the lower middle section of the screen.

• A series of screens will flash showing movement of the target object: from the lower middle section to mid-right and finally to upper left section of the screen.

• To end touch screen calibration, tap the center of the target object X now located in the upper left section of the screen. Proceed to Step 3 on page 4-8.

MARK164

MARK165

MARK166

Continued on next page

4-7

Touch Screen Calibration, continued

Calibration procedure (continued)

Action... Result...

STEP 3: Once touch screen calibration is done, a message will appear to indicate Touch screen

was successfully calibrated.

•Press OK to continue on with calibration test verification. Proceed to Step 4.

STEP 4: Test if touch screen recognition operates properly by applying pressure on the LCD screen.

MARK167

•Press Clear to reset LCD screen and delete display markings.

•Press Accept to complete the touch screen calibration procedure. Accepting will save and store new touch screen calibration data in memory. Once the new data is stored, the old touch screen calibration data is lost. The screen will return to the Display Setup Menu.

•Press Cancel to discontinue the touch screen calibration procedure. Pressing Cancel will retain the previous touch screen calibration constants, no new calibration data will be stored in memory. The screen will return to the Display Setup menu.

MARK168

4-8

Turn Threshold Beeper On/Off

CH 4/ Instrument Settings

Audible alarm

When set to ON, the unit will beep when threshold limits are crossed and other event triggers occur. The beep that provides audible feedback to pressing touch screen key is not affected by this setting.

Action... Result...

STEP 1: From the Instrument Settings Setup Menu screen, press Turn Beeper On/Off.

• The unit can provide audible alarm signals when triggered. Press Threshold Beeper to turn the alarm On or Off.

•Press Exit to return to Instrument Settings menu.

MARK157

4-9

Communications

Communication interface setup

Communications Settings is where instrument-specific information is entered to allow the Energy Platform to communicate to external devices using the optional Isolated Communications

Features are not available at this time

Module assemblies or modem.

4-10

Page intentionally left blank

CH 4/ Instrument Settings

4-11

Data Card

Format/View data card

The Memory Card screen displays information on the card inserted in the data card slot, including the amount of total space, available space, and used space in card. This screen also prompts users to set filename and format card in preparation for monitoring and writing of data.

Action... Result...

STEP 1: From the Instrument Settings Setup Menu screen, press Memory Card.

• Card Status indicates status condition of the card inserted in the data card slot. The following messages may appear under Card Status (refer to pages 5-20 to 5-21 for a detailed description of each card status message):

•Not Inserted

• Contains File

•Empty

•Fragmented

•Unformatted

•Invalid Card

• Card size indicates the full storage capacity of the data card. The amount of remaining space and used space in data card are also displayed on screen.

NOTE 1: The Energy Platform does not support file fragmentation. When creating a file, it will take the largest continuous block and use that size block for data storage. Deleting files from data card is not recommended. Whenever possible, transfer the files to a computer and then reformat the card using the Energy Platform when there is no more space available to begin new data storage.

EP160

4-12

•Press Format to format the data card. Proceed to Step 2 on page 4-13.

• Press View to display files stored in data card. Proceed to Step 3 on page 4-13.

• Press Size to select the file size increment by which you want data saved in card. Proceed to Step 4 on page 4-14.

• Press Exit to discard changes and return to Instrument Settings menu.

NOTE 2: Refer to Chapter 5 Start Menu - Site Name/Memory Card for more information on data card operation.

Continued on next page

Format/View data card (continued)

CH 4/ Instrument Settings

Action... Result...

STEP 2: All data and setups stored in data card will be lost when you format the card.

• A confirmation message verifies whether you want to continue with data card format or not.

Press Yes to continue data card format. Press No to cancel data card format.

• The message Format Successful! indicates that data card format has been completed. Press OK to exit card format procedure and return to the Memory Card screen.

STEP 3: The Energy Platform lists data file names stored in card, along with file size, time and date when data was recorded. The text color indicates the type of file: black is for data file (.ddb), green is for setup file (.set), and red is for an unknown file.

EP161

EP162

•Press Up/Down arrow keys to scroll the page up or down by one line.

• Press and drag the scroll bar to move the page up or down.

•Press Exit to quit and return to Memory Card screen.

EP163

4-13

Date Card, continued

Format/View data card (continued)

Action... Result...

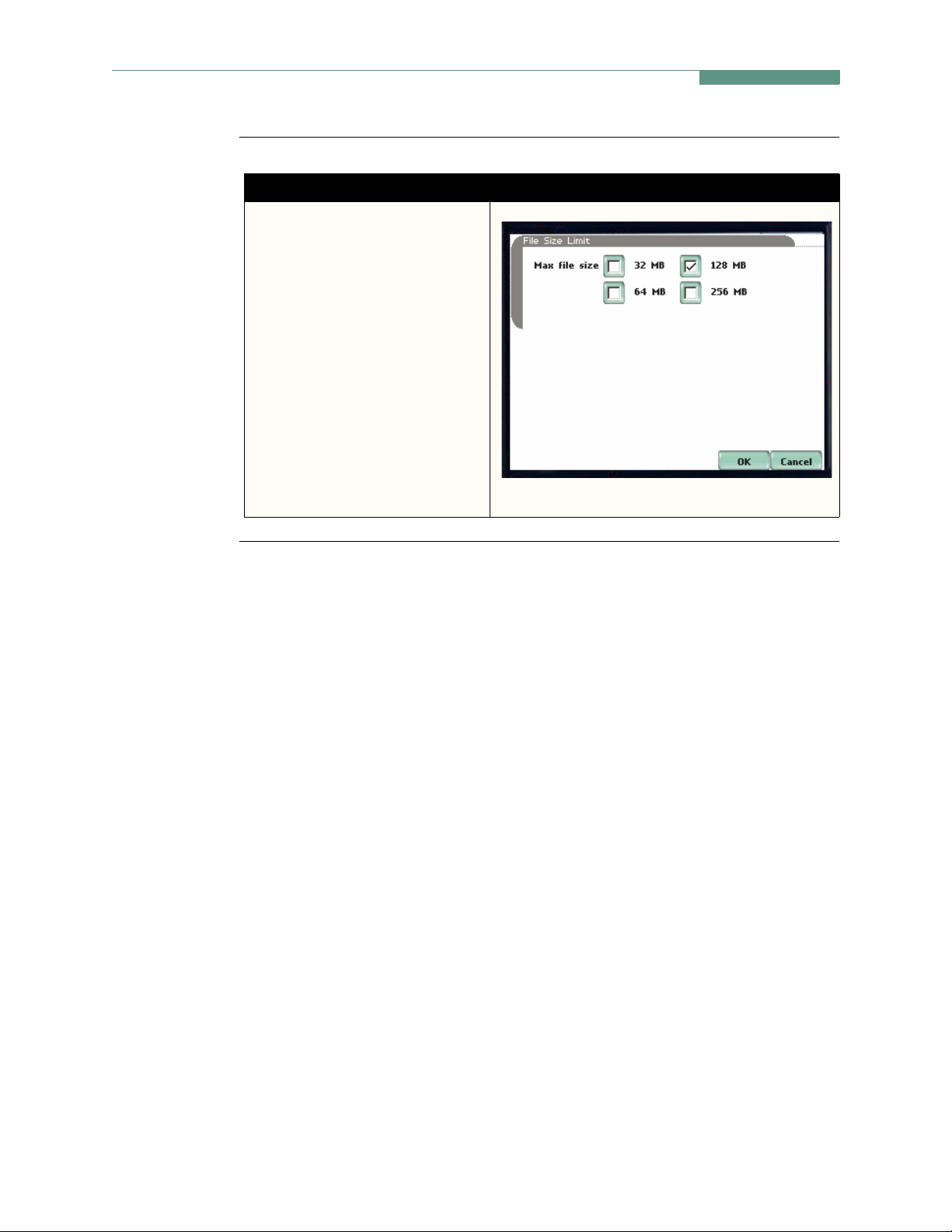

STEP 4: For better memory management operation, Energy Platform allows you to segment data into maximum file size limits of 32 MB, 64 MB, 128 MB or 256 MB. Select the file size increment by which you want your data stored in card.

•Press OK to accept changes in file size limit settings.

•Press Cancel to discard changes in file size settings.

EP164

4-14

Reset to Factory Configuration

CH 4/ Instrument Settings

Definition

Procedure

Factory configurations are the default settings of all programmable features of the Energy Platform as it left the factory.

Follow these steps to reset the Energy Platform to its factory configuration.

Action... Result...

STEP 1: From the Instrument Settings Setup Menu screen, press Reset to Factory Defaults.

A confirmation message verifies if you want to reset the instrument to factory configuration and lose all new data and settings.

•Press Yes to erase existing settings and reset the instrument to factoryconfigured setups. The screen will return to the Instrument Settings menu.

MARK158

•Press No to cancel.

4-15

Reset to Factory Configuration, continued

Factory default settings

Dranetz-BMI has set the default values for the various parameters of the Energy Platform.

Current Probes: Scale Factors: Circuit Type: Mode of Operation: Nominal Value: Monitoring Mode: Advanced Operations: RMS Variation Limits:

TR2500/TR2500A for A, B, C; TR2510/TR2510A for D

1:1 for V and I, channels A, B, C, D

three phase wye

monitor

measured V, I, frequency

Long Term Timed Recording

individual limit setups

10% Very Low, 90% Low, 110% High for voltage; none for

current

Journal Limit: Triggers:

journalling By Time for the various parameters

all V triggers off

Journal Interval

Power Values: Power Values Interval: 15 minutes Waveform S naps hot : On Demand and Energy: Demand Sub-Interval: 5 minutes Sub-Intervals per Interval: 3 Harmonics Journal Interval:

Site Name:

Energy Platform Site

Size Increment by which Data is Saved in Card: Clock Type:

mm/dd/yy

Date: Language:

Analog

varies depending on unit model

15 minutes

128 MB

NOTE: Units shipped within North America are factory set using the English/ European language group version.

Display

Backlight Timer: 1 minute Contrast: Password Protect:

70%

OFF

4-16

Overview

CHAPTER 5

Start Menu

Start menu options

The Start Menu allows users to perform the following: set up the Energy Platform for monitoring of an electrical system, load previously saved setups from card, and load data from card.

There are three ways to set up the instrument for monitoring. The length of time to monitor a circuit can vary from a few hours to a few weeks depending on the user application.

•Automatic Setup current channels, and parameter thresholds. The auto-configured setup enables users to proceed directly with data monitoring.

•Wizard Setup about the circuit to be monitored. The unit automatically turns on the correct voltage and current channels when user selects a circuit type. Parameter thresholds are automatically set based on the line voltage and current values that the user enters. Threshold limits for capturing events are also set according to the monitoring mode selected.

• Advanced setup options and intervals that were previously set up through Automatic or Wizard setups. Under advanced setup, each channel must be turned on individually, but any combination can be used. The user can turn on any available parameter. Users have wider control over all setup functions when using advanced setup options.

automatically configures the instrument’s circuit type, voltage and

takes the user through a series of screens prompting for information

(see Chapter 6) allow the user to modify trigger parameters

Selection of setup method typically depend on user application and extent of familiarity with the operation of the intrument.

Monitor same circuit setups has been previously saved to the card, you may load it using the menu below.

Load setup template from card to load a previously saved data file from the card, use the menu below.

Load data from card Platform.

makes use of the existing setup for monitoring. If a template of

enables you to use previously saved setups. If you wish

allows you to transfer saved events from data card to the Energy

5-1

Overview, continued

Displaying Start Menu

Follow these steps to display the Start Menu.

Action... Result...

STEP 1: Press the Energy Platform On/Off power button to turn the unit on. The Home screen will be displayed.

EP001

STEP 2: Press Start/Setup. The Start Menu will be displayed.

In this chap ter

5-2

EP100

This chapter is divided into five sections:

Section Title See Page

A Automatic Setup 5-3

B Wizard Setup 5-6 C Monitor Same Circuit 5-24

D Load Setup Template from Card 5-34

E Load Data from Card 5-35

Overview

CH 5/ Start Menu

Section A

Automatic Setup

Automatic Setup procedure

Automatic Setup is a one-stop process using pre-defined settings to set the unit automatically. Users have the option to view the list of parameter settings, change probe types if current will be monitored, and/or proceed directly with data monitoring. Follow these steps to perform Automatic Setup.

Action... Result...

STEP 1: From the Start Menu, press Automatic Setup. The autoconfigured circuit type, nominal voltage, current and frequency values appear on screen. Data card status and available space in card are also displayed.

• To continue Automatic Setup and begin data monitoring, press OK. Proceed to Step 2.

• To view the list of parameter settings for Automatic Setup, press Summary. Proceed to Step 3 on page 5-4.

• To display/change probe types for current monitoring, press Probe. Proceed to Step 4 on page 5-4.

EP101

•Press Cancel to quit and return to Start Menu.

STEP 2: The Monitoring Menu screen allows users to begin monitoring immediately or at a specified time and date.

• To start monitoring, press Start

Now!

Proceed to Section C Monitor Same Circuit - Turning Monitoring On/Off on page 5-24.

MARK123b

Continued on next page

5-3

Overview, continued

Automatic Setup procedure (continued)

Action... Result...

STEP 3: Summary displays the list of auto-configured parameter settings for auto setup. The setup summary is available for review before, during and after monitoring.

•Press Up/Down arrow keys to scroll the page up or down by one line.

• Press and drag the scroll bar to move the page up or down.

• When done reviewing the Setup Summary, press Exit. The screen will return to AutoConfig.

STEP 4: Various probe types are available for each channel for current monitoring.

EP123c

•Press Change to display the probe types available for each channel. Proceed to Step 5 on page 5-5.

• If using identical probe type for all Channels, press to enable Set Identical. The display will change to show only one probe selection for all channels. Press Change to display the probe types available. Proceed to Step 5 on page 5-5.

•Press OK to accept probe selection and return to Autoconfig screen.

•Press Cancel to disregard probe selection and return to Auto-config screen.

EP102

5-4

EP103

Continued on next page

CH 5/ Start Menu

Automatic Setup procedure (continued)

Action... Result...

STEP 5: Select your desired probe type.

NOTE: Use the same probes for the following: TR2500 for TR2500A, TR2510 for TR2510A, TR2520 for TR2520A.

• If the current probe that you are using is not on the list, select Other. Then press Scale to define the CT scale factor on the current probe. Proceed to Step 6.

•Press OK to accept probe selection and monitor current.

•Press Cancel to retain previous probe settings and return to previous screen.

STEP 6: You need to set the CT scale factor when using a current probe that is not on the list. Pressing Scale will show the numeric window to enter the CT scale factor on the current probe. Use the keypad to set the CT scale factor. See sample scale factor calculation on page 5-10.

EP104a

•Press OK to accept the CT scale factor value. The Current Probe Selection screen will be displayed.

•Press ... .... if you want to clear

and retype numeric values.

•Press x1000 to multiply the value by 1000.

•Press Cancel to discard changes and return to the previous screen (screen shown on Step 5).

EP104d

5-5

Overview

Section B

Wizard Setup

Introduction

Monitoring modes

Wizard Setup guides the user through the circuit setup step-by-step, via a series of screens prompting for information about the circuit to be monitored. The unit automatically turns on the correct channels and sets the parameter thresholds depending on the detected circuit type, nominal voltage and current values, and monitoring mode specified by the user.

The Energy Platform allows users to monitor events in the following setup categories: Long-term Timed Recording and Long-term Timed Recording with RMS Triggers mode. Selecting any setup category automatically sets trigger and capture conditions. Advanced users are free to mix and match settings (see Chapter 6 Advanced Setup Options).

Long-term Timed Recording, Demand, Energy quality energy survey requires the capture of a set of basic data over an extended period of time. The Energy Platform is designed to facilitate long-term monitoring by collecting min/max/avg data at each pre-determined interval in order to perform postprocess harmonic and other events analysis. It is also designed to be left unattended in the field, recording statistically representative data for long-term analysis. Using the Dranetz-BMI lockable portable case option or other available enclosures, demand/ energy studies can be carried out in harsh weather environments.

Long-term Timed Recording, Demand, Energy with RMS Triggers same as above except that snapshots and rms event triggers are active.

: Performing a statistically valid power

: This mode is the

5-6

CH 5/ Start Menu

In this section

The following topics are covered in this section.

Topic See Page

Current Probe Selection 5-8 Scale Factor Setup 5-10 Circuit Type Selection 5-12 Nominal Values 5-14 Mode of Operation 5-17 Monitoring Mode 5-18 Advanced Options 5-19 Site Name/Memory Card 5-20

5-7

Current Probe Selection

Selecting current probe

Follow these steps to monitor current and select probe type.

Action... Result...

STEP 1: From the Start Menu, press Wizard Setup.

• If current will not be monitored, press Next. Go to page 5-10.

• If current will be monitored, press Change to display the probe types available for each channel. Proceed to Step 2.

• If using identical probe type for all channels, press to enable Set Identical. The display will change to show only one probe selection. Press Change to display the probe types available. Proceed to Step 2.

• If you want to enable/disable current channels, press to select/deselect Enable Currents.

MARK101

5-8

•Press Cancel to quit and return to Start menu.

STEP 2: Select your desired probe type.

NOTE: Use the same probes for the following: TR2500 for TR2500A, TR2510 for TR2510A, TR2520 for TR2520A.

• If the current probe that you are using is not on the list, select Other. Then press Scale to define the CT scale factor on the current probe. Proceed to Step 3 on page 5-9.

MARK103

EP104a

Continued on next page

CH 5/ Start Menu

Selecting current probe (continued)

Action... Result...

STEP 2: (continued)

•Press OK to accept probe selection and monitor current.

•Press Cancel to retain previous probe settings and return to previous screen.

STEP 3: You need to set the CT scale factor when using a current probe that is not on the list. Pressing Scale will show the numeric window to enter the CT scale factor on the current probe. Use the keypad to set the CT scale factor. See sample scale factor calculation on page 5-10.

•Press OK to accept the CT scale factor value. The screen shown in Step 2 will be displayed.

EP104d

Other relevant information on current probes

•Press ... .... if you want to clear

and retype numeric values.

•Press x1000 to multiply the value by 1000.

•Press Cancel to discard changes and return to the previous screen (screen shown on Step 2).

Refer to Chapter 2 Voltage Measurement Cable and Current Probe Connections for illustrations of typical current probes and for guidelines on how to connect current probes.

Refer to Appendix A for descriptions and part numbers of probes and adapter cables.

Refer to Appendix B for Dranetz-BMI current probes technical specifications.

5-9

Scale Factor Setup

What is a scale factor?

When to use

Non-Dranetz equipment

Sample calculation

A scale factor is the ratio of the input to output for a particular current transformer (CT) or potential transformer (PT). A scale factor is entered in the Energy Platform and then multiplied automatically by the measured voltage or current so the unit displays the correct values, as referenced to the primary side, rather than the secondary side of the PT or CT.

NOTE: If voltage and current connections are made without using any of the above named devices, the scale factor should be set to 1.

Scale factors must be entered for the following conditions:

• A Dranetz-BMI current probe is connected to a permanently installed CT.

• The current connections are made using a Dranetz-BMI ISO box.

• The voltage connections are made using a PT.

Refer to the CT name plate or to the manufacturer’s literature to determine the scale factor.

The scale factor for a single CT or PT is calculated from its step-up or step-down ratio.

Example of step-down ratio If a current transformer has a step-down ratio of 1000A:5A, therefore:

Scale Factor = 1000/5 = 200

5-10

Example of step-up ratio If a potential transformer has a step-up ratio of 1V:10V, therefore:

Scale Factor = 1/10 = 0.1

CH 5/ Start Menu

Scale factor setup screen

After setting up current probe configurations, the Scale Factor screen is displayed.

Action... Result...

STEP 1: From the Current Probe Selection screen, press Next to display the Scale Factor Setup.

• If voltage and current connections are made without using any current or potential transformer devices, the scale factor is set to the default value of 1. Press Next and go to page 5-12.

• To enter new scale factors, press the numeric field of the Volts/Amps channel where you want to enter new scale factors. Proceed to Step 2.

•Press Cancel to quit and return to Start menu.

MARK105

STEP 2: Enter a new scale factor value using the numeric keypad. Press OK to accept the new scale factor.

•Press .. . . . to clear and retype

numeric values.

•Press x1000 to multiply the value by 1000.

•Press Cancel to discard changes and retain previous scale factor value, and return to Scale Factor Setup screen.

MARK105b

5-11

Circuit Type Selection

Circuit setup

The Energy Platform is able to display wiring diagrams from which users can select the circuit type appropriate to their application. The instrument will display the detected circuit configuration and compare the detected voltages, currents, and phase sequence (if applicable) to the selected circuit type. Refer to Appendix E for the descriptions of common circuit connections.

Action... Result...

STEP 1: From the Scale Factor Setup screen, press Next to display Circuit Type Selection. Read the Warning advisory, then press Accept to display the menus for circuit selection.

• To select a circuit configuration, press the Ckt arrow keys until the desired configuration is displayed.

An auto circuit detection window is displayed to show if selected circuit type and the detected voltages, currents, and phase sequence match (text in green) or do not match (text in red).

EP107

5-12

When done with Circuit setup, press Next. Go to page 5-14.

• Real-time Scope and Phasor screens are available. These functions help verify if the wiring configuration matches the circuit being monitored.

Press Scope to check if the waveforms look correct for the specified wiring setup. Proceed to Step 2 on page 5-13. Press Phasor to view if phasor display match those expected from the specified wiring diagram. Proceed to Step 3 on page 5-13.

•Press Cancel to discard changes and return to Start menu.

EP108

Continued on next page

Circuit Setup (continued)

Action... Result...

STEP 2: Scope mode allows users to verify if waveforms look correct for the specified wiring setup.

• To check input range, press CkRng. The Input Range screen displays the detected range for voltage and current channels A, B, C, and D.

• The instrument registers a message on the Input Range screen that corresponds to the detected input range for each channel:

CH 5/ Start Menu

MARK201

Input Range OK OVER UNDER N/A CLIP

Description Within Range Over Range Under Range Channel Disabled Clipping

• When done checking the input range, press OK to return to the Scope mode screen. Once in Scope mode screen, press Exit to return to Circuit Type Selection screen.

STEP 3: Phasor display shows a graph that indicates phase relations between voltage and current.

For more information on phasors, refer to Chapter 3 View Real Time Data - Section D Voltage and Current Phasor.

MARK205

•Press Demo to show animated phasor rotations.

•Press Exit to return to Circuit Type Selection screen.

MARK241

5-13

Nominal Values

Frequency, voltage and current settings

The Nominal Values screen allows users to enter values for frequency nominal line voltage and current, or use the computed nominal values displayed on screen.

Action... Result...

STEP 1: Nominal Values screen appears as users prepare the instrument to record data. From the Circuit Type Selection screen, press Next to display Nominal Va lu es .

• If the computed nominal values are accepted without change, press Next. Go to page 5-17.

• To enter a new nominal Frequency, Voltage and/or Current value, press the corresponding button and proceed to Step 2.

• To set the properties to track frequency of a monitored system, press Tracking. Proceed to Step 3 on page 5-15.

NOTE: Make sure that the nominal values computed by the Energy Platform are correct. Nominal values are used as basis for setting default thresholds and other parameters for circuit monitoring.

MARK110

•Press Cancel to quit and return to Start menu.

STEP 2: Enter a new nominal Frequency/Voltage/Current value using the numeric keypad. Press OK to accept the new value.

•Press ... ... tto clear and retype

numeric values.

•Press x1000 to multiply the value by 1000.

•Press Cancel to retain previous nominal values and return to Nominal Values screen.

MARK110b

Continued on next page

5-14

Frequency, voltage and current settings (continued)

Action... Result...

STEP 3: Tracking allows users to set parameters to monitor changes in frequency.

Frequency Class: Check to select the power system that define the frequency range of distribution of the monitored system.

• Standard frequency range is 16 Hz.

•

Fast

frequency range is 16-65 Hz.

• Internal uses the nominal frequency when making measurements where no reference signal is available. NOTE: Always enter a nominal frequency that matches your line frequency. This ensures that if the Energy Platform loses external sync, it will have a corresponding internal sync.

CH 5/ Start Menu

MARK110c

Sync Channel: Check to specify the external sync mode to show which channel the signal is connected to. See page 5-16 for more details on frequency synchronization.

• Ch A Volts: When set to Ch A, the unit attempts to sync to an incoming voltage signal.

• Ch D Volts: When set to Ch D, the unit only attempts to sync to voltage Ch D.

Tracking Range: The Min and Max refer to the range of frequencies that the phase locked loop will “hunt” if sync is lost. See page 5-16 for more details on frequency tracking.

•Press OK to accept new frequency tracking settings.

•Press Cancel to quit and return to Nominal Values screen.

5-15

Nominal Values, continued

Frequency synchronization

Frequency tracking

Normal frequency synchronization (sync) of the Energy Platform analog signal processing circuits is controlled by analyzing the external AC voltage signal input on channel A. If sync is lost, then internal sync is automatically selected. The frequency used for internal is entered under Frequency on the Nominal Values screen (see page 5-

14).

Typically, external sync on Ch D is specified if it is known that signal on A is inappropriate for use as a sync source (i.e. the frequency is unstable or DC). A low distortion 50, 60 or 400 Hz signal can be input to Ch D and used as a sync signal.

NOTE: Failure to connect an external sync or to select an internal sync during current monitoring will result in erroneous data being collected and displayed.

Tracking determines how the phase locked loop circuitry responds to sudden changes in frequency.

Standard mode

: On a normal power quality application [Standard], the system is designed to “ride through” voltage changes to keep tracking the fundamental frequency even in the absence of voltage.

Fast mode

: When operating on a local generator [Fast], the frequency will vary more as loading changes occur. The Fast mode allows the instrument to follow these changes more closely.

Internal mode

: In cases where no reference signal is available (such as DC monitoring),

the Internal setting is used to set the sample rate.

5-16

Mode of Operation

CH 5/ Start Menu

Basic meter setup

After entering the correct nominal values for circuit monitoring, users have the option to set the instrument to record data or use the instrument as a meter.

Action... Result...

STEP 1: From the Frequency Tracking screen, press Next to display the Mode of Operation.

• To set up the instrument to record data, press to enable

Continue and set limits to record events and statistical data. Press Next and go to

page 5-18.

• To use the instrument as a meter, press to enable Use as a meter. Proceed to Step 2.

•Press Cancel to discard changes and return to Start menu.

MARK109

STEP 2: The instrument is now configured for your specified wiring setup and is ready to use as a meter.

•Press Finish to begin using instrument as a meter and return to Home screen.

•Press Cancel to discard meter mode operation and return to Start menu.

MARK109b

5-17
