Gorilla Playsets Hideaway Assembly Manual

Download

Page 1

Gorilla Playsets



190 Etowah Industrial Court  Canton, GA 30114

Hideaway

ASSEMBLY MANUAL

8/JUN/2009 – Version 1.0.0



(800) 882-0272

Page 2

STOP…PLEASE READ!!

IF YOU HAVE MISSING OR DAMAGED PARTS OR NEED ASSISTANCE ASSEMBLING, PLEASE

CALL gorilla playsets MANUFACTURING DIRECT.

(800) 882-0272

FACTORY HOURS – MON.–FRI., 8AM-5PM EST

DO NOT RETURN THIS PRODUCT TO THE RETAILER OR CONTACT THE RETAILER DIRECT. THE RETAILER DOES NOT STOCK COMPONENTS.

PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. KEEP THEM IN A SAFE PLACE WHERE YOU CAN REFER TO THEM AS NEEDED.

CONTACT INFO: Gorilla Playsets

190 Etowah Industrial Court

Canton, GA 30114

Tel. (678) 880-3328 Fax. (678) 880-3329

[email protected]

Page 3

Blue Ridge Hideaway

TABLE OF CONTENTS Warranty and Safety Guidelines………………………….……………………….…..4-10 Kit Contents and Tool List…………..……………………….……………………….11-30 Framing the play set...………………………………………...……………..…...steps 1-6 Constructing deck…………………………...………………..……………..…..steps 7-10

Constructing rock wall and securing to fort…......……………………..…....steps 11-15

Constructing ladder and securing to fort…......………………………..…....steps 16-17

Framing the upper deck……………………………………………………….steps 18-24 Constructing porch……………………………………………………………..steps 25-28 Constructing upper deck………………………………………………………steps 29-31

Installing panel slats……………………..…..………….………………................step 32

Swing beam construction……………………………………………...………steps 33-42 Roof and sunburst construction………………………………………………steps 43-50 Installing the picnic table………………………………………………………steps 51-53

Installing the wave slide……………………………………………………….…....step 54

Installing safety handles...................................................................................step 55

Installing the telescope...…………………………..………..…………...…………step 56 Constructing and installing the Rad Ride Slide…………...………………...steps 57-64 Assembling and installing the Tic-Tac-Toe Panel…………………………..steps 65-67 Assembling and installing the chimney and dormers………………………steps 68-73 Customer registration card…………………….………….……………………….…..105

PLEASE READ OWNER’S MANUAL CAREFULLY BEFORE

STARTING ASSEMBLY!

Page 4

Thank you for choosing gorilla playsets® for your new backyard playground!

We’ve included everything you need, except tools, to build your very own professional looking playset. When complete, your new playset should far exceed the quality of playset kits from other build-your-own companies. Our engineers and design team have over 30 years of playground experience. What we’ve developed is a playset that doesn’t compromise quality for simplicity. Yet you’ll appreciate how quick and easy construction really is! Our playset kits are designed for children ages 3 to 11. gorilla playsets® believes every child should have a playset and with our kits they can! You can rest assured your new playset is safe, durable and designed to hold up to the elements. As parents ourselves, we know how important the security and wellbeing of our children is, and this shows in all of our products.

Each playset features our step-by-step 3D illustrated manual, patented powder coated swing beam bracket, heavy-duty swing belts with chains, slide(s), accessories, plus all the required hardware and pre-milled lumber.

Quality Lumber

At Gorilla Playsets, we use only the finest, hand selected lumber available. Whether you choose a playset made from our Premium Preserved Pine, Beautiful California Redwood, Western Red Cedar, or Asian Cedar you can be assured that our lumber is strong, durable, and conforms to the national standards for use in children’s play equipment. It’s this quality that allows us to offer a 10 year warranty on the lumber used in our play sets.

Premium Preserved Pine

Our Premium Preserved Pine is double kiln dried. We utilize this process to minimize shrinkage, warping, and cupping. Because our pine has been “pre-shrunk”, the hardware used to assemble your playset will hold tight. Our preserved pine is clean, odorless, non-staining, and non-irritating to humans, animals, or plants. Gorilla’s Preserved Pine uses one of the only exterior wood preservation systems that is EPA approved. Our pine lumber is preserved with a preservative system containing copper and azole compounds to protect against termite attack and fungal decay. Our Premium Preserved Pine can withstand harsh weather conditions and is effective for decades; making Gorilla Playsets the best choice in pine lumber built swing sets.

California Redwood and Western Red Cedar*

Our Beautiful California Redwood and Western Red Cedar playsets are a natural alternative to preserved lumber. California Redwood naturally resists decay caused by the environment or by insect infestation while Western Red Cedar is a preferred wood for purposes where an attractive appearance and resistance to weather is important. All California Redwood and Western Red Cedar Gorilla Playsets receive a factory stain and sealant process. To maintain this aesthetic appeal, it is recommended that you seal your redwood and cedar play set once per year.

Asian Cedar (Cunninghamia Lanceolata)

Our durable Asian Cedar playsets are low-maintenance, and maintain their beauty for many years. Asian Cedar has been harvested in Southeast Asia for more than 800 years, and is prized because it naturally repels pests, fungus, and rot. Asian Cedar is used indoors and out where durability is critical. Asian Cedar can be found throughout the U.S. in outdoor lawn furniture, and on children’s play structures.

*Gorilla Playsets reserves the right to substitute Western Red Cedar with other species of

similar characteristics due to market availability.

Page 5

Limited Manufacturers Warranty

gorilla playsets® warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of 10 years for structural wood components and one year for all other components (i.e., hardware, plastics, tarps, rope ladder, etc.). Cosmetic defects that do not affect the structural integrity of the product, or natural defects of wood such as warping, checking or any other physical properties of wood that do not present a safety hazard, are not covered by this warranty.

gorilla playsets® will repair, or, at its discretion, replace any part within the stated warranty period that is defective in workmanship or materials. This decision is subject to verification of the defect upon delivery of the defective part to gorilla playsets® at 190 Etowah Industrial Court, Canton, Georgia 30114. Any part(s) returned to gorilla playsets® must include proof and date of purchase.

This warranty is valid only if the product is used for the purpose for which it was designed and installed at a residential, single-family dwelling. This warranty is void if the product is put to commercial or institutional use. This warranty does not cover (a) products which have been damaged by negligence, natural disasters, or accident by improper use, or which have been modified or repaired by unauthorized persons, (b) the cost of labor, or (c) the cost of shipping the product, any part, or any replacement product or part.

This warranty is valid only in the United States of America, is non-transferable and does not extend to the owners of the product subsequent to the original purchaser. gorilla playsets® disclaims all other representations and warranties of any kind, express, implied, statutory or otherwise, including the implied warranties of merchantability and fitness for a particular purpose. gorilla playsets® will not be liable for any incidental or consequential damages. Some states do not allow limitations on implied warranties or exclusion of incidental or consequential damages, so these restrictions may not be applicable to you. This warranty gives you specific legal rights. You may also have other rights that vary from state to state.

IMPORTANT SAFETY GUIDELINES

This product is intended for residential use only and not intended for use in any public setting. A safety surface such as mulch or recycled tire should be used under the play set to prevent injury from falls. Also a 6 foot safety zone should be used around the entire playset. As with any home project, good judgment and respect for power tools will greatly reduce the risk of injury. gorilla playsets® recommends you follow all tool manufacturers’ safety guidelines. Always wear eye protection and safety gloves to prevent injury. In several phases of construction two people may be required for lifting and securing of lumber. While playset is being constructed, please keep children off the equipment until the project is complete. Bolts and screw heads should be checked regularly for tightness. The ground ladder, rope ladder, slide, swings and other areas where children spend a majority of their playtime should be checked more frequently. gorilla playsets® shall not be liable for incidental, indirect or consequential damages or injuries that result from the building and/or playing on our playsets. Adult supervision is recommended anytime a playset is being used.

Page 6

WEIGHT LIMITS FOR GORILLA PLAYSETS

• FORT PLATFORMS: 800 LBS. TOTAL WEIGHT

• SWING BELTS: 175 LBS.

• GLIDER SWINGS: 70 LBS. PER CHILD

• TRAPEZE: 125 LBS.

• FULL BUCKET SWING: 50 LBS.

• TODDLER BUCKET SWING: 50 LBS.

• INFANT SWING: 35 LBS.

• TIRE SWING: 125 LBS. TOTAL WEIGHT

• ROPE LADDER: 75 LBS.

• ROCK WALL: 150 LBS.

• ALL SLIDES: 125 LBS.

Gorilla Playsets recommends that the weight limits for all components must not be exceeded. Failure to adhere to these and other safety guidelines could result in damage to the playset and injury to the users.

Page 7

Safety and Maintenance Tips for Your New Play Set:

NOTE: Your children’s safety is our #1 concern. Observing the following statements and warnings reduces the likelihood of serious or fatal injury. Please review these safety rules regularly with your children.

• This playset is designed for the use of 4 occupants who have a combined weight not exceeding 800 pounds on the elevated floor, 3 occupants who have a combined weight of

525 pounds on the swing area, for a total Unit capacity of 5 occupants who have a combined weight of 1325. (this weight is not including the picnic table area)

• On-site adult supervision is required.

• Teach children not to walk close to, in front of, behind, or between moving swings or other

moving playground equipment.

• Teach children to sit in and never stand on swings

• Teach children not to twist the chains and ropes and not to loop them over the swing beam,

since this may reduce the strength of the chain or rope.

• Teach children not to jump from swings or other playground equipment in motion.

• Teach children to not push empty seats. The seat may hit them and cause serious injury.

• Teach children to sit in the center of the swings with their full weight on the seats.

• Teach children not to use the equipment in a manner other than intended.

• Teach children to always go down slides feet first. Never slide headfirst.

• Teach children to look before they slide to make sure no one is at the bottom.

• Teach children to never run up a slide, as this increases their chances of falling.

• The parents should have the children dress appropriately with well-fitting shoes. Loose

clothing such as scarves and ponchos should not be worn. Always take off, tie up or tuck in cords and drawstrings on children’s clothing. These things can get caught on playground equipment and strangle a child.

• Teach children not to climb when the equipment is wet.

• Teach children to never jump from a fort deck. They should always use the ladder, ramp or

slide.

• Teach children to never crawl or walk across the top of monkey bars.

• Teach children to never crawl on top of a fort roof.

• Verify that any suspended climbing ropes, chains, or cables are secured at both ends and

that they cannot be looped around an adult hand.

• Teach children not to attach items to the playground equipment that are not specifically designed for use with the equipment, such as, but not limited to, jump ropes, clothesline, pet leashes, cables and chain as they may cause a strangulation hazard.

• Teach children to never use Monkey Bar when swings or glider are installed.

• Teach children to never wrap their legs around swing chain.

• Teach children to never slide down the swing chain.

WARNING: Children must NOT use this playset until unit has been completely assembled and inspected by an adult to insure set has been properly installed and anchored.

Page 8

Safety and Maintenance Tips for Your New Play Set: (continued)

Playgrounds should be inspected on a regular basis. If any of the following conditions are noted, they should be removed, corrected, or repaired immediately to prevent injuries.

• Hardware that is loose, worn or that has protrusions or projections

• Exposed equipment footings

• Scattered debris, litter, rocks, or tree roots

• Splinters, large cracks, and decayed wood components.

• Deterioration and corrosion on structural components, which connect to the ground

• Missing or damaged equipment components, such as handholds, guardrails, swing

seats.

• Check all nuts and bolts frequently during the usage season and tighten as required. (But not so tight that you crack the wood) We recommend you check the swing beam and hardware often due to wood expansion and contraction. It is particularly important that this procedure be followed at the beginning of each season.

• Remove plastic swing seats and take indoors or do not use when the temperature drops below 32°F.

• Oil all metallic moving parts monthly during the usage period.

• Check all coverings for bolts and sharp edges twice monthly during usage season to be

certain they are in place. Replace when necessary. It is especially important to do this at the beginning of each new season.

• Check swing seats, ropes, cables and chains monthly during usage season for evidence of deterioration. Replacement should be made of any swing seat that has developed cracks in the plastic seats or has exposed metal in the edges of the swing seat. If there are already exposed metal inserts on the edge of the seat, immediately remove the seats and chains to prevent serious injury. Ropes, cables and chains should be removed and replaced if excessive wear is found. Contact Gorilla Playsets for warranted replacement parts.

• For rusted areas on metallic members such as monkey bars, hand supports brackets, etc.; sand and repaint, using a non lead-based paint meeting the requirements of Title 16 CRF Part 1303.

• Inspect wood parts monthly. The grain of the wood sometimes will lift in the dry season causing splinters to appear. Light sanding may be necessary to maintain a safe playing environment. If you are treating your playset with stain regularly, it will help prevent severe checking/splitting and other weather damage.

• Once or twice a year, depending on your climate conditions, you must apply some type of protection (sealant) to the wood of your unit. Prior to the application of sealant, lightly sand any “rough” spots on your set. Please note this is a requirement of your warranty.

• Creating and maintaining the playset on a level location is very important. As your children play, your playset will slowly dig its way into the soil, and it is very important that it settles evenly. Make sure the play set is level and true once each year or at the beginning of each play season.

• Rake the surface periodically to prevent compaction and maintain appropriate depths.

Disposal Instructions:

disassembled and disposed of in such away that no unreasonable hazards will exist at the time

When the playset use is no longer desired, it should be

the unit is discarded.

Page 9

Play Set Surfacing Recommendations:

Below are some of the recommendations that the U.S. Consumer Product Safety Commission (CPSC)

offers from its

1. Protective Surfacing - Since almost 60% of all injuries are caused by falls to the ground, protective surfacing under and around all playground equipment is the most critical safety factor on playgrounds.

Certain manufactured synthetic surfaces also are acceptable; however, test data on shock absorbing performance should be requested from the manufacturer.

Asphalt and concrete are unacceptable. They do not have any shock absorbing properties. Similarly, grass and turf should not be used. Their ability to absorb shock during a fall can be reduced considerably through wear and environmental conditions.

Certain loose-fill surfacing materials are acceptable. Surfacing materials are acceptable, such as the types and depths shown in the table.

Handbook for Public Playground Safety

www.cpsc.gov/cpscpub/pubs/325.pdf

. The guide can be downloaded in full at

Fall Heights and Materials

Material

Uncompressed

Depth

Compressed

Depth

12"

6" (152mm) 9" (228mm)

(304mm) to 9" (228mm)

Wood Chips 7' (2.13m) 10' (3.05m) 11' (3.35m) 10' (3.05m)

Double-Shredded bark

mulch 6' (1.83m) 10' (3.05m) 11' (3.35m) 7' (2.13m)

>12'

Engineered Wood Fibers 6' (1.83m) 7' (2.13m)

(3.66m) 6' (1.83m)

Fine Sand 5' (1.52m) 5' (1.52m) 9' (2.74m) 5' (1.52m)

Coarse Sand 5' (1.52m) 5' (1.52m) 6' (1.83m) 4' (1.22m)

Fine Gravel 5' (1.52m) 7' (2.13m) 10' (3.05m) 6' (1.83m)

Medium Gravel 5' (1.52m) 5' (1.52m) 6' (1.83m) 5' (1.52m)

10-12' (3.0-

Shredded Tires*

*This data is from tests conducted by independent testing laboratories on a 6-inch depth of uncompressed shredded tire samples produced by four m anufacturers. The tests reported critical heights, which varied from 10 feet to greater than 12 feet. It is recommended that persons seeking to install shredded tires as a protective surface re

uest test data from the supplier showing the critical height of the material when it was tested in accordance with ASTM F1292.

It should be recognized that all injuries due to falls cannot be prevented no matter what surfacing material is used.

3.6m) N/A N/A N/A

2. Fall Zones - A fall zone, covered with a protective surfacing material, is essential under and around equipment where a child might fall. This area should be free of other equipment and obstacles onto which a child might fall. Stationary climbing equipment and slides should have a fall zone extending a Minimum of 6' in all directions from the perimeter of the equipment.

Swings should have a fall zone extending a minimum of 6' from the outer edge of the support structure on each side. The fall zone in front and back of the swing should extend out a minimum distance of twice the height of the swing as measured from the ground to the top of the swing support structure.

Page 10

LEVELING YOUR FORT DURING ASSEMBLY

• Complete the steps which will be the basic frame of the fort {i.e. four corner posts with base (sand box boards) and deck supports}

• Position in the most level area chosen for the playset, keeping in mind the location and size of the swing beam, ladder, slides, etc. that extend off the fort.

• Once the frame is in the final position, check for vertical and horizontal levelness to determine which side(s) will need to be dug into the ground to level the play set.

• With a shovel, score the ground around the outside edges of the sandbox boards on the ‘high’ side of the fort. This is the area that will be dug in. Make sure to score deep enough; the scored lines will be your digging template.

• Push the frame off and away from the scored area, far enough to dig and remove dirt to reach the appropriate depth.

• Dig a channel along the scored line(s) for the base of the fort (corner post and sandbox boards) to rest into. Dig the channel(s) to the same level depth. The bottom of the channel(s) should be level to each other so your frame doesn’t teeter or rock because the channel(s) are uneven.

• Once you have removed enough grass and dirt, slide/push the frame into the channel(s). Place a level on the vertical and horizontal boards of the frame to determine if enough soil, or too much, was removed.

• Repeat this process until the basic frame is plumb and level and in its final position before completing the rest of the assembly.

• Measure to make sure fort is square.

Important: if you require a channel depth of more than 6”, then we recommend you have your play set area professionally graded before completing assembly.

Example play area:

THE DIAGONAL MEASUREMENTS SHOULD BE THE SAME FROM CORNER POST TO CORNER POST. IF NOT, ADJUST FORT SO THAT THE DISTANCE IS EQUAL.

= AREA TO BE SCORED AND CHANNELED FOR LEVELNESS

Page 11

Blue Ridge Hideaway

KIT CONTENTS

COMPONENTS

Description Qty Check List

(Swings, Slides, Accessories)

Swingbelts w/ Chains 2 __________

10ft. Radical Wave Slide 1 __________

Rad Ride Slide 1 __________ Trapeze Swing

__________ Glider Swing 1 __________ Telescope 1 __________ Safety Handles 2 __________ Tic-Tac-Toe Panel 1 __________ Chimney 1 __________ Dormer 2 __________

Hideaway Assembly Manual 1

__________

Description

(Fort Hardware) see following pages

Description

(Swing Beam Hardware) see following pages

Description

(Wood Components) see following pages

REQUIRED TOOL LIST

Standard or Cordless Drill w/ Phillips Bit (#2 square bit provided) Extension Cord (if using standard drill) Locking Pliers (Vise Grips, For Carriage Bolts) 1/8” Drill Bit 3/8” Drill Bit 7/8” Paddle Bit ½” Wrench and Socket ½” Deep Well Socket 9/16” Deep Well Socket 9/16” Wrench and Socket

Level Tape Measure Hammer Pencil Shovel Rubber Mallet

Page 12

Please familiarize yourself with the manual, parts/components and general construction process of your new playset before getting started.

SITE PLAN:

’

RAD RIDE SLIDE

SWING BELT (2) GLIDER SWING (1)

’

LADDER

TRAPEZE ARM (1)

RADICAL WAVE SLIDE

Playset height: 13’ 6” Approximate assembly time:

16-18 Hours

{ 6 foot unobstructed safety perimeter around playset recommended }

Page 13

Helpful Installation Hints

• Depending on your experience, assembly of Gorilla playsets can take as little as 6 hours up to 24 hours, depending on size, after inventory of parts; therefore, we recommend you set aside a full two days for assembly.

• Identify all of the parts for your playset. Empty each box and lay out boards so you can see each part. Your instruction book will have detailed drawings that will make it easy for you to recognize individual parts. Keep all hardware and metal parts separate from wooden pieces.

• After everything is laid out, check carefully to ensure all parts are present. Make sure there are no broken boards.

• Find an area to sort your hardware. It is best to open the hardware on a solid surface so that you do not lose any pieces in the grass. This will save time and familiarize you with all the different pieces in the hardware bag.

• Important note: Wood has some natural defects such as knots, surface cracks, etc… We reject parts that are structurally defective. We use a high quality lumber in our structures; however, you should inspect each part for splinters or rough spots and sand them smooth to prevent injury.

• After familiarizing yourself with all of the components, read all instructions thoroughly. Reading instructions after you have studied the parts will help you understand more clearly the installation process, and help to eliminate unnecessary mistakes.

• Pay close attention to the diameter and length of each bolt and screw.

• Never tighten hardware completely at first. It helps to have some adjustment for bolt

alignment while you are attaching parts together. After everything is square, tighten each joint.

• After the main unit is assembled it is critical that the floor is level and square. If the main frame is not level, the walls and floor will be out of square.

• After you complete installation, make sure every bolt, screw, and nut is tight, and every board is secure. Wood will expand and contract with the seasons.

• Check all bolt connections and swing hangers FREQUENTLY.

• Place the set on level ground, not less than 6ft from any structure or obstruction such as a

fence, garage, house, overhanging branches, laundry lines, or electrical wires.

READ! VERY IMPORTANT!

If you are missing parts or have questions regarding the installation of our quality product PLEASE

call us directly at the factory (1-800-882-0272). Our trained staff will be happy to assist you.

Customer service hours:

Monday thru Friday 8AM – 5PM EST

E-mail: [email protected]

Page 14

General Info To Review Before Installation

This page is a list of definitions and explanations used throughout our instructions to aid you in the assembly of your playset.

Offset Holes-

This refers to the orientation of the holes on the board. An offset hole is one that is closer to one side than it is the other or in other words, it is not centered on the board. In the procedures you will be instructed to attach the boards with the holes offset up or with the holes offset down. This refers to which side of the board the hole/holes should be closer to. Offset holes up= hole/holes will be closer to the top of the board. Offset holes down= hole/holes will be closer to the bottom of the board. Note: some parts do not have offset holes, but instead the holes are on center. Therefore there will not be any reference to how to offset these parts.

Throughout the installation procedures we will refer to parts with offset holes.

EXAMPLE OF OFFSET HOLES UP

Counter-sunk holes-

counter-sunk hole is one that surrounds one side of a thru hole, but does not extend through the wood it’s self. When using a counter-sunk hole the bolt will be inserted through the thru hole and either the head of the bolt and washer or nut and washer will occupy the counter sunk hole.

Lag Screws-

integrity of the unit. There will not be predrilled holes in the post for lag screw installation. Lag screws are self-tapping, though if you are using a manual socket wrench it may be necessary to tap the head of the lag screw with a hammer. You should also be sure to tighten the lags completely. Power tools such as an impact wrench or power drill should have enough torque to drive the lag screws without using a hammer, but make sure not to over tighten as this can cause the threads to “strip out” in the post.

Lag screws are used in the construction of our playsets to enhance the structural

Many of the parts that will be used have counter-sunk holes. A

Page 15

Common installation practice

Installing T-nuts

When installing T-nuts into the wood, use a smooth faced hammer to set the face of the T-nut flush into the wood.

Corner Post

-nut

Insert the barrel of the T-nut into the predrilled hole. Using a smooth faced hammer, drive the T-nut until the face of the T-nut is flush to the wood.

This picture shows the T-nut insert and installed flush to the wood.

This picture shows an end view of the T-nut insert and installed flush to the wood. WARNING: DO NOT EMBED THE TOP OF THE T-NUT INTO THE FACE OF THE WOOD

Cross Section end views, you are looking at an Xray view of the post and T-nut. The barrel of the T-nut is in the corner post the line is the face of the wood.

Flush Correct

Page 16

#14 X 1-1/4"

PAN HEAD SCREW

QTY: 40

1/4" WASHER

QTY: 40

#8 X 1-1/4"

WOOD SCREW

QTY: 2

#8 X 1-1/2"

WOOD SCREW

QTY: 350

#8 X 2"

WOOD SCREW

QTY: 240

#8 X 2-1/2"

WOOD SCREW

QTY: 65

5/16" LOCK NUT

QTY: 107

5/16" TEE NUT

QTY: 60

TORQUE WASHER

QTY: 18

3/8" LOCK NUT

QTY: 22

1/2" WASHER

QTY: 2

3/8" WASHER

QTY: 45

5/16 X 4-1/2"

HEX BOLT

QTY: 54

5/16 X 1-1/2"

HEX BOLT

QTY: 8

5/16 X 3/4"

HEX BOLT QTY: 107

5/16" WASHER

QTY: 345

USE THE RULER TO THE RIGHT TO MEASURE YOUR BOLTS AND SCREWS. PICTURE VIEWS SHOWN ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH BOLT AND SCREW SIZES.

Page 17

5/16 X 3-1/2"

HEX LAG SCREW

QTY: 66

3/8 X 3-1/2"

HEX LAG SCREW

QTY: 13

3/8 X 5"

HEX LAG SCREW

QTY: 8

#2 SQUARE

DRILL BIT

QTY: 1

3/8 x 9"

CARIAGE BOLT

QTY: 1

3/8 x 6-1/2"

CARIAGE BOLT

QTY: 16

3/8 x 3-1/2"

CARIAGE BOLT

QTY: 2

GREEN PLASTIC

BOLT CAP

QTY: 19

USE THE RULER TO THE RIGHT TO MEASURE YOUR BOLTS AND SCREWS. PICTURE VIEWS SHOWN ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH BOLT AND SCREW SIZES.

Page 18

DESCRIPTIONPICTURE QTY.

2 X 4 X 15" PICNIC TABLE TOP SUPPORT

2 X 4 X 17" LADDER STEP

2 X 4 X 23" PICNIC TABLE BENCH SUPPORT

2 X 4 X 26" LADDER SIDE BOTTOM PANEL BOARD

2 X 4 X 30" PICNIC TABLE VERTICAL SUPPORT

2 X 4 X 30 UPPER LEVEL

CENTER DECK SUPPORT; UPPER LEVEL TOP PANEL BOARD

2 X 4 X 34" UPPER DECK SUPPORT

Page 19

DESCRIPTIONPICTURE QTY.

2 X 4 X 34" PORCH CENTER DECK SUPPORT

2 X 4 X 34" PORCH TOP SIDE PANEL BOARD

2 X 4 X 47 TOP AND

BOTTOM PANEL BOARD

2 X 4 X 51" ROOF SUPPORT (LEFT AND RIGHT SIDE)

2 X 4 X 58" SWING LEG CROSS-MEMBER

2 X 4 X 66" LADDER SIDE (LEFT AND RIGHT)

2 X 4 X 66" ROCK WALL SIDE

Page 20

DESCRIPTIONPICTURE QTY.

2 X 4 X 70" CENTER DECK SUPPORT

2 X 4 X 70" CENTER DECK SUPPORT; PORCH DECK SANDBOX BOARD

2 X 4 X 70" FRONT TOP PANEL BOARD; REAR PORCH TOP PANEL BOARD

2 X 4 X 70" UPPER LEVEL TOP PANEL BOARD; UPPER LEVEL STEPS

2 X 6 X 30 TOP LEVEL

BOTTOM PANEL BOARD

2 X 6 X 47 LOWER LEVEL

BOTTOM PANEL BOARD

2 X 6 X 16" HALF SUN

Page 21

DESCRIPTIONPICTURE QTY.

2 X 6 X 70" REAR BOTTOM PANEL BOARD

2 X 6 X 70" FRONT FACE BOARD

2 X 6 X 70" SANDBOX BOARD

2 X 6 X 70" SIDE SANDBOX BOARD BOARD (LEFT AND RIGHT)

4 X 4 X 25 FRONT CENTER

POST

4 X 4 X 37" CENTER LAG POST

4 X 4 X 37" TOP LEVEL REAR CENTER POST

Page 22

PICTURE DESCRIPTION QTY.

4 X 4 X 47

SWING BEAM MOUNT

4 X 4 X 61

CORNER LAG POST (LEFT AND RIGHT)

X 2 X 10"

SMALL RAY

X 2 X 16"

LARGE RAY

X 3 X 42"

SUN SUPPORT

X 4 X 15"

PORCH PANEL SLAT

X 4 X 28"

PANEL SLAT

X 6 X 10"

TRAINGLE ROOF SUPPORT

X 4 X 29

DECK SPACER

Page 23

DESCRIPTIONPICTURE QTY.

X 4 X 40

DECK SPACER

X 4 X 62

DECK SPACER

X 4 X 69

DECK SPACER

X 3 X 18

LADDER BACK

X 3 X 23

ROCK WALL TOP CAP

X 6 X 23

BOTTOM ROCK WALL BOARD

X 6 X 23

ROCK WALL BOARD

Page 24

DESCRIPTIONPICTURE QTY.

X 6 X 46"

PICNIC TABLE SEATS AND TOP

X 6 X 47

DECK BOARD

X 6 X 69

DECK BOARD

" ROOF PEAK

1 X 4 X 30

ROOF FINISHER 1 X 4 X 47

ROOF FINISHER

1 X 4 X 30

ROOF STARTER 1 X 4 X 47

ROOF STARTER

2 2

Page 25

DESCRIPTIONPICTURE QTY.

1 X 6 X 30 ROOF BOARD

1 X 6 X 47 ROOF BOARD

PLASTIC COATED 4 X 4 X 120" LEFT SIDE REAR CORNER POST

PLASTIC COATED 4 X 4 X 120" RIGHT SIDE REAR CORNER POST

18 18

PLASTIC COATED 4 X 6 X 120" SWING BEAM

PLASTIC COATED 4 X 4 X 96" FRONT CORNER POST

PLASTIC COATED 4 X 4 X 96" MIDDLE CORNER POST

PLASTIC COATED 4 X 4 X 96" SWING LEG

Page 26

PICTURE DESCRIPTION QTY.

10' WAVE

SLIDE

RAD RIDE

TUBE SLIDE

SWINGS

W/CHAINS

TRAPEZE

BAR

W/CHAINS

Page 27

DESCRIPTIONPICTURE QTY.

SWING

PLATE

CLIMBING

ROCKS

A-FRAME

SWING

LEG

BRACKET

NOT SHOWN

HARDWARE

BOX

INSTRUCTIONS

EA.

Page 28

DESCRIPTIONPICTURE QTY.

IRON

DUCTILE

SWING

HANGERS

TELESCOPE

GLIDER SWING

Page 29

PICTURE DESCRIPTION QTY.

SAFETY HANDLES

" X 1

GREEN BRACKET

SPRING CLIP

10' ROPE

Page 30

PICTURE DESCRIPTION QTY.

UNASSEMBLED

CHIMNEY

UNASSEMBLED

DORMER

TIC-TAC-TOE

PANEL

Page 31

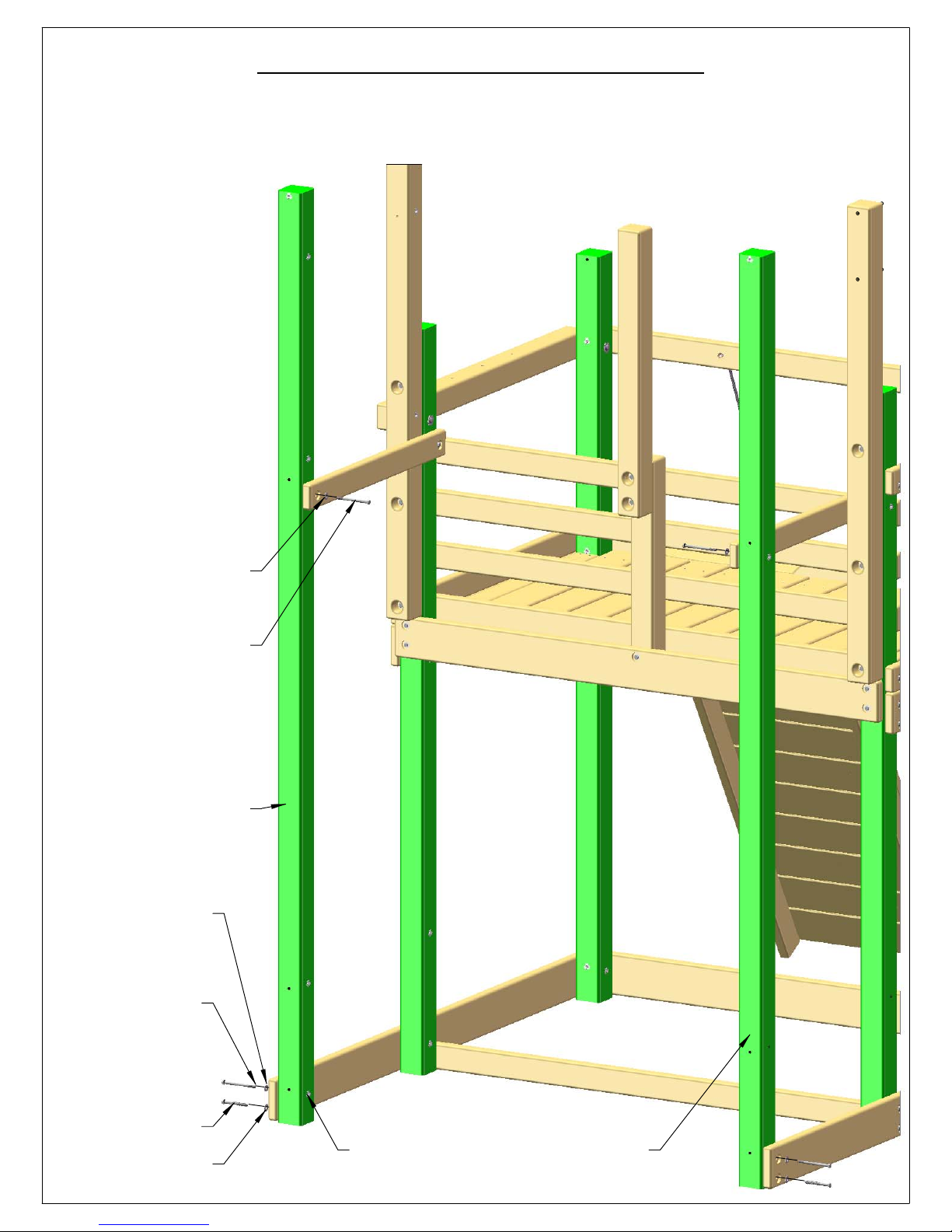

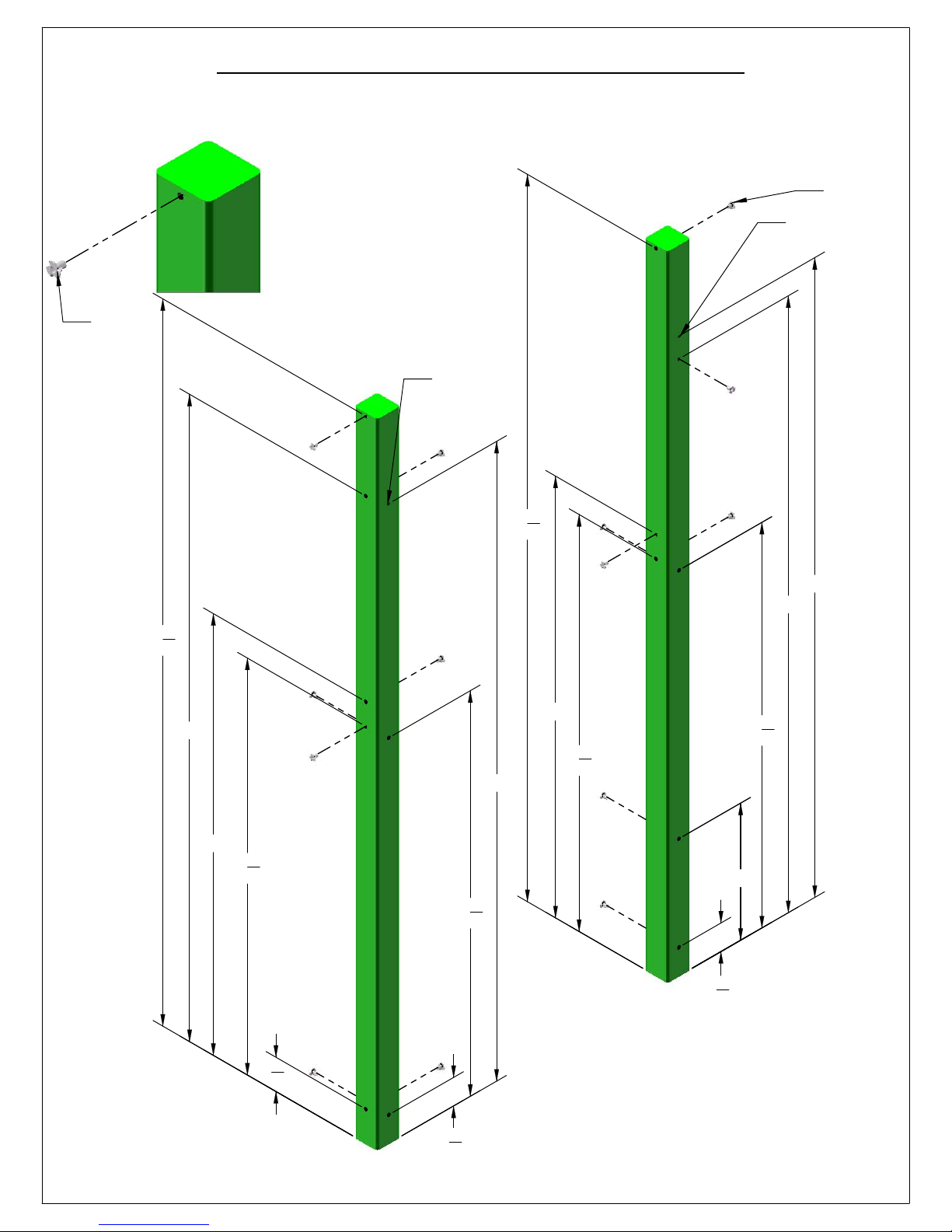

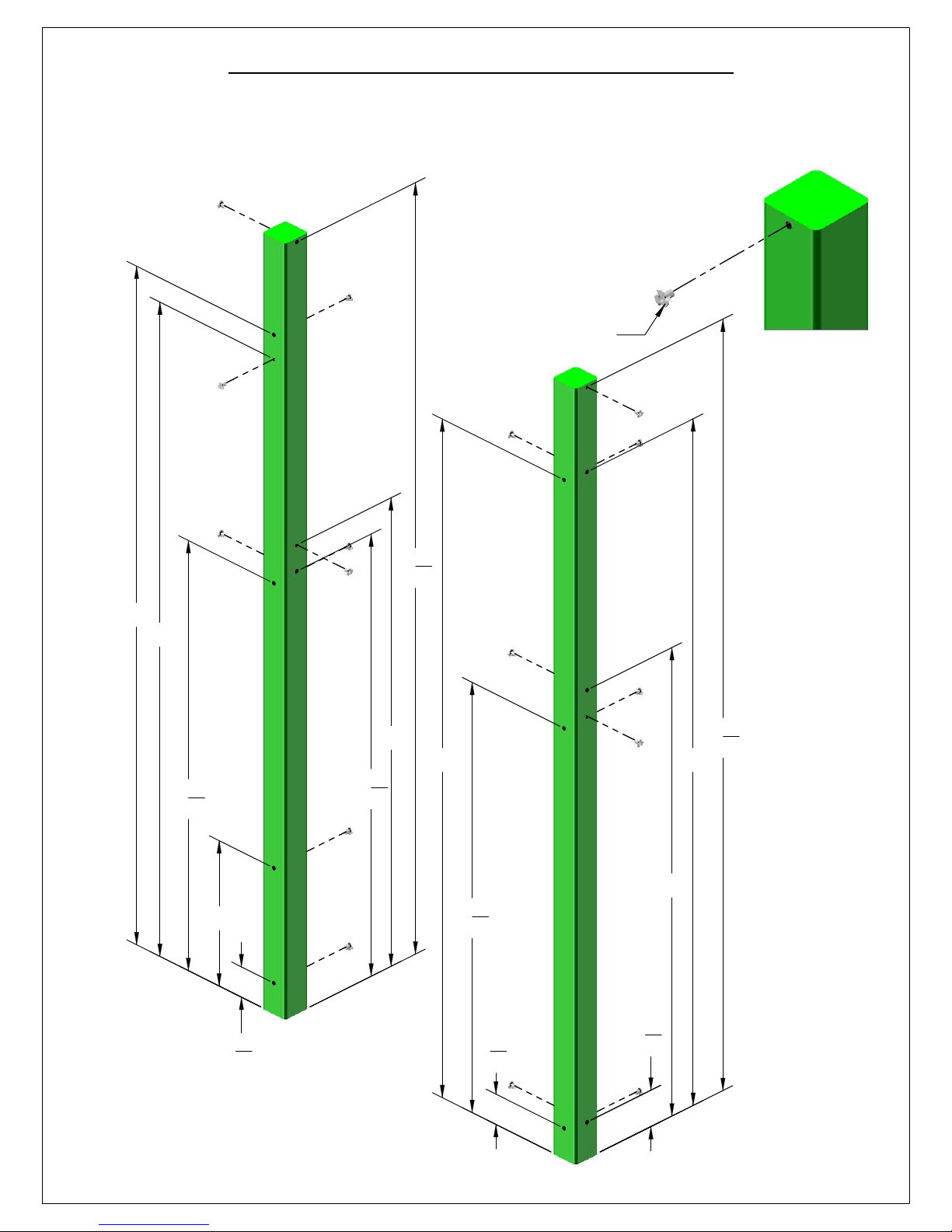

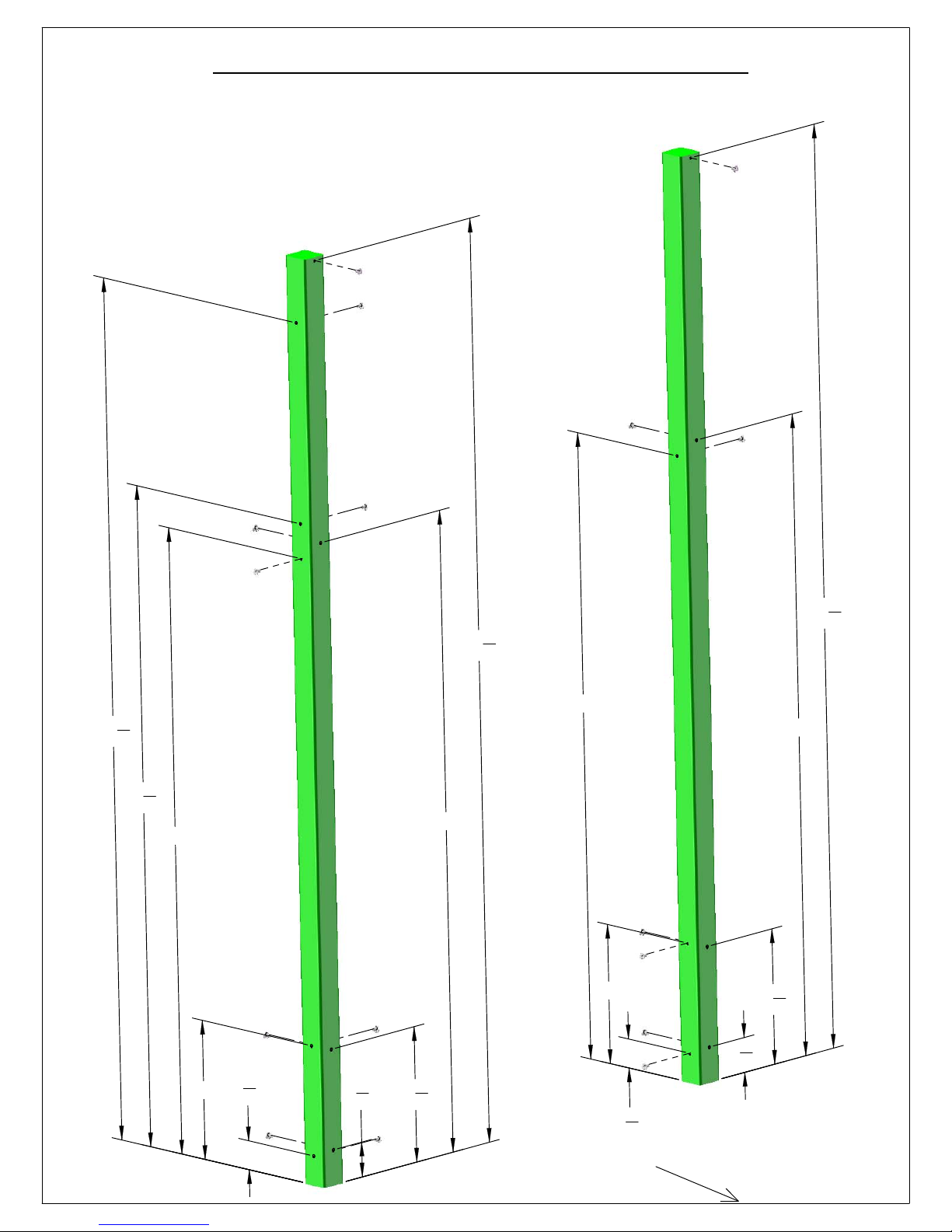

STEP 1A: LEFT SIDE CORNER POSTS

INSERT T-NUTS INTO THE HOLES AS SHOWN BELOW AND SET WITH A HAMMER, FLUSH TO THE SURFACE OF THE CORNER POSTS. T-NUTS MUST BE INSTALLED AT THE PROPER ORIENTATION. MAKE SURE YOUR CORNER POSTS ARE FACING THE PROPER DIRECTION BEFORE INSTALLING TNUTS.

T-NUT

84"

81"

1 4

18"

58"

3 4

1 2

84"

85"

58"

LEFT MIDDLE CORNER POST

LEFT FRONT CORNER POST

Page 32

STEP 1B: RIGHT SIDE CORNER POSTS

T-NUT

NO T-NUT IN THIS HOLE

T-NUT

NO T-NUT IN THIS HOLE

"95

84"

81"

"95

85"

58"

84"

18"

RIGHT FRONT CORNER POST

RIGHT MIDDLE CORNER POST

Page 33

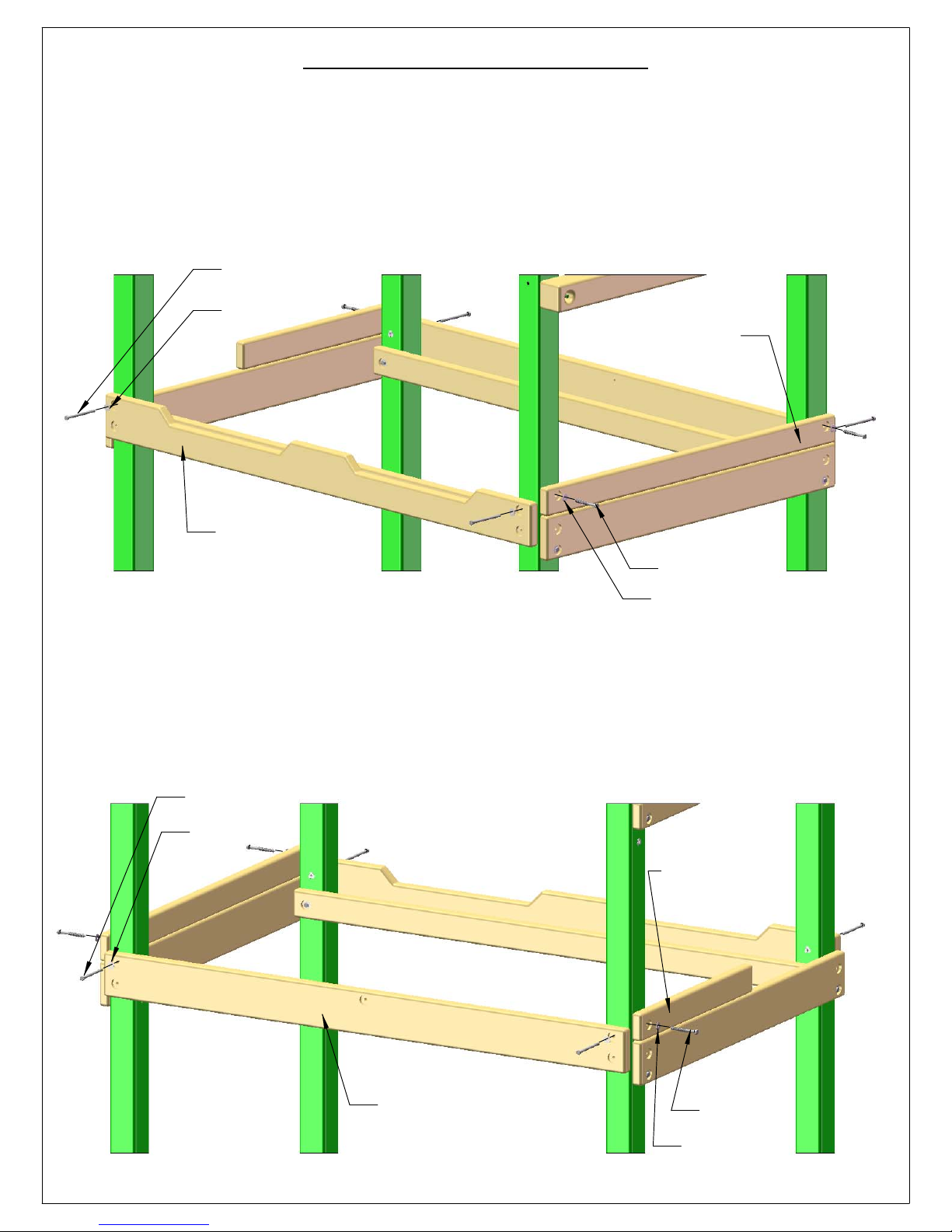

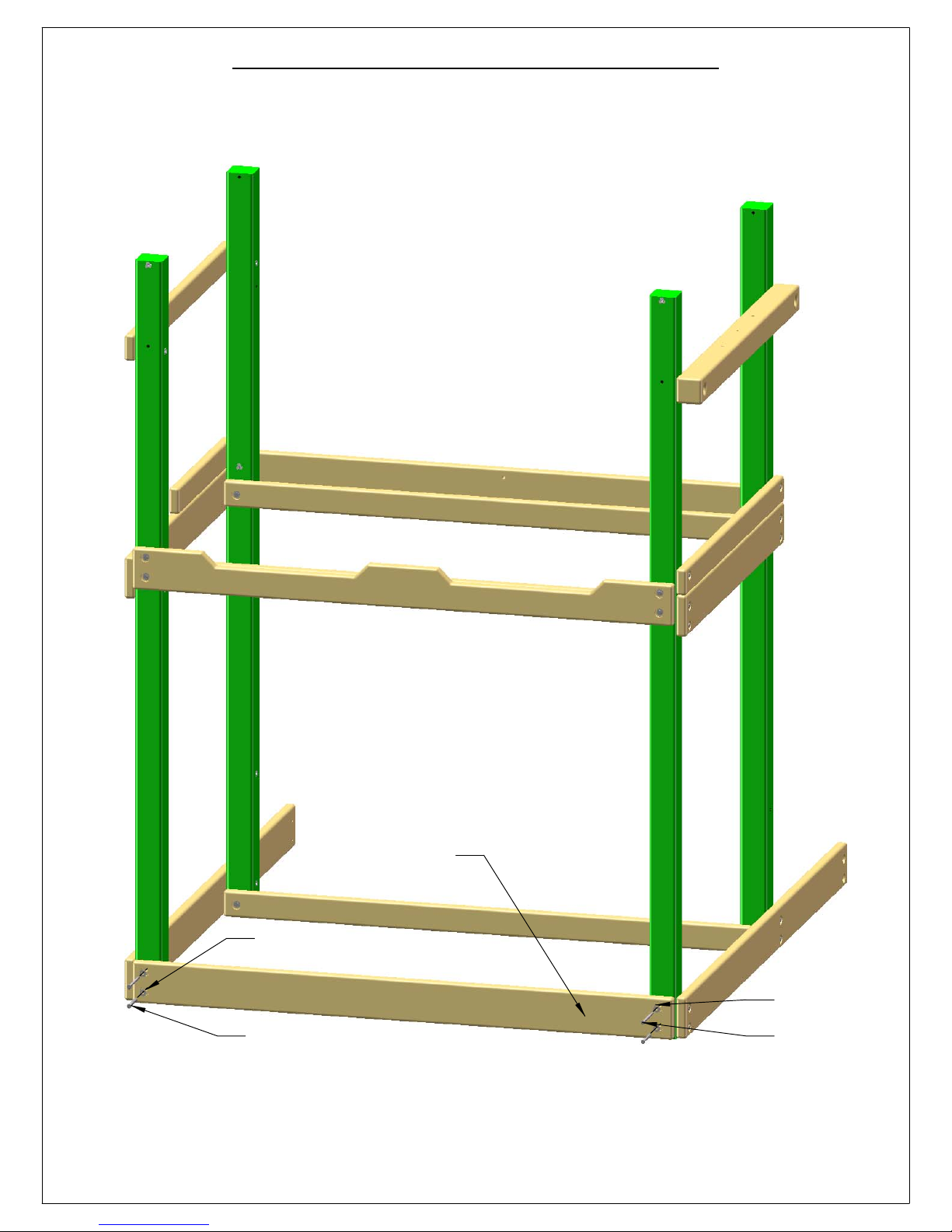

STEP 2: LEFT SIDE WALL ASSEMBLY

1: WITH THE OFFSET HOLES DOWNWARD, LAY ONE 2 X 6 X 78" SANDBOX BOARD ON TOP OF ONE FRONT CORNER POST AND ONE MIDDLE CORNER POST. NOTE THE ORIENTATION OF THE TNUTS ON THE CORNER POSTS AND THE POSITIONING OF THE CORNER POST ON THE SANDBOX BOARD.

2: USE 5/16 X 4-1/2” HEX BOLTS AND 5/16" WASHERS TO ATTACH THROUGH THE TOP HOLE OF THE SANDBOX BOARD, THROUGH THE HOLES AT 3-3/4” ON THE CORNER POSTS, AND INTO THE TNUTS INSTALLED IN STEP #1. THE T-NUTS WILL BE ON THE OPPOSITE SIDE OF THE CORNER POSTS AS THE SANDBOX BOARDS. (NOTE: THE BOTTOM HOLE OF THE SANDBOX BOARD WILL NOT BE USED AT THIS TIME)

3: ATTACH THE 2 X 6 X 47-1/2” BOTTOM PANEL BOARD WITH 5/16 X 4-1/2” HEX BOLTS AND 5/16” WASHERS TO THE CORNER POST WITH HOLES OFFSET UP THROUGH THE BOTTOM HOLE OF THE 2 X 6, THROUGH THE HOLES AT 53-1/4”, AND INTO THE PREVIOUSLY INSTALLED T-NUT. (NOTE: THE TOP HOLES OF THE BOTTOM PANEL BOARD WILL NOT BE USED AT THIS TIME.)

4: ATTACH THE 2 X 4 X 47-1/2” TOP PANEL BOARD WITH 5/16 X 4-1/2” HEX BOLTS AND 5/16” WASHERS WITH THE HOLES OFFSET DOWN THROUGH THE HOLES AT 84” AND INTO THE T-NUTS.

2 X 4 X 47-1/2"

TOP PANEL BOARD

OFFSET HOLES DOWN

5/16 WASHER

5/16 X 4-1/2"

HEX BOLT

2 X 6 X 47-1/2"

BOTTOM PANEL BOARD

OFFSET HOLES DOWN

SANDBOX BOARD

OFFSET HOLES DOWN

2 X 6 X 78"

Page 34

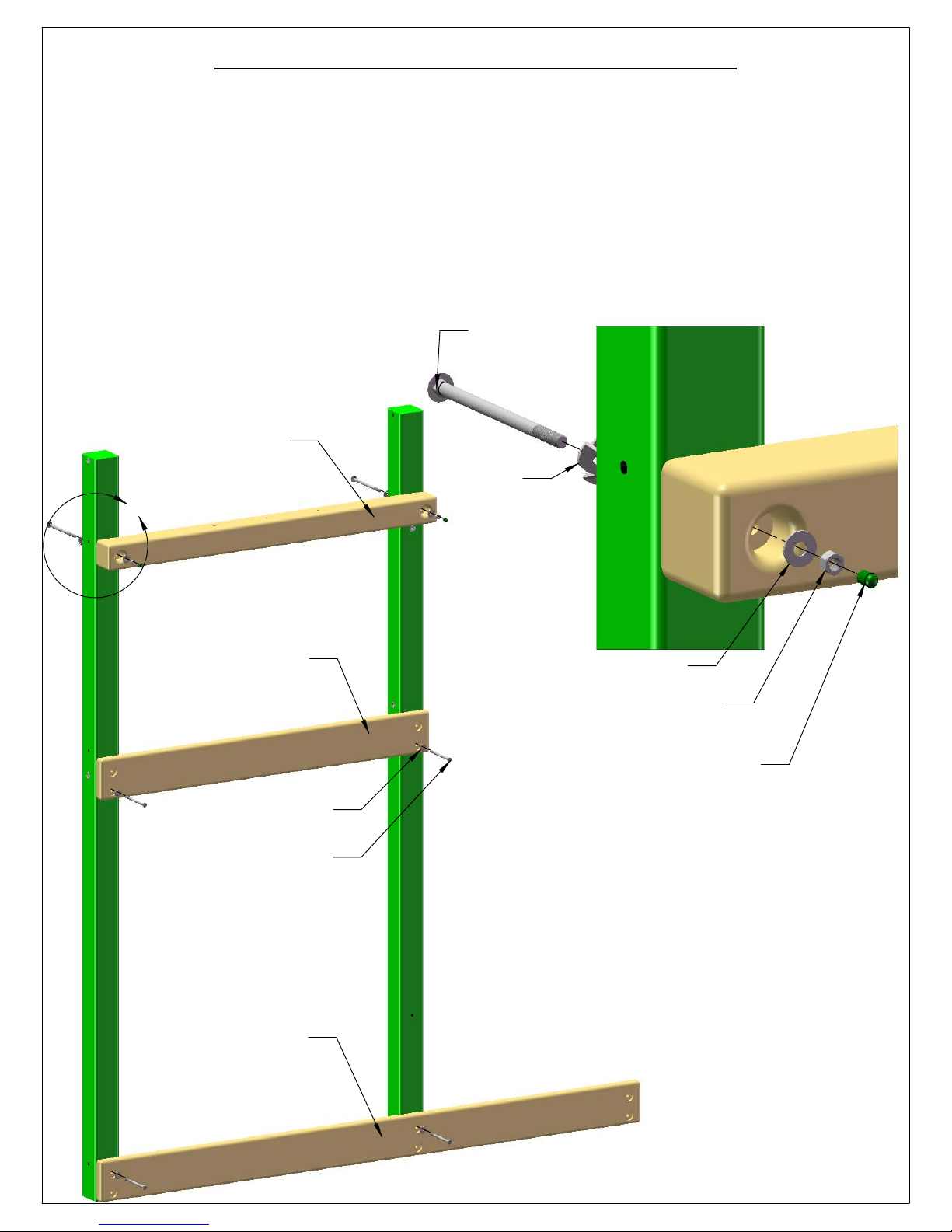

STEP 3: RIGHT SIDE WALL ASSEMBLY

1: ATTACH THE REMAINING 2 X 6 X 78” SANDBOX BOARD ON TOP OF ONE FRONT CORNER POST AND ONE MIDDLE CORNER POST AS PREVIOUSLY EXPLAINED IN THE LEFT SIDE WALL CONSTRUCTION.

2: ATTACH THE 2 X 6 X 47-1/2” BOTTOM PANEL BOARD AS EXPLAINED IN THE LEFT SIDE WALL CONSTRUCTION.

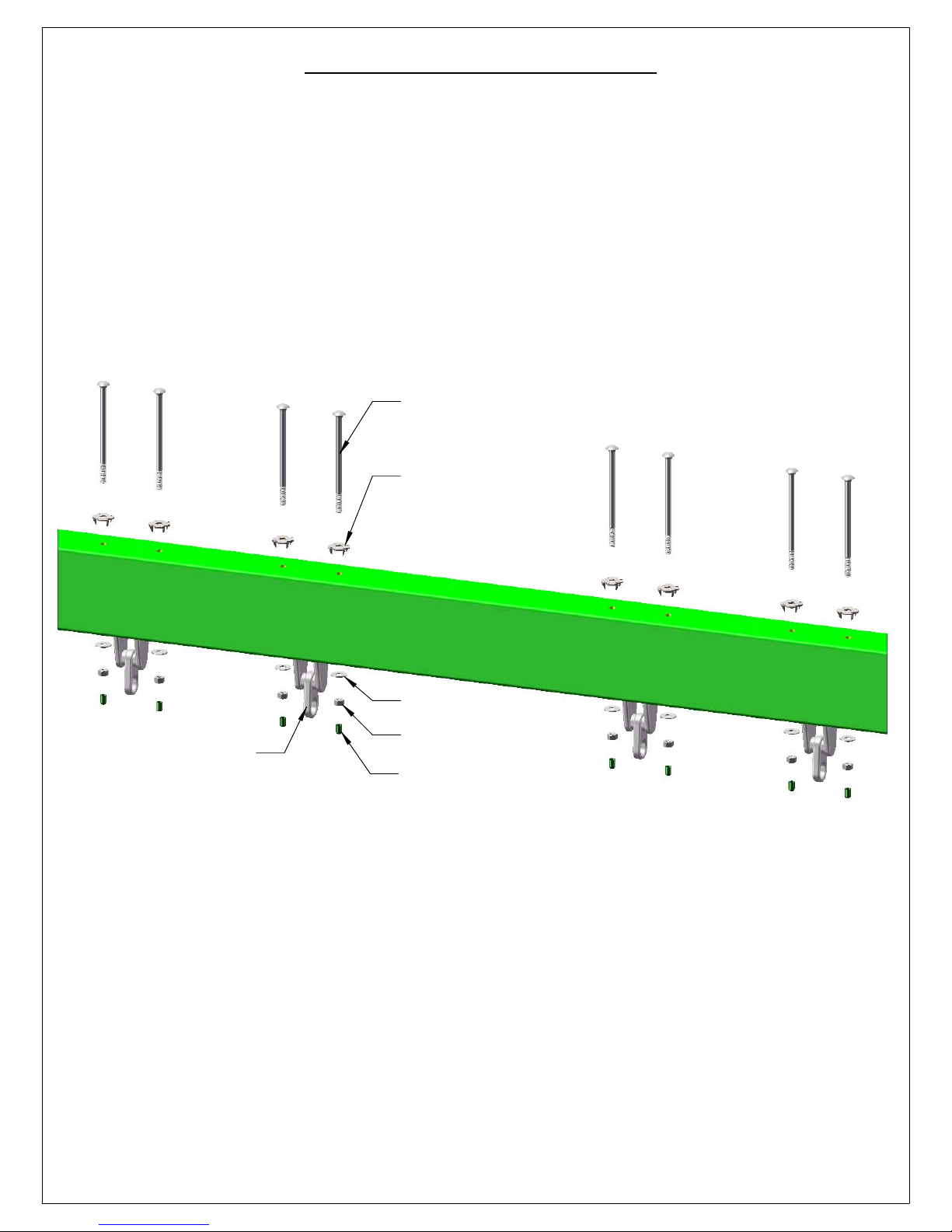

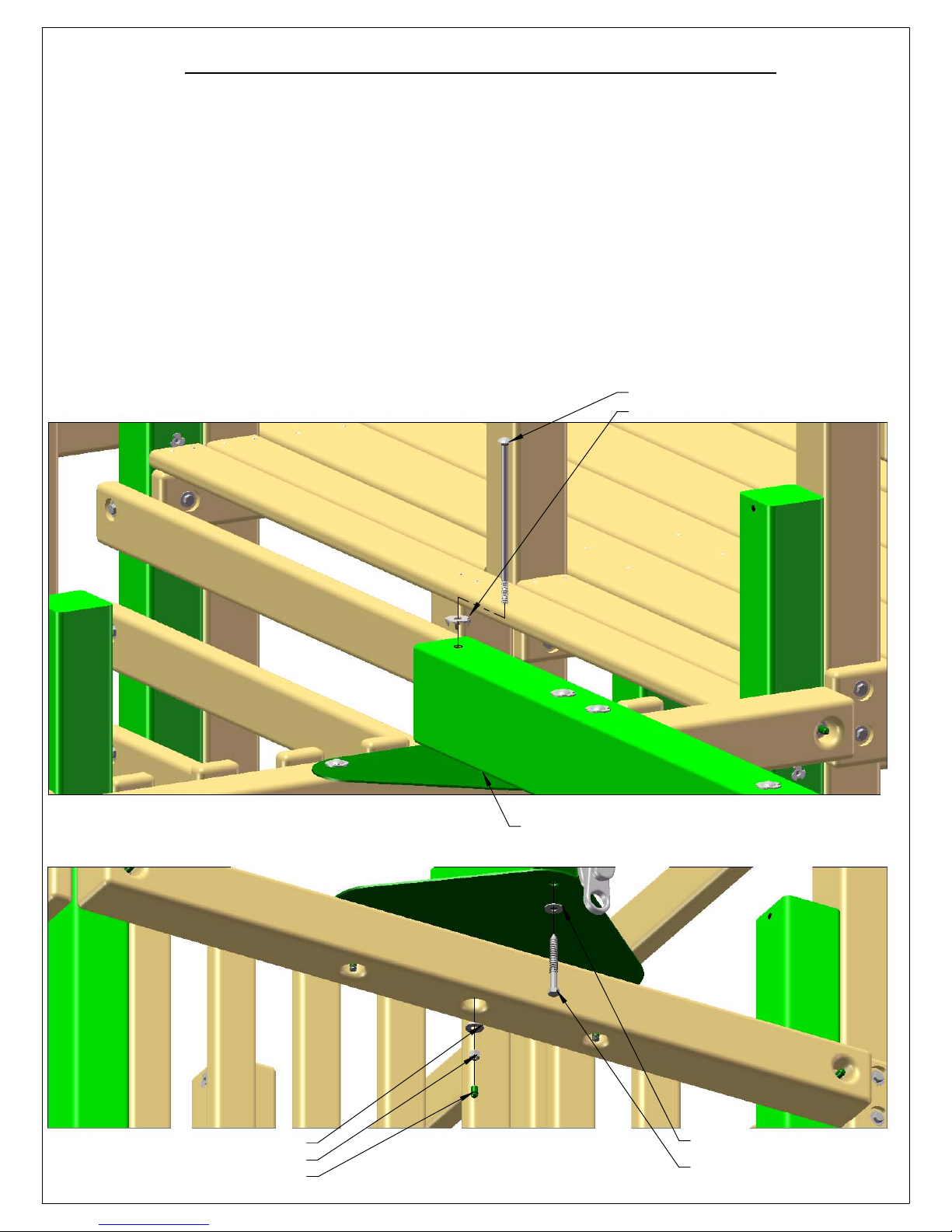

3: ATTACH THE 4 X 4 X 47-1/2” SWING BEAM MOUNT WITH 3/8 X 6-1/2” CARRIAGE BOLTS AND 1/2” WASHERS THROUGH THE HOLES AT 84”, THROUGH THE SWING BEAM MOUNT, AND ATTACHED TO 3/8” LOCKNUTS AND WASHERS (AS SHOWN BELOW). (NOTE THE ORIENTATION OF THE HOLES ON THE SWING BEAM MOUNT BELOW)

6-1/2" CARRIAGE BOLT

SWING BEAM MOUNT

4 X 4 X 47-1/2"

2 X 6 X 47-1/2"

BOTTOM PANEL BOARD

OFFSET HOLES DOWN

5/16" WASHER

5/16 X 4-1/2"

HEX BOLT

TORQUE

WASHER

3/8" WASHER

3/8" LOCK NUT

BOLT CAP

2 X 6 X 78"

SANDBOX BOARD

OFFSET HOLES DOWN

Page 35

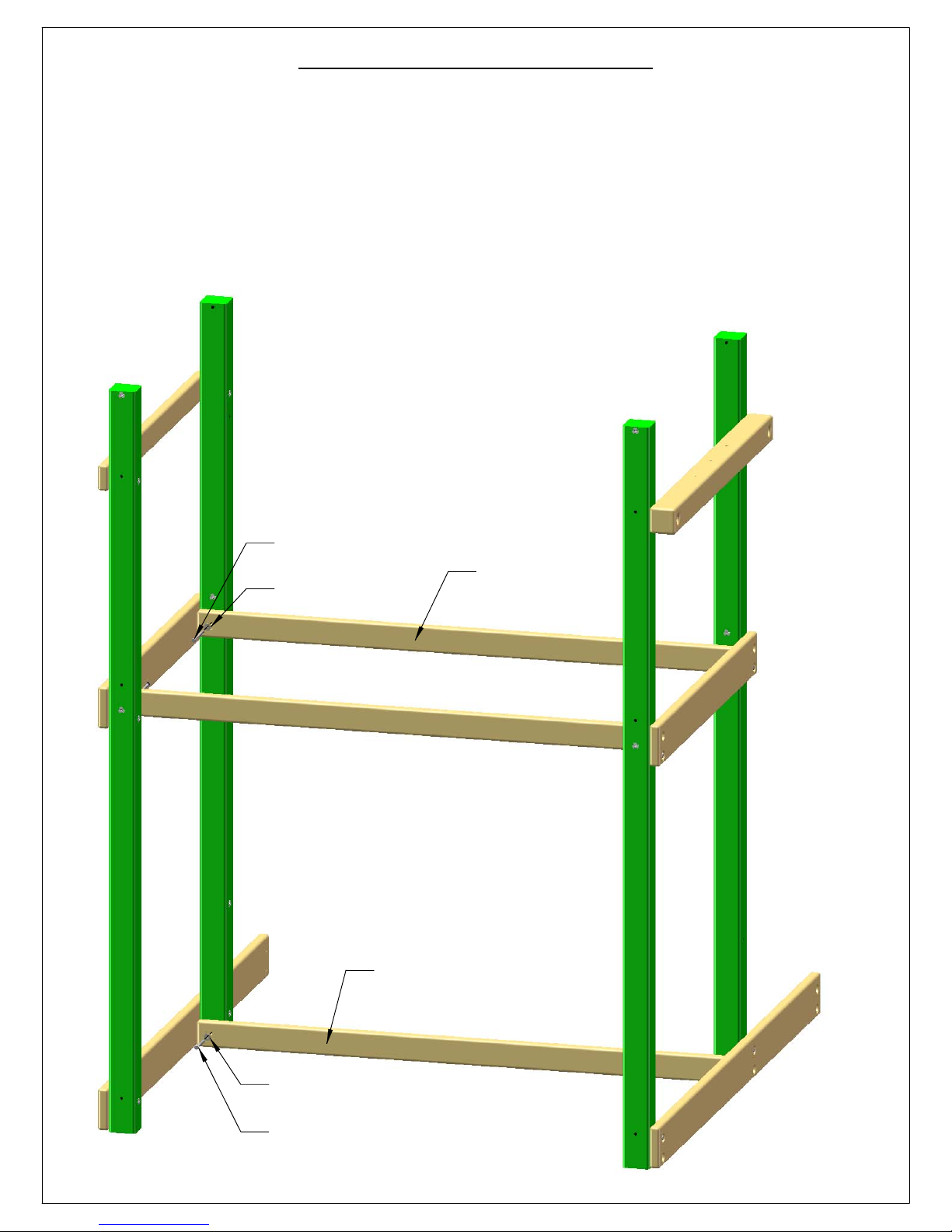

STEP 4: DECK SUPPORTS

1. INSERT 5/16 X 4-1/2” HEX HEAD BOLTS AND 5/16" WASHERS THROUGH THE 2 X 4 X 70" DECK SUPPORTS, THROUGH THE HOLES AT 54-3/4”, AND INTO THE T-NUTS INSTALLED IN STEP #1.

2. PLACE THE 2 X 4 X 70" PORCH DECK SANDBOX BOARD FLUSH TO THE BOTTOM OF THE PREVIOUSLY INSTALLED SANDBOX BOARDS AND TO THE INSIDE OF THE CORNER POST. ATTACH IT TO THE CORNER POSTS WITH TWO 5/16 X 3-1/2” LAG SCREWS AND 5/16” WASHERS.

5/16 X 4-1/2" HEX BOLT

5/16" WASHER

2 X 4 X 70" DECK SUPPORT HOLES ON CENTER

2 X 4 X 70" PORCH DECK SANDBOX BOARD HOLES ON CENTER

5/16" WASHER

5/16 X 3-1/2" LAG SCREW

Page 36

STEP 5: PANEL BOARDS

1: ATTACH THE 2 X 4 X 47-1/2" BOTTOM PANEL BOARD ON TOP OF THE RIGHT SIDE BOTTOM PANEL BOARD WITH TWO 5/16 X 3-1/2” LAG SCREWS.

2: ATTACH THE 2 X 6 X 70" FRONT FACE BOARD TO THE FRONT CORNER POSTS WITH 5/16 X 41/2" HEX BOLTS AND 5/16" WASHERS THROUGH THE TOP HOLE OF THE FRONT FACE BOARD, THROUGH THE HOLES AT 58", AND INTO THE PREVIOUSLY INSTALLED T-NUTS. (NOTE: THE BOTTOM HOLES OF THE FRONT FACE BOARD WILL NOT BE USED AT THIS TIME)

5/16 X 4-1/2" HEX BOLT

5/16" WASHER

BOTTOM PANEL BOARD

2 X 6 X 70" FRONT FACE BOARD OFFSET HOLES UP

FRONT OF FORT

2 X 4 X 47-1/2"

OFFSET HOLES UP

5/16 X 3-1/2" LAG SCREW

5/16" WASHER

3: PLACE THE 2 X 4 X 26" LADDER SIDE BOTTOM PANEL ON TOP OF THE LEFT SIDE BOTTOM PANEL BOARD AND FLUSH TO THE OUTSIDE OF THE CORNER POST. ATTACH IT WITH ONE 5/16 X 3-1/2” LAG SCREW AND 5/16" WASHER AS SHOWN BELOW.

4: ATTACH THE 2 X 6 X 70" BACK PANEL BOARD TO THE MIDDLE CORNER POSTS WITH 5/16 X 4-1/2" HEX BOLTS AND 5/16” WASHERS THROUGH THE TOP HOLE OF THE BACK PANEL BOARD, THROUGH THE HOLES AT 58", AND INTO THE PREVIOUSLY INSTALLED T-NUTS. (NOTE: THE BOTTOM HOLES WILL NOT BE USED AT THIS TIME)

5/16 X 4-1/2" HEX BOLT

5/16" WASHER

BACK OF FORT

2 X 6 X 70" BACK PANEL BOARD OFFSET HOLES UP

2 X 4 X 26" LADDER SIDE BOTTOM PANEL BOARD HOLE ON CENTER

5/16 X 3-1/2" LAG SCREW

5/16" WASHER

Page 37

STEP 6: COMPLETING THE FRAME

1: ATTACH THE 2 X 6 X 70" SANDBOX BOARD WITH HOLES OFFSET UP TO THE FRONT CORNER POSTS WITH 5/16 X 4-1/2” HEX BOLTS AND 5/16” WASHERS THROUGH THE TOP HOLES OF THE SANDBOX BOARD, THROUGH THE HOLES AT 4-1/2”, AND INTO THE PREVIOUSLY INSTALLED TNUTS. (THE BOTTOM HOLES WILL NOT BE USED AT THIS TIME)

5/16" WASHER

5/16 X 3-1/2" LAG SCREW

2: ONCE THE FRAME IS LEVEL, SQUARE, AND SET INTO POSITION YOU MAY GO BACK THROUGH AND INSERT THE 5/16 X 3-1/2” LAG SCREWS AND 5/16” WASHERS IN ALL OF THE REMAINING HOLES OF THE PREVIOUSLY INSTALLED 2 X 6 PARTS. NOTE: THERE WILL NOT BE ANY PRE- DRILLED HOLES IN THE CORNER POSTS FOR THESE LAG SCREWS. LAG SCREWS ARE SELF-TAPPING.

2 X 6 X 70"

SANDBOX BOARD

OFFSET HOLES UP

5/16" WASHER 5/16 X 4-1/2"

HEX BOLT

Page 38

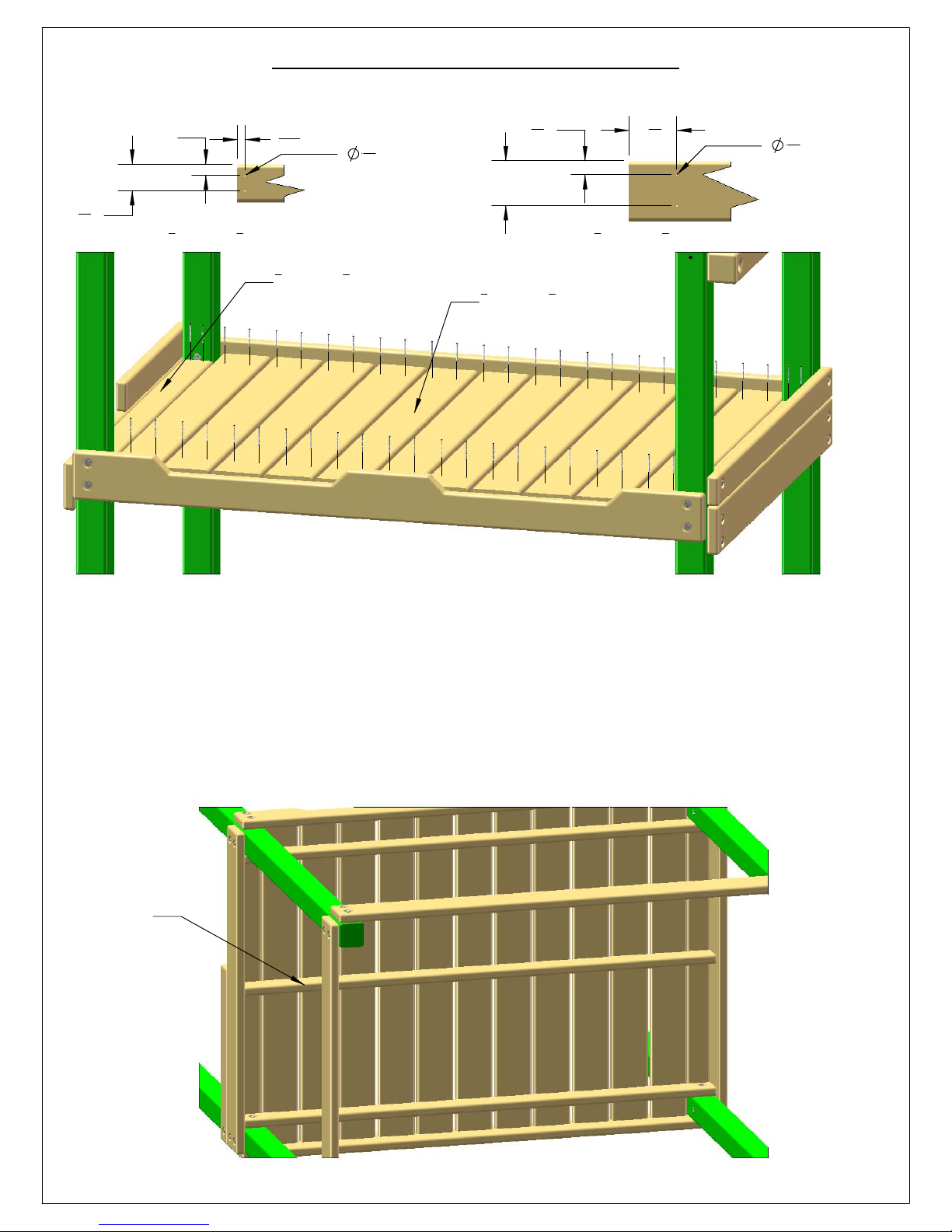

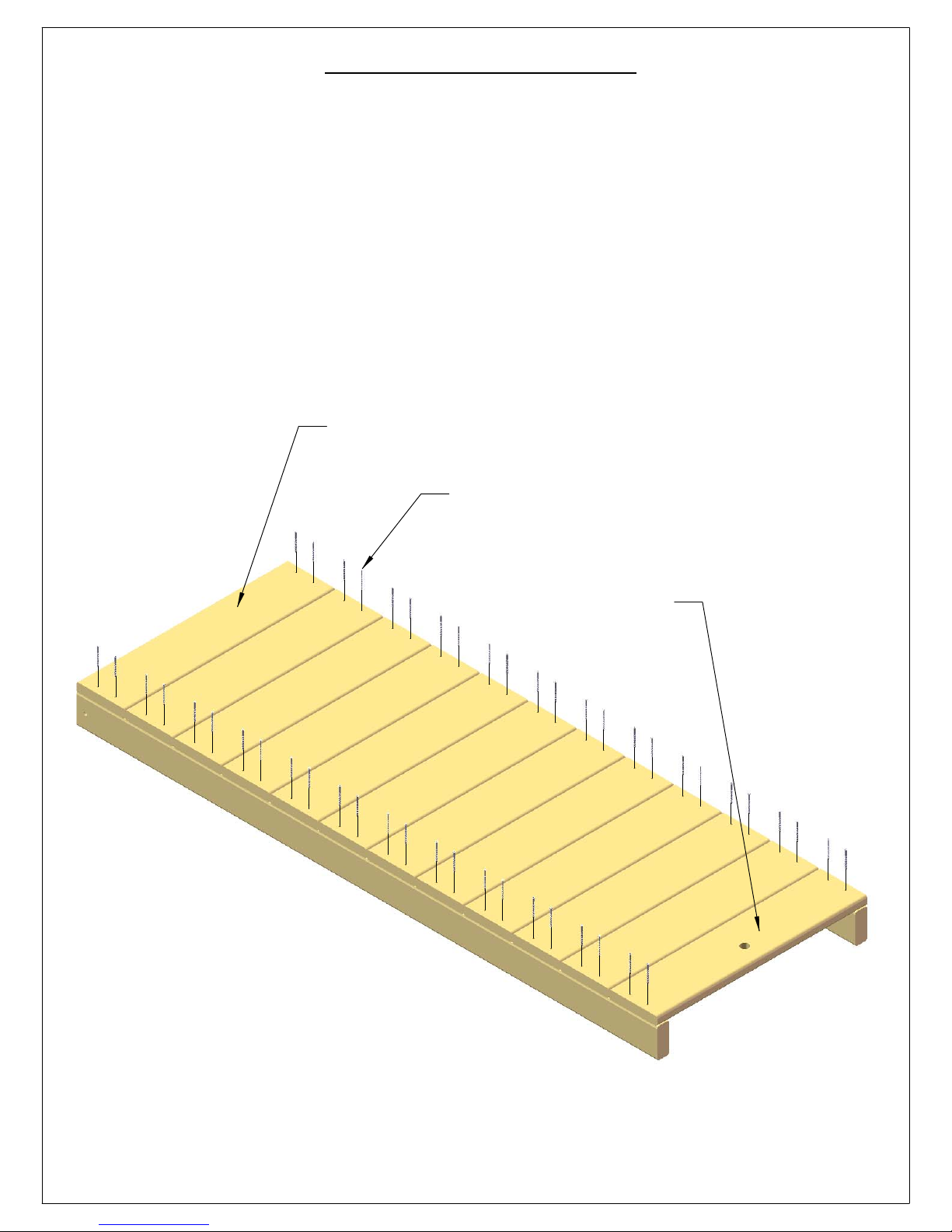

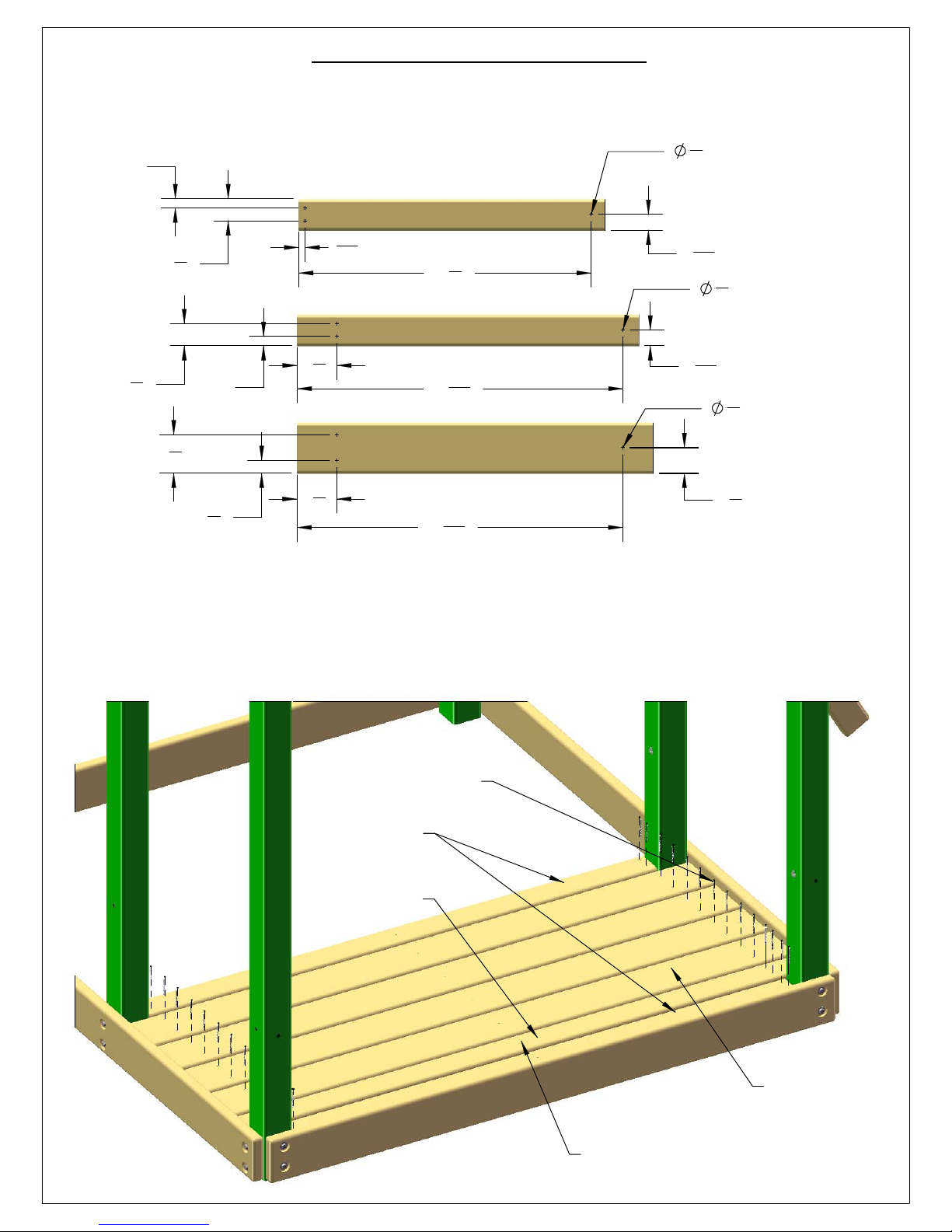

STEP 7: LOWER LEVEL DECK

1: YOU WILL NEED TO PREDRILL THE ENDS OF THE DECK BOARDS TO PREVENT INSTALLATION DAMAGE. PREDRILL BOTH ENDS WITH A 1/8” DRILL BIT USING THE DIMENSIONS BELOW. DRILL A HOLE IN THE CENTER OF ALL DECK BOARDS.

X 4 X 40

" DECK SPACER

X 4 X 40

DECK SPACER

5 4

DECK BOARD

1 4

X 6 X 47

" DECK BOARD

2: PLACE THE 40-1/2” DECK SPACERS BETWEEN THE FRONT AND MIDDLE CORNER POSTS. SECURE THE DECK SPACERS TO THE DECK SUPPORTS WITH 2” WOOD SCREWS THROUGH THE PRE-DRILLED HOLES.

PLACE THE ELEVEN 47-1/2” DECK BOARDS MAKING SURE THAT THEY ARE EVENLY SPACED. SECURE WITH TWO 2”

3: WOOD SCREWS PER SIDE.

FIND THE CENTER POINT OF THE DECK SPACERS ON EACH END OF THE DECK AND MARK THIS POINT.

PLACE ALL DECK BOARDS ACROSS THE DECK BEFORE FASTENING.

5: CENTER THE CENTER DECK SUPPORT ON THE MARKS AND POSITION IT FLUSH TO THE DECK BOARDS. SECURE THE CENTER DECK SUPPORT WITH 2-1/2” WOOD SCREWS THROUGH THE OUTSIDE OF THE BOTTOM PANEL BOARDS AND INTO THE ENDS OF THE CENTER DECK SUPPORT. ATTACH THE CENTER OF THE DECK BOARDS TO THE CENTER DECK SUPPORT FROM THE TOP WITH 2” WOOD SCREWS THROUGH THE DECK BOARDS AND INTO THE TOP OF THE 2 X 4 X 70”.

2 X 4 X 70"

CENTER DECK

SUPPORT

VIEW SHOWN FROM UNDERNEATH FORT

Page 39

STEP 8: FRONT TOP PANEL BOARD

1: FIND THE 2 X 4 X 70" FRONT TOP PANEL BOARD. 2: ATTACH THE FRONT TOP PANEL BOARD TO THE FRONT CORNER POSTS WITH 5/16 X 4-1/2" HEX

BOLTS AND 5/16" WASHERS WITH HOLES OFFSET UP THROUGH THE HOLES AT 85" AND INTO THE TNUTS.

NOTE: THE 7/8" THROUGH HOLE SHOULD BE TO THE RIGHT SIDE OF THE FORT.

2 X 4 X 70"

5/16" WASHER 5/16 X 4-1/2"

HEX BOLT

FRONT TOP PANEL BOARD OFFSET HOLES UP

Page 40

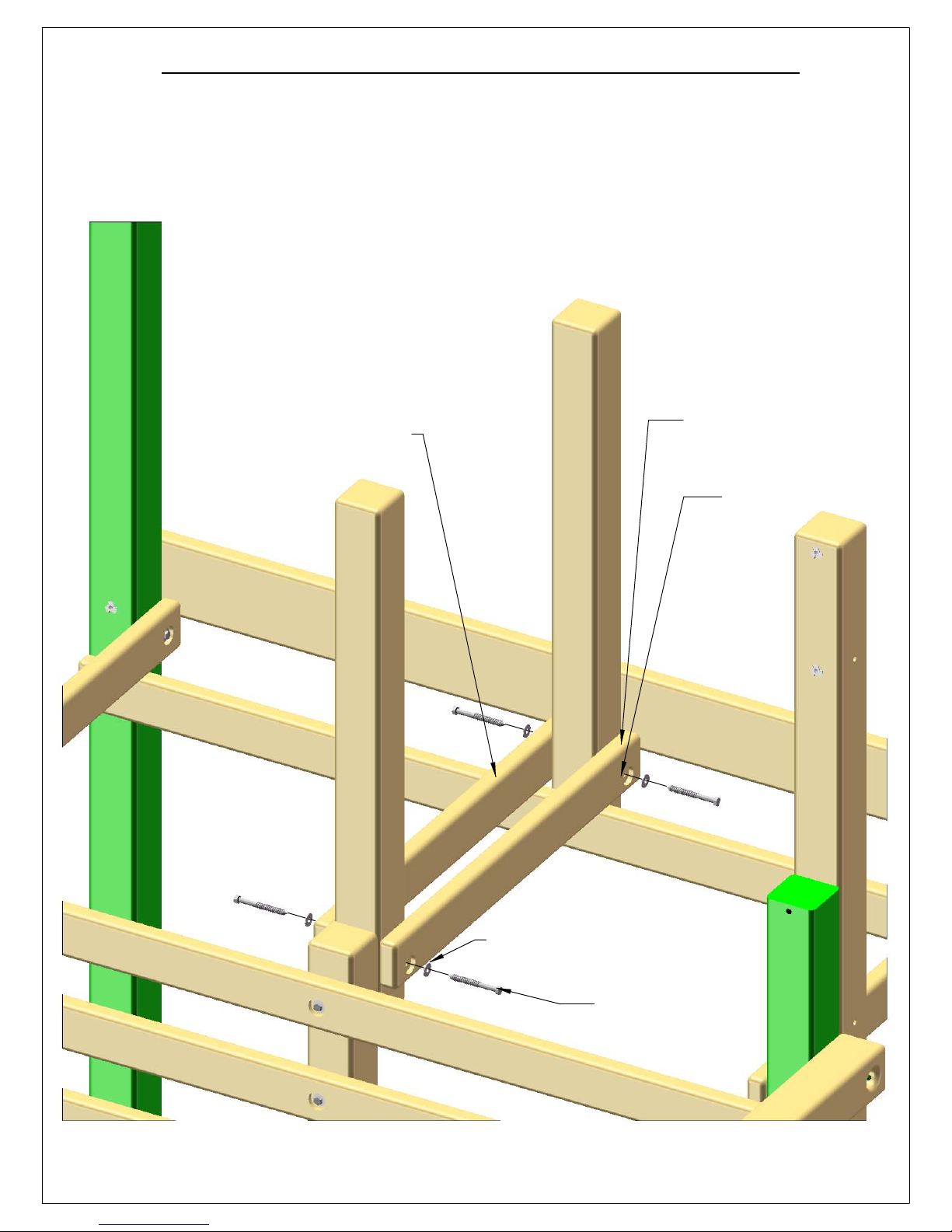

STEP 9: CENTER POST

1: FIND THE 4 X 4 X 25-1/2" CENTER POST. 2: CENTER THE CENTER POST TO THE CENTER OF THE REAR BOTTOM PANEL BOARD, AND

ATTACH WITH A 5/16 X 3-1/2" LAG SCREW AND A 5/16" WASHER FROM THE BACK; THROUGH THE HOLE IN THE REAR BOTTOM PANEL BOARD; INTO THE CENTER POST.

4 X 4 X 25-1/2"

CENTER POST

5/16" WASHER

5/16 X 3-1/2"

LAG SCREW

Page 41

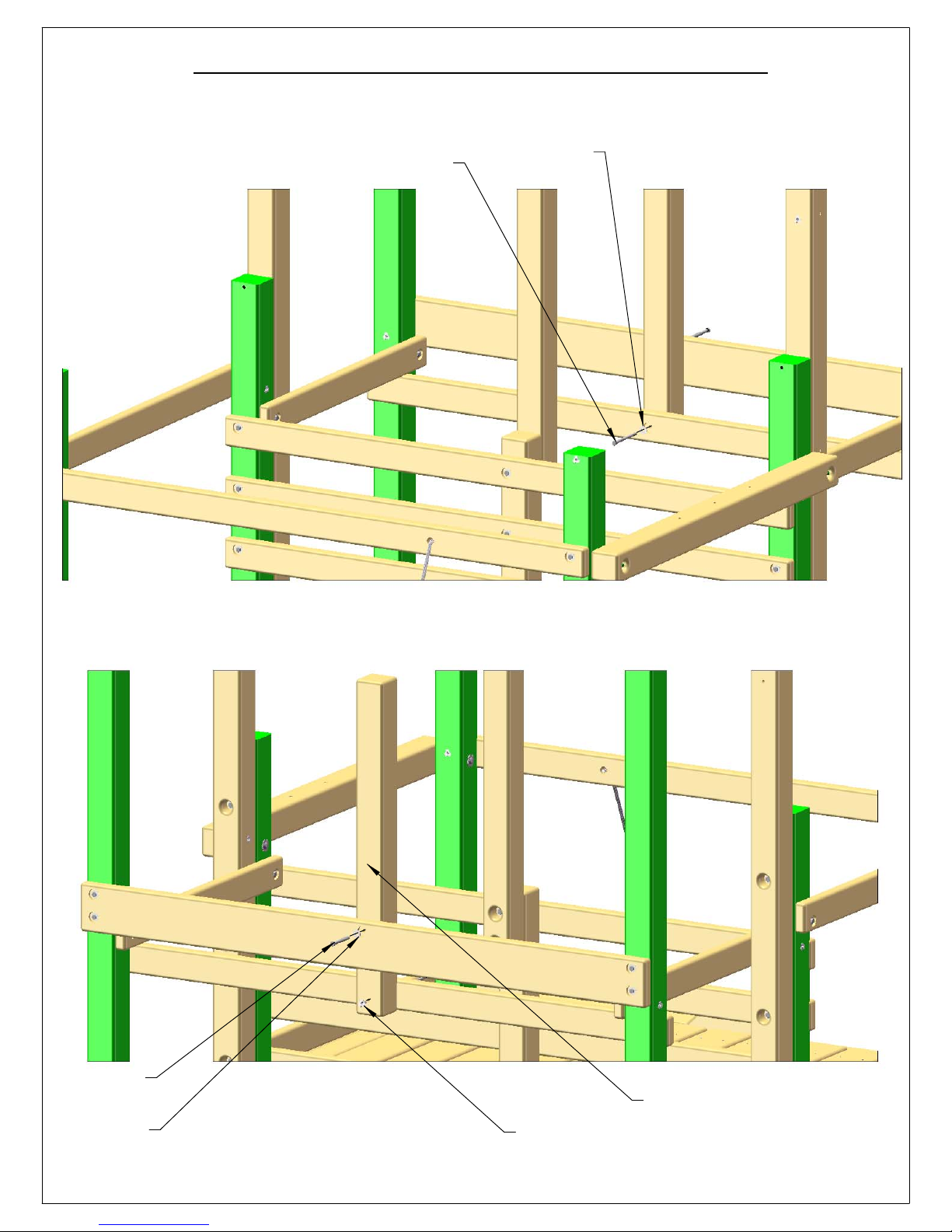

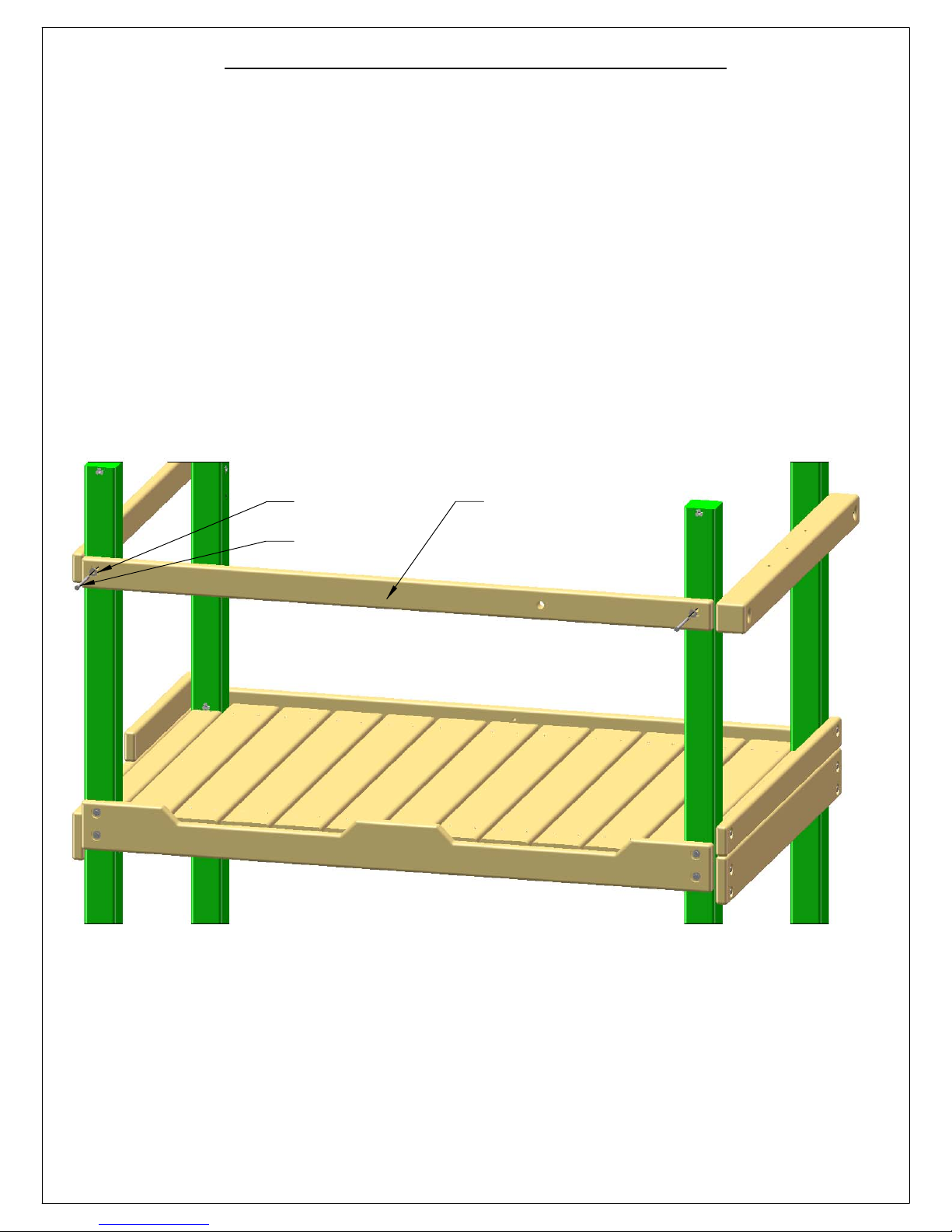

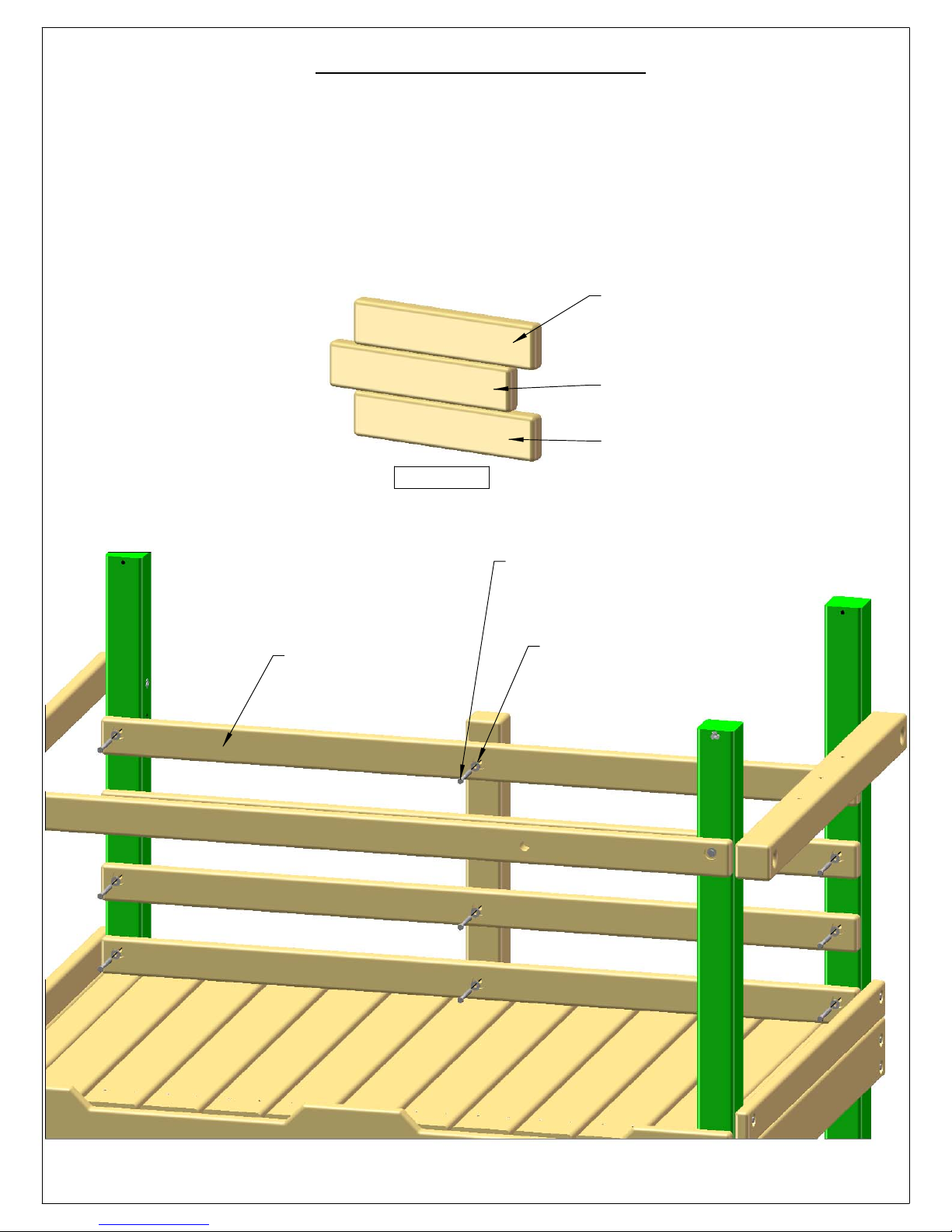

STEP 10: STEP BOARDS

1: FIND FOUR 2 X 4 X 70" 3 HOLE PANEL BOARDS. 2: PLACE ONE PANEL BOARD ON TOP OF THE DECK TO THE INSIDE OF THE REAR WALL. USE A 2

X 4 AS A SPACER FOR THE NEXT THREE AS SHOWN IN FIGURE A. 3: ATTACH THE 3 HOLE PANEL BOARDS TO THE CORNER AND CENTER POSTS WITH THREE 5/16 X

3-1/2" LAG SCREWS AND 5/16" WASHERS PER BOARD.

2ND BOARD

SPACER

1ST BOARD

FIGURE A

5/16 X 3-1/2" LAG SCREW

2 X 4 X 70" 5/16" WASHER PANEL BOARD

Page 42

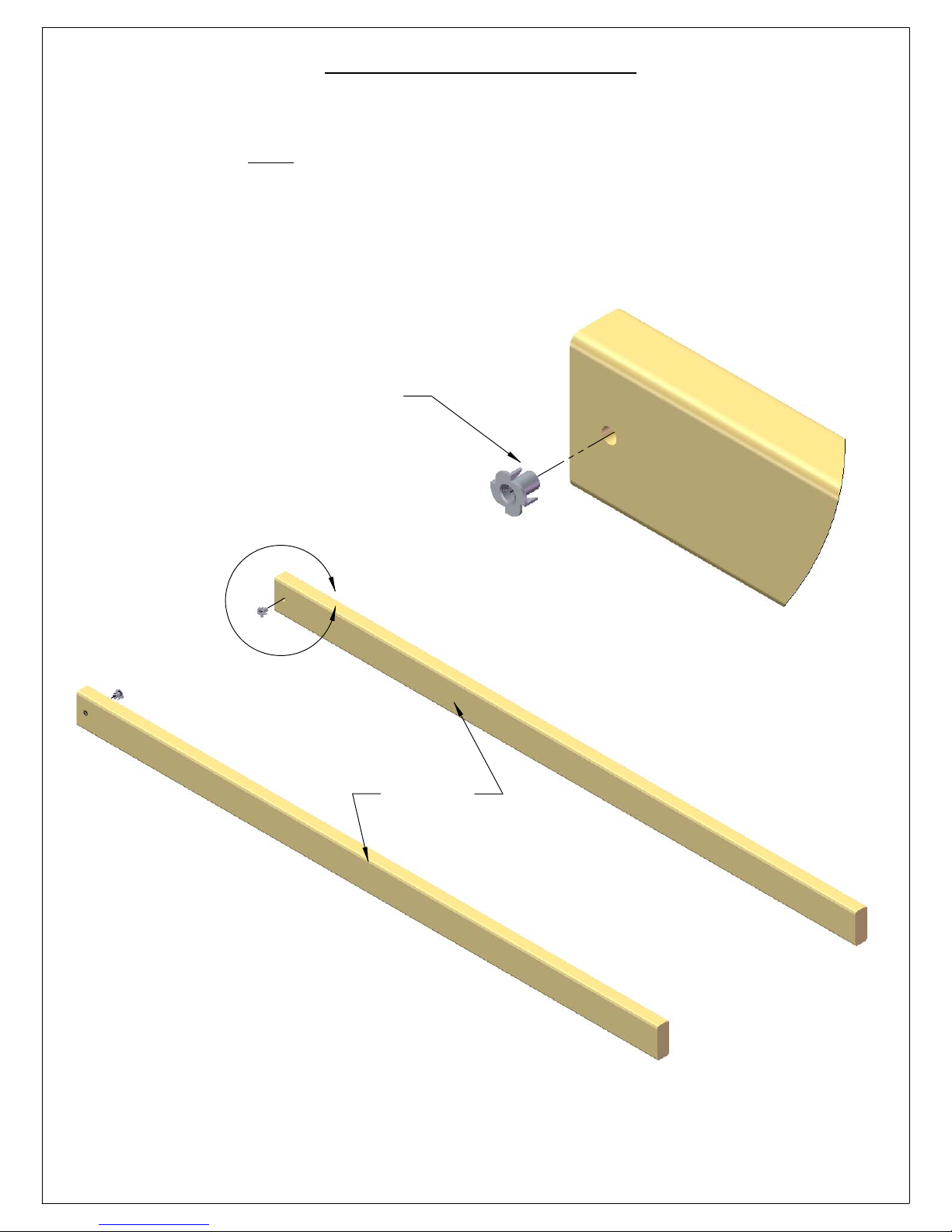

STEP 11: ROCK WALL

1: FIND TWO 2 X 4 X 66" ROCK WALL SIDES. 2: POSITION THE ROCK WALL SIDES SO THAT THE HOLES IN THE BOARDS ARE BOTH FACING THE SAME WAY. 3: INSERT T-NUTS INTO THE INSIDE

OF THE ROCK WALL SIDES AND SET WITH A HAMMER.

T-NUT

2 X 4 X 66"

ROCK WALL

SIDES

Page 43

STEP 12: ROCK WALL

1: FIND ELEVEN 5/4 X 6 X 23-7/8" ROCK WALL BOARDS, AND ONE 5/4 X 6 X 23-7/8" BOTTOM ROCK WALL BOARD(1 HOLE).

2: STARTING FROM THE TOP, PLACE ONE ROCK WALL BOARD ON TOP OF THE ROCK WALL SIDES, FLUSH TO THE TOP OF THE ROCK WALL SIDES, AND ATTACH WITH TWO 2" WOOD SCREWS IN EACH SIDE.

3: CONTINUE DOWN THE ROCK WALL WITH THE REMAINING ROCK WALL BOARDS, FASTENING EACH BOARD WITH TWO 2" WOOD SCREWS ON EACH END.

4: THE FINAL BOARD WILL BE THE BOTTOM ROCK WALL BOARD WITH ONE HOLE. ATTACH WITH TWO 2" WOOD SCREWS PER SIDE.

5: IN SOME CASES, THERE WILL BE EXCESS LENGTH ON THE ROCK WALL SIDES. THIS IS DUE TO MILLING VARIATIONS, AND IS ALSO USED TO HELP LEVEL THE ROCK WALL SIDES ON UNEVEN GROUND.

6: ROCK WALL SIDES MAY NOT BE EVEN WITH THE BOTTOM ROCK WALL BOARD DUE TO MILLING VARIATIONS AND WOOD SHRINKAGE.

5/4 X 6 X 23-7/8" ROCK WALL BOARD

2" WOOD SCREW

5/4 X 6 X 23-7/8"

BOTTOM ROCK

WALL BOARD

Page 44

STEP 13: ROCK WALL

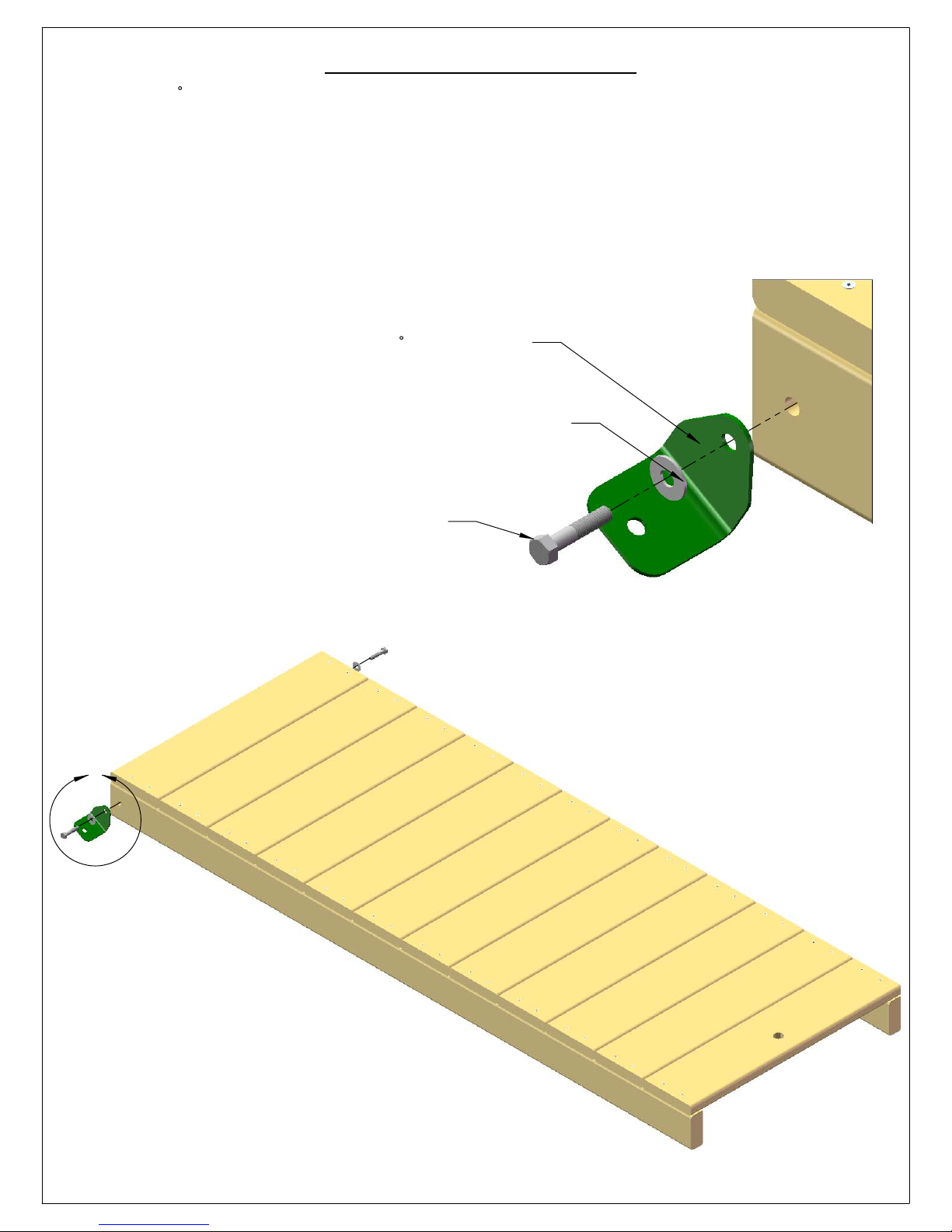

1: FASTEN THE 90 GREEN BRACKET TO THE ROCK WALL SIDES WITH 5/16 X 1-1/2" HEX BOLTS AND 5/16" WASHERS. 2: DO NOT FULLY TIGHTEN THE HEX BOLTS INTO THE T-NUTS AT THIS TIME.

GREEN BRACKET90

5/16" WASHER

5/16" X 1-1/2"

HEX BOLT

Page 45

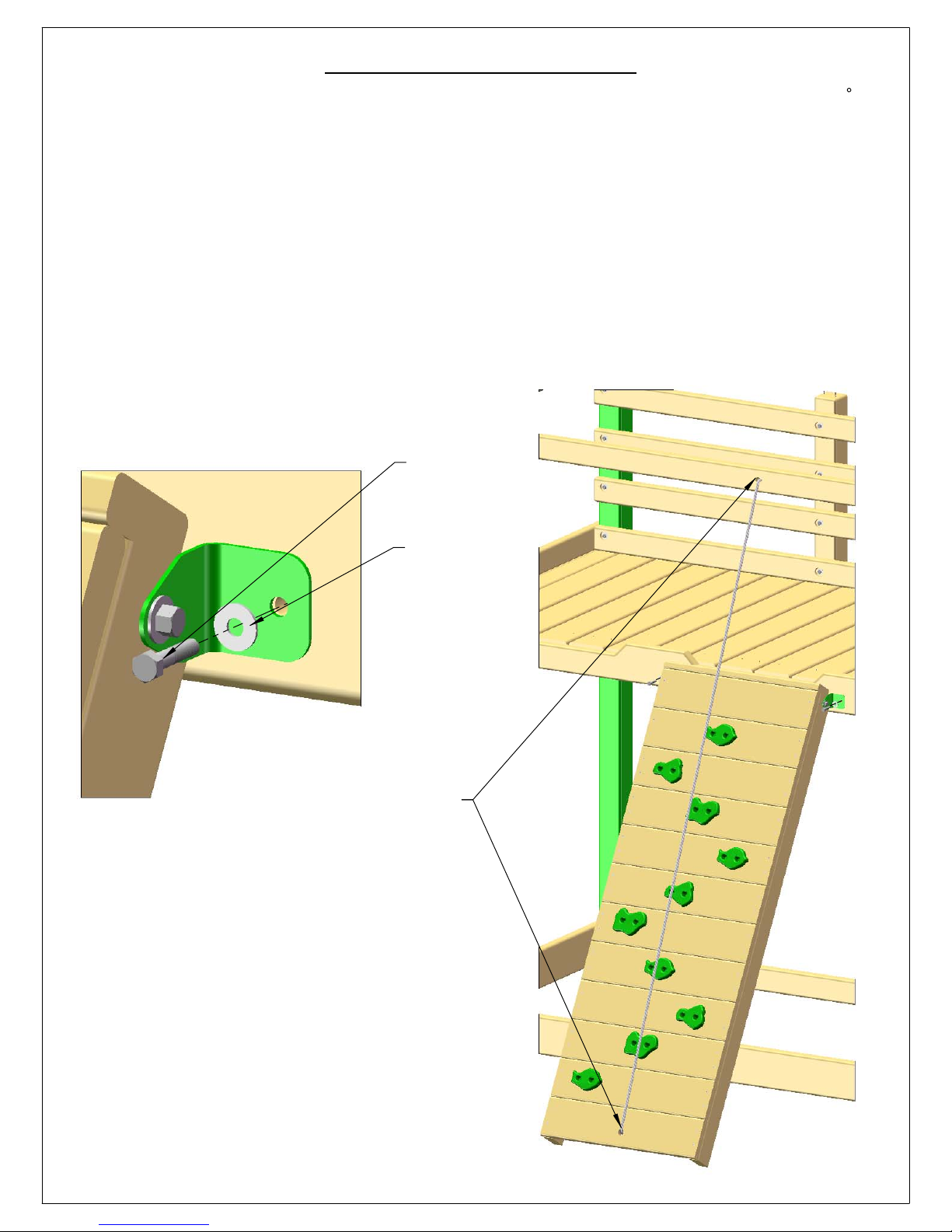

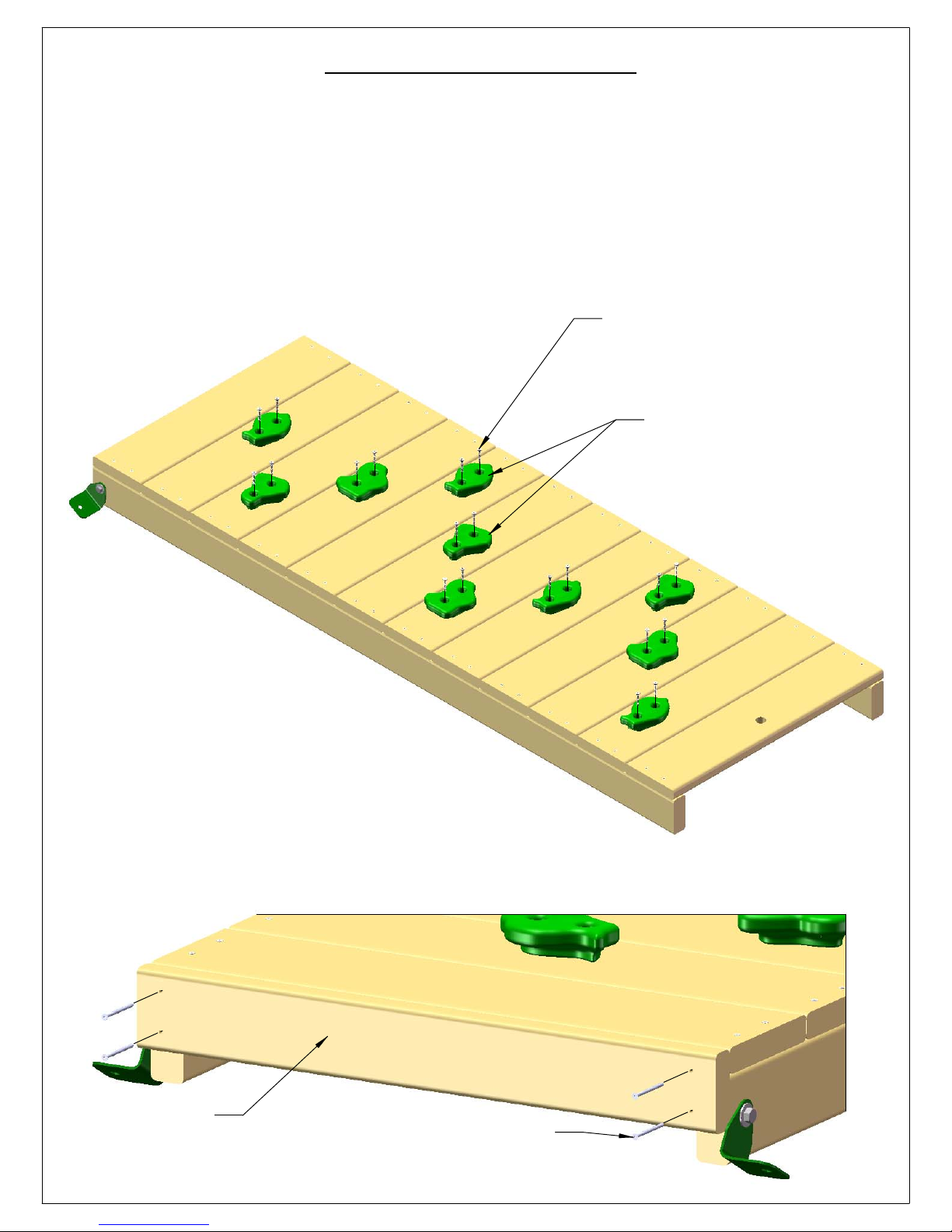

STEP 14: ROCK WALL

1: FIND TEN ROCKS AND TWENTY 1-1/4" PAN HEAD SCREWS. 2: MOUNT THE ROCKS IN A STAGGERED MANNER ON THE ROCK WALL BOARDS. TWO PAN HEAD SCREWS WILL

SECURE EACH ROCK TO THE WALL. NOTE: THE IMAGE SHOWN BELOW IS A GENERIC ARRANGEMENT OF ROCKS ON THE ROCK WALL. YOUR ACTUAL

CONFIGURATION MAY BE DIFFERENT THAT WHAT YOU SEE BELOW. ROCKS CAN BE ARRANGED IN ANY PATTERN AS LONG AS THEY WILL ALLOW PROPER ACCESS TO THE FORT. BE CREATIVE!

1-1/4" PAN HEAD SCREW

CLIMBING ROCKS

3: PLACE THE 5/4 X 3 X 23-7/8" ROCK WALL TOP CAP ON TOP OF THE ROCK WALL SIDES. FASTEN THE ROCK WALL TOP CAP TO THE ROCK WALL SIDES WITH 2" WOOD SCREWS.

5/4 X 3 X 23-7/8"

ROCK WALL TOP CAP

2" WOOD SCREW

Page 46

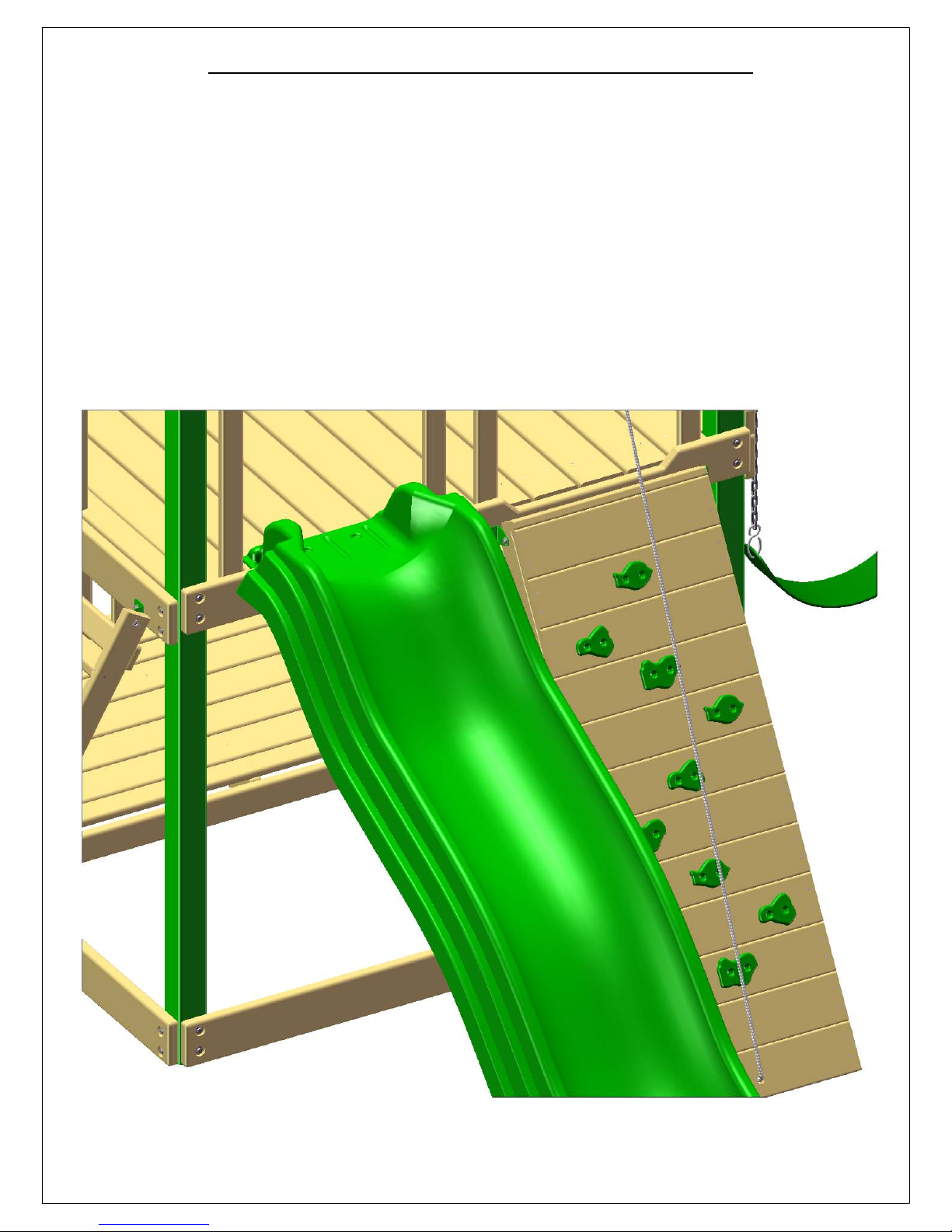

STEP 15: ROCK WALL

1: PLACE THE ROCK WALL INTO POSITION ON THE FORT AS SHOWN BELOW. USING THE 90 BRACKETS AS A TEMPLATE; DRILL A 3/8" HOLE THROUGH THE FRONT FACE BOARD.

2: FROM THE UNDERSIDE OF THE DECK, INSERT A T-NUT INTO THE BACK SIDE OF THE 3/8" HOLES ON THE FRONT FACE BOARD.

3: ATTACH THE ROCK WALL WITH 5/16 X 1-1/2" HEX BOLTS AND 5/16" WASHERS. 4: WHEN THE BRACKETS ARE SECURE, AND THE ROCK WALL IS IN ITS FINAL POSITION; TIGHTEN

THE 5/16 X 1-1/2" BOLTS ON THE ROCK WALL SIDES. 5: THREAD ROPE THROUGH THE HOLE ABOVE THE ROCK WALL. TIE A SECURE KNOT ON THE

INSIDE OF THE TOP PANEL BOARD. 6: THREAD THE OPPOSITE END OF THE ROPE THROUGH THE HOLE IN THE BOTTOM ROCK WALL

BOARD; PULL TIGHT AND TIE A KNOT BEHIND THE ROCK WALL, MAKING SURE THE ROPE IS TIGHT.

5/16 X 1-1/2" HEX BOLT

5/16" WASHER

TIE A SECURE KNOT

IN THE CLIMBING ROPE

IN THESE LOCATIONS

Page 47

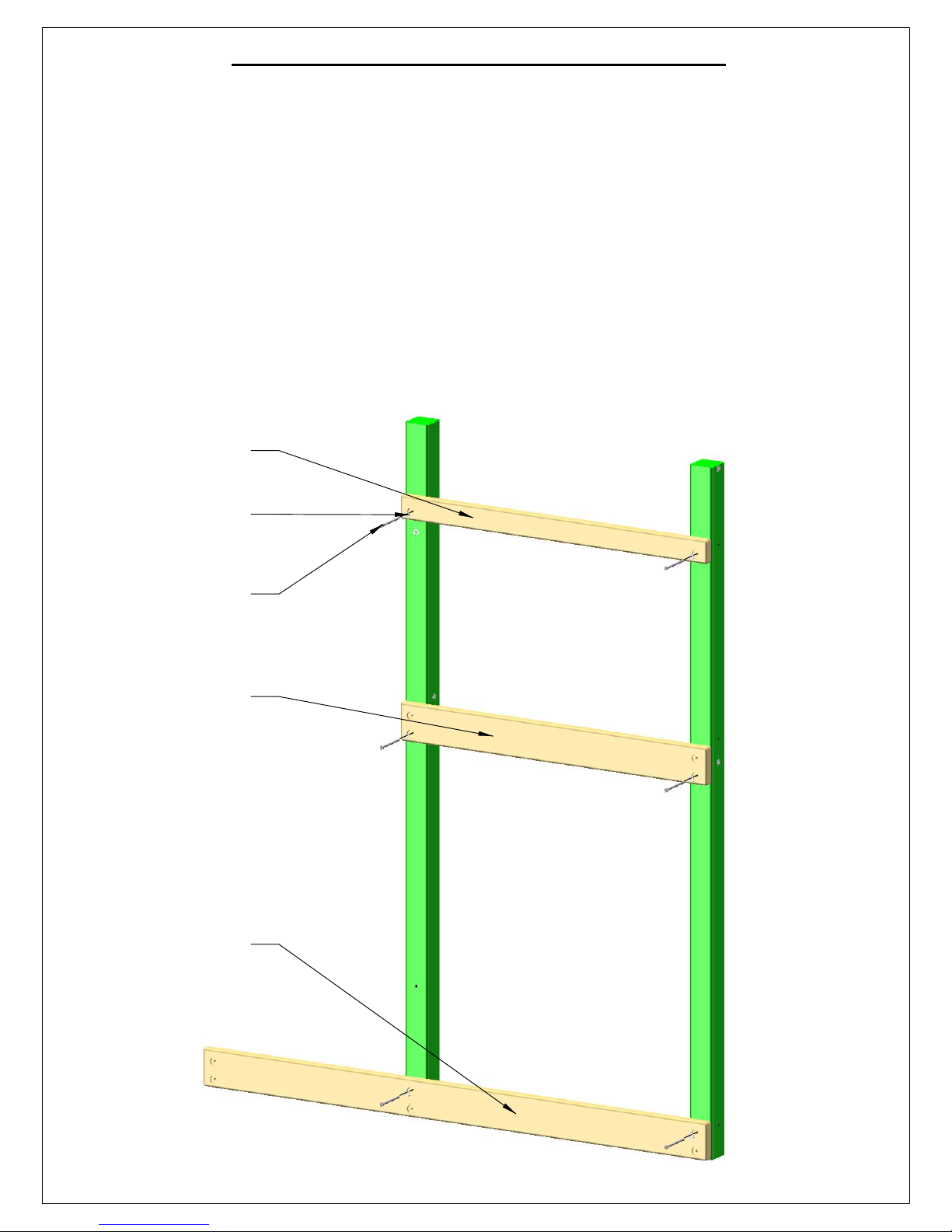

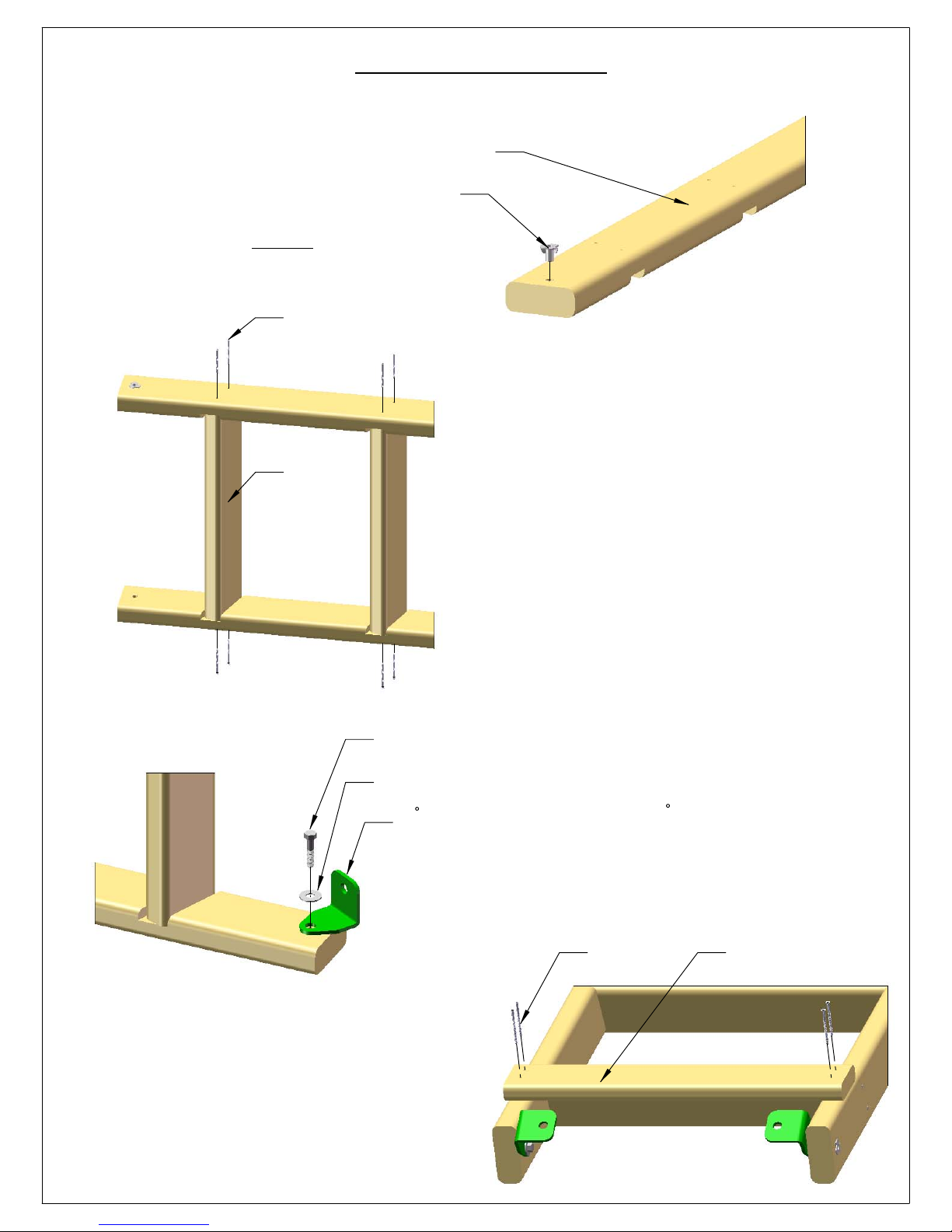

STEP 16: LADDER

1: FIND TWO 2 X 4 X 66" LADDER SIDES. 2: POSITION THE LADDER SIDES SO THAT THE

SLOTS IN THE BOARDS ARE FACING EACH OTHER AND ARE PARALLEL.

3: INSERT T-NUTS INTO THE LADDER SIDES AND SET WITH A HAMMER.

OF THE OUTSIDE

2" WOOD SCREW

2 X 4 X 17" LADDER STEP

2 X 4 X 66"

LADDER SIDE

T-NUT

4: FIND FIVE 2 X 4 X 17" LADDER STEPS. 5: PLACE THE STEPS INTO THE SLOTS ON THE

LADDER SIDES, AND FASTEN WITH 2" WOOD SCREWS.

6: CAREFULLY TURN THE LADDER OVER AND PUT THE SCREWS INTO THE OTHER SIDE.

8: INSTALL THE 5/4 X 3 X 18-3/4" LADDER BACK ABOVE THE TOP STEP OF THE LADDER WITH TWO 2" WOOD SCREWS PER SIDE.

5/16 X 1-1/2" HEX BOLT

5/16" WASHER

ANGLE

90 BRACKET

7: INSTALL THE 90 INSIDE OF THE LADDER RAILS WITH 5/16 X 11/2" BOLTS, 5/16 WASHERS, INTO THE 5/16" TNUTS.

2" WOOD SCREW

ANGLE BRACKETS TO THE

5/4 X 3 X 18-3/4" LADDER BACK

Page 48

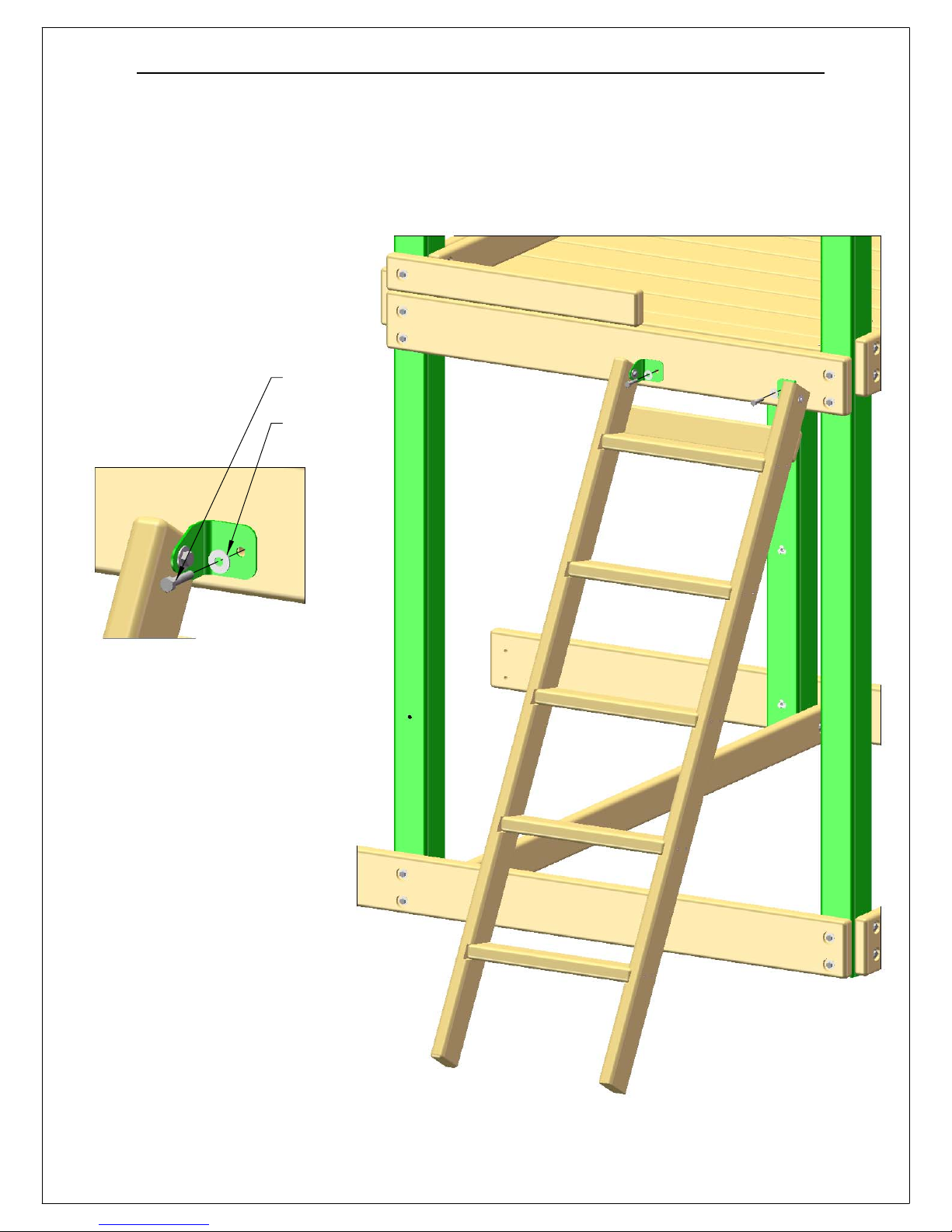

STEP 17: ATTACHING THE LADDER TO THE FORT

1: CENTER THE LADDER ASSEMBLY TO THE OPENING ON THE LEFT SIDE OF THE FORT. 2: MOUNT THE LADDER TO THE OPENING. ALIGN BRACKETS 1/2" UP FROM THE BOTTOM OF

THE 2 X 6 BOTTOM PANEL BOARD. MARK AND DRILL TWO 3/8" HOLES. INSTALL TWO 5/16" TNUTS ON THE BACK SIDE OF THE BOARD. INSTALL THE LADDER WITH TWO 5/16 X 1-1/2" BOLTS AND 5/16" WASHERS INTO THE T-NUTS.

5/16 X 1-1/2" HEX BOLT

5/16" wASHER

Page 49

STEP 18: LAG POSTS

1: MAKE SURE THAT THE T-NUTS FROM STEP #1 ARE INSTALLED IN THE HOLES AT 95-1/2" ON THE MIDDLE CORNER POSTS.

2: PLACE THE RIGHT HAND CORNER LAG POST ON TOP OF THE BACK PANEL BOARD ON THE SWING BEAM SIDE OF THE FORT AND THE LEFT HAND CORNER LAG POST ON THE OPPOSITE SIDE OF THE FORT. MAKE SURE THE CORNER LAG POSTS ARE FLUSH TO THE CORNER POSTS AND ATTACH WITH 3/8 X 5" LAG SCREWS AND 3/8" WASHERS AS SHOWN BELOW.

3: MEASURE DOWN FROM THE TOP OF THE CENTER POST 6-3/4" AND MARK THIS POINT. THE BOTTOM OF THE CENTER LAG POST WILL ALIGN WITH THIS POINT. INSTALL THE POST WITH 3/8 X 5" LAG SCREWS AND 3/8" WASHERS.

4 X 4 X 61-1/2" RIGHT SIDE LAG POST (7 HOLES)

3/8 X 5" LAG SCREW

3/8" WASHER

4 X 4 X 61-1/2"

LEFT SIDE LAG POST

(5 HOLES)

4 X 4 X 37" CENTER LAG POST (2 HOLES)

Page 50

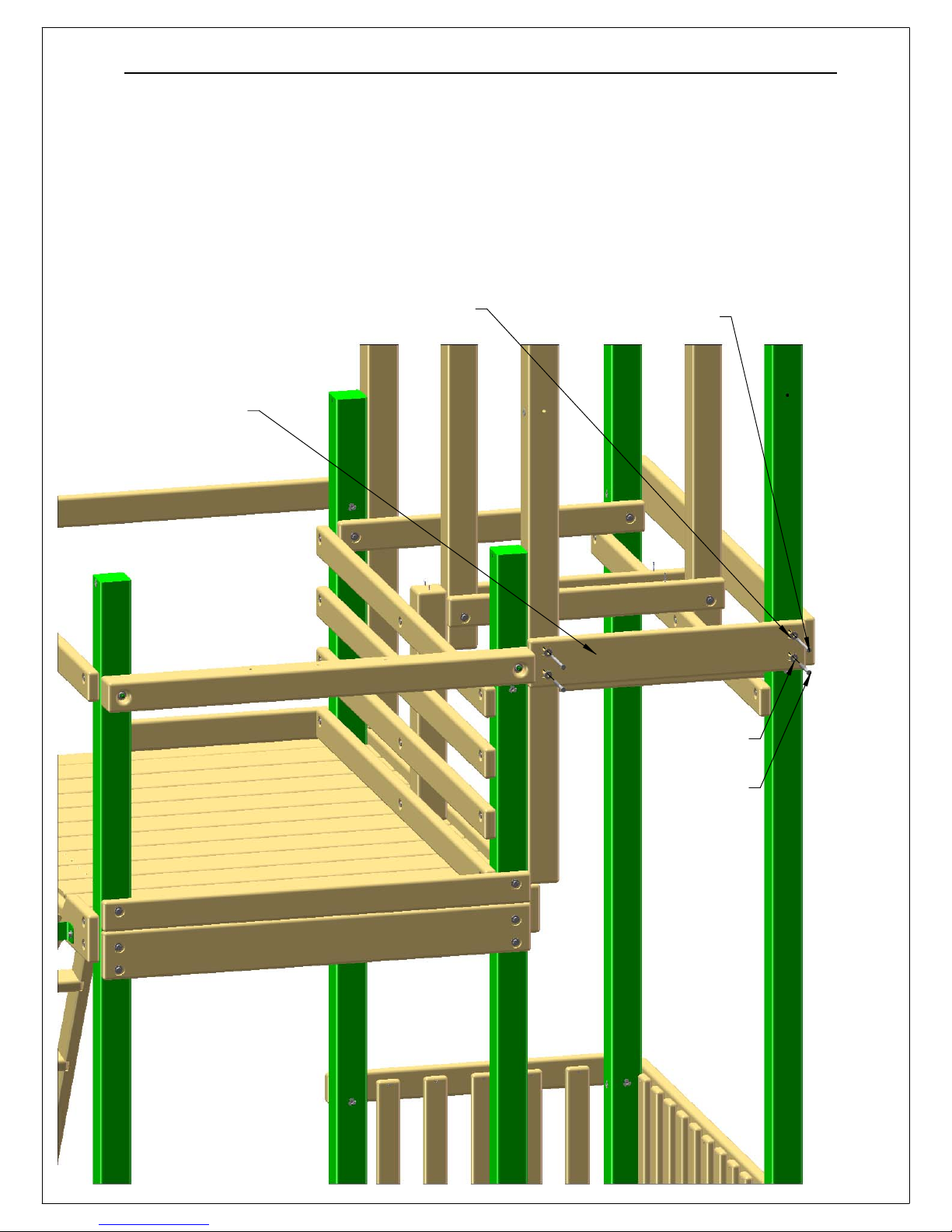

STEP 19: UPPER DECK SUPPORTS

1: FIND THE TWO 2 X 4 X 34" TOP LEVEL DECK SUPPORTS. 2: ATTACH THE TOP LEVEL DECK SUPPORTS TO THE MIDDLE CORNER POSTS FROM THE

INSIDE THROUGH THE HOLES AT 81” WITH 5/16 X 4-1/2” HEX BOLTS AND 5/16” WASHERS.

5/16" WASHER

5/16 X 4-1/2" HEX BOLT

2 X 4 X 34"

TOP LEVEL DECK

SUPPORTS

Page 51

STEP 20: REAR CORNER POST T-NUTS

1: INSERT T-NUTS INTO THE HOLES AS SHOWN BELOW AND SET WITH A HAMMER, FLUSH TO THE SURFACE OF THE CORNER POSTS.

111

85""

81"

18"

LEFT REAR

CORNER POST

119

"119

81"

83"

18"

RIGHT REAR

CORNER POST

FRONT OF

FORT

Page 52

STEP 21: REAR CORNER POSTS

1: ATTACH THE BACK CORNER POSTS TO THE 78" SANDBOX BOARDS WITH 5/16 X 4-1/2" HEX BOLTS AND WASHERS THROUGH THE TOP HOLE OF THE SANDBOX BOARD, THROUGH THE HOLE AT 3-3/4" ON THE CORNER POST, INTO THE T-NUT ON THE BACK SIDE.

2: ATTACH THE POSTS TO THE 2 X 4 X 34" TOP LEVEL DECK SUPPORTS WITH 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS FROM THE INSIDE THROUGH THE 2 X 4, THROUGH THE HOLES AT 81", INTO THE T-NUT ON THE OUTSIDE.

3: INSERT A 5/16 X 3-1/2" LAG SCREW AND 5/16" WASHER INTO THE BOTTOM HOLE OF THE SANDBOX BOARDS.

5/16" WASHER

5/16 X 4-1/2"

HEX BOLT

4 X 4 X 120"

RIGHT REAR

CORNER POST

(INSTALL ON

SWING BEAM

SIDE OF FORT)

5/16" WASHER

5/16 X 4-1/2"

HEX BOLT

5/16 X 3-1/2"

LAG SCREW

5/16" WASHER CORNER POST

HOLES AT 3-3/4" FACE THE INSIDE OF THE FORT T-NUT TO THE INSIDE

4 X 4 X 120"

LEFT REAR

Page 53

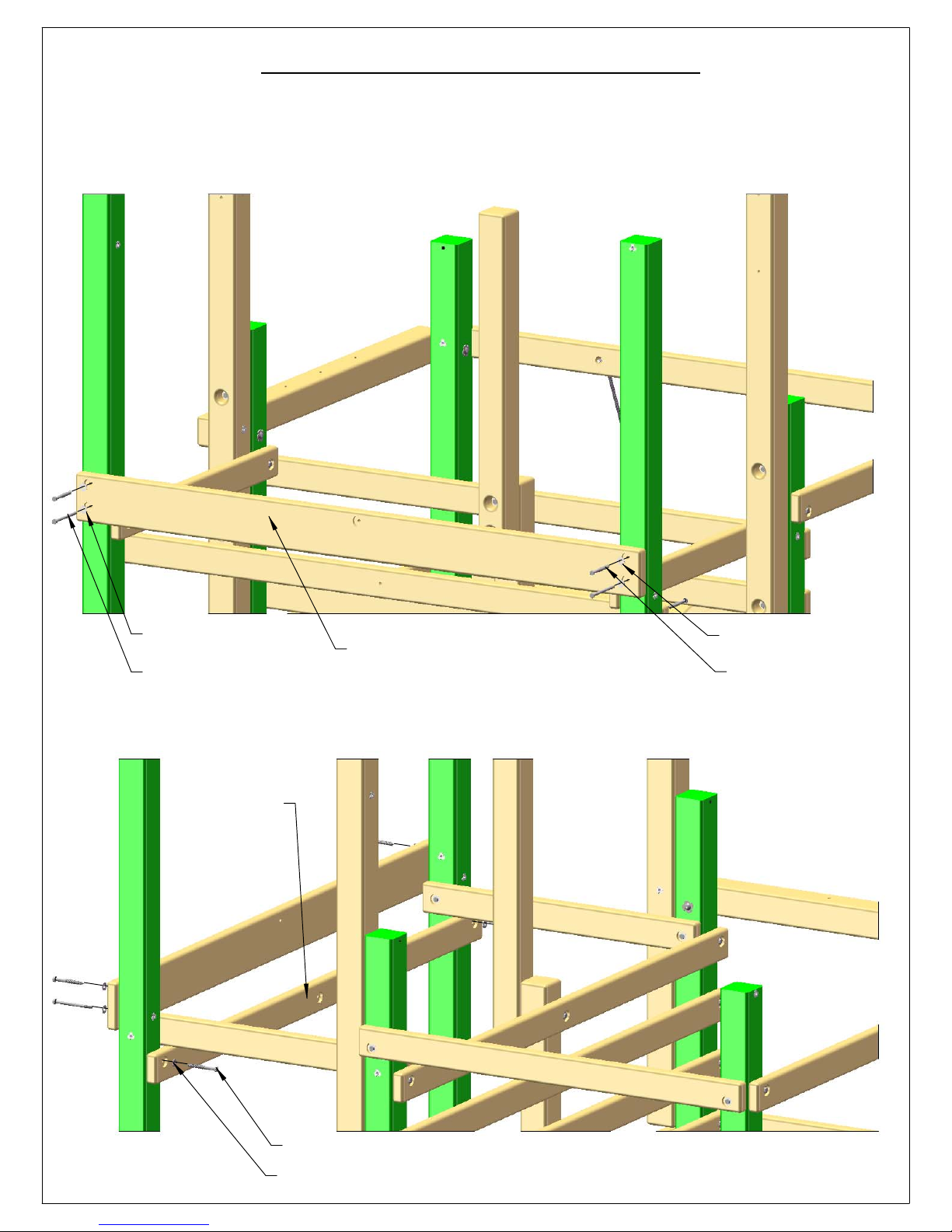

STEP 22: BACK PANEL BOARD

1: ATTACH THE 2 X 6 X 70" REAR BOTTOM PANEL BOARD TO THE REAR CORNER POST WITH OFFSET HOLES DOWN WITH TWO 5/16 X 4-1/2” HEX BOLTS AND 5/16” WASHERS THROUGH THE BOTTOM HOLES OF THE BACK PANEL BOARD, THROUGH THE HOLES AT 83”, INTO THE T-NUTS ON THE BACK SIDE. INSERT 5/16 X 3-1/2” LAG SCREWS AND 5/16” WASHERS THROUGH THE TOP HOLES OF THE BACK PANEL BOARD.

5/16" WASHER 5/16 X 4-1/2"

HEX BOLT

2 X 6 X 70" REAR BOTTOM PANEL BOARD

REAR OF

FORT

5/16" WASHER

5/16 X 3-1/2"

LAG SCREW

2: PLACE THE 2 X 4 X 70" 3-HOLE FLUSH TO THE BOTTOM OF THE TOP LEVEL DECK SUPPORTS AND THE REAR CORNER POSTS. ATTACH IT WITH TWO 5/16 X 3-1/2” LAG SCREWS AND 5/16” WASHERS.

2 X 4 X 70"

3-HOLE BOARD

5/16 X 3-1/2" LAG SCREW

5/16" WASHER

LEFT SIDE

OF FORT

Page 54

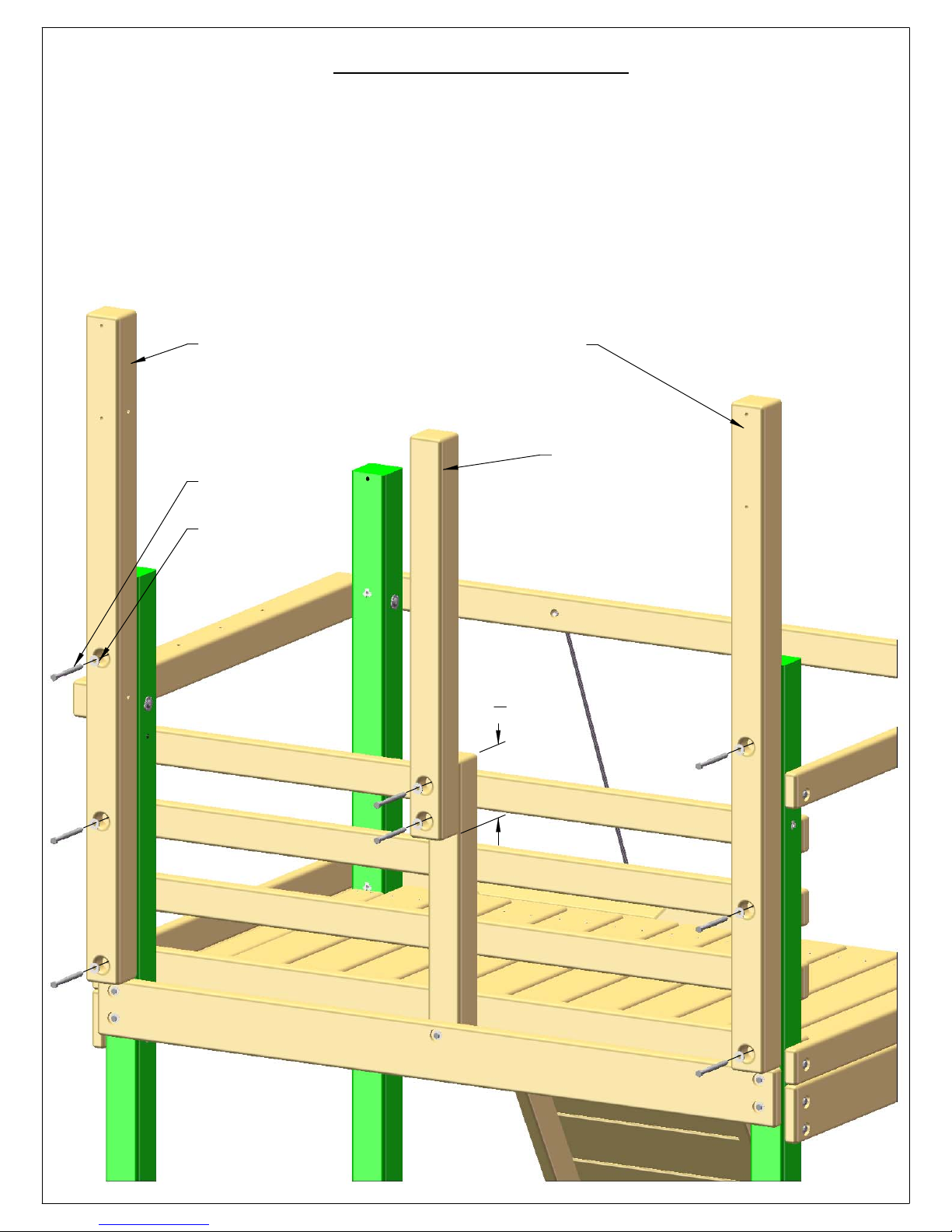

STEP 23: TOP LEVEL REAR CENTER POST

1: INSTALL A T-NUT ON THE OUTSIDE OF THE TOP LEVEL REAR CENTER POST. ATTACH THE 2 X 4 X 70" 3 HOLE TO THE 4 X 4 X 37" TOP LEVEL REAR CENTER POST WITH A 5/16 X 4-1/2" HEX BOLT AND 5/16" WASHER FROM THE INSIDE THROUGH THE 2 X 4, INTO THE T-NUT.

5/16 X 4-1/2"

HEX BOLT

5/16" WASHER

2: MAKE SURE THE CENTER POST IS SQUARE AND ATTACH WITH A 5/16 X 3-1/2" LAG SCREW WITH 5/16" WASHER THROUGH THE CENTER HOLE

OF THE TOP LEVEL REAR PANEL BOARD.

5/16 X 3-1/2"

LAG SCREW

5/16" WASHER

REAR OF

FORT

5/16" T-NUT INSTALLED IN SUB-STEP 1. SHOWN HERE FOR LOCATION CLARITY

4 X 4 X 37" TOP LEVEL REAR CENTER POST

Page 55

STEP 24: TOP LEVEL CENTER DECK SUPPORT

1: ATTACH THE 2 X 4 X 30-3/4" CENTER DECK SUPPORTS TO THE CENTER POST WITH 5/16 X 3-1/2" LAG SCREWS AND 5/16" WASHERS.

NOTE: THE OFFSET HOLES MUST BE UP ON ONE SIDE AND DOWN ON THE OTHER TO PREVENT INTERFERENCE.

2 X 4 X 30-3/4" TOP LEVEL CENTER

OFFSET HOLES UP

DECK SUPPORT

OFFSET HOLES DOWN

5/16" WASHER

5/16 X 3-1/2" LAG SCREW

Page 56

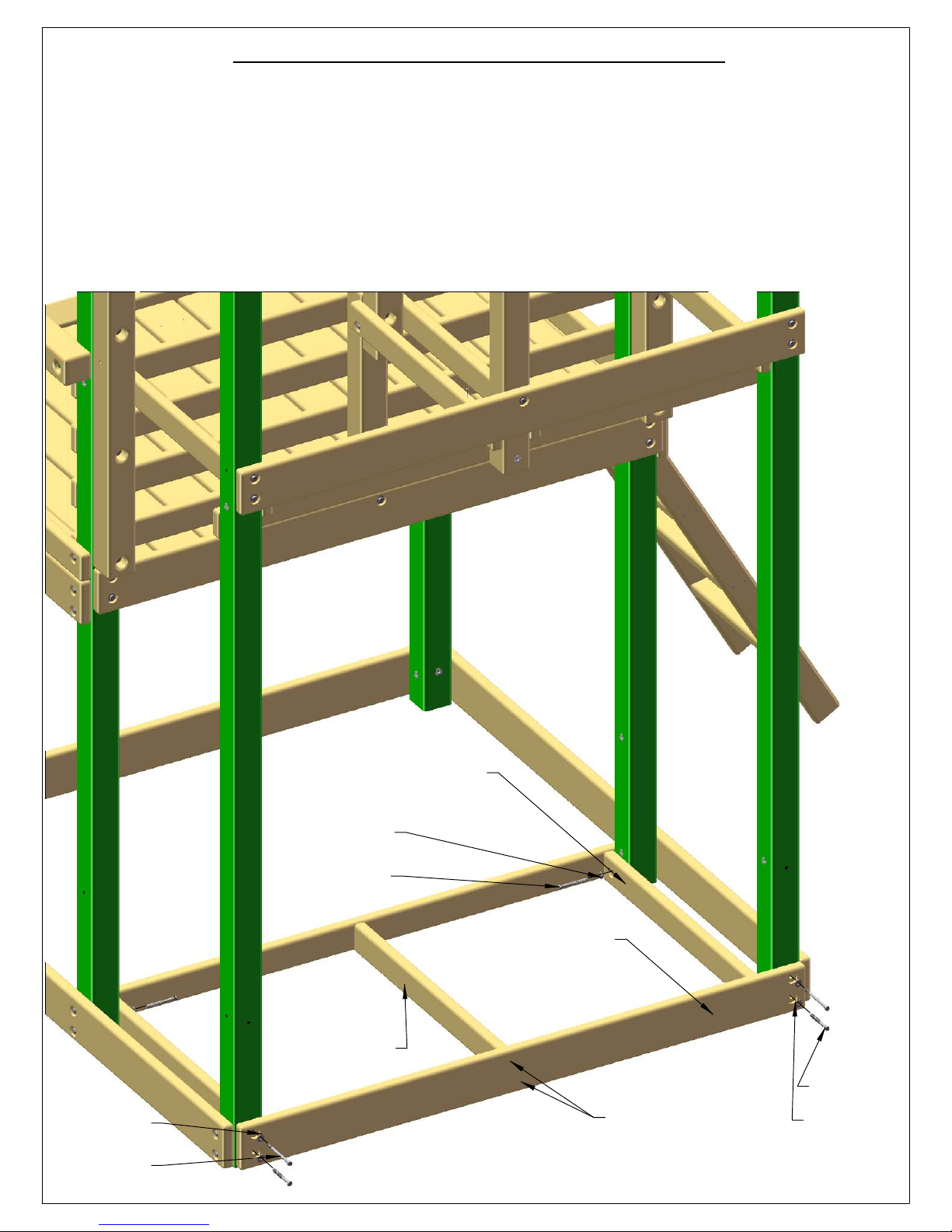

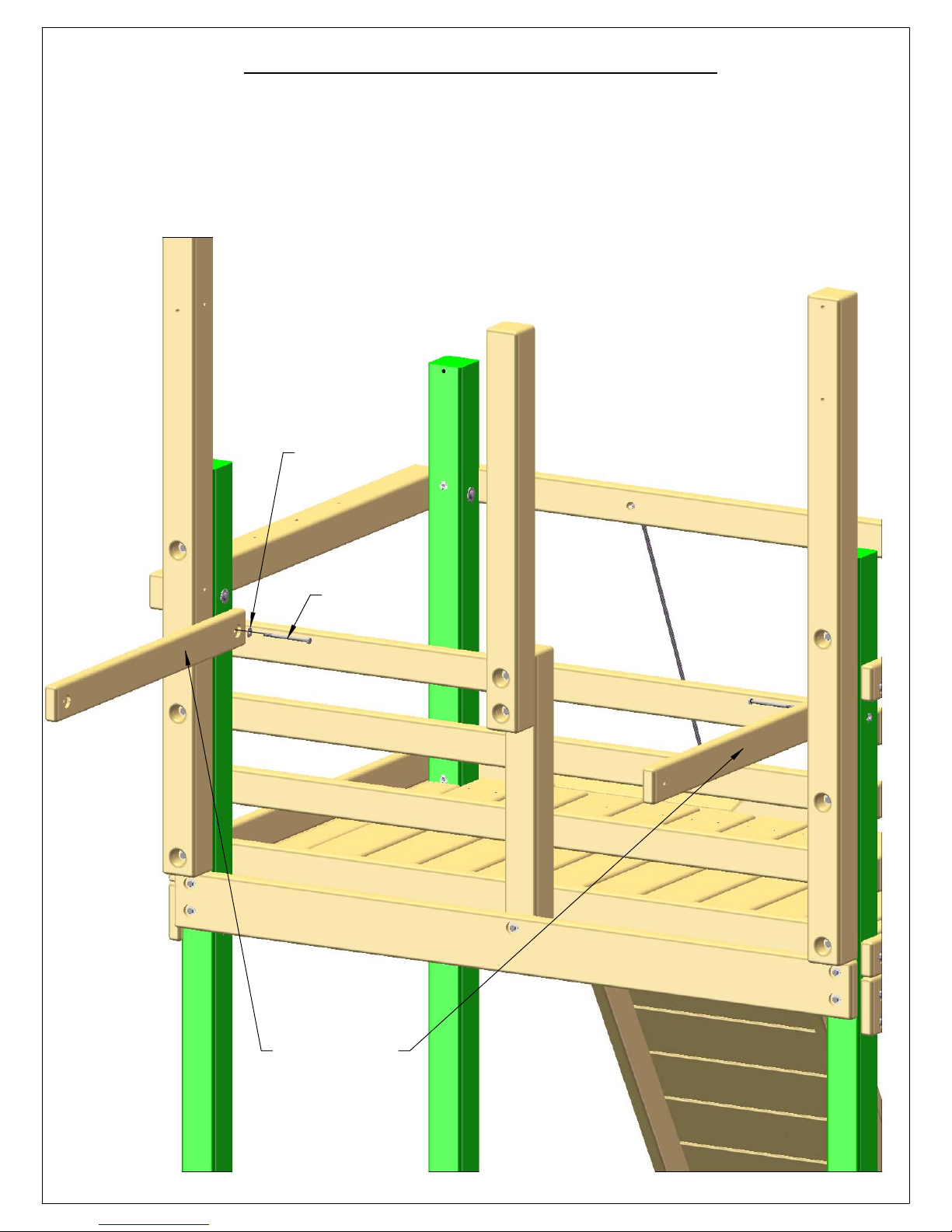

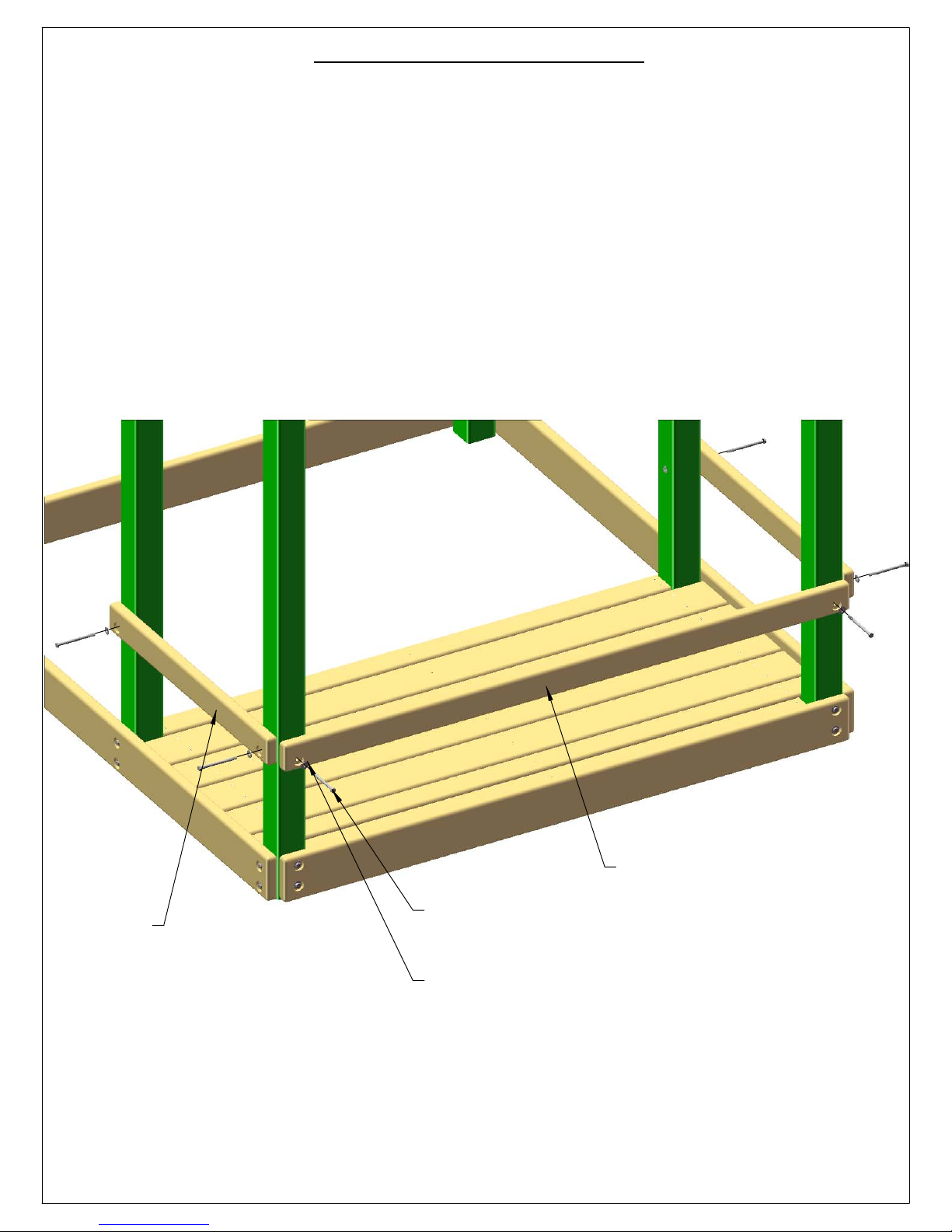

STEP 25: PORCH DECK SUPPORTS

1: ATTACH THE TWO 2 X 4 X 34" PORCH DECK SUPPORTS FLUSH TO THE BOTTOM OF THE REAR CORNER POSTS WITH 5/16 X 3-1/2" LAG SCREWS AND 5/16" WASHERS.

2: ATTACH THE 2 X 6 X 70" SANDBOX BOARD TO THE REAR CORNER POSTS WITH 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS THROUGH THE TOP HOLES OF THE SANDBOX BOARD OFFSET UP, THROUGH THE HOLES AT 4-1/2". INSERT 5/16 X 3-1/2" LAG SCREWS AND 5/16" WASHERS THROUGH THE BOTTOM HOLES OF THE SANDBOX BOARD.

3: FIND THE CENTER OF THE SANDBOX BOARD AND MARK THIS POSITION. CENTER THE 2 X 4 X 34" PORCH CENTER DECK SUPPORT ON THE MARK AND ATTACH IT WITH TWO 2-1/2" WOOD SCREWS ON EACH END THROUGH THE OUTSIDE OF THE SANDBOX BOARD AND INTO THE END OF THE 2 X 4.

5/16" WASHER

5/16 X 4-1/2"

HEX BOLT

5/16" WASHER

5/16 X 3-1/2" LAG SCREW

2 X 4 X 34"

PORCH CENTER

DECK SUPPORT

2 X 4 X 34"

PORCH DECK

SUPPORT

2 X 6 X 70"

SANDBOX BOARD

FASTEN THE 2 X 4 X 34" PORCH CENTER DECK SUPPORT IN THIS LOCATION WITH 2-1/2" WOOD SCREWS ON EACH END.

5/16 X 3-1/2" LAG SCREW

5/16" WASHER

Page 57

STEP 26: PORCH DECK

1: DRILL HOLES IN THE BOARDS ON EACH SIDE AS SHOWN BELOW WITH A 1/8" DRILL BIT TO PREVENT INSTALLATION DAMAGE. THE HOLES AT 31-3/8" AND 34-15/16" ARE THE CENTER HOLES AND ONLY NEED TO BE DRILLED ONCE.

"44

15 16

3 8

15 16

"84

2: PLACE THE DECK SPACERS BETWEEN THE CORNER POST AND ON TOP OF THE PORCH DECK SUPPORTS. ATTACH WITH 2" WOOD SCREWS PER SIDE THROUGH THE HOLES DRILLED IN THE PART.

5/4 X 4 X 62-3/4"

DECK SPACER QTY: 2

5/4 X 4 X 69-7/8" DECK SPACER QTY: 1

5/4 X 6 X 69-7/8" DECK BOARD QTY: 4

3: PLACE THE FOUR DECK BOARDS AND ONE LOWER DECK SPACER ACROSS THE TOP OF THE PORCH DECK SUPPORTS. EVENLY SPACE THESE BOARDS AND ATTACH THEM WITH TWO 2" WOOD SCREWS PER SIDE THROUGH THE HOLES DRILLED IN THE PART.

4: ATTACH THE DECK BOARDS TO THE PORCH CENTER DECK SUPPORT WITH 2" WOOD SCREWS.

2" WOOD

SCREW

5/4 X 4 X 62-3/4"

DECK SPACERS

5/4 X 4 X 69-7/8"

DECK SPACER

5/4 X 6 X 69-7/8" DECK BOARD

ONE 2" WOOD SCREW IN THE MIDDLE HOLE OF EACH BOARD INTO THE PORCH CENTER DECK SUPPORT.

Page 58

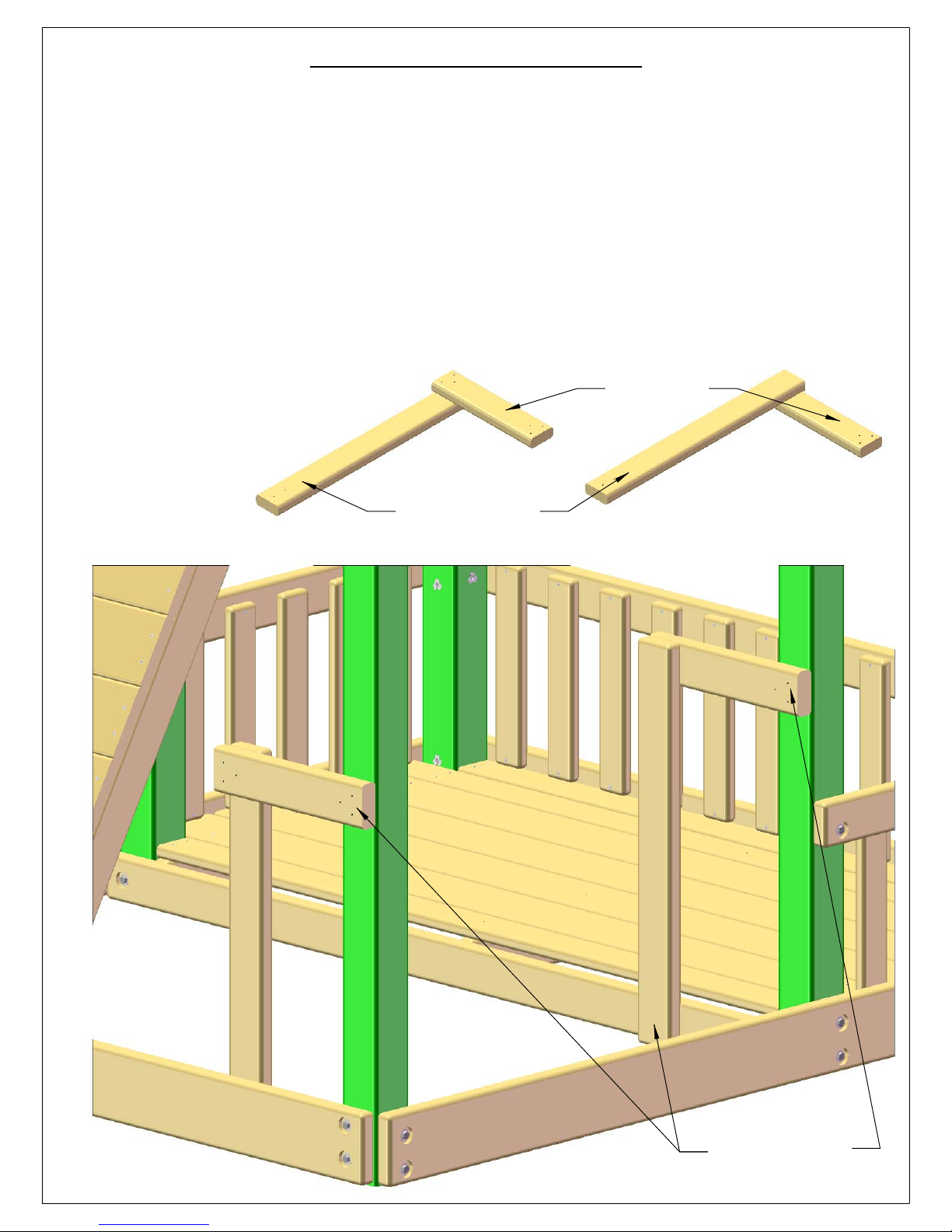

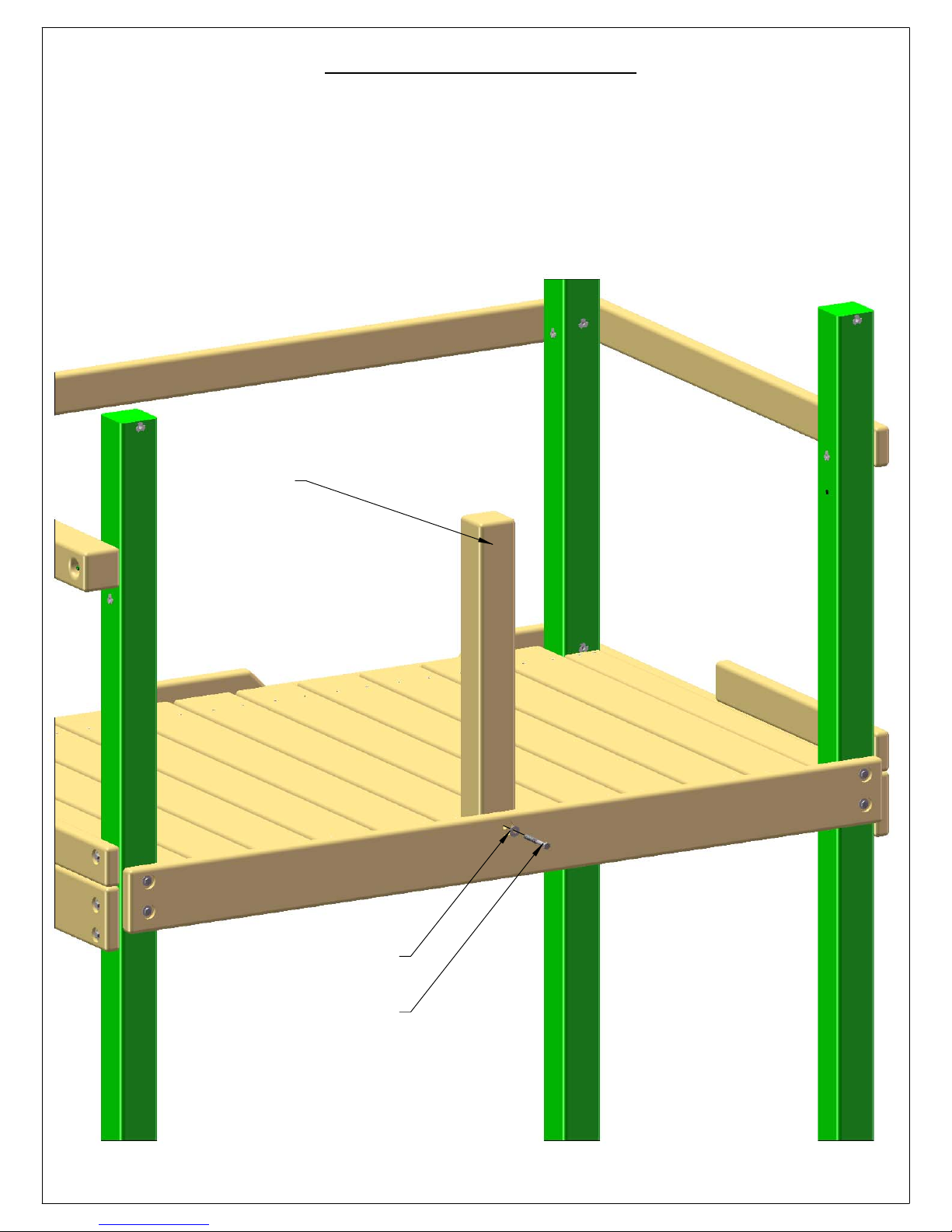

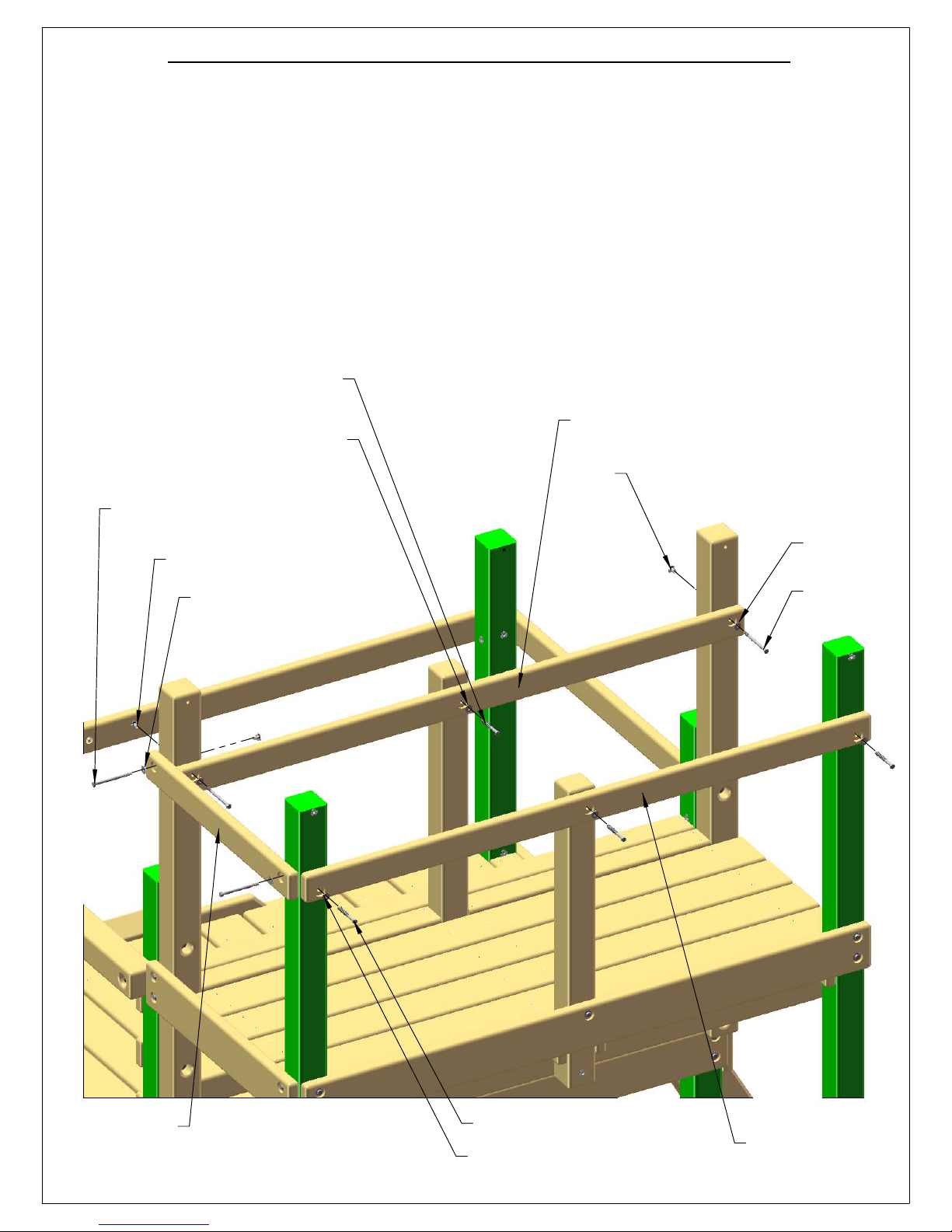

STEP 27: PORCH RAILS

1: ATTACH THE 2 X 4 X 34" PORCH SIDE TOP PANEL BOARDS WITH THE HOLES OFFSET DOWN WITH 5/16 X 4-1/2” HEX BOLTS AND 5/16” WASHERS THROUGH THESE HOLES AND THE HOLES AT 18” ON THE MIDDLE CORNER POSTS.

2: ATTACH THE 2 X 4 X 70" PORCH TOP PANEL BOARD TO THE REAR CORNER POSTS WITH HOLES OFFSET DOWN WITH 5/16 X 4-1/2” HEX BOLTS AND 5/16” WASHERS THROUGH THESE HOLES.

2 X 4 X 34"

PORCH TOP

SIDE PANEL

BOARD

2 X 4 X 70" PORCH TOP PANEL BOARD

5/16 X 4-1/2" HEX BOLT

5/16" WASHER

Page 59

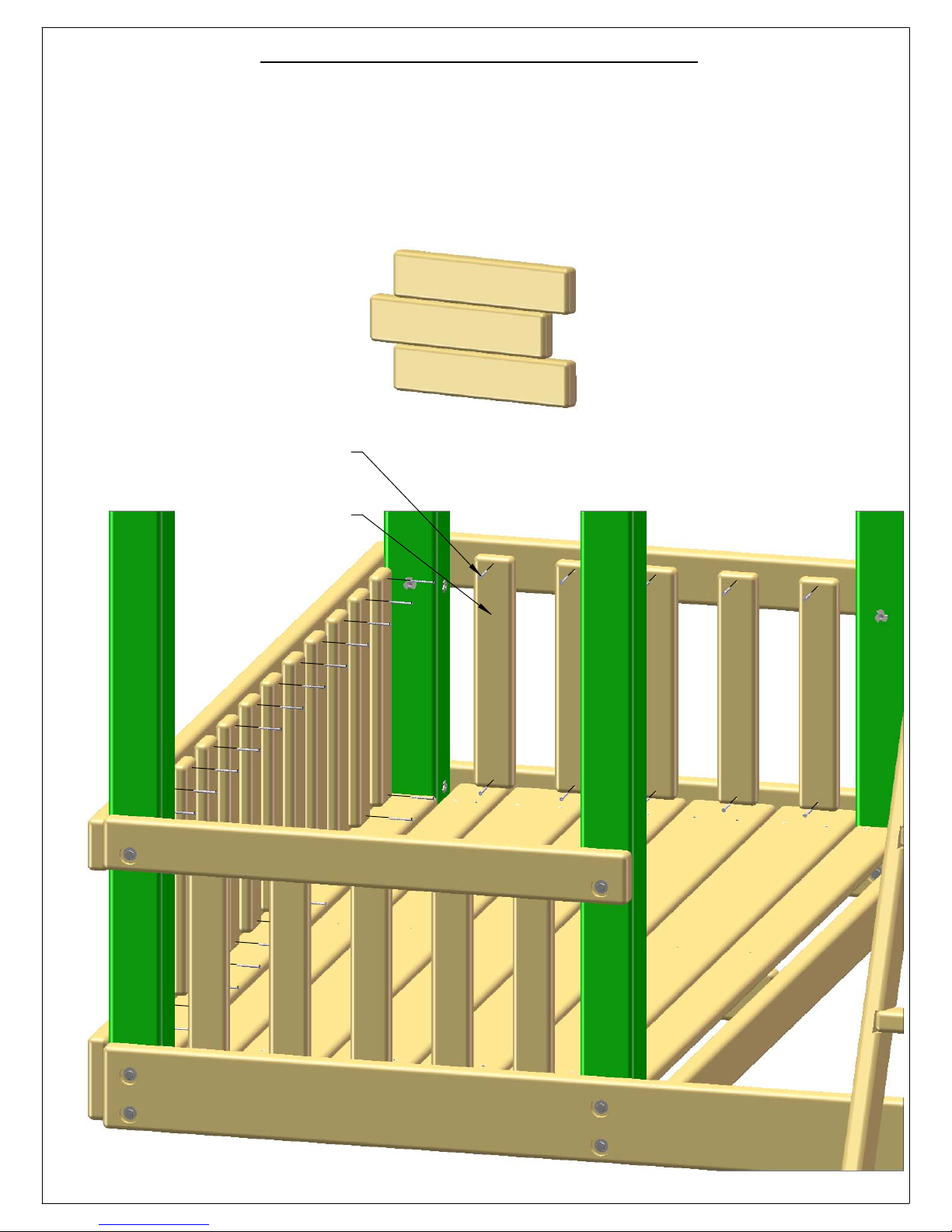

STEP 28: PORCH PANEL SLATS

1: PREDRILL EACH BOARD 1/2" FROM EACH END ON CENTER WITH A 1/8" DRILL BIT. 2: THE SLATS WILL BE POSITIONED ON TOP OF THE DECK BOARDS BETWEEN THE PORCH TOP

PANEL BOARDS AND THE SANDBOX BOARDS. THEY SHOULD BE SPACED BETWEEN THE CORNER POSTS USING A SLAT AS A SPACER (2-5/8"). ATTACH THE SLATS TO THE TOP PANEL BOARDS AND SANDBOX BOARDS WITH 2" WOOD SCREWS THROUGH THE HOLES.

2" WOOD SCREW

5/4 X 3 X 15"

PORCH PANEL SLAT

Page 60

STEP 29: TOP LEVEL SIDE BOTTOM PANEL BOARD

1: INSERT A 5/16" T-NUT INTO THE HOLE AT 26-1/4" FROM THE BOTTOM OF THE RIGHT HAND CORNER LAG POST.

2: ATTACH THE 30-3/4" BOTTOM PANEL BOARD WITH THE HOLES OFFSET UP WITH 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS THROUGH THE TOP HOLE, THROUGH THE BACK CORNER POST AND CORNER LAG POST, AND INTO T-NUTS INSTALLED.

3: PLACE A 5/16 X 3-1/2" LAG SCREW WITH A 5/16" WASHER INTO THE BOTTOM HOLES OF THE TOP LEVEL SIDE BOTTOM PANEL BOARD.

2 X 6 X 30-3/4"

TOP LEVEL SIDE

BOTTOM PANEL

BOARD

5/16" WASHER

5/16 X 4-1/2"

HEX BOLT

5/16" WASHER

5/16 X 3-1/2"

LAG SCREW

Page 61

STEP 30: UPPER DECK

1: DRILL HOLES IN THE BOARDS ON EACH SIDE AS SHOWN BELOW WITH A 1/8" DRILL BIT TO PREVENT INSTALLATION DAMAGE.

11 16

5/4 X 4 X 62-3/4" UPPER DECK SPACER QTY: 1

5/4 X 4 X 29-3/4" DECK SPACER QTY: 4

32 "

5/4 X 6 X 69-7/8" DECK BOARD QTY: 4

2: PLACE THE DECK SPACERS BETWEEN THE CORNER POSTS AND CENTER POSTS. ATTACH WITH 2" WOOD SCREWS PER SIDE THROUGH THE HOLES DRILLED IN THE PART.

3: PLACE THE FOUR DECK BOARDS ACROSS THE TOP OF THE UPPER DECK SUPPORTS. EVENLY SPACE THESE BOARDS AND ATTACH THEM WITH TWO 2" WOOD SCREWS PER SIDE THROUGH THE HOLES DRILLED IN THE PART.

4: ATTACH THE UPPER DECK SPACER BETWEEN THE MIDDLE CORNER POSTS AND IN FRONT OF THE CENTER LAG POST WITH 2" WOOD SCREWS.

5/4 X 4 X 29-3/4"

DECK SPACER

5/4 X 4 X 69-7/8"

DECK SPACER

2" WOOD SCREW

5/4 X 6 X 69-7/8" DECK BOARD

Page 62

STEP 31: UPPER LEVEL TOP PANEL BOARDS

1: ATTACH THE 2 X 4 X 30-3/4" TOP LEVEL SIDE PANEL BOARD WITH HOLES OFFSET UP TO THE HOLE AT 111" ON THE RIGHT HAND BACK CORNER POST AND THE HOLE 9" FROM THE TOP OF THE RIGHT HAND CORNER LAG POST. USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS AND T-NUTS.

2: ATTACH ONE OF THE 2 X 4 X 70" 3-HOLE TOP PANEL BOARDS WITH THE HOLES OFFSET UP TO THE CORNER LAG POSTS THROUGH THE HOLES 9-1/2" FROM THE TOP. USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS AND T-NUTS. INSERT A 5/16 X 3-1/2" LAG SCREW WITH 5/16" WASHER THROUGH THE CENTER HOLE OF THE 70" 3-HOLE INTO THE CENTER LAG POST.

3: PLACE THE REMAINING 2 X 4 X 70" 3-HOLE TOP PANEL BOARD FLUSH TO THE END OF THE 2 X 4 X 30-3/4" AND THE OUTSIDE OF THE BACK CORNER POST. SET THE 3-HOLE LEVEL AND ATTACH IT TO BOTH BACK CORNER POSTS AND THE CENTER POST WITH 5/16 X 3-1/2" LAG SCREWS.

5/16 X 3-1/2"

LAG SCREW

2 X 4 X 70" 3-HOLE TOP

5/16 " WASHER

5/16 X 4-1/2" HEX BOLT

T-NUT

5/16 " WASHER

PANEL BOARD

T-NUT

5/16" WASHER

5/16 X 4-1/2" HEX BOLT

2 X 4 X 30-3/4"

TOP LEVEL SIDE

PANEL BOARD

5/16 X 3-1/2" LAG SCREW

5/16" WASHER

2 X 4 X 70" 3-HOLE TOP PANEL BOARD

Page 63

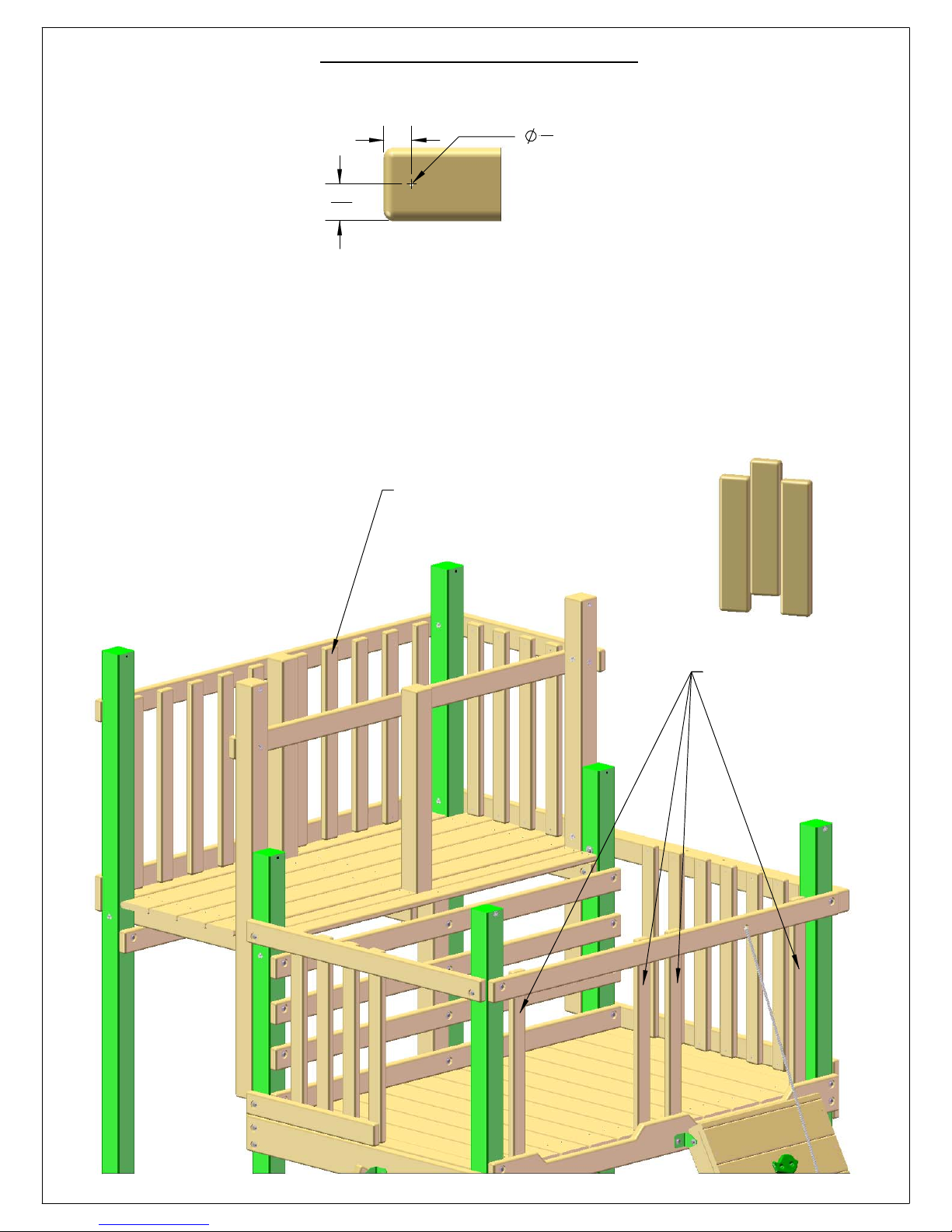

STEP 32: PANEL SLATS

1: YOU WILL NEED TO PREDRILL THE ENDS OF THE DECK BOARDS TO PREVENT INSTALLATION DAMAGE. PREDRILL BOTH ENDS WITH A 1/8" DRILL BIT USING THE DIMENSIONS BELOW.

2: INSTALL THE PANEL SLATS BETWEEN THE DECK AND THE TOP PANEL BOARDS ON BOTH LEVELS OF THE FORT. EVENLY SPACE USING A SLAT AS A SPACER AS SHOWN BELOW. SECURE THE SLATS WITH 2" WOOD SCREWS.

3: INSTALL PANEL SLATS ONE SPACE IN FROM CORNER AND/OR CENTER POSTS. SLATS SHOULD NOT START NEXT TO CORNER OR CENTER POSTS

INSTALL 5/4 X 3 X 28" PANEL SLATS INTO THE UPPER AND LOWER PANEL BOARDS ON THE UPPER AND LOWER DECKS WITH 2" WOOD SCREWS IN EACH END.

5/4 X 3 X 28" PANEL SLAT

INSTALL THESE SLATS ON THE EDGE OF THE NOTCHES IN THE FRONT FACE BOARD

Page 64

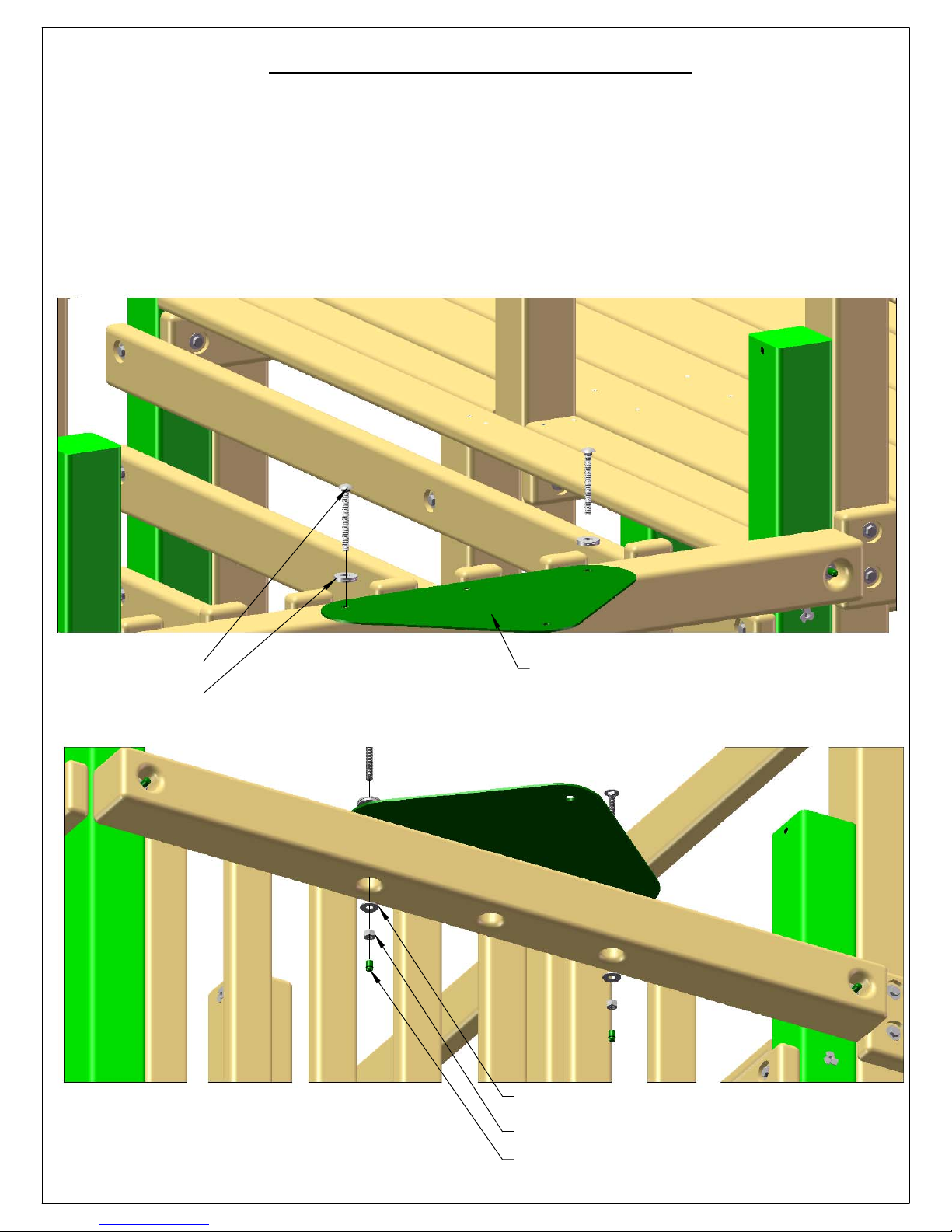

STEP 33: SWING BEAM PLATE

1: PLACE THE SWING BEAM PLATE ON TOP OF THE SWING BEAM SUPPORT, LINING UP THE PILOT HOLES.

2: FASTEN THE SWING BEAM PLATE TO THE SWING BEAM SUPPORT USING 3-1/2" CARRIAGE BOLTS WITH 1/2" WASHERS ON TOP, AND 3/8" LOCK NUTS WITH 3/8" WASHERS FROM UNDERNEATH, IN THE COUNTER-SUNK HOLES OF THE SWING BEAM SUPPORT. USE BOLT CAPS TO COVER ANY EXPOSED THREADS.

3: LEAVE THE MIDDLE HOLE EMPTY, IT WILL BE USED LATER. 4: USE VICE GRIPS TO HOLD CARRIAGE BOLTS IN PLACE WHEN INSTALLING.

3-1/2" CARRIAGE

BOLT

1/2" WASHER

SWING BEAM PLATE

3/8" WASHER

3/8" LOCK NUT BOLT CAP

Page 65

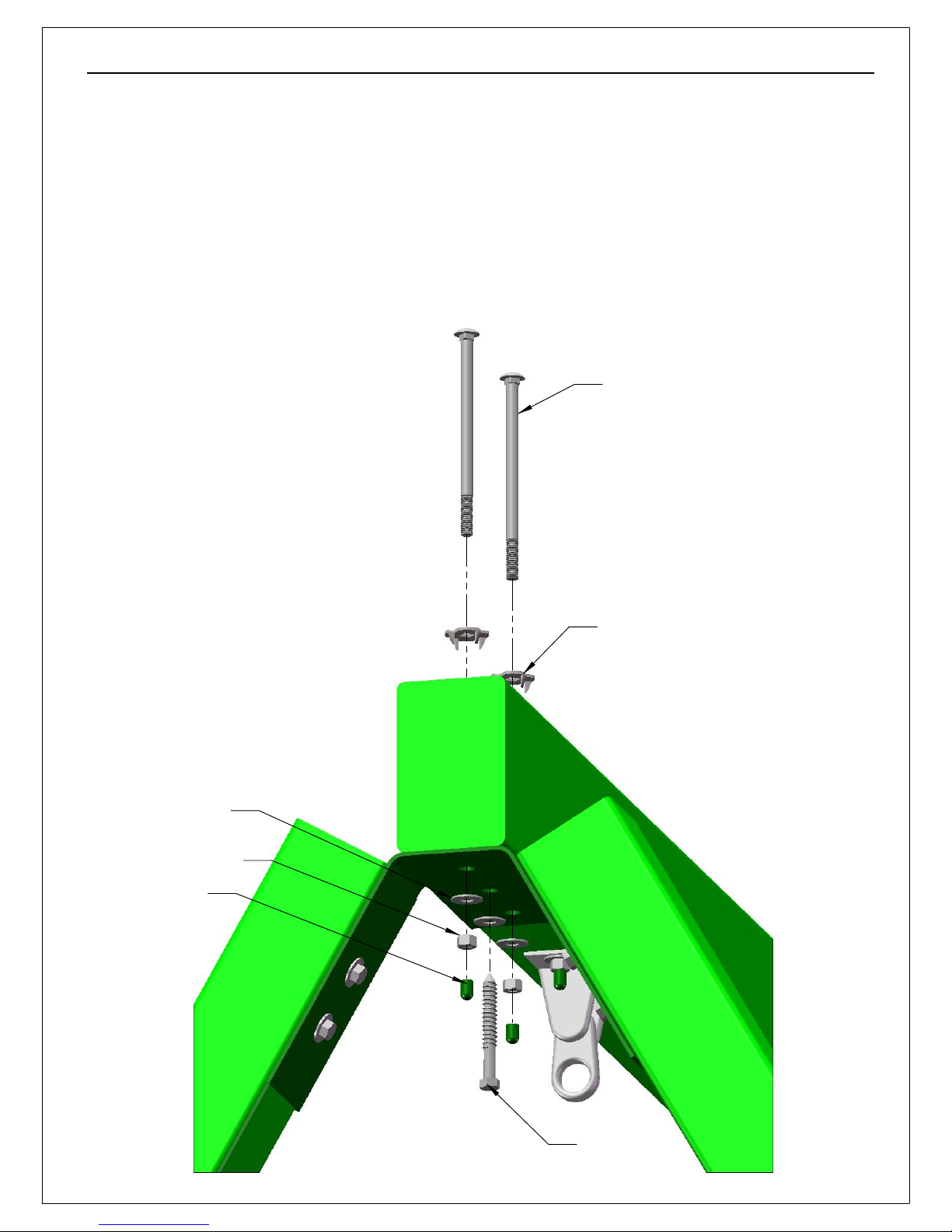

STEP 34: IRON DUCTILES

1: LINE UP THE HOLES OF THE IRON DUCTILES WITH THE HOLES IN THE SWINGBEAM. 2: FASTEN THE SWING HANGER TO THE SWING BEAM USING 6-1/2" OR 7" CARRIAGE BOLTS (SIZE MAY VARY FROM

UNIT TO UNIT) WITH TORQUE WASHERS, AND 3/8" WASHERS WITH 3/8" LOCK NUTS. 3: PLACE BOLT CAPS OVER EXPOSED THREADS.

6-1/2" OR 7" CARRIAGE BOLT

TORQUE WASHER

IRON DUCTILE

3/8" WASHER 3/8" LOCK NUT

BOLT CAPS

Page 66

STEP 35: ATTACH SWING LEGS TO BRACKET

1: PLACE THE 4 X 4 X 96" SWING LEGS FLUSH TO THE TOP OF THE SWING LEG BRACKET. 2: FASTEN THE SWING LEGS TO THE SWING LEG BRACKET WITH 3/8 X 3-1/2" LAG SCREWS AND 3/8" WASHERS.

SWING LEGS FLUSH

TO TOP OF SWING

LEG BRACKET

3/8 X 3-1/2" LAG SCREW

3/8" WASHER

SWING LEG BRACKET

4 X 4 X 96" SWING LEG

Page 67

STEP 36: REST SWING BEAM ON FORT

AN EXTRA PERSON IS NEEDED FOR THIS STEP 1: SIT THE SWING BEAM LEGS UPRIGHT. 2: LINE UP THE PRE-DRILLED HOLES, AND REST THE SWING BEAM ON TOP OF THE FORT AND THE

SWING BEAM LEGS. MAKE SURE THAT YOU HAVE THE BEAM FACING THE RIGHT WAY.

Page 68

STEP 37: MOUNT SWING BEAM TO SWING BEAM LEGS

1: FASTEN THE SWING BEAM TO THE SWING BEAM BRACKET USING 6-1/2" OR 7" CARRIAGE BOLTS WITH TORQUE WASHERS ON TOP OF THE SWING BEAM, AND 3/8" LOCK NUTS WITH 3/8" WASHERS FROM UNDERNEATH.

2: USE A 3/8 X 3-1/2" LAG SCREW WITH 3/8" WASHER FOR THE HOLE IN THE CENTER OF THE SWING BEAM BRACKET. 3: PLACE A BOLT CAP OVER ANY EXPOSED THREADS.

6-1/2" OR 7" CARRIAGE BOLT

3/8" WASHER

3/8" LOCK NUT

BOLT CAP

TORQUE WASHER

3/8 X 3-1/2" LAG SCREW

Page 69

STEP 38: MOUNT SWING BEAM ON FORT

AN EXTRA PERSON IS NEEDED FOR THIS STEP 1: HAVE ONE PERSON WALK THE SWING BEAM OUT TO THE END OF THE FORT FROM INSIDE THE

FORT WHILE THE OTHER PERSON CARRIES IT BY THE LEGS. 2: LINE UP THE PILOT HOLES AT THE END OF THE SWING BEAM WITH THE MIDDLE HOLES ON THE

SWING BEAM PLATE. 3: FASTEN THE SWING BEAM TO THE SWING BEAM PLATE AND SWING BEAM SUPPORT USING A 9"

CARRIAGE BOLT WITH A TORQUE WASHER ON TOP AND A 3/8" LOCK NUT AND WASHER ON THE BOTTOM. PLACE GREEN BOLT CAPS OVER EXPOSED THREADS AFTER SECURING.

4: FASTEN THE SWING BEAM TO THE SWING BEAM PLATE FROM UNDERNEATH WITH A 3/8 X 3-1/2" LAG SCREW AND 3/8" WASHER.

5: USE VISE GRIPS TO HOLD CARRIAGE BOLTS IN PLACE WHEN INSTALLING.

9" CARRIAGE BOLT TORQUE WASHER

3/8" WASHER

3/8" LOCK NUT

BOLT CAP

SWING BEAM PLATE

3/8" WASHER 3/8 X 3-1/2"

LAG SCREW

Page 70

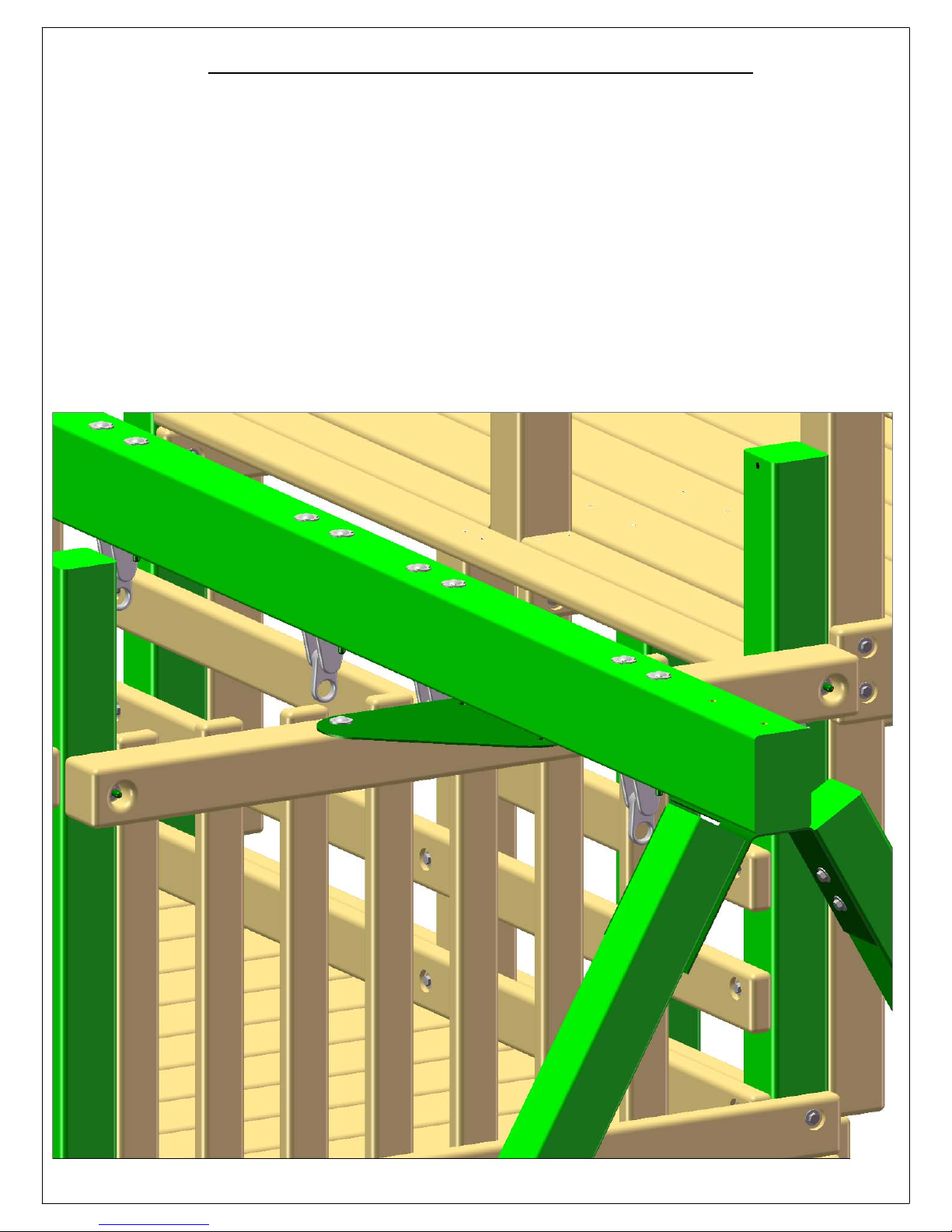

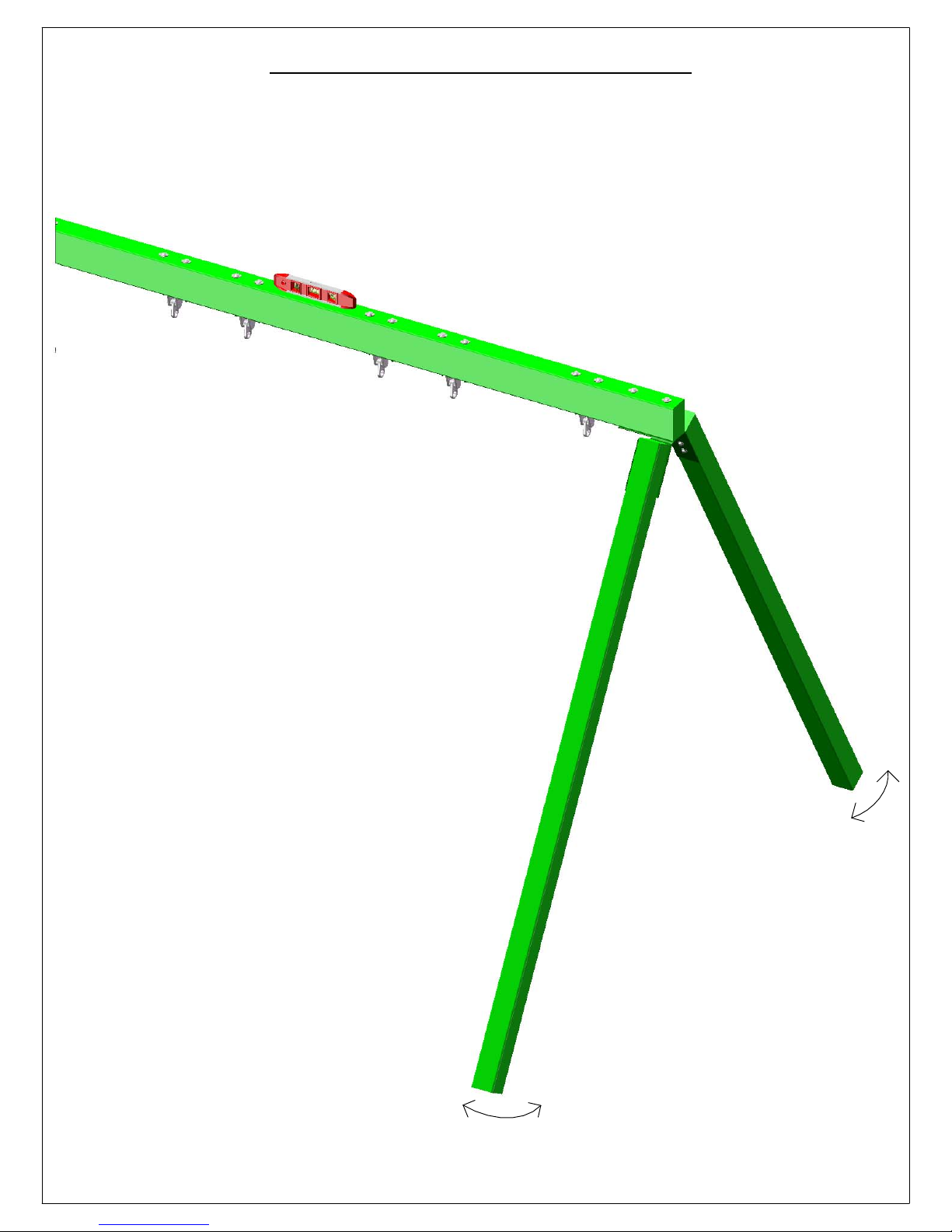

STEP 39: LEVEL SWING BEAM

1: PLACE A LEVEL ON TOP OF THE SWING BEAM AND ADJUST THE BEAM LEGS IN OR OUT AS NEEDED TO MAKE THE SWING BEAM LEVEL.

IMPORTANT NOTE: THE LEGS ARE DESIGNED TO ACCOMODATE SWING BEAMS ON UNEVEN GROUND (DOWN SLOPE). THEY ARE LONGER THAN REQUIRED. IF YOUR GROUND IS RELATIVELY LEVEL, YOU MAY NEED TO EITHER A) SHORTEN THE END OF THE LEGS; B) DIG IN BOTH LEGS WHERE THEY MEET THE GROUND, OR C) BEND THE LEGS OUT SLIGHTLY TO MATCH YOUR GRADE

Page 71

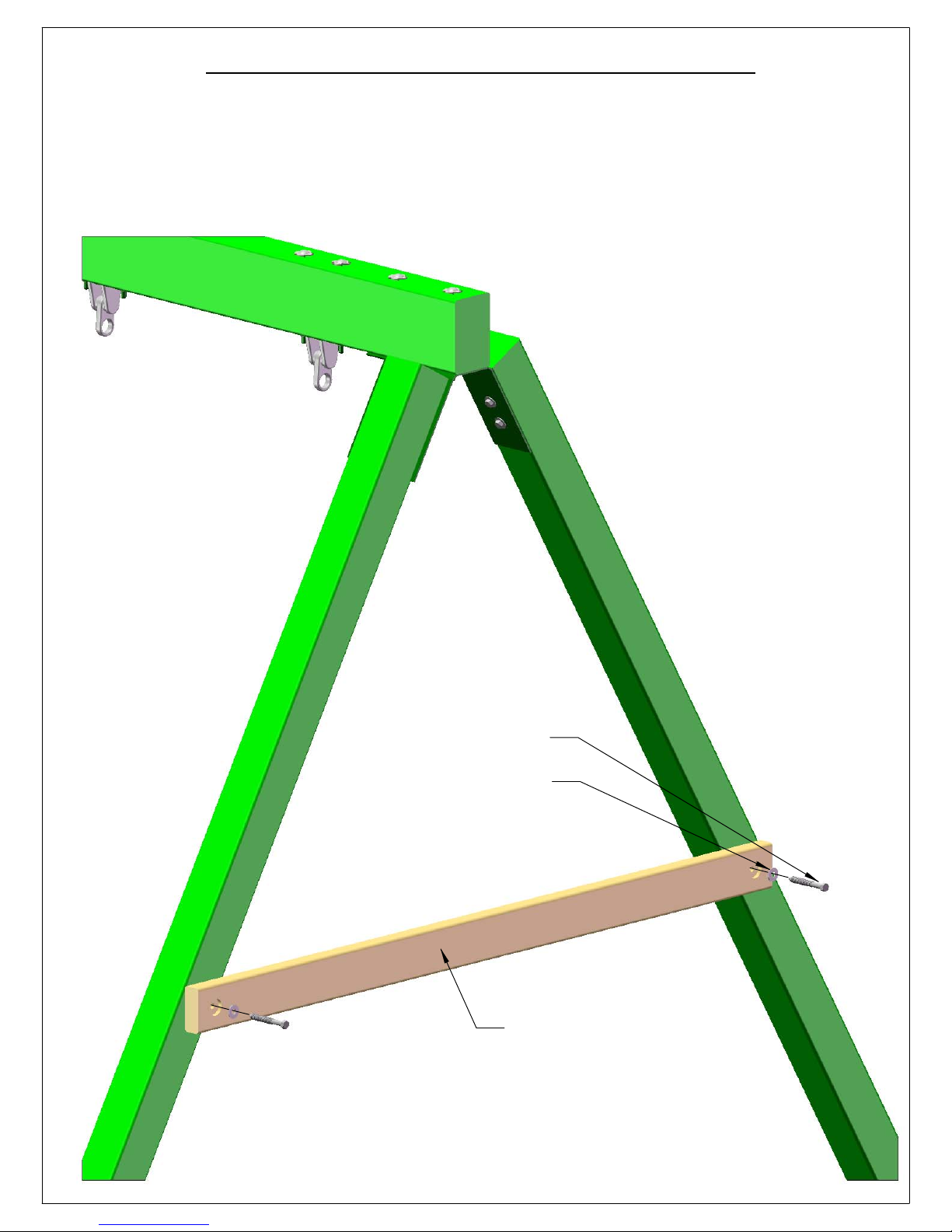

STEP 40: SWING LEG CROSS-MEMBER

1: POSITION THE 2 X 4 X 58" SWING LEG CROSS-MEMBER AGAINST THE SWING BEAM LEGS. 2: LEVEL CROSS-MEMBER AND MARK THE LOCATION OF THE SECURING HOLES INSIDE THE CROSS-MEMBER HOLES. 3: USE 3/8 X 3-1/2" LAG SCREWS WITH 3/8" WASHERS TO SECURE THE CROSS-MEMBER TO THE SWING BEAM LEGS.

3/8 X 3-1/2"

LAG SCREW

3/8" WASHER

2 X 4 X 58" CROSS-MEMBER

Page 72

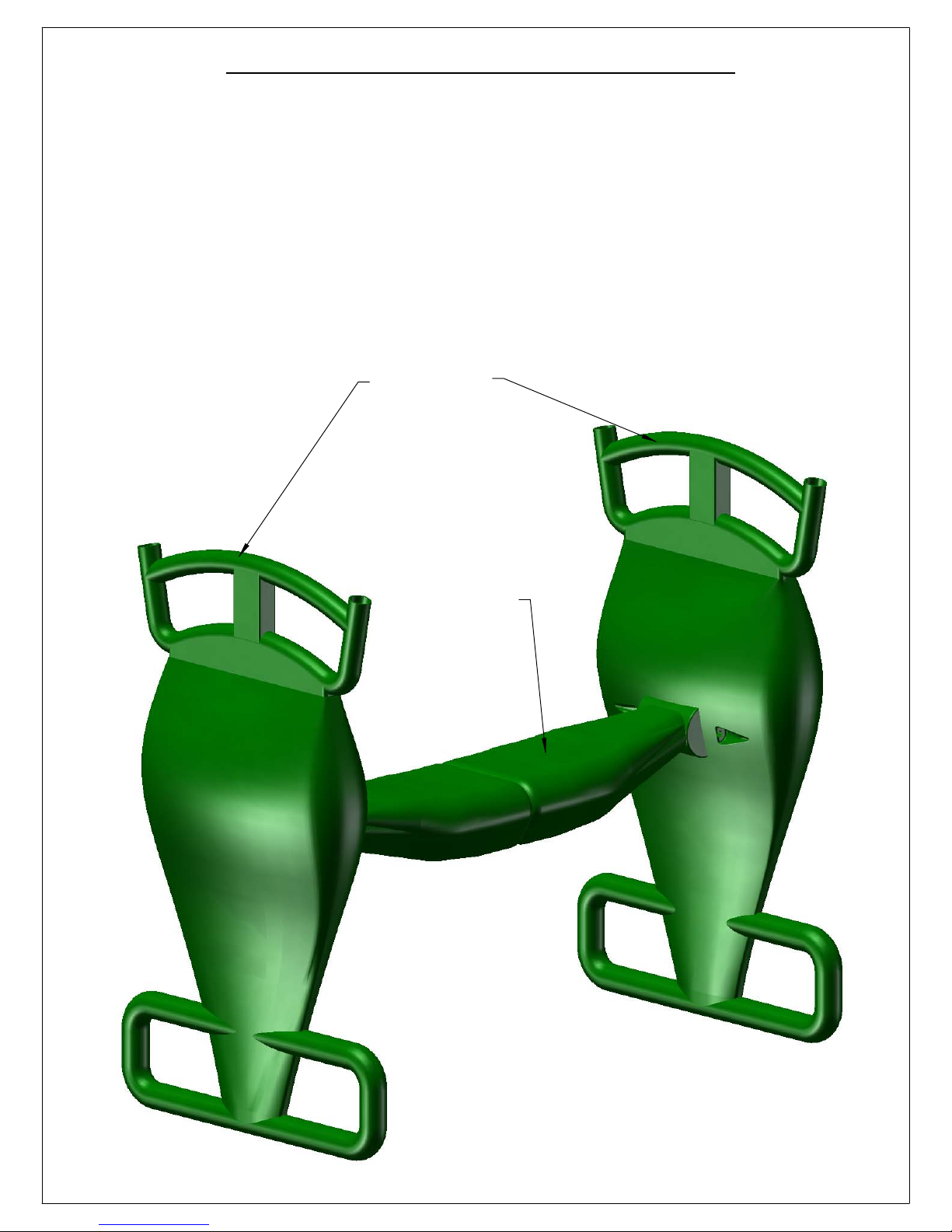

STEP 41: GLIDER SWING ASSEMBLY

1: LINE UP THE HOLES OF THE SEAT WITH BOTH END HANDLE ASSEMBLIES. 2: MAKE SURE THAT THE FLAT SIDE OF THE SEAT IS FACING UP. 3: INSERT THE PROVIDED BOLTS THROUGH THE HOLES WITH A WASHER AND SECURE IT WITH A

WASHER AND NUT.

GLIDER HANDLE

GLIDER SEAT

Page 73

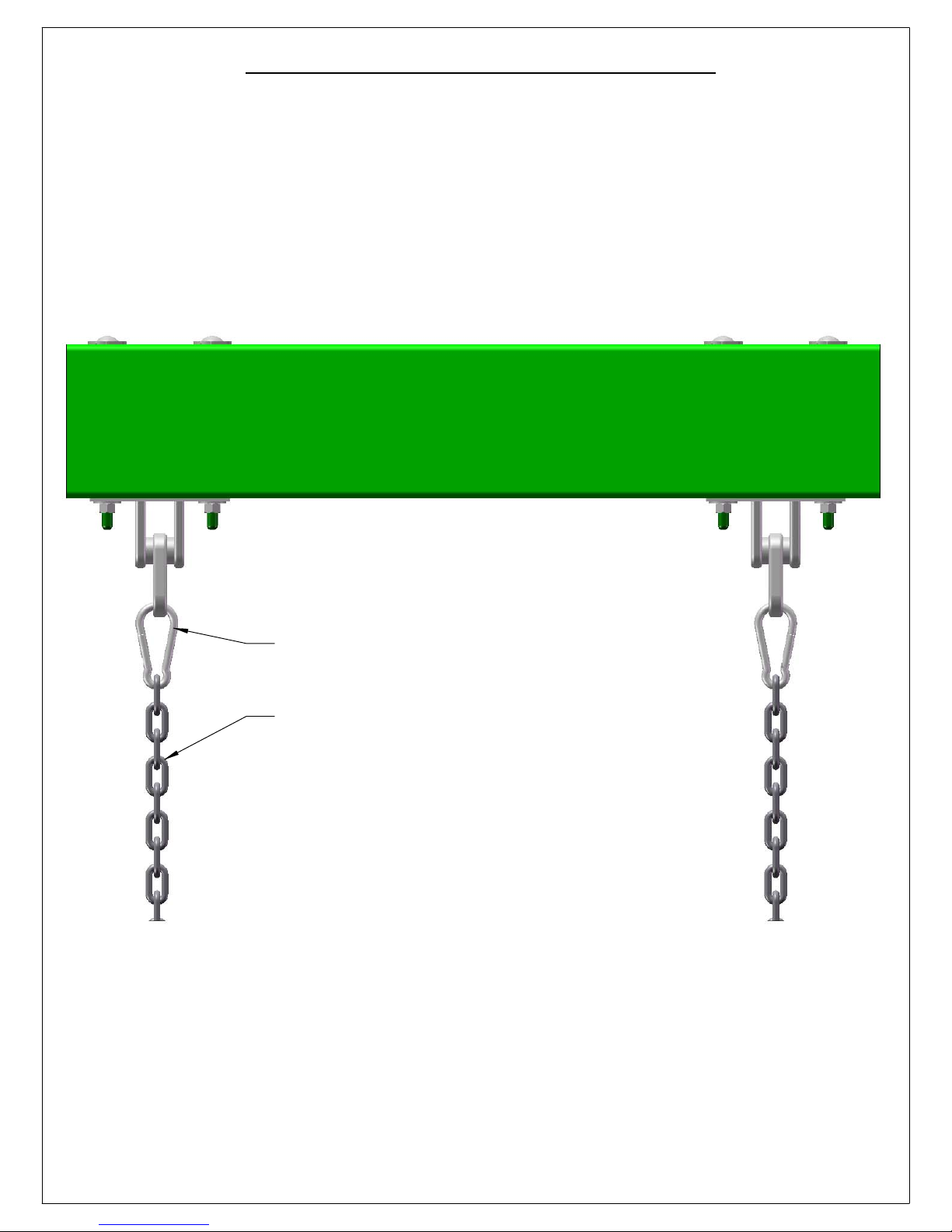

STEP 42: HANGING THE SWINGS

1: START BY ATTACHING ONE SPRING CLIP TO EACH IRON DUCTILE ON THE SWING BEAM. 2: ATTACH ONE CHAIN PER ACCESSORY TO EACH SPRING CLIP. 3: ADJUST HEIGHT AS NEEDED

SPRING CLIP

SWING CHAIN

Page 74

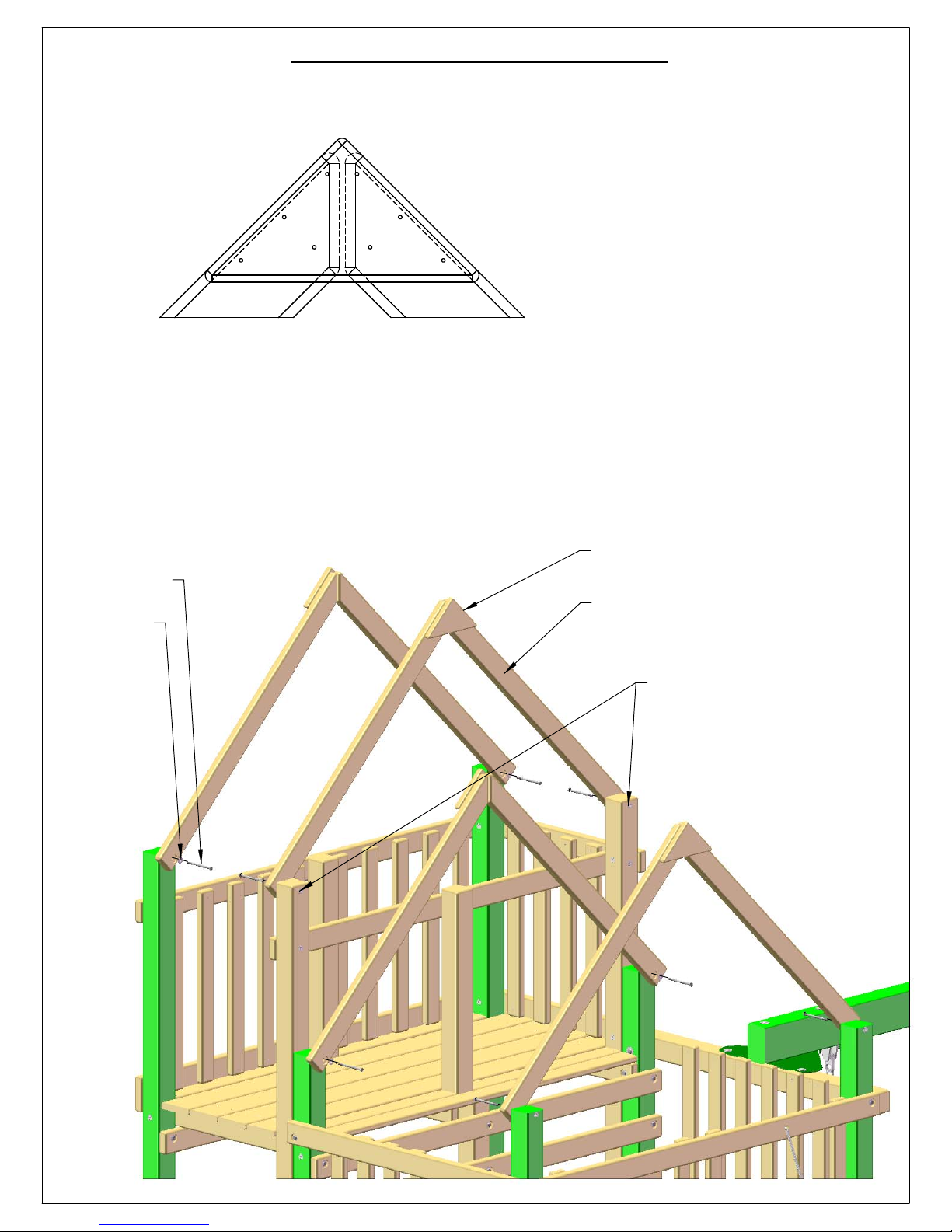

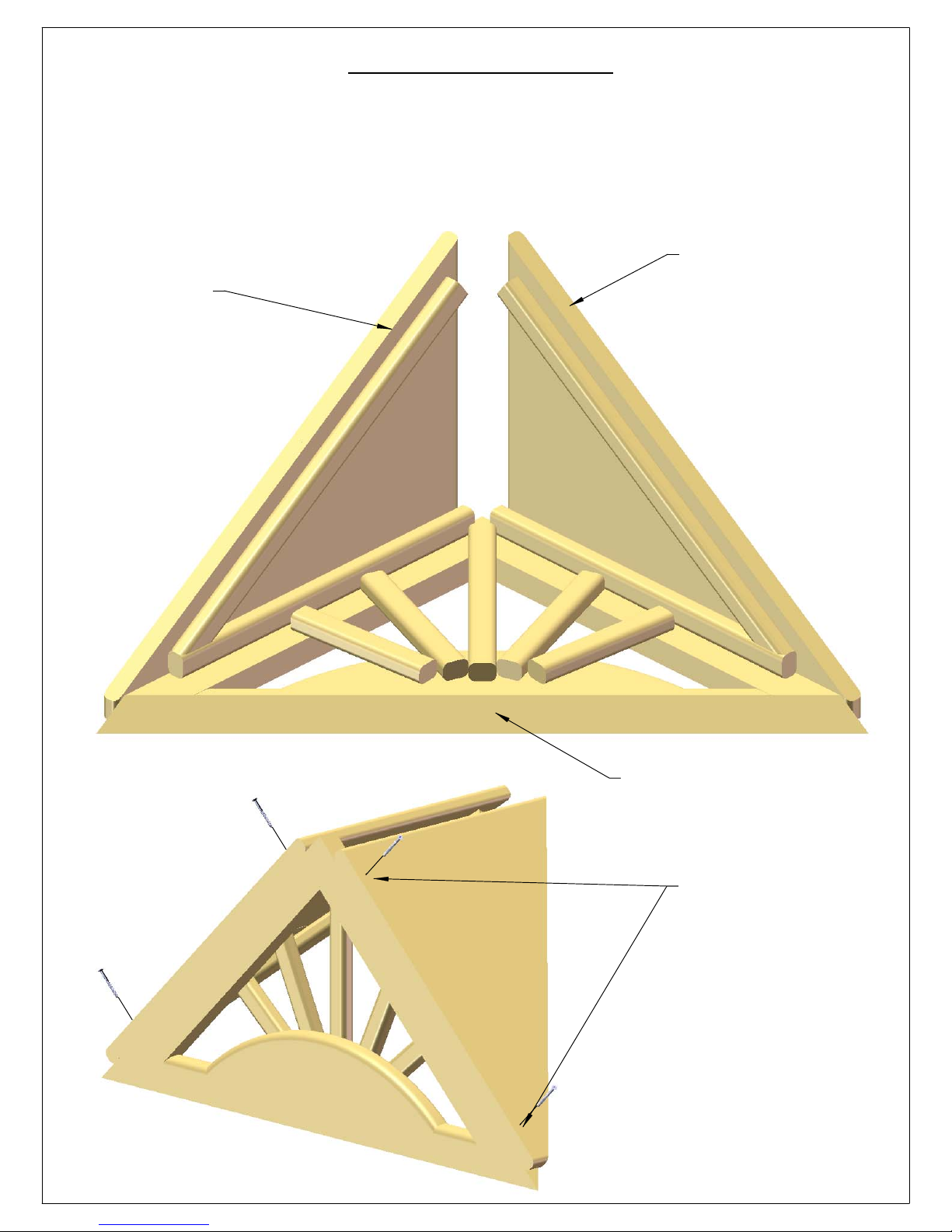

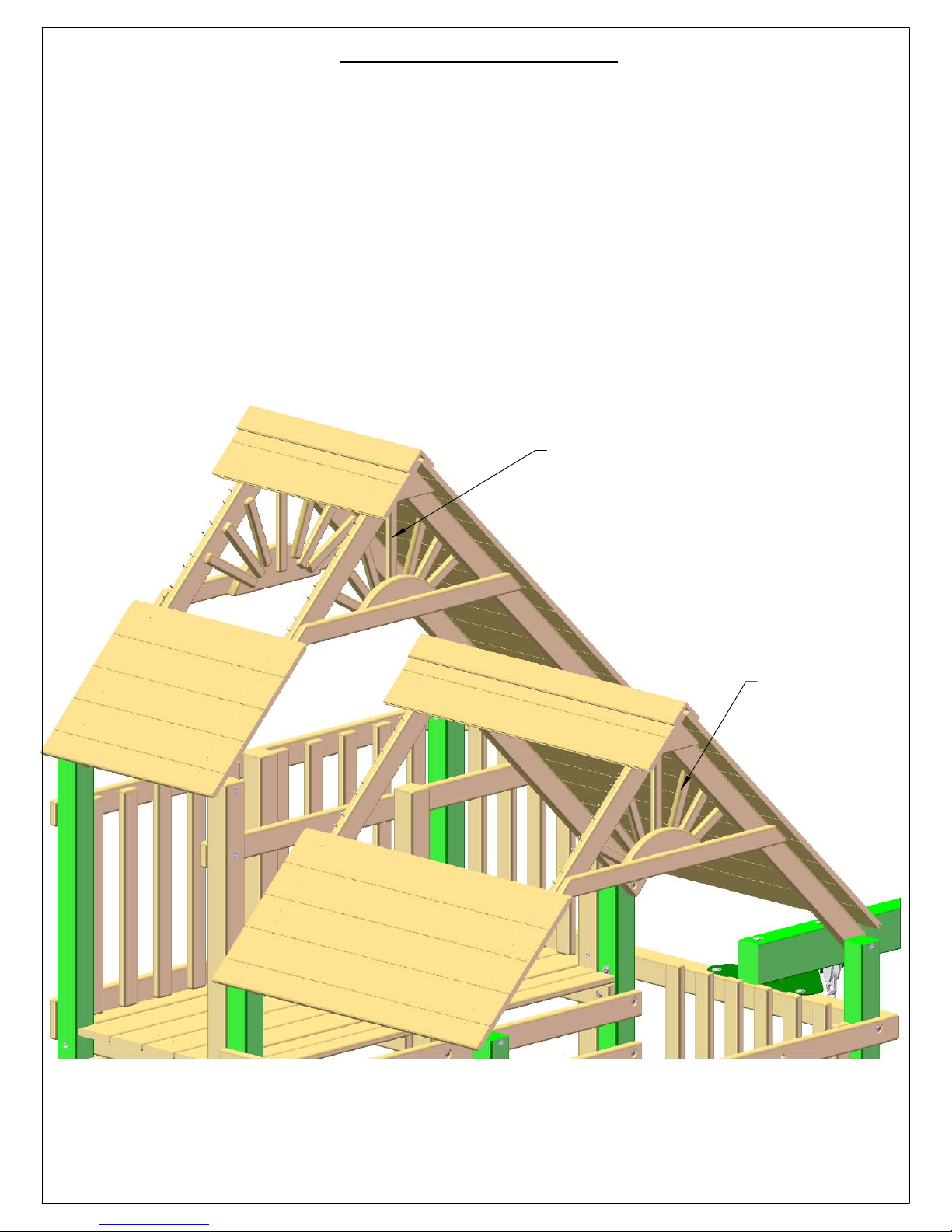

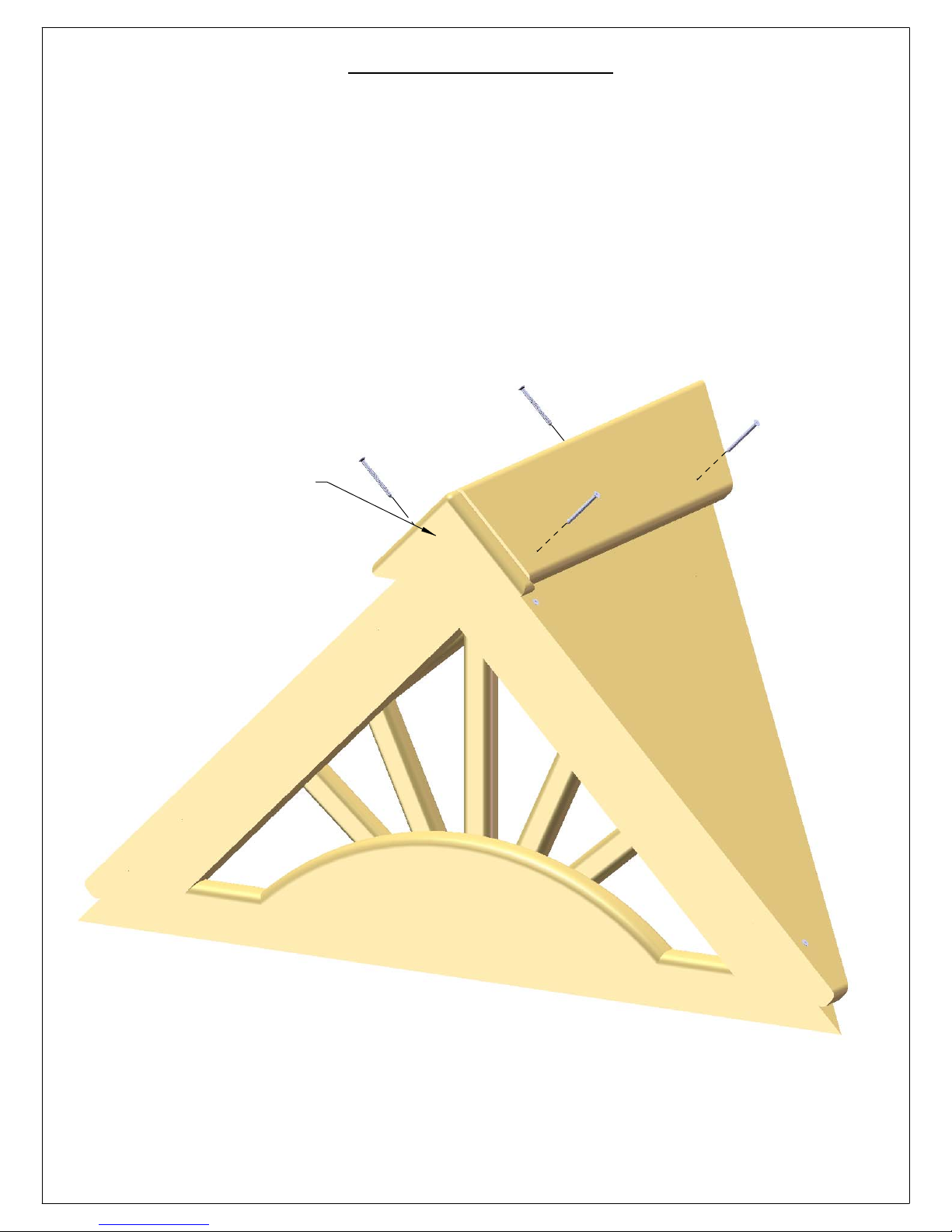

STEP 43: ROOF SUPPORTS

1: DRILL PILOT HOLES IN THE TRIANGLE TO A PATTERN THAT MATCHES THE 2 X 4 X 51" SUPPORTS.

THIS PICTURE SHOWS A PATTERN WITH

2 X 4 X 51" UNDER THE ROOF

THE TRIANGLE. THE 2 X 4 PARTS HAVE LIGHTENED EDGES TO SHOW THE ASSEMBLY

2: ATTACH A ROOF SUPPORT TO EACH OF THE LOWER LEVEL CORNER POSTS WITH 5/16 X 4-1/2” HEX BOLTS AND WASHERS INTO THE T-NUTS INSTALLED IN STEP #1.

3: ATTACH THE ROOF SUPPORTS TO THE UPPER LEVEL CORNER POST AND LAG POSTS WITH 5/16 X 4-1/2” HEX BOLTS WITH WASHER AND INSTALL A T-NUT ON THE BACK SIDE OF THE TOP HOLES OF THE LAG POSTS.

4: MEET THE ANGLES OF THE ROOF SUPPORTS AND ATTACH THE TRIANGLES WITH 2” WOOD SCREWS.

5/16 X 4-1/2"

HEX BOLT

5/16" WASHER

5/4 X 6 X 10" ROOF TRIANGLE

2 X 4 X 51" ROOF SUPPORT

INSTALL A 5/16" T-NUT IN THESE LOCATIONS ON THE LAG POSTS

Page 75

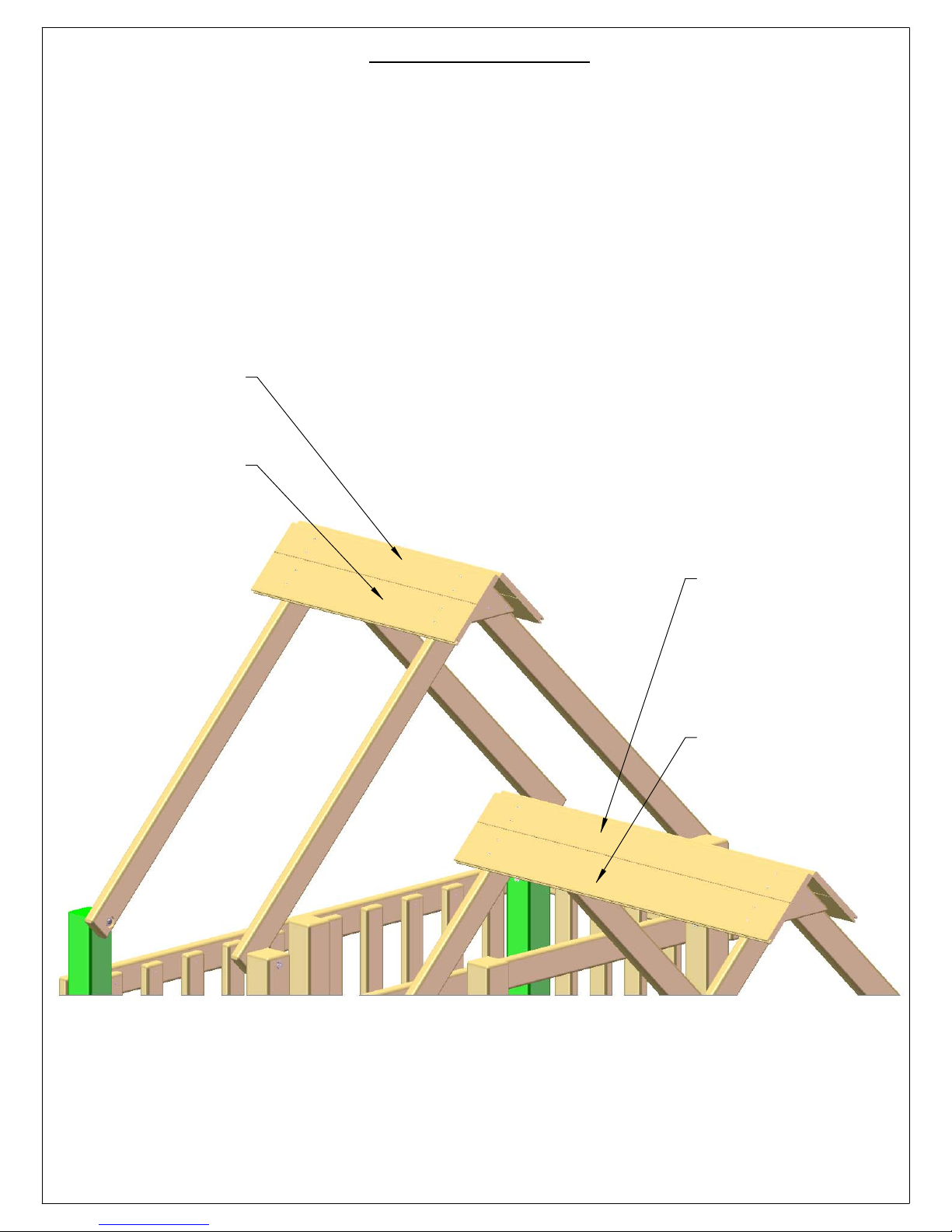

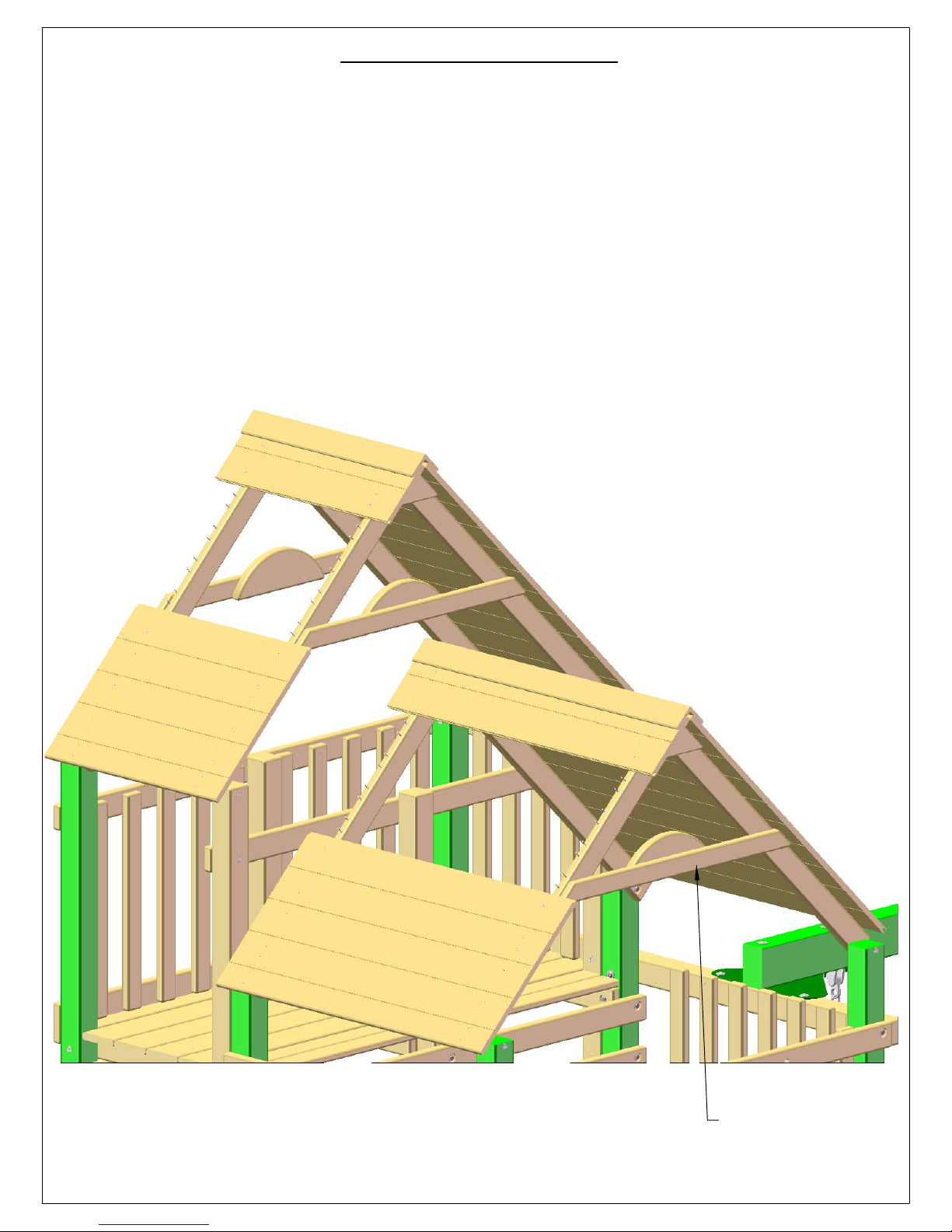

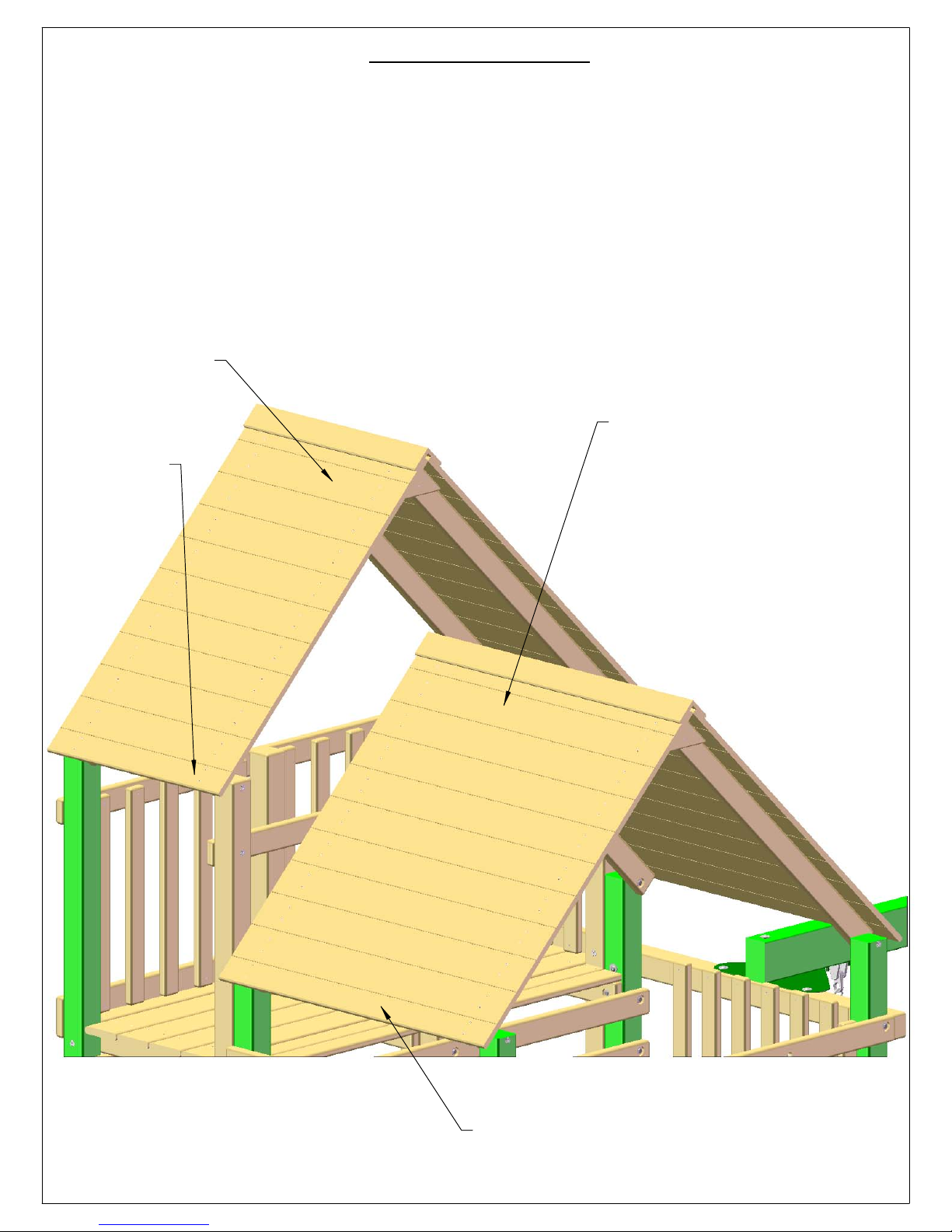

STEP 44: ROOF BOARDS

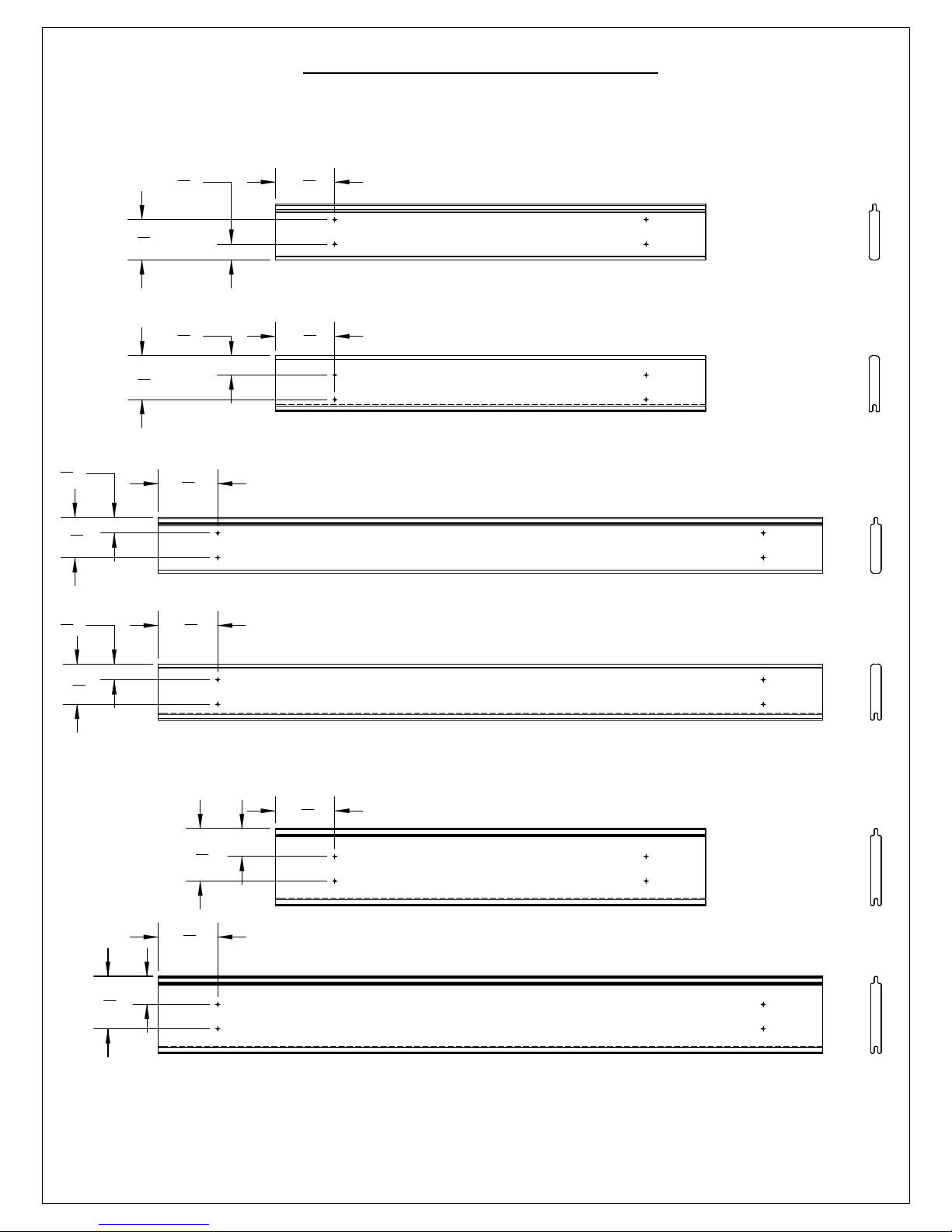

FIND THE TONGUE-IN-GROOVE PARTS BELOW AND DRILL 1/8” PILOT HOLES TO THE

1: DIMENSIONS SHOWN.

"141

1 X 4 X 30-3/4" TONGUE ONLY UPPER ROOF FINISHER

1 X 4 X 30-3/4" GROOVE ONLY UPPER ROOF STARTER

1 X 4 X 47-1/2" TONGUE ONLY LOWER ROOF FINISHER

1 X 4 X 47-1/2" GROOVE ONLY LOWER ROOF STARTER

1 X 6 X 30-3/4" TONGUE-IN-GROOVE UPPER ROOF BOARD

1 X 6 X 47-1/2" TONGUE-IN-GROOVE LOWER ROOF BOARD

Page 76

STEP 45: ROOF

1: INSTALL A ROOF STARTER AT THE TOP OF EACH ROOF SUPPORT. THE GROOVE OF THE STARTERS SHOULD FACE DOWNWARD AND THE TOPS OF THE TWO SHOULD MEET AT THE PEAK OF THE SUPPORTS. SECURE THE STARTERS TO THE SUPPORTS WITH 1-1/2” WOOD SCREWS THROUGH THE PILOT HOLES.

2: INSTALL A ROOF BOARD BELOW THE STARTERS WITH THE TOUNGE INSERTED INTO THE GROOVE. NOTE: ALL ROOF BOARDS SHOULD HAVE A 3-1/2” OVERHANG PAST THE ROOF SUPPORTS.

1 X 4 X 30-3/4"

UPPER ROOF STARTER

1 X 6 X 30-3/4"

UPPER ROOF BOARD

1 X 4 X 47-1/2" LOWER ROOF STARTER

1 X 6 X 47-1/2" LOWER ROOF BOARD

Page 77

STEP 46: ROOF

1: FIND THE 47-1/2” ROOF PEAK AND THE 30-3/4” ROOF PEAK. DRILL PILOT HOLES IN THE PEAKS TO THE SAME DIMENSIONS AS THE ROOF STARTER BOARDS.

2: ATTACH THE ROOF PEAKS ON TOP OF THE TWO ROOF STARTERS AND SECURE THEM WITH 1-1/2” WOOD SCREWS THROUGH THE PILOT HOLES.

30-3/4" ROOF PEAK

47-1/2" ROOF PEAK

Page 78

STEP 47: ROOF

1: CONTINUE TO INSTALL THE ROOF BOARDS BY INSERTING THE TOUNGE INTO THE GROOVE OF THE PREVIOUS BOARD UNTIL THERE ARE NINE ROOF BOARDS PER SIDE (NOT COUNTING ROOF STARTERS). ATTACH WITH 1-1/2" WOOD SCREWS

2: INSTALL THE ROOF FINISHERS BELOW THE LAST ROOF BOARDS. THE FINISHERS WILL OVERHANG THE BOTTOM OF THE ROOF SUPPORTS BY ABOUT 2”.

1X 6 X 30-3/4"

UPPER ROOF BOARD

1 X 6 X 47-1/2" LOWER ROOF BOARD

1X 4 X 30-3/4"

UPPER ROOF

FINISHER

1 X 4 X 47-1/2" LOWER ROOF FINISHER

Page 79

STEP 48: SUNBURST

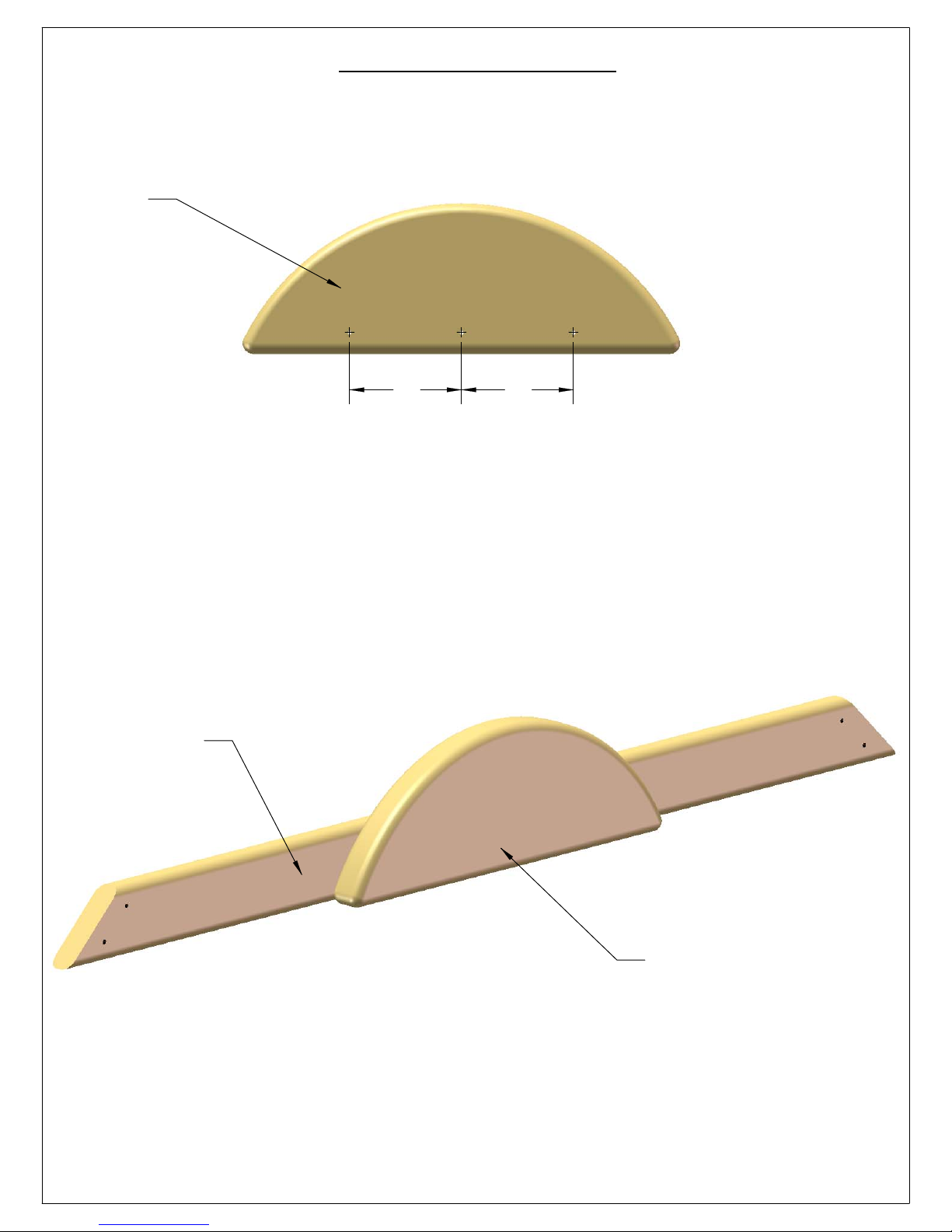

1: PRE-DRILL HOLES IN THE 2 X 6 X 16" SUN TO THE PATTERN SHOWN BELOW.

2 X 6 X 16"

SUN

4" 4"

2: PLACE THE 2 X 6 X 16" SUN CENTERED AGAINST THE 5/4 X 3 X 42" SUN SUPPORT. FASTEN THE SUN TO THE SUN SUPPORT WITH 2" WOOD SCREWS.

5/4 X 3 X 42"

SUN SUPPORT

FASTEN 2" WOOD SCREWS FROM THIS SIDE

Page 80

STEP 49: SUNBURST

1: PLACE THE ASSEMBLY MADE IN THE PREVIOUS STEP UNDERNEATH THE ROOF BOARDS, AND AGAINST THE ANGLED ROOF SUPPORTS.

2: FASTEN THE SUN ASSEMBLY TO THE FORT WITH 2" WOOD SCREWS FROM THE OUTSIDE INTO THE ROOF SUPPORTS.

3: TWO OF THE SUN ASSEMBLIES WILL BE INSTALLED ON THE UPPER LEVEL OF THE FORT, WHILE ONLY ONE WILL BE INSTALLED ON THE LOWER LEVEL (SEE ILLUSTRATION BELOW).

NOTE: SOME ROOF BOARDS HAVE BEEN REMOVED FROM VIEW FOR LOCATION CLARITY OF THE SUN ASSEMBLIES.

FASTEN WITH 2" WOOD SCREWS FROM THIS SIDE OF THE ROOF SUPPORT BOARDS.

Page 81

STEP 50: SUNBURST

1: CENTER THE 5/4 X 2 X 16" LARGE RAY ONTO THE HALF SUN AND THE ROOF SUPPORT BOARDS AND FASTEN WITH TWO 1-1/2" SCREWS.

2: EQUALLY SPACE THE SMALL RAYS ABOUT THE HALF SUN (THREE ON EACH SIDE OF LARGE RAY) AND MARK THE POSITION OF THE SMALL SUNRAYS WITH A PENCIL.

3: SECURE THE SMALL SUNRAYS ONE AT A TIME TO THE HALF SUN AND THE ROOF SUPPORT BEAMS AND LINE THEM UP WITH THE MARK DRAWN. FASTEN THE SMALL SUNRAYS WITH TWO 1-1/2" WOOD SCREWS EACH. REPEAT ON OTHER SIDE OF FORT.

NOTE: SOME ROOF BOARDS HAVE BEEN REMOVED FROM VIEW FOR LOCATION CLARITY OF THE SUNRAYS.

5/4 X 2 X 16" LARGE RAY

5/4 X 2 X 10" SMALL RAY

Page 82

STEP 51: PICNIC TABLE

1: PLACE THE 2 X 4 X 15" PICNIC TABLE SUPPORT ON TOP OF THE 2 X 4 X 30" PICNIC TABLE VERTICAL SUPPORT AND POSITION THE BOARDS AT A RIGHT ANGLE.

2: ENSURE THAT THE PICNIC TABLE SUPPORT AND THE PICNIC TABLE VERTICAL SUPPORT ARE SQUARE AND FASTEN THE PICNIC TABLE SUPPORT TO THE VERTICAL SUPPORT WITH THREE 2 1/2" WOOD SCREWS IN THE PATTERN SHOWN BELOW. MAKE SURE TO ASSEMBLE THE THE PICNIC TABLE SUPPORT AND THE PICNIC TABLE VERTICAL SUPPORT TO ACCOMODATE OPPOSITE SIDES OF THE PICNIC TABLE. MAKE SURE THE ASSEMBLY IS SQUARE BEFORE PROCEEDING TO THE NEXT STEP.

3: FASTEN THE ASSEMBLY CREATED FROM THE PREVIOUS TWO STEPS TO THE CORNER POST. POSITION THE ASSEMBLY SO THAT THE PICNIC TABLE SUPPORT IS ON THE OUTSIDE OF THE CORNER POST, AND THE VERTICAL SUPPORT IS ON THE INSIDE OF THE 2 X 6. FASTEN THE ASSEMBLY TO THE UNIT WITH THREE 2" WOOD SCREWS IN THE PICNIC TABLE SUPPORT, AND TWO 2-1/2" WOOD SCREWS IN THE 2 X 6 AT THE BOTTOM. (SEE PATTERN BELOW)

COMPLETE THIS STEP FIRST. (SEE SUB-STEPS 1 AND 2)

2 X 4 X 30"

PICNIC TABLE

VERTICAL SUPPORT

2 X 4 X 15"

PICNIC TABLE

SUPPORT

FASTEN WITH 2-1/2" WOOD SCREWS

Page 83

STEP 52: PICNIC TABLE

1: MEASURE 18” FROM THE GROUND UP AND MARK THIS POINT ON THE CORNERPOST. 2: ATTACH THE SEAT SUPPORT TO THE OUTSIDE OF THE CORNER POST SO THAT THE TOP IS AT 18”

FROM THE GROUND. ATTACH IT WITH THREE 2-1/2” WOOD SCREWS IN EACH END, THEN LEVEL SEAT SUPPORT AND ATTACH IT TO THE VERTICAL SUPPORT ON EACH SIDE.

3: REPEAT THESE STEPS FOR THE OPPOSITE SIDE OF THE PLAYSET.

2 X 4 X 23" PICNIC TABLE BENCH SUPPORT

Page 84

STEP 53: PICNIC TABLE

1: ATTACH THE PICNIC TABLE SEAT ON THE SEAT SUPPORTS WITH TWO 2” WOOD SCREWS IN EACH END.

2: ATTACH THE PICNIC TABLE TOPS TO THE TABLE SUPPORTS WITH TWO 2” WOOD SCREWS IN EACH END.

5/4 X 6 X 46"

2 X 6 X 46" PICNIC TABLE SEAT

PICNIC TABLE TOP

Page 85

STEP 54: INSTALLING THE WAVE SLIDE

1: POSITION THE WAVE SLIDE TO THE OPEN SECTION OF THE FRONT FACE BOARD. SECURE THE SLIDE TO DECK WITH 1-1/4” WOOD SCREWS THROUGH THE DIMPLES IN THE SLIDE AND INTO THE TOP OF THE DECK BOARDS.

NOTE: DO NOT OVER TIGHTEN THE SCREWS OR YOU WILL BREAK THE SLIDE SCREW HOLES.

Page 86

STEP 55: SAFETY HANDLES

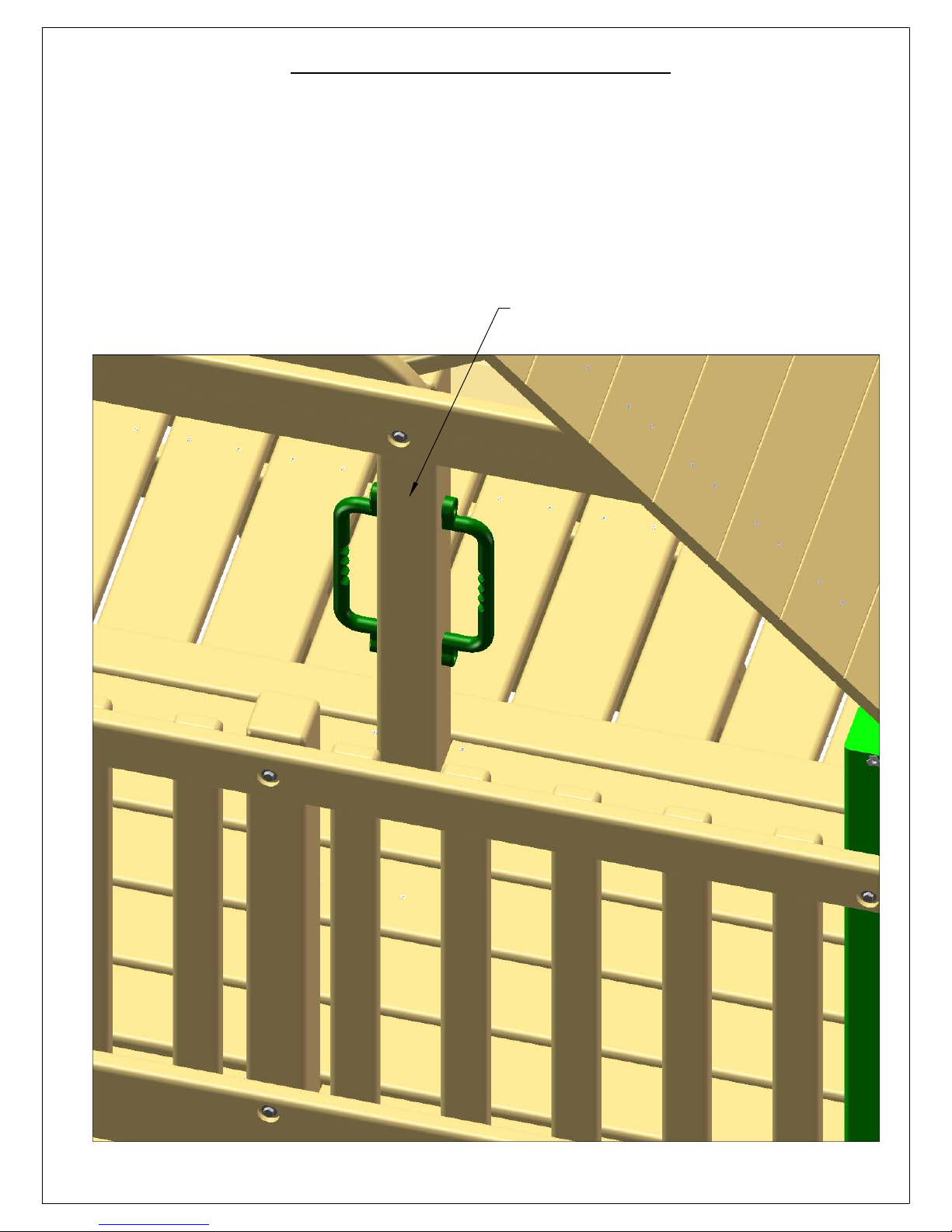

1: ATTACH THE HANDLES WITH THE PAN HEAD SCREWS THAT ARE PROVIDED TO THE CENTER LAG POST.

2: POSITION THE HANDLES 8-1/2” FROM THE UPPER DECK.

CENTER LAG POST

SAFETY HANDLES AS SHOWN FROM THE REAR OF PLAYSET

Page 87

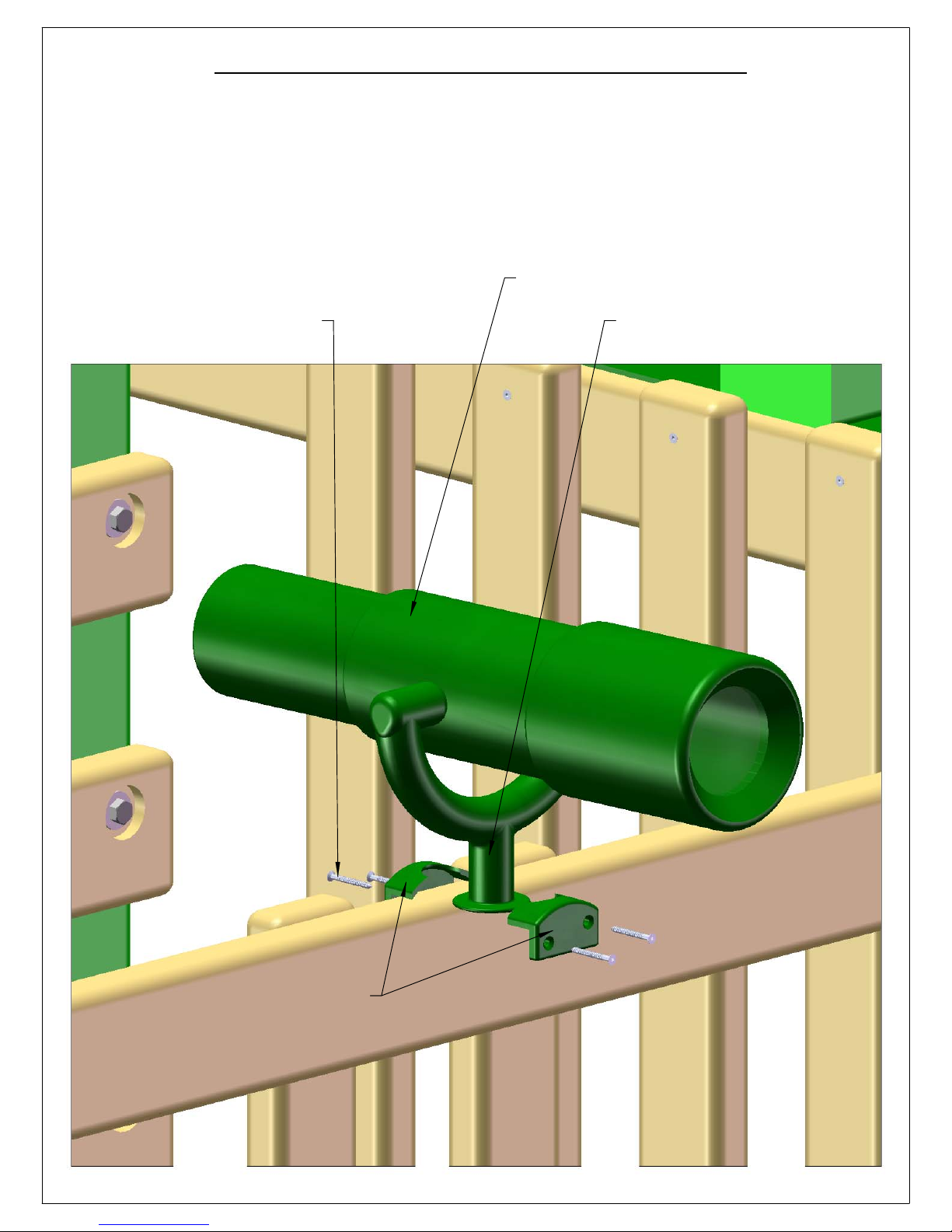

STEP 56: INSTALLING THE TELESCOPE

1: WITH THE 1-1/4" WOOD SCREWS PROVIDED IN THE TELESCOPE BAG, FASTEN ONE OF THE SQUARE TELESCOPE BRACKETS TO THE FRONT TOP PANEL BOARD, BETWEEN THE TWO PANEL SLATS.

2: PLACE THE TELESCOPE STAND AND TELESCOPE INTO THE SLOT OF THE TELESCOPE BRACKET. 3: FASTEN THE REMAINING TELESCOPE BRACKET TO THE OPPOSITE SIDE THAT THE FIRST

TELESCOPE BRACKET WAS INSTALLED ON WITH 1-1/4" WOOD SCREWS.

TELESCOPE

1-1/4" WOOD SCREW TELESCOPE STAND

TELESCOPE BRACKET

Page 88

STEP 57: RAD RIDE

1: LOCATE THE LEFT AND RIGHT ENTRANCE SECTION. 2: FASTEN THE LEFT AND RIGHT SECTIONS TOGETHER ALONG THE RIBS OF THE SLIDE SECTION WITH 5/16 X 3/4" HEX

BOLTS, 5/16" WASHERS, AND 5/16" LOCK NUTS. 3: DO NOT FULLY TIGHTEN BOLTS UNTIL THE ENTIRE UNIT HAS BEEN FULLY ASSEMBLED. THIS WILL ALLOW FOR

NECESSARY FLEX OF THE SLIDE BODY WHILE ASSEMBLING.

LEFT AND RIGHT

SLIDE ENTRANCE

SECTIONS

5/16" LOCK NUT

5/16" WASHER

5/16 X 3/4" HEX BOLT

5/16" WASHER

Page 89

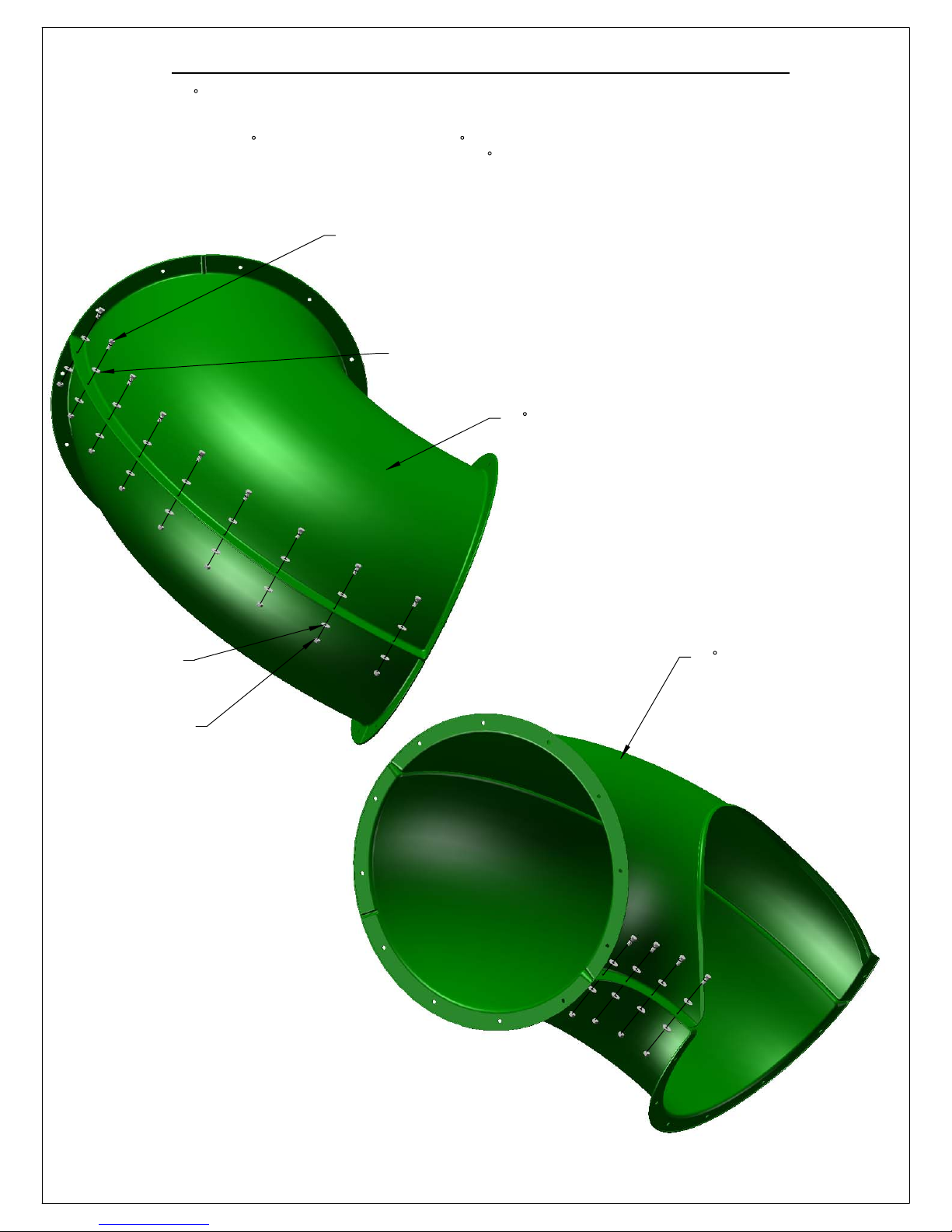

STEP 58: ASSEMBLING THE SLIDE SECTIONS

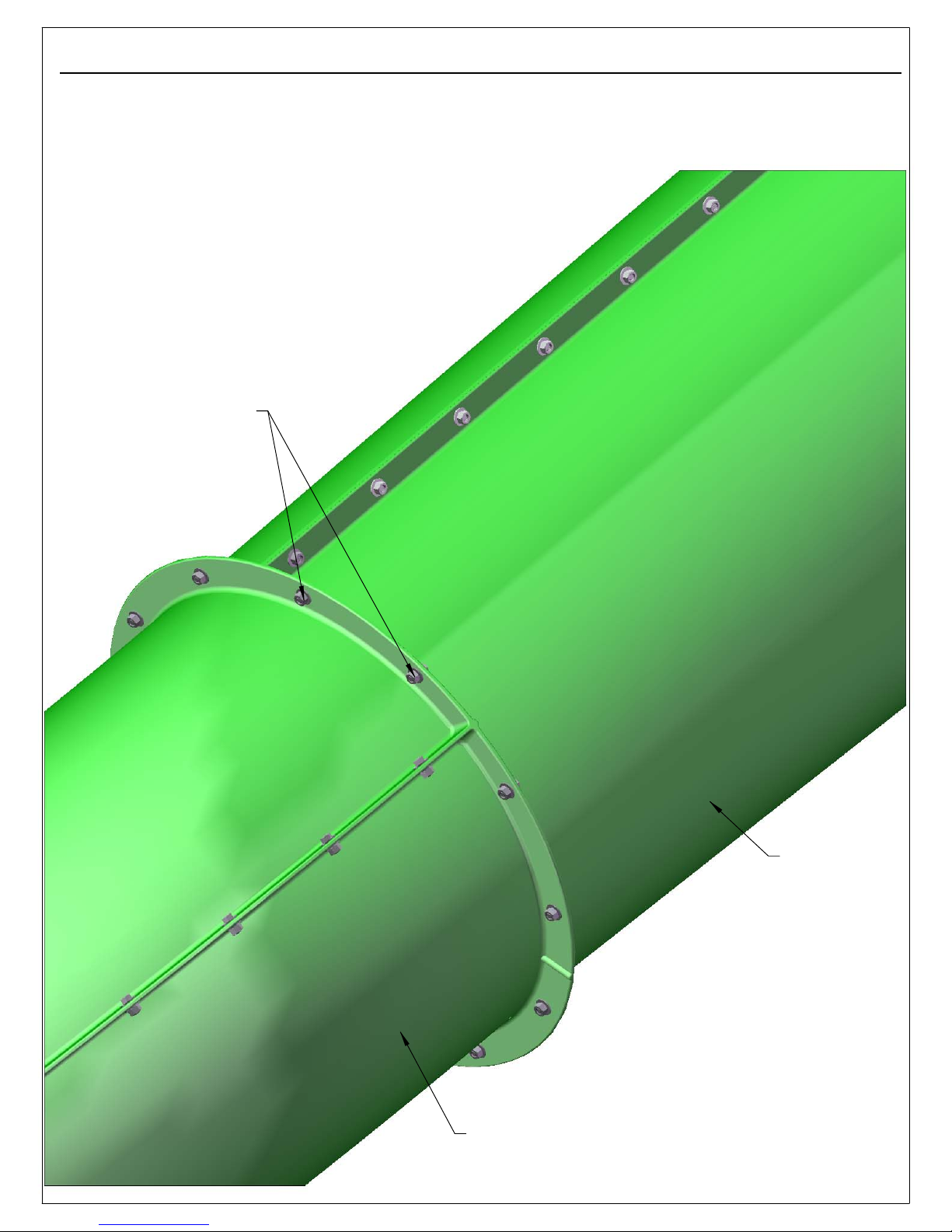

1: LOCATE TWO 90 BOLTS, 5/16" WASHERS, AND 5/16" LOCK NUTS. REPEAT THIS PROCESS TO MAKE TWO SLIDE BODY SECTIONS.

2: WITH THE REMAINING 90 SLIDE EXIT IS ASSEMBLED THE SAME WAY THAT THE OTHER 90

3: DO NOT FULLY TIGHTEN HARDWARE UNTIL ENTIRE SLIDE HAS BEEN ASSEMBLED.

SLIDE SECTIONS. FASTEN THE TWO PIECES TOGETHER ALONG THE RIBS WITH 5/16 X 3/4" HEX

SLIDE SECTION AND THE 90 EXIT SECTION, YOU WILL ASSEMBLE THE SLIDE EXIT. THE

SECTION WAS ASSEMBLED.

5/16 X 3/4" HEX BOLT

COMPLETE THIS STEP TWICE TO CREATE TWO SLIDE BODY

5/16" WASHER

SECTIONS

90 SLIDE SECTION

5/16" WASHER

5/16" LOCK NUT

90 SLIDE EXIT SECTION

Page 90

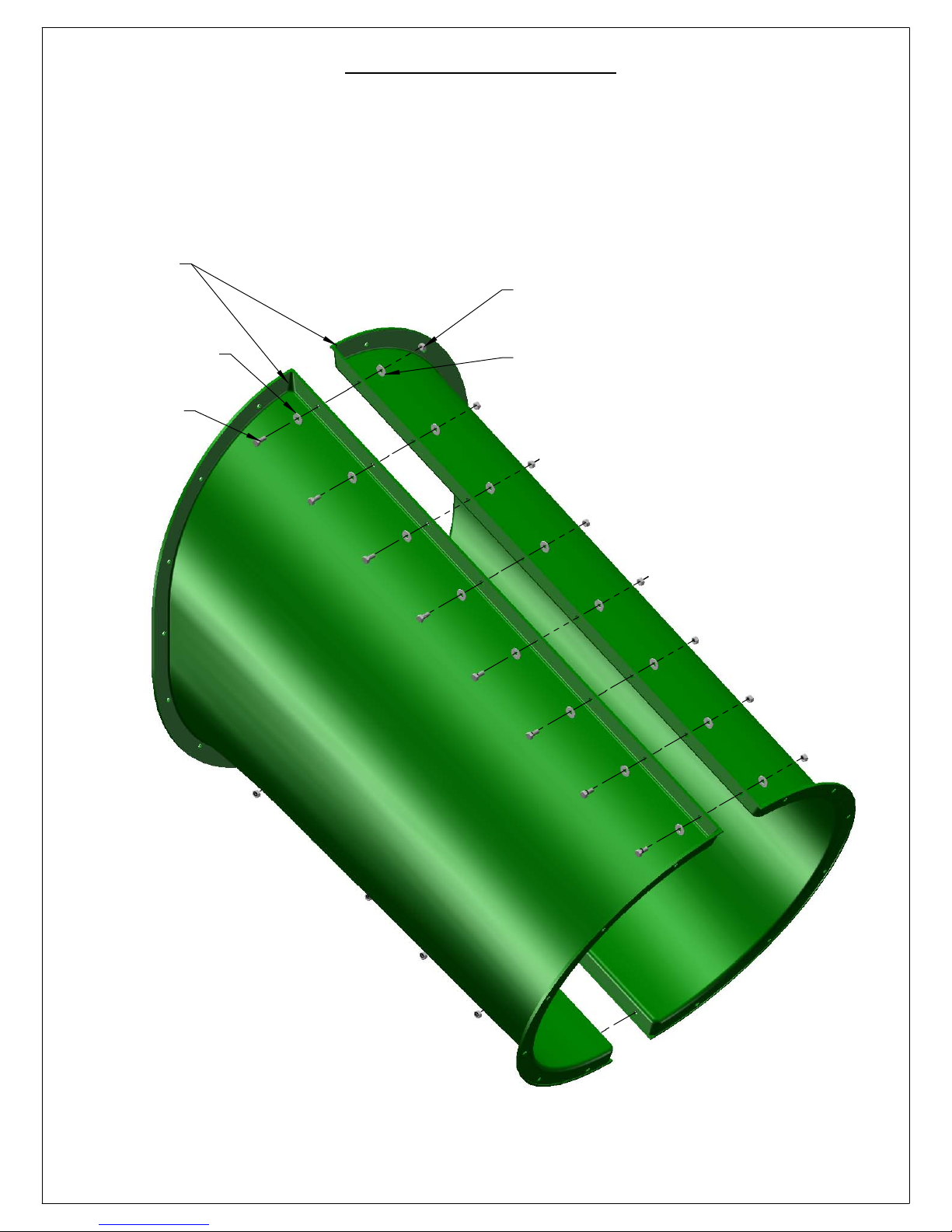

STEP 59: ATTACHING SLIDE SECTIONS

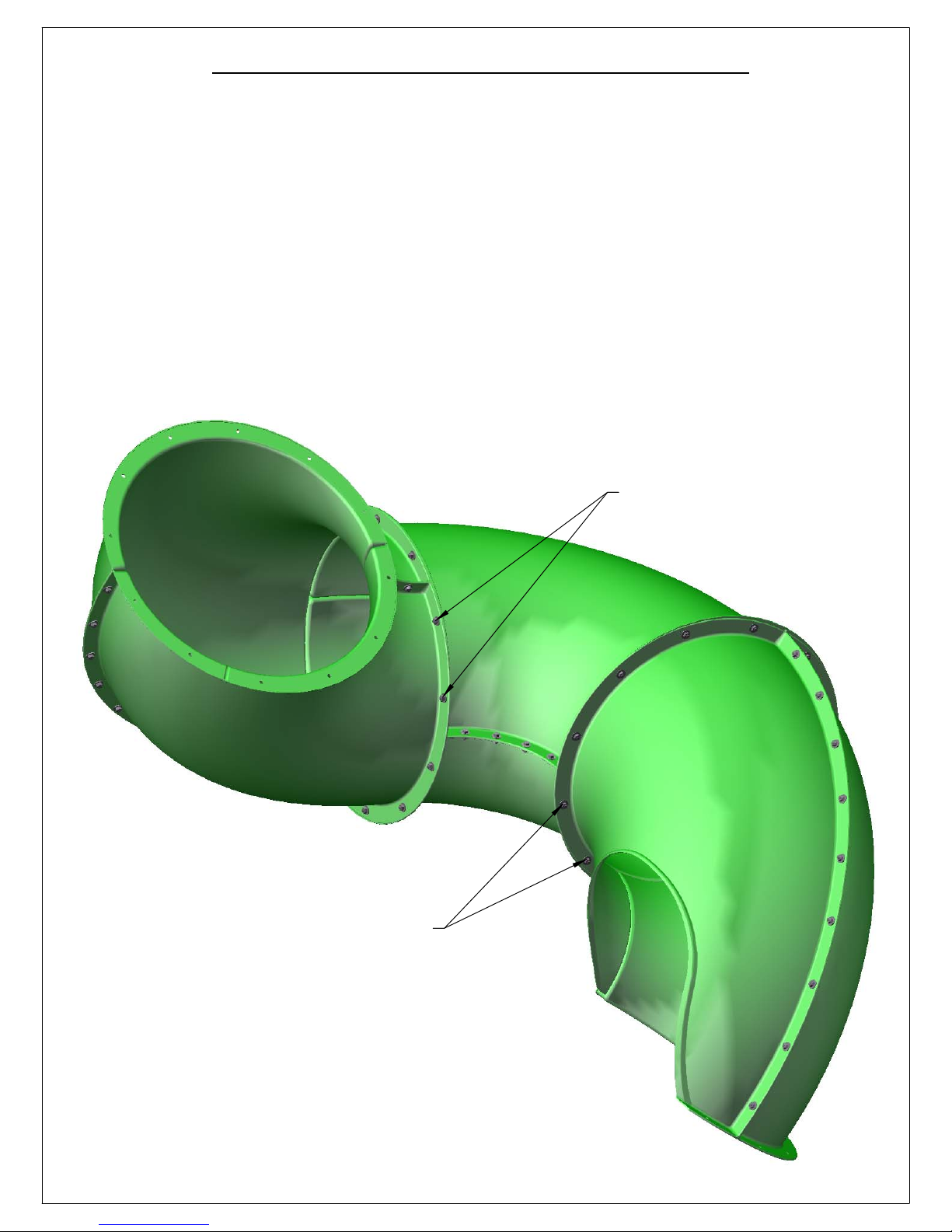

1: THE BEST WAY TO PUT THE SLIDE SECTIONS TOGETHER IS TO USE THE MIDDLE OF THE SLIDE BODY AS A REFERENCE. PLACE ONE OF THE SLIDE BODY SECTIONS ON THE GROUND AND MAKE SURE THAT THE INNER RIB IS FACING TOWARDS YOU.

2: TAKE THE OTHER SLIDE BODY ASSEMBLY AND LAY IT BESIDE THE MIDDLE SECTION OF THE SLIDE BODY. LINE UP THE HOLES AND RIBS SO THAT THE TWO PIECES FORM A GIANT "U" SHAPE ON THE GROUND. NOW ROTATE THE SLIDE BODY ASSEMBLY ON THE LEFT UPWARDS UNTIL THERE IS A TWO HOLE GAP BETWEEN THE INNER RIBS OF THE SLIDE BODY SECTIONS. ATTACH THE SLIDE SECTIONS WITH 5/16 X 3/4" HEX BOLTS, 5/16" WASHERS, AND 5/16" LOCK NUTS.

3: USING THE SAME APPROACH THAT WAS USED FOR THE SLIDE BODY ASSEMBLIES, PLACE THE SLIDE EXIT SECTION NEXT TO THE SLIDE BODY SECTION. THE INNER RIB OF THE SLIDE EXIT WILL ROTATE DOWNWARD UNTIL THERE IS A TWO HOLE GAP BETWEEN THE INNER RIBS OF THE MIDDLE SLIDE BODY ASSEMBLY AND THE SLIDE EXIT SECTION. ATTACH THE SLIDE SECTIONS WITH 5/16 X 3/4" HEX BOLTS, 5/16" WASHERS, AND 5/16" LOCK NUTS.

4: DO NOT FULLY TIGHTEN HARDWARE UNTIL ENTIRE SLIDE HAS BEEN ASSEMBLED.

TWO HOLES SEPARATE THE INNER RIBS OF THE SLIDE BODY SECTIONS

TWO HOLES SEPARATE THE INNER RIBS OF THE

SLIDE BODY AND SLIDE

EXIT SECTIONS

Page 91

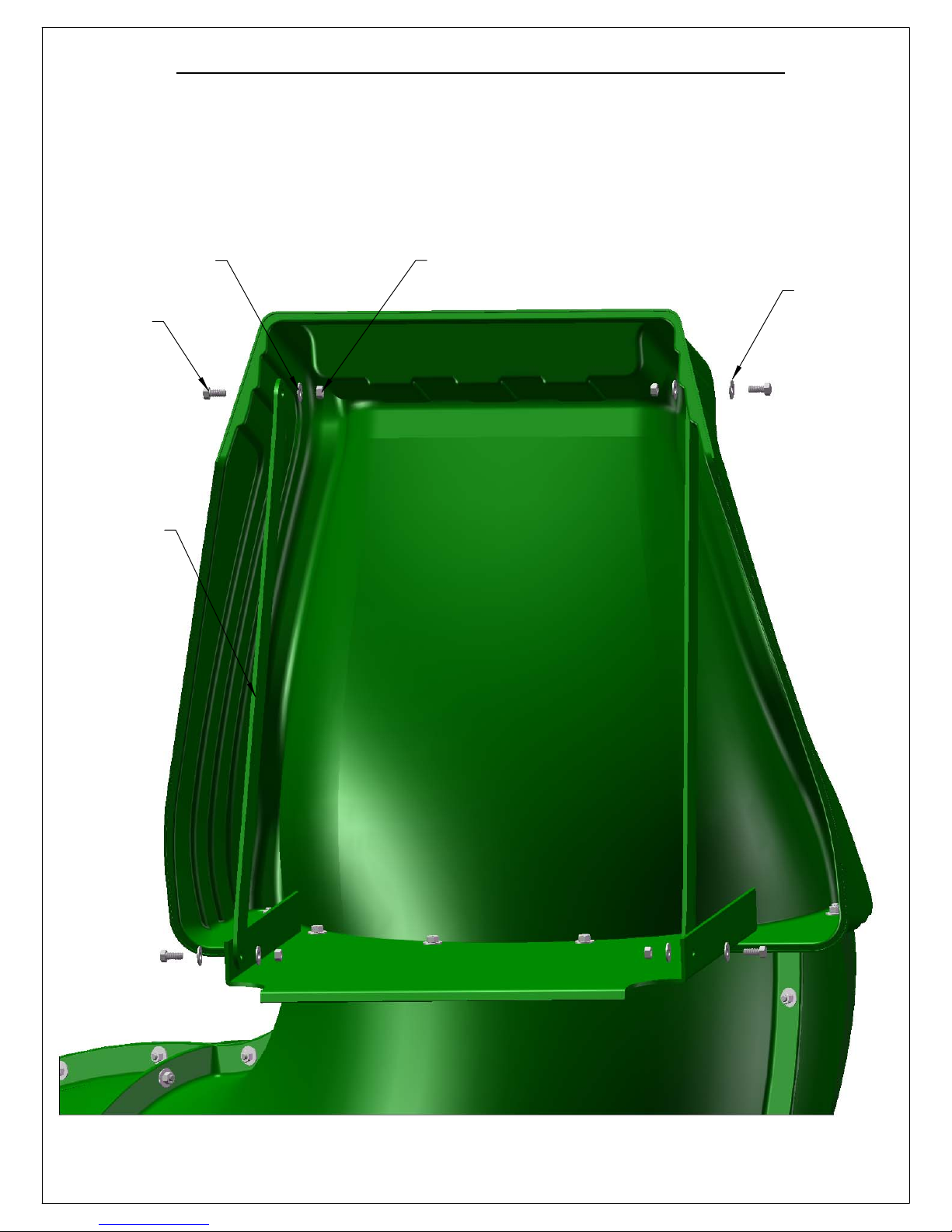

STEP 60: ATTACHING THE FOOT STAND

1: PLACE THE FOOTER SUPPORT ON THE INSIDE OF THE FOOT STAND, NOT BETWEEN THE EXIT SECTION AND THE FOOT STAND.

2: ATTACH THE SLIDE EXIT SECTION TO THE FOOT STAND AND FOOTER SUPPORT WITH 5/16 X 3/4" HEX BOLTS, 5/16" WASHERS, AND 5/16" LOCK NUTS.

3: DO NOT FULLY TIGHTEN HARDWARE UNTIL ENTIRE SLIDE HAS BEEN ASSEMBLED.

START HERE AND WORK CLOCKWISE

5/16" LOCK NUT

5/16" WASHER

5/16 X 3/4"

HEX BOLT

FOOT STAND

5/16" WASHER

THE TOP HOLE OF THE EXIT SECTION WILL BE EXPOSED

FOOTER SUPPORT

Page 92

STEP 61: ATTACHING THE FOOTER STRAPS

1: PLACE ONE END OF THE FOOTER STRAP INSIDE THE SIDE OF THE FOOT STAND AND THE OTHER END INSIDE THE FOOTER SUPPORT.

2: ATTACH USING 5/16 X 3/4" HEX BOLTS, 5/16" WASHERS, AND 5/16" LOCK NUTS. 3: DO NOT FULLY TIGHTEN HARDWARE UNTIL ENTIRE SLIDE HAS BEEN ASSEMBLED.

5/16" WASHER

5/16 X 3/4" HEX BOLT

FOOTER STRAP

5/16" LOCK NUT

5/16" WASHER

Page 93

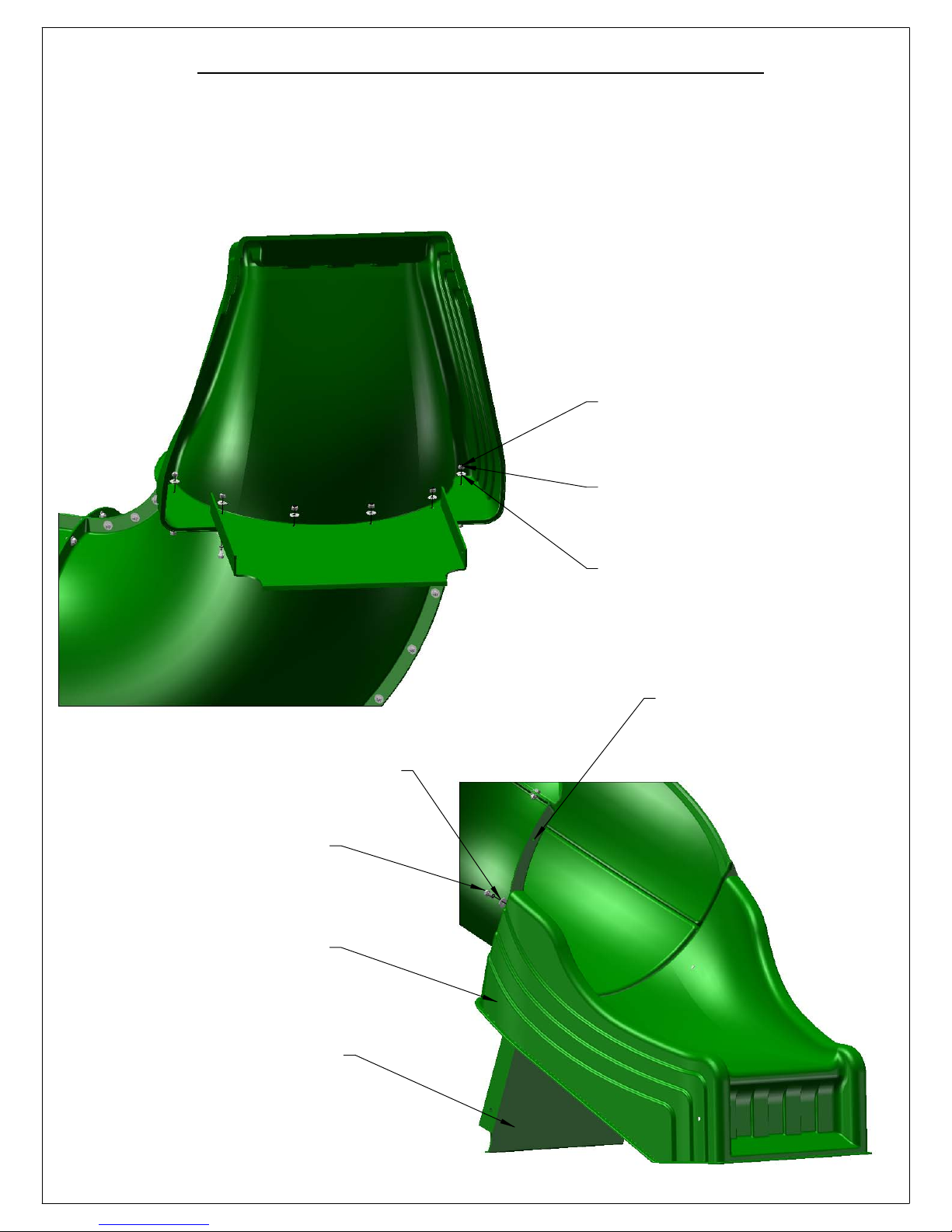

STEP 62: ATTACHING THE SLIDE BODY TO THE SLIDE ENTRY

1: ATTACH THE SLIDE ASSEMBLY TO THE SLIDE ENTRY ASSEMBLY WITH 5/16 X 3/4" HEX BOLTS, 5/16" WASHERS, AND 5/16" LOCK NUTS.

2: LEAVE A GAP OF TWO HOLES WHEN ATTACHING THE SLIDE BODY TO THE SLIDE ENTRY. 3: DO NOT FULLY TIGHTEN HARDWARE UNTIL ENTIRE SLIDE HAS BEEN ASSEMBLED.

LEAVE A GAP OF TWO

HOLES WHEN ATTACHING

THE SLIDE BODY TO THE

SLIDE ENTRY

SLIDE BODY

Page 94

STEP 63: SLIDE ENTRY PLATE

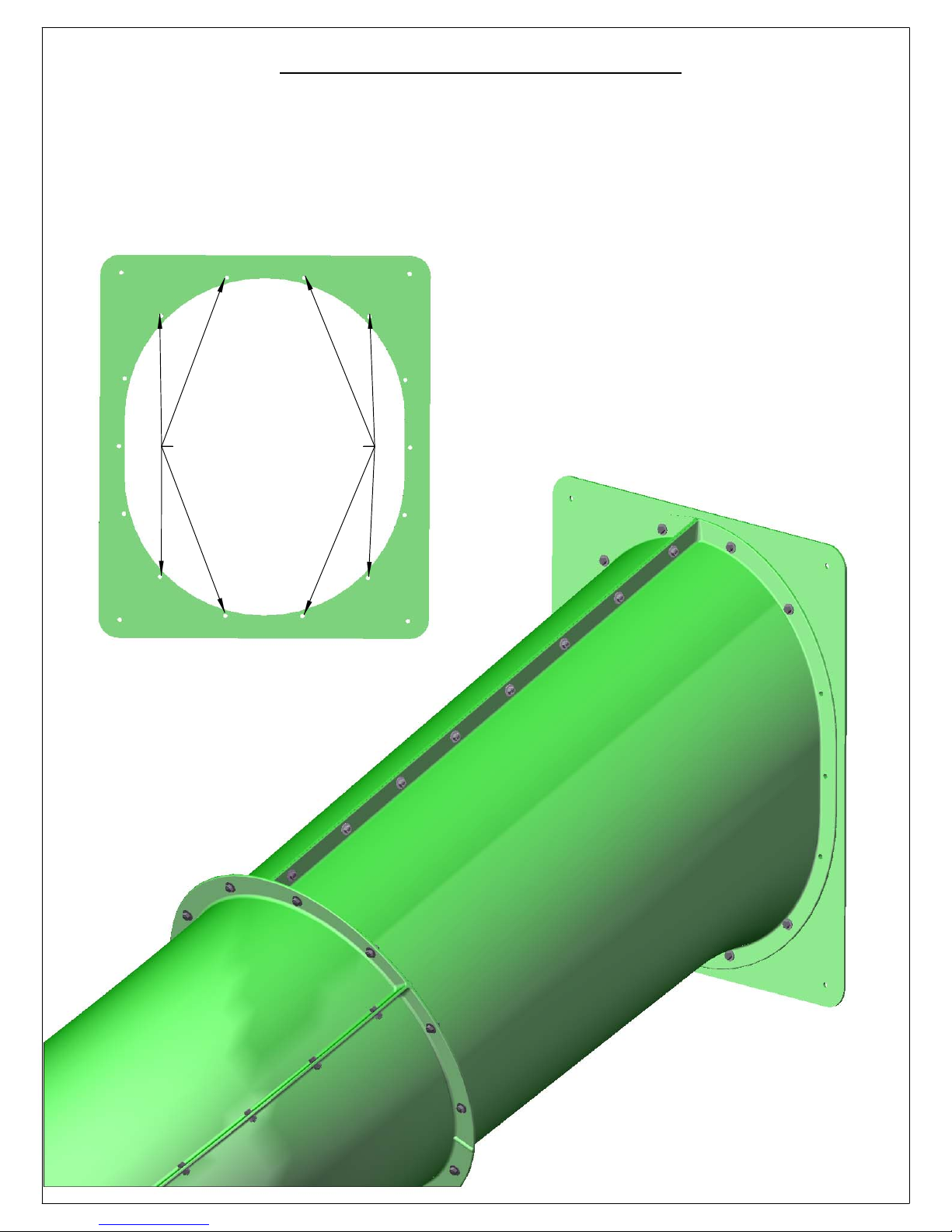

1: LOCATE THE SLIDE ENTRY PANEL AND THE SLIDE ENTRANCE SECTION ASSEMBLY. 2: ATTACH THE PANEL TO THE SLIDE ENTRANCE SECTION WITH EIGHT 5/16 X 3/4" HEX BOLTS, SIXTEEN 5/16"

WASHERS, AND EIGHT 5/16" LOCK NUTS. SEE BELOW FOR ATTACHMENT LOCATIONS. 3: LIKE THE PREVIOUS STEP, DO NOT FULLY TIGHTEN THE HARDWARE UNTIL THE SLIDE IS FULLY ASSEMBLED AND

ATTACHED TO THE FORT.

ATTACH SLIDE ENTRANCE

SECTION ASSEMBLY TO

THESE HOLES

Page 95

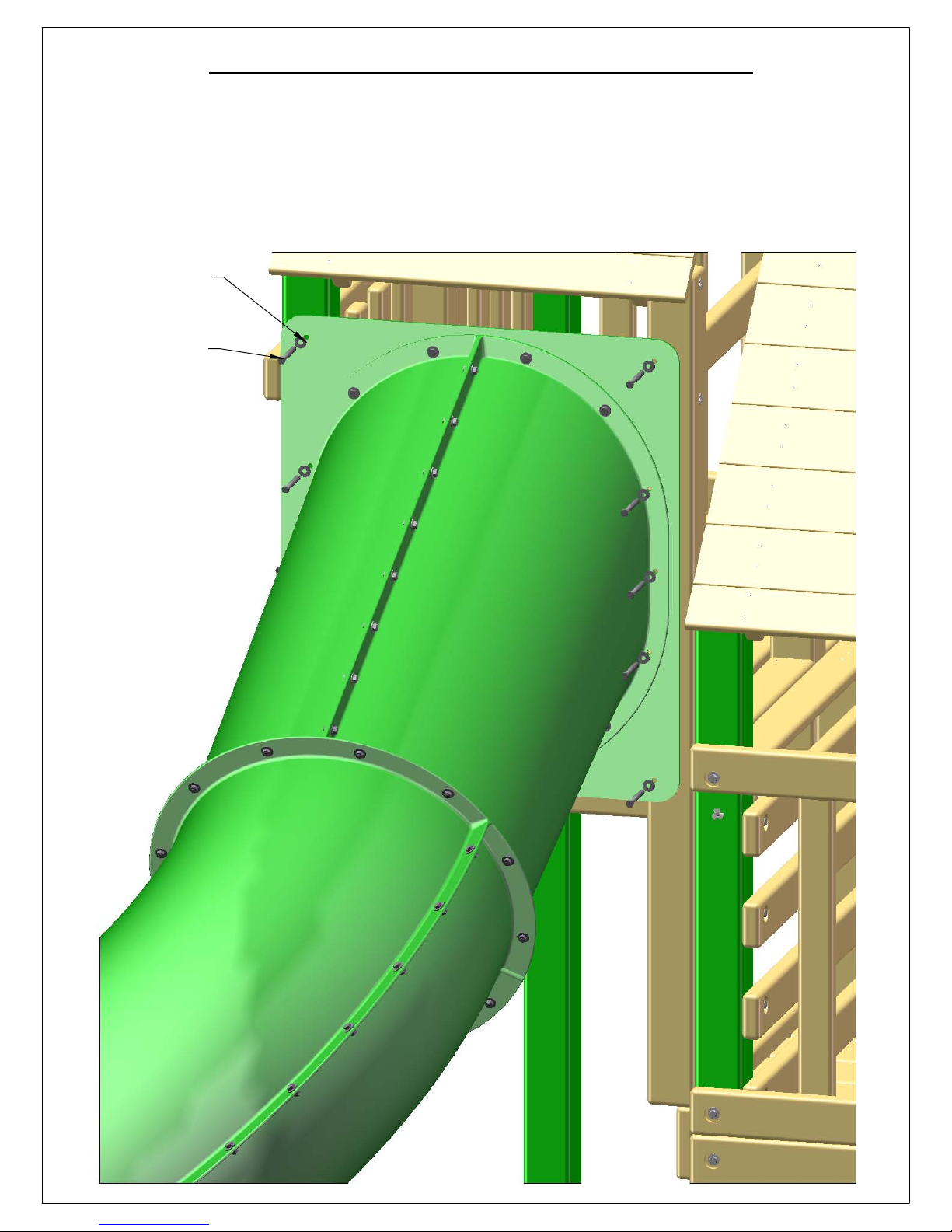

STEP 64: ATTACHING THE SLIDE ENTRY

1: ATTACH THE SLIDE ENTRY ASSEMBLY TO THE CORNER POST AND LAG POST OF THE UPPER LEVEL WITH 5/16 X 3-1/2" LAG SCREWS AND 5/16" WASHERS IN THE REAMAINING HOLES OF THE SLIDE ENTRY PLATE.

2: TIGHTEN ALL HARDWARE ON THE SLIDE.

5/16" WASHER

5/16 X 3-1/2" LAG SCREW

Page 96

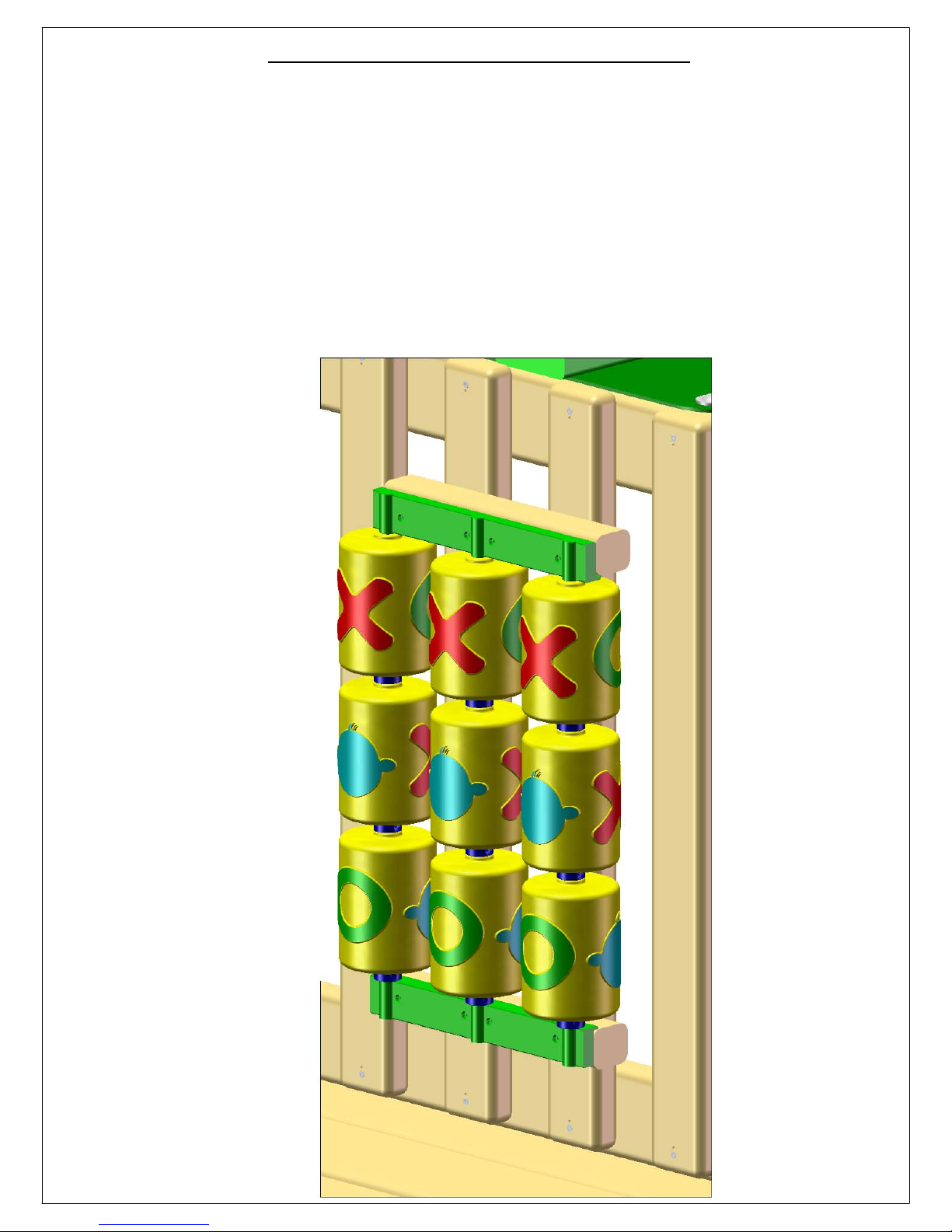

STEP 65: TIC TAC TOE

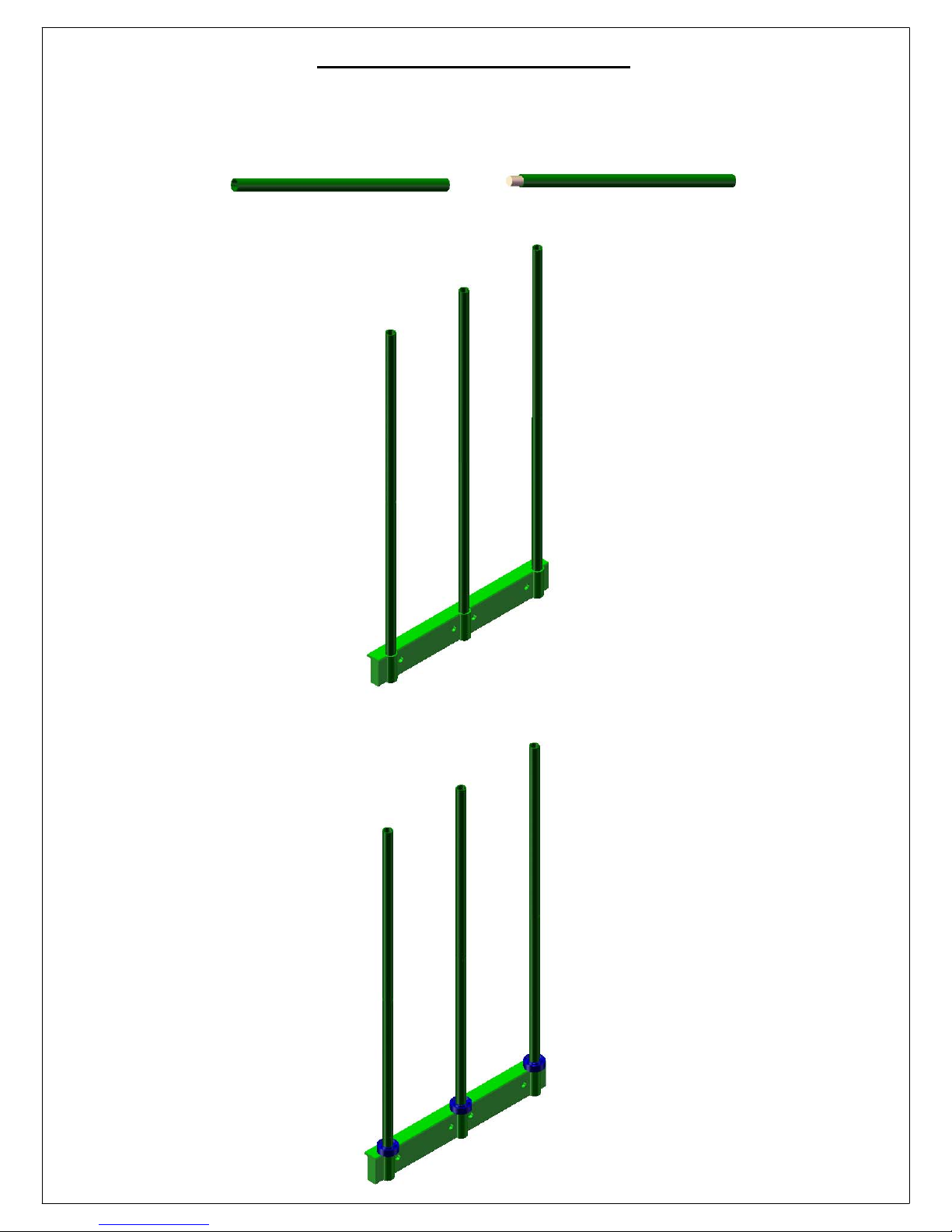

1: LOCATE THE GREEN DOWELS AND MATCH THEM AS FOLLOWS: ONE THREADED STUD END, AND ONE THREADED INSERT. 2: SCREW THE STUDS INTO THE INSERTS UNTIL TIGHT. 3: REPEAT STEPS 1 AND 2 WITH THE REMAINING TWO SETS

4: LOCATE ONE OF THE GREEN BRACKETS AND PLACE THE DOWELS IN AS SHOWN.

5: LOCATE THE BLUE COLLARS AND SLIDE THEM OVER THE DOWELS

Page 97

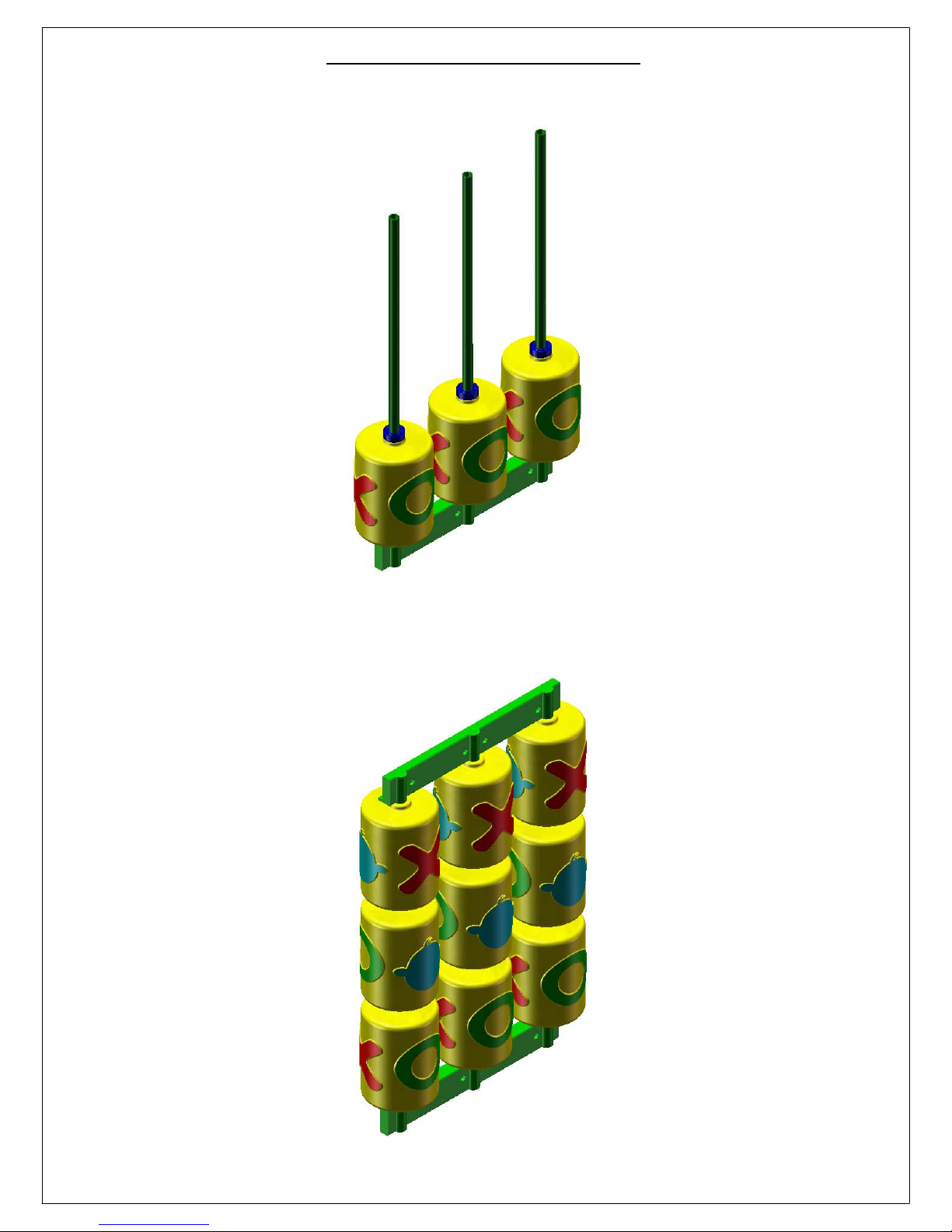

STEP 66: TIC TAC TOE

1: LOCATE THE TIC-TAC-TOE TUMBLERS AND PLACE ONE ON EACH DOWEL ABOVE THE COLLARS. 2: CONTINUE PLACING COLLARS AND TUMBLERS ON THE DOWELS UNTIL NONE REMAIN.

3: LOCATE THE GREEN BRACKET AND PLACE ON TOP OF ASSEMBLY. LINE UP THE HOLES IN THE BRACKET WITH THE DOWELS ON THE UNIT.

Page 98

STEP 67: TIC-TAC-TOE PANEL

1: CENTER THE 1-3/4 X 1-1/2 X 10-3/4" BLOCK BETWEEN THE PANEL SLATS ON THE SLIDE SIDE PANEL WALL, 4" FROM THE DECK, AND ATTACH WITH 2" WOOD SCREWS.

2: PLACE THE TIC-TAC-TOE PANEL ON THE PREVIOUSLY INSTALLED BOARD, AND THEN PLACE THE OTHER 1-3/4 X 1-1/2 X 10-3/4" BLOCK AT THE TOP OF THE TIC-TAC-TOE PANEL.

3: WITH A PENCIL, MAKE A MARK AT THE TOP OF THE BOARD AND SET THE ASSEMBLY ASIDE. 4: PLACE THE TIC-TAC-TOE PANEL BLOCK BACK AT THE MARK THAT WAS PREVIOUSLY MADE, AND

ATTACH IT WITH 2" WOOD SCREWS. 5: PLACE THE TIC-TAC-TOE PANEL ON THE INSTALLED BLOCKS, AND ATTACH IT TO THE BLOCKS

WITH THE PROVIDED WOOD SCREWS.

Page 99

STEP 68: DORMER

1: FIND TWO LEFT SIDE AND TWO RIGHT SIDE DORMER ROOF ASSEMBLIES. 2: FIND TWO DORMER SUNRAY ASSEMBLIES. 3: PLACE THE LEFT AND RIGHT ROOF ASSEMBLIES ON THE BACK SIDE OF THE DORMER SUNRAY ASSEMBLY

AS SHOWN BELOW. 4: ATTACH THE DORMER ROOF SIDES TO THE DORMER SUNRAY WITH 1-1/4" WOOD SCREWS FROM THE

ROOF BOARDS OF THE ROOF ASSEMBLIES.

RIGHT SIDE DORMER ROOF

LEFT SIDE

DORMER ROOF

ASSEMBLY

DORMER SUNRAY ASSEMBLY

USE 1-1/4" WOOD SCREWS IN THESE LOCATIONS (EACH SIDE)

Page 100

STEP 69: DORMER

1: FIND THE DORMER ROOF PEAK ASSEMBLY. 2: PLACE THE ROOF PEAK ASSEMBLY IN THE TOP OF THE ROOF AND FASTEN WITH 1-1/2" WOOD SCREWS.

DORMER ROOF PEAK
