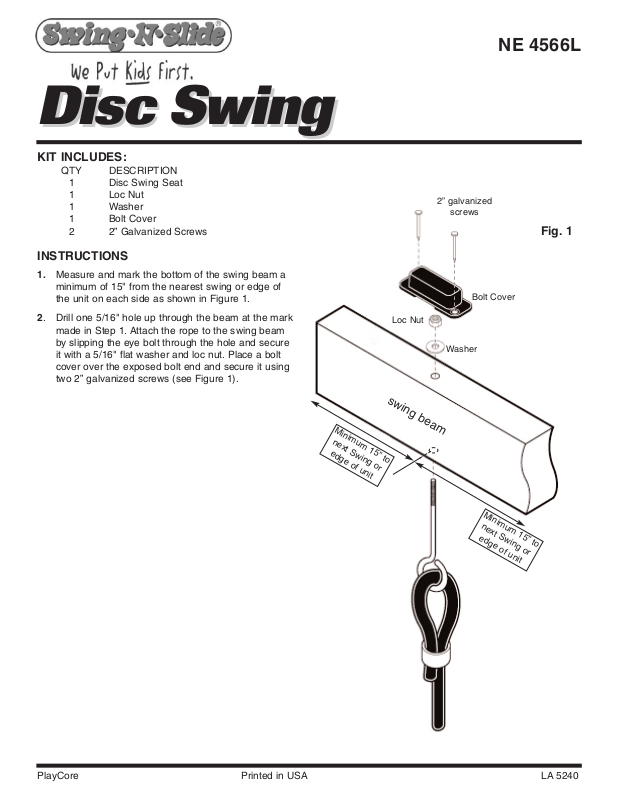

Disc Swing
Disc Swing
KIT INCLUDES:
QTY DESCRIPTION
1 Disc Swing Seat
1 Loc Nut
1 Washer
1 Bolt Cover
2 2” Galvanized Screws
INSTRUCTIONS
1. Measure and mark the bottom of the swing beam a
minimum of 15" from the nearest swing or edge of
the unit on each side as shown in Figure 1.
NE 4566L
2” galvanized
screws

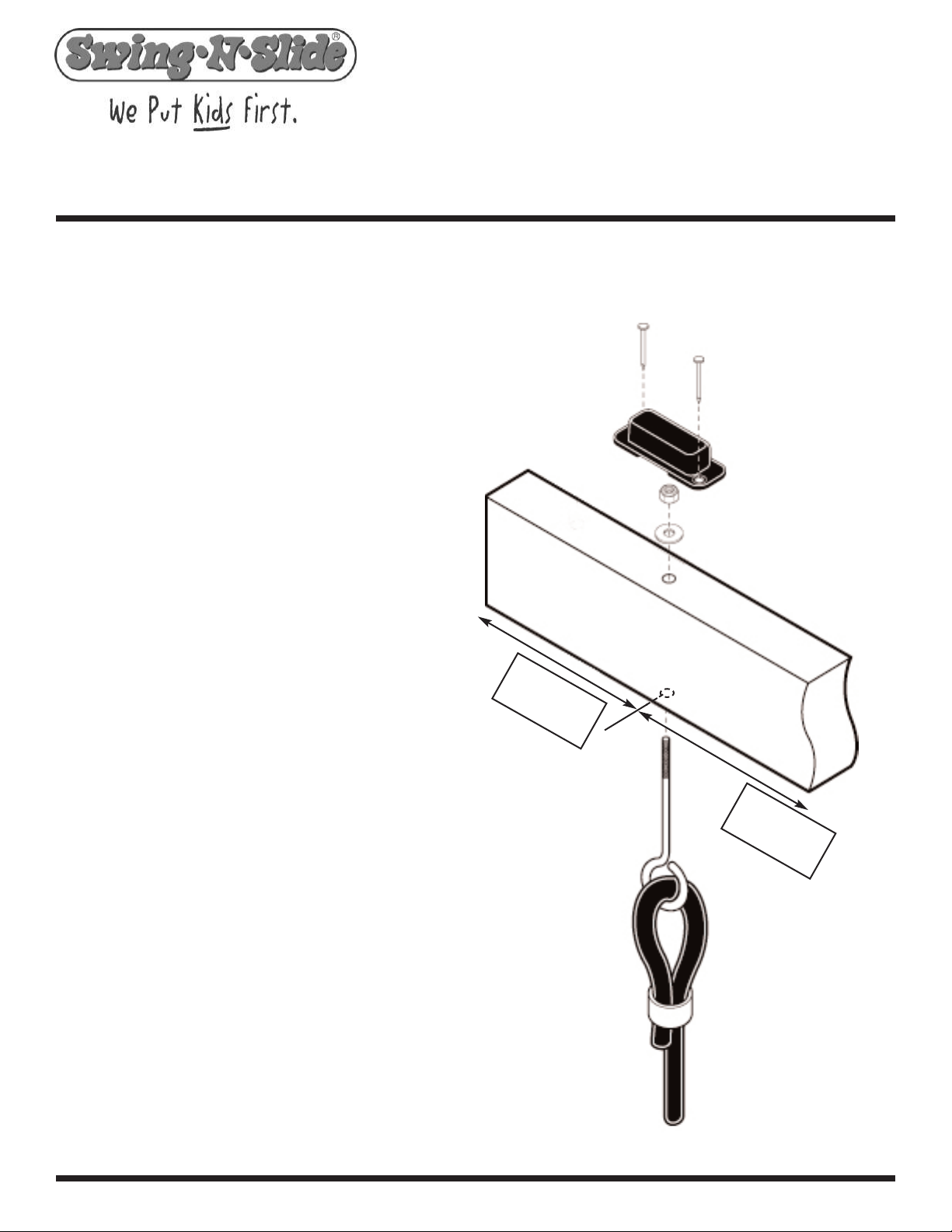

Fig. 1
Bolt Cover
2. Drill one 5/16" hole up through the beam at the mark
made in Step 1. Attach the rope to the swing beam
by slipping the eye bolt through the hole and secure
it with a 5/16" flat washer and loc nut. Place a bolt
cover over the exposed bolt end and secure it using
two 2” galvanized screws (see Figure 1).
Loc Nut
Washer
swing beam
Minimum 15” to
next Swing or
edge of unit
Minimum 15” to
next Swing or
edge of unit
PlayCore Printed in USA LA 5240
