MEGAPHONE (07-0022)

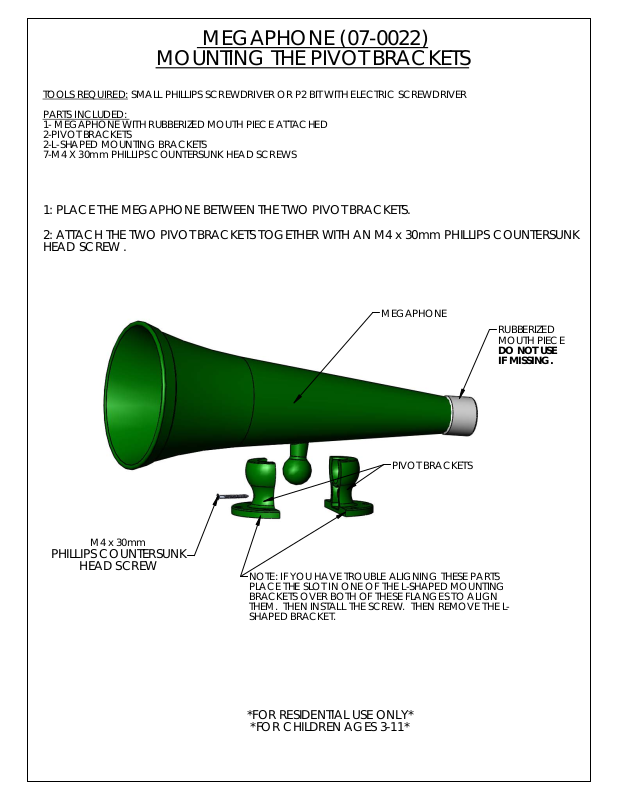

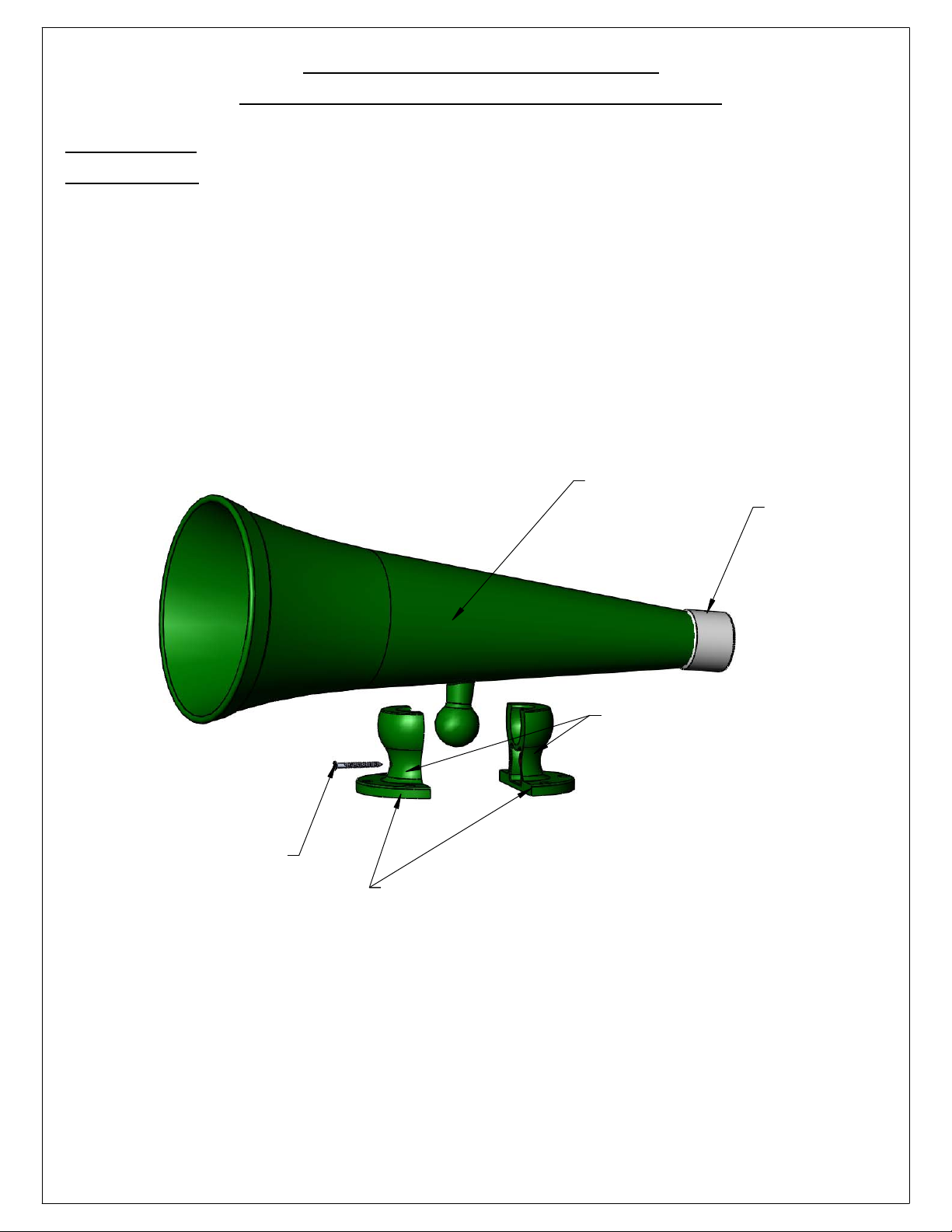

MOUNTING THE PIVOT BRACKETS
TOOLS REQUIRED: SMALL PHILLIPS SCREWDRIVER OR P2 BIT WITH ELECTRIC SCREWDRIVER
PARTS INCLUDED:
1- MEGAPHONE WITH RUBBERIZED MOUTH PIECE ATTACHED
2-PIVOT BRACKETS
2-L-SHAPED MOUNTING BRACKETS
7-M4 X 30mm PHILLIPS COUNTERSUNK HEAD SCREWS
1: PLACE THE MEGAPHONE BETWEEN THE TWO PIVOT BRACKETS.
2: ATTACH THE TWO PIVOT BRACKETS TOGETHER WITH AN M4 x 30mm PHILLIPS COUNTERSUNK
HEAD SCREW .
MEGAPHONE
RUBBERIZED
MOUTH PIECE
DO NOT USE
IF MISSING.
M4 x 30mm
PHILLIPS COUNTERSUNK
HEAD SCREW
PIVOT BRACKETS
NOTE: IF YOU HAVE TROUBLE ALIGNING THESE PARTS
PLACE THE SLOT IN ONE OF THE L-SHAPED MOUNTING
BRACKETS OVER BOTH OF THESE FLANGES TO ALIGN
THEM. THEN INSTALL THE SCREW. THEN REMOVE THE LÂSHAPED BRACKET.
*FOR RESIDENTIAL USE ONLY*
*FOR CHILDREN AGES 3-11*
Page 2
MEGAPHONE (07-0022)

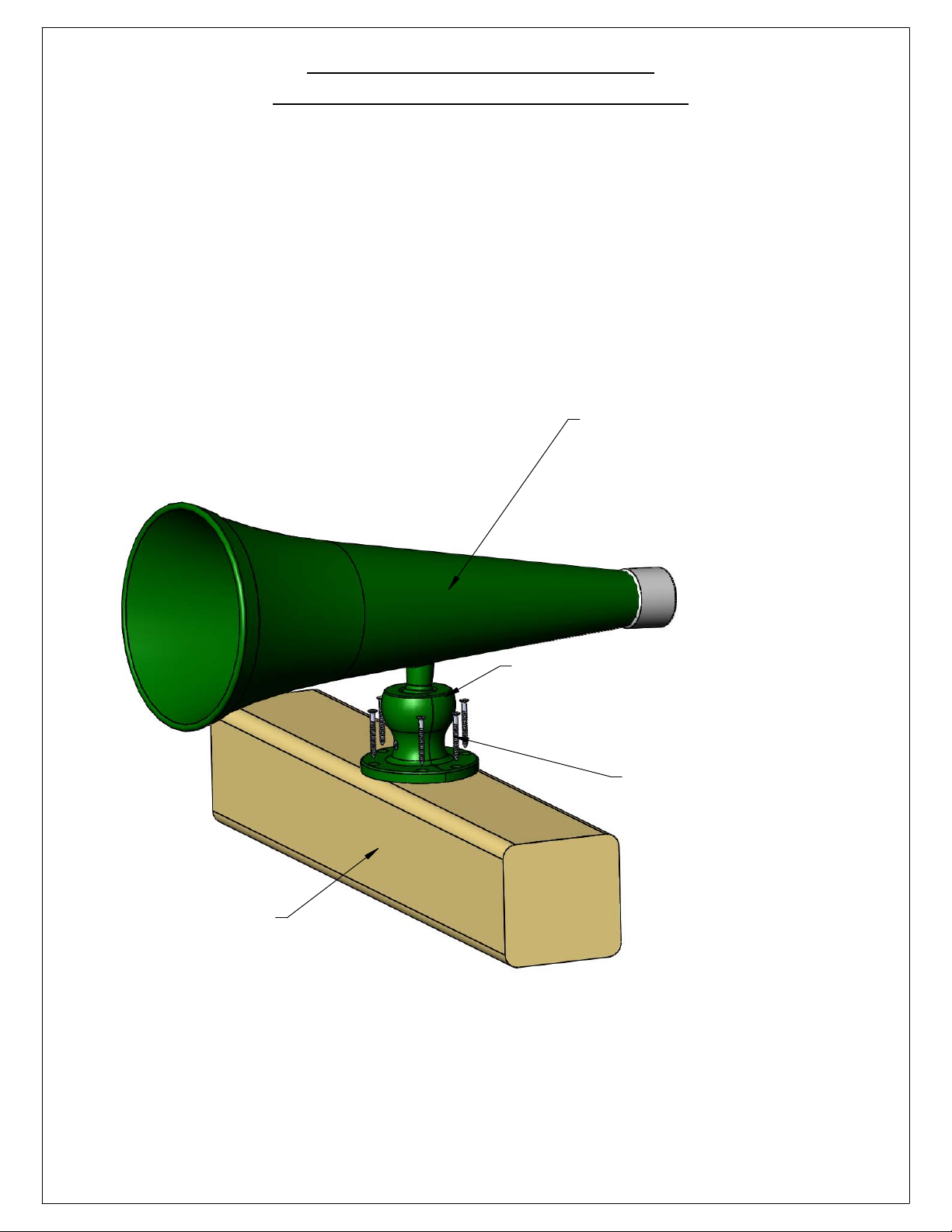

MOUNTING TO 4 X 4 BOARD
1: CENTER THE MEGAPHONE ON TOP OF THE 4 X 4 BOARD.
2: PLACE THE PIVOT BRACKETS ON TOP OF 4 X 4 BOARD AND ATTACH WITH THE M4 x 30mm
PHILLIPS COUNTERSUNK HEAD SCREWS PROVIDED.
3: THE LEFTOVER "L" SHAPED MOUNTING BRACKETS MAY BE DISCARDED SINCE THEY ARE USED
TO MOUNT THE MEGAPHONE TO A 2 X 4 BOARD.
MEGAPHONE
4 X 4 BOARD
PIVOT BRACKETS
M4 x 30mm
PHILLIPS COUNTERSUNK
HEAD SCREW
*FOR RESIDENTIAL USE ONLY*
*FOR CHILDREN AGES 3-11*
Page 3
MEGAPHONE (07-0022)

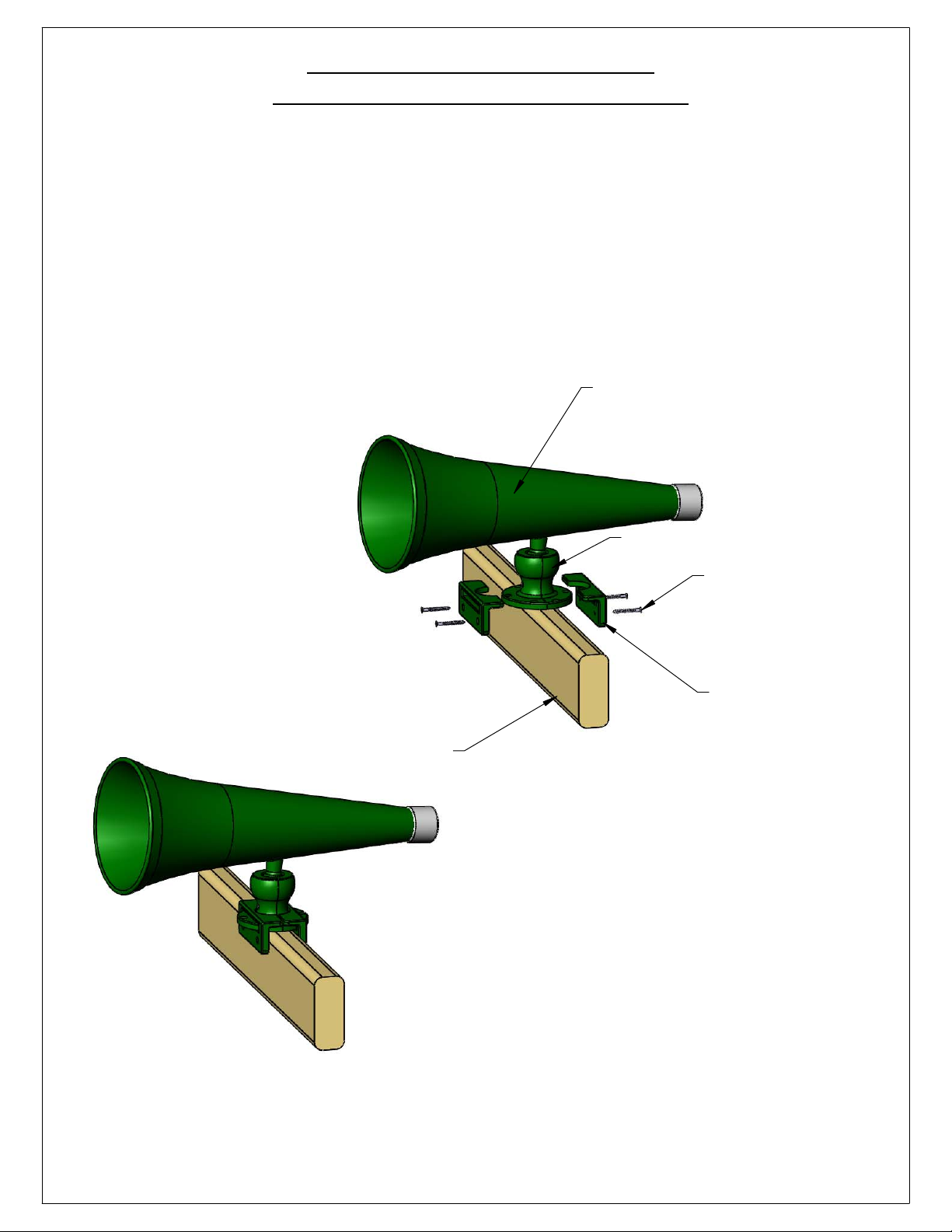

MOUNTING TO 2 X 4 BOARD
1: PLACE ONE OF THE "L" SHAPED BRACKET AGAINST THE 2 X 4 BOARD SO THAT THE BRACKET
SECTION WITH THE CUTOUT FACES UP. FASTEN THE "L" SHAPED BRACKET TO THE 2 X 4 BOARD
WITH THE M4 x 30mm PHILLIPS COUNTERSUNK HEAD SCREWS PROVIDED.
2: PLACE THE MEGAPHONE PIVOT BRACKET INSIDE THE CUTOUT SECTION OF THE MEGAPHONE
BRACKET ON THE 2 X 4 BOARD.
3: PLACE ANOTHER "L" SHAPED BRACKET DIRECTLY ACROSS FROM THE OTHER BRACKET .
FASTEN THE "L" SHAPED BRACKET TO THE 2 X 4 BOARD WITH THE M4 x 30mm PHILLIPS
COUNTERSUNK HEAD SCREWS PROVIDED.
MEGAPHONE
2 X 4 BOARD
PIVOT BRACKET
M4 x 30mm
PHILLIPS COUNTERSUNK
HEAD SCREW
"L" SHAPED
MEGAPHONE
BRACKET
*FOR RESIDENTIAL USE ONLY*
*FOR CHILDREN AGES 3-11*
