Page 1

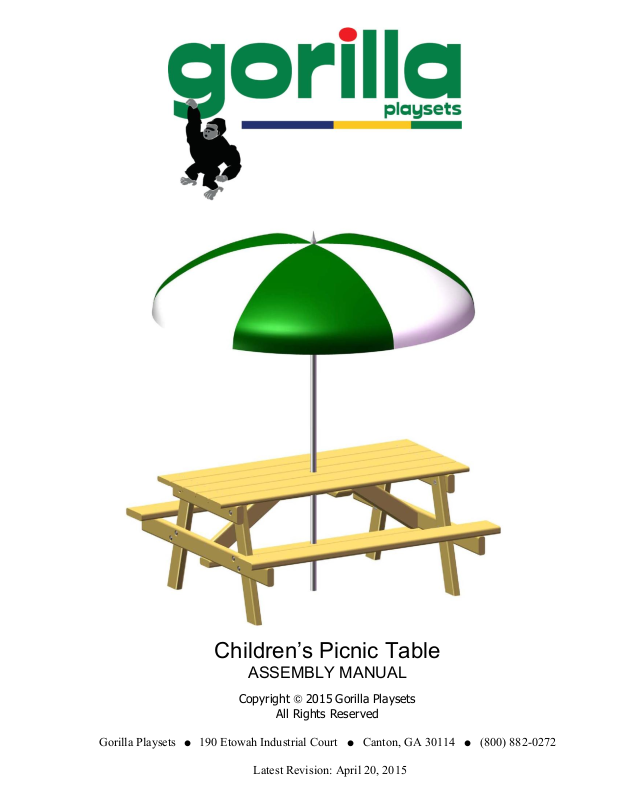

Children’s Picnic Table
ASSEMBLY MANUAL
Copyright 2015Gorilla Playsets
All Rights Reserved
Gorilla Playsets 190 Etowah Industrial Court Canton, GA 30114 (800) 882-0272
Latest Revision: April 20, 2015
Page 2

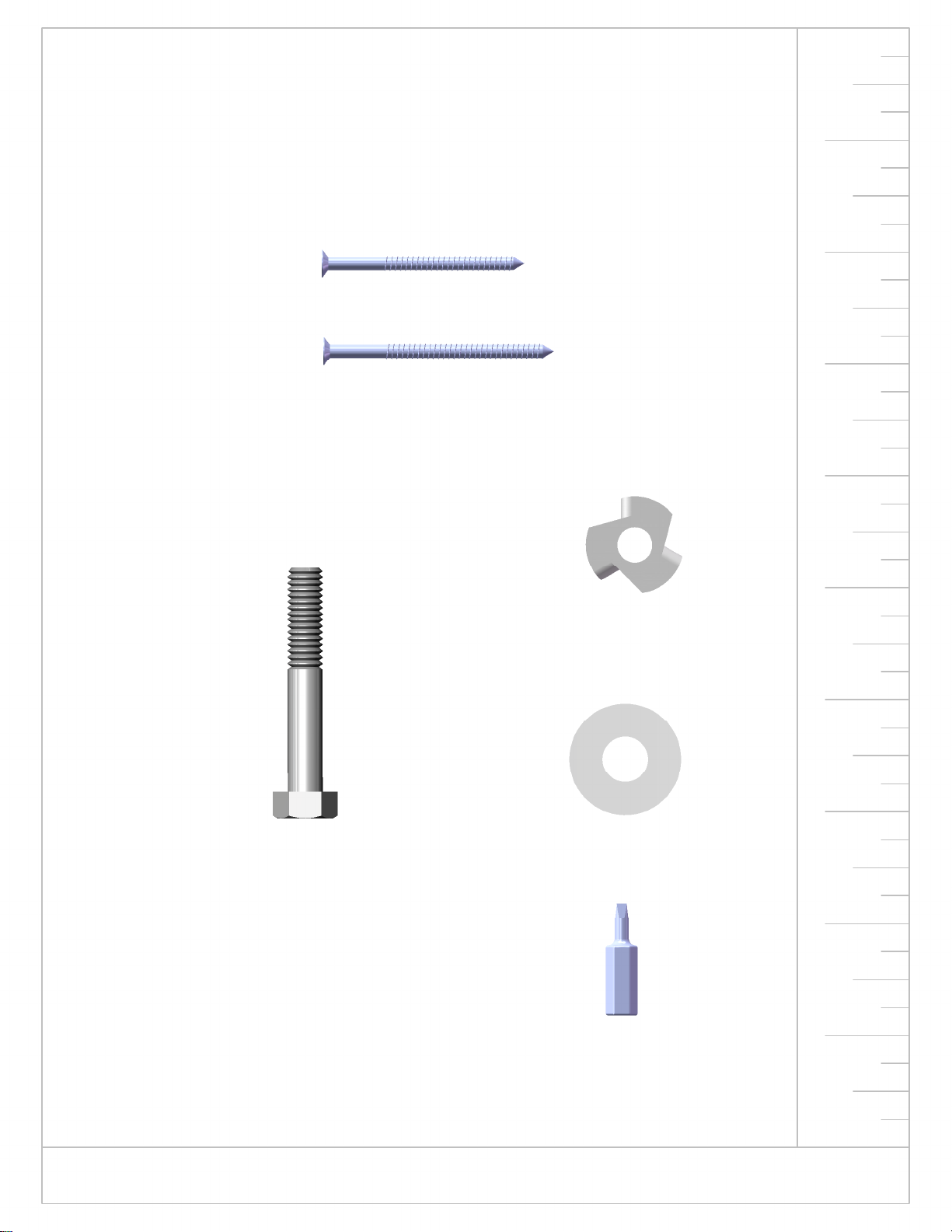

9
#8 x 1-3/4"
WOOD SCREW
QTY: 10
#8 X 2"
WOOD SCREW
QTY: 38
8
7
6
5
5/16" T-NUT
QTY: 12
5/16 X 2"
HEX BOLT
QTY: 12
5/16" WASHER
QTY: 12
#2 SQUARE
DRIVE BIT
QTY: 1
4
3
2
1
USE THE RULER TO THE RIGHT TO MEASURE YOUR BOLTS AND SCREWS. PICTURE VIEWS SHOWN
ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH BOLT AND SCREW SIZES.
Page 3

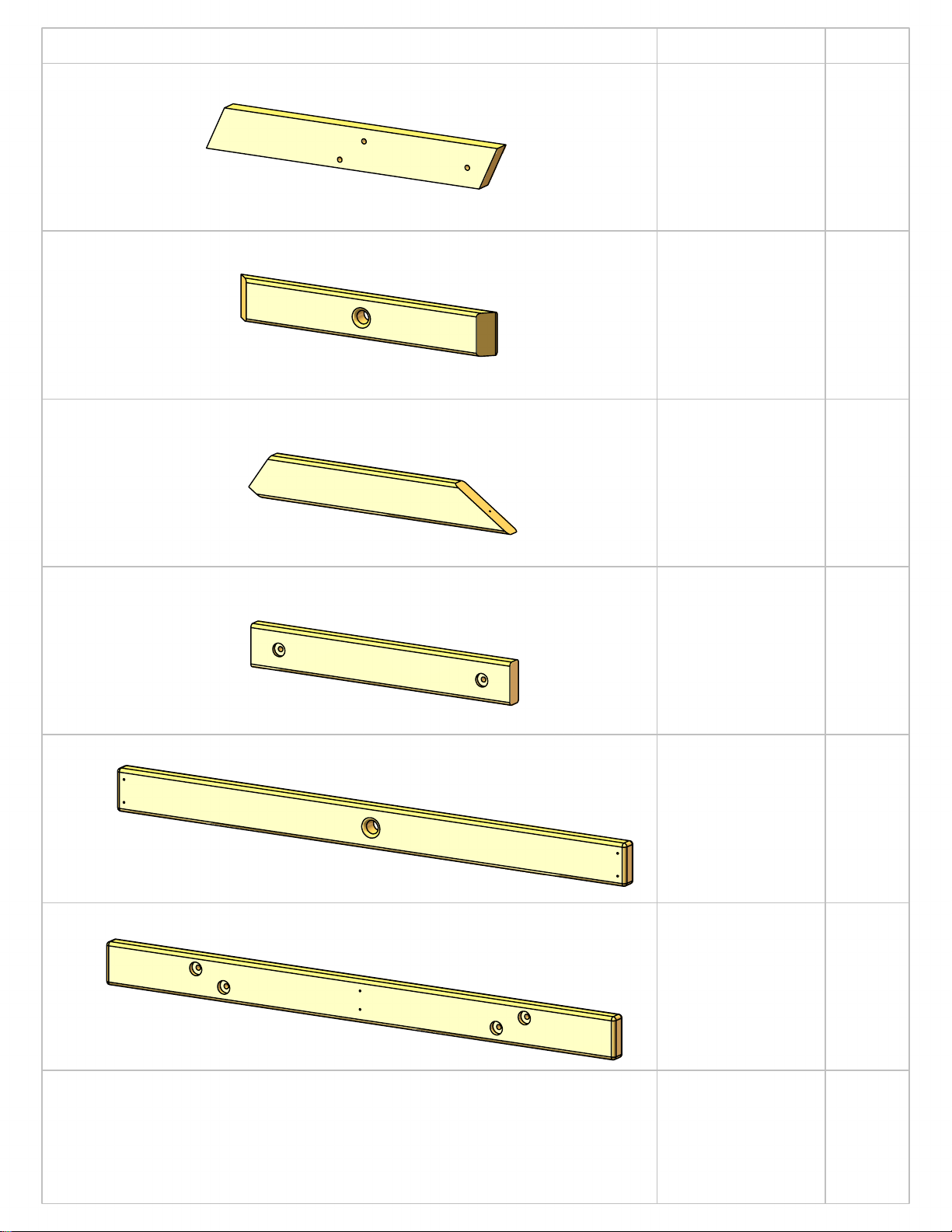

DESCRIPTION
2 X 4 X 23-13/16"
TABLE LEG
2 X 4 X 21"
TABLE STRINGER
2 X 4 X 21-1/2"
ANGLE SUPPORT
QTY.
4
1
2
2 X 4 X 21-3/8"
TOP LEG SUPPORT
2 X 4 X 42"
CENTER LEG
SUPPORT
2 X 4 X 42"
SEAT SUPPORT
2
1
2
Page 4

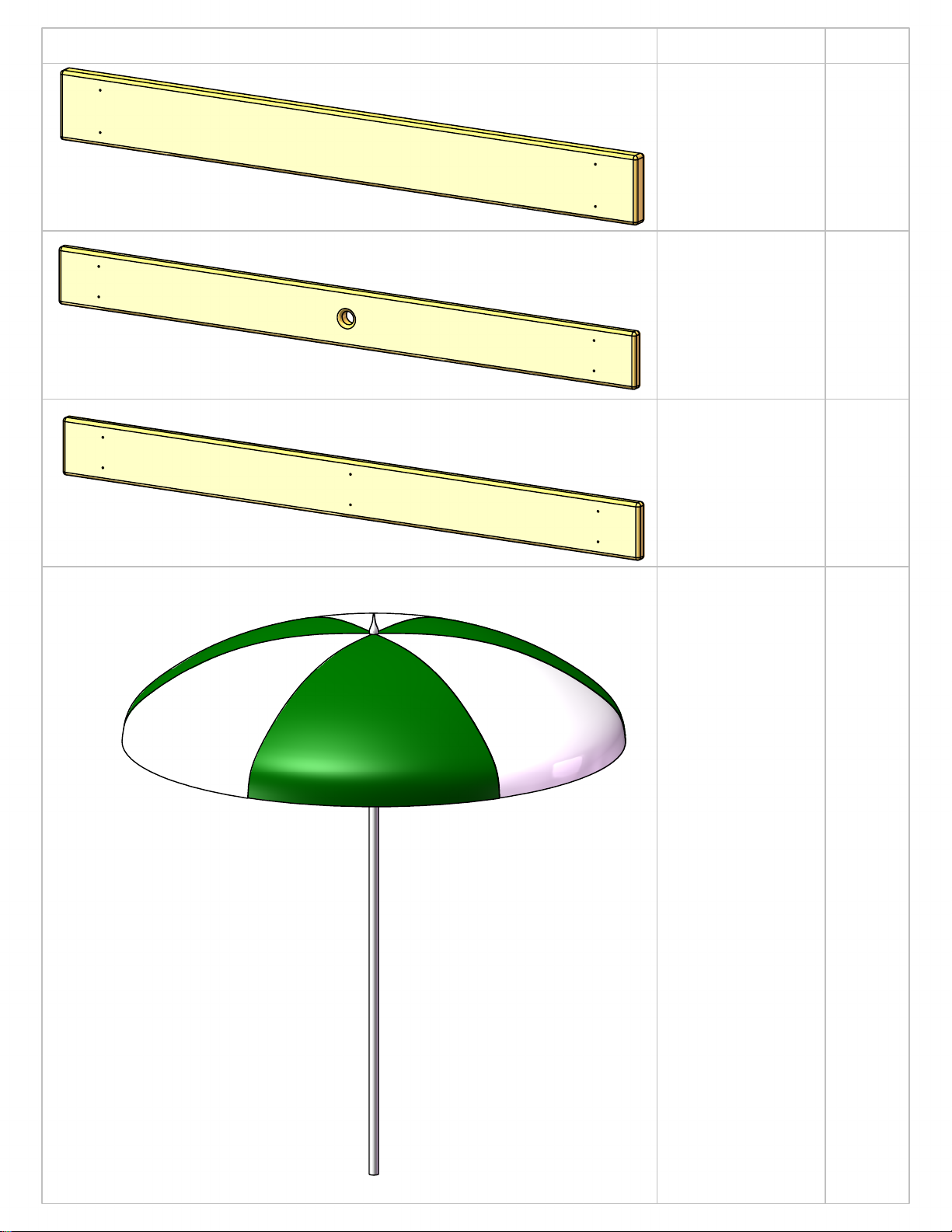

DESCRIPTION
2 X 6 X 47-5/8"
TABLE SEAT
5/4 X 5 X 47-5/8""
CENTER TABLE
TOP
5/4 X 5 X 47-5/8"
TABLE TOP
QTY.
2
1
4
UMBRELLA
ASSEMBLY
1
Page 5

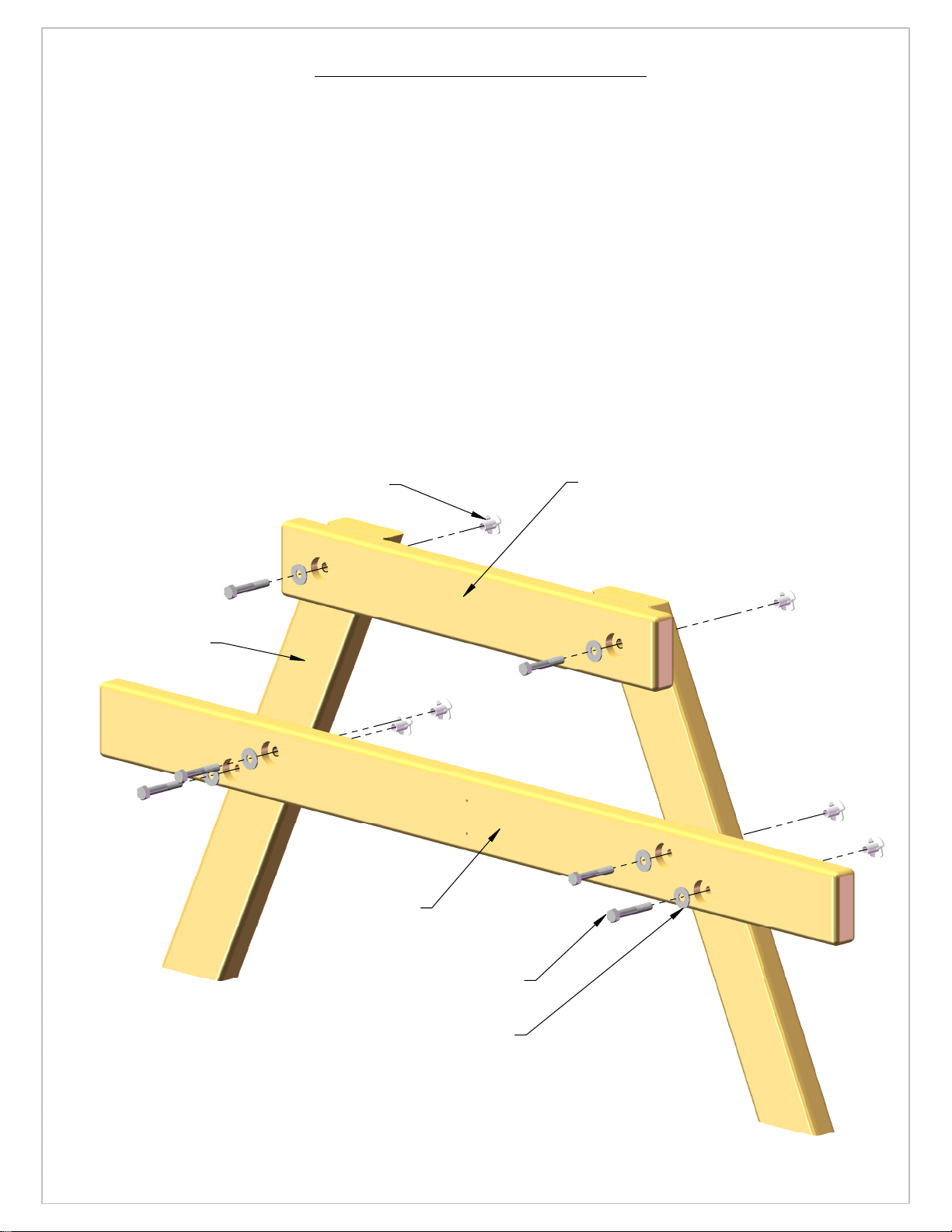

STEP 1: LEG ASSEMBLY
1: FIND TWO 2 X 4 X 23-13/16" TABLE LEGS. NOTE THE HOLE PATTERN ON THE LEGS AND
POSITION THEM SO THAT THE END WITH ONE HOLE WILL BE AT THE TOP. THE ORIENTATION OF
THE LEGS SHOULD LOOK LIKE THE SIDES OF THE LETTER "A".
2: DETERMINE WHICH SIDE WILL BE FACING THE INSIDE OF THE TABLE AND PLACE A T-NUT IN
EACH OF THE HOLES. SET THE T-NUTS WITH A HAMMER UNTIL THEY ARE FLUSH/ALMOST FLUSH
WITH THE FACE OF THE BOARD.
3: FIND A 2 X 4 X 21-3/8" TOP LEG SUPPORT BOARD AND LINE UP THE HOLES WITH THE HOLES AT
THE TOP OF THE TABLE LEGS AND FASTEN WITH 5/16 X 2" HEX BOLTS AND 5/16" WASHERS.
4: FIND A 2 X 4 X 42" SEAT SUPPORT AND LINE UP THE HOLES IN THE SEAT SUPPORT WITH THE
HOLES IN THE TABLE LEGS. FASTEN THE SEAT SUPPORT TO THE TABLE LEGS WITH 5/16 X 2" HEX
BOLTS AND 5/16" WASHERS.
5: REPEAT THIS PROCESS TO CREATE ANOTHER SET OF LEGS FOR THE OTHER SIDE OF THE TABLE.
2 X 4 X 23-13/16"
TABLE LEG
T-NUT
2 X 4 X 42"
SEAT SUPPORT
2 X 4 X 21-3/8"
TOP LEG SUPPORT
5/16 X 2-1/4"
HEX BOLT
5/16" WASHER
Page 6

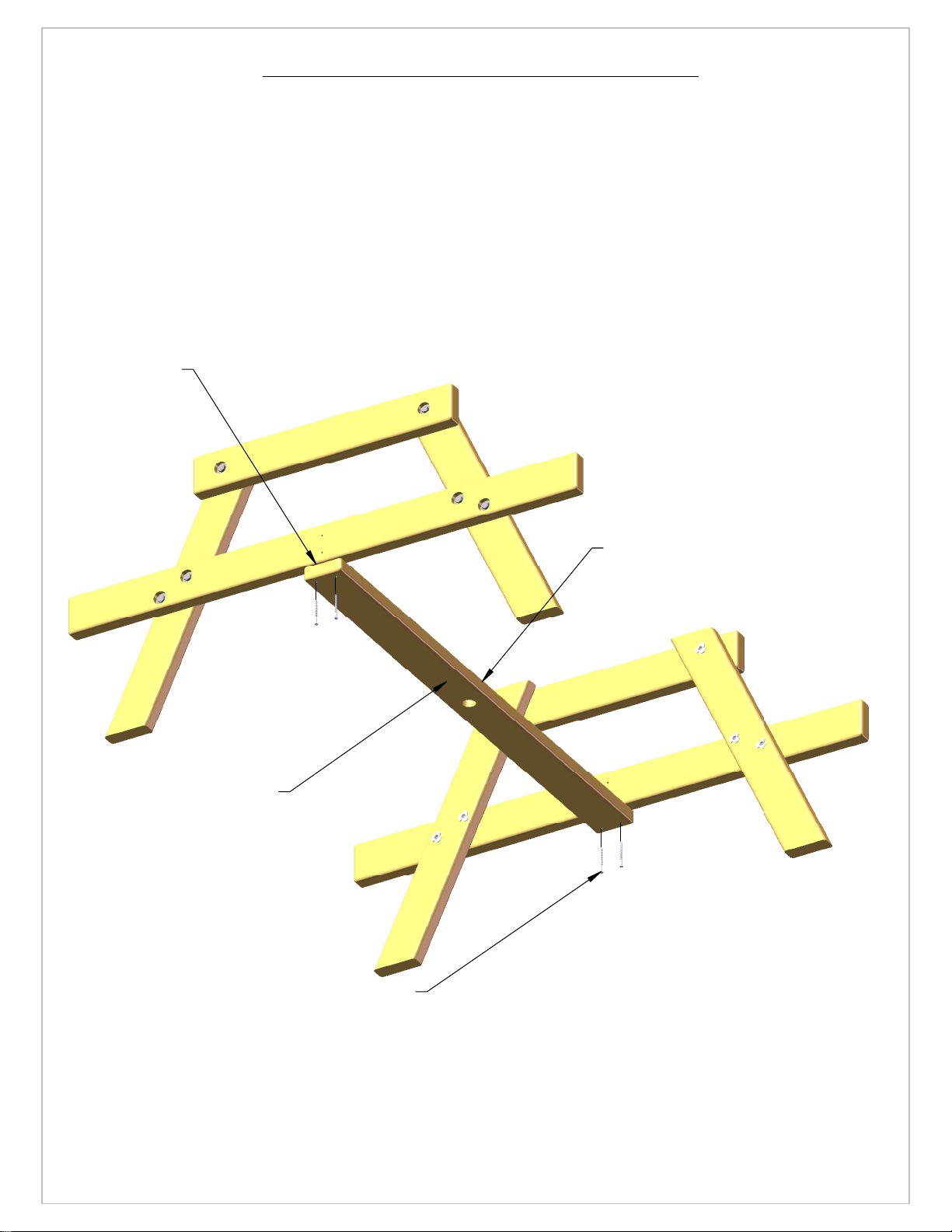

STEP 2: CENTER LEG SUPPORT
1: FIND THE 2 X 4 X 42" CENTER LEG SUPPORT. TAKE NOTE OF THE TWO HOLES DRILLED IN EACH
END OF THE BOARD. ALSO THE ROUNDED OVER EDGE ON THE LARGE HOLE AT THE CENTER OF
THE BOARD SHOULD FACE UP.
2: CENTER THE LEG SUPPORT UNDERNEATH THE SEAT SUPPORTS OF THE LEG ASSEMBLIES
CREATED IN THE PREVIOUS STEP. EACH END OF THE BOARD SHOULD BE FLUSH WITH THE OUTSIDE
SURFACE OF THE 2 X 4 X 42" SEAT SUPPORT. ATTACH THE LEG SUPPORT TO THE SEAT SUPPORTS
WITH 2" WOOD SCREWS IN THE PRE-DRILLED HOLES.
END OF CENTER LEG SUPPORT
FLUSH TO OUTSIDE SURFACE OF
SEAT SUPPORT.
2 X 4 X 42"
CENTER LEG SUPPORT
ROUNDED HOLE EDGE FACES UP.
2" WOOD SCREW
Page 7

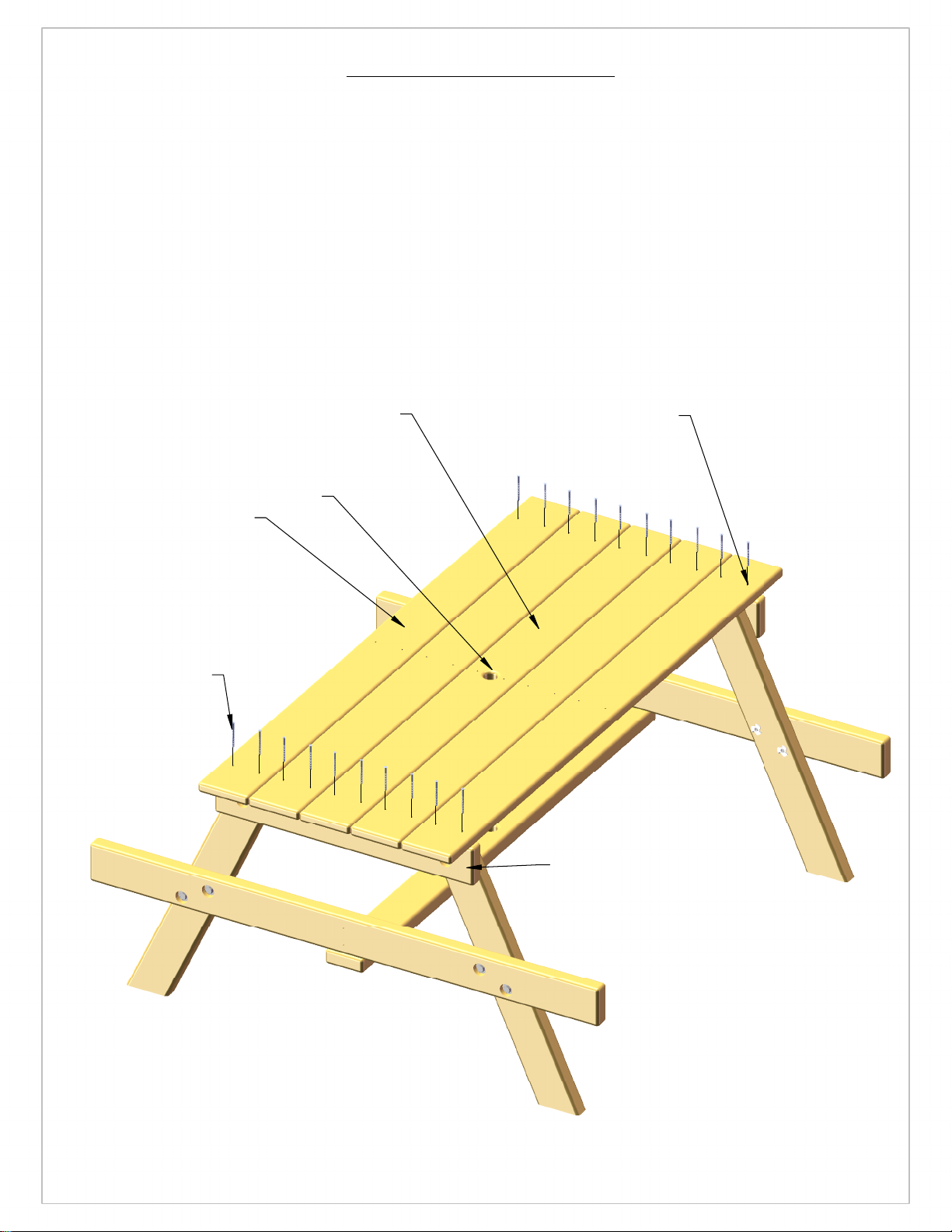

STEP 3: TABLE TOP
1: FIND ONE 5/4 X 5 X 47-5/8" CENTER TABLE TOP BOARD AND FOUR 5/4 X 5 X 47-5/8" TABLE
TOP BOARDS. THE CENTER BOARD WILL HAVE A HOLE DRILLED ON-CENTER IN THE MIDDLE OF
THE BOARD, AND ALL OF THE BOARDS WILL HAVE PRE-DRILLED HOLES IN EACH END.
2: CENTER THE HOLES IN THE CENTER TABLE TOP BOARD OVER THE CENTER OF THE TOP LEG
SUPPORTS AND ATTACH WITH 2" WOOD SCREWS IN THE PRE-DRILLED HOLES. MAKE SURE THE
HOLE AT THE CENTER OF THE BOARD HAS THE ROUNDED OVER EDGE FACING UP.
3: PLACE THE FOUR TABLE TOP BOARDS ON TOP OF THE TOP LEG SUPPORTS. SPACE THEM
EVENLY SO THAT THE BOARDS AT THE END OF THE TABLE TOP ARE FLUSH TO THE ENDS OF THE
TOP LEG SUPPORT. ATTACH EACH BOARD WITH 2" WOOD SCREWS IN THE PRE-DRILLED HOLES.
CENTER HOLES IN
BOARDS OVER THE
CENTER OF THE 2 X 4 X
25-3/8" TOP LEG
SUPPORT.
5/4 X 5 X 47-5/8"
TABLE TOP
5/4 X 5 X 47-5/8"
CENTER TABLE TOP
ROUNDED OVER
HOLE EDGE ON
TOP.
2" WOOD SCREW
TOP LEG SUPPORT
Page 8

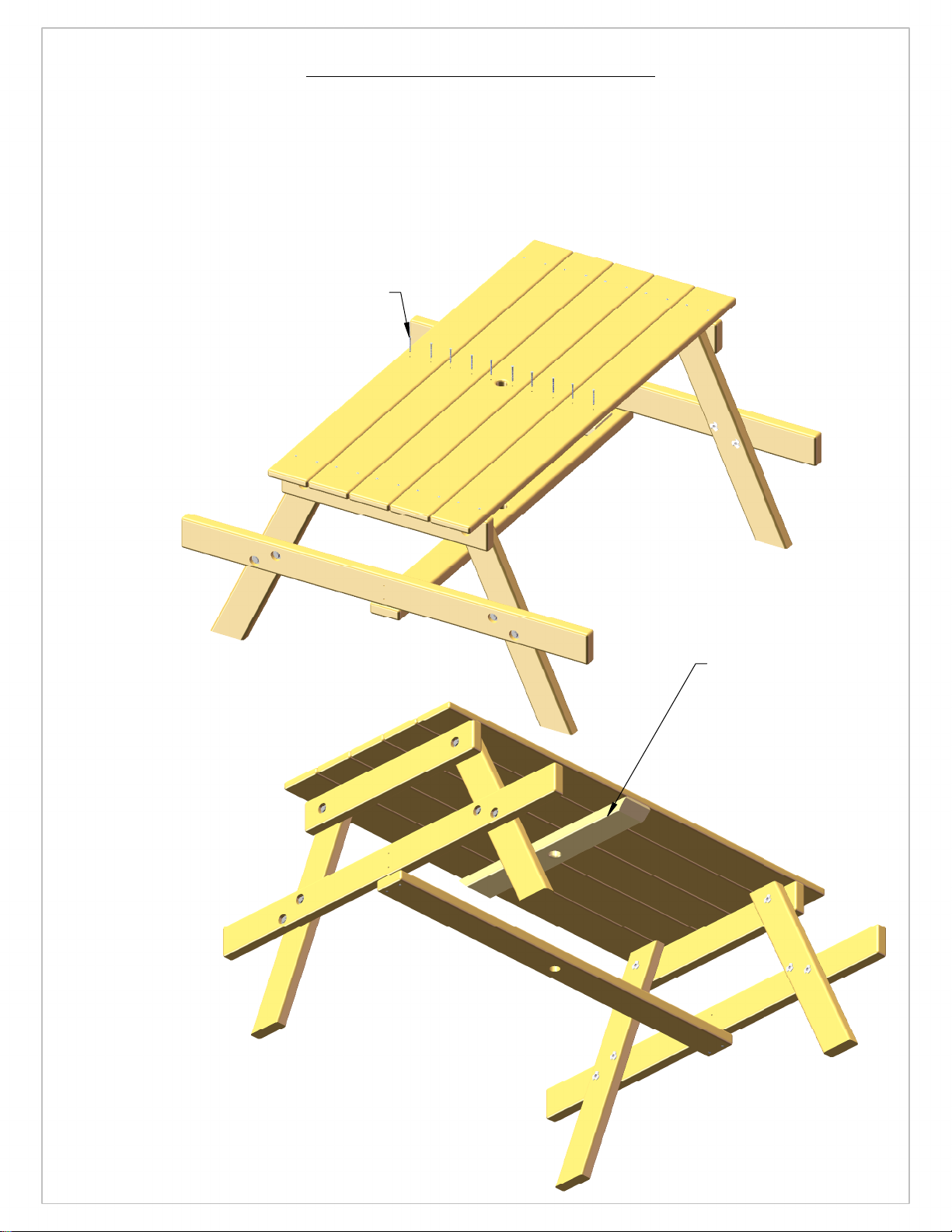

STEP 4: TABLE STRINGER
1: FIND THE 2 X 4 X 21" TABLE STRINGER. NOTE THE ANGLED ENDS OF THE BOARD, AND THE HOLE
IN THE CENTER.
2: POSITION THE TABLE STRINGER SO THAT THE HOLE IN THE CENTER OF THE BOARD LINES UP WITH
THE HOLE IN THE CENTER OF THE PICNIC TABLE, AND THE ANGLED ENDS ARE FACING DOWN.
3: FROM THE TOP OF THE TABLE ATTACH THE TABLE STRINGER WITH TWO 1-3/4" WOOD SCREWS
PER BOARD.
1-3/4" WOOD SCREWS
(2 PER BOARD)
2 X 4 X 21"
TABLE STRINGER
Page 9

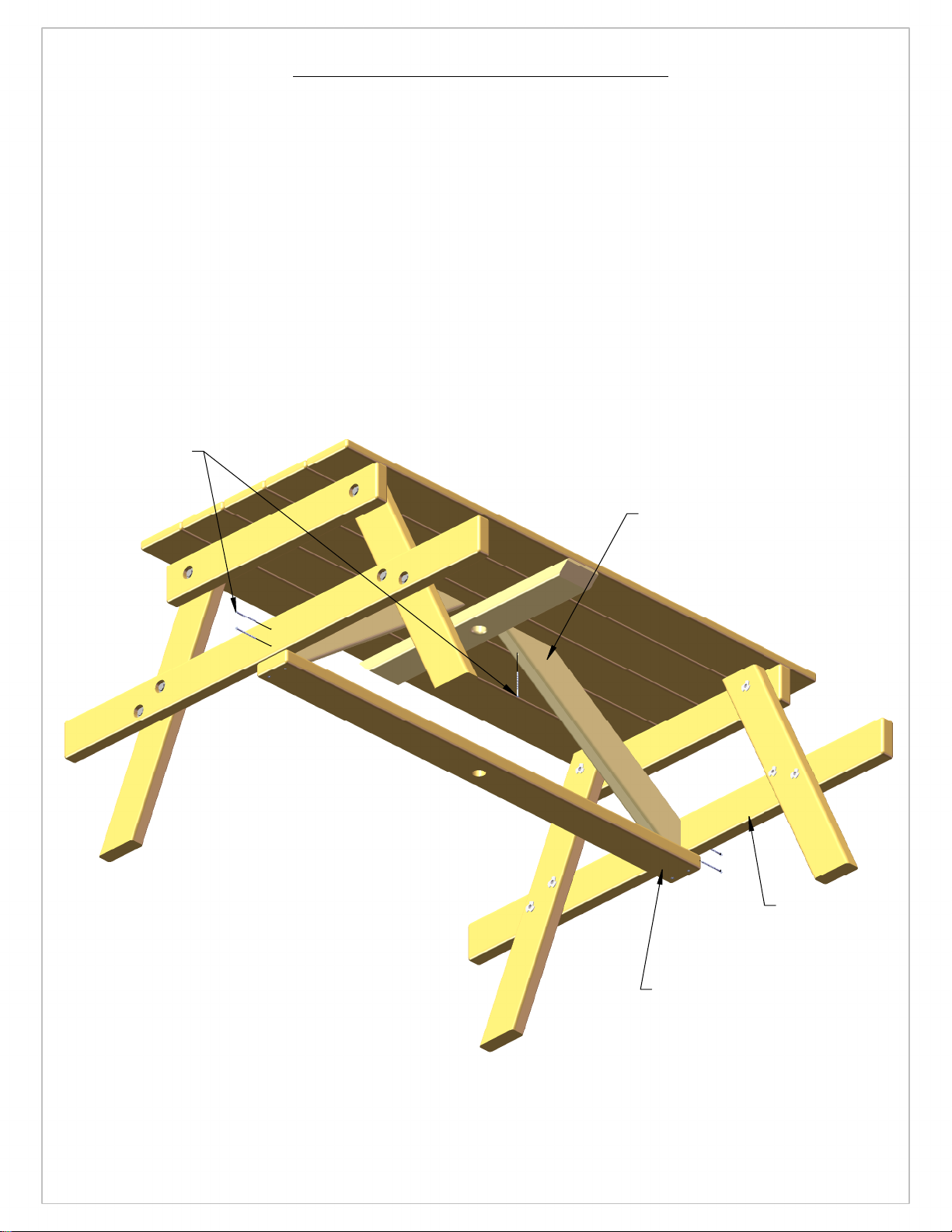

STEP 5: ANGLE SUPPORTS
1: FIND TWO 2 X 4 X 21-1/2" ANGLE SUPPORTS. NOTE THE ANGLED ENDS OF THE BOARDS.
2: POSITION THE ANGLE SUPPORTS SO THAT THE LONG ANGLED END OF THE BOARD IS RESTING
AGAINST THE BOTTOM OF THE TABLE TOP. THE BOTTOM END WILL REST UPON ON THE CENTER LEG
SUPPORT AND WILL BE FLUSH TO THE SEAT SUPPORT. CENTER THE BOTTOM END ON THE TWO PREDRILLED HOLES IN THE SEAT SUPPORT.
3: USE 2" WOOD SCREWS IN THE PRE-DRILLED HOLES ON THE LONG ANGLED END OF THE ANGLE
SUPPORT AND IN THE PRE-DRILLED HOLES IN THE SEAT SUPPORT.
2" WOOD SCREW
2 X 4 X 21-1/2"
ANGLE SUPPORT
SEAT SUPPORT
CENTER LEG SUPPORT
Page 10
STEP 6: SEATS

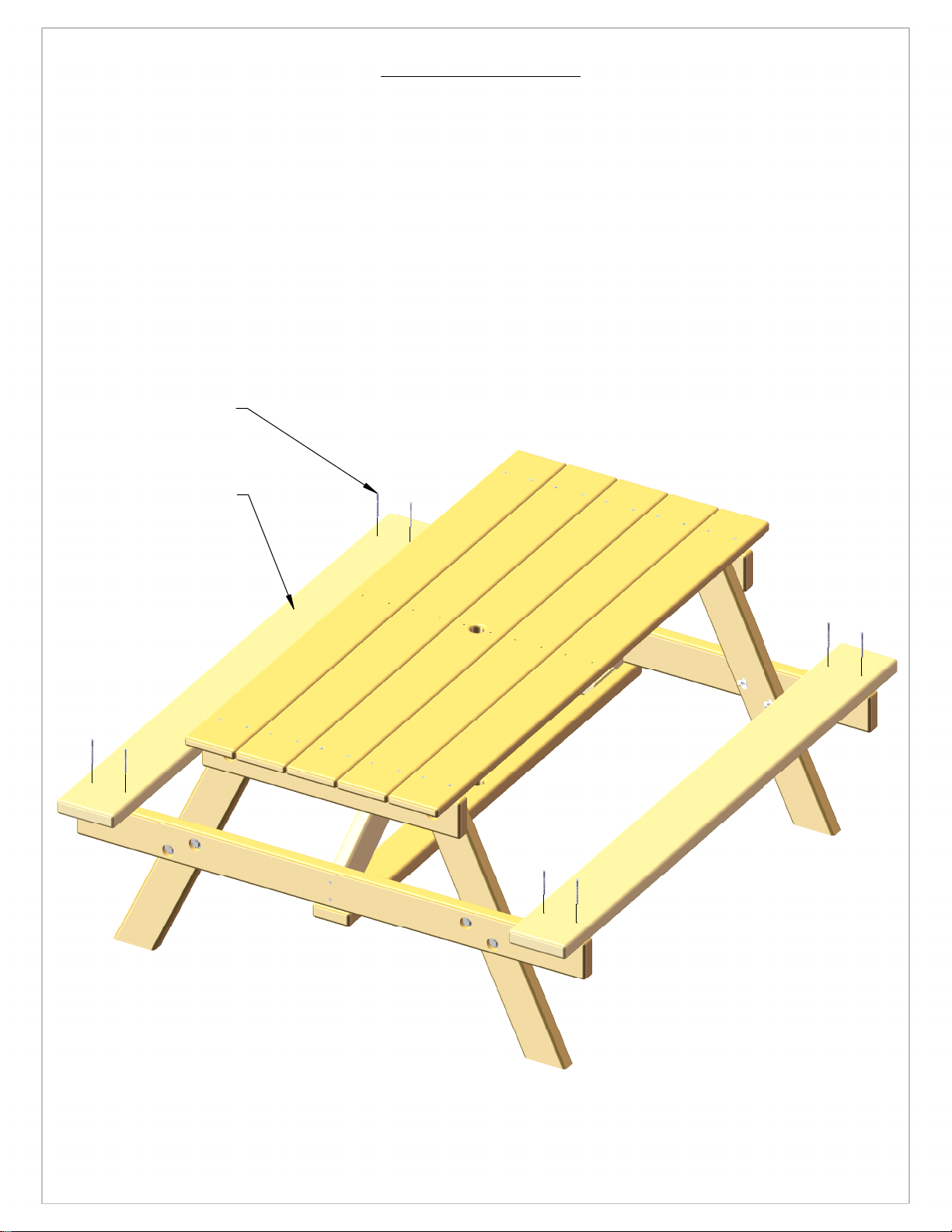

1: FIND THE 2 X 6 X 47-5/8" TABLE SEATS. NOTE THE PRE-DRILLED HOLES ON EACH END.
2: CENTER THE SEATS AT THE ENDS OF THE SEAT SUPPORTS AND ATTACH WITH 2" WOOD SCREWS
IN THE PRE-DRILLED HOLES.
2" WOOD SCREW
2 X 6 X 47-5/8"
TABLE SEAT
Page 11

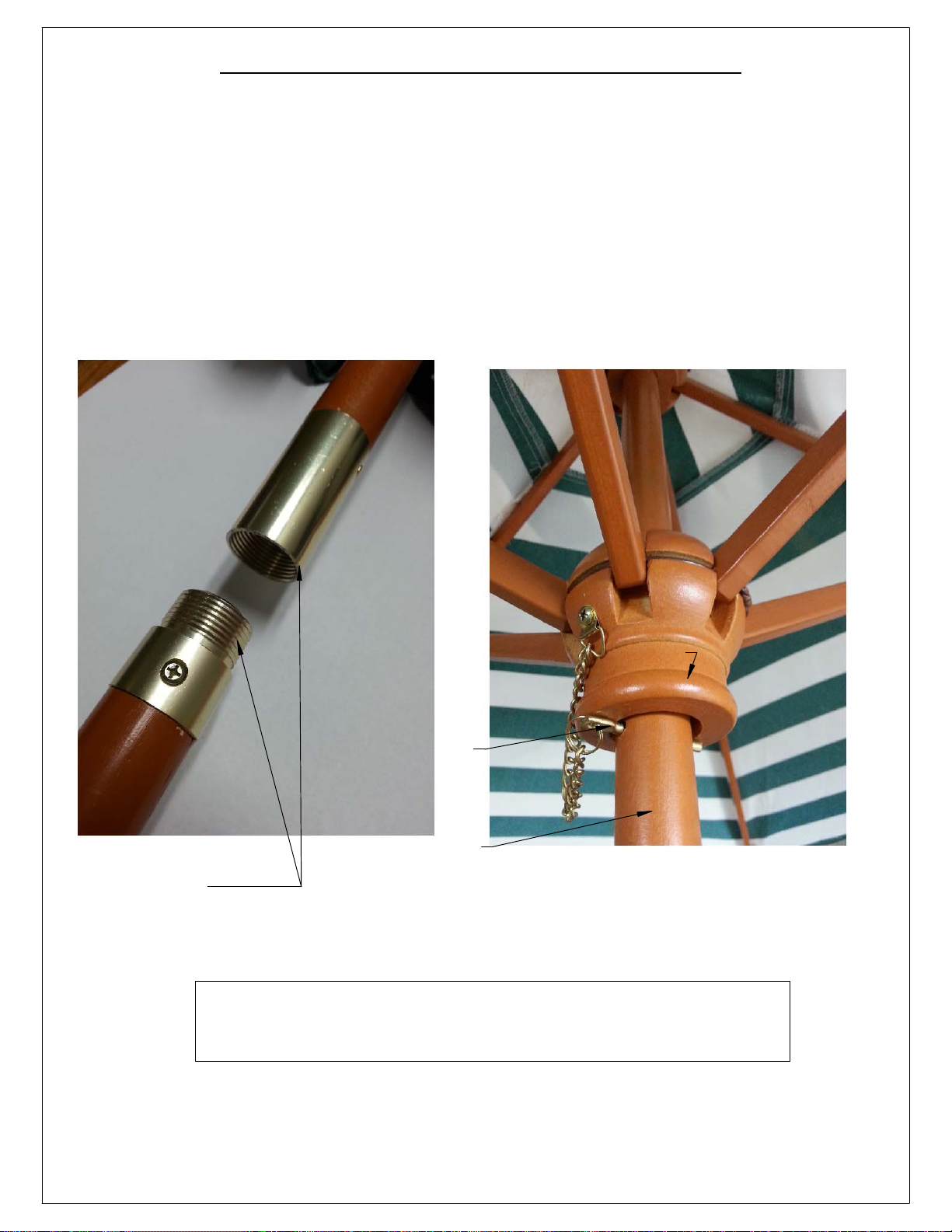

UMBRELLA ASSEMBLY
23
1: SCREW THE UPPER PORTION OF THE UMBRELLA ONTO THE LOWER PORTION OF THE
UMBRELLA.
2: RAISE THE ROSETTE OF THE UMBRELLA, THEN INSERT THE PIN INTO THE HOLE.
WHEN NOT IN USE THE UMBRELLA SHOULD BE IN THE DOWN POSITION. IN THE WINTER REMOVE
THE SET SCREW COLLAR FROM THE LOWER SECTION OF THE UMBRELLA AND STORE THE
UMBRELLA AWAY IN SAFE LOCATION.
IF YOUR AREA EXPERIENCES HIGH WINDS OR FREQUENT STORMS YOU MAY WISH TO REMOVE
THE UMBRELLA WHEN NOT IN USE. ANY DAMAGE INCURRED DUE TO HIGH WINDS, STORMS,
NEGLECT OR MISUSE IS NOT COVERED BY YOUR WARRANTY.
THREAD THE UPPER PORTION
OF THE UMBRELLA ONTO THE
LOWER PORTION.
WARNING! - TEACH YOUR CHILDREN NOT TO PLAY WITH THE UMBRELLA. THE
UMBRELLA IS NOT TO BE USED AS A PIVOT TO SWING AROUND. DO NOT CLIMB
OR SLIDE DOWN UMBRELLA MAST. IF THE UMBRELLA BECOMES DAMAGED
REMOVE IT AND REPLACE IT WITH A NEW ONE.
ROSETTE
PIN
MAST
SLIDE THE ROSETTE OF THE UMBRELLA UP THE MAST. WHEN
THE HOLE IS REVEALED, INSERT THE PIN INTO THE HOLE
UNTIL IT COMES OUT THE OTHER SIDE.
