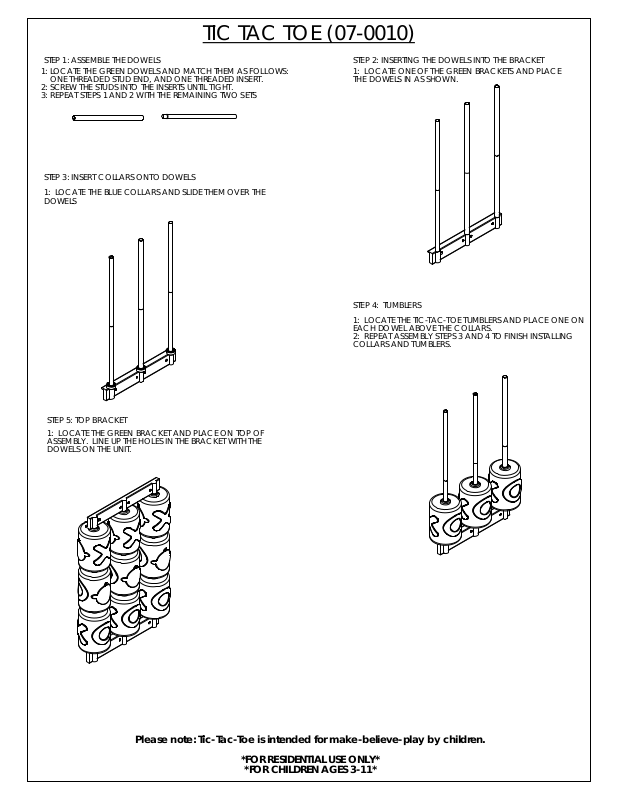

TIC TAC TOE (07-0010)

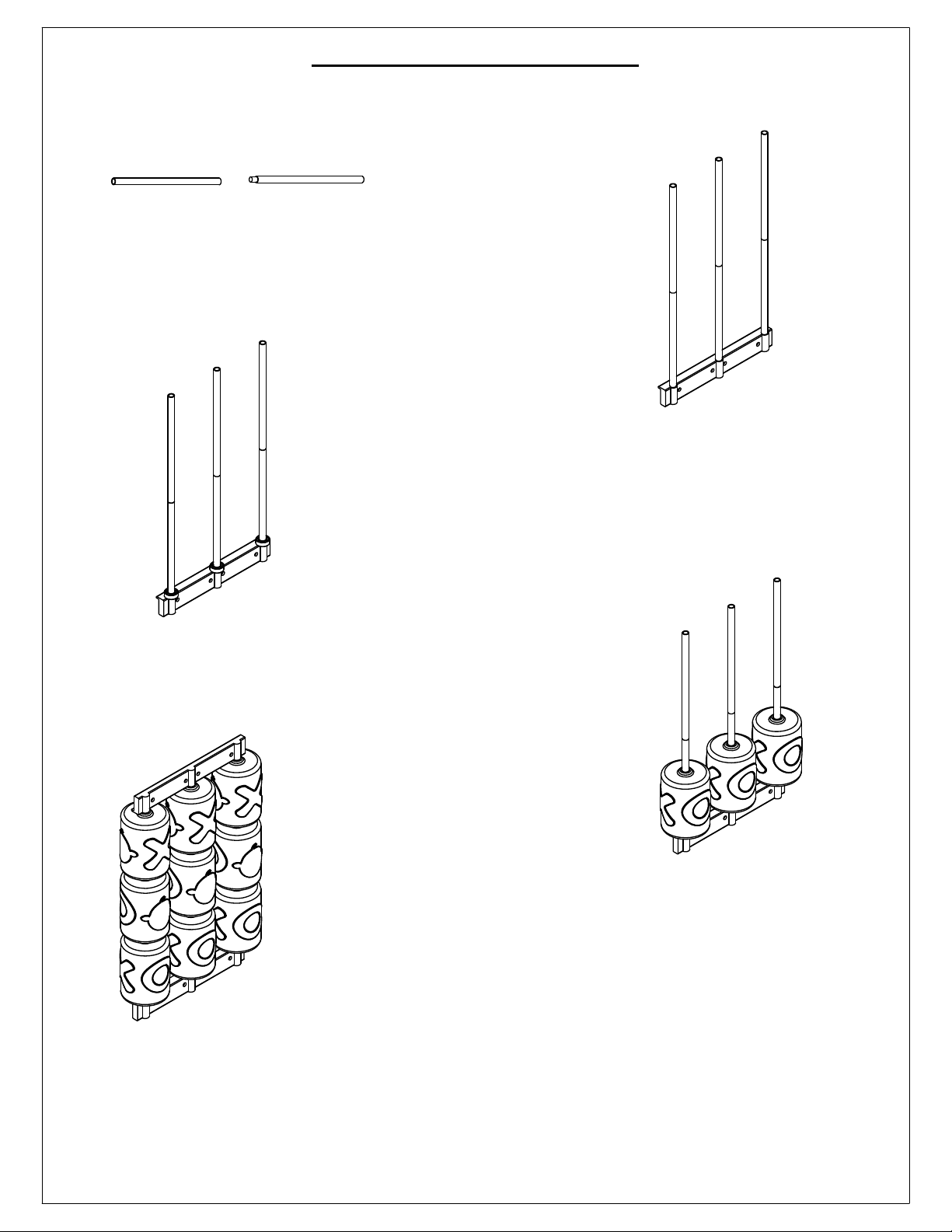

STEP 1: ASSEMBLE THE DOWELS
1: LOCATE THE GREEN DOWELS AND MATCH THEM AS FOLLOWS:
ONE THREADED STUD END, AND ONE THREADED INSERT.
2: SCREW THE STUDS INTO THE INSERTS UNTIL TIGHT.
3: REPEAT STEPS 1 AND 2 WITH THE REMAINING TWO SETS
STEP 3: INSERT COLLARS ONTO DOWELS
1: LOCATE THE BLUE COLLARS AND SLIDE THEM OVER T H E
DOWELS
STEP 2: INSERTING THE DOWELS INTO THE BRACKET
1: LOCATE ONE OF THE GREEN BRACKETS AND PLACE
THE DOWELS IN AS SHOWN.
STEP 4: TUMBLERS
1: LOCATE THE TIC-TAC-TOE TUMBLERS AND PLACE ONE ON
EACH DOWEL ABOVE THE COLLARS.
2: REPEAT ASSEMBLY STEPS 3 AND 4 TO FINISH INSTALLING
COLLARS AND TUMBLERS.
STEP 5: TOP BRACKET
1: LOCATE THE GREEN BRACKET AND PLACE ON TOP OF
ASSEMBLY. LINE UP THE HOLES IN THE BRACKET WITH THE
DOWELS ON THE UNIT.
Please note: Tic-Tac-Toe is intended for make-believe-play by children.
*FOR RESIDENTIAL USE ONLY*
*FOR CHILDREN AGES 3-11*
Page 2
TIC TAC TOE (07-0010)
STEP 6: MOUNTING TO THE UNIT

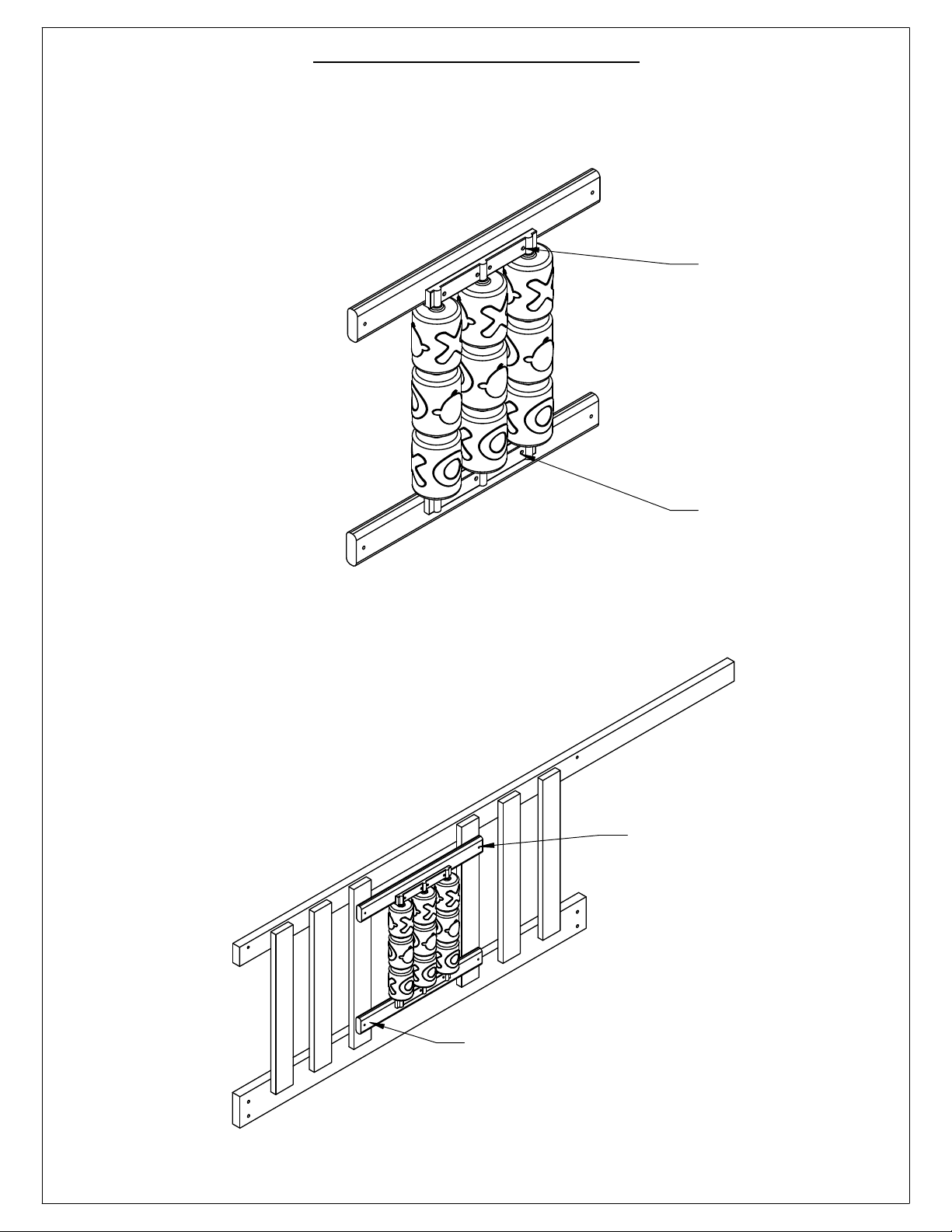

REMOVE THREE 5/4 X 2-3/4 X 28-1/2"* SLATS FROM THE BACK OR SIDE OF THE UNIT AND CUT
TWO OF THEM TO 23-3/4". CENTER THE MODULE ON THE BOARDS AND USE EIGHT 1"
SCREWS TO FASTEN THEM TOGETHER.
1" WOOD SCREWS
1" WOOD SCREWS
*IF YOUR UNIT DOES NOT HAVE SLATS THIS SIZE YOU WILL NEED TO OBTAIN THE CORRECT SIZE BOARD AS STATED ABOVE
STEP 7: MOUNTING TO THE UNIT (CONTINUED)
MOUNT THE UNIT TO THE SLATS ON THE BACK OR SIDE WALL USING FOUR 1-1/2" WOOD SCREWS. OPENING SIZE
SHOULD BE 18-1/4"W" X 22-3/4"H.*
1-1/2" WOOD SCREWS
.
*SLATS MAY NEED TO BE RECENTERED FOR PROPER OPENING SIZE
1-1/2" WOOD SCREWS
