4
5/16” U-NUTS
4
5/16” X1” HEX BOLTS
6
5/16” LOCK WASHERS
6
5/16” FLAT WASHERS
18
3/8” LOCK WASHERS
18
3/8” FLAT WASHERS
18
3/8” HEX NUTS
3
C07D DRIVER MOUNTING BRACKETS
1

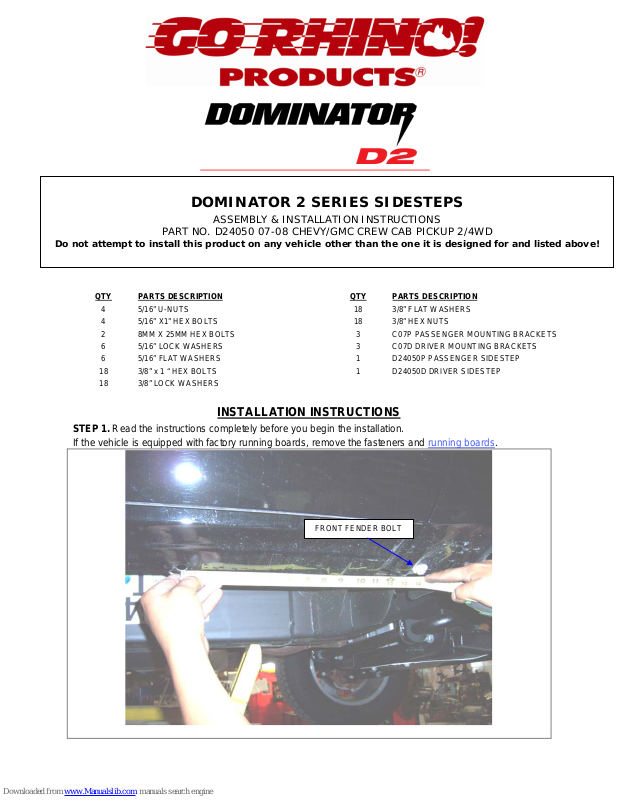

D24050P PASSENGER SIDESTEP
DOMINATOR 2 SERIES SI DESTEPS
ASSEMBL Y & INSTALLAT IO N IN STRUCTION S
Do not attempt to install this product on any vehicle other than the one it is designed for and listed above!
PART NO. D24050 07-08 CHEVY/GMC CR EW C AB PICKUP 2/4WD
QTY PARTS DESCRIPTION
2 8MM X 25MM HEX BOLTS
18 3/8” x 1 “ HEX BOLTS
QTY PARTS DESCRIPTION
3 C07P PASSENGER MOUNTING BRACKETS
1 D24050D DRIVER SIDESTEP
INSTALLATION INSTRUCTIONS
STEP 1. Read the instructions completely before you begin the installation.
If the vehicle is equipped with factory running boards, remove the fasteners and running boards.
FRONT FENDER BOLT
Page 2

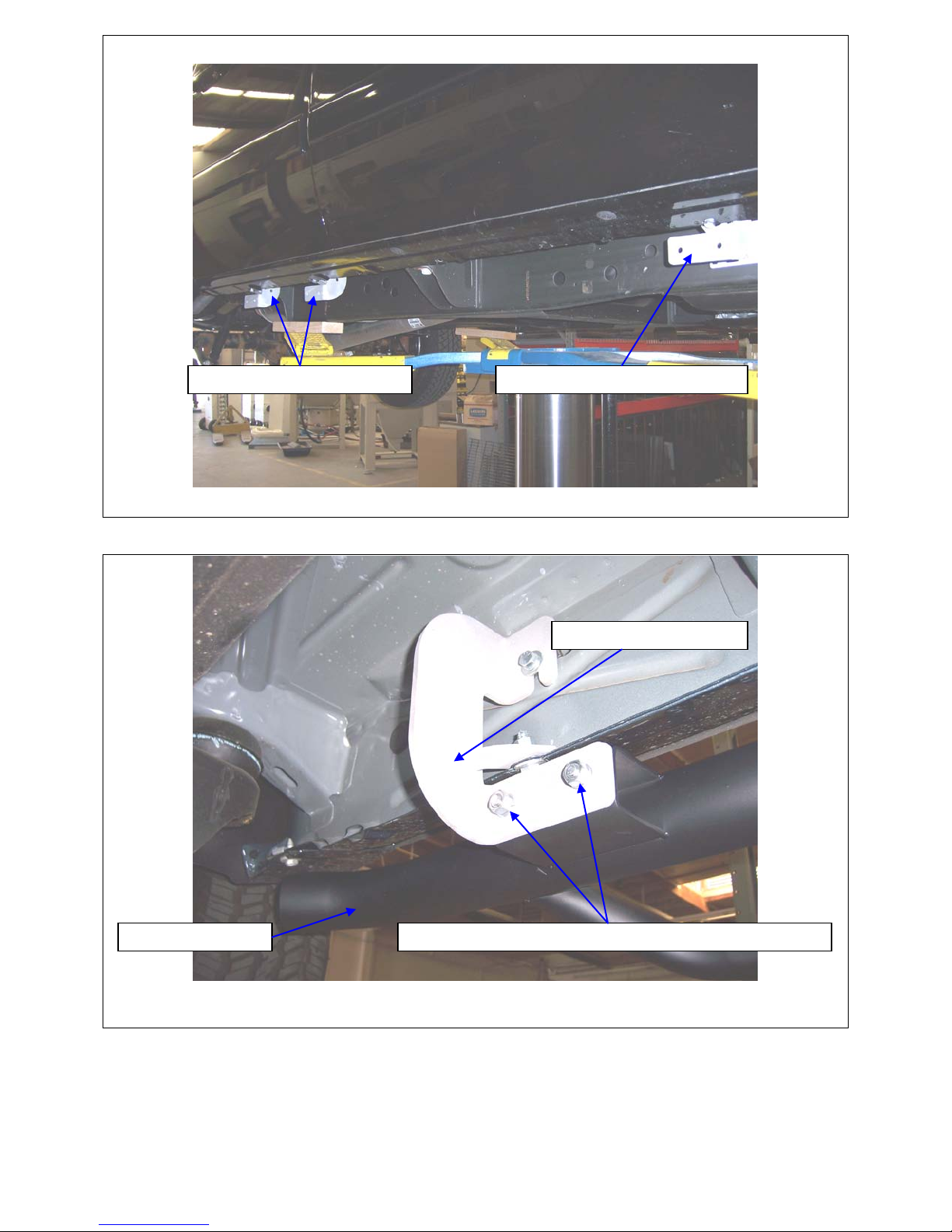

STEP 2. Thi s install ation uses three mounting brackets per side. Begin by installing the passenger side
3/8” X 1” HEX BOLT, FLAT WASHER, LOCK WASHER & HEX NUT
8MM X 25MM HEX BOLT, 5/16” LOCK WASHER & FLAT WASHER
8MM SQUARE NUT
C07P MOUNTING BRACKET
PINCH MOLD
ROCKER PANEL
front mounting bracket. Measure reward from the front fender bolt appr ox im ately 14” and Locate the
single hole in the body pinch mold and the square nut spot welded in the rocker panel.
STEP 3. Loosel y att ac h one of t he C07P mounting brackets to the rocker panel and pi nc h m old usi ng the
8MM, 5/16” and 3/8” fasteners as shown.
Page 3

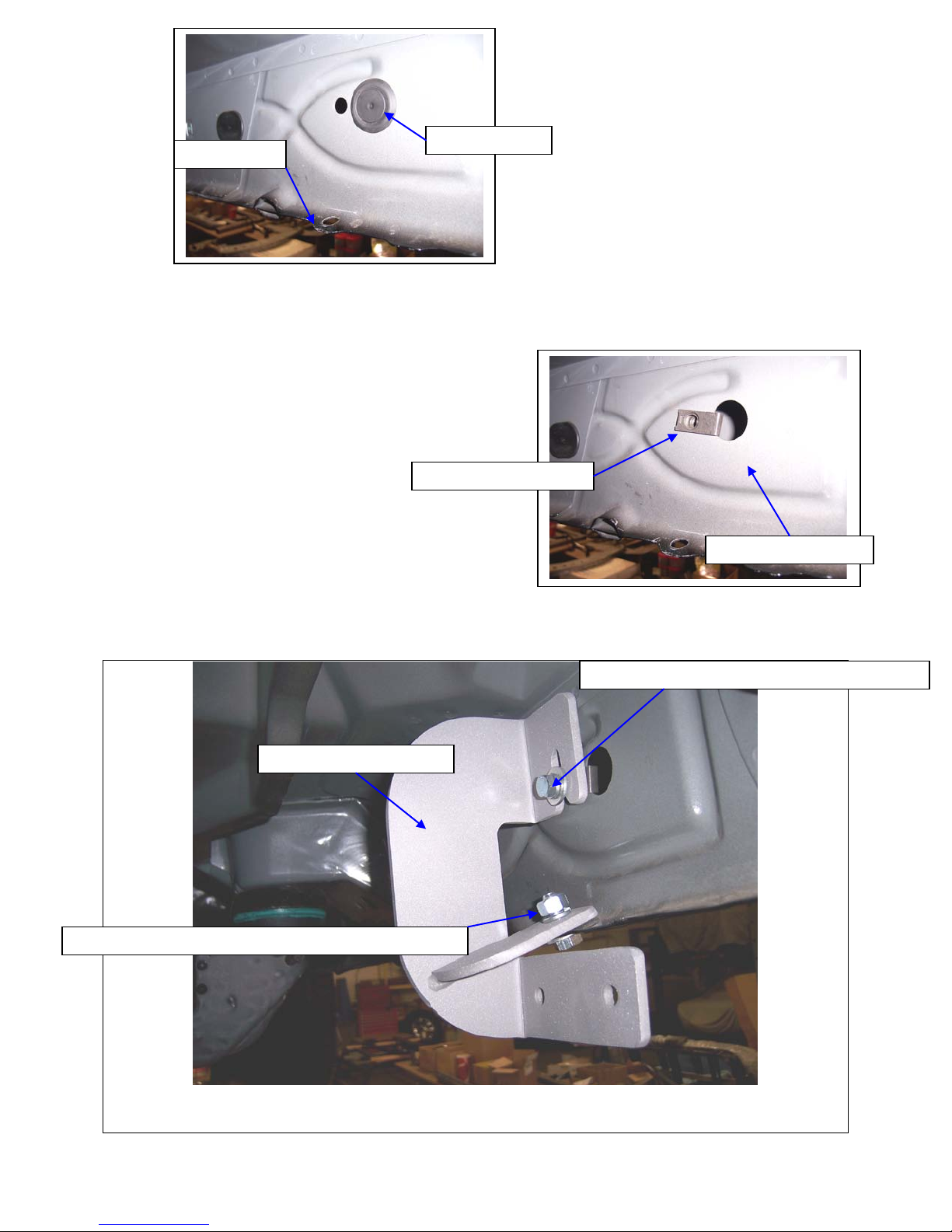

EP 4. Loc ate the holes in the body pinch mold and rocker panel f or the center and r ear m ounting
3/8” X 1” HEX BOLT, FLAT WASHER, LOCK WASHER & HEX NUT
5/16” X 1” HEX BOLT, LOCK WASHER & FLAT WASHER
C07P MOUNTING BRACKET
PINCH MOLD
PLASTIC PLUG
INSTALLED 5/16” U-NUT
ST
brackets. Measure rearward from the front fender bolt approximately 58 7/8” for the center and 75 1/ 8” for
the rear bracket. Rem ov e the plastic plugs from the rocker panel and install 5/16” U-NUTS in the rocker
panel as shown.
BODY ROCKER PANEL
STEP 5. Loosel y att ac h the two remaining C07P mounting brackets to the rocker panel and pinch mold
using the 5/16” and 3/8” fasteners a s shown.
Page 4
C07P MOUNTING BRACKET
PASSENGER SIDE FRONT BRACKET
CENTER AND REAR BRACKETS
D24041P SIDESTEP
STEP 6. Posit ion D24050P passenger sidestep up to the vehicl e and loosely attach it to the mounti ng
brackets using the 3/8” x 1” hex bolts, flat washers, lock washers and hex nut s.
ST
EP 7. Tight en all m ounting bracket and sidestep nuts and bolt s.
STEP 8. Repeat the above steps to install the driv er side mounting brackets and sidestep.
3/8” X 1” HEX BOLTS, FLAT WASHERS, LOCK WASHERS & HEX NUTS
