RMC4136-670-HSE
User Manual
Shenzhen Gooxi Hengyu Technology Co., Ltd
Version 1.0
Shenzhen Gooxi Hengyu Technology Co., Ltd
Content
Manual Structure
Foreword
Chapter 1 Chassis Overview
Chapter 2 Easy Installation Instruction
Chapter 3 Chassis Parameters
Shenzhen Gooxi Hengyu Technology Co., Ltd
Foreword
This manual is about the installation and use information of RMC4236-670-HSE
chassis that provided to professional system integrators and personal computer
technicians. The installation and maintenance should be conducted by experienced
technicians only.
Gooxi RMC4236-670-HSE the fourth generation of server chassis is designed
based on standard 2U server and can be assembled into common computing server,
storage server, Internet bar server, database server, VOD storage server, HPC server,
and so on. The server chassis is different from ordinary desktop chassis that pays
more attention to appearance design, as it focuses on the quality and content. Gooxi
RMC4236-670-HSE server chassis uses imported first-class SGCC galvanized steel,
and possessed with the characteristics of fingerprint resistance, corrosion resistance,
heat resistance, heat transfer and thermal reflectivity, formability as well as
weldability.
In addition, taking into account the higher stability requirements of the server
during usage, Gooxi RMC4236-670-HSE server chassis has excellent heat dispersion.
To be specific, the heat dissipation channel is reasonably designed, which can take
away a large amount of heat in the chassis to ensure the stable operation of the server.
The scalability is an important factor to determine whether the server chassis
design is reasonable. Gooxi RMC4236-670-HSE server chassis has stronger
scalability than ordinary chassis, such as: hard disk expansion, peripheral expansion,
etc.
Shenzhen Gooxi Hengyu Technology Co., Ltd
Chapter 1 Chassis Overview
1.1 Chassis Structure
（1）
Top cover
（2）
Rear window
（3）
Ventilation wall
（4）
Backplane
（5）
Hard disk module
（6）
Base
（7）
Hard disk box
（8）
Left-side ear
（9）
Right-side ear
Shenzhen Gooxi Hengyu Technology Co., Ltd
1.2 Rear Window Construction
①
Power site
②
I/O washer position
③
Expansion slot
1.3 Materials Package
144 pieces of #6-32*5mm countersunk screws are used for fixing hard disks.
10 pieces of active studs with the total height of 8mm are used to install the
motherboard.
16 pieces of #6-32*6mm cross recessed pan head screws are used for fastening
the motherboard and power supply.
0～35
SAS - label.
One 100 * 120 * 0.045mm PE valve bag.
1.4 Chassis View
Front view:
Rear view:
Shenzhen Gooxi Hengyu Technology Co., Ltd
1.5 Related Indicators of Chassis Panel
The above picture shows the front panel buttons and LED indicators; each button
or indicator light has its own function and status description that are described in the
following table:
LED Status Description
No.
LED Appearance
Description
1
LOGO blue light is
on
The device is on
Shenzhen Gooxi Hengyu Technology Co., Ltd
②
The green light is on
The device is on
③
Reset
The button is used to restart
the server
④
The green light
flashes
The system is running
normally
⑤
The yellow light is
on
Alarm indication,
including system alarm, fan
alarm, power alarm, etc.; the
specific can be viewed
through IPMI management
software
⑥
The green light is on
Internet access 1 connection
is normal
⑦
The green light is on
Internet access 2 connection
is normal
⑧
USB interface
2*USB2.0 interface
1.6 Introduction to Hard Disk Indicator
1、Act LED
2、 FaultLED
3、StatusLED
4、LED description is as follows
：
Function
Act LED
Fault LED
Status LED
Hard disk at
site
ON
OFF
OFF
Hard disk
activity
Flash 4Hz/s
OFF
OFF
Hard disk
location
ON
Flash 4Hz/s
OFF
ActLED
Fault LED
StatusLED
Shenzhen Gooxi Hengyu Technology Co., Ltd
Hard disk
fault
ON
OFF
ON
RAID
reconstruction
ON
OFF
Flash 1Hz/s
1.7 Brief Introduction to Backplane
The standard configuration of Gooxi backplane models are RMC4124-BPE-12G
and RMC2112-BPE-12G, and the specific description is as follows:
RMC4124-BPE-12G
Correspondin
g site
Interface / jumper /
slot
Correspon
ding site
Interface / jumper / slot
1、2、3、4、5
5 个 ATX 电源输入
10
PMC PM8044 Expander 芯片
6、7、8、9
4 个 4PIN 温控风扇插座
11、12、13
SFF-8643 12Gb SAS 输入接口
RMC2112-BPE-12G
Correspondi
ng site
Interface / jumper /
slot
Correspon
ding site
Interface / jumper / slot
1、2、3
3 ATX power input
11
PMC PM8043 Expander chip
4、5、6、7
4 Sockets of 4PIN
8、9、10
SFF-8643 12Gb SAS input
Shenzhen Gooxi Hengyu Technology Co., Ltd
temperature control fans
interface
1.8 Introduction to the Output Interface of Backplane Hard Disk
Front-built 24-bit expander backplane order:
Back-built 12-bit expander backplane order:
1.9 机箱内部扩展背板连接示意图
Shenzhen Gooxi Hengyu Technology Co., Ltd
Shenzhen Gooxi Hengyu Technology Co., Ltd
Chapter 2 Easy Installation Instruction
2.1 Introduction to the Disassemble Steps of Gooxi 4136 Chassis Cover
⑴
Unscrew the top cover screws
⑵
Press the button of chassis back cover
⑶
Push the back cover
Shenzhen Gooxi Hengyu Technology Co., Ltd
(4) Pull the back cover
2.2 Introduction to the Installation Steps of Gooxi4136 Chassis Fan Module
⑴ Install the shock-proof soft nails into the fan.
⑴ 分别将 4 个 8038 风扇安装在风扇模组支架里。
⑵ 风扇安装完成效果图。
Shenzhen Gooxi Hengyu Technology Co., Ltd
⑶ 分别将两个风扇模组安装在机箱内。
⑷ 风扇模组安装完成效果图。
Shenzhen Gooxi Hengyu Technology Co., Ltd

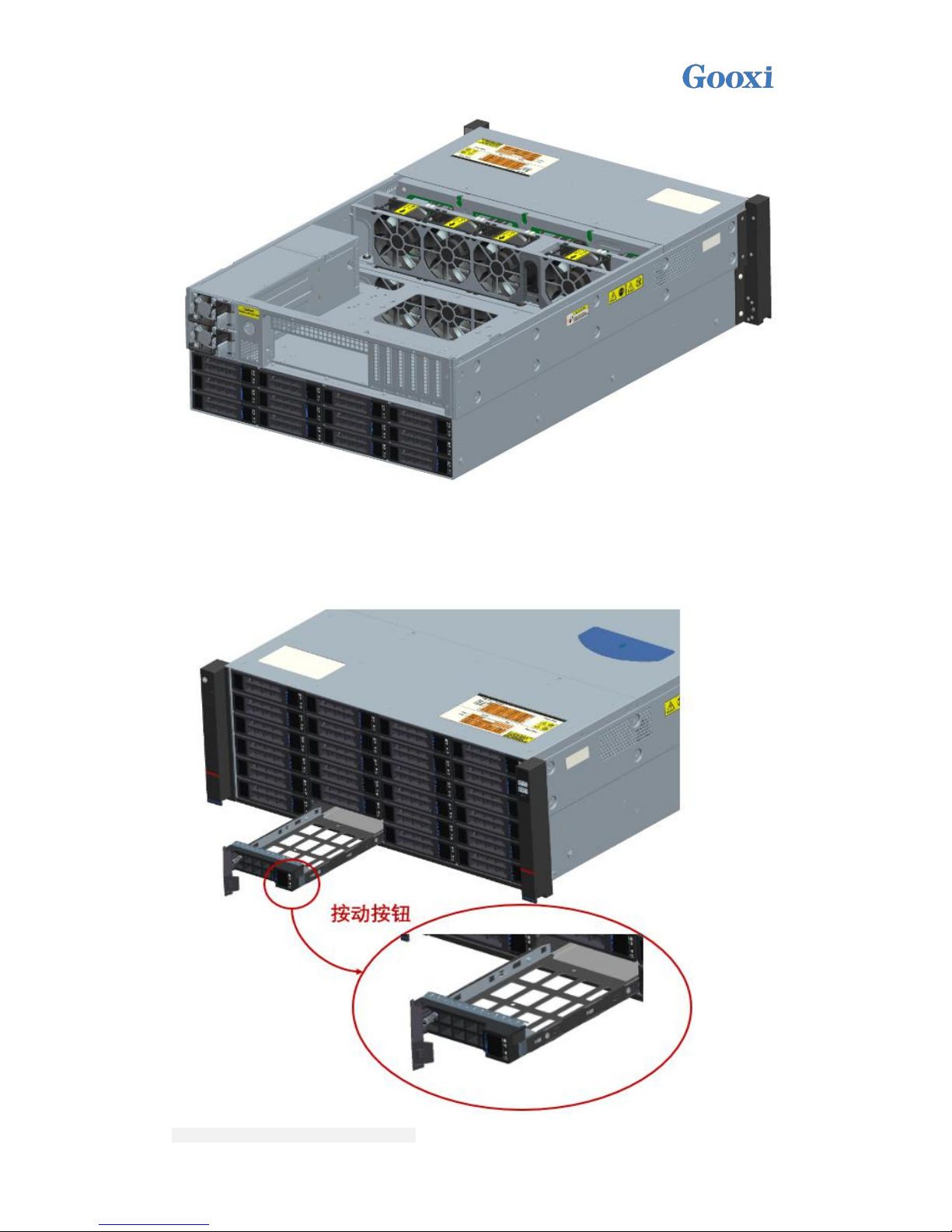

2.3 Introduction to the Insert and Plug Steps of Gooxi4136 Chassis Hard Disk
⑴ Press the button to pull out the hard disk from the hard disk site.
Shenzhen Gooxi Hengyu Technology Co., Ltd
(2)Install the 3.5-inch hard drive to the hard drive bracket according to screw holes, as
shown in the figure below.
(3) The installed hard disk is shown in the following figure:
(4) Insert hard disk to the chassis, and close the switch. As shown in the following
figure.
Shenzhen Gooxi Hengyu Technology Co., Ltd
2.4 Introduction to the Installation Steps of Gooxi4136 Chassis Power Supply
(1) Place the power supply case to the chassis according to the hole site, as shown in
the figure below.
(2) Fix the power supply bracket, and screw on the screws at the position marked in
the figure below.
Shenzhen Gooxi Hengyu Technology Co., Ltd

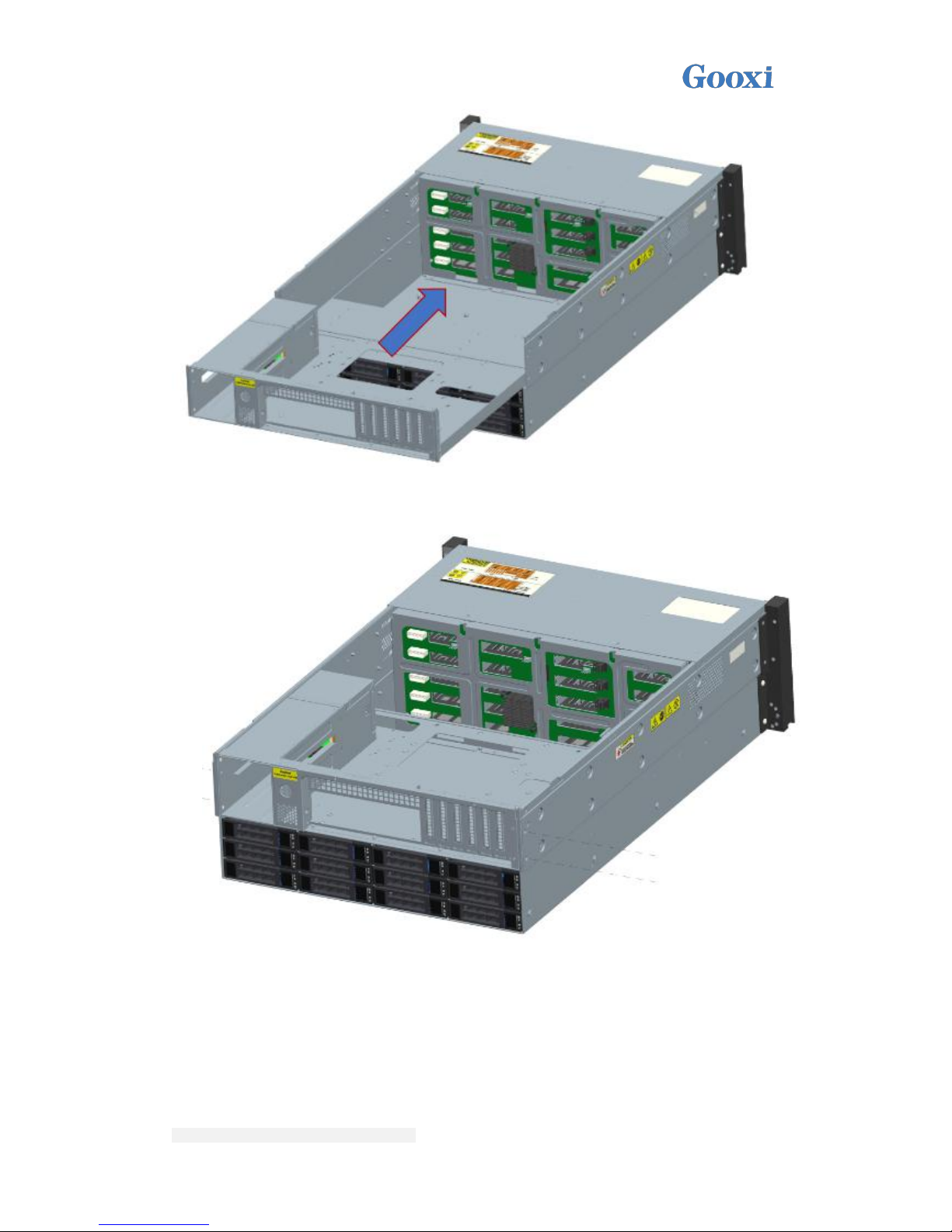

⑴ 将整个底座（含后窗、电源外壳）推进去机箱内，并固定好螺丝。
Shenzhen Gooxi Hengyu Technology Co., Ltd
⑵ 电源外壳完成安装效果图。
(2) Insert the hot-swappable power modules PSU1 and PSU2, respectively
Shenzhen Gooxi Hengyu Technology Co., Ltd
(4)The final installation effect of power supply
2.5 Introduction to the Installation Steps of Motherboard on Gooxi 4136 Chassis
(1) Open the chassis, and place insulation pad according to the correct orientation.
Based on the hole of motherboard screw, motherboard active stud (8mm height) is
installed at the corresponding position on the insulation pad. As shown in the figure
below: Install Gooxi G1DE-4B dual circuit motherboard corresponding to the base
hole site.
Shenzhen Gooxi Hengyu Technology Co., Ltd
(2) After the motherboard active stud (8mm height) is installed, place the motherboard
into the chassis and fasten motherboard screw at the hole site. As shown in the figure
below:
2.6 Introduction to the Installation Steps of Rear-built Hard Disk on Gooxi 4136
Chassis
Shenzhen Gooxi Hengyu Technology Co., Ltd
(1) Dismantle the chassis base and remove the blind plate at rear window 2.5 module.
(dummy module)
(2)
2.5-inch hot-swappable hard drive module is installed and locked to the chassis
base with a screw, as shown in the figure below:
(3)Effect picture of 2.5-inch hot-swappable hard disk module locks screws
Shenzhen Gooxi Hengyu Technology Co., Ltd
(4) Push the entire base (including 2.5-inch hard drive module) into the chassis, and
fix the base and rear window screw.
(5)Effect picture of completed installation of 2.5-inch hot-swappable hard drive
module
Shenzhen Gooxi Hengyu Technology Co., Ltd
(6)Install two 2.5-inch hard drives on the hard disk box, respectively
(7)Insert two 2.5-inch hard drives into the rear hard disk module, respectively
Shenzhen Gooxi Hengyu Technology Co., Ltd
(8)The completed installation effect is as follows
Note: If customer selects two optional 2.5-inch hot-swappable hard drives,
then Gooxi-type CRPS power must be equipped with.
Shenzhen Gooxi Hengyu Technology Co., Ltd
Chapter 3 Chassis Parameters
Basic Parameters
Chassis style
Rack mount
Chassis structure
4U
Applicable motherboard
EEB(12*13)/CEB(12*10.5)/ATX(12*9.5)/Micro ATX
Supported motherboard brands
Gooxi、Intel、ASUS、SuperMicro、TYAN、MSI、GIGABYTE, etc
Power type
Single charge and 1+1 redundant power
Number of supported power
supplies
1
SGPIO
Support
Backplane
12Gb/s SASE expander backplane
Supported hot-swappable hard
drives
Supportive, compatible with SAS and SATA drives
Supported hot-swappable hard
fans
Support
Hard driver site
Thirty-six 3.5-inch (or 2.5-inch) hot-swappable hard disk sites; and two
2.5-inch rear-built hot-swappable expandable sites
CD driver site
None
Hard disk shockproof system
Hard disk bracket is designed with EMI shrapnel. The unique shockproof
fan design can reduce the resonance between the fan and hard disk without
affecting the reading and writing speed of hard disks.
Cooling system
8038 fans of eight brands are standard configuration
Windshield
Support
Intelligent control of temperature
7 half-height PCI or PCI-E expansion card sites
Expanded card site
Optional
Apparent Parameters
Front panel interface
1 on-off key, 1 restart key, 1 fan alarm lamp, 1 hard disk indicator and 2
network indicators
Free screws dismantle
Support
Fixed mode of cabinet
Ordinary
Configuration Parameters
Product material
Imported SGCC (galvanized steel sheet), ABS panel and punching net
Chassis dimension
670*433*177mm(Depth * width * height)
Chassis weight
19kg
Package dimension
885*585*323mm(Depth * width * height）
Overall gross weight
23KG
Safety certification
CE、FCC、RoHS
Shenzhen Gooxi Hengyu Technology Co., Ltd
Note: This manual is a general instruction of
RMC4136-670-HSE
series. Specific parameters of each
type please refer to the chassis detailed parameters.
