Page 1
Report No.: RF181001C19-10
Page No. 122 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 15 MHz / 64QAM
<Out-of-Band Emissions>
Channel
39725
1 RB
Channel
41515
1 RB
Channel
39725
75 RB
Channel
41515
75 RB
Page 2
Report No.: RF181001C19-10
Page No. 123 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 20 MHz / QPSK
<Out-of-Band Emissions>
Channel
39750
1 RB
Channel
41490
1 RB
Channel
39750
100 RB
Channel
41490
100 RB
Page 3
Report No.: RF181001C19-10
Page No. 124 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 20 MHz / 16QAM
<Out-of-Band Emissions>
Channel
39750
1 RB
Channel
41490
1 RB
Channel
39750
100 RB
Channel
41490
100 RB
Page 4
Report No.: RF181001C19-10
Page No. 125 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 20 MHz / 64QAM
<Out-of-Band Emissions>
Channel
39750
1 RB
Channel
41490
1 RB
Channel
39750
100 RB
Channel
41490
100 RB
Page 5
Report No.: RF181001C19-10
Page No. 126 / 235
Report Format Version: 6.1.1
Communication
Simulator
Spectrum Analyzer
Power Splitter
EUT
10 dB Attenuation
Pad
4.6 Peak to Average Ratio
4.6.1 Limits of Peak to Average Ratio Measurement
In measuring transmissions in this band using an average power technique, the peak to-average ratio (PAR)
of the transmission may not exceed 13 dB.
4.6.2 Test Setup
4.6.3 Test Procedures
1. Set resolution/measurement bandwidth ≥ signal’s occupied bandwidth;
2. Set the number of counts to a value that stabilizes the measured CCDF curve;
3. Record the maximum PAPR level associated with a probability of 0.1 %.
Page 6
Report No.: RF181001C19-10
Page No. 127 / 235
Report Format Version: 6.1.1
LTE Band 7
Channel Bandwidth: 5 MHz
Channel Bandwidth: 10 MHz
Channel
Frequency
(MHz)
Peak to Average Ratio
(dB)
Channel
Frequency
(MHz)
Peak to Average Ratio
(dB)
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
20775
2502.5
3.60
4.65
5.74
20800
2505.0
3.53
4.56
5.69
21100
2535.0
3.58
5.20
5.19
21100
2535.0
3.48
4.32
5.59
21425
2567.5
3.59
4.80
6.06
21400
2565.0
3.52
4.99
6.18
Spectrum Plot of Worst Value
5 MHz / 64QAM
10 MHz / 64QAM
4.6.4 Test Results
Page 7
Report No.: RF181001C19-10
Page No. 128 / 235
Report Format Version: 6.1.1
LTE Band 7
Channel Bandwidth: 15 MHz
Channel Bandwidth: 20 MHz
Channel
Frequency
(MHz)
Peak to Average Ratio
(dB)
Channel
Frequency
(MHz)
Peak to Average Ratio
(dB)
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
20825
2507.5
3.53
4.53
4.70
20850
2510.0
3.47
4.65
6.70
21100
2535.0
3.48
4.86
6.15
21100
2535.0
3.50
5.22
6.19
21375
2562.5
3.45
4.61
5.75
21350
2560.0
3.46
5.14
5.17
Spectrum Plot of Worst Value
15 MHz / 64QAM
20 MHz / 64QAM
Page 8
Report No.: RF181001C19-10
Page No. 129 / 235
Report Format Version: 6.1.1
LTE Band 38
Channel Bandwidth: 5 MHz
Channel Bandwidth: 10 MHz
Channel
Frequency
(MHz)
Peak to Average Ratio
(dB)
Channel
Frequency
(MHz)
Peak to Average Ratio
(dB)
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
37775
2572.5
3.83
5.85
6.73
37800
2575.0
3.74
5.97
6.70
38000
2595.0
3.89
5.82
6.82
38000
2595.0
3.78
6.04
6.59
38225
2617.5
3.75
6.03
6.91
38200
2615.0
3.73
5.95
6.75
Spectrum Plot of Worst Value
5 MHz / 64QAM
10 MHz / 64QAM
Page 9
Report No.: RF181001C19-10
Page No. 130 / 235
Report Format Version: 6.1.1
LTE Band 38
Channel Bandwidth: 15 MHz
Channel Bandwidth: 20 MHz
Channel
Frequency
(MHz)
Peak to Average Ratio
(dB)
Channel
Frequency
(MHz)
Peak to Average Ratio
(dB)
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
37825
2577.5
4.57
5.64
6.71
37850
2580.0
4.22
6.27
6.47
38000
2595.0
4.33
6.65
6.33
38000
2595.0
4.76
6.08
6.46
38175
2612.5
4.46
5.82
6.75
38150
2610.0
4.65
5.78
6.84
Spectrum Plot of Worst Value
15 MHz / 64QAM
20 MHz / 64QAM
Page 10
Report No.: RF181001C19-10
Page No. 131 / 235
Report Format Version: 6.1.1
LTE Band 41 (Power Class 2)
Channel Bandwidth: 5 MHz
Channel Bandwidth: 10 MHz
Channel
Frequency
(MHz)
Peak to Average Ratio
(dB)
Channel
Frequency
(MHz)
Peak to Average Ratio
(dB)
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
39675
2498.5
3.56
5.77
6.72
39700
2501.0
3.49
5.58
6.77
40620
2593.0
3.62
4.81
6.09
40620
2593.0
3.42
4.46
5.98
41565
2687.5
3.58
5.09
6.55
41540
2685.0
3.50
5.47
6.85
Spectrum Plot of Worst Value
5 MHz / 64QAM
10 MHz / 64QAM
Page 11
Report No.: RF181001C19-10
Page No. 132 / 235
Report Format Version: 6.1.1
LTE Band 41 (Power Class 2)
Channel Bandwidth: 15 MHz
Channel Bandwidth: 20 MHz
Channel
Frequency
(MHz)
Peak to Average Ratio
(dB)
Channel
Frequency
(MHz)
Peak to Average Ratio
(dB)
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
39725
2503.5
3.49
5.77
6.79
39750
2506.0
3.52
5.62
6.80
40620
2593.0
3.36
4.71
5.86
40620
2593.0
3.45
4.65
5.76
41515
2682.5
3.43
5.27
6.82
41490
2680.0
3.44
5.16
6.71
Spectrum Plot of Worst Value
15 MHz / 64QAM
20 MHz / 64QAM
Page 12
Report No.: RF181001C19-10
Page No. 133 / 235
Report Format Version: 6.1.1
LTE Band 41 (Power Class 3)
Channel Bandwidth: 5 MHz
Channel Bandwidth: 10 MHz
Channel
Frequency
(MHz)
Peak to Average Ratio
(dB)
Channel
Frequency
(MHz)
Peak to Average Ratio
(dB)
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
39675
2498.5
3.40
4.37
5.30
39700
2501.0
3.51
4.36
5.82
40620
2593.0
3.28
4.10
5.24
40620
2593.0
3.67
5.77
5.04
41565
2687.5
3.62
4.76
6.14
41540
2685.0
3.78
5.53
6.61
Spectrum Plot of Worst Value
5 MHz / 64QAM
10 MHz / 64QAM
Page 13
Report No.: RF181001C19-10
Page No. 134 / 235
Report Format Version: 6.1.1
LTE Band 41 (Power Class 3)
Channel Bandwidth: 15 MHz
Channel Bandwidth: 20 MHz
Channel
Frequency
(MHz)
Peak to Average Ratio
(dB)
Channel
Frequency
(MHz)
Peak to Average Ratio
(dB)
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
39725
2503.5
4.78
4.79
5.50
39750
2506.0
4.84
5.43
5.53
40620
2593.0
4.47
4.71
6.67
40620
2593.0
4.58
5.87
6.99
41515
2682.5
4.13
6.20
6.89
41490
2680.0
3.66
5.70
6.99
Spectrum Plot of Worst Value
15 MHz / 64QAM
20 MHz / 64QAM
Page 14
Report No.: RF181001C19-10
Page No. 135 / 235
Report Format Version: 6.1.1
Communication
Simulator
Spectrum Analyzer
Power Splitter
EUT
10 dB Attenuation
Pad
4.7 Conducted Spurious Emissions
4.7.1 Limits of Conducted Spurious Emissions Measurement
The power of any emission outside a licensee's frequency block shall be attenuated below the transmitter
power (P) by at least 55 + 10 log (P) dB. The limit of emission is equal to -25 dBm.
4.7.2 Test Setup
4.7.3 Test Procedure
a. The EUT makes a phone call to the communication simulator. All measurements were done at low,
middle and high operational frequency range.
b. Measuring frequency range is from 9 kHz to 1 GHz. 10 dB attenuation pad is connected with spectrum.
RBW = 100 kHz and VBW = 300 kHz are used for conducted emission measurement.
c. Measuring frequency range is from 1 GHz to 27 GHz. 10 dB attenuation pad is connected with spectrum.
RBW = 1 MHz and VBW = 3 MHz are used for conducted emission measurement.
Page 15
Report No.: RF181001C19-10
Page No. 136 / 235
Report Format Version: 6.1.1
LTE Band 7
Channel Bandwidth: 5 MHz
Channel 20775

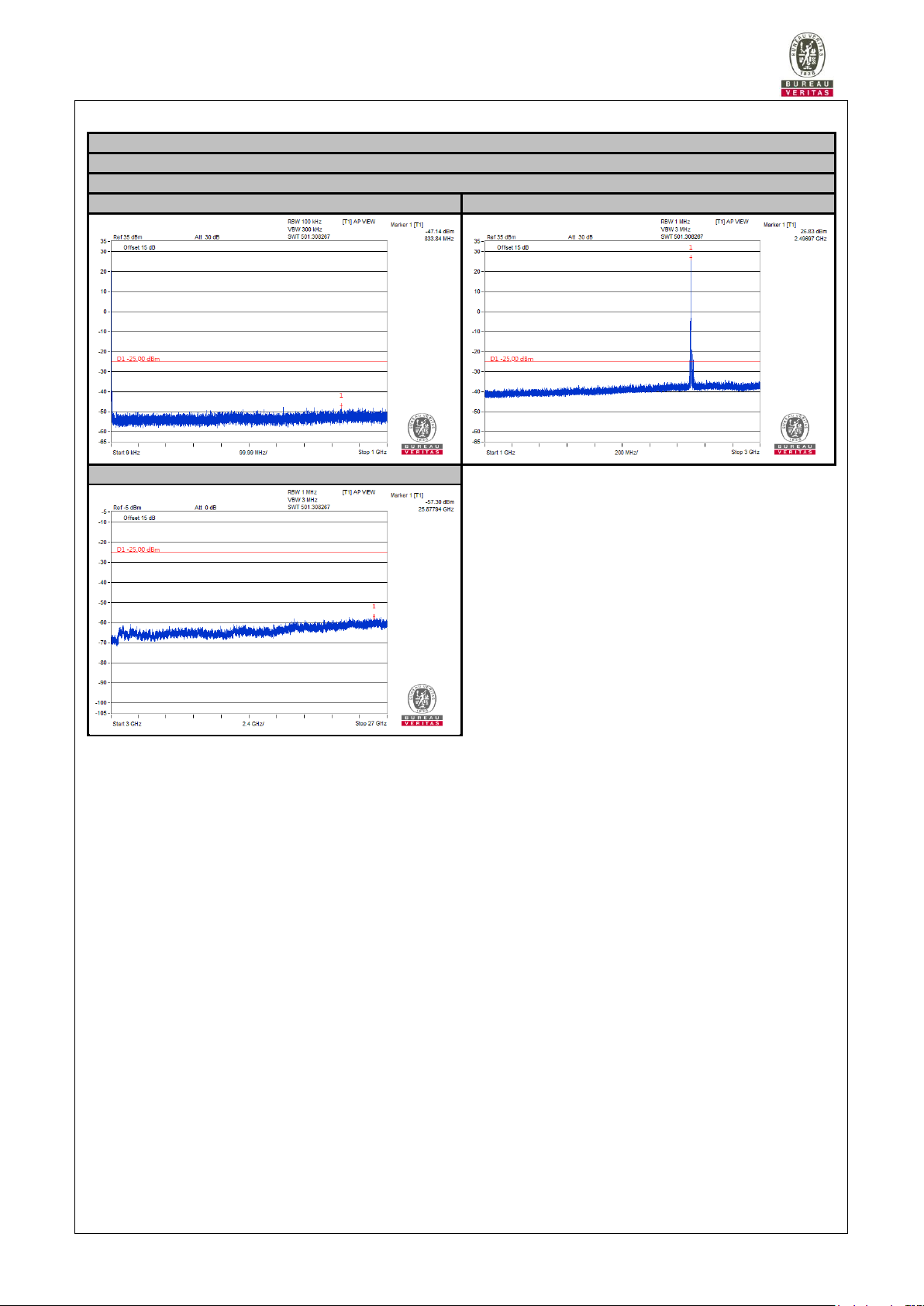

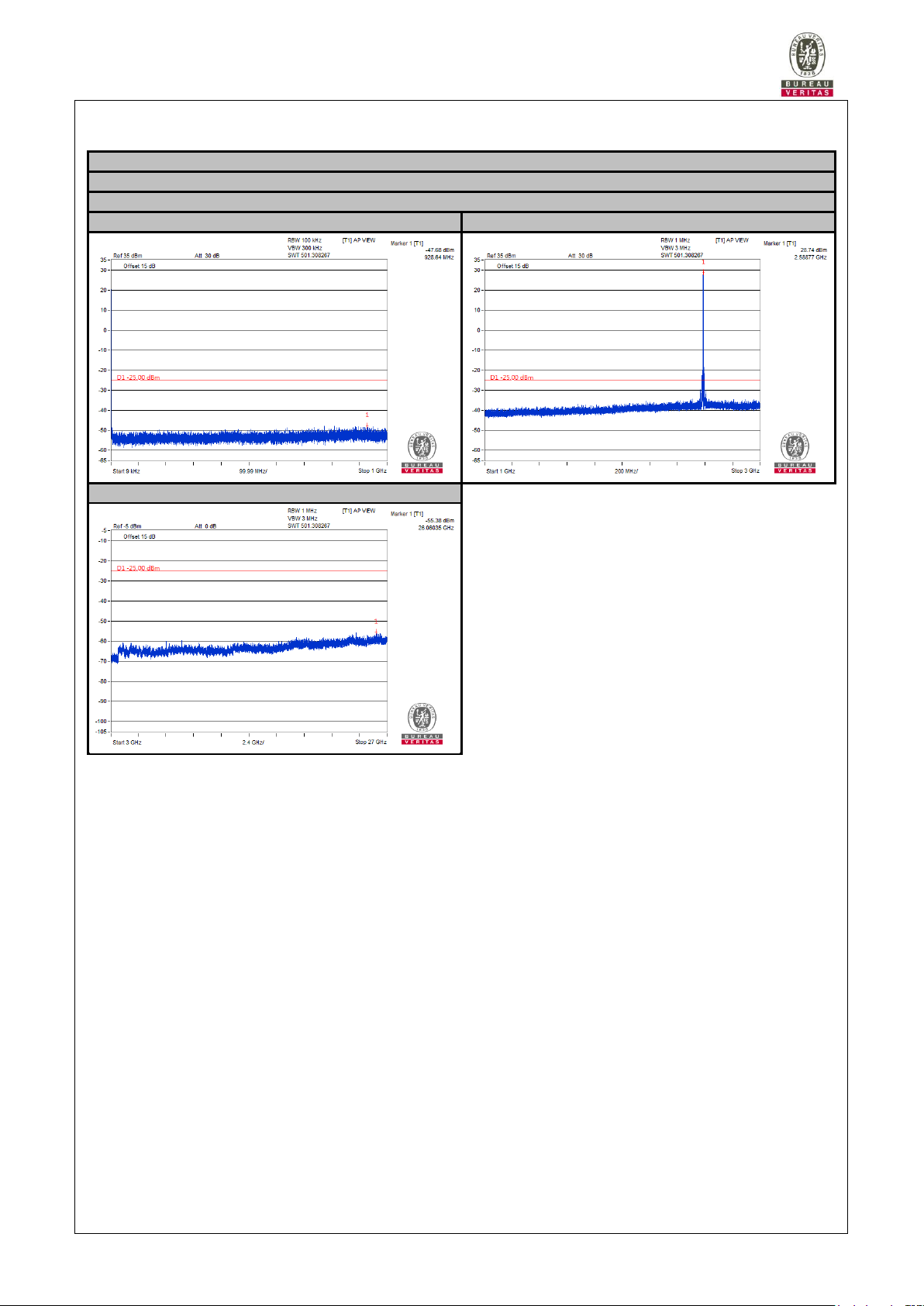

Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
4.7.4 Test Results
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 16
Report No.: RF181001C19-10
Page No. 137 / 235
Report Format Version: 6.1.1
LTE Band 7
Channel Bandwidth: 5 MHz
Channel 21100
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 17
Report No.: RF181001C19-10
Page No. 138 / 235
Report Format Version: 6.1.1
LTE Band 7
Channel Bandwidth: 5 MHz
Channel 21425
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 18
Report No.: RF181001C19-10
Page No. 139 / 235
Report Format Version: 6.1.1
LTE Band 7
Channel Bandwidth: 10 MHz
Channel 20800
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 19
Report No.: RF181001C19-10
Page No. 140 / 235
Report Format Version: 6.1.1
LTE Band 7
Channel Bandwidth: 10 MHz
Channel 21100
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 20
Report No.: RF181001C19-10
Page No. 141 / 235
Report Format Version: 6.1.1
LTE Band 7
Channel Bandwidth: 10 MHz
Channel 21400
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 21
Report No.: RF181001C19-10
Page No. 142 / 235
Report Format Version: 6.1.1
LTE Band 7
Channel Bandwidth: 15 MHz
Channel 20825
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 22
Report No.: RF181001C19-10
Page No. 143 / 235
Report Format Version: 6.1.1
LTE Band 7
Channel Bandwidth: 15 MHz
Channel 21100
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 23
Report No.: RF181001C19-10
Page No. 144 / 235
Report Format Version: 6.1.1
LTE Band 7
Channel Bandwidth: 15 MHz
Channel 21375
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 24
Report No.: RF181001C19-10
Page No. 145 / 235
Report Format Version: 6.1.1
LTE Band 7
Channel Bandwidth: 20 MHz
Channel 20850
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 25
Report No.: RF181001C19-10
Page No. 146 / 235
Report Format Version: 6.1.1
LTE Band 7
Channel Bandwidth: 20 MHz
Channel 21100
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 26
Report No.: RF181001C19-10
Page No. 147 / 235
Report Format Version: 6.1.1

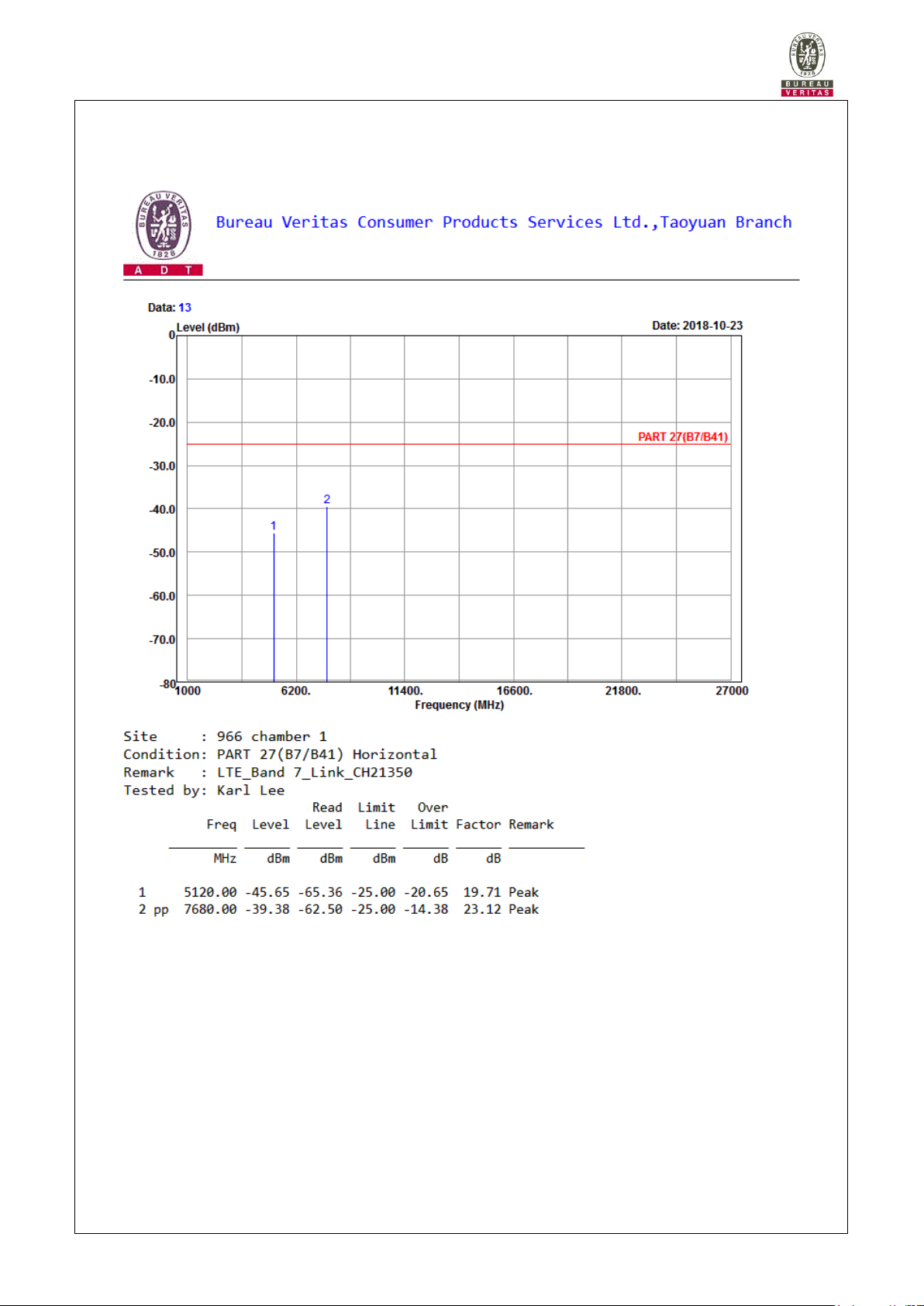

LTE Band 7
Channel Bandwidth: 20 MHz
Channel 21350
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 27
Report No.: RF181001C19-10
Page No. 148 / 235
Report Format Version: 6.1.1

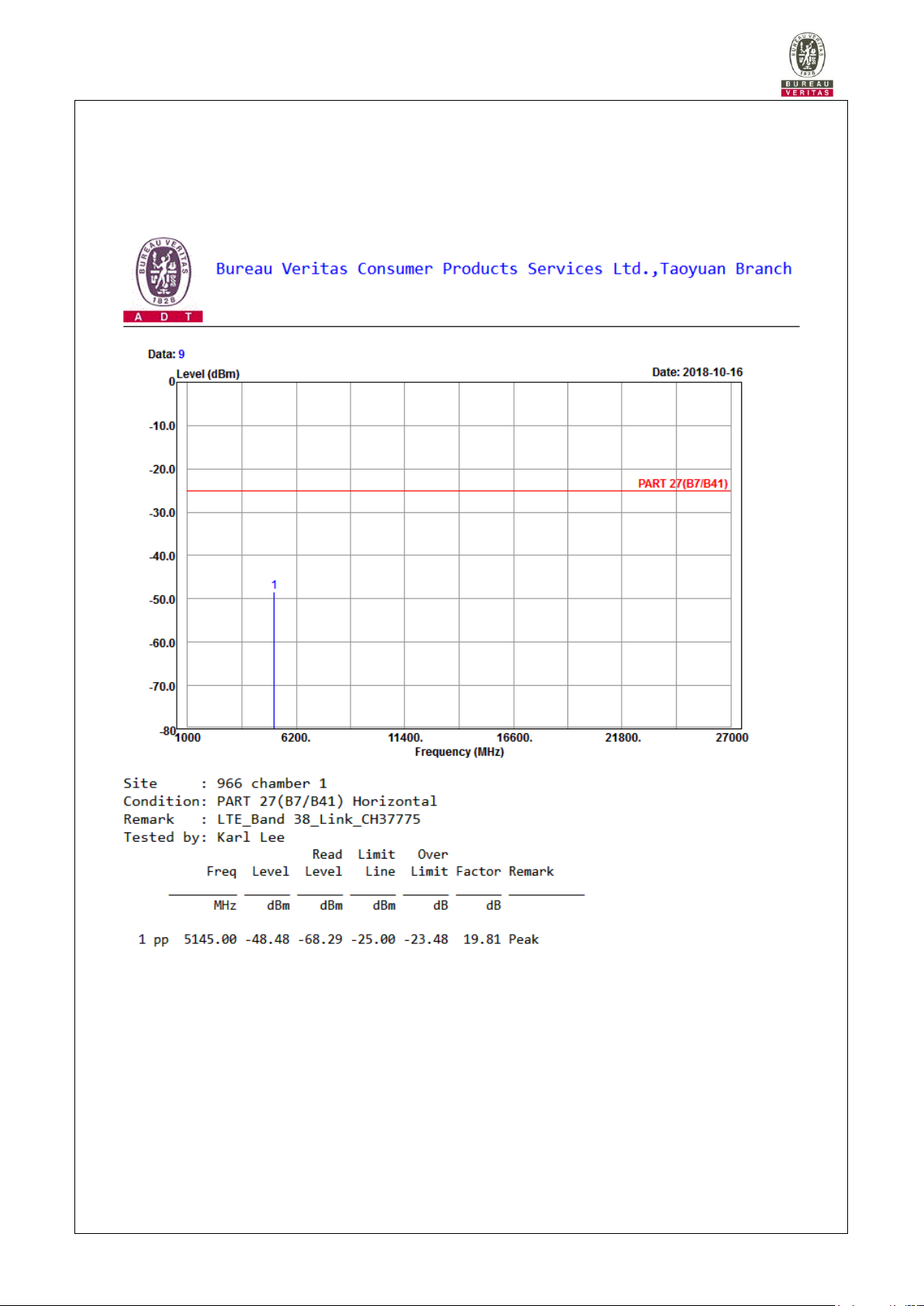

LTE Band 38
Channel Bandwidth: 5 MHz
Channel 37775
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 28
Report No.: RF181001C19-10
Page No. 149 / 235
Report Format Version: 6.1.1
LTE Band 38
Channel Bandwidth: 5 MHz
Channel 38000
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 29
Report No.: RF181001C19-10
Page No. 150 / 235
Report Format Version: 6.1.1
LTE Band 38
Channel Bandwidth: 5 MHz
Channel 38225
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 30
Report No.: RF181001C19-10
Page No. 151 / 235
Report Format Version: 6.1.1
LTE Band 38
Channel Bandwidth: 10 MHz
Channel 37800
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 31
Report No.: RF181001C19-10
Page No. 152 / 235
Report Format Version: 6.1.1
LTE Band 38
Channel Bandwidth: 10 MHz
Channel 38000
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 32
Report No.: RF181001C19-10
Page No. 153 / 235
Report Format Version: 6.1.1
LTE Band 38
Channel Bandwidth: 10 MHz
Channel 38200
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 33
Report No.: RF181001C19-10
Page No. 154 / 235
Report Format Version: 6.1.1
LTE Band 38
Channel Bandwidth: 15 MHz
Channel 37825
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 34
Report No.: RF181001C19-10
Page No. 155 / 235
Report Format Version: 6.1.1
LTE Band 38
Channel Bandwidth: 15 MHz
Channel 38000
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 35
Report No.: RF181001C19-10
Page No. 156 / 235
Report Format Version: 6.1.1
LTE Band 38
Channel Bandwidth: 15 MHz
Channel 38175
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 36
Report No.: RF181001C19-10
Page No. 157 / 235
Report Format Version: 6.1.1

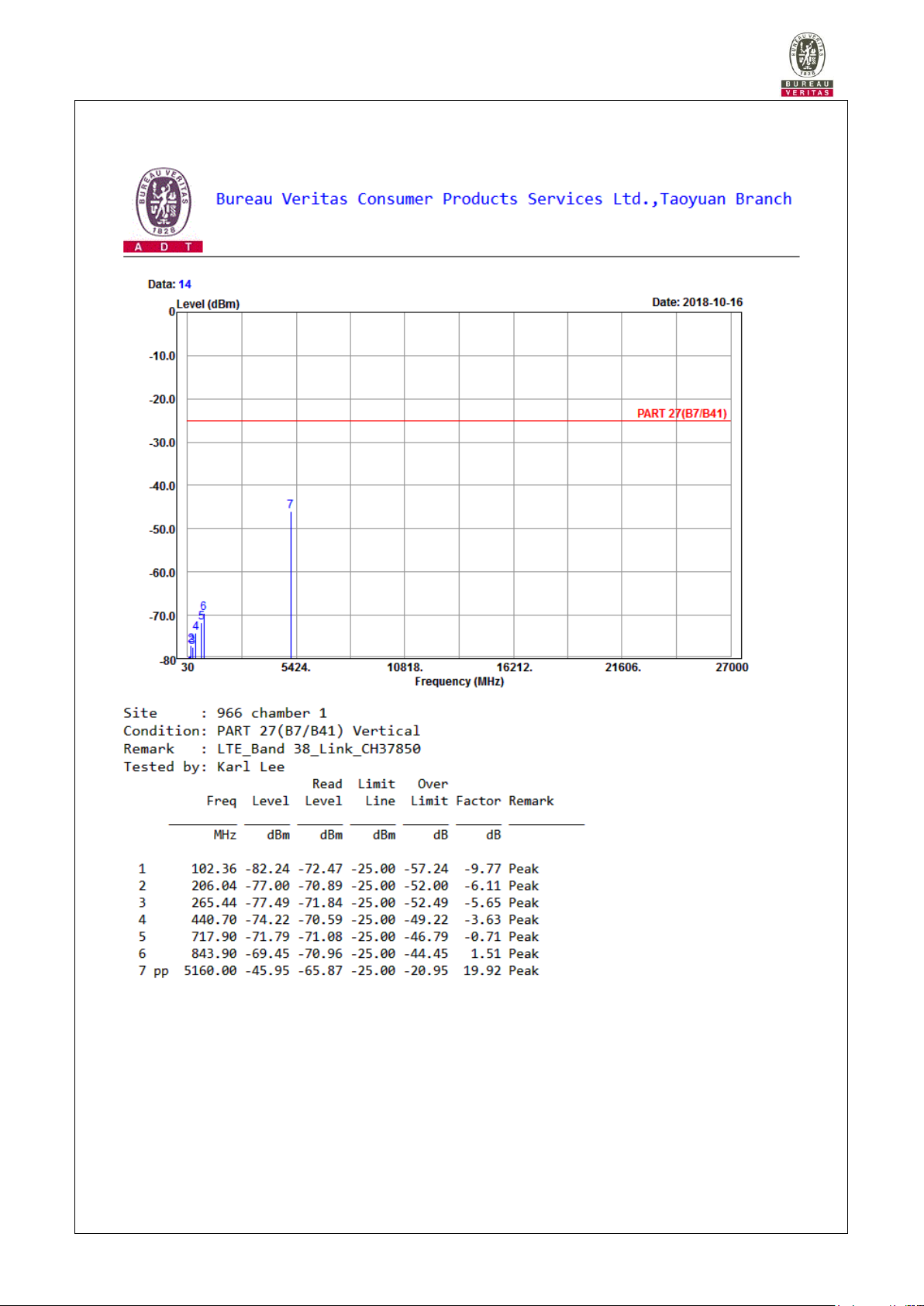

LTE Band 38
Channel Bandwidth: 20 MHz
Channel 37850
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 37
Report No.: RF181001C19-10
Page No. 158 / 235
Report Format Version: 6.1.1
LTE Band 38
Channel Bandwidth: 20 MHz
Channel 38000
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 38
Report No.: RF181001C19-10
Page No. 159 / 235
Report Format Version: 6.1.1

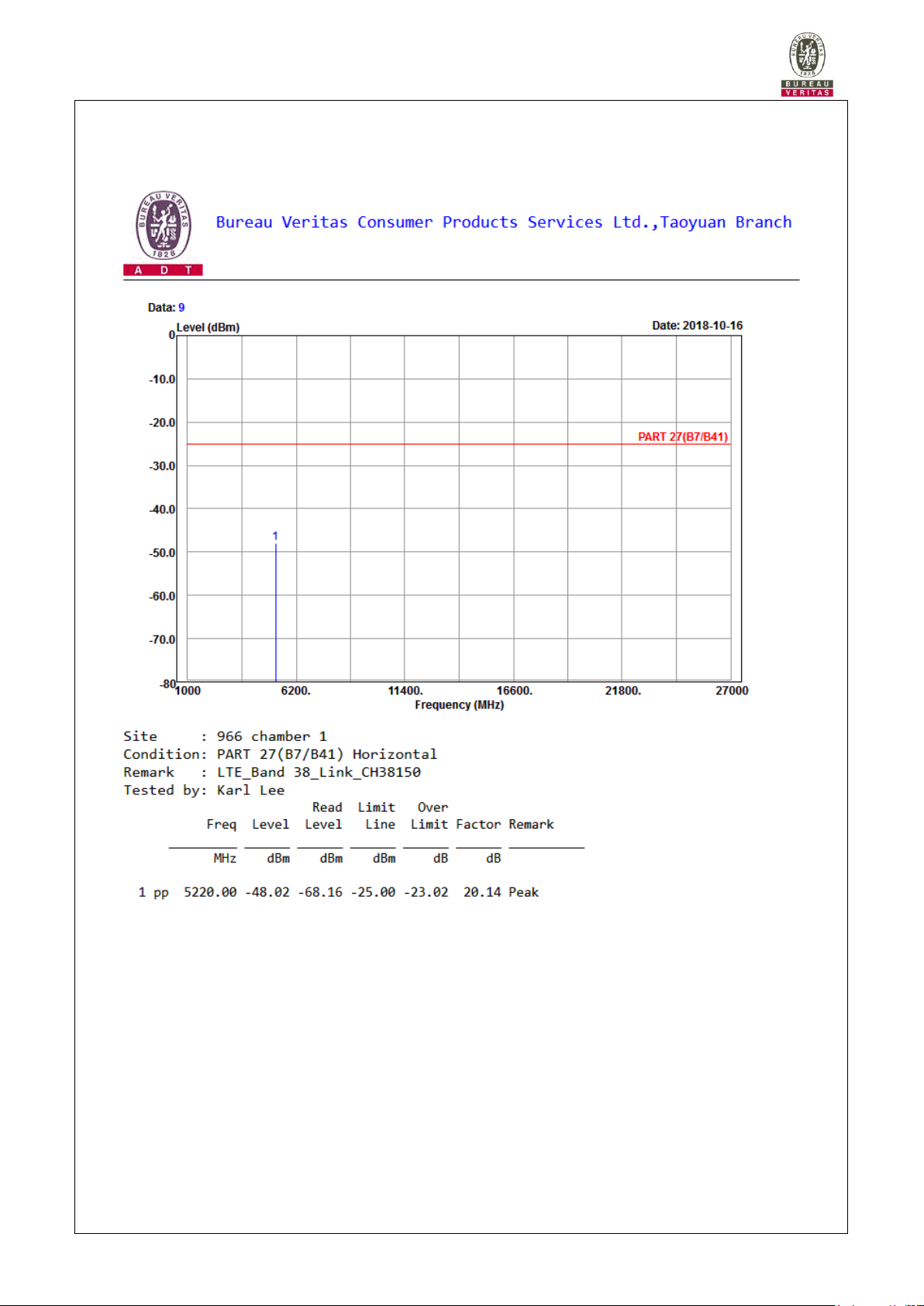

LTE Band 38
Channel Bandwidth: 20 MHz
Channel 38150
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 39
Report No.: RF181001C19-10
Page No. 160 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 5 MHz
Channel 39675
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
<Power Class 2>
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 40
Report No.: RF181001C19-10
Page No. 161 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 5 MHz
Channel 40620
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 41
Report No.: RF181001C19-10
Page No. 162 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 5 MHz
Channel 41565
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 42
Report No.: RF181001C19-10
Page No. 163 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 10 MHz
Channel 39700
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 43
Report No.: RF181001C19-10
Page No. 164 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 10 MHz
Channel 40620
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 44
Report No.: RF181001C19-10
Page No. 165 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 10 MHz
Channel 41540
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 45
Report No.: RF181001C19-10
Page No. 166 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 15 MHz
Channel 39725
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 46
Report No.: RF181001C19-10
Page No. 167 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 15 MHz
Channel 40620
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 47
Report No.: RF181001C19-10
Page No. 168 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 15 MHz
Channel 41515
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 48
Report No.: RF181001C19-10
Page No. 169 / 235

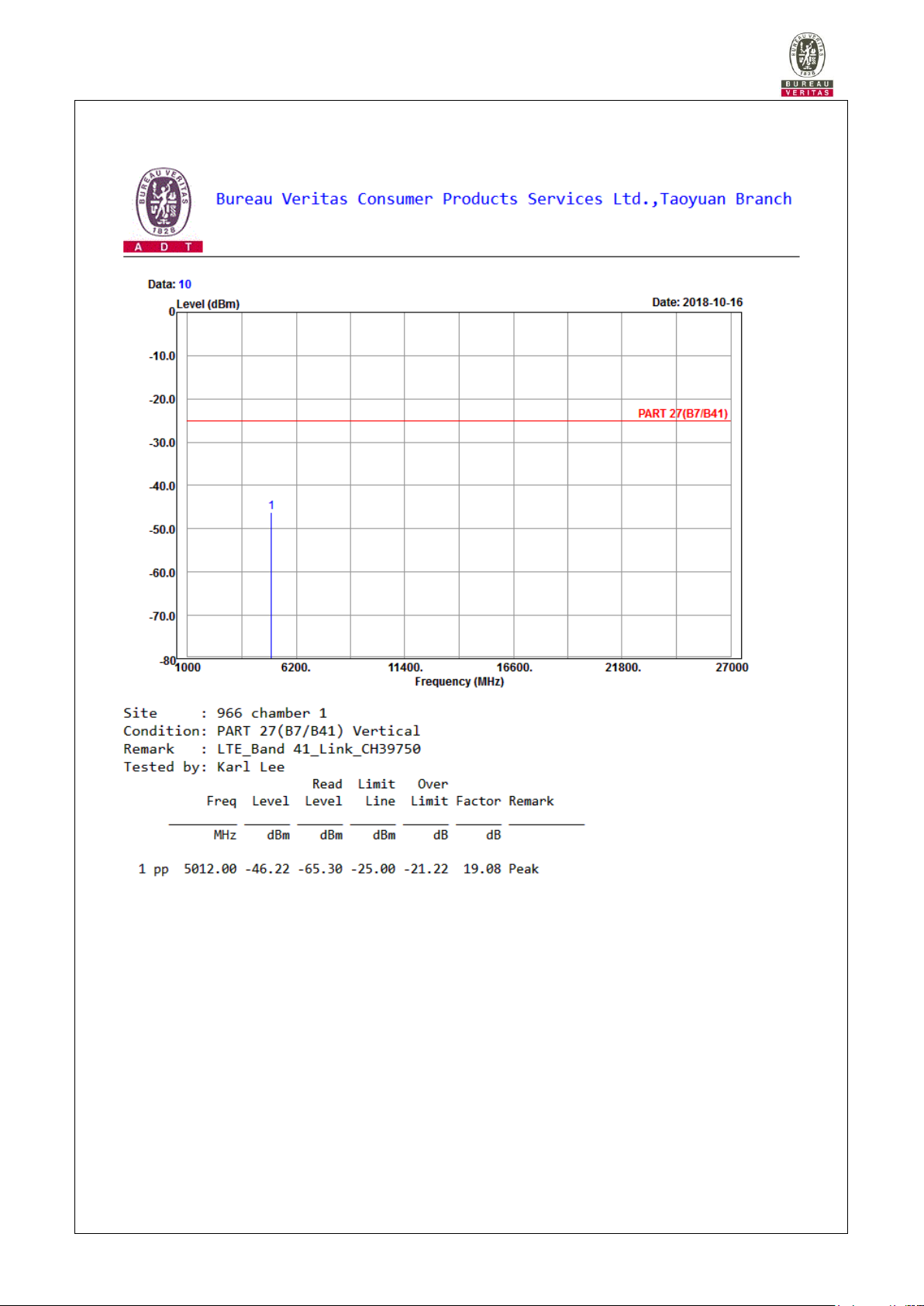

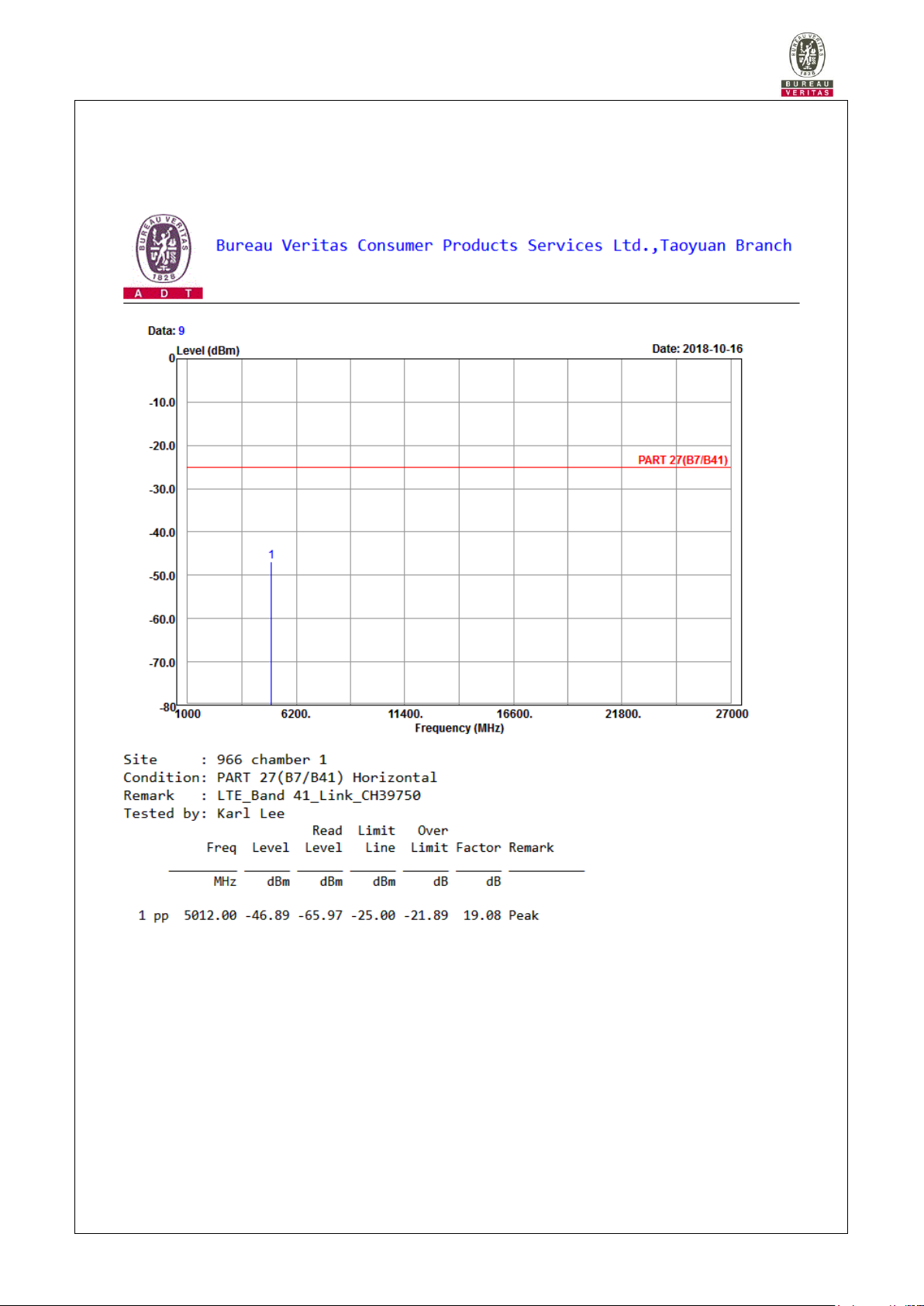

Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 20 MHz
Channel 39750
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 49
Report No.: RF181001C19-10
Page No. 170 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 20 MHz
Channel 40620
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 50
Report No.: RF181001C19-10
Page No. 171 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 20 MHz
Channel 41490
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 51
Report No.: RF181001C19-10
Page No. 172 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 5 MHz
Channel 39675
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
<Power Class 3>
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 52
Report No.: RF181001C19-10
Page No. 173 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 5 MHz
Channel 40620
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 53
Report No.: RF181001C19-10
Page No. 174 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 5 MHz
Channel 41565
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 54
Report No.: RF181001C19-10
Page No. 175 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 10 MHz
Channel 39700
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 55
Report No.: RF181001C19-10
Page No. 176 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 10 MHz
Channel 40620
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 56
Report No.: RF181001C19-10
Page No. 177 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 10 MHz
Channel 41540
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 57
Report No.: RF181001C19-10
Page No. 178 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 15 MHz
Channel 39725
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 58
Report No.: RF181001C19-10
Page No. 179 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 15 MHz
Channel 40620
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 59
Report No.: RF181001C19-10
Page No. 180 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 15 MHz
Channel 41515
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 60
Report No.: RF181001C19-10
Page No. 181 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 20 MHz
Channel 39750
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 61
Report No.: RF181001C19-10
Page No. 182 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 20 MHz
Channel 40620
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 62
Report No.: RF181001C19-10
Page No. 183 / 235
Report Format Version: 6.1.1
LTE Band 41
Channel Bandwidth: 20 MHz
Channel 41490
Frequency Range: 9 kHz ~ 1 GHz
Frequency Range: 1 GHz ~ 3 GHz
Frequency Range: 3 GHz ~ 27 GHz
Note: The signal over the limit in 9 kHz is from spectrum analyzer.
Page 63
Report No.: RF181001C19-10
Page No. 184 / 235
Report Format Version: 6.1.1
4.8 Radiated Emission Measurement
4.8.1 Limits of Radiated Emission Measurement
The power of any emission outside a licensee's frequency block shall be attenuated below the transmitter
power (P) by at least 55 + 10 log (P) dB. The limit of emission is equal to -25 dBm.
4.8.2 Test Procedure
a. Substitution method is used for E.I.R.P measurement. In the semi-anechoic chamber, EUT placed on the
0.8 m (below or equal 1 GHz) and/or 1.5 m (above 1 GHz) height of Turn Table, rotated the table around
360 degrees to search the maximum radiation power and receiver antenna shall be rotated vertical and
horizontal polarization and moved height from 1 m to 4 m to find the maximum polar radiated power. The
“Read Value” is the spectrum reading the maximum power value.
b. The substitution horn antenna is substituted for EUT at the same position and signals generator export the
CW signal to the substitution antenna via a TX cable. Rotated the Turn Table and moved receiving
antenna to find the maximum radiation power. Adjust output power level of S.G to get a Value of spectrum
reading equal to “Read Value” of step a. Record the power level of S.G.
c. EIRP = Output power level of S.G – TX cable loss + Antenna gain of substitution horn.
d. E.R.P power can be calculated form E.I.R.P power by subtracting the gain of dipole, E.R.P power =
E.I.R.P power - 2.15 dB.
NOTE: The resolution bandwidth of spectrum analyzer is 1 MHz and the video bandwidth is 3 MHz.
4.8.3 Deviation from Test Standard
No deviation.
Page 64
Report No.: RF181001C19-10
Page No. 185 / 235
Report Format Version: 6.1.1
10m
Ant. Tower
1-4m
Variable
Turn Table
EUT&
Support Units
Ground Plane
Test Receiver
80cm
3 m
1-4 m
Variable
Turn Table
EUT&
Support Units
Ground Plane
Test Receiver
150 cm
Absorber
Ant. Tower
3 m
4.8.4 Test Setup
<Radiated Emission below or equal 1 GHz>
<Radiated Emission above 1 GHz>
For the actual test configuration, please refer to the attached file (Test Setup Photo).
Page 65
Report No.: RF181001C19-10
Page No. 186 / 235
Report Format Version: 6.1.1
4.8.5 Test Results
LTE Band 7
Channel Bandwidth: 5 MHz / QPSK
Low Channel
Page 66
Report No.: RF181001C19-10
Page No. 187 / 235
Report Format Version: 6.1.1
Page 67
Report No.: RF181001C19-10
Page No. 188 / 235
Report Format Version: 6.1.1
Middle Channel
Page 68
Report No.: RF181001C19-10
Page No. 189 / 235
Report Format Version: 6.1.1
Page 69
Report No.: RF181001C19-10
Page No. 190 / 235
Report Format Version: 6.1.1
High Channel
Page 70
Report No.: RF181001C19-10
Page No. 191 / 235
Report Format Version: 6.1.1
Page 71
Report No.: RF181001C19-10
Page No. 192 / 235
Report Format Version: 6.1.1
Channel Bandwidth: 20 MHz / QPSK
Low Channel
Page 72
Report No.: RF181001C19-10
Page No. 193 / 235
Report Format Version: 6.1.1
Page 73
Report No.: RF181001C19-10
Page No. 194 / 235
Report Format Version: 6.1.1
Middle Channel
Page 74
Report No.: RF181001C19-10
Page No. 195 / 235
Report Format Version: 6.1.1
Page 75
Report No.: RF181001C19-10
Page No. 196 / 235
Report Format Version: 6.1.1
High Channel
Page 76
Report No.: RF181001C19-10
Page No. 197 / 235
Report Format Version: 6.1.1
Page 77
Report No.: RF181001C19-10
Page No. 198 / 235
Report Format Version: 6.1.1
LTE Band 38
Channel Bandwidth: 5 MHz / QPSK
Low Channel
Page 78
Report No.: RF181001C19-10
Page No. 199 / 235
Report Format Version: 6.1.1
Page 79
Report No.: RF181001C19-10
Page No. 200 / 235
Report Format Version: 6.1.1
Middle Channel
Page 80
Report No.: RF181001C19-10
Page No. 201 / 235
Report Format Version: 6.1.1
Page 81
Report No.: RF181001C19-10
Page No. 202 / 235
Report Format Version: 6.1.1
High Channel
Page 82
Report No.: RF181001C19-10
Page No. 203 / 235
Report Format Version: 6.1.1
Page 83
Report No.: RF181001C19-10
Page No. 204 / 235
Report Format Version: 6.1.1
Channel Bandwidth: 20 MHz / QPSK
Low Channel
Page 84
Report No.: RF181001C19-10
Page No. 205 / 235
Report Format Version: 6.1.1
Page 85
Report No.: RF181001C19-10
Page No. 206 / 235
Report Format Version: 6.1.1
Middle Channel
Page 86
Report No.: RF181001C19-10
Page No. 207 / 235
Report Format Version: 6.1.1
Page 87
Report No.: RF181001C19-10
Page No. 208 / 235
Report Format Version: 6.1.1
High Channel
Page 88
Report No.: RF181001C19-10
Page No. 209 / 235
Report Format Version: 6.1.1
Page 89
Report No.: RF181001C19-10
Page No. 210 / 235
Report Format Version: 6.1.1
<Power Class 2>
LTE Band 41
Channel Bandwidth: 5 MHz / QPSK
Low Channel
Page 90
Report No.: RF181001C19-10
Page No. 211 / 235
Report Format Version: 6.1.1
Page 91
Report No.: RF181001C19-10
Page No. 212 / 235
Report Format Version: 6.1.1
Middle Channel
Page 92
Report No.: RF181001C19-10
Page No. 213 / 235
Report Format Version: 6.1.1
Page 93
Report No.: RF181001C19-10
Page No. 214 / 235
Report Format Version: 6.1.1
High Channel
Page 94
Report No.: RF181001C19-10
Page No. 215 / 235
Report Format Version: 6.1.1
Page 95
Report No.: RF181001C19-10
Page No. 216 / 235
Report Format Version: 6.1.1
Channel Bandwidth: 20 MHz / QPSK
Low Channel
Page 96
Report No.: RF181001C19-10
Page No. 217 / 235
Report Format Version: 6.1.1
Page 97
Report No.: RF181001C19-10
Page No. 218 / 235
Report Format Version: 6.1.1
Middle Channel
Page 98
Report No.: RF181001C19-10
Page No. 219 / 235
Report Format Version: 6.1.1
Page 99
Report No.: RF181001C19-10
Page No. 220 / 235
Report Format Version: 6.1.1
High Channel
Page 100
Report No.: RF181001C19-10
Page No. 221 / 235
Report Format Version: 6.1.1
Loading...
