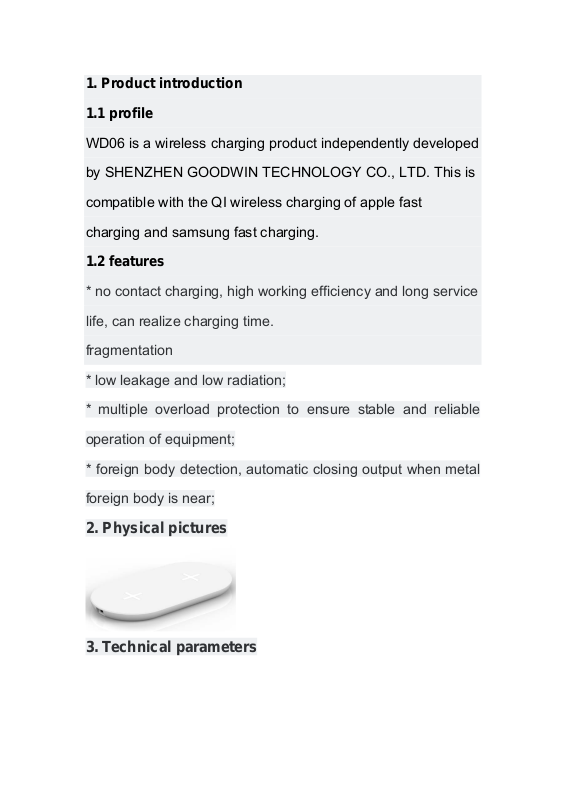

1. Product introduction
1.1 profile
WD06 is a wireless charging product independently
by SHENZHEN GOODWIN TECHNOLOGY CO., LTD. This is
compatible with the QI wireless charging of apple fast
charging and samsung fast charging.
1.2 features
* no contact charging, high working efficiency and long service
life, can realize charging time.
fragmentation
* low leakage and low radiation;
* multiple overload protection to ensure stable and reliable
developed
operation of equipment;
* foreign body detection, automatic closing output when metal
foreign body is near;
2. Physical pictures
3. Technical parameters
working frequency: 110.1-175.2kHz.
H-filed strength: 1.13dBμA/m at 10m (for EU)
Weight: 158.4g + 10 g
Ambient temperature: - 20 ~ + 50 ℃
Storage temperature: - 30 ~ + 60 ℃
Dimensions:
4. Operation and function.
4.1 features
Power indicator function:
Power: The white light goes off after one second
Standby: The light is not bright
Charging: The white light normally on
Foreign body detection: white light flashing
5. Safety Instructions
1) Do not exposer to excessive heat such as sunshine or fire.
2) Do not charge in damp or wet conditions.
3) Do not user the unit near explosive gases or flammable
materials.
4) Do not touch the device with wet hands.
5) Do not drop, crush, impact, or mechanical abuse the unit.
6. FCC Compliance Statement:
This equipment has been tested and found to comply with the
limits for a WPC device, pursuant to Part 18 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
NOTE: This equipment has been tested and found to comply
with the limits for a wireless power charger, pursuant to Part 18
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician
for help.
CAUTION: Changes or modifications not expressly approved
by the party responsible for compliance could void the user’s
authority to operate the product.
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm
between the radiator and your body. This transmitter must not
be co-located or operating in conjunction with any other
antenna or transmitter.
