Goodwe SEC1000 User Manual

SEC1000 USER MANUAL
Smart Energy Controller
1 Symbols
2 Safety and Warning
3 Installation
3.1 Mounting Instruction
3.2 Ove rv iew an d Pac ka gi ng
4 System Operation
5 Troubleshooting
09
09
1 Symbols
Caution! - Failure to observe a warning indicated in this manual may result in minor or moderate injury.
Danger of high voltage and electric shock!
Product should not be disposed as normal household waste.
CE Mark
Keep Dry – The package/product must be protected from excessive humidity and must accordingly be stored under cover.
Components of the product can be recycled.
This side up - The package must always be transported, handled and stored in such a way that the arrows always point upwards.
No more than six (6) identical packages be stacked on each other.
The package/product should be handled carefully and never be tipped over or slung.
2 Safety and Warning
SEC1000 of Jiangsu GoodWe Power Supply Technology Co.,Ltd (hereinafter referred to as GoodWe) has been designed and tested
strictly according to the international safety regulation.As electrical and electric equipment,Safety Regulation shall be followed
during installation and maintenance.Improper operation may bring severe damage to the operator,the third party and other
properties.
Installation.maintenance of SEC1000 must be performed by qualified personnel.in compliance with local electrical standards.
regulations and the requirements of local power authorities.
To avoid electric shock,make sure the connection between SEC1000 and AC output of inverter. SEC1000 and Grid, is disconnected
before performing any installation or maintenance.
When in operation,users should not touch any of the electrical parts of SEC1000 ,like internal components.cables, to avoid electic
shock.
All electrical installations must comply with local electrical standards and obtain permission from local power authorities before
SEC1000 can be connected to the grid by professionals.
Before replacing any internal components of SEC1000, the connection between the inverter and SEC1000,the power grid and
SEC1000 must be disconnected, and the newly replaced components must meet the requirements of SEC1000. Otherwise,
GoodWe will not assume the responsibility and quality assurance for the personal harm.
Make sure that the AC input voltage and input current match the rated voltage and current of SEC1000, otherwise
the components will be damaged or cannot work properly,and GoodWe will not assume the responsibility and quality assurance
for this case.
There are lightning protection modules inside.Make sure to connect the internal PE with the ground when intalling SEC1000.
When in operation, do not plug or unplug cables of SEC1000.
SEC1000 must be Installed out of reach of children.
Appropriate antistatic measures should be taken.
3 Mounting

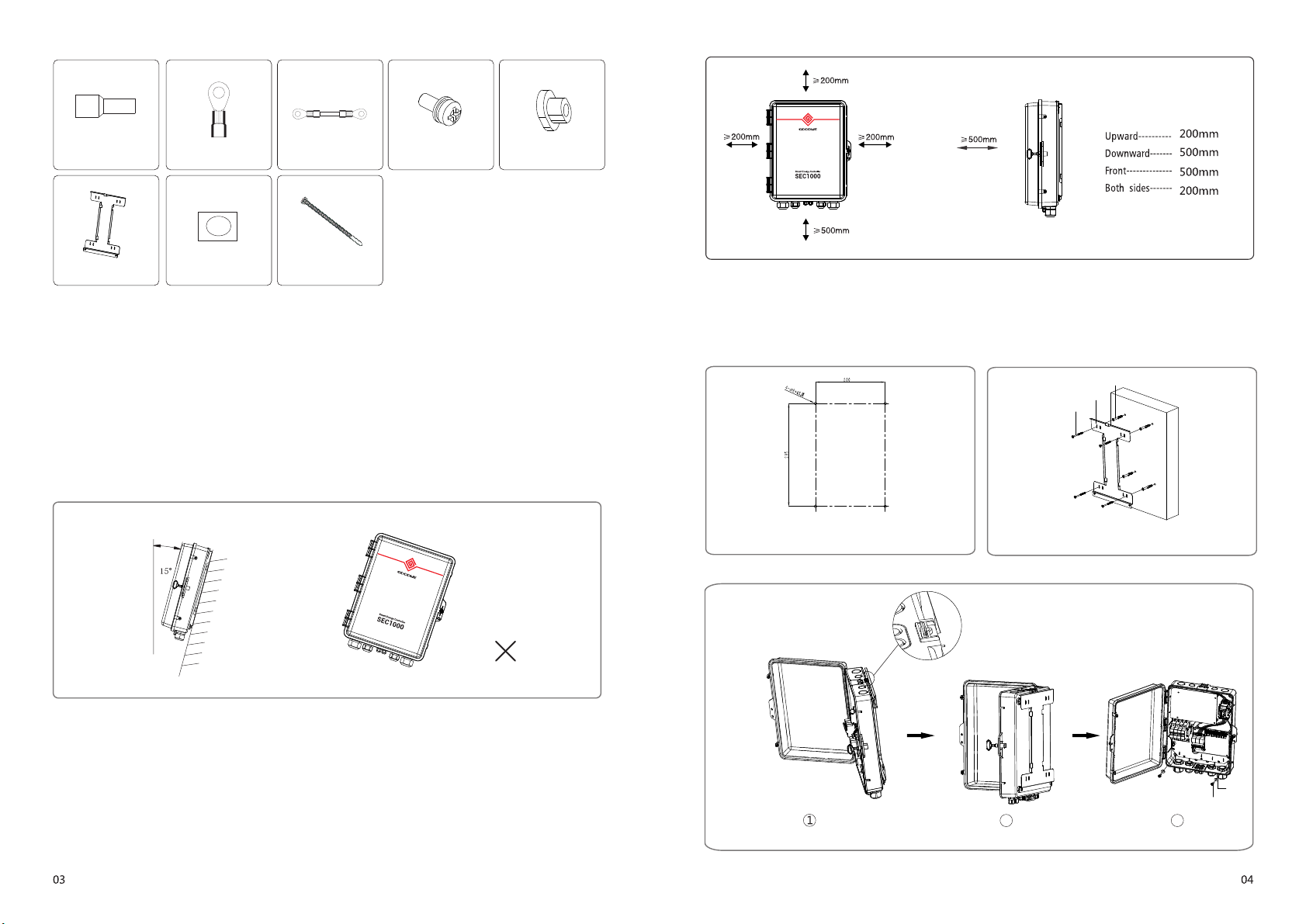

3.1 Mounting Instruction
SEC1000 must be installed where there is no significant shaking, shock vibration and no rain or snow.
SEC1000 shall be installed at eye level for easy operation and maintenance.
SEC1000 shoud not be installed near inflammable and explosive items.Any strong electro-magnetic equipment should be
kept away from installation site.
SEC1000 shall be installed at a location free from explosive hazardous media and free from gas and dust sufficient to corrode
metals and destroy insulation.
SEC1000 parameters and warning signs must be clearly visible after installation.
SEC1000 should be installed without sunshine, rain and snow
3.2 Overview and Packaging
After opening the package,confirm if it is consitent with specification of SEC1000 you purchased.
3.2.1 SEC1000 Overview
1. Voltage input port
2. GPRS antenna output port
3. Current input (external CT) port
4. LAN network port
1 2 3
4 5
5. Communication port
Figure3.2.1
3.2.2 Package
.....
..
.
...
.
.
.......
..
..
.
.
...
..
.
SEC1000×1
Expans ion scr ew×4
2 Pin te r min al×3
Key×1
