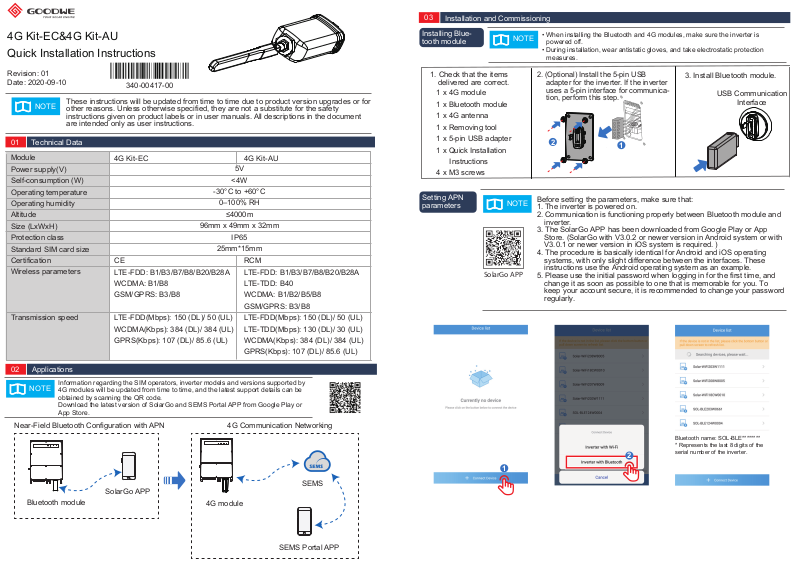

GOODWE 4G Kit-EC, 4G Kit-AU Quick Start Guide
4G Kit-EC&4G Kit-AU
Quick Installation Instructions
03
Installation and Commissioning
Installing Bluetooth module
NOTE
• When installing the Bluetooth and 4G modules, make sure the inverter is
powered off.
• During installation, wear antistatic gloves, and take electrostatic protection
measures.
Revision: 01
Date: 2020-09-10
NOTE
These instructions will be updated from time to time due to product version upgrades or for
other reasons. Unless otherwise specified, they are not a substitute for the safety
instructions given on product labels or in user manuals. All descriptions in the document
are intended only as user instructions.
01
Technical Data
Module
Power supply(V)
Self-consumption (W)
Operating temperature
Operating humidity
Altitude
Size (LxWxH)
Protection class
Standard SIM card size
Certification
Wireless parameters
Transmission speed
340-00417-00
4G Kit-EC
-30°C to +60°C
0–100% RH
≤4000m
96mm x 49mm x 32mm
25mm*15mm
CE
LTE-FDD: B1/B3/B7/B8/B20/B28A
WCDMA: B1/B8
GSM/GPRS: B3/B8
LTE-FDD(Mbps): 150 (DL)/ 50 (UL)
WCDMA(Kbps): 384 (DL)/ 384 (UL)
GPRS(Kbps): 107 (DL)/ 85.6 (UL)
4G Kit-AU
5V
<4W
IP65
RCM
LTE-FDD: B1/B3/B7/B8/B20/B28A
LTE-TDD: B40
WCDMA: B1/B2/B5/B8
GSM/GPRS: B3/B8
LTE-FDD(Mbps): 150 (DL)/ 50 (UL)
LTE-TDD(Mbps): 130 (DL)/ 30 (UL)
WCDMA(Kbps): 384 (DL)/ 384 (UL)
GPRS(Kbps): 107 (DL)/ 85.6 (UL)
1. Check that the items
delivered are correct.
1 x 4G module
1 x Bluetooth module
1 x 4G antenna
1 x Removing tool
1 x 5-pin USB adapter
1 x Quick Installation
Instructions
4 x M3 screws
Setting APN
parameters
SolarGo APP
NOTE
2. (Optional) Install the 5-pin USB
adapter for the inverter. If the inverter
uses a 5-pin interface for communication, perform this step.
2
1
3. Install Bluetooth module.
USB Communication
Interface
Before setting the parameters, make sure that:
1. The inverter is powered on.
2. Communication is functioning properly between Bluetooth module and
inverter.
3. The SolarGo APP has been downloaded from Google Play or App
Store. (SolarGo with V3.0.2 or newer version in Android system or with
V3.0.1 or newer version in iOS system is required. )
4. The procedure is basically identical for Android and iOS operating
systems, with only slight difference between the interfaces. These
instructions use the Android operating system as an example.
5. Please use the initial password when logging in for the first time, and
change it as soon as possible to one that is memorable for you. To
keep your account secure, it is recommended to change your password
regularly.
02
Applications
NOTE
Information regarding the SIM operators, inverter models and versions supported by
4G modules will be updated from time to time, and the latest support details can be
obtained by scanning the QR code.
Download the latest version of SolarGo and SEMS Portal APP from Google Play or
App Store.
Near-Field Bluetooth Configuration with APN 4G Communication Networking
SEMS
Bluetooth module
SolarGo APP
4G module
SEMS Portal APP
3
Bluetooth name: SOL-BLE********
Bluetooth name: SOL-BLE********
* Enter the last 8 digits of the serial
* Represents the last 8 digits of the
number of the inverter
2
serial number of the inverter.
1
4
Initial Password: 1234
8
Powering on the device
1. Power on the inverter, thus powering on the 4G module.
2. Observe the status of the indicators on the 4G module and the inverter. (When the communication
indicator on the inverter is ON continuously, it means that communication is functioning properly. For
other indicator status, refer to the User Manual of the relevant inverter model.)
7
Indicator
6
Power
Commu-
5
nication
9
Colour Status Notes Description
Green
Blue
ON continuously
OFF
Flashing slowly
(On for 0.2s, Off for 1.8s)
Flashing slowly
(On for 1.8s, Off for 0.2s)
Flashing rapidly
(On for 0.125s, Off for 0.125s)
Normal
Abnormal
Normal
Abnormal
Normal Standby
Abnormal
Normal
Module powered on
Module not powered on
Searching for connections
Staying off for 15 seconds after illuminating,
which indicates the SIM card is not inserted or
it has a loose connection. Insert the SIM card,
or remove it and then re-insert.
If the indicator stays in this state for an extended
period (more than 5 minutes), the APN is set
incorrectly, the SIM card has no signal, the signal
strength is weak, or there is no data. Please
check the APN information and reset the APN
parameters on the SolarGo APP. Contact the
operator to verify the SIM card signal. Check
whether the SIM card credit and data are
sufficient. If not, please top up.
Data uploading
Installing 4G
module
2
The 4G antenna cable is
connected to the enclosure,
so take care not to damage
the cable when removing.
6
Click
NOTE
1
• When installing the Bluetooth and 4G modules, make sure the inverter is
powered off.
• During installation, wear antistatic gloves, and take electrostatic protection
measures.
Inverter
USB
5
3
4
Interface
8
Click
7
04
Device Replacement
1. Before replacing the 4G module, check that
the inverter is powered down, and the new
4G module is ready for installation.
1
2. Use the special tool supplied to remove
4G module.
3. (Optional) If SIM card is bound to an existing
device, consult the operator to unbind it.
4. Install the new 4G module.
5. Power on the inverter.
2
9
JIANGSU GOODWE POWER SUPPLY
No. 90 Zijin Rd., New District, Suzhou, China
TECHNOLOGY CO.,LTD
T: +86 512 6239 6771
www.goodwe.com
