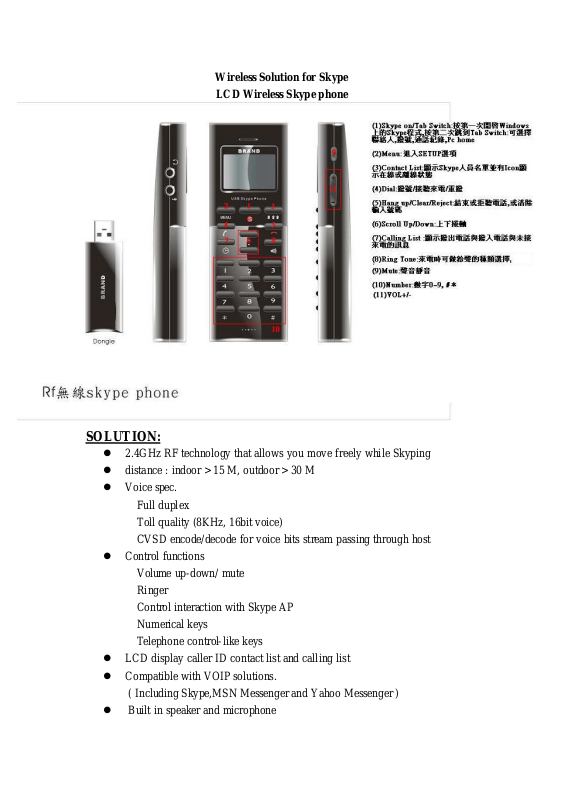

Page 1
Wireless Solution for Skype
LCD Wireless Skype phone
SOLUTION:
l 2.4GHz RF technology that allows you move freely while Skyping
l distance : indoor > 15 M, outdoor > 30 M
l Voice spec.
Full duplex
Toll quality (8KHz, 16bit voice)
CVSD encode/decode for voice bits stream passing through host
l Control functions
Volume up -down/ mute
Ringer
Control interaction with Skype AP
Numerical keys
Telephone control-like keys
l LCD display caller ID contact list and calling list
l Compatible with VOIP solutions.
( Including Skype,MSN Messenger and Yahoo Messenger )
l Built in speaker and microphone
Page 2
l Implement Echo -elimination technology for quality sound
l Buzzer function for incoming call alerts
l Li-Polymer Battery recharged via USB
l 5-types of hold music and 10 types of ringers
l Built-in API commands for SKYPE system development
USB interface:
USB 1.1 compliant
USB PnP, Meet USB audio class driver and HID class driver of Microsoft OS
CONNECTOR:
USB B type female connector
RF SPEC:
Compliant with BT 1.1 CLASS 1
RF out power : 36.64 mW
Supports frequency hopping on 79 channels
Up to seven simultaneous connections within effective range
Transmitter power : +15.64 dBm for Dongle/ +16.6 dBm for Phone
RSSI : -35 to -80 dBm
RF interface baud rate 1Mbps transmit & receive
Profile Support : headset, handfree , serial port(SPP), Generic Access
Profile(GAP), and Service Discovery Profile(SDP)
Adaptive Frequency Hopping (AFH), support for Bluetooth + Wi -Fi
co-existence
Speaker:
Size: 13 mm
Response Frequency: 300 ~ 3.4K Hz
Output Impedance: 150 ohm
Microphone:
Sensitivity: - 40 +/- 2 dB
Directivity: Onmidirectional
Page 3
Response Frequency: 20 ~ 20K Hz
Operating Voltage:
DC 5V ( Bus-Powered )
LCD DISPLAY:
Resolution: 128 x32 pixels
Display Mode : FSTN,POSITIVE,TRANSFULECTIVE
Size: 31.0 X 19 mm
Backlight: BLUE
Multiple Languages: COMMAND-ENGLISH
Traditional Chinese or Simplified Chinese
Japanese
Temperature:
Operating: 0~40 °C
Storage: -20~60 °C
Humidity (Non-Condensing):
Operating: < 90 %
Storage: < 95 %
Standby/talk time:
60 hours / 6 hours
Battery capacity:
850 mAh Li-Polymer battery
Page 4
Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that maycause undesired
operation.
Any changes or modifications (including the antennas) made to this device that are not expressly approved by
the manufacturer may void the user ’s authority to operate the equipment.
FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set
forth for an uncontrolled environment. This device and its antenna must not be co -located or operating in
conjunction with any other antenna or transmitter.
