INTRODUCTION
This instruction manual is important to you. Please read it. In a short time it shows exactly how to connect, operate,
and adjust this unit for best performance.
It can save you money. It shows simple things to do and check before you call for help and save the cost of unnecessary
service or call out charge.
INTRODUCTION ....................................................................................................................................................................... 1
IMPORTANT SAFEGUARDS................................................................................................................................................... 2
WARNINGS AND CAUTIONS ................................................................................................................................................. 3
LOCATION OF CONTROLS.................................................................................................................................................... 4
CONNECTING THE UNIT AND SPEAKERS.......................................................................................................................... 5
CONNECTIONS AND DISPLAY INFORMA TION .................................................................................................................. 5
REMOTE CONTROL ................................................................................................................................................................. 6
POWER SOURCE ..................................................................................................................................................................... 7
BASIC FUNCTIONS ................................................................................................................................................................. 7
- The clock setting .................................................................................................................................................................... 7
- Turning on the power .............................................................................................................................................................. 7
- Selecting the source .............................................................................................................................................................. 7
- Volume control ........................................................................................................................................................................ 7
- Selecting the sound modes ................................................................................................................................................ 7-8
USING THE CD ......................................................................................................................................................................... 8
- Playing the entire disc normal play ...................................................................................................................................... 8
- Basic disc operations ............................................................................................................................................................. 8
- Programming the track playing order ................................................................................................................................ 8-9
DAB - DIGITAL AUDIO BROADCASTS ........................................................................................................................... 9-12
CLOCK / TIMER OPERATION .............................................................................................................................................. 12
- Using the timer ...................................................................................................................................................................... 12
- Usin g the slee p time r ......................................................................................................................................................12-13
GENERAL INFORMATION..................................................................................................................................................... 13
- Maintenance .......................................................................................................................................................................... 13
- Trouble Shooting guide ........................................................................................................................................................ 13
SPECIFICATIONS .................................................................................................................................................................. 14
Pack contents :
1 x main unit
1 x remote control
2 x loudspeakers
1 x owner manual
1 x antenna wire
Please retain all packaging material for future transportation of the unit or in the unlikely event
that the unit needs to be returned for service.
HELPLINE PHONE NUMBER 0870 873 0080
- 1 -
IMPORTANT SAFEGUARDS
PRE FITTED MAINS PLUGS
For your convenience a mains plug has been fitted to this appliance. For your safety please observe the
following information.
1. Should the fuse in the plug fail remove the plug from the wall socket and replace the fuse with a 3 Amp
ASTA approved to BS 1362 fuse.
2. Never use the plug without the fuse cover fitted. Replacement fuse covers are available from your dealer or
most electrical retail outlets.
3. If the mains plug is cut off the cable, rewire the replacement plug in accordance with instruction give in this
manual.
4. CAUTION: Under no circumstances should the discarded plug be inserted into the mains socket. To pre-
WARNING: To prevent fire or shock hazard do not expose this unit to rain or moisture.
CAUTION: DANGEROUS VOLTAGES EXIST INSIDE THIS UNIT. DO NOT REMOVE COVER (OR BACK).
BLUE
POWER
vent a shock hazard carefully dispose of the discarded plug. Do not leave the plug lying around
where children might see it.
NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL. DISCONNECT FROM MAINS SUPPLY WHEN NOT IN USE.
These wires in this mains lead are coloured in
accordance with the following wiring codes:
Blue..........................................................Neutral
Brown..................................................... ......Live
These wires in this mains lead must be connected to
the terminals in the plug as follows:
Blue Wire............................................N or Black
Brown Wire..........................................L or Red
Only a 3 Amp fuse should be fitted in the plug or a 5
Amp fuse at the distribution board.
CORD
FUSE
BROWN
CORD
GRIP
WARNING: UNDER NO CIRCUMSTANCES MUST THE LIVE OR NEUTRAL WIRES BE CONNECTED TO THE
EARTH TERMINAL IN A 3- PIN MAINS PLUG.
This symbol means that this unit is double insulated.
An earth connection is not required.
HELPLINE PHONE NUMBER 0870 873 0080
- 2 -
WARNINGS AND CAUTIONS
CAUTION:
1.To reduce the risk of electrical shocks, fire, etc.
2.Do not remove screws, covers or cabinet.
3.Do not expose this appliance to rain or moisture.
• Do not block the ventilation opening or holes.
(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get
out.)
• Do not place any naked flame sources, such as lighted candles, on the apparatus.
• When discarding batteries, environmental problems must be considered and local rules or laws governing the
disposal of these batteries must be followed strictly.
• Do not use this apparatus in a bathroom or places with water. Also do not place any containers filled with water
or liquids (such as cosmetics or medicines, flower vases, potted plants, cups, etc.) on top of this apparatus.
• The mains plug is used as the disconnect device and it shall remain readily operable. To be completely
disconnect the power input, the mains plug of apparatus shall be disconnected from the mains as the disconnect
devices is the mains plug.
• When there is no display, the apparatus is completely disconnected from the mains.
– The apparatus shall not be exposed to dripping or Splashing and that no objects filled with liquids, such as
Vases, shall be placed the apparatus.
– The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
– Always remember to remove the plug from the mains socket before disconnecting the power lead from the back
of the unit.
– The marking plate is located at bottom enclosure.
Noted : See marking on Bottom / Rear Cabinet
IMPORTANT FOR LASER PRODUCTS
1. CLASSIFICATION LABEL,
PLACED ON REAR OF THE UNIT.
2. WARNING LABEL, PLACED ON REAR OF THE UNIT.
WARNING :
To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION :
Use of controls or adjustments or performance of procedures other than those specified
may result in hazardous radiation exposure.
RISK OF ELECTRIC SHOCK DO NOT OPEN
T
o reduce the risk of electric shock, do not remove cover ( or back ).
No user serviceable parts inside. Refer servicing to qualified service personnel.
The lightning flash witjh arrowhead symbol, with in an equilateral triangle,
is intended to alert user to the presence of uninsulated “ dangerous
voltage “ within the products enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the pesence of important operating and maintenance
( servicing ) instruction in the literature accompanying the appliance.
CAUTION
INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK
FAILED OR DEFEATED
AVOID DIRECT EXPOSURE TO LASER BEAM.
CAUTION
3. CAUTION: Do not open the unit. There are no user serviceable parts inside the unit; Leave all servicing to qualified
service personnel.
HELPLINE PHONE NUMBER 0870 873 0080
- 3 -
LOCATION OF CONTROLS
9
8
1
2
3
4 5
7
6
1. STANDBY / ON Button
To toggle the system between Power on and Standby status.
2. SKIP/PRESET DOWN
button
CD: skip to the previous track.
DAB: Select a preset station.
3. SKIP/PRESET UP
button
CD: skip to the next track.
DAB: Select a preset station.
4. SCAN/STOP
button
CD:To stop CD playback. In CD stop mode, clear
the programme memories during “Programme”
function.
DAB: Starts auto scanning.
5. SELECT/PLAY/PAUSE
button
CD: To start or pause CD playback.
DAB: Select the desired station.
6. SCROLL/SEARCH DOWN button
CD:To search backward or skip to the previous
track in CD mode.
DAB: Station selection and navigating services.
7. SCROLL/SEARCH UP button
CD:To search forward or skip to the next track in
CD mode.
DAB: Station selection and navigating services.
8. OPEN/CLOSE button
To open or close the disc tray
9. CD DOOR
10
11
12
13
14
10. SOURCE button
Switches unit between DAB, CD or AUX mode.
11 . REPEAT button
CD: Cycles Repeat 1 track
Repeat all track
Repeat off .
12.POWER/STANDBY LED indicator
13.VOLUME UP + / - control
Increase the volume.
Decrease the volume.
14. HEADPHONE SOCKET
To listen to the unit with headphones (not included)
Note :
When headphones are connected the sound to the
speakers is automatically muted.
15. IR SENSOR
To receive signals from the remote control.
16. DISPLAY
17. DISPLAY/REMAIN button
CD: To select remain time or total time.
DAB: Cycles the information displayed:
Scrolling DLS; Programme Type; Service Type;
Time & date; Channel & Frequency; Bitrate
Mode; Signal Error Rate;
18. CLOCK/SLEEP button
To press once will display/close the clock
information. When unit at the power on status press
and hold the key beyond 2 second will enter into
view sleep time mode about 7 seconds; and press
the key again will set the sleep time “120 mins
110 mins 100 mins 90 mins 80 mins 70
mins 60 mins 50 mins 40 mins 30 mins
20 mins 10 mins sleep off 120 mins
cyclically.
18
17
16
15
HELPLINE PHONE NUMBER 0870 873 0080
- 4 -
CONNECTING THE UNIT AND SPEAKERS
20
21
DAB ANTENNA
SOCKET
22
SPEAKER SOCKET
19
SPEAKER BOX
SPEAKER BOX
19.AC POWER cord
20.AUX in
21. DAB antenna socket
22. SPEAKER socket
CONNECTIONS
CONNECT THE DAB ANTENNA
Connect the supplied DAB antenna to the DAB ANT input on
back of the system. Adjust the position of the DAB antenna for
best reception and ensure the screw connection is fully tightened.
SPEAKERS CONNECTION
• Connect the right speaker to terminal marked “R”, with
the red wire to
• Connect the left speaker to terminal marked “L”, with
the red wire to
• Clip the stripped portion of the speaker wire as shown.
and the black wire to –.
+
and the black wire to –.
+
HELPLINE PHONE NUMBER 0870 873 0080
Notes:
For optimal sound performance, it is recommended to use
the supplied speakers.
Do not connect more than one speaker to any one pair of
+/– speaker terminal.
DISPLAY INFORMATION
- 5 -
REMOTE CONTROL
1 2
3
6
9
12
14
17
1. STANDBY / ON
To toggle the system between Power on and Standby status.
2. SOURCE
Switches CD, DAB or AUX as input source.
3. RANDOM/MENU
CD: Starts random play when in CD mode, and enter
menu structure in DAB mode.
DAB: Enter menu structure.
4. SCAN/STOP
DAB: To press the key once will execute local
scanning. To press and hold the key beyond 2
seconds will execute the full band III scanning.
CD: Stop playback.
CD: Press the key once will cleared the stored
PROGRAM in stop mode.
5. SELECT/PLAY/PAUSE
DAB: Select the desired station or items, or display
the signal strength when in DAB mode.
CD: To press the key PLAY/PAUSE in CD mode
6. REPEAT
CD: Select “Repeat 1 track
Repeat off ” .
7. SCROLL SEARCH CD: To search backward .
DAB: Scroll down the items of menu or browse
backward the station. During the unit setting the
clock or timer, the key is used to change the setting
value.
4
5
7
8
10
11
13
15
16
18
19
Repeat all track
DAB: Scroll up the items of menu or browse forward
the station. During the unit setting the clock or
timer, the key is used to change the setting value.
9. PROGRAM
CD: When in stop mode, enter memory registration
mode and setting program.
DAB: to register the station to the memory with the
preset number.
Set clock/timer.
10.SKIP/PRESET CD: skip to the previous track.
DAB: Select a preset station
11. SKIP/PRESET +
CD: skip to next track.
DAB: Select a preset station.
12.DIGIT (0-9,10+)
CD: Select the number directed accessing the
track.
DAB: Select a preset station.
13.DISPLAY / REMAIN
CD: Select the CD remain time display at CD
normal play.
DAB: Cyclically change the information displayed:
(Scrolling DLS; Program Type; Service Type; Time
and date; Channel & Frequency; Bit rate Mode;
Signal Error Rate.)
14.EQ / X-BASS
Cyclically change the EQ effect: (Flat
Rock
Pop Classic Jazz Flat); Toggle the BASS
effect between On and Off.
15. TIMER
Press the key short will enable/disable the timer.
Press and hold about 2 seconds will enter time
setting mode.
16.CLOCK / SLEEP
To press once will display/close the clock
information. When unit at the power on status press
and hold the key beyond 2 second will enter into
view sleep time mode about 7 seconds; and press
the key again will set the sleep time “120 mins
110 mins 100 mins 90 mins 80 mins 70
mins 60 mins 50 mins 40 mins 30 mins
20 mins 10 mins sleep off 120 mins”
cyclically.
17. MUTE
To slicence the sound.
18.VOLUME -
To decrease the volume.
8. SCROLL SEARCH +
CD: To search forward.
19.VOLUME +
To increase the volume.
HELPLINE PHONE NUMBER 0870 873 0080
- 6 -
POWER SOURCE
AC POWER SUPPLY
After all other connections have been made. Connect the
AC power cord of the system to the wall outlet. The
system will be in standby mode.
INSERTING BATTERIES INTO THE REMOTE
CONTROL
Insert batteries (type R-03 or UM-4 AAA) into the remote
control as shown in the battery compartment.
+SiZE AAA -
-SiZE AAA +
CAUTION:
• Replace batteries if the remote control fails to work.
• Remove batteries if they are exhausted or not to be
used for a long time.
• Batteries contain chemical substances, so they
should be disposed of properly.
BASIC FUNCTIONS
THE CLOCK SETTING
Before operating the unit any further, first set the unit’s
clock.
When you plug in the power cord, “0:00” starts flashing
on the display.
You can set the clock when the unit is in standby mode.
1. When the unit is in standby mode, press and hold
CLOCK/SLEEP until “Clock Setting ” appears on the
display with “On” flashing.
2. Press SCROLL/SEARCH DOWN or SCROLL/
SEARCH UP to select either 24 or 12 Hour mode,
then press CLOCK/SLEEP to confirm.
3. Press SCROLL/SEARCH DOWN or SCROLL/
SEARCH UP to adjust the hour, then press CLOCK/
SLEEP to confirm.
• When you press and hold SCROLL/SEARCH DOWN
or SCROLL/SEARCH UP, the hour indicator
changes continuously.
• The minute indicator starts flashing.
4. Press SCROLL/SEARCH DOWN or SCROLL/
SEARCH UP to adjust the minute, then press
CLOCK/SLEEP to confirm.
HELPLINE PHONE NUMBER 0870 873 0080
• When you press and hold SCROLL/SEARCH DOWN
or SCROLL/SEARCH UP, the minute indicator
changes continuously.
• The built-in clock starts work.
Note:
When you unplug the AC power cord or if a power failure
occurs, the clock is reset to “0:00” right away. If this
happens, set the clock again.
To show the clock when the unit is turned on
Press CLOCK/SLEEP
• Each time you press the button, the display changes
the clock indication and the normal indication
alternately.
TURNING ON THE POWER
To turn on the unit, press STANDBY/ON. The STANDBY
lamp on the unit goes off.
• When you press the SOURCE button, the unit
automatically turns on.
To turn off the unit (standby), press STANDBY/ON again.
The STANDBY lamp on the unit lights red.
• “0:00” flashes on the display until you set the built-in
clock. After setting the clock, the clock time will
appear steadily on the display while the unit is on
standby.
To switch off the power supply completely, unplug the AC
power cord from the AC outlet.
SELECTING THE SOURCE
To select the source, press the SOURCE button.
VOLUME CONTROL
You can adjust the volume level only while the unit is
turned on.
The volume level can be adjusted between “VOL MIN”
(VOL 1) and “VOL MAX” (VOL 32).
To increase the volume, rotate VOLUME in clockwise on
the unit or press VOLUME
To decrease the volume, rotate VOLUME in anti-clockwise
on the unit or press VOLUME
on the remote control.
on the remote control.
To turn off the sound temporarily
Press MUTE.
The volume level turn down and “Muted” starts flashing
on the display.
Playback will continue without sound and “Muted” will be
flashed.
To restore the sound, press MUTE again.
Note:
Adjusting the volume level also cancels the muting.
SELECTING THE SOUND MODES
You can select one of the 4 sound modes.
• This function also affects the sound from headphones
or speaker boxes.
To select the sound modes, press EQ-BASS repeatedly.
• Each time you press the button, the sound mode
changes as follow:
- 7 -
When the sound mode is activated, the “EQ” indicator
lights up on the display.
USING THE CD
PLAYING THE ENTIRE DISC-NORMAL PLAY
1. Press OPEN/CLOSE on the unit.
The disc cover opens.
• You can insert a disc while listening to another
source.
2. Place a disc correctly with its label side up.
3. Close the disc cover gently.
4. Press SOURCE.
The unit automatically turns on and the source
changes to the CD player, After loading the disc,
total track number and total playing time are shown
on the display.
5. Press .
The first track of the disc starts playing.
To go to another track
Before or during play, press or repeatedly.
•
: Skips to the beginning of the next tracks.
•
: Goes back to the beginning of the previous
tracks.
To locate a particular point in a track
During play, press and hold SCROLL SEARCH - or
SCROLL SEARCH +
• SCROLL SEARCH + : Fast-forwards the tracks.
• SCROLL SEARCH - : Fast-reverses the tracks.
PROGRAMMING THE TRACK PLAYING
ORDER
You can arrange the order in which the tracks are played
before you start playing. You can program up to 20 tracks
in stop mode.
1. Place a disc.
If the current source is not the CD player, press
SOURCE.
2. Press PROG.
The PROG indicator starts blinking.
3. Press or (or press the number buttons on the
remote control) to select the track number, then
press PROGRAM to confirm. “PROG” and “P-01”
starts blinking.
• The disc automatically stops when the last track has
finished playing.
To stop playing, press
To remove the disc, press OPEN/CLOSE on the unit in
stop mode.
.
Note:
• If the disc can not be read correctly (because it is
scratched, for example) or an unreadable disc is
inserted, playback will not start.
• If no disc is inserted, “NO DISC” appears on the
display.
BASIC DISC OPERATIONS
While playing a disc, you can do the following operations.
To stop playing for a moment
During play, press .
While pausing, the elapsed playing time flashes on the
display.
To resume playing, press again.
HELPLINE PHONE NUMBER 0870 873 0080
4. Repeat step 3 to program other tracks you want.
Note:
• You can not program more than 20 tracks. If you
attempt to do it, “Program FULL” will flash on the
display.
To play the programmed tracks
Press
• During program play, you can press or to select
the desired track in the program.
Notes:
If you press CD/REPEAT during program play.
The current track or all programmed tracks are played
repeatedly.
To clear the program.
Press in stop mode.
• The stored program is cleared when the CD
compartment is opened.
- 8 -
DAB - DIGITAL AUDIO BROADCASTS
This section provides information on using your DAB
including tuning, selecting a service and altering the
displayed information.
Tuning
Tuning the DAB is very simple. When you first switch on
the unit it will start an automatic tuning process described
below in Tuning for the first time. You may want to retune the unit at a later date if you move the unit to a
different room or if you want to receive a newly introduced
multiplex.
Tuning for the first time
When you switch on your DAB for the first time an autotune
process will be performed automatically. A progress
indicator on the display shows that autotune underway.
“Welcome to Digital Radio” will be displayed on LCD.
If stations are found during the autotune
The stations will be stored in alphanumeric order and the
first station on the list will be selected and you will hear
it through the speaker. To listen to other stations, see
Selecting a station.
If no stations are found during the autotune
‘No stations available’ will be shown on the display for a
few seconds and then you see a menu of options. Use
the SCROLL/SEARCH knob to scroll through the following
options and push it to select that option.
Manual Tune - See Manual Tune details of using the
manual tuning option.
Full Scan - scans the full range of digital frequencies in
Band III. This may take a minute or more.
1. Ensure your DAB is switched on and the aerial is
connected and fully extended.
2. Push and release the SCAN button once for local
scan or hold down for around two seconds for a full
scan.
OR
Note:
You can cancel Autotune by pressing the SCAN button
again during the tuning process.
The display will indicate tuning is underway. When
finished, the DAB will return to the station you were
listening to and you will hear it through the speakers. All
the stations found are now stored in the unit and you can
select another station as described in Selecting a station.
If no stations are found, you see the message ‘No Stations
Available’ and the display shows an option menu, see If
no stations are found during the autotune for details of
this menu. Check you aerial is fully extended and try one
of the available tuning options.
Selecting a station
Once you have tuned your DAB you select the digital radio
station you want to listen to using the SCROLL button. If
you have assigned stations to presets you can also select
them directly by pressing the relevant numbered button
(1-6), see storing and recalling presets.
1. The top line of the display shows the name of the
currently selected station. Press the SCROLL
button to see the names of other stored stations on
the bottom line of the display. Stop when you find
the station to which you want to listen.
2. Press the SELECT button to listen to the station
you have selected. The display may show ‘Now
tuning’ briefly as it finds the new station.
If a station has one or more secondary services available
the display will ‘>>’ next to the station name on the station
list and they will appear after the primary service as you
turn the SCROLL/SEARCH knob.
Local Scan - See Retuning your unit below for details of
the local autotune option.
Full Scan - See retuning your unit below for details of
the full autotune option.
Retuning your unit
You can re-tune your unit at any time using the autotune
process. You may wish to do this if a new multiplex is
launched or you move your unit to another room. You do
not need to perform an autotune to pick up new stations
within a multiplex you already have stored as your DAB
monitors and refreshes the list of available stations
automatically. The following two options are available:
Local Scan - scans all frequencies in the UK channel
allocation. This should only take a few seconds.
HELPLINE PHONE NUMBER 0870 873 0080
A secondary service will display ‘<<’before the station
name on the station list indicating that it belongs to the
primary service before it in the list. See information on
primary and secondary services.
- 9 -
If the station has ‘?’ before its name the service is currently
inactive or invalid. If you select a station which has this
symbol the DAB tries to tune to that station. If still
unavailable ‘Service not avail’ or ‘Service off- air ’ will be
displayed and DAB will attempt to tune to an alternative
station. A flashing cursor will indicate that this is underway.
If you want to try to manually tune to this station you
have five seconds in which to push the Tune button and
the manual tuning bar will be displayed enabling you to
adjust your aerial.
Changing the display mode
DAB has six display modes which enable you to view parts
of the broadcast data on the bottom line of the display.
Press the DISPLAY button and repeat to cycle through
the six different display modes.
Scrolling text:
The default mode, displays scrolling text messages which
accompany the audio, where available.
Program Type:
A label describing the type of content being broadcast by
the service.
Mode:
Displays the mode of the current service Stereo or Mono
and the data rate at which the audio signal is being
transmitted. This rate is set by the broadcaster to suit
the type and quality of material being transmitted.
Signal Quality:
Display the signal quality for the signal to which you are
tuned. As a guide values from 80 to 100 indicate good
reception, 60 to 80 borderline reception and 60 or more
poor reception. You can attempt to improve this quality
by adjusting your aerial position using the Manual Tune
option described.
Storing and recalling presets
The numbered buttons (1-6) enable you to store radio
stations for one- touch access.
To store a station
You can store a station to a preset while listening it or
when you see the station name on the bottom line of the
display while scrolling through the station list.
Press and hold down a numbered button for around two
seconds to store the station under that number. The
display shows e.g. ‘Preset 1 saved’ when the station has
been successfully saved. Once you save a station to a
preset, the station name has the preset number next to it
on the station list.
Multiplex name:
Displays the name of the multiplex in which the current
service is found, see Guide to Digital Radio for more
information on multiplexes.
Date and time:
Displays the date and time obtained from the current
multiplex.
Channel:
Displays the channel identifier and frequency for the
station to which you are tuned, see Guide Digital Radio
for more information.
HELPLINE PHONE NUMBER 0870 873 0080
To recall a previously stored station
Press and release the numbered button under which you
stored the station. If the selected preset is empty the
display shows ‘Preset empty’ for a few seconds and you
continue listening to the currently selected station.
Advanced setup options
The DAB has a number of advanced features which enable
you to change the order and number of stations on the
station list, perform manual tuning, apply Dynamic Range
Control (DRC).
Press the RANDOM/MENU button to enter the advanced
setup menu, press the SCROLL button to scroll through
the following menu options then press the select button
to select that option.
- 10 -
Station Order
This option enables you to choose the order in which
stations appear as you scroll through the station list.
When you select this option you see the currently selected
order on the top row of the display and a scroll list on the
bottom. Press the SCROLL button to scroll through the
following options and press the select button to select
one:
Fav station
Displays the ten most listened to stations at the top of
the station list in alphanumeric order and the rest below
in alphanumeric order. You favourite stations will be
displayed with a
scroll through the station list.
Alphanumeric
Displays all stations in alphanumeric order. This is the
default setting.
Active station
Displays active stations at the top of the service list in
alphanumeric order and inactive ones at the bottom in
alphanumeric order. See Selecting a station on page 9
for information on active stations.
next to the station name when you
Manual Tune
This option provides a signal quality display which you
can use to find the best position for your radio and aerial.
When you select this option, the bottom line of the display
shows the channel identifier and frequency. See useful
addresses which you can contact to find the channel
identifier for a multiplex you want to receive.
1. Press the SCROLL button to scroll through different
channels and press the select button to select one.
Note the list includes all channels, UK stations are
in the range 11B to 12D. You see a signal quality
display. The empty block indicates the minimum
required level for reception and the solid blocks
indicate the current level.
2. Move your aerial or radio whilst watching the display
and to try to raise the current level to the empty
block or beyond. The display will change to show
the multiplex name on the bottom line of the display
once a good signal is received and the multiplex will
be added to the service list.
Prune stations
Removes inactive stations from the station list.
Presets
Available only when Fav station order (above) has been
selected. Transfers the top six stations for your 10
favourite stations to the preset buttons.
HELPLINE PHONE NUMBER 0870 873 0080
DRC Value
DRC (Dynamic Range Control) enables you to alter the
dynamic range of the received audio (dependent on
broadcast material) by making the quieter sounds in a
broadcast more audible. This may be useful in noisy
environments or particularly quiet parts of programmes.
The DRC level of a broadcast is set by a broadcaster and
transmitted with the service. Changing this DRC value
enables you to apply a scaling factor to this level.
- 11 -
When you select this option you see the current DRC
value on the top line of the display and a scroll list on the
bottom. Press the SCROLL button to scroll through the
following options and press the select button to select
one:
DRC 0 DRC scaling is switched off.
DRC 1/2 DRC scaling is set to 1/2 that sent with the
transmitted service.
DRC 1 Applies the DRC scaling as sent with the
transmitted service. This is the default setting.
Resetting your DAB
A reset option is provided to enable you to reset your
unit. This removes all presets, stored stations and
favourite station settings and resets all options to
defaults. Performing an autotune process will solve most
problems but you may want to use this option if you move
house or want to restore default values to options you
have changed.
To select the reset option:
1. Press and hold the MENU button for more than two
seconds. The display will show “Press SELECT to
confirm Reset”.
2. Press the SELECT button to confirm the reset or
press no buttons for around seven seconds to
cancel the reset.
CLOCK/TIMER OPERATION
USING THE TIMER
There are two timers available- daily timer, sleep timer.
Before using the timers, you need to set the built-in
clock.
Using Daily Timer
You can set the Daily Timer when the unit is either turned
on or in standby mode.
With the daily timer, you can wake to your favorite music
or radio program.
How the daily timer actually works
When the on-time comes, the unit automatically turns on
and then the off-time comes, the unit automatically turns
off (standby).
Once the timer has been set, it will be activated at the
same time everyday until the timer is turned off and
the timer setting remains in memory until you change
it.
Timer setting
There is a time limit in doing the following steps. If
the setting is canceled before you finish, start from
step 1 again.
1. Press and hold TIMER until “Timer Setting DAB ”
appears on the display.
2. Press PROGRAM to enter the source selection
mode.
3. Press SCROLL SEARCH - or SCROLL SEARCH +
to select the desired source ( DAB, CD), then press
PROGRAM to confirm .
The hour indication of on-time starts flashing on the
display.
4. Press SCROLL SEARCH - or SCROLL SEARCH +
to set the on-time you want the unit to turn on.
• Press SCROLL SEARCH - or SCROLL SEARCH +
to set the hour, then press PROGRAM to confirm.
• Press SCROLL SEARCH - or SCROLL SEARCH +
to set the minute, then press PROGRAM to
confirm. The hour indication starts of off-time
flashing on the display.
5. Press SCROLL SEARCH - or SCROLL SEARCH +
to set the off-time you want the unit to turn off.
1) Press SCROLL SEARCH - or SCROLL SEARCH
+ to set the hour, then press PROGRAM to
confirm.
2) Press SCROLL SEARCH - or SCROLL SEARCH
+ to set the minute, then press PROGRAM to
confirm.
6. Press TIMER to activate the daily timer mode.
7. Press STANDBY/ON to turn off the unit if the unit is
on.
To deactivate the timer temporarily, press TIMER until
“TIMER” indicator goes off.
To activate and change the timer, repeat steps 1 to 6.
Note:
When you unplug the AC power cord or if a power
failure occurs, the timer will be canceled. You need to
set the clock first, and set the timer again.

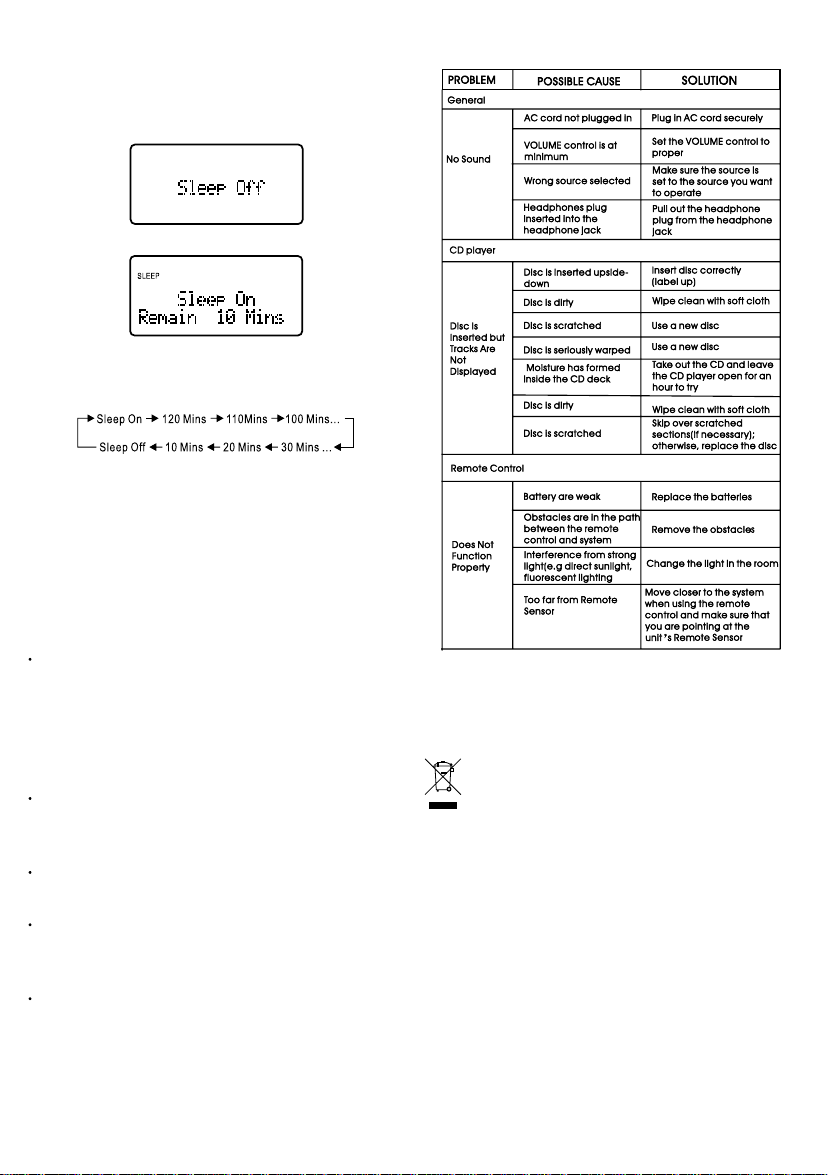

USING THE SLEEP TIMER
With the sleep timer, you can fall asleep to your favorite
music or radio program.
You can set the sleep timer only when the unit is
turned on.
HELPLINE PHONE NUMBER 0870 873 0080
- 12 -
How the sleep timer actually works
The unit automatically turns off after the specified length
of time passes.
1. Press and hold CLOCK/SLEEP button on the
remote control until “SLEEP OFF” appears on the
display.
2. Press CLOCK/SLEEP.
3. Press CLOCK/SLEEP repeatedly to select the
desired time length. Each time you press the
button, the length of time ( in minutes ) changes
as follows:
4. Wait for about 5 seconds after specifying the length
of time. The SLEEP indicator lights up steadily on
the display.
To check the remaining time until shut-off time, press and
hold CLOCK/SLEEP once. The remaining time until shutoff time appears for about 5 seconds.
To change the shut-off time, press CLOCK/SLEEP
repeatedly until the length of time you want appears.
To cancel the setting, press CLOCK/SLEEP repeatedly
until “OFF” appears and the SLEEP indicator goes off from
the display.
Turning off the unit also can cancel the Sleep Timer.
TROUBLE SHOOTING GUIDE
Check the following guide for problem resolution
GENERAL INFORMATION
MAINTENANCE
Cleaning the cabinet
Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution containing
alcohol, spirits, ammonia or abrasive.
Cleaning discs
When a disc becomes dirty, clean it with a cleaning
cloth, wipe the disc from the center out. Do not wipe in
circular motion.
Do not use solvents such as benzene, thinner
commercially available cleaners, or antistatic spray
intended for analogue records.
Cleaning the disc lens
After prolonged use, dirt or dust may accumulate at
the disc lens. To ensure good playback quality, clean
the disc lens with CD lens cleaner or any
commercially available cleaner.
Follow the instructions supplied with cleaner.
HELPLINE PHONE NUMBER 0870 873 0080
INFORMATION FOR USERS APPLICABLE
IN EUROPEAN UNION COUNTRIES
This symbol on the product or on its packaging means that your
electrical and electronic equipment should be disposed at the
end of life separately from your household wastes.
There are separate collection systems for recycling in EU.
For more information, please contact the local authority or the dealer
from where the product was purchased.
- 13 -
SPECIFICATIONS
Power Supply : AC 230V ~ 50HZ
Unit Dimensions : 230(L) X 145(W) X167.5(H) mm
Speaker Dimensions : 160.5(L) X 134(W) X 208(H) mm
N.W : 4.25Kg
CD Section
Standard : CD CD-R CD-RW
Frequency Response : 20Hz-20KHz
DAB Section
Receiver Band :DAB Band III 174.928 MHZ (5A) 239.200
MHZ(13F)
Tuning Range - Local 11A to 12D
Full 5A to 13F
Aerials: external wire aerial for DAB reception
General
Power Output (at 10% THD) :2 X 10W RMS
Headphone Socket : 3.5mm diameter, 32 OHM
Specifications are subjected to change and improvement
without notice.
HELPLINE PHONE NUMBER 0870 873 0080
- 14 -
Loading...
