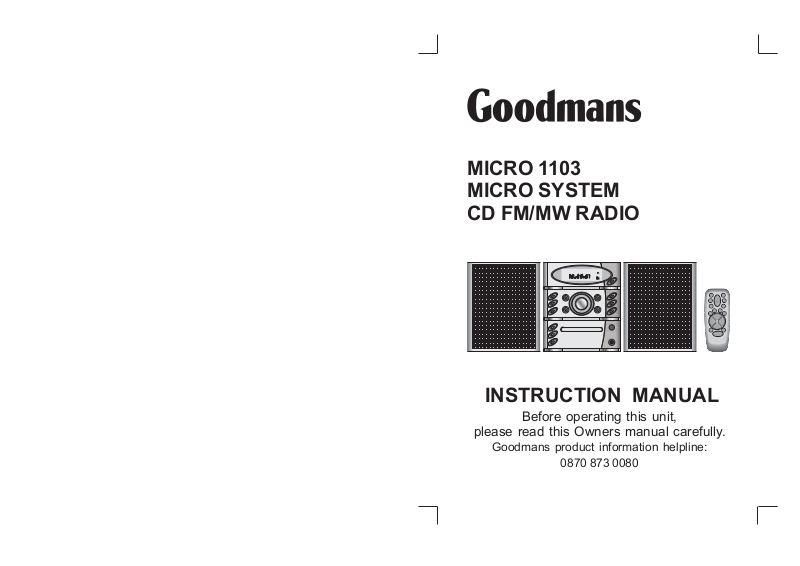

MICRO 1103
MICRO SYSTEM
CD FM/MW RADIO
INSTRUCTION MANUAL
Before operating this unit,
please read this Owners manual carefully.
Goodmans product information helpline:
0870 873 0080
INTRODUCTION
This instruction manual is important to you. Please read it. In a short time it shows exactly
how to connect, operate, and adjust this unit for best performance.
It can save you money. It shows simple things to do and check before you call for help
and save the cost of unnecessary service or call out charge.
Table of contents...............................................................................................................1
Important Notes..........................................................................................................2
Important Safeguards................................................................................................3-4
Location of Controls.................................................................................................5-6
Display..........................................................................................................................7
Remote Control..........................................................................................................8
Speaker Cord Connection..............................................................................................9
Switching the unit on and off.........................................................................................9
Setting the Clock............................................................................................................10
Compact Discs..........................................................................................................11
Compact Disc Operation...............................................................................................11
Operation/Remain Function.........................................................................................13
Tuner Operation............................................................................................................14
Timer Operation........................................................................................................15
Sleep/Preset equalizer/Mute...........................................................................................16
Connecting an External Audio Source.........................................................................16
Troubleshooting Guide................................................................................................17
Technical Specifications................................................................................................18
Save the carton and packing material; they will be useful if you ever have to transport the
unit.
Pack contents:
1 x main unit
1 x remote control
2 x loudspeakers
1 x owner's manual
Please retain all packaging material for future transportation of the unit or in the unlikely
event that the unit needs to be returned for service.
IMPORTANT NOTES
Your hearing is very important to you and to us so please take care when operating this
equipment. It is strongly recommended that you follow the listed guidelines in order to prevent
possible damage or loss of hearing.
Establish a safe sound level
Over time your hearing will adapt to continuous loud sounds and will give the impression that
the volume has in fact been reduced. What seems normal to you may in fact be harmful. To
guard against this before your hearing adapts set the volume at a low level.
Once you have established a comfortable listening level do not increase the sound level further. The following list of typical sound levels may assist you in recognizing just how loud you
have set the volume level.
Decibel
Level dB example
30dB quiet library, soft whisper.
40dB Living room, fridge freezer bedroom away from traffic.
50dB normal conversation, quiet office, light traffic.
60dB Electric sewing machine.
70dB Vacuum cleaner, hair dryer, noisy restaurant.
The following noise can be harmful under constant exposure
80dB Average city traffic, alarm clock buzzer at 2 feet, food mixer.
90dB Motorcycle, heavy goods vehicle, petrol lawn mower.
100dB Pneumatic drill, chain saw, garbage truck, dlscotec/night-club.
120dB Rock band concert, thunderclap .
Permanent loss of hearing
140dB Threshold of pain gunshot 2 feet away.
180dB Rocket launching pad.
HELPLINE PHONE NUMBER 0870 873 0080 HELPLINE PHONE NUMBER 0870 873 0080
1 2
IMPORTANT SAFEGUARDS
For your convenience a mains plug has been fitted to this appliance. For your safety please
observe the following information.
1. Should the fuse in the plug fail remove the plug from the wall socket and replace the fuse
with a 3 Amp ASTA approved to BS 1362 fuse.
2. Never use the plug without the fuse cover fitted. Replacement fuse covers are available
from your dealer or most electrical retail outlets.
3. If the mains plug is cut off the cable, rewire the replacement plug in accordance with
instruction give in this manual.
4. CAUTION: Under no circumstances should the discarded plug be inserted into the mains
socket.To prevent a shock hazard carefully dispose of the discarded plug.
Do not leave the plug lying around where children might see it.
WARNING: To prevent fire or shock hazard do not expose this unit to rain or moisture.
CAUTION: DANGEROUS VOLTAGES EXIST INSIDE THIS UNIT. DO NOT
REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL. DISCONNECT FROM MAINS
SUPPLY WHEN NOT IN USE.
BLUE
WARNING: UNDER NO CIRCUMSTANCES MUST THE LIVE OR NEUTRAL WIRES
BE CONNECTED TO THE EARTH TERMINAL IN A 3- PIN MAINS PLUG.
This symbol means that this unit is double insulated.
An earth connection is not required.
PRE FITTED MAINS PLUGS
This wires in this mains lead are coloured in
accordance with the following wiring codes:
FUSE
CORD GRIP
Blue..........................................................Neutral
Brown..................................................... ......Live
This wires in this mains lead must be connected
to the terminals in the plug as follows:
BROWN
Blue Wire............................................N or Black
Brown Wire..........................................L or Red
Only a 3 Amp fuse should be fitted in the plug
or a 5 Amp fuse at the distribution board.
CAUTION
CLASS 1 LASER PRODUCT
Use of contents or adjustments of performance of procedures other than those specified
Herein may result in hazardous radiation exposure.
LASER SAFETY
This unit employs a laser, only qualified service personnel should attempt repair.
DANGER: INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCK FAILED OR DEFEATED. AVOID DIRECT EXPOSURE TO
BEAM.
CAUTION: HAZARDOUS LASER RADIATION WHEN OPEN AND
INTERLOCK DEFEATED.
SOME DO`S S AND DON`T`S ON THE SAFE USE OF EQUIPMENT
This equipment has been designed and manufactured to meet European safety
standards but like any electrical equipment, care must be taken if you are to obtain the
best results and safety is to be assured.
Do read the operating instruction before you attempt to use the equipment. Do ensure
that all electrical connections(including the mains plug, extension leads and
interconnections between pieces of equipment ) are properly made in accordance with
the manufacture`s instructions. Switch off and remove the mains plug when making or
changing connections.
Do consult your dealer if you are ever in doubt of the installation, operation, or safety of
your equipment.
Don`t continue to operate the equipment if you are in any doubt about it working normally,
or if it is damaged in any way-switch off, withdraw the mains plug and consult your dealer.
Don`t remove any fixed covers as this is may this is may expose DANGEROUS VOLTAGES.
Don`t leave equipment switched on when it is unattended unless it is specifically stated that
it is designed for unattended operation or has a standby mode, Switch off using the swich
on the equipment and made sure that your family knows how to do this, special
arrangements may need to be made for infirm of handicapped people.
Don't listen to headphones at high volume, as such use can permanently damage your
hearing.
Don`t obstruct the ventilation of the equipment, for example with curtains or soft furnishings
overheating will cause damage and shorten the life of the equipment.
Don`t allow electrical equipment to be exposed to rain or moisture.
Above all
- Never let anyone, especially children, push anything into holes, slots or any other
opening, as this could result in a fatal electric shock.
- Never guess or take chances with electrical equipment of any kind.
- It is better to safe than sorry.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT EXPOSE
THIS APPLIANCE TO RAIN MOISRURE, DANGEROUS HIGH VOLTAGES ARE
PRESENT INSIDE THE ENCLOSURE, DO NOT OPEN THE CABINET REFER
SERVICING TO QUALIFIED PERSONNEL ONLY.
HELPLINE PHONE NUMBER 0870 873 0080 HELPLINE PHONE NUMBER 0870 873 0080
3 4
LOCATION OF CONTROLS
FM MOD E
MON S TEREO
CONNECT THE
LOUDSPEAKERS TO
THESE SOCKETS
20
LR
RL
18171615
1
14
13
12
11
10
9
87
1. POWER Key
• Press to turn the power ON/
Stand-by.
2. CD Key
• Select the CD source.
3. TUNER Key
• Select the Tuner source.
4. AUX Key
5. REMOTE SENSOR
6. PHONES Jack
• Connection for headphones.
7. DOWN/REW Key
• In the Radio mode: search down
the current waveband.
• In the CD mode: return to the
start of a track, select a previous track or backwards search
for a passage during play.
• In the Clock/Timer mode: adjust
the time.
8. STOP/BAND Key
• In the CD mode: stop playback of
the compact disc or clear program.
• In the Radio mode: change the
waveband.
HELPLINE PHONE NUMBER 0870 873 0080 HELPLINE PHONE NUMBER 0870 873 0080
2
3
4
5
6
19. AUX INPUT SOCKET
9. SLEEP/TIMER Key
• Activate or deactivate timer
or sleep.
10. RANDOM Key
• In the CD mode: play tracks
on the CD in random order.
• For connection of external
sound sources.
20. SPEAKER SOCKET
21. SELECTOR SWITCH
(FM MODE/MONO STEREO)
22. AC POWER CORD
11. PRESET EQUALIZER Key (EQ)
• Add digital sound effect to
Audio output using one of
these styles: CLASSIC/ POP/
ROCK.
12. MEMORY/CLOCK ADJUST-
PROGRAMMABLE COMPACT DISC DISPLAY
23
MENT Key (MEMORY/CLKADJ)
• In the Radio mode: cycle
24
through the current radio
presets.
• In the CD mode: program CD
to play tracks in a specific
order.
• In the clock mode: set clock
23. CD TRAY
24. OPEN Key
• For compact disc.
or timer.
13. DISPLAY/REMAIN Key
• To Change the display.
AUXIN
14. MUTE Key
• Mute the audio output.
15. PLAY/PAUSE Key
• In the CD mode: start or
SPEAKER
pause playback.
16. DISPLAY
17. VOLUME CONTROL KNOB
• Adjust the volume level.
18. UP/FF Key
• In the Radio mode: search
up the current waveband.
• In the CD mode: return to
the start of a track, select
the next track or search
forward for a passage
RIGHT SPEAKER LEFT SPEAKER
during playback.
• In the Clock/Timer mode:
adjust the time.
5 6
NOTE: CD DOOR WILL ONLY
OPEN/CLOSE WHEN IN CD MODE
.
19
21
AC
22
18
17
16
14
15
12
11
13
3
8
9
DISPLAY
REMOTE CONTROL
CONNECTION
• Do not switch the power to the unit on
until all connections are made.
• Unravel and position the FM aerial
lead away from the power and speaker
cords as these could generate noise.
Do not position the FM aerial lead so
that it touches the rear of the unit.
REMOTE
18
17
16
1
32 4 5 6 7 8
9
10
1
2
4
5
6
7
10
11
14
13 1215
1. EQ Indicator
2. TUNER Indicator
3. RANDOM Indicator
4. AUX Indicator
5. REPEAT Indicator
6. SLEEP Indicator
7. TIMER Indicator
8. SNOOZE Indicator
9. REMAIN Indicator
Please note that the display can only be viewed from directly opposite and above. This is
the design of the unit and not a fault.
10. MHz Indicator
11. KHz Indicator
12. MEMORY Indicator
13. STEREO Indicator
14. MW Indicator
15. FM Indicator
16. MUTE Indicator
17. INTRO Indicator
18. CD Indicator
1. POWER Key
2. PRESET EQUALIZER
Key (EQ)
3. VOLUME Keys
4. SNOOZE Key
5. INTRO Key
6. REPEAT Key
7. F.F Key
8. STOP / BAND Key
9. MEMORY-UP Key
10. FUNCTION Key
11. DISPLAY Key
12. REW Key
13. PLAY/PAUSE Key
14. MEM/CLOCK Key
15. RAND Key
16. TIMER Key
17. SLEEP Key
18. MUTE Key
BATTERY COVER
REPLACING THE BATTERY
If the remote control has erratic or does
not operate. Replace the batteries (type
AAA. obtainable from most shops).
Remove the battery cover from the back
of the remote. Remove the batteries and
insert new batteries observing correct
polarity. Replace the battery cover into
the remote.
INSERT 2 AAA
Batteries (Not
Supplied)
HELPLINE PHONE NUMBER 0870 873 0080
7
HELPLINE PHONE NUMBER 0870 873 0080
8
SPEAKER CORD CONNECTION
RED
RCA JACK
WHITE
RCA JACK
Connect the cable from the speaker on
the left to the (L) terminal and the cable
from the speaker on the right to the (R)
terminal.
DO NOT CONNECT
THE SPEAKERS TO
THE AUX SOCKETS
NOTE:
The speakers are not magnetically
shielded. If placed next to or on top of
your TV. The picture colour will be
distorted. Install the speaker at least 5
inches away from your TV.
AC POWER CONNECTION
Connect the ac power lead after all
other connections have been made.
NOTE:
When there is a long power failure, or the
mains lead is disconnected for more than
3 hours, the clock and tuner preset
stations will be erased from the memory.
Reset the clock and presets when power
is restored.
SWITCHING THE UNIT ON
AND OFF
Press the power button to turn the unit
on.
POWER STANDBY
Power standby mode allows you to turn
the unit on and off (to standby mode)with
the power button on the remote control
or on the unit itself. If you want to turn off
the unit completely, remove the AC plug
from the household mains supply.
VOLUME CONTROL
To adjust the volume, rotate the VOLUME
knob on front panel or press the VOLUME
DOWN/UP button on remote control until
the volume is at the desired level.
STEREO HEADPHONES
Stereo headphones socket is provided on
the front panel of the main unit
(headphones not supplied). Connect low
impedance (4-32ohm) stereo headphones
to the headphone socket for private
listening. Inserting the 3.5mm headphone
jack plug automatically disconnects the
loudspeakers.
SETTING THE CLOCK
1. Press DISPLAY/REMAIN unit the
clock is shown on the display.
2. Press and hold the MEMORY/
CLK-ADJ until `24H`flashes on
display. Use UP/FF F to select
24 hour format or 12 hour format.
3. Press MEMORY/CLK-ADJ, the
hour digit will flash, press
UP/FF F or DOWN/REW
B to set the correct hour.
4. Press MEMORY/CLK-ADJ again
the minute digit will flash, press
the UP/FF F or DOWN/REW
B to set the correct minutes.
5. Press MEMORY/CLK-ADJ again
to set the clock.
HELPLINE PHONE NUMBER 0870 873 0080
9
HELPLINE PHONE NUMBER 0870 873 0080
10
COMPACT DISCS
1. Always use compact discs bearing
the mark as shown:
2. Note: Home recorded discs (CDR)
are not guaranteed to work on this
player.
3. Notes on handling discs.
Removing the disc from its storage
case.
Press the claws at the
center of the c ase.
Lift out without touching
the recorded surface.
• Do not touch the reflective
recorded surface.
• Do not bend the disc.
• Do not stick or write anything on
the surface.
4. Storage
• Store the disc in its case.
• Do not expose the disc to direct
sunlight, high temperatures, high
humidity or dusty places.
5. Cleaning a disc
• Should the disc become soiled,
wipe off dust, dirt and fingerprints
with a soft cloth. The disc should
be cleaned from the centre to the
edge.
• Never use benzene, thinners,
record cleaner fluid or antistatic
spray.
8cm (3 3/16) “CD singles” can be
used (without using an adapter)
in this unit.
CLEANING THE LENS
If the lens in the CD pick-up is dirty,
dusty, etc., it could degrade the sound
or prevent disc play.
COMPACT
DIGITAL AUDIO
Incorrect
Correct Incorrect
HELPLINE PHONE NUMBER 0870 873 0080
• Use a blower (available from camera
stores) to blow dust off the lens.
• If there are fingerprints, etc., on the
lens, gently wipe clean with a cotton
swab.
NOTE:
Only the discs marked with the disc
logo are guaranteed to work on this
player. Home recorded discs (CDR)
recorded on home pc's may not play
or operate correctly. CDRW discs cannot be played.
COMPACT DISC OPERATION
INSERTING THE DISC
1. Press CD key.
2. Press OPEN/CLOSE key to open
the CD door.
3. Insert a CD in the tray.
4. Press OPEN/CLOSE key to
close the CD door. The CDplayer starts and scans the
contents list of the CD. After a
few seconds, the total playing
time and number of tracks will
appear on the display.
PLAYING THE ENTIRE DISC
1. Press PLAY/PAUSE RP.
– Play starts with the first track.
– The display shows the current
track number and its elapsed
playing time.
– When all the tracks have been
played, the CD player stops
and the total number of tracks
and total playing time are
shown on the display.
2. To stop playback, press
STOP C.
11
3. To pause playback, press PLAY/
PAUSE RP.
4. To resume play, press PLAY/
PAUSE RP again.
SELECTING TRACKS
Press UP/FF F or DOWN/REW
B until the required track number
appears in the display.
SEARCHING FOR A PASSAGE
DURING PLAY press and hold UP/
FF F or DOWN/REW B to
search for the required passage.
When the button is released, playback will continue. The volume will
automatically be reduced to a low
level during search operation and
will return to its normal level when
the search button is released.
PROGRAMMING TRACKS
Up to 20 tracks can be programmed.
1. Load a CD as described under
Inserting the disc.
2. Press MEMORY/CLK-ADJ to
start programming.
3. Press UP/FF F or DOWN/
REW B to select the desired
track. The track number will be
displayed on the LCD.
4. Press MEMORY/CLK-ADJ to
store it in the memory.
5. To stop programming, press
STOP C once.
6. The programming will automatically
stop if no button is pressed within
10 seconds.
REVIEWING THE PROGRAM
1. Press MEMORY/CLK-ADJ
repeatly to review the tracks
currently programmed.
HELPLINE PHONE NUMBER 0870 873 0080
The tracks will be displayed on the
LCD.
PLAYING A PROGRAM
1. Press PLAY/PAUSE RP.
2. Play starts with the first track of
the program.
3. When all tracks have been
played, the CD player stops.
CLEAR PROGRAM TRACKS
To clear the program press
MEMORY/CLK-ADJ and then
press stop C.
RANDOM PLAY
To play all the tracks in a random
order.
1. Press CD Key.
2. Press RANDOM Key.
3. "RANDOM" illuminates in the dis
play.
4. Press PLAY/PAUSE.
5. The tracks will be played in a
random order.
6. Press STOP or RANDOM to
cancel the random mode.
12
REPEAT PLAY
To listen to a disc or track over and
over again.
1. Press M-UP/REPEAT.
2. "REPEAT" will illuminates in the
display. The whole disc will be
repeated.
3. Press M-UP/REPEAT again,
"REPEAT" will flash in the display. The current track will be
repeated.
4. Press M-UP/REPEAT until
"REPEAT" disapears from display
to cancel the repeat function.
DISPLAY FUNCTION
In Radio Mode:
Press DISPLAY/REMAIN to change
display information as follows:
Frequency display > Clock display > Timer ON time (Frequency
display)
In CD Mode:
Press DISPLAY/REMAIN to
change display information as
follows: Elapsed time > remaining time > Clock display > Timer
ON time (CD normal display)
- Random Play:
Elapsed time remaining time >
Clock display > Timer ON time
- Memory Play:
Elapsed time remaining time >
Remain > Clock display > Timer
ON time.
In Other Mode:
Press MODE/REMAIN to change
display information as follows:
Clock display > Timer ON (Clock
display)
Important note:
Please ensure that small
children/babies do not operate
this appliance. keep them away
from the motorized CD tray as
trapped fingers may hurt.
TUNER OPERATION
TUNING
1. Press POWER to switch on
the unit.
2. Press "TUNER" button to
select tuner.
3. Select the required waveband
by pressing the STOP/BAND
button.
4. Press UP/FF
BB
REW
B for few seconds, then
BB
release.
– The tuner will automatically
search for the first transmitter
of sufficient strength.
– Repeat this procedure if you
wish to select another station.
5. To tune to weak stations,
briefly press UP/FF
DOWN/ REW
until the correct frequency is
found.
6. If there is a large amount of
interference(noise)move the
STEREO/MONO switch to the
mono position.
PROGRAMMING OF PRESET
STATIONS
1. Press "TUNER" button to
select tuner.
2. Tune to the desired station as
described under Tuning.
3. Press PROG/MEM(on remote).
"MEMORY" will start to flash
and channel "00" will displayed.
4. Press M-up to assign a number
(1-10) to the preset station.
5. Press PROG/MEM (on remote)
again. The frequency, and
preset number are now
entered in the memory.
FF
F or DOWN/
FF
FF
F or
FF
BB
B repeatedly
BB
6. Repeat this procedure to store
other frequencies and preset
in the memory.
TUNING TO PRESET STATIONS
Select a number between 1 and
10 by pressing: M-UP/REPEAT
button.
HELPLINE PHONE NUMBER 0870 873 0080
13
HELPLINE PHONE NUMBER 0870 873 0080
14
TIMER OPERATION
RED
RCA JACK
WHITE
RCA JACK
Line output
AUX INRL
Before setting the timer, make sure
the clock is correctly set.
TIMER ON SETTING
Press CD, TUNER to select the
desired sound source.
Please note when the timer turns on
the unit, the source will be the same
as the last source listened to before
turning off the system.
For TUNER
1. Select TUNER, press M-UP/
REPEAT to select a preset
station.
2. The display will show the
selected preset station and
frequency.
3. Press TIMER on the remote or
press and hold SLEEP/TIMER
on main unit timer appears on
display.
4. Press and hold PROG/MEM on
the remote or MEMORY/CLOCKADJ on the main unit until the
hour digit starts to flash.
5. Press the UP/FF F or DOWN
REW B to set the hour.
6. Press PROG/MEM or MEMORY/
CLOCK-ADJ again.
7. Use UP/FF F or DOWN
REWB to set minutes.
8. Press PROG/MEM or MEMORY/
CLOCK-ADJ to set timer.
To cancel the Timer press the
Timer Button on the Remote.
SLEEP
1. Press SLEEP, 'SLEEP' appears
on the display.
2. Keep pressing SLEEP to adjust
the sleep time in the order of
90>80>70....10 minutes.
3. To cancel the SLEEP mode,
press SLEEP again.
PRESET EQUALIZER
Press PRESET EQ to add a digital
sound effect to the audio output.
MUTE
Press MUTE to mute the sound
output. Press again to cancel this
mode.
CONNECTING AN EXTERNAL AUDIO SOURCE
AUX input can be used to connect
exernal equipment (e.g. TV or VCR)
to this system connect as shown
below.
To Auxiliary player
For CD
1. Insert a disc into the CD tray.
2. Press TIMER.
3. Follow steps 3 to 8 under tuner
timer setting.
HELPLINE PHONE NUMBER 0870 873 0080
15
HELPLINE PHONE NUMBER 0870 873 0080
16
TROUBLESHOOTING GUIDE
TECHNICAL SPECIFICATIONS
Please make these simple checks before calling our helpline. These tips can save you time
and money.
NO POWER • Make sure the power cord is inserted fully into
a 230V/50Hz outlet.
• Check that the outlet is not controlled
by a wall switch.
• Unplug the power cord, wait 1 minute, then
reinsert the plug and push the POWER button.
NO VOLUME • Check the VOLUME control setting.
• Make sure the correct feature has been selected.
(For instance, "CD" should be selected when
playing a CD.)
• Make sure the speakers are properly connected.
• Make sure the speaker wires are not shorted
together.
• If headphones are plugged in, disconnect them.
REMOTE CONTROL
DOES NOT WORK • Check and if necessary, replace the batteries.
• Make sure the remote emitter is pointed at the micro
system.
• The remote may be too far away from micro
system.
CAN’T TUNE RADIO STATIONS • Repeat channel selection.
• Make sure the FM wire aerial is unravelled & fully
extended
NOTE: If operation of the unit or display is not normal, you should reset the unit by
disconnecting it from the household wall outlet for 1 minute and then reinsert the
plug.
WARNING: IF ANY OF THE ABOVE HINTS DOES NOT SOLVE THE PROBLEM YOU ARE
EXPERIENCING, PLEASE CALL OUR PRODUCT INFORMATION HELPLINE
FOR FURTHER ASSISTANCE.
Power Supply : AC power
Output Power (Per Channel): 12.5 watts RMS into 4 ohm
Power Consumption : 28W
Radio Section
Frequency Range : AM 522 - 1620 KHz
FM 87.5 - 108 MHz
Compact Disc Section
Frequency Response (-6dB) : 20-15,000 Hz
Signal-to-noise Ratio : 50 dB
Harmonic Distortion : 0.4%
Channel Separation : 40 dB
CONTINUOUS IMPROVEMENTS ARE BEING MADE TO OUR EQUIPMENT
BOTH IN QUALITY AND PERFORMANCE, THUS WE RESERVE THE RIGHT
TO ALTER SPECIFICATIONS WITHOUT NOTICE.
HELPLINE PHONE NUMBER 0870 873 0080
17
HELPLINE PHONE NUMBER 0870 873 0080
18
Loading...
