Goodmans GTVL19W19HDV Instruction Manual

OPEN/CLOSE

TV/SCART

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire or electric shock, do not expose this

equipment to rain or moisture.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to avoid the risk of
electric shock, do not disassemble this equipment by anyone
except a qualified service personnel.

Safety Instructions

This symbol is intended to alert the user to the presence
of important operating and maintenance instructions
in the literature accompanying the appliance.

Invisible laser radiation when open and interlocks defeated.
avoid exposure to beam.

CAUTION

CAUTION

Use of controls or adjustments or perfo rmance of procedures other than those
specified herein may re su lt i n ha za rd ou s radiation exposure.

LCD TV User Guide

1

MAINS PLUG WIRING

2- CORE

BLUE
(Neutral)

Cable
clamp

BROWN
(Live)

Fuse

3- CORE

BLUE
(Neutral)

Cable
clamp

BROWN
(Live)

Fuse

GREEN and
YELLOW
(Earth)

Electrical Information

This appliance is fitted with a BS1363/A 13 amp plug. If it is not suitable for your supply
sockets it must be removed and replaced with an appropriate plug. If the plug becomes

Safety Instructions

damaged and/or needs to be replaced please follow the wir ing instructions below. The
plug removed must be disposed of immediately. It must not be plugged into a supply
socket as this will be an electrical hazard. If the fuse needs to be replaced it must be of
the same rating and ASTA approved to BS1362. If the plug is changed, a fuse of the
appropriate rating must be fitted in the plug, adapter or at the distribution board. If the
fuse in a moulded plug is replaced, the fuse cover must be refitted before the appliance
can be used.

Wiring Instructions

The supply cable will be either 2-core or 3-core. Follow the appropr iate wiring
instructions given below. In both cases ensure that the outer sheath of the cable is
firmly held by the cable clamp.

WARNING! Do not connect either wire to
the ear th terminal.

This symbol indicates that this 2-core appliance
is Class II and does not require an earth
connection.

The wire coloured blue must be connected to the
terminal marked with the letter N or coloured
black.

2

LCD TV User Guide

The wire coloured brown must be connected to
the terminal mar ked with the letter L or coloured
red.

WARNING! This appliance must be ear thed.

The wire coloured green and yellow must be
connected to the ter minal marked with the letter E,
or by the ear th symbol, , or coloured green or
green and yellow.

The wire coloured blue must be connected to the
terminal marked with the letter N or coloured black.

The wire coloured brown must be connected to the
terminal marked with the letter L or coloured red.

IMPORTANT SAFETY INSTRUCTIONS

Do not attempt to service the equipment yourself.

Opening and removing the covers may expose you to dangerous
voltage or any other hazards and may void your warranty.
Refer service from qualified personnel.

Do not place or drop any other objects on top.

Do not insert anything into the ventilation holes of your equipment.
Inserting any metal or flammable objects may result in fire or
electric shock.

Do not place the equipment on uneven or unstable, stands,tables, shelves etc..
The equipment may fall, causing serious injuries to children or adults and serious
damages to the equipment itself.

Safety Instructions

Always place the equipment on the floor or on a surface that
is sturdy, level, stable and strong enough to support
the weight of the equipment.

Do not block any ventilating openings, leave an open space around the equipment.

Never place the equipment :
on a bed, sofa, rug, or any other similar surfaces;
too close to drapes/curtains/walls, in a bookcase,built-in cabinet,
or any other similar places that may cause poor ventilation.

Always remove the cord from the outlet before cleaning the equipment.

Never use cleaners, harsh or abrasive chemicals or solvents on the
equipment. Clean only with a dry, soft, lint-free cloth.

LCD TV User Guide

3

WARNINGS

● Unqualified attempts to repair this TV are not allowed. Refer repairs to this unit

to a qualified technician only.

Safety Instructions

● Do not disassemble this unit. There are dangerous-voltage parts inside that may

cause electric shock even after power is disconnected.

● Store your unit in a clean, dry environment, Unplug the unit immediately it gets

wet, and consult your servicing technician.

● Always unplug the unit before cleaning it. Wipe dust off the cabinet of the unit

with clean & dr y & soft cloth. Apply non-ammonia cleansing lotion onto the cloth,
not directly onto the screen.

● Do not place heavy objects on top of the unit.

● Avoid exposing your unit directly to sunlight or other heat sources.

● Put your unit in a well-ventilated area away from high humidity.

● Do not expose this TV to rain or moisture, dripping or splashing.

Safety Tips

● If smoke, abnormal noise or odour comes out of your unit, unplug from the

mains supply immediately and call your dealer.

● Never try to repair the your unit on your own. Always call your dealer

for repairs.

Note
This user’s manual contains for-reference-only graphics and infor mation that are
subject to change without notice.

WEEE:

This appliance is labelled in accordance with European Directive 2002/96/EG
concerning used electrical and electronic appliances(waste electrical and electronic
equipment - WEEE). The guideline determines the framewor k for the return and
recycling of used appliances as applicable throughout the EU.

4

LCD TV User Guide

CONTENT

PREPARATION .............................................................................................................. 6

Features ............................................................................................................................................................... 6

Package Contents ............................................................................................................................................... 7

LCD TV .................................................................................................................................................................. 8

Front View ............................................................................................................................................................. 8

Side View...................................................................................................................................................................9

Rear View .............................................................................................................................................................. 10

Remote Control ....................................................................................................................................................... 11

Setting up your LCD TV............................................................................................................................................ 14

Using your LCD TV............................................................................................................................................... 15

INSTALLATION ........................................................................................................... 16

Connecting a TV Cable or Aerial....................................................................................................................... 16

Connecting a DVD Player .................................................................................................................................. 17

Connecting a VCR & a Video Camera .............................................................................................................. 18

Connecting a TV Box and Satellite Receiver ..................................................................................................... 19

Connecting an Audio Receiver...............................................................................................................................20

HD M I.. . ... . ... .... ... . ... . ... .... ... . ... . ... . ... .... ... . ... . ... .... ... . ... . ... .... ... . ... . ... . ... .... ... . ... . ... .... ... . ... . ... . ... 21

USING THE FEATURES................................................................................................. 22

CONTENT

Basic Operation................................................................................................................................................. 22

OSD Menu Operation .......................................................................................................................................... 23

Video .................................................................................................................................................................. 23

Audio.................................................................................................................................................................... 24

Setup................................................................................................................................................................ 25

Preferences........................................................................................................................................................... 26

Screen................................................................................................................................................................... 26

Using the Built-in DVD........................................................................................................................................... 27

Using the Card Reader & USB .............................................................................................................................. 28

Advanced Operations........................................................................................................................................... 30

MP3/WMA Playback............................................................................................................................................. 30

Picture CD Operations.......................................................................................................................................... 31

MPEG4 Operations...... ........................................................................................................................................ 32

Using the DVD Features..................................................................................................................................... 33

TROUBLESHOOTING................................................................................................... 37

SPECIFICATIONS........................................................................................................... 38

LCD TV User Guide

5

PREPARATION

PREPARATION

Features

VGA Support:

640x480/60Hz~1024x768/75Hz

Multimedia socket

VIDEO in socket

S-VIDEO in socket

SCART socket (RGB, CVBS ,CVBS+RGB,Y/C input)

Y Pb Pr in socket

VGA in socket

HDMI in socket

DVD COAXIAL OUT socket (DVD SPDIF OUT)

WSS (Wide Screen Scale ) Function

This function can automatically convert and display any aspect ration (4:3 / Wide) TV
broadcast signal.

Teletext Function

NICAM/ FM-Stereo Function

Auto Programme Sort (APS)

Manual search

Sleep-Timer

User selectable colour temperature settings

Built-In CATV tuner

Card Reader Function

Slot-type DVD Player

Built-In USB

PREPARATION

6

Package Contents

TV/SCART

CH.

VOL.

BACK

+10

EXIT

INFO SOURCE

CH.LIST

MENU

1

4

7 8

9

0

5

6

2

3

OPEN/CLOSE STOP

PLAY/PAUSE

SEARCH SKIP

I-II P.SIZ E

DVD

SLEEP

SUBTITLE

USB/CARD

TITLE

FASTTEXT

AUDIO

SETUP

ZOOM

DVDMENU

GOTO

Once you open the box, make sur e all of the following contents are
include d.If you’re missing any items, please contact your dea ler.

LC D TV

PREPARATION

Remote control/

Video Cable

Audio Cable

AAA batteries

Power Cord

User Guide

(you are reading it)

These items are all you need to set up and operate the LCD TV

in its basic configuration.

cable for connection. If yo u want to set up a complex system, you may need to buy

*Most dev ic es ( VC Rs, DVD player, etc.) come with the necessary

ext ra cable, connector, etc.

PREPARATION

7

PREPARATION

LCD TV

LED

The LED light indicates when the LCD
TV is activated (Red = standby, Green
On).

Front View

IR

Infrared Receiver

Power Button
Turns the LCD TV on and off.

HEADPHONE

Connects to the external
headphone for private listening.

SOURCE

Press to select different input signal sources.

MENU

Press once to display the OSD (on screen
display), press again to turn the OSD off.

CH.▲▼

Changes TV channels. Selects menu item when
in the OSD mode.

VOL. -+

Adjusts the volume up and down. Change values for

Note:

Source button on the TV, has the same function of OK button on the remote control,
can be used as confirm button.

items when in the OSD mode.

PREPARATION

8

LCD TV

Side View

PREPARATION

ITEM DESCRIPTION

Any of the following disc types are playable on the DVD player:

1 SLOT-TYPE DVD PLAYER

2 USB

3 CARD READER

4 PLAY/PAUSE

5 OPEN/CLOSE

CD-R, CD-RW, DVD-R, DVDRW, MP3, VCD, SVCD,DVD+R, or DVD+RW

( DVD mode )

Allows the insertion of a USB disk, You can view digital images / movie or
etc playout on your TV. ( DVD mode )

Allows the insertion of a SD/MMC card. You can view digital images or movie
playout for MPEG1/MPEG2 on your TV. ( DVD mode )

Press to start playback or pause. ( DVD mode )

Press to open and close the disc tray. ( DVD mode )

To View USB or SD/MMC card you must select DVD mode then attach/insert USB cable
or an SD card into the slots provided Card. Using the remote controller navigation (arrow
buttons) and SELECT button select the file shown on the TV screen to view the Card or
USB information. Use the arrow / navigation buttons to rotate any jpeg picture.

PREPARATION

9

LCD TV

P

IAL

DC 12V IN

VHF/UHF IN

HDM I

DC 12V IN

HDMI

Rear View

PREPARATION

7

ITEM DESCRIPTION

1. DC IN

2. RF/ANT.

3. AV1
SCART

4. AV2 S-VIDEO
AUDIO(L/R)

5. AV3
VIDEO/AUDIO(L/R)

6. AV4 Y, Pb, Pr/
AUDIO(L/R)

7. AV5 VGA IN/PC
AUDIO IN

Connect the DC power cord to this socket.

Connect TV aerial here.

Co nnect to ex terna l equip ment with S CART s ocket. Th is SCA RT
in put allows au dio and CVBS / YC / RG B / CV BS+ RGB , S-VI DEO
from a n ex terna l device to d isplay on you T V.

Co nnect to the S-VIDEO outpu t soc kets a nd Audio output sockets
on your vi deo equipmen t.

Connect to the composite A/V output sockets on your video
equipment.

Connect to the component ( Y, P b, Pr ) video sockets and audio
( L/R ) sockets of your DVD p layer, H DT V, or video equipment.

Connect to a PC or other devi ce s wi th a VGA interface.

6

8

10

8 AV6 HDMI

9. Coaxial

Note: S-VIDEO and Video have a common audio input. If both devices are being used at the

same time, both audio-ins will be heard at same time.

Connect to devi ce s wi th a H DM I in te rface.

Connect to DVD coaxial socket on external digital audio equipment. ( only

for DVD mode )

PREPARATION

TV/SCART

OPEN/CLOSE

Remote Control

1

POWER

Turns the LCD TV on and into standby mode .

2

Mutes and restores your LCD TV sound.

3

2

1

3

TV/SCART

Pressing enter TV or SCART Mode.

4

0-9

Select and switch to a channel by
using 0-9 buttons.

BACK/ +10

5

Returns to previously selected channel. (For TV)
Press this button twice to select song number

when the number over 9. ( DVD mode )

CH. +/-

6

Changes the channels up and down .

VOL. +/-

7

Increases and decreases volume.

SLEEP

8

Sets the LCD TV sleep time.

- Press the SLEEP button to select the number of
minutes. followed by 15, 30, 60minutes and off.
The timer begins to count down from the number
of minutes selected.
a.To check the remaining sleep time, press the
SLEEP button once.
b.To cancel the sleep time, repeatedly press the
SLEEP button until the display off appears.
c. If you turn the set off after setting the sleep
timer, the setting will be erased.

SKI P

9

Press to skip to the beginning of the currently

played chapter(track). ( DVD mode )

Press to skip to the beginning of the next

chapter (track). ( DVD mode )

SEA RCH

10

Use to advance or reverse playback rapidly.
(DVD mode )

PLA Y/PA USE

11

/

4

5

10

11

12

14

OPEN/CLOSE

12

Press to open and close the disc tray.

( DVD mode )

STO P

13

Press to stop playback.(DVD mode)

14

EXIT

6

7

8

PREPARATION

9

13

Press to start playback or pause.

( DVD mode )

Exits the OSD menu (on-screen display).

PREPARATION

11

PREPARATION

TV/SCART

OPEN/CLOSE

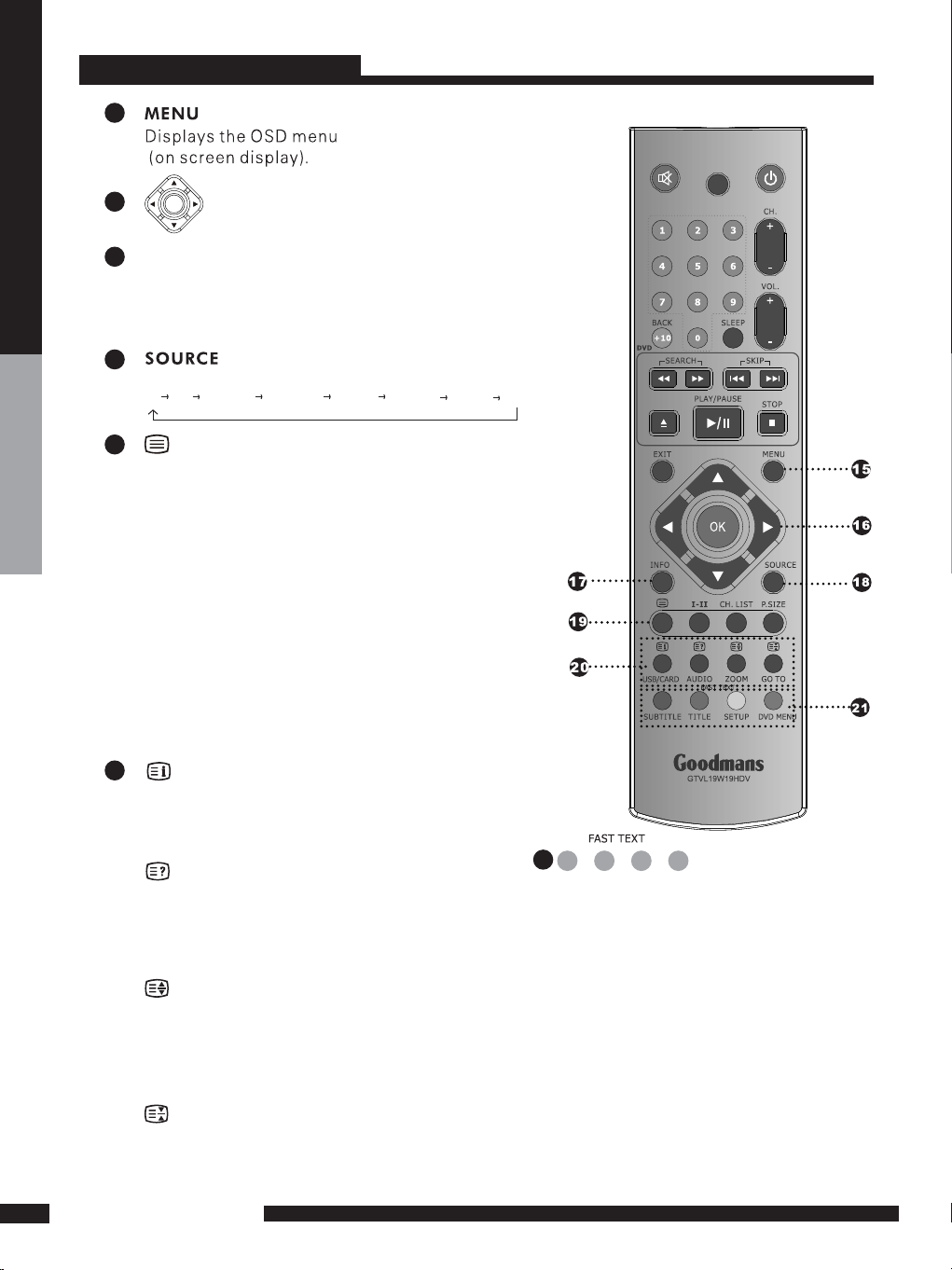

Remote Control

15

Allows you to move, select and set up

16

17

OK

INFO

the OSD options.

Pressing once displays a variety of information such
as the current channel and the input source.
Browse the disc’s information. (DVD mode)

18

Cycles among the different input signal sources:

TV DVD AV1(SCART) AV2(S-VIDEO) AV3(CVBS) AV4(Y Pb Pr) AV5(VGA) AV6(HDMI)

19

Turns on and off the Teletext function.

I-II(NICAM)

Cycles through the TV Sound options:
MONO/DUAL/STEREO.

CH.LIST

Display all channel list .

P.SIZE

Cycles through wide mode settings:

In TV/SCART/S-VIDEO/VIDEO mode: Wide, 4:3, Zoom, Original.
In Y,Pb,Pr/VGA mode: Wide, 4:3.
In HDMI mode, “P.SIZE” function is not available.

20

/ USB/CARD

Displays the main index in Teletext mode.
Press this button switch DVD/CARD READER /USB.

(DVD mode)

/ AUDIO

Reveals hidden information such as the answer to a
quiz in Teletext mode.
Change the audio language or audio channel.

(DVD mode)

/ ZOOM

Freezes a multi-page passage on screen in Teletext
mode.
Zoom in /zoom out the displayed frame.

(DVD mode)

/ GO TO

Displays the top ,bottom or all of page, to easily
read in Teletext mode.

Play from the desired location. (DVD mode)

21

Accesses the TELETEXT items or
corresponding pages.

SUBTITLE

Press to change subtitles when the disc
being played contains several subtitles.

TITLE

Press the button to display the DVD title
content.

SETUP

Press to call up setup menu screen.

DVD MENU

Press the button to display the DVD disc
menu.

PREPARATION

12

Remote Control

Installing the batteries in your remote control

Pull t he tab of t he back cover and p ull up on
th e cove r to o pen t he batter y compar tment

1

of the remote control.

Inse rt two A AA si ze b at terie s.

2

Make sur e to m atch th e (+) an d (-) end s of
th e batteri es with t he (+) a nd (-) en ds indicated
in t he batter y c ompar tment .

Align the lower t abs of th e back cover to the

3

remo te c ontro l and squeeze t he cover into
plac e.

Note :

Do not use caustic cleaners( porcelain, stainless steel, toilet, or oven cleaner, etc...).
You may cause damage to your remote control.

Effective range

Your remote control can be activated from up to the LCD TV 5m away,
if points directly in front of the device.

PREPARATION

30

O

5M

30

O

PREPARATION

13

PREPARATION

H
D
M

I

H
D
M

I

Setting Up Your LCD TV

How to install the TV Stand

Follow the instructions below to install the TV stand:

1

Open the box, and make sure all necessary parts are in the box.

LCD TV Stand

Cover an even stable surface with a soft cloth. Place the LCD TV unit face-down on the cloth. Fit

2

the stand onto the bottom of the LCD TV unit as shown:

3

Then push until stand clicks into the LCD TV’s stand socket.

PREPARATION

14

Using your LCD TV

DC 12V IN

HDMI

The Power button on t he front panel and also on the remote control is only used

1

for powering up and switching the T V to st andby mode,it does not disconnec t
the devic e from the mains su pply.
To c ompletely disconnect the main voltage, please switc h off the power swi tch
on the rear of the TV, or remove the power plug from the socket.

RPO WE

Unplug from a wall
outlet

PREPARATION

DC IN

PREPARATION

15

INSTALLATION

DC 12V IN

HDMI

Refer to the owner’s manual of the external equipment to be connected.When connecting
external equipment, do not connect any AC power cords to wall outlets until you have completed
all the connections.

Connecting a TV aerial

Basic Connection: Connecting cable or aerial .

INSTALLATION

1

2

3

4

Unplug from a wall
outlet

DC IN

Aerial /75-ohm
coaxial input

Connect your existing TV aerial to the Aerial input socket on the TV.

Insert the supplied mains cable to the mains socket located on the rear of

the TV. Connect the other end of this cable to a 3 pin mains socket.

Connect all AC power sources before turning on the
power switch at the back of the TV.

Press the POWER button on your remote to turn on your LCD TV.

TV Aerial

16

5

Press the TV/ SCART button to enter TV mode when it is not in TV mode or to enter
SCART source while it is in TV mode.

INSTALLATION

Connecting a DVD Player

DV D PLAY ER

Pb

Pr

D

Audio

( R)

Video/AudioCable

ideo

Audi

(L )

B

V

o

A

C

HDMI

For best picture quality, if your DVD player has (Y Pb Pr) video output, Please use component
cable instead of a standard video or S-video cable (cables not supplied). Otherwise connect
using a standard Scart cable (not supplied).

METHOD A (AV2)

1

Use an Audio cable to connect the DVD’s audio output sockets to your LCD TV.
Use a S-Video cable to connect your LCD TV and DVD player.

METHOD B (AV3)

Use an A/V cable to connect the DVD’s composite output sockets to your LCD TV.

METHOD C (AV1)

Use a SCART cable to connect the DVD’s SCART socket to the LCD TV’s SCART socket.

METHOD D (AV1)

Use a Component cable to connect the ( Y Pb Pr ) sockets on the DVD player to your LCD TV.
Use an audio cable to connect the DVD’s audio sockets to your LCD TV.

Connect all power sources before turning on the LCD TV or other connected equipments.

2

Press the POWER button to turn on your LCD TV.

3

To watch DVD, press the SOURCE button to select AV1,AV2, AV3,AV4.

4

INSTALLATION

INSTALLATION

17

Connecting a VCR & a Video Camera

Audio

(R)

Video/AudioCable

ideo

Audi

(L )

C

B

A

V

o

HDMI

INSTALLATION

METHOD A (AV2)

1

Use an Audio cable to connect the VCR’s/ the VIDEO CAMERA’s audio output
sockets to your LCD TV.
Use a S-Video cable to connect your LCD TV and VCR player/ VIDEO CAMERA.

METHOD B (AV3)

Use an A/V cable to connect the VCR’s/ VIDEO CAMERA’s composite output sockets
to your LCD TV.

METHOD C (AV1)

Use a SCART cable to connect the VCR’s SCART socket to the LCD TV ‘s SCART socket.

Connect all power sources before turning on the LCD TV

2

or other connected equipments.

Press the POWER button to turn on your LCD TV.

3

To watch VIDEO CAMERA, press the SOURCE button to select AV2 or AV3.

4

To watch VCR, press the SOURCE button to select AV1, AV2 or AV3 .

5

Not all cameras have the ability to connect to a TV. Please check your video camera

Note:

user guide for compatibility.

18

INSTALLATION

Connecting a TV Box and Satellite Receiver

Pb

Pr

V

GA CABLE

C

D

E

Audio

(R)

Video/AudioCable

ideo

Audi

(L )

B

V

o

A

Method A ( AV2 ) :

1

Use an Audio cable to connect the Satellite Receiver’s / TV Cable Box’s audio output sockets to
your LCD TV.
Use a S-Video cable to connect your LCD TV and Satellite Receiver’s / TV Cable Box.

Method B ( AV3 ) :

Use an A/V cable to connect the Satellite Receiver’s / TV Cable Box’s composite output
sockets to your LCD TV.

Method C ( AV5 ) :

Use a VGA 15 pins cable to connect the Satellite Receiver’s / TV Cable Box’s RGB output
sockets to your LCD TV.
Use a 3.5 mm socket to RCA adapter cable for connecting audio.

Method D ( AV1 ) :

Use a SCART cable to connect the Satellite Receiver’s / TV Cable Box’s SCART socket to the

LCD TV’s SCART socket.

Method E ( AV4 ) :

Use a Component cable to connect the Y/Pb/Pr sockets on the Satellite Receiver’s / TV Cable

Box to your LCD TV.
Use an Audio cable to connect TV ca ble box’s audio output sockets to LCD TV.

Method F ( AV6 ) :

Use a HDMI cable to connect the Satellite Receiver HDMI connector to your LCD TV.

Connect all power sources before turning on the LCD TV or other connected equipments.

2

Press the POWER button to turn on your LCD TV.

3

To watch TV cable box, press the SOURCE button to select AV1, AV2, AV3, AV4 ,AV5.

4

To watch programs satellite receiver, press the SOURCE button repeatedly to select AV6 .

5

INSTALLATION

INSTALLATION

19

Connecting an Audio Receiver

HDM I

For best Sound quality, you may want to play the LCD TV audio through your Dolby
digtal surround system system.

Dolby digital

amplifier

INSTALLATION

20

Use an audio cable to connect the audio receiver’s audio LINE IN sockets to LCD TV ‘s

1

DVD COAXIAL OUT sockets.(only for DVD mode)

Connect all power sources before turning on the LCD TV or other connected equipments.

2

Press the POWER button to turn on your LCD TV.

3

INSTALLATION

HDMI

HDMI

-This TV can accept High-Definition Multimedia Interface(HDMI) .

-This TV SET supports HDCP(High-bandwidth Digital Content Protection) Protocol for TV SET
(480p, 720p, 1080i) modes.

-When you connect to the output of an HD ready player (DVD Player, Set Top Box or PC) switch to the
AV6(HDMI) function and the TV will automatically detect the resolution used by the HDMI source.

- To get the best picture quality, adjust the DVD Player or Set Top Box output resolution to 1280 x 720p.

- To get the best picture quality, adjust the PC graphics card to 1024 x 768, 60Hz.

- When Source Devices have DVI Output Connector, you must also connect the audio output to the L/R
audio input sockets on the rear of the TV (Audio cable not supplied)..

How to connect

1. If Source Devices have HDMI Output , connect to the HDMI socket located at the rear of the TV
using the HDMI Cable supplied with your external devise. (HDMI sends Digital Video and Audio with
one cable.)

INSTALLATION

INSTALLATION

21

USING THE FEATURES

Basic Operation

Tuning in the TV channels

1

After connecting an aerial to your LCD TV and connecting the mains cable to the TV and

230VAC mains socket, a red light will show on the front centre panel of the TV.

2 Press the POWER button, the red light will change to green and the First Time Installation

screen will show:

1. Make sure an aerial is fitted then press OK button on the remote to start
the Auto Programme Scan (APS).

2. In a short while you will see the TV programmes briefly as each channel is received and
stored in the memory. When APS is completed BBC1 will show, press CH+/- buttons to
view the other channels stored.

3 To power off press the POWER button, the green light will change to red.

Selecting a source

Press the SOURCE button to display the function required (TV/DVD/AV).
Using the arrow buttons on the remote highlight the function required and press the OK button
to select the function.

Select TV Channel

1 Press the CH.+/- button on the remote control and the CH. ▲/▼ button on the LCD

TV to change the TV channels.

2 You can directly select the TV channel required by pressing 1,2 or 3 etc on the remote key

pad.

3 Press the BACK(+10) button on the remote control to swap the channel between the current

channel No. and the previous channel No.

Adjusting the Volume

Press the VOL. +/– button on the remote control or the VOL. +/- button on the LCD TV to adjust
the volume.

To Mute the Sound

1 Press MUTE and the sound cuts off.
2 To turn mute off, press the MUTE button again, or simply press the VOL +/ - button.

Sleep Timer

USING THE FEATURES

Press the SLEEP button continuously to select the sleep timer or turn the sleep timer from the
OFF,15,30,60minutes; when the LCD TV has reached the set time, it will automatically turn off. If

the TV has no input signal, it will automatically power down to standby after 15 minutes.

22

USING THE FEATURES

OSD Menu Operation

1 The main menu provides access to the following menus:

Video

Audio

Adjust picture setting such as picture
mode, contrast,brightness,sharpness,
colour and advanced.

Adjust sound option and effects.

Setup

Adjust colour standard, sound
standard, APS, Manual search,
Channel setup.

Preferences

Adjust preferences such as OSD, blue
screen, childlock, sleep timer, OSD
timer, OSD reset.

Screen

Adjust screen such as horizontal size,
horizontal position, vertical position,
phase, auto sync.

2 Press the MENU button on the remote control. The main menu will appear on the screen.
3 Use ◄/► to highlight your main menu option, then press OK to enter your selected

option.
Use ▲/▼ to highlight an option of the sub-menu. Use ◄/► to change the value of the
item.Press the EXIT button to exit MENU.

Video

Use this Video setting menu to adjust the picture quality which best corresponds to your viewing
requirements.The Video Menu includes the following options:

OPTION DESCRIPTION

Picture Mode

Contrast

Brightness

Colour

Tint(NTSC)

Sharpness

Custom:Select for user’s settings.
The items of video can be adjusted when
the picture mode is for user’s settings
except advanced item.

Vivid:Select for enhanced picture contrast
and sharpness.

Standard:Select for standard picture
settings.Recommended for home
entertainment.

Mild:Select for mild picture settings.

Adjust the difference between the
brightness and darkness regions of the
picture.

Adjust to increase or decrease the
brightness.

Allows to adjust the colour intensity from 0
to 100.

Allows you to adjust the color tint of the
picture.(Only for NTSC)

Adjust to sharpen or soften the picture.

USING THE FEATURES

USING THE FEATURES

23

Video

OPTION DESCRIPTION

Advanced

Display Mode Cycles through wide mode

settings:

In TV/SCART/S-VIDEO/VIDEO mode: Wide, 4:3,
Zoom, Original.
In Y,Pb,Pr/VGA mode: Wide, 4:3.
In HDMI mode, “P.SIZE” function is not available.

DCE

Blue
Stretch

Green
Stretch

Color
Temp.

Allows you to adjust the
(Dynamic Contrast
Enhancemen)to be off, low,
mid, high.

Allows you to adjust the blue
stretch.

Allows you to adjust the green
stretch.

Allows you to adjust the color
temp. to be cool, warm ,
standard.

Audio

Use this AUDIO setting menu to adjust the sound and balance and volume to your
listening requirements.

OPTION DESCRIPTION

Volume

Balance

Presets the volume to a given setting.

Adjust to emphasize left or right speaker
balance.

USING THE FEATURES

24

USING THE FEATURES

Setup

Manual Search

APS

Setup

Channel Setup

Setup

Channel Setup

Finetune

Save

Use this Setup menu to select Colour Standard, Sound
Standard, APS, Manual Search, Channel Setup.

OPTION DESCRIPTION

Colour
Standard

Allows you to select the colour
standard : AUTO,PAL, SECAM.

UK = PAL

Sound
Standard

Allows you to select the sound standard :

DK, BG, I, L/L’.

DK

BG

I

L/L’

PAL D/K, SECAM D/K (East
Europe / China /

PAL B/G, SECAM B/G
(Europe / East Europe / Asia /
New Zealand / M.East / Africa
/Australia)

PAL I (U.K. / Ireland / Hong
Kong / South Africa)

SECAM L/L’

APS

Manual
Search

Channel Setup

Start APS

Press OK to start Auto Search and auto
sort process.
Country
Allows you select the country :Austria,
Belgium, Switzerland, Czech Rep.,
Germany, Denmark, Spain, France,
Finland, UK, Greece, Hungary, Italy,
Norway, Netherlands, Portugal, Poland,
Sweden, Slovenia, Slovakia, Turkey,
Others.

Allows you to adjust the manual search
by hand if signal is too weak
or picture is blurry.

Press the ► button to select Sort,

Delete, Skip, Finetune, Save.

Sort

Allows you to manually sort
the stored programme.

Delete

Allows you to delete the
stored programme.

Skip

Allows you to skip the
stored programme.

Finetune

Allows you to finetune the
stored programme.

Save

Allows you to save the
setup.

USING THE FEATURES

USING THE FEATURES

25

Preferences

Auto Sync.

Use this Preferences setting menu to set up some features: OSD, Blue Screen, Childlock,
Sleep Timer, OSD Timer, OSD Reset.

OPTION DESCRIPTION

OSD

Blue Screen

Childlock

Sleep Timer

OSD Timer

Language : Allows you to select the
OSD to be English, German,
French, Spanish, Italian,
Dutch, Portugese, Polish or

Russian.

Transparency: Allows you to adjust
transparency from 0 to

15.

Allows you to select the blue screen to be
off or on.

Allows you to select the childlock to be
yes or no. ( Default password is 0000,

golden password is 3796.)

Change Pin: Allows you to change the
4 -digit password.

Allows you to select the sleep timer to
be off, 15min, 30min, 60min.

Allows selection of the display time of the
on-screen menu:5 s,10 s,15 s,
20 s, 25 s.

USING THE FEATURES

Screen(Only for VGA)

OSD Reset

OPTION DESCRIPTION

Horizontal
Size

Horizontal
Position

Vertical
Position

Phase

Auto Sync.

Allows you to restore the factory settings.

Allows you to adjust the Horizontal Size
from 0 to 100.

Allows you to adjust the Horizontal
Position of the picture.

Allows you to adjust the Vertical Position
of the picture.

Allows you to improve focus clarity and
image stability.

Allows to auto synchronize VGA
signal.

26

USING THE FEATURES

USING THE BUILT - IN DVD

/USB/CARD

(SCART)

(CVBS)

(Y Pb Pr)

TO INSERT A DISC

Select DVD function before disc can be inserted.
Plays movies and other content on DVD, VCD, SVCD, and audio CD.

Note:
Insert a disc with label side facing to
front of TV

TO REMOVE A DISC

When removing the disc, do not attempt to pull it from its slot. Please push the
button .

1. Turn your LCD TV on.

2. Select Source to DVD.

3. Insert a disc with label side facing front of TV (CD-R, CD-RW, DVD-R, DVDRW, VCD,
SVCD,DVD+R, or DVD+RW )
4 .After the disc is inserted, Smart NAVl will show the contents of the
disc automatically.
5 .Make sure Play Movie is selected and Press , if the DVD does not play
automatically.

/

USING THE FEATURES

USING THE FEATURES

27

USING THE CARD READER & USB

The Smart NAVI Viewer allows you to play JEPG/MPEG1/MPEG2/MP3/MPEG4 files in a SD
storage card on your LCD TV.

TO INSERT A SD CARD

Be sure to insert the SD card in the correct orientation. If the SD card is forced in the
wrong way, it may cause damage.

TO REMOVE A SD CARD
When removing the SD card, please pull it from its slot.

1. Turn your LCD TV on.

2. Select Source to DVD.

3. Insert a SD card that contains JEPG/MPEG1/MPEG2/MP3/MPEG4 files.

4. Press “CARD” button on the remote control to enter Card Reader Mode.

5. Press▲/▼button on the remote control to select the file you want to play,
and then press “OK” button to play the file.

NOTE:

1. The card socket and the DVD player cannot be used simultaneously, so please
insert either a card or a disc, not both at once.

2. If you want to view the DVD program or turn USB file on,
please press “CARD” button to switch it.

USB (Universal Serial Bus)

Connect a USB devise via a USB cable to the USB slot, and press USB/CARD button on
the remote to switch to USB playing status. And the TV screen will show the USB menu.
The playing interface and operation methods are alike MP3,MP4,JPEG files.The playing

USING THE FEATURES

interface is according to the content of your saved file.

28

USING THE FEATURES

PLAYING BACK DVD/USB/CARD

For trouble free operation of SD CARD/USB or DVD disc play. Please ensure
that the following steps are taken before inserting an SD card, USB or DVD
disc:

DVD Playback

1. Press source button and select DVD/USB/CARD function.

2. Allow 10 seconds before inserting a DVD disc ensuring that the label side
is facing you.

SD CARD/USB Playback

1.Press the Source button and select DVD/USB/CARD function.

2. Press the USB/CARD button on the remote.

3. Now Insert a Card (Label side facing you) or USB cable.

Note: If DVD has been previously played its important that the disc is
removed and that the USB/CARD button on the remote is pressed before
inserting a card or USB cable. Failure to do so will result in the card /USB
failing to be read and shown on the monitor.

DVD Supports following formats:

1. MP3 (CVR/VBR) bite rate range : 32kbps~320kbps.
WMA bite rate range: 64kbps~192kbps (Sample Rate)

2. JPG picture maximum resolution:
Baseline JPG: 3072X2048
Progressive JPG: Width x (High+128)<3300000

3. MPEG4:
Version: DivX3. 11/DivX4.xx /DivX5.xx/DivX6.0,
Video source resolution: PAL<=720x576, NTSC<=720x480.

4. *.MPG, *.DAT MPEG1 video format, same as VCD.

Note:
a). When switching between TV and DVD it is necessary to press the source
select button until the DVD function indicator is seen on the screen.
b). For best performance, when viewing Jpeg (.Jpg) pictures via a flash
memory device connected through the USB socket, adjacent pictures
should be of the same resolution otherwise they may not display properly.

USING THE FEATURES

USING THE FEATURES

29

Advanced Operations

SEARCH PLAY

For DVD discs:

Press the GOTO key in normal playing status to display on screen as follows:

Using the arrow buttons and number keys, adjust the title, chapter, audio, subtitle,
angle, time of the title, time of the chapter, repeat on/off, and time display mode.
VCD discs are alike DVD disc

For CD discs

Press the GOTO key the screen will display as following order:
Track 03/14 05:33
Disc Go To - - :- ­ Track Go To:- -:- ­ Select track: - -:- -

MP3 / WMA Playback

MP3/WMA Playback

The DVD player can playback discs, Including CD-R, CD-RW, DVD-R, DVD-RW,
DVD+R, or DVD+RW rec-orded with MP3 audio files. Multiple and multi-level
directories are supported.
Upon loading an MP3/ WMA disc , the screen shows a menu as :

USING THE FEATURES

30

USING THE FEATURES

MP3 / WMA Playback

MP3/WMA Playback

To go to a preferred directory, use the up/down cursor keys to scroll to your

selection and then press OK key to confirm.

Use the up/down cursor keys to select song and press OK button to start playing.
Press left cursor button can return to the parent directory, you can then select
other directory.

PICTURE CD Operations

Playing Kodak Picture CD or JPEG files

The DVD player is compatible to Kodak Picture CD and discs containing
JPEG image files (with .JPG file extension). This function is similar to MP3 playback
function.

Upon loading a Kodak Picture CD or disc containing JPEG files, TV screen shows:

Operations:

Picture selection & Preview:

Press cursor buttons to select the target picture and press OK button to
show. The player will show the preview of the picture in preview area once
the cursor stops.

Rotate Picture:

You can use arrow left /right buttons to rotate current showing picture.

USING THE FEATURES

USING THE FEATURES

31

PICTURE CD Operations

Previous and Next selection:

You can press button to show previous picture or button to show next

picture manually.

Slide Show:

The player will automatically play pictures in slide show mode if the disc
containing more than one picture. There are 16 available modes to wipe the TV
screen when displaying a new picture:

Press ▲/▼ button to change the current slide show mode when playing pictures.

MPEG 4 Operations

MPEG-4 Playback

Upon loading the disc, the screen shows a window as follows:
(The following picture just for reference only)
1 ) Choose the preference directory, use the UP and DOWN button and then
press the OK button to confirm.

2) Select the AVI file by using Cursor button to choose the preference AVI file

and press OK button to play it

USING THE FEATURES

3) Return to the main directory. Press left cursor button and then press
STOP button to return to the maindirectory, you can then select
another directory.

4) To stop playing, press the STOP button at anytime.

32

USING THE FEATURES

.

Wide

USING THE DVD FEATURES

The setup menu is used to configure the player.

USING GENERAL SETUP PAGE

OPTION DESCRIPTION

TV DISPLAY

4:3 Pan Scan

Select this when the player is connected
with a standard format TV set. Wide
screen picture shown in the full screen
with some part cut.

OSD
LANGUAGE

DIGITAL
OUTPUT

4:3 Letter box

Select this when the player is connected
with a standard format TV set. Wide
screen picture shown in the full screen
with black bars on the top and bottom of
the screen.

16:9

Select when the player is connected to a
wide screen TV set.

OSD Language

The default language is English.
Select other languages, the OSD will be
shown in other languages: English/Dutch/
French/German/Italian/Polish/Portuguese/
Spanish/Russian.

Output

There are 3 kind of SPDIF output mode
for choose: SPDIF OFF, SPDIF RAW and
SPDIF PCM .

SPDIF OFF:

Set as default, there will be no digital
audio signal output.

RAW:

Set as default, the digital audio signal
output will be in RAW format. Normally,
this mode is use for DTS signal and Dolby
digital signal.

USING THE FEATURES

PCM:

Set as default, the digital audio signal
output will be in PCM format. Normally,
this mode is use for audio CD signa

USING THE FEATURES

33

Wide

USING GENERAL SETUP PAGE

OPTION DESCRIPTION

SCREEN
SAVER

Screen saver

When the player stops or the picture
becomes motionless for a couple of
minutes, there will be a screen saver
to prevent damage to the display
screen.

ON:

To activate screen saver.

OFF:

To disable screen saver.

LAST
MEMORY

ANALOG AUDIO SETUP PAGE

OPTION DESCRIPTION

DOWNMIX

Last Memory

ON:

Each time when you turn off the
player, it will memorize the last play
time So if you next time turn on the
player and play the same disc, The
player will resume play from the point.

OFF:

Disable the last memory

function

DOWNMIX

LT/RT:

.

Select this option when the
DVD player is connected to external
amplifier with Pro-Logic decoding
function.

USING THE FEATURES

34

USING THE FEATURES

STEREO:

press down button to select
the stereo,and then press ok button
to confirm it.

DOLBY DIGITAL SETUP

RESOLUTION

480p/576p

OPTION DESCRIPTION

DUAL MONO

Dual Mono

Stereo: It means that the player will output
Left channel and Right channel audio.
L-Mono: It means that the player will
output left channel audio only.

R-Mono: It means that the player will
output right channel audio only.

MIX-Mono: It means that the player will
output the average signal of the Left
channel and Right channel audio.

Note:

This setting is used to play Dolby AC-3
encoded 2 channel discs. Some DVDs
may not being change in this menu
setting.

USING VIDEO SETUP PAGE

OPTION DESCRIPTION

RESOLUTION

DYNAMIC

Dynamic

When set the dynamic range to FULL, the
soft music will be automatic increase and
the loudness music will be automatic
decrease.
When set the dynamic to OFF, the
function will be disabled.

Note:

This setting is used to play Dolby Digital
encode disc.
This function is suitable to use at night.

Allows you to select 480p/576p,
720p mode, factory default is 720P.

USING THE FEATURES

USING THE FEATURES

35

USING PREFERENCE PAGE

The unit must be at complete STOP mode to access to SETUP Preference Page.

OPTION DESCRIPTION

AUDIO

AUDIO

Set the audio language to your

language of choice: English/Dutch/

French/German/Italian/Polish/Portuguese/
Spanish/Russian.

NOTE:

Not all DVD discs are

recorded with multiple languages.

SUBTITLE

DISC MENU

PARENTAL

PASSWORD

SUBTITLE

Select the Subtitle language:English/

Dutch/French/German/Italian/Polish/
Portuguese/Spanish/Russian/OFF.

NOTE:

Not all DVD offer subtitles in

multiple languages.

DISC MENU

Select the Disc Menu language:

English/Dutch/French/German/Italian/

Polish/Portuguese/Spanish/Russian.

NOTE:

The default language is English.

PARENTAL

Allows the user to set a maximum
rating of movie that can be played(e.g.
PG rating). Movies rated higher than
the level set will not be played. The
parental lock can only be changed after
input the correct password.

NOTE:

This function is available only

when the discs have rating encoded
on.

PASSWORD MODE

Select to change old password (factory

default is 000000, golden password is

003796.) to new password.

PASSWORD CHANGE

To change the password, you need
to:1.Input old password.2.Input a 6-digit
new password.3.Input the new
password again to confirm.

USING THE FEATURES

36

USING THE FEATURES

DEFAULT

DEFAULT

To restore all setup parameters to the
factory settings EXCEPT the password.
This function available in stop state or
tray opened.

TROUBLESHOOTING

Before contacting Goodmans Helpline, check the following chart for a possible cause
of the trouble you are experiencing and for a solution.

PROBLEM

TV will not turn on

No picture, no
sound

Poor picture, sound
OK

Picture OK, Poor
sound

SOLUTION

□ Make sure the power cord is plugged in.
□ The batteries in the remote control may be exhausted. Replace the

batteries.

□ Check the interface cable between TV and antenna/cable TV.

□ Press the POWER button on the remote.
□ Press the TV button on the remote, then press the SOURCE

button repeatedly to select the connected video sources.
□ Make sure that the main power switch on the back panel is

switched on.

□ Check the interface cable between TV and antenna/cable TV.
□ Try another channel, the station may have broadcast

difficulties.

□ Adjust the Brightness/Contrast options in the VIDEO Menu.

□ Sound may be muted. Press the MUTE button on the remote.

□ Press the TV button on the remote, then press the VOL.+
button to increase the volume.

Audio noise

□ Move any infrared equipment away from the TV.

USING THE FEATURES

USING THE FEATURES

37

SPECIFICATIONS

Model

Panel System

Display Resolution

Television System

Brightness

Contrast Ratio

Inputs/Output

SCART

VGA

PC Audio In

Video In

S-video In

Phones

GTVL19W19HDV

19 inch LCD panel

1440 pixels (horizontal) x 900 pixels (vertical)

PAL - I

450 cd /m

500:1

2

1

1

1

1

1

1

Y Pb Pr

HDMI IN

Coxial Out

TV

DVD INPUT

USB

CARD READER

Speaker Power

USING THE FEATURES

38

Power Source(MAX)

Dimension( W x D x H)

Weight(Net)

USING THE FEATURES

1

1

1

1

1

1

1

3 W+3 W

AC230 V~, 50Hz, 60 W

572.9 x 169.8 x 382mm

6.0 Kg

Display Modes

The screen resolution has been optimized during production for the display modes listed below.
If the signal from the system equals the standard signal mode, the screen adjusts automatically.
If the signal from the system is not equal to the standard signal mode, adjust the screen
resolution by referring to your video card user guide, otherwise there may be no video.

Y Pb Pr Mode

Resolution Vertical Frequency(Hz) Aspect Ratio

480P: 720 x 480

480I: 720 x 480

576P: 720 x 576

576I: 720 x 576

720P: 1280 x 720

1080I: 1920 x 1080

VGA Mode

Horizontal pixels x Vertical Scan Line Vertical Frequency(Hz) Aspect Ratio

640 x 480

800 x 600

1024 x 768

60

50

50

60

50

60

60

72

75

60

72

75

60

70

75

16:10(Wide), 4:3

16:10(Wide), 4:3

HDMI Mode

Horizontal pixels X Vertical Scan Line Vertical Frequency(Hz) Aspect Ratio

480P: 720 x 480 60

576P: 720 x 576 50

720P: 1280 x 720

1080I: 1920 x 1080

Note:
The picture may have something different from the actual things because of the
continuous products’ upgrading.

50

60

50

60

16:10 (Wide)

USING THE FEATURES

USING THE FEATURES

39
