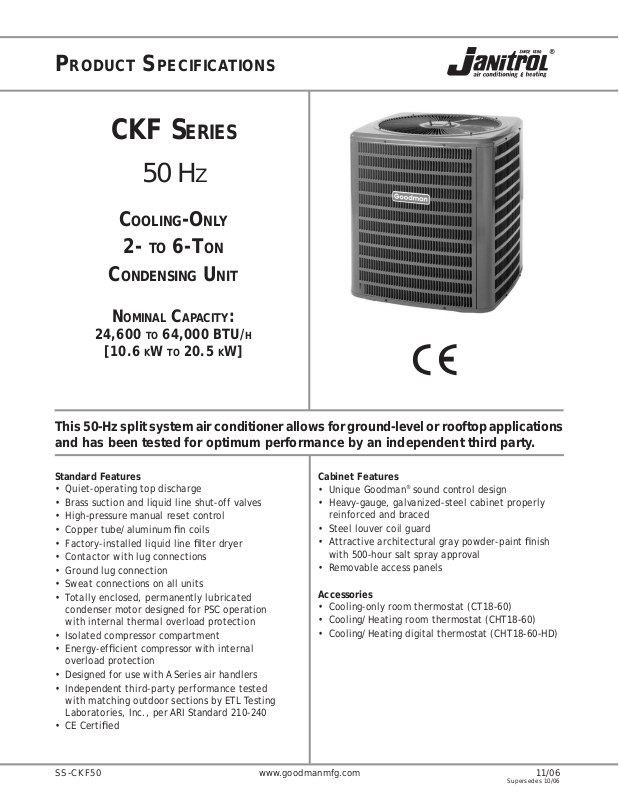

PRODUCT SPECIFICATIONS
CKF SERIES
50 HZ
COOLING-ONLY
2- TO 6-TON
CONDENSING UNIT
NOMINAL CAPACITY:
24,600 TO 64,000 BTU/H
[10.6 KW TO 20.5 KW]
This 50-Hz split system air conditioner allows for ground-level or rooftop applications and has been tested for optimum performance by an independent third party.
Quiet-operating top discharge
• Brass suction and liquid line shut-off valves
• High-pressure manual reset control
• Copper tube/aluminum fi n coils
• Factory-installed liquid line fi lter dryer
• Contactor with lug connections
• Ground lug connection
• Sweat connections on all units
• Totally enclosed, permanently lubricated
• condenser motor designed for PSC operation with internal thermal overload protection
Isolated compressor compartment
• Energy-effi cient compressor with internal
• overload protection
Designed for use with A Series air handlers
• Independent third-party performance tested
• with matching outdoor sections by ETL Testing Laboratories, Inc., per ARI Standard 210-240
CE Certifi ed
Cabinet Features
Unique Goodman® sound control design
• Heavy-gauge, galvanized-steel cabinet properly
• reinforced and braced
Steel louver coil guard
• Attractive architectural gray powder-paint fi nish
• with 500-hour salt spray approval
Removable access panels
Accessories
Cooling-only room thermostat (CT18-60)
• Cooling/Heating room thermostat (CHT18-60)
• Cooling/Heating digital thermostat (CHT18-60-HD)
SS-CKF50 www.goodmanmfg.com 11/06
Supersedes 10/06
P
RODUCT
S
SPECIFICATIONS
PECIFICATIONS
C K F 0 3 6 2 A
Category
C = Split Systems
Unit Type
E = Commercial Air Conditioner K = Air Conditioner P = Heat Pump
Nominal BTU/h
018 = 1.5 tons 024 = 2 tons 030 = 2.5 tons 036 = 3 tons
Electrical
1 = 208/230 V, 1 Phase, 60 Hz 2 = 220/240 V, 1 Phase, 50 Hz 3 = 208/230 V, 3 Phase, 60 Hz 5 = 380/415 V, 3 Phase, 50 Hz
042 = 3.5 tons 048 = 4 tons 060 = 5 tons 070 = 5 tons
PERFORMANCE RATINGS
Outdoor Unit Indoor Unit
CKF24-2*
CKF36-2*
CKF36-5*
CKF48-5*
CKF60-5*
CKF70-5*
¹ Energy Effi ciency Ratio @ 80°F / 67°F / 95°F ² kWI = Compressor + Indoor Blower + Outdoor Fan Watts
Note:
When mix-matching outdoor and indoor units, the indoor unit check-fl owrator must match the
• outdoor unit size.
A24-00-2RA 24,000 16,800 9.0 2.66 76 CA*F1824*6* 24,600 17,400 9.0 2.73 76 A36-00-2RA 33,000 23,400 9.0 3.67 76 CA*F3030*6* 34,000 24,200 9.0 3.78 76 A36-00-2RA 33,000 23,400 9.0 3.67 76 CA*F3030*6* 34,000 24,200 9.0 3.78 76 A48-00-2A 44,000 32,400 9.0 4.89 78 CA*F3636*6* 44,000 32,400 9.0 4.89 78 A60-00-2R 55,000 37,800 9.0 6.11 78 CA*F3642*6* 55,000 37,800 9.0 6.11 78 A60-00-2R 61,000 41,500 9.0 6.78 80 CA*F4860*6* 62,000 42,000 9.0 6.89 80 A90-00-2R 64,000 43,500 9.0 7.11 80
Cooling Capacity (BTU/h)
Total Sensible EER¹ kWI²
Revision
dBs
2
SS-CKF50
P
RODUCT
S
PECIFICATIONS
SPECIFICATIONS
CKF24-2* CKF36-2* CKF36-5* CKF48-5* CKF60-5* CKF70-5*
Capacities
Nominal Cooling (BTU/h) 24,600 34,000 34,000 44,000 55,000 64,000 EER¹ 9.0 9.0 9.0 9.0 9.0 9.0 Decibels 76 76 78 78 80 80
Compressor
RLA 12.5 17.9 5.3 7.4 9 10.9 LRA 61 97.4 42 50 74 101 Volts 220-240 220-240 380-420 380-420 380-420 380-420
Condenser Fan Motor
Horsepower 1/4 1/4 1/4 1/4 1/4 1/3 FLA 0.9 0.9 0.8 0.8 0.8 1.2 Volts 220-240 220-240 380 380 380 380
Refrigeration System
Liquid Valve Size (“O.D.) 3/8 3/8 3/8 3/8 3/8 3/8 Suction Valve Size (“O.D.) 3/4 3/4 7/8 7/8 7/8 7/8 V alve Type Sweat Sweat Sweat Sweat Sweat Sweat Refrigerant Charge 88 89 89 113 121 153 Shipped with Orifi ce Size 0.059 0.068 0.068 0.078 0.093 0.096
Condenser Fan / Coil
Horsepower - RPM 1/4-950 1/4-950 1/4-950 1/4-950 1/4-950 1/3-1075 Fan Diameter/ # Fan Blades 20/3 20/3 20/3 22/3 22/3 22/3 Outdoor Nominal CFM 1800 1800 1800 2400 2600 3200 Face Area (ft²) 13.3 13.3 13.3 15.6 17.1 20 Rows Deep/ Fins per Inch 1/19 1/19 1/19 1/19 1/19 1/22 Fin Type Ripple Ripple Ripple Ripple Ripple Ripple Coil No. of Tubes 22 22 22 22 24 36 Coil Tube Diameter (in.) 0.375 0.375 0.375 0.375 0.375 0.375
Electrical Data
Voltage-Hz / Phase 220/240-50/1 220/240-50/1 380/415-50/3 380/415-50/3 380/415-50/3 380/415-50/3 Min. Circuit Ampacity² 16.6 23.3 7.5 10 12 14.8 Max. Overcurrent Protection (amps)³ 25 40 15 15 20 20 Min / Max Volts 198/264 198/264 342/456 342/456 342/456 342/456 Power Supply Conduit Size 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 Ship Weight (lbs-[kg]) 180 (82) 184 (84) 184 (84) 191 (87) 210 (95) 228 (104)
¹ Energy Effi ciency Ratio ² Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes. ³ Must use time-delay fuses or HACR-type circuit breakers of the same size as noted.
Note: Always check the S&R plate for electrical data on the unit being installed.
DIMENSIONS
SS-CKF50
Model Width Depth Height
CKF24-2* 26 26 29¾ CKF36-2* 26 26 29¾ CKF36-5* 26 26 29¾ CKF48-5* 29 29 29¾ CKF60-5* 29 29 32¼ CKF70-5* 29 29 38¼
3
P
RODUCT
S
PECIFICATIONS
SCHEMATIC WIRING DIAGRAM
Power Circuit
WIRE CODE: Y - Yellow • PU - Purple
Low-Voltage Circuit
Component Legend
C - Contactor
Comp - Compressor
FC - Fan Motor Capacitor
HP - High-pressure Control
FM - Fan Motor
IO - Internal Overload
Single-Phase Line Voltage
Quality Makes the Difference!
All of our systems are designed and manufactured with the same high-quality standards, regardless of size or effi ciency. We have designed these units to signifi cantly reduce
the most frequent causes of product failure. They are simple to service and forgiving to operate. We use quality materials and components. Finally, every unit is run-tested
before it leaves the factory. That’s why we know... there’s no better quality.
