Belt Drive Packaged Heat Pumps
CPH036XXX3BXJXB
CPH036XXX3BXXXB
CPH036XXX4BXJXB
CPH036XXX4BXXXB
CPH048XXX3BXJXB
CPH048XXX3BXXXB
CPH048XXX4BXJXB
CPH048XXX4BXXXB
CPH048XXX7BXJXB
CPH048XXX7BXXXB
CPH060XXX3BXJXB
CPH060XXX3BXXXB
CPH060XXX4BXJXB
CPH060XXX4BXXXB
CPH060XXX7BXJXB
CPH060XXX7BXXXB
CPH072XXX3BXJXB
CPH072XXX3BXXXB
CPH072XXX4BXJXB
CPH072XXX4BXXXB
CPH072XXX7BXJXB
CPH072XXX7BXXXB
Light Commercial 3 - 6 Ton
This manual is to be used by qualified technicians only.
© 2008-2009 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056
RP-526A
www.goodmanmfg.com www.amana-hac.com
This manual replaces RP-526
April 2009
Important Information
Index
Functional Parts List
Illustration and Parts
Views shown are for parts illustrations only, not servicing procedures.
This system uses R410A refrigerant. If sealed system work is required, use approved equipment and follow
service procedures. Refer to Service Manual or Installation Instructions for service procedures.
Rev. A: Added 6 Ton models
Text Codes:
AR - As Required
NA - Not Available
NS - Not Shown
00000000 - See Note
QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1)
M - Model Example (M1) (If M Code not shown, then part is used on all Models)
Expanded Model Nomenclature:
Example
M1 - Model#1
M2 - Model#2
M3 - Model#3
...................................................................................................
...................................................................................................
3
4 - 13
Goodman Manufacturing Company, L.P. is not responsible for personal injury or property damage resulting from
improper service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Goodman Manufacturing Company, L.P. also recommends contacting an
authorized technician and using authorized factory parts.
Goodman Manufacturing Company, L.P. reserves the right to discontinue, or change at any time, specifications
or designs without notice or without incurring obligations.
For assistance within the U.S.A. contact:
Consumer Affairs Department
Goodman Manufacturing Company, L.P.
7401 Security Way
Houston, Texas 77040
877-254-4729-Telephone
713-863-2382-Facsimile
2
www.goodmanmfg.com www.amana-hac.com
For assistance outside the U.S.A. contact:
International Division
International Division
Goodman Manufacturing Company, L.P.
Goodman Company, L.P.
7401 Security Way
7401 Security Way
Houston, Texas 77040
Houston, Texas 77040
713-861-2500-Telephone
713-861-2500-Telephone
713-863-2382-Facsimile
713-863-2382-Facsimile
RP-526A
Functional Parts
Part
No:
0130M00025S 24V RELAY (M3, M4, M7, M8, M9, M10, M13,
PCBFM103S BOARD, ELECTRONIC BLOWER TIME
CAP050000370VAS CAPACITOR 5/370V
ZP31K5ETF5830 COMPRESSOR 31200, 200/230/60/3 (M1, M2)
ZP31K5ETFD830 COMPRESSOR 31200, 460/60/3 (M3, M4)
ZP39K5ETF5830 COMPRESSOR 39000, 200/230/60/3 (M5, M6)
ZP39K5ETFD830 COMPRESSOR 39000, 460/60/3 (M7, M8)
ZP39K5ETFE830 COMPRESSOR 39000, 575/60/3 (M9, M10)
ZP51K5ETF5830 COMPRESSOR 51000, 208/230/60/3 (M11,
ZP51K5ETFD830 COMPRESSOR 51000, 460/60/3 (M13, M14)
ZP51K5ETFE830 COMPRESSOR 51000, 575/60/3 (M15, M16)
ZP61KCETF5830 COMPRESSOR 61500, 200/230/60/3 (M17,
ZP61KCETFD830 COMPRESSOR 61500, 460/60/3 (M19, M20)
ZP61KCETFE830 COMPRESSOR 61500, 575/60/3 (M21, M22)
0131M00008PS COND MOTOR 1/3 HP, 1 SP, 6 PL (M17, M18)
B13400249S COND MOTOR 1/3 HP, 460V (M19, M20)
0131M00007PS COND MOTOR 1/4 HP, 1 SP, 6 PL (M1, M2,
B13400269S COND MOTOR 380/460 50/60 CYCLE (M3,
0131M00098S COND MOTOR 575V (M9, M10, M15, M16)
0131M00100S COND MOTOR 575V (M21, M22)
CONT3P025024VS CONTACTOR 25 AMP, 3P, 24V (M3, M4, M7,
CONT3P030024VS CONTACTOR 30 AMP, 3P, 24V (M1, M2, M5,
0130M00055 CUT-OUT SWITCH, HIGH PRESSURE
0130L00007 CUT-OUT SWITCH, LOW PRESSURE
0130M00056 DEFROST CONTROL (M1, M2, M3, M4, M5,
PCBDM101S DEFROST CONTROL BOARD
0130M00038S TERMINAL BOARD
B1141643 TRANSFORMER 208/230, 24V (M1, M2, M5,
B1141672 TRANSFORMER 480V, 75VA, RESETTABLE
0130M00045S TRANSFORMER 575/24V (M9, M10, M15,
Description:
M14, M15, M16, M19, M20, M21, M22)
DELAY RELAY
M12)
M18)
M5, M6, M11, M12)
M4, M7, M8, M13, M14)
M8, M9, M10, M13, M14, M15, M16, M19, M20,
M21, M22)
M6, M11, M12, M17, M18)
M6, M7, M8, M9, M 10, M11, M12, M13, M14,
M15, M16)
M6, M11, M12, M17, M18)
(M3, M4, M7, M8, M13, M14, M19, M20)
M16, M21, M22)
SPECIAL PARTS
IO-354A INSTALLATION INSTRUCTIONS
RP-526A REPAIR PARTS MANUAL
B1757910 SUPPLEMENTAL INSERT (EBTDR)
Expanded Model Nomenclature
M1 - CPH036XXX3BXJXBA
M2 - CPH036XXX3B XXXBA
M3 - CPH036XXX4BXJXBA
M4 - CPH036XXX4B XXXBA
M5 - CPH048XXX3BXJXBA
M6 - CPH048XXX3B XXXBA
M7 - CPH048XXX4BXJXBA
M8 - CPH048XXX4B XXXBA
M9 - CPH048XXX7BXJXBA
M10 - CPH048XXX7BXXXBA
M11 - CPH060XXX3BXJXBA
M12 - CPH060XXX3BXXXBA
M13 - CPH060XXX4BXJXBA
M14 - CPH060XXX4BXXXBA
M15 - CPH060XXX7BXJXBA
M16 - CPH060XXX7BXXXBA
M17 - CPH072XXX3BXJXBA
M18 - CPH072XXX3BXXXBA
M19 - CPH072XXX4BXJXBA
M20 - CPH072XXX4BXXXBA
M21 - CPH072XXX7BXJXBA
M22 - CPH072XXX7BXXXBA
RP-526A
www.goodmanmfg.com
www.amana-hac.com
3
Top Panel/Tubing Assy
A
4
www.goodmanmfg.com www.amana-hac.com
RP-526
Top Panel/Tubing Assy
Ref.
Part
No:
No:
Image 1:
0131M00007PS21
B13400269S21
Image 2:
B122620712
2048520152
B121920452
B1227318S62
Description:
INSULATED ASSY, TOP PANEL 0270L00086S11
COND MOTOR 1/3 HP, 1 SP, 6 PL (M17, M18)0131M00008PS21
COND MOTOR 1/3 HP, 460V (M19, M20)B13400249S21
COND MOTOR 1/4 HP, 1 SP, 6 PL (M1, M2, M5,
M6, M11, M12)
COND MOTOR 380/460 50/60 CYCLE (M3, M4, M7,
M8, M13, M14)
COND MOTOR 575V (M9, M10, M15, M16)0131M00098S21
COND MOTOR 575V (M21, M22)0131M00100S21
ACORN NUT 5/16 HEX BLACK (QTY 4)0163M00006P31
FAN GRILLE 0152G00002S41
PVC CONDUIT 8.25" 17788000083F51
FAN BLADE 0150G00001S61
VENTURI RING 22" 0161L0000071
ACCUMULATOR (M1, M2, M3, M4)B122620612
ACCUMULATOR .875 (M5, M6, M7, M8, M9, M10,
M11, M12, M13, M14, M15, M16, M17, M18, M19,
M20, M21, M22)
CUT-OUT SWITCH, LOW PRESSURE 0130L0000722
SOLENOID COIL B1225022S32
SIDE RAIL (QTY 2)0121L00244RF42
BI-FLOW FILTER DRIER (M17, M18, M19, M20,
M21, M22)
BI-FLOW FILTER DRIER, STEEL (M1, M2, M3, M4,
M5, M6, M7, M8, M9, M10, M11, M12, M13, M14,
M15, M16)
REVERSING VALVE (M1, M2, M3, M4)B1227316S62
REVERSING VALVE (M5, M6, M7, M8, M9, M10,
M11, M12, M13, M14, M15, M16, M17, M18, M19,
M20, M21, M22)
CUT-OUT SWITCH, HIGH PRESSURE 0130M0005572
COMPRESSOR GROMMET (QTY 4)B133953382
END RAIL (QTY 2)0121L0024592
TF SHOULDER SCREW (QTY 4)M0221641102
COMPRESSOR 31200, 200/230/60/3 (M1, M2)ZP31K5ETF5830112
COMPRESSOR 31200, 460/60/3 (M3, M4)ZP31K5ETFD830112
COMPRESSOR 39000, 200/230/60/3 (M5, M6)ZP39K5ETF5830112
COMPRESSOR 39000, 460/60/3 (M7, M8)ZP39K5ETFD830112
COMPRESSOR 39000, 575/60/3 (M9, M10)ZP39K5ETFE830112
COMPRESSOR 51000, 208/230/60/3 (M11, M12)ZP51K5ETF5830112
COMPRESSOR 51000, 460/60/3 (M13, M14)ZP51K5ETFD830112
COMPRESSOR 51000, 575/60/3 (M15, M16)ZP51K5ETFE830112
COMPRESSOR 61500, 200/230/60/3 (M17, M18)ZP61KCETF5830112
COMPRESSOR 61500, 460/60/3 (M19, M20)ZP61KCETFD830112
COMPRESSOR 61500, 575/60/3 (M21, M22)ZP61KCETFE830112
COMPRESSOR MOUNTING PLATE 0121L00309122
COMPRESSOR SCROLL HARNESS 0159L00028NS
Ref.
Part
No:
No:
Description:
Expanded Model Nomencla t u r e
M1 - CPH036XXX3BXJXBA
M2 - CPH036XXX3BXXXBA
M3 - CPH036XXX4BXJXBA
M4 - CPH036XXX4BXXXBA
M5 - CPH048XXX3BXJXBA
M6 - CPH048XXX3BXXXBA
M7 - CPH048XXX4BXJXBA
M8 - CPH048XXX4BXXXBA
M9 - CPH048XXX7BXJXBA
M10 - CPH048XXX7BXXXBA
M11 - CPH060XXX3BXJXBA
M12 - CPH060XXX3BXXXBA
M13 - CPH060XXX4BXJXBA
M14 - CPH060XXX4BXXXBA
M15 - CPH060XXX7BXJXBA
M16 - CPH060XXX7BXXXBA
M17 - CPH072XXX3BXJXBA
M18 - CPH072XXX3BXXXBA
M19 - CPH072XXX4BXJXBA
M20 - CPH072XXX4BXXXBA
M21 - CPH072XXX7BXJXBA
M22 - CPH072XXX7BXXXBA
RP-526A
www.goodmanmfg.com
www.amana-hac.com
5
Cabinet Assy
A
6
www.goodmanmfg.com www.amana-hac.com
RP-526
Cabinet Assy
Ref.
Part
No:
No:
Image 1:
0270L0008011
0270L0013911
0121L00233RFDG31
0121L00343RFDG31
0121L00237RFDG41
0121L00263DG51
0121L00354DG51
Image 2:
0270L0007912
0270L0014512
0270L0008452
0270L0014652
0121L00262DG72
0121L00353DG72
Description:
INSULATED ASSY, FILTER DOOR (M1, M2, M3,
M4, M5, M6, M7, M8, M9, M10, M11, M12, M13,
M14, M15, M16)
INSULATED ASSY, FILTER DOOR (M17, M18,
M19, M20, M21, M22)
INSULATED ASSY, ECONOMIZER DOOR 0270L0008121
POST-SIDE SUPPORT (M1, M2, M3, M4, M5, M6,
M7, M8, M9, M10, M11, M12, M13, M14, M15, M16)
POST-SIDE SUPPORT (M17, M18, M19, M20, M21,
M22)
CORNER POST (M1, M2, M3, M4, M5, M6, M7, M8,
M9, M10, M11, M12, M13, M14, M15, M16)
CORNER POST (M17, M18, M19, M20, M21, M22)0121L00344RFDG41
LOUVERED COMPRESSOR PANEL (M1, M2, M3,
M4, M5, M6, M7, M8, M9, M10, M11, M12, M13,
M14, M15, M16)
LOUVERED COMPRESSOR PANEL (M17, M18,
M19, M20, M21, M22)
SMOKE DETECTOR COVER 0121L00321NS
INSULATED ASSY, DUCT PANEL (M1, M2, M3, M4,
M5, M6, M7, M8, M9, M10, M11, M12, M13, M14,
M15, M16)
INSULATED ASSY, DUCT PANEL (M17, M18, M19,
M20, M21, M22)
INSULATED ASSY, RETURN DUCT 0270L00011S22
INSULATED ASSY, SUPPLY DUCT 0270L00012S32
ELECTRIC HEAT DOOR 0121L00279DG42
INSULATED ASSY, BLOWER DOOR (M1, M2, M3,
M4, M5, M6, M7, M8, M9, M10, M11, M12, M13,
M14, M15, M16)
INSULATED ASSY, BLOWER DOOR (M17, M18,
M19, M20, M21, M22)
RAIL CORNER BRACKET (QTY 4)0121G0030162
LOUVERED CONTROL PANEL (M1, M2, M3, M4,
M5, M6, M7, M8, M9, M10, M11, M12, M13, M14,
M15, M16)
LOUVERED CONTROL PANEL (M17, M18, M19,
M20, M21, M22)
Ref.
Part
No:
No:
Description:
Expanded Model Nomencla t u r e
M1 - CPH036XXX3BXJXBA
M2 - CPH036XXX3BXXXBA
M3 - CPH036XXX4BXJXBA
M4 - CPH036XXX4BXXXBA
M5 - CPH048XXX3BXJXBA
M6 - CPH048XXX3BXXXBA
M7 - CPH048XXX4BXJXBA
M8 - CPH048XXX4BXXXBA
M9 - CPH048XXX7BXJXBA
M10 - CPH048XXX7BXXXBA
M11 - CPH060XXX3BXJXBA
M12 - CPH060XXX3BXXXBA
M13 - CPH060XXX4BXJXBA
M14 - CPH060XXX4BXXXBA
M15 - CPH060XXX7BXJXBA
M16 - CPH060XXX7BXXXBA
M17 - CPH072XXX3BXJXBA
M18 - CPH072XXX3BXXXBA
M19 - CPH072XXX4BXJXBA
M20 - CPH072XXX4BXXXBA
M21 - CPH072XXX7BXJXBA
M22 - CPH072XXX7BXXXBA
RP-526A
www.goodmanmfg.com
www.amana-hac.com
7
Partition Assy
A
8
www.goodmanmfg.com www.amana-hac.com
RP-526
Partition Assy
Ref.
Part
No:
No:
Image 1:
0121L0031121
0121L0034821
0202L00020S31
0202L00029S31
0202L0003231
0154L0000941
0162M00121101
0162M00060111
0162M00120111
0130M00056NS
Image 2:
0121L0025432
0121L0034932
0121L0028752
Description:
TUBING ASSY, COND COIL (M2, M4)0201L00038S11
TUBING ASSY, COND COIL (M12, M14, M16)0201L00039S11
TUBING ASSY, COND COIL (M6, M8, M10)0201L00040S11
TUBING ASSY, COND COIL (M11, M13, M15)0201L00043S11
TUBING ASSY, COND COIL (M5, M7, M9)0201L00044S11
TUBING ASSY, COND COIL (M1, M3)0201L00047S11
TUBING ASSY, COND COIL (M18, M20, M22)0201L0005311
TUBING ASSY, COND COIL (M17, M19, M21)0201L0005511
COND BLOCK-OFF (M1, M2, M3, M4, M5, M6, M7,
M8, M9, M10, M11, M12, M13, M14, M15, M16)
COND BLOCK-OFF (M17, M18, M19, M20, M21,
M22)
TUBING ASSY, EVAP COIL (M11, M12, M13, M14,
M15, M16)
TUBING ASSY, EVAP COIL (M1, M2, M3, M4)0202L00026S31
TUBING ASSY, EVAP COIL (M5, M6, M7, M8, M9,
M10)
TUBING ASSY, EVAP COIL (M17, M18, M19, M20,
M21, M22)
DRAIN PAN GASKET (M1, M2, M3, M4, M5, M6,
M7, M8, M9, M10, M11, M12, M13, M14, M15, M16)
DECK SIDE CHANNEL 0121L0024351
ELECTRIC HEAT RETAINER 0121L0028861
ELECTRIC HEAT COVER 0121L0014471
ELECTRIC HEAT PANEL 0121L0025681
BLOWER DECK 0121L0024291
FLOWRATOR (M11, M12, M13, M14, M15, M16)0162L00012S101
FLOWRATOR (M1, M2, M3, M4)0162M00097S101
FLOWRATOR .076 (M5, M6, M7, M8, M9, M10)0162M00108101
FLOWRATOR [EVAP] (M17, M18, M19, M20, M21,
M22)
FLOWRATOR (M1, M2, M3, M4)0162M00096111
FLOWRATOR .057 (M5, M6, M7, M8, M9, M10)0162M00106111
FLOWRATOR .065 (M11, M12, M13, M14, M15,
M16)
FLOWRATOR .080 [COND] (M17, M18, M19, M20,
M21, M22)
DEFROST CONTROL (M1, M2, M3, M4, M5, M6,
M7, M8, M9, M10, M11, M12, M13, M14, M15, M16)
DRAIN PAN 0161L0000512
COND BLOCK-OFF PLATE 0121L0032422
COND MOUNTING ANGLE (M1, M2, M3, M4, M5,
M6, M7, M8, M9, M10, M11, M12, M13, M14, M15,
M16)
COND MOUNTING ANGLE (M17, M18, M19, M20,
M21, M22)
DRAIN PAN SUPPORT 0121L0023842
FILTER ANGLE-VERTICAL (RETURN SIDE) (M5,
M6, M7, M8, M9, M10, M11, M12, M13, M14, M15,
M16)
Ref.
Part
No:
No:
Description:
Image 2:
0121L0035752
0121L0029862
0121L0028672
0121L0030382
0121L0035882
B1369608NS
0160L00008NS
FILTER ANGLE-VERTICAL (RETURN SIDE) (M17,
M18, M19, M20, M21, M22)
FILTER ANGLE-HORIZONTAL (CENTER) (M5, M6,
M7, M8, M9, M10, M11, M12, M13, M14, M15, M16,
M17, M18, M19, M20, M21, M22)
FILTER ANGLE-HORIZONTAL (M5, M6, M7, M8,
M9, M10, M11, M12, M13, M14, M15, M16, M17,
M18, M19, M20, M21, M22)
FILTER ANGLE-VERTICAL (HAIRPIN SIDE) (M5,
M6, M7, M8, M9, M10, M11, M12, M13, M14, M15,
M16)
FILTER ANGLE-VERTICAL (HAIRPIN SIDE) (M17,
M18, M19, M20, M21, M22)
FILTER ANGLE-TOP (M1, M2, M3, M4)0121L0029092
FILTER ANGLE-VERTICAL (M1, M2, M3, M4)0121L00292102
FILTER ANGLE-BOTTOM (M1, M2, M3, M4)0121L00291112
AIR FILTER 20 X 16 X 2 (M17, M18, M19, M20,
M21, M22)
FILTER 14 X 20 X 2 (M5, M6, M7, M8, M9, M10,
M11, M12, M13, M14, M15, M16)
FILTER 24 X 24 (M1, M2, M3, M4)0160L00046NS
Expanded Model Nomencla t u r e
M1 - CPH036XXX3BXJXBA
M2 - CPH036XXX3BXXXBA
M3 - CPH036XXX4BXJXBA
M4 - CPH036XXX4BXXXBA
M5 - CPH048XXX3BXJXBA
M6 - CPH048XXX3BXXXBA
M7 - CPH048XXX4BXJXBA
M8 - CPH048XXX4BXXXBA
M9 - CPH048XXX7BXJXBA
M10 - CPH048XXX7BXXXBA
M11 - CPH060XXX3BXJXBA
M12 - CPH060XXX3BXXXBA
M13 - CPH060XXX4BXJXBA
M14 - CPH060XXX4BXXXBA
M15 - CPH060XXX7BXJXBA
M16 - CPH060XXX7BXXXBA
M17 - CPH072XXX3BXJXBA
M18 - CPH072XXX3BXXXBA
M19 - CPH072XXX4BXJXBA
M20 - CPH072XXX4BXXXBA
M21 - CPH072XXX7BXJXBA
M22 - CPH072XXX7BXXXBA
RP-526A
www.goodmanmfg.com
www.amana-hac.com
9

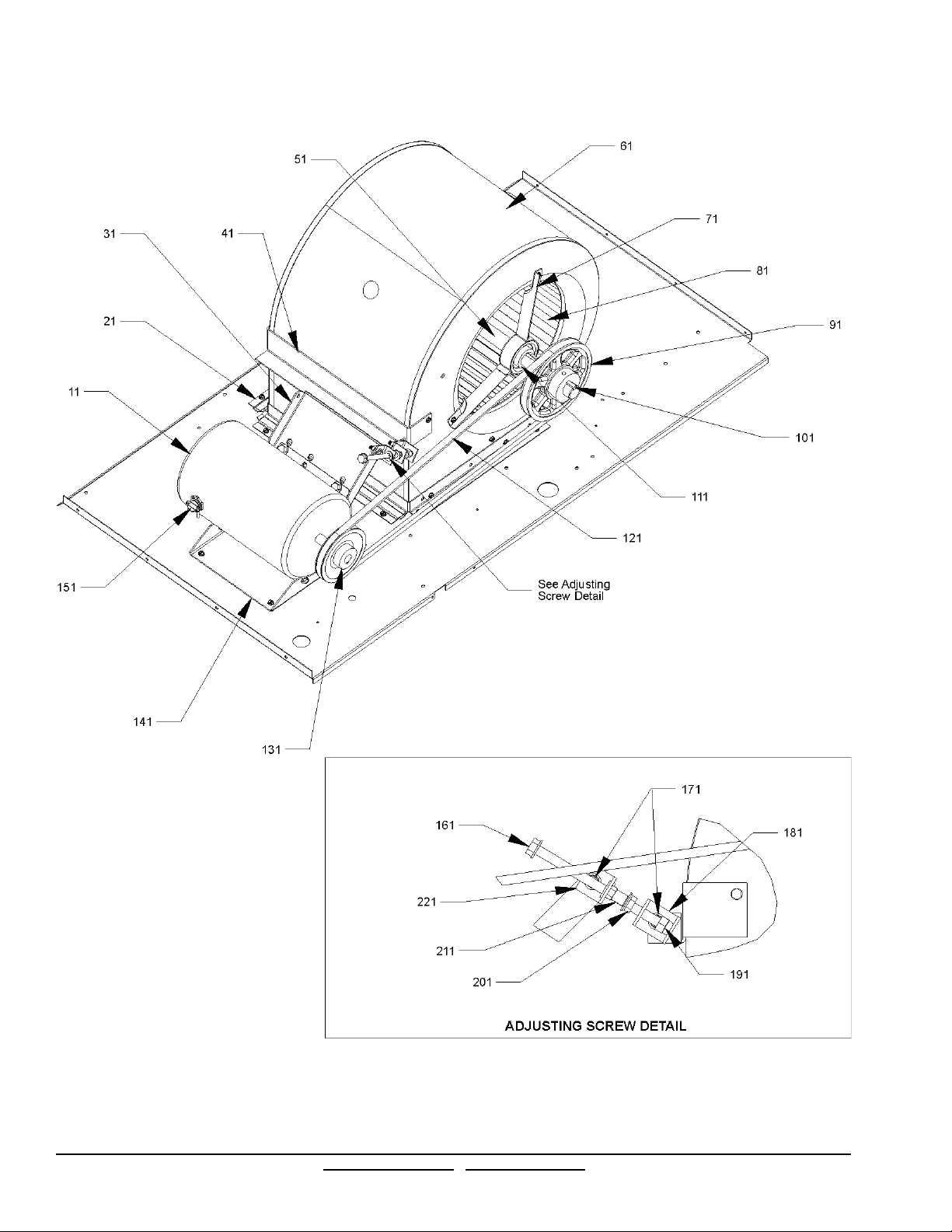

Belt Drive Assy
A
10
www.goodmanmfg.com www.amana-hac.com
RP-526
Belt Drive Assy
Ref.
Part
No:
No:
Image 1:
B324000711
0131L00003S11
0131L00004S11
0163L0003191
B320430391
0163L00024131
B2120001131
B2120014131
Description:
BELT DRIVE MOTOR (230/460)/60/3P (M17, M18,
M19, M20)
BELT DRIVE MOTOR 1 HP (M1, M2, M3, M4, M5,
M6, M7, M8, M11, M12, M13, M14)
BELT DRIVE MOTOR 1.5 HP 575V (M9, M10, M15,
M16, M21, M22)
BLOWER SIDE ANGLE (QTY 3)0121L0029721
MOTOR MOUNT PLATE 0121L0027131
MOTOR MOUNT ANGLE 0121L0027241
BELT DRIVE BLOWER SHAFT 0163L0000551
BLOWER HOUSING 11 X 10 2539302FS61
MOUNTING BRACKET BEARING (QTY 2)B320130071
BELT DRIVE BLOWER WHEEL B136805681
FIXED SHEAVE (M1, M2, M3, M4)B212001191
FIXED SHEAVE AK59 (M17, M18, M19, M20, M21,
M22)
FIXED SHEAVE AK61 (M11, M12, M13, M14, M15,
M16)
FIXED SHEAVE AK66 (M5, M6, M7, M8, M9, M10)B320431091
STEEL KEY (000158812) 2.0" B1398604101
BALL BEARING 1.00" (QTY 2)B1399500111
FAN BELT, NOTCHED 0164L00003121
VARIABLE PITCH SHEAVE 1VL40 X 5/8" (M1, M2,
M3, M4)
VARIABLE PITCH SHEAVE 1VL44 X 3/8" (M5, M6,
M7, M8, M9, M10, M11, M12, M13, M14, M15, M16)
VARIABLE PITCH SHEAVE 1VL44 X 7/8" (M17,
M18, M19, M20, M21, M22)
MOTOR PIVOT ANGLE 0121L00273141
ELECT. CONNECTING BUSHING B1393726151
BOLT 0163M00054161
BOLT 1/4-20 X 3/4" (QTY 4)B1393738171
MOTOR ADJUST BRACKET 0121L00274181
ACORN NUT 5/16 X 18 0163M00055191
FLANGED LOCKNUT 5/16-18TPI B1393020201
HEX NUT INSERT 5/16-18 (QTY 5)B1393027211
MOUNTING BRACKET INSERT 0121L00275221
BELT DRIVE BLOWER CUT-OFF 1864700FNS
STEEL KEY (000158812) 4.5" B1398603NS
Ref.
Part
No:
No:
Description:
Expanded Model Nomencla t u r e
M1 - CPH036XXX3BXJXBA
M2 - CPH036XXX3BXXXBA
M3 - CPH036XXX4BXJXBA
M4 - CPH036XXX4BXXXBA
M5 - CPH048XXX3BXJXBA
M6 - CPH048XXX3BXXXBA
M7 - CPH048XXX4BXJXBA
M8 - CPH048XXX4BXXXBA
M9 - CPH048XXX7BXJXBA
M10 - CPH048XXX7BXXXBA
M11 - CPH060XXX3BXJXBA
M12 - CPH060XXX3BXXXBA
M13 - CPH060XXX4BXJXBA
M14 - CPH060XXX4BXXXBA
M15 - CPH060XXX7BXJXBA
M16 - CPH060XXX7BXXXBA
M17 - CPH072XXX3BXJXBA
M18 - CPH072XXX3BXXXBA
M19 - CPH072XXX4BXJXBA
M20 - CPH072XXX4BXXXBA
M21 - CPH072XXX7BXJXBA
M22 - CPH072XXX7BXXXBA
RP-526A
www.goodmanmfg.com
www.amana-hac.com
11

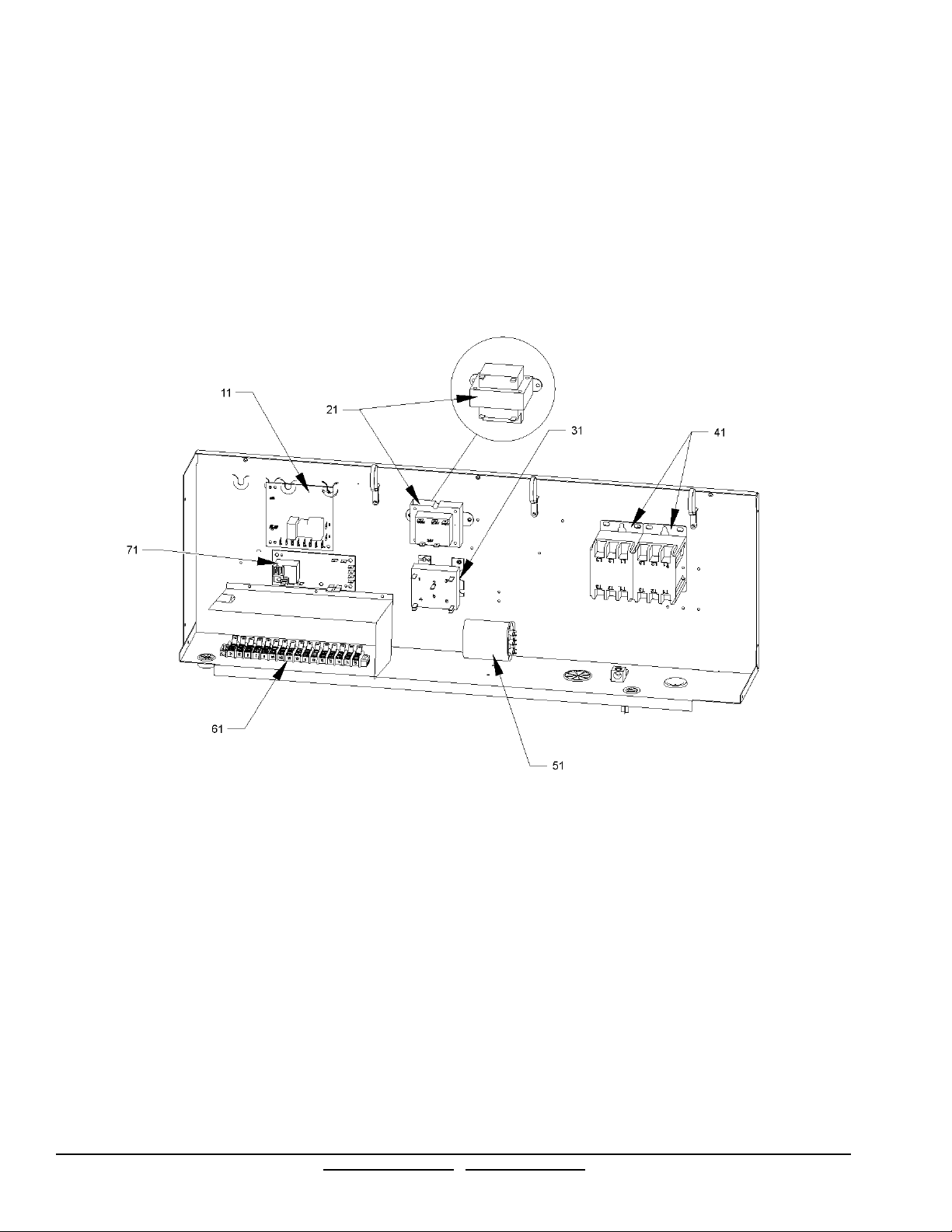

Control Box Assy
A
12
www.goodmanmfg.com www.amana-hac.com
RP-526
Control Box Assy
Ref.
Part
No:
No:
Image 1:
B114164321
B114167221
0130M00045S21
0130M00025S31
CONT3P025024VS41
CONT3P030024VS41
PCBFM103S71
0259L00077NS
0259L00078NS
0259L00065NS
0259L00070NS
0259L00071NS
0259L00094NS
Description:
DEFROST CONTROL BOARD PCBDM101S11
TRANSFORMER 208/230, 24V (M1, M2, M5, M6,
M11, M12, M17, M18)
TRANSFORMER 480V, 75VA, RESETTABLE (M3,
M4, M7, M8, M13, M14, M19, M20)
TRANSFORMER 575/24V (M9, M10, M15, M16,
M21, M22)
24V RELAY (M3, M4, M7, M8, M9, M10, M13, M14,
M15, M16, M19, M20, M21, M22)
CONTACTOR 25 AMP, 3P, 24V (M3, M4, M7, M8,
M9, M10, M13, M14, M15, M16, M19, M20, M21,
M22)
CONTACTOR 30 AMP, 3P, 24V (M1, M2, M5, M6,
M11, M12, M17, M18)
CAPACITOR 5/370V CAP050000370VAS51
TERMINAL BOARD 0130M00038S61
BOARD, ELECTRONIC BLOWER TIME DELAY
RELAY
CAPACITOR STRAP 20520901NS
CONTROL HARNESS 0259L00076NS
DEFROST HARNESS (M1, M2, M5, M6, M11, M12,
M17, M18)
DEFROST HARNESS (M3, M4, M7, M8, M9, M10,
M13, M14, M15, M16, M19, M20, M21, M22)
WIRING HARNESS 0259L00057NS
WIRING HARNESS 0259L00061NS
WIRING HARNESS (M1, M2, M3, M4, M5, M6, M7,
M8, M9, M10, M11, M12, M13, M14, M15, M16)
WIRING HARNESS (M1, M2, M5, M6, M9, M10,
M11, M12, M15, M16, M17, M18, M21, M22)
WIRING HARNESS (M3, M4, M7, M8, M13, M14,
M19, M20)
WIRING HARNESS (M17, M18, M19, M20, M21,
M22)
Ref.
Part
No:
No:
Description:
Expanded Model Nomencla t u r e
M1 - CPH036XXX3BXJXBA
M2 - CPH036XXX3BXXXBA
M3 - CPH036XXX4BXJXBA
M4 - CPH036XXX4BXXXBA
M5 - CPH048XXX3BXJXBA
M6 - CPH048XXX3BXXXBA
M7 - CPH048XXX4BXJXBA
M8 - CPH048XXX4BXXXBA
M9 - CPH048XXX7BXJXBA
M10 - CPH048XXX7BXXXBA
M11 - CPH060XXX3BXJXBA
M12 - CPH060XXX3BXXXBA
M13 - CPH060XXX4BXJXBA
M14 - CPH060XXX4BXXXBA
M15 - CPH060XXX7BXJXBA
M16 - CPH060XXX7BXXXBA
M17 - CPH072XXX3BXJXBA
M18 - CPH072XXX3BXXXBA
M19 - CPH072XXX4BXJXBA
M20 - CPH072XXX4BXXXBA
M21 - CPH072XXX7BXJXBA
M22 - CPH072XXX7BXXXBA
RP-526A
www.goodmanmfg.com
www.amana-hac.com
13
Loading...
