REPAIR PARTS
GPH13 "M" Series Horizontal Package Heat Pumps
GPH1324M41AB
GPH1330M41AB
GPH1336M41AB
GPH1336M43AA
GPH1342M41AB
GPH1348M41AB
GPH1348M43AA
GPH1360M41AB
GPH1360M43AA
This manual is to be used by qualified technicians only. RP-629
© 2009 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056
RP-629A
www.amana-hac.com
Jan 2011
Important Information
Index
Functional Parts List
Illustration and Parts
Views shown are for parts illustrations only, not servicing procedures.
Added Models GPH1336M43AA, GPH1348M43AA and GPH1360M43AA
Text Codes:
AR - As Required
NA - Not Available
NS - Not Shown
00000000 - See Note
QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1)
M - Model Example (M1) (If M Code not shown, then part is used on all Models)
Expanded Model Nomenclature:
Example
M1 - Model#1
M2 - Model#2
M3 - Model#3
...................................................................................................
...................................................................................................
3
4 - 11
Goodman Manufacturing Company, L.P. is not responsible for personal injury or property damage resulting from
improper service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Goodman Manufacturing Company, L.P. also recommends contacting an
authorized technician and using authorized factory parts.
Goodman Manufacturing Company, L.P. reserves the right to discontinue, or change at any time, specifications
or designs without notice or without incurring obligations.
For assistance within the U.S.A. contact:
Consumer Affairs Department
Goodman Manufacturing Company, L.P.
7401 Security Way
Houston, Texas 77040
877-254-4729-Telephone
713-863-2382-Facsimile
2
www.amana-hac.com
For assistance outside the U.S.A. contact:
International Division
International Division
Goodman Manufacturing Company, L.P.
Goodman Company, L.P.
7401 Security Way
7401 Security Way
Houston, Texas 77040
Houston, Texas 77040
713-861-2500-Telephone
713-861-2500-Telephone
713-863-2382-Facsimile
713-863-2382-Facsimile
RP-629A
Functional Parts
B
B
B
A
B
B
A
B
A
Part
No:
0130M00014 240 VOLT RELAY (M1, M2, M3, M4, M5)
0131M00062 BLOWER MOTOR 1/3 HP, 3 SP, 6 PL (M2)
CAP050450440RTS CAP, 5/45 MFD/440V/DUAL RD (M1, M2, M3,
CAP050700440RTS CAP,5/70 MFD/440V/DUAL RD (M6, M8)
CAP100000370VAS CAPACITOR 10/370V [BLOWER] (M1, M2, M3,
CAP050000370VAS CAPACITOR 5/370V (M4, M7, M9)
ZP28K5EPFV130 COMP, 28000, 208/230/60/1 (M2)
ZP42K5ETF5130 COMP, 41900,200/230/60/3 (M7)
ZP42K5EPFV830 COMP, 42000, 208/230/60/1 (M6)
ZP21K5EPFV830 COMP,21300,208/230/60/1 (M1)
ZP31K5EPFV830 COMPRESSOR 31100, 208/23 0/6 0/ 1 (M3)
ZP31K5ETF5830 COMPRESSOR 31200, 200/230/60/3 (M4)
ZP36K5EPFV830 COMPRESSOR 36200, 208/23 0/6 0/ 1 (M5)
ZP51K5EPFV830 COMPRESSOR 51000, 208/23 0/6 0/ 1 (M8)
ZP51K5ETF5830 COMPRESSOR 51000, 208/230/60/3 (M9)
0131M00007PS COND MOTOR 1/4 HP, 1 SP, 6 PL (M5, M6,
CONT2P025024VS CONTACTOR 25 AMP, 2P, 24V (M1, M2, M3,
CONT3P025024VS CONTACTOR 25 AMP, 3P, 24V (M4)
CONT2P040024VS CONTACTOR 40 AMP, 2P, 24V (M6, M8)
CONT3P040024VS CONTACTOR 40 AMP, 3P, 24V (M7, M9)
0130R00045 CRANKCASE HEATER SWITCH (M4, M7, M8,
0230G00005 CRANKCASE HEATER SWITCH (M7, M8, M9)
0130M00057 DEFROST THERMOSTAT (M1, M2)
0130M00009P DEFROST THERMOSTAT OPEN 60º, CLOSE
PCBFM131 ELECTRONIC BLOWER TIME DELAY
0163R00003 HEATER, CRANKCA SE 230V 40W (M7, M8,
0130M00074 HIGH PRESSURE SWITCH (M1, M2, M3, M5,
0130M00075 LOW PRESSURE SWITCH
0131M00195 Motor - 1 HP Programmed Selec (M8, M9)
0131M00193 Motor - 3/4 HP Programmed Selc (M6, M7)
0131M00061S MOTOR, 1/4HP, 1SP, 8PL (M1, M2, M3, M4)
PCBDM133 PCB, DEFROST CONTROL
B1141643 TRANSFORMER 208/230, 24V
Description:
M5)
M4, M5)
M7, M8, M9)
M5)
M9)
34º (M3, M4, M5, M6, M7, M8, M9)
RELAY (M1, M2, M3, M4, M5)
M9)
M6, M8)
B1757910 SUPPLEMENTAL INSERT (EBTDR)
Expanded Model Nomenclature
M1 - GPH1324M41A
M2 - GPH1330M41A
M3 - GPH1336M41A
M4 - GPH1336M43A
M5 - GPH1342M41A
M6 - GPH1348M41A
M7 - GPH1348M43A
M8 - GPH1360M41A
M9 - GPH1360M43A
SPECIAL PARTS
COCARE-01G FORM, LABOR ALLOWANCE
IO-395A INSTALLATION INSTRUCTION (M4, M7, M9)
RP-629A
www.goodmanmfg.com
www.amana-hac.com
3
Cabinet Assembly
A
4
www.goodmanmfg.com www.amana-hac.com
RP-629
Cabinet Assembly
Ref.
Part
No:
No:
Image 1:
0131M00007PS51
20467701PDGS71
20467702PDGS71
20464401PDGS81
20464402PDGS81
0121G00146PDG91
0121G00147PDG91
0260G00023PS121
0260G00024PS121
0260G00034S161
0260G00035S161
0260G00025PS171
0260G00026PS171
Image 2:
Description:
TOP PANEL 20466001PDGS11
FAN GRILLE (M1, M2)0152G00002S21
RAISED FAN GRILLE (M3, M4, M5, M6, M7, M8, M9)0152G00000S21
SCREW-SM (QTY 6)M022181731
ACORN NUT 5/16 HEX BLACK (QTY 4)0163M00006P41
COND MOTOR 1/4 HP, 1 SP, 6 PL (M5, M6, M7,
M8, M9)
MOTOR, 1/4HP, 1SP, 8PL (M1, M2, M3, M4)0131M00061S51
BLADE, FAN, SWEPT WING (M8, M9)0150M00011S61
FAN BLADE 22" TNT2203-25 (M1, M2)0150M00008S61
FAN BLADE TYPE 3 (M3, M4)B1086765S61
FAN BLADE-SWEPT WING (M5, M6, M7)0150G00002S61
LOUVERED PANEL, COND SIDE 32" (M1, M2, M3,
M4, M5)
LOUVERED PANEL, COND SIDE 40" (M6, M7, M8,
M9)
LOUVERED PANEL, COND SIDE 32" (M1, M2, M3,
M5)
LOUVERED PANEL, COND SIDE 40" (M6, M7, M8,
M9)
LOUVERED PANEL 4 BANK 32.5", COMP SIDE
(M1, M2, M3, M5)
LOUVERED PANEL 4 BANK 40", COMP SIDE (M8,
M9)
LVR, COMP, 2BANK, CNVRT, 40" (M6, M7)0121G00145PDG91
DRAIN PIPE 0161M00013111
DRAIN PIPE 0261G00000111
INSULATED ASSY, BLOWER PANEL 32.5" (M1,
M2, M3, M4, M5)
INSULATED ASSY, BLOWER PANEL 40" (M6, M7,
M8, M9)
CONTROL BOX PANEL 0121G00213DGS151
INSULATED ASSY, EVAP BLOCK-OFF 32" (M1,
M2, M3, M4, M5)
INSULATED ASSY, EVAP BLOCK-OFF 40" (M6,
M7, M8, M9)
INSULATED ASSY, BLOWER PANEL 32.5" (M1,
M2, M3, M4, M5)
INSULATED ASSY, BLOWER PANEL 40" (M6, M7,
M8, M9)
INSULATED ASSY, FAN SHROUD 0260G00022PS181
PVC CONDUIT 8.25" 17788000083FNS
ACCESS FITTING BOX 0161G00001P32
ACCESS FITTING (QTY 2)B137331542
BLOWER MOTOR 1/3 HP, 3 SP, 6 PL (M2)0131M0006252
FASTEST FITTING NUT (QTY 2)0163G00000P52
CAP W/O-RING (QTY 2)B910209762
Ref.
Part
No:
No:
Description:
Expanded Model Nomenclature
M1 - GPH1324M41AB
M2 - GPH1330M41AB
M3 - GPH1336M41AB
M4 - GPH1336M43AA
M5 - GPH1342M41AB
M6 - GPH1348M41AB
M7 - GPH1348M43AA
M8 - GPH1360M41AB
M9 - GPH1360M43AA
RP-629A
www.goodmanmfg.com
www.amana-hac.com
5
Panels and Supports
A
6
www.goodmanmfg.com www.amana-hac.com
RP-629
Panels and Supports
Ref.
Part
No:
No:
Image 1:
20464201PDGS31
20464301PDGS41
20464302PDGS41
0260G00018PS111
0260G00020PS121
0260G00021PS121
Expanded Model Nomenclature
M1 - GPH1324M41AB
M2 - GPH1330M41AB
M3 - GPH1336M41AB
M4 - GPH1336M43AA
M5 - GPH1342M41AB
M6 - GPH1348M41AB
M7 - GPH1348M43AA
M8 - GPH1360M41AB
M9 - GPH1360M43AA
Description:
CORNER POST-COMP END 32" (M1, M2, M3, M4,
M5)
CORNER POST-COMP END 40" (M6, M7, M8, M9)20464202PDGS31
CORNER POST-HAIRPIN END 32" (M1, M2, M3,
M4, M5)
CORNER POST-HAIRPIN END 40" (M6, M7, M8,
M9)
HEATER KIT COVER (QTY 2)0121G0022151
BLOWER TRANSITION ASSY (M6, M7, M8, M9)0221G0001461
BASE PAN 0121G0028971
PLASTIC DRIP PAN 0161G0000391
SUPPORT POST 32" (M1, M2, M3, M4, M5)0121G00208101
SUPPORT POST 40" (M6, M7, M8, M9)0121G00209101
INSULATED ASSY, DUCT 32.5" (M1, M2, M3, M4,
M5)
INSULATED ASSY, DUCT 40" (M6, M7, M8, M9)0260G00019PS111
INSULATED ASSY, PARTITION PANEL 32" (M1,
M2, M3, M4, M5)
INSULATED ASSY, PARTITION PANEL 40 (M6, M7,
M8, M9)
EVAP BLOCK-OFF 32.5" (M5)0121G00158NS
EVAP BLOCK-OFF 40" (M6, M7, M8, M9)0121G00159NS
FAN BAFFLE 0121G00235NS
PL, HDR, COND 32", 1"C, 2 ROW (M3, M4, M5)0121G00236NS
Ref.
No:
Part
No:
Description:
RP-629A
www.goodmanmfg.com
www.amana-hac.com
7

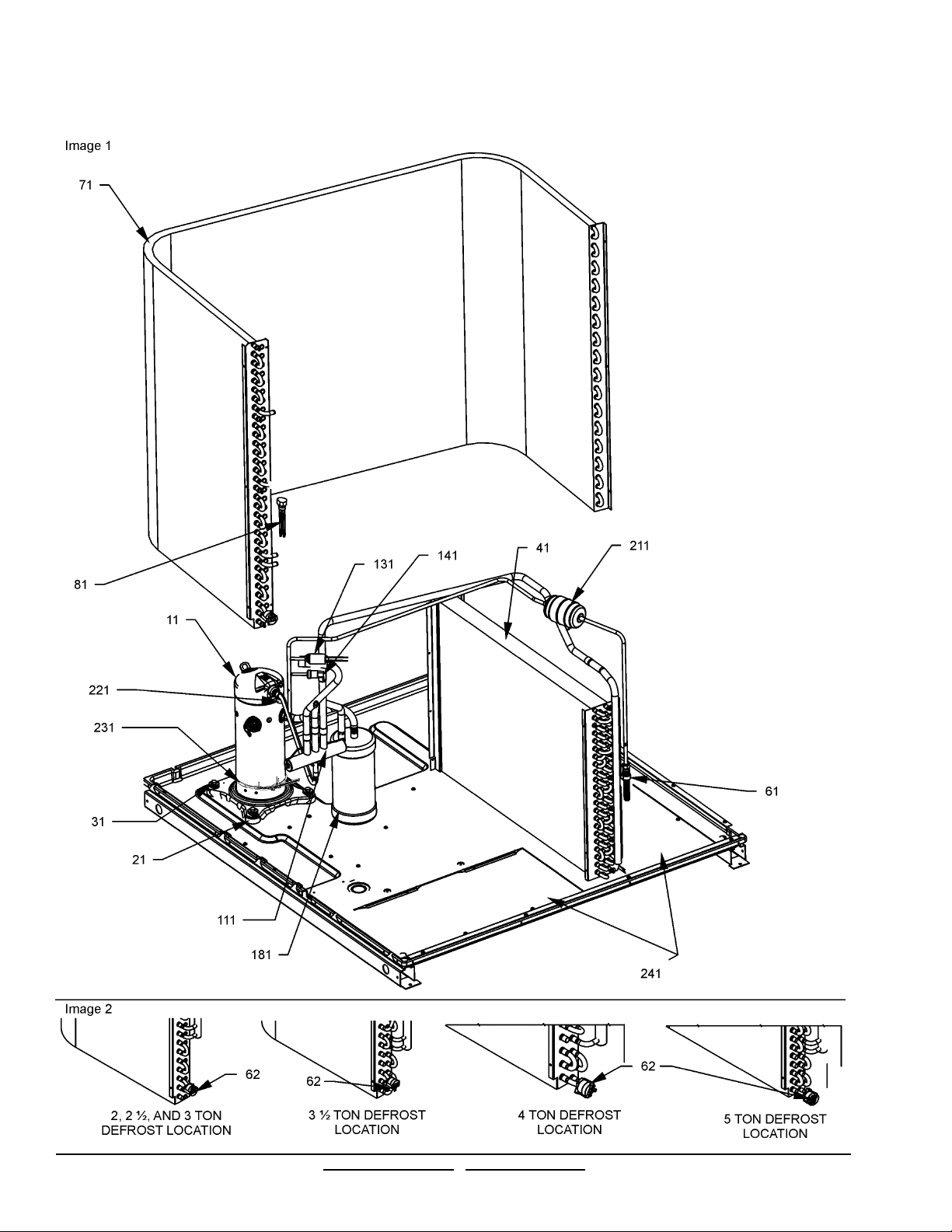

Tubing / Coil Assemblies
A
8
www.goodmanmfg.com www.amana-hac.com
RP-629
Tubing / Coil Assemblies
Ref.
Part
No:
No:
Image 1:
111
0130M00074131
Description:
COMP, 28000, 208/230/60/1 (M2)ZP28K5EPFV13011
COMP, 41900,200/230/60/3 (M7)ZP42K5ETF513011
COMP, 42000, 208/230/60/1 (M6)ZP42K5EPFV83011
COMP,21300,208/230/60/1 (M1)ZP21K5EPFV83011
COMPRESSOR 31100, 208/230/60/1 (M3)ZP31K5EPFV83011
COMPRESSOR 31200, 200/230/60/3 (M4)ZP31K5ETF583011
COMPRESSOR 36200, 208/230/60/1 (M5)ZP36K5EPFV83011
COMPRESSOR 51000, 208/230/60/1 (M8)ZP51K5EPFV83011
COMPRESSOR 51000, 208/230/60/3 (M9)ZP51K5ETF583011
COMPRESSOR GROMMET (QTY 4)B133953321
TF SHOULDER SCREW (QTY 4)M022164131
EVAP COIL ASSY (M1)0202G0032241
EVAP COIL ASSY (M3, M4)0202G0032441
EVAP COIL ASSY (M6, M7)0202G0032641
EVAP COIL ASSY (M2)0202G0032741
EVAP COIL ASSY (M5)0202G0032841
EVAP COIL ASSY (M8, M9)0202G0032941
FLOWRATOR .070 (M2)0162M0011761
FLOWRATOR .071 [COND] (M9)0162M0004261
FLOWRATOR [EVAP] (M1)0162M0013261
FLOWRATOR [EVAP] (M5)0162M0013661
FLOWRATOR [EVAP] (M3, M4)0162M0013961
COND COIL ASSY (M5)0201G0017571
COND COIL ASSY (M3, M4)0201G0017671
COND COIL ASSY (M6, M7)0201G0017771
COND COIL ASSY (M1, M2)0201G0018071
COND COIL ASSY (M8, M9)0201G0018171
COND COIL ASSY (M4)0201G0023871
FLOWRATOR .076 [COND] (M8)0162M0004481
FLOWRATOR [COND] (M1)0162M0013181
FLOWRATOR [COND] (M2)0162M0013381
FLOWRATOR [COND] (M5)0162M0013781
FLOWRATOR [COND] (M6, M7)0162M0013881
REVERSING VALVE (M1, M2)0151M00019S
REVERSING VALVE (M3, M4, M5, M6, M7, M8, M9)0151M00021S111
HIGH PRESSURE SWITCH (M1, M2, M3, M5, M6,
M8)
LOW PRESSURE SWITCH 0130M00075141
ACCUMULATOR (M1, M2)B1226206181
ACCUMULATOR (M3, M4, M5, M6, M7, M8, M9)B1226207181
BI-FLOW FILTER DRIER 20485201211
CRANKCASE HEATER SWITCH (M7, M8, M9)0230G00005221
HEATER, CRANKCASE 230V 40W (M7, M8, M9)0163R00003231
SINGLE COVER, DOWN DISCHARGE (QTY 2)0121G00148241
CRANKCASE HEATER SWITCH (M4, M7, M8, M9)0130R00045NS
Ref.
Part
No:
No:
Description:
Image 1:
0159G00002NS
HARNESS-COMP SCROLL (M1, M2, M3, M4, M5,
M6)
HARNESS-COMP SCROLL (M8)0159G00005NS
HARNESS-COMP SCROLL (M4, M7, M9)0159G00007NS
Image 2:
DEFROST THERMOSTAT (M1, M2)0130M0005762
0130M00009P62
DEFROST THERMOSTAT OPEN 60º, CLOSE 34º
(M3, M4, M5, M6, M7, M8, M9)
Expanded Model Nomenclature
M1 - GPH1324M41AB
M2 - GPH1330M41AB
M3 - GPH1336M41AB
M4 - GPH1336M43AA
M5 - GPH1342M41AB
M6 - GPH1348M41AB
M7 - GPH1348M43AA
M8 - GPH1360M41AB
M9 - GPH1360M43AA
RP-629A
www.goodmanmfg.com
www.amana-hac.com
9

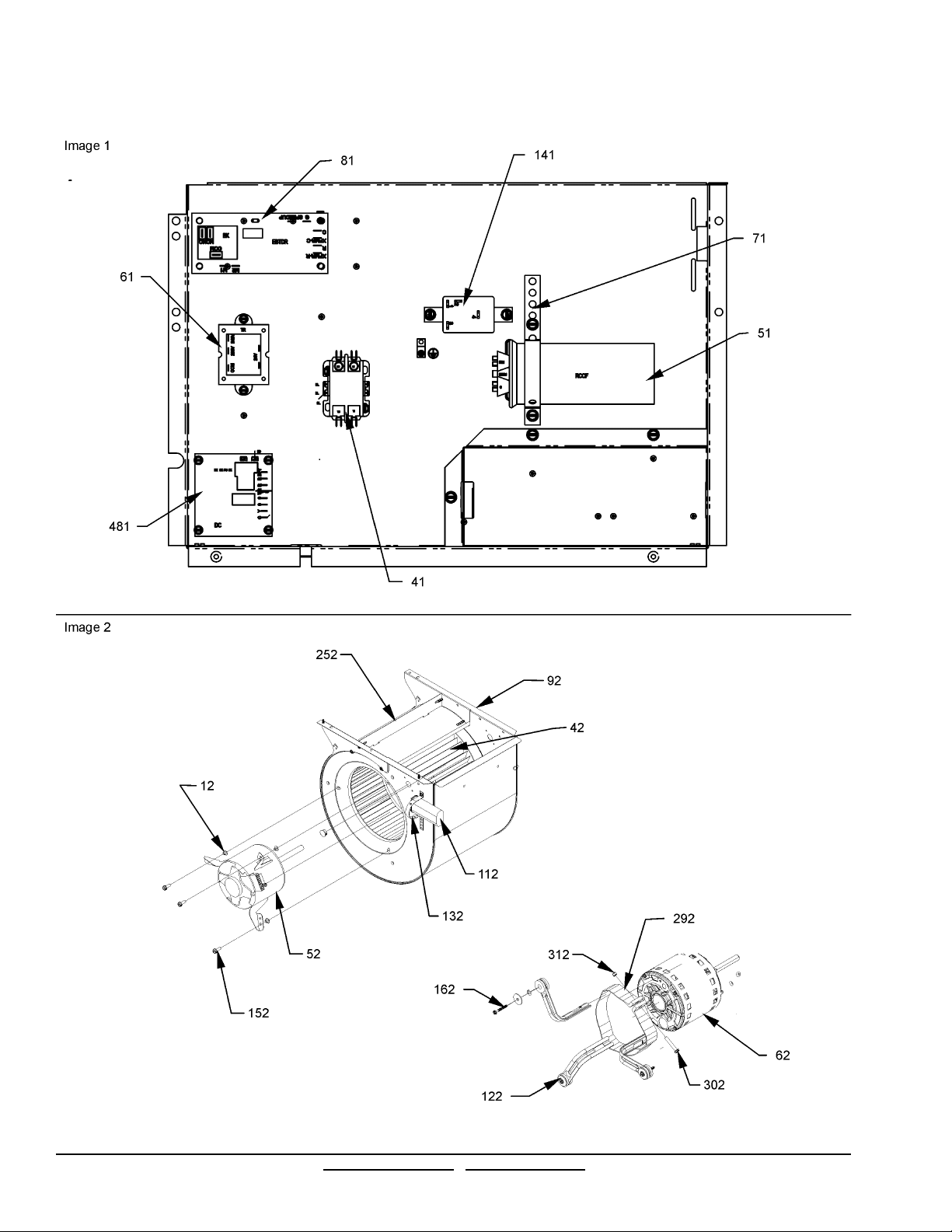

Control Panel / Blower Assembly
A
10
www.goodmanmfg.com www.amana-hac.com
RP-629
Control Panel / Blower Assembly
Ref.
Part
No:
No:
Image 1:
PCBFM13181
0259G00070NS
Image 2:
B139214312
CAP100000370VAS112
B1393323302
B1393800312
Description:
CONTACTOR 25 AMP, 2P, 24V (M1, M2, M3, M5)CONT2P025024VS41
CONTACTOR 25 AMP, 3P, 24V (M4)CONT3P025024VS41
CONTACTOR 40 AMP, 2P, 24V (M6, M8)CONT2P040024VS41
CONTACTOR 40 AMP, 3P, 24V (M7, M9)CONT3P040024VS41
CAP, 5/45 MFD/440V/DUAL RD (M1, M2, M3, M5)CAP050450440RTS51
CAP,5/70 MFD/440V/DUAL RD (M6, M8)CAP050700440RTS51
CAPACITOR 5/370V (M4, M7, M9)CAP050000370VAS51
TRANSFORMER 208/230, 24V B114164361
STRAP-CAPACITOR (M3, M4, M5, M6, M7, M9)2052090171
ELECTRONIC BLOWER TIME DELAY
RELAY (M1, M2, M3, M4, M5)
240 VOLT RELAY (M1, M2, M3, M4, M5)0130M00014141
MOTOR MOUNT BAND (M6, M7, M8, M9)0121M00038291
PCB, DEFROST CONTROL PCBDM133481
BLOWER HARNESS (M7, M9)0259G00058NS
BLOWER HARNESS (M6, M8)0259G00065NS
HARNESS-ECONOMIZER (M4, M7, M9)0259G00097NS
WIRE HARN-ELECT HEAT (M1, M2, M3, M4, M5)0259G00094NS
WIRE HARNESS, ELECTRIC HEAT (M6, M7, M8,
M9)
GROMMET, 26TAL F/TORSIN FLEX (M1, M2, M3,
M4, M5)
BLOWER WHEEL D6723303S42
BLOWER MOTOR 1/3 HP, 3 SP, 6 PL (M3, M4, M5)11091203S52
BLOWER MOTOR 1/4 HP, 3 SP, 8 PL (M1)11091207S52
Motor - 1 HP Programmed Selec (M8, M9)0131M0019562
Motor - 3/4 HP Programmed Selc (M6, M7)0131M0019362
BLOWER HOUSING ASSY 10 X 9 0271G00024S92
CAPACITOR 10/370V [BLOWER] (M1, M2, M3, M4,
M5)
MOTOR MOUNT ARM (M6, M7, M8, M9)B1376857122
STRAP-CAPACITOR (M1, M2, M3, M4, M5)20520901132
TC SCREW (QTY 3)M0250558152
BLOWER BLOCK-OFF 764742252
MACHINE SCREW HWH 1/4-20 X 1-1/2 BZ (M6,
M7, M8, M9)
LOCKNUT, NYLON, INSERT 1/4, 20 (M6, M7, M8,
M9)
CAPACITOR BOOT (M1, M2, M3, M4, M5)B821700NS
Ref.
Part
No:
No:
Description:
Expanded Model Nomenclature
M1 - GPH1324M41AB
M2 - GPH1330M41AB
M3 - GPH1336M41AB
M4 - GPH1336M43AA
M5 - GPH1342M41AB
M6 - GPH1348M41AB
M7 - GPH1348M43AA
M8 - GPH1360M41AB
M9 - GPH1360M43AA
RP-629A
www.goodmanmfg.com
www.amana-hac.com
11
THIS PAGE INTENTIONALLY LEFT BLANK
5 RP-629A
Loading...
