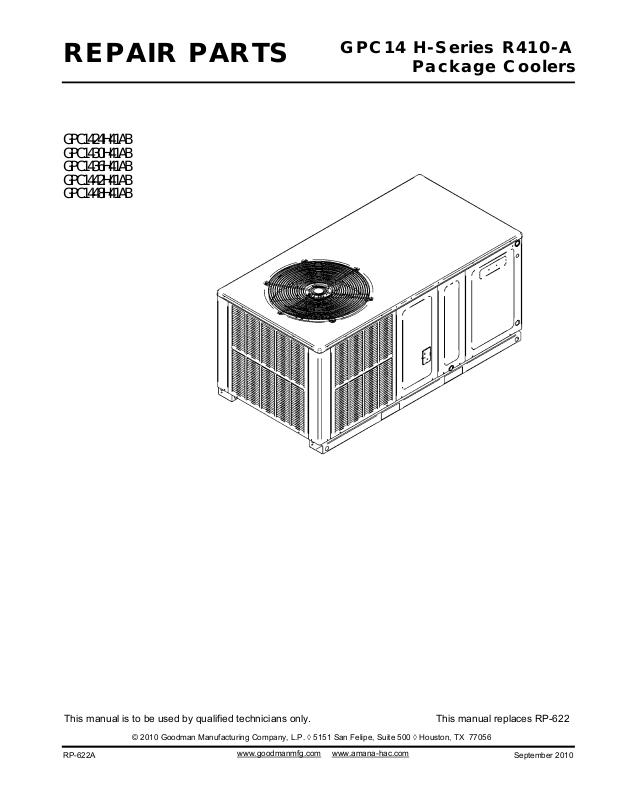

REPAIR PARTS

GPC1424H41AB GPC1430H41AB GPC1436H41AB GPC1442H41AB GPC1448H41AB

GPC14 H-Series R410-A

Package Coolers

This manual is to be used by qualified technicians only.

RP-622A

www.goodmanmfg.com www.amana-hac.com

This manual replaces RP-622

September 2010

Important Information Index

Functional Parts List

Illustration and Parts

Views shown are for parts illustrations only, not servicing procedures.

Revision A: Added models GPC1424H41AB and GPC1430H41AB.

Text Codes:

AR - As Required NA - Not Available NS - Not Shown 00000000 - See Note QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1) M - Model Example (M1) (If M Code not shown, then part is used on all Models)

Expanded Model Nomenclature:

Example M1 - Model#1 M2 - Model#2 M3 - Model#3

...................................................................................................

4 - 13

Goodman Manufacturing Company, L.P. is not responsible for personal injury or property damage resulting from improper service. Review all service information before beginning repairs.

Warranty service must be performed by an authorized technician, using authorized factory parts. If service is required after the warranty expires, Goodman Manufacturing Company, L.P. also recommends contacting an authorized technician and using authorized factory parts.

Goodman Manufacturing Company, L.P. reserves the right to discontinue, or change at any time, specifications or designs without notice or without incurring obligations.

For assistance within the U.S.A. contact: Consumer Affairs Department

Goodman Manufacturing Company, L.P. 7401 Security Way Houston, Texas 77040 877-254-4729-Telephone 713-863-2382-Facsimile

www.goodmanmfg.com www.amana-hac.com

For assistance outside the U.S.A. contact:

International Division

International Division Goodman Manufacturing Company, L.P.

Goodman Company, L.P. 7401 Security Way

7401 Security Way Houston, Texas 77040

Houston, Texas 77040 713-861-2500-Telephone

713-861-2500-Telephone 713-863-2382-Facsimile

713-863-2382-Facsimile

RP-622A

Functional Parts

Part No:

Description:

0131M00207 BLOWER MOTOR 1/2 HP PROGRAMMED

0131M00208 BLOWER MOTOR 1/2 HP PROGRAMMED

0131M00209 BLOWER MOTOR 1/2 HP PROGRAMMED

0131M00210 BLOWER MOTOR 1/2 HP PROGRAMMED

0131M00206 BLOWER MOTOR 3/4 HP PROGRAMMED

B1368016S BLOWER WHEEL 10 X 8 CAP050350440RSS CAPACITOR 5/35/440V (M1) CAP050400440RT CAPACITOR 5/40/440V (M2) CAP050450440RT CAPACITOR 5/45/440V (M3, M4, M5) ZP20K5EPFV130 COMPRESSOR 20000, 208/230/60/1 (M1) ZP24K5EPFV130 COMPRESSOR 24000, 208/230/60/1 (M2) ZP31K5EPFV830 COMPRESSOR 31100, 208/230/60/1 (M3) ZP34K5EPFV130 COMPRESSOR 34500, 208/230/60/1 (M4) ZP39K5EPFV830 COMPRESSOR 39000, 208/230/60/1 (M5) 0131M00007PS COND MOTOR 1/4 HP, 1 SP, 6 PL (M4, M5) 0131M00061S COND MOTOR 1/4 HP, 1 SP, 8 PL (M3) 0131M00009P COND MOTOR, 1/6 HP, 1 SP, 8 PL (M1, M2) CONT1P025024VS CONTACTOR 25 AMP, 1P, 24V (M1, M2, M3) CONT1P030024VS CONTACTOR 30 AMP, 1P, 24V (M4, M5) 0150G00004 FAN BLADE (M4, M5) 0150G00005 FAN BLADE (M1, M2) B1086765 FAN BLADE, TYPE 3 (M3) B1141643 TRANSFORMER 208/230, 24V

(M1)

(M2)

(M3)

(M4)

(M5)

SPECIAL PARTS

IO-352B INSTALL, INSTRUCT B1757910 SUPPLEMENTAL INSERT (EBTDR)

Expanded Model Nomenclature

M1 - GPC1424H41AB M2 - GPC1430H41AB M3 - GPC1436H41AB M4 - GPC1442H41AB M5 - GPC1448H41AB

RP-622A

www.goodmanmfg.com

www.amana-hac.com

Cabinet Assembly

www.goodmanmfg.com www.amana-hac.com

RP-622

Cabinet Assembly

Ref.

Part

No:

Image 1:

0270G00008PS11

0270G00011PS21

0270G00113S41

0121G00062PDGS101

Expanded Model Nomenclature

M1 - GPC1424H41AB M2 - GPC1430H41AB M3 - GPC1436H41AB M4 - GPC1442H41AB M5 - GPC1448H41AB

Description:

INSULATED ASSY, DUCT PANEL 27.5" (M1, M2, M3)

INSULATED ASSY, DUCT PANEL 32.5" (M4)0270G00009PS11 INSULATED ASSY, DUCT PANEL 36" (M5)0270G00010PS11 INSULATED ASSY, CORNER PANEL 27.5" (M1,

M2, M3) INSULATED ASSY, CORNER PANEL 32.5" (M4)0270G00012PS21 INSULATED ASSY, CORNER PANEL 36" (M5)0270G00013PS21 CORNER POST 27.5" (M1, M2, M3)0121G00047PDGS31 CORNER POST 32.5" (M4)0121G00048PDGS31 CORNER POST 36" (M5)0121G00082PDG31 INSULATED ASSY, BLOWER DOOR 27.5" (M1, M2,

M3) INSULATED ASSY, BLOWER DOOR 32.5" (M4)0270G00114S41 INSULATED ASSY, BLOWER DOOR 36" (M5)0270G00115S41 EXTERNAL CONTROL BOX PANEL 0121G00276DGS51 LOUVERED PANEL 4 BANK 27.5" (M1, M2, M3)0121G00069PDGS61 LOUVERED PANEL 4 BANK 32.5" (M4)0121G00070PDG61 LOUVERED PANEL 4 BANK 36" (M5)0121G00090PDGS61 LOUVERED PANEL 5 BANK 27.5" (M1, M2, M3)0121G00072PDG71 LOUVERED PANEL 5 BANK 32.5" (M4)0121G00073PDGS71 LOUVERED PANEL 5 BANK 36" (M5)0121G00091PDGS71 EVAP PANEL INSUL ASSY-27.5" (M1, M2, M3)0270G00017P81 EVAP PANEL INSUL ASSY-32.5" (M4)0270G00018P81 EVAP PANEL INSUL ASSY-36" (M5)0270G00019P81 GROMMET / HS .62 - .45 B139201191 COMPRESSOR PANEL 13.68" X 27.50" (M1, M2,

M3) COMPRESSOR PANEL 8.75" X 32.50" (M4)0121G00060PDGS101 COMPRESSOR PANEL 8.75" X 36" (M5)0121G00087PDGS101 LOUVERED PANEL 4 BANK 27.5" (M1, M2, M3)0121G00069PDGS111 LOUVERED PANEL 5 BANK 32.5" (M4)0121G00073PDGS111 LOUVERED PANEL 5 BANK 36" (M5)0121G00091PDGS111

Ref. No:

Part No:

Description:

RP-622A

www.goodmanmfg.com

www.amana-hac.com

Chassis Assembly

www.goodmanmfg.com www.amana-hac.com

RP-622

Chassis Assembly

Ref.

Part

No:

Image 1:

0270G0007531

B1219212121

Image 2:

Expanded Model Nomenclature

M1 - GPC1424H41AB M2 - GPC1430H41AB M3 - GPC1436H41AB M4 - GPC1442H41AB M5 - GPC1448H41AB

Description:

INSULATED ASSY, BASEPAN 0273G00001P11 BASEPAN RAIL (QTY 2)0121G00044PRF21 INSULATED ASSY, PARTITION PANEL 27.5" (M1,

M2, M3) INSULATED ASSY, PARTITION PANEL 32.5" (M4)0270G0007631 INSULATED ASSY, PARTITION PANEL 36" (M5)0270G0007731 DRAIN PAN ASSY 0270G00004PS41 FLOWRATOR .057 (M1)0162M00111S51 FLOWRATOR .062 (M2)0162M00017PS51 FLOWRATOR .068 (M3)0162M0005351 FLOWRATOR .072 (M4)0162M00109S51 FLOWRATOR .078 (M5)0162M0014751 TUBING ASSY, COND COIL (M1)0201G0018291 TUBING ASSY, COND COIL (M2, M3)0201G0018391 TUBING ASSY, COND COIL (M4)0201G0018791 TUBING ASSY, COND COIL (M5)0201G0019091 TUBING ASSY, EVAP COIL (M1)0202G00300101 TUBING ASSY, EVAP COIL (M4)0202G00306101 TUBING ASSY, EVAP COIL (M5)0202G00332101 TUBING ASSY, EVAP COIL (M2)0202G00333101 TUBING ASSY, EVAP COIL (M3)0202G00336101 CONDENSER COIL BLOCKOFF (M1, M2, M3)0121G00368111 CONDENSER COIL BLOCKOFF (M4, M5)0121G00372111 SINGLE-FLOW FILTER DRIER, STEEL (M1, M2,

M3) SINGLE-FLOW FILTER DRIER, STEEL (M4, M5)B1219225121 PARTITION EXTENSION PANEL (M5)0121G00365141 POST 27.5" (M1, M2, M3)0121G00045P191 POST 32.5" (M4)0121G00079P191 POST 36" (M5)0121G00083P191 EVAP DRIP SHIELD 0121G00043PNS

ACCESS FITTING BOX 0161G00001P32 ACCESS FITTING (QTY 2)B137331542 FASTEST FITTING NUT (QTY 2)0163G00000P52 CAP W/O-RING (QTY 2)B910209762 PROCESS TUBE ASSY-SUCTION 0210G00031P72 PROCESS TUBE ASSY-LIQUID 0210G00030P82

Ref. No:

Part No:

Description:

RP-622A

www.goodmanmfg.com

www.amana-hac.com

Compressor and Top Panel Assembly

www.goodmanmfg.com www.amana-hac.com

RP-622

Compressor and Top Panel Assembly

Ref.

Part

No:

Image 1:

Image 2:

Expanded Model Nomenclature

M1 - GPC1424H41AB M2 - GPC1430H41AB M3 - GPC1436H41AB M4 - GPC1442H41AB M5 - GPC1448H41AB

Description:

INSULATED ASSY, TOP PANEL 0274G0003711 FAN BLADE (M4, M5)0150G0000421 FAN BLADE (M1, M2)0150G0000521 FAN BLADE, TYPE 3 (M3)B108676521 COND MOTOR 1/4 HP, 1 SP, 6 PL (M4, M5)0131M00007PS31 COND MOTOR 1/4 HP, 1 SP, 8 PL (M3)0131M00061S31 COND MOTOR, 1/6 HP, 1 SP, 8 PL (M1, M2)0131M00009P31 FAN GRILLE 0152G00002S41 SMALL SCREW (QTY 6)M022181761 ACORN NUT 5/16 HEX BLACK (QTY 4)0163M00006P71 PVC CONDUIT 8.25" 17788000083FNS

COMPRESSOR 20000, 208/230/60/1 (M1)ZP20K5EPFV13012 COMPRESSOR 24000, 208/230/60/1 (M2)ZP24K5EPFV13012 COMPRESSOR 31100, 208/230/60/1 (M3)ZP31K5EPFV83012 COMPRESSOR 34500, 208/230/60/1 (M4)ZP34K5EPFV13012 COMPRESSOR 39000, 208/230/60/1 (M5)ZP39K5EPFV83012 COMPRESSOR GROMMET (M1, M2)B133953022 COMPRESSOR GROMMET (M3, M4, M5)B133953322 TF SHOULDER SCREW (QTY 4)M022164132 COMPRESSOR SCROLL HARNESS 0159G00004NS

Ref. No:

Part No:

Description:

RP-622A

www.goodmanmfg.com

www.amana-hac.com

Control Box Assembly

www.goodmanmfg.com www.amana-hac.com

RP-622

Control Box Assembly

Ref.

Part

No:

Image 1:

Expanded Model Nomenclature

M1 - GPC1424H41AB M2 - GPC1430H41AB M3 - GPC1436H41AB M4 - GPC1442H41AB M5 - GPC1448H41AB

Description:

TRANSFORMER 208/230, 24V B114164361 CONTACTOR 25 AMP, 1P, 24V (M1, M2, M3)CONT1P025024VS71 CONTACTOR 30 AMP, 1P, 24V (M4, M5)CONT1P030024VS71 CAPACITOR 5/35/440V (M1)CAP050350440RSS91 CAPACITOR 5/40/440V (M2)CAP050400440RT91 CAPACITOR 5/45/440V (M3, M4, M5)CAP050450440RT91 CAPACITOR STRAP 20520901191 WIRE HARNESS, ELECTRIC HEAT 0259G00021331

Ref. No:

Part No:

Description:

RP-622A

www.goodmanmfg.com

www.amana-hac.com

Blower Assembly

www.goodmanmfg.com www.amana-hac.com

RP-622

Blower Assembly

Ref.

Part

No:

Image 1:

Expanded Model Nomenclature

M1 - GPC1424H41AB M2 - GPC1430H41AB M3 - GPC1436H41AB M4 - GPC1442H41AB M5 - GPC1448H41AB

Description:

BLOWER HOUSING 10 X 8 1032424811 BLOWER MOTOR 1/2 HP PROGRAMMED (M1)0131M0020721 BLOWER MOTOR 1/2 HP PROGRAMMED (M2)0131M0020821 BLOWER MOTOR 1/2 HP PROGRAMMED (M3)0131M0020921 BLOWER MOTOR 1/2 HP PROGRAMMED (M4)0131M0021021 BLOWER MOTOR 3/4 HP PROGRAMMED (M5)0131M0020621 BLOWER WHEEL 10 X 8 B1368016S31 TRANSITION DUCT ASSY-ALL 0270G00025P41 HEATER KIT COVER 0121G00039PS61 BLOWER MOUNT 10 X 8 0121G00035P81 BLOWER SUPPORT 0121G00040P91 MOTOR MOUNT BAND 0121M00038161 MOTOR MOUNT ARM (QTY 3)B1376853171 MACHINE SCREW HWH 1/4-20 X 1-1/2 BZ B1393323201 TC SCREW 1.25" (QTY 3)M0250565211 LOCKNUT, NYLON, INSERT 1/4, 20 B1393800221 BLOWER CUT-OFF C6121810NS

Ref. No:

Part No:

Description:

RP-622A

www.goodmanmfg.com

www.amana-hac.com
