AR090 and AR120 Light
Commercial Air Handlers
REPAIR PARTS
AR090
AR120
AR120F
AR90F
This manual is to be used by qualified technicians only.
Goodman Manufacturing Company, L.P.
Made in the USA by:
2550 North Loop West, Suite 400
Houston Texas 77092
www.goodmanmfg.com
Copyright © 2003-2005 Goodman Manufacturing Company, L.P.
RP-289B
Revision 0
October 2005
This manual replaces RP-289A.
Important Information
Index
Functional Parts List
Illustration and Parts
Views shown are for parts illustrations only, not servicing procedures
Rev. A: Added AR090F and AR120F.
Text Codes:
AR - As Required
NA - Not Available
NS - Not Shown
00000000 - See Note
QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1)
M - Model Example (M1) (If M Code not shown, then part is used on all Models)
Expanded Model Nomenclature:
Example
M1 - Model#1 P__________
M2 - Model#2 P__________
M3 - Model#3 P__________
...................................................................................................
...................................................................................................
3
4 - 9
Goodman Manufacturing Company, L.P. is not responsible for personal injury or property damage resulting from
improper service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Goodman Manufacturing Company, L.P. also recommends contacting an
authorized technician and using authorized factory parts.
Goodman Manufacturing Company, L.P., reserves the right to discontinue, or change at any time, specifications
or designs without notice or without incurring obligations. Goodman® brand products are made proudly in the
For assistance within the U.S.A. contact:
Consumer Affairs Department
Goodman Manufacturing Company, L.P.
7401 Security Way
Houston, Texas 77040
877-254-4729-Telephone
713-863-2382-Facsimile
Copyright © 2003-2005 Goodman Manufacturing Company, L.P.
For assistance outside the U.S.A. contact:
International Division
International Division
Goodman Manufacturing Company, L.P.
Goodman Company, L.P.
7401 Security Way
7401 Security Way
Houston, Texas 77040
Houston, Texas 77040
713-861-2500-Telephone
713-861-2500-Telephone
713-863-2382-Facsimile
713-863-2382-Facsimile
2
RP-289B 0Rev.
Functional Parts
Part
No:
2100501FS BLOWER ASSEMBLY 11” X 10” (M2, M4)
2100500FS BLOWER ASSEMBLY 11” X 10” (M1, M3)
B1360315 CONTACTOR RELAY
B3240002 MOTOR (1.5HP 208/230/460V-3-60HZ) (M1, M3)
B3240006 MOTOR (2HP 208/230/460V-3-60HZ) (M2, M4)
B1141672 TRANSFORMER (PRI. 208/240/480V, SEC. 24V, 75
SPECIAL PARTS
IO-269 INSTALLATION & OWNERS MANUAL (M3, M4)
IO-227 INSTALLATION & OWNERS MANUAL (M1, M2)
B1610637 PAINT PWDR. DRK GRAY (M3, M4)
RP-289B REPAIR PARTS MANUAL (M1, M2)
IO-616 SUPPLEMENT (M3, M4)
Expanded Model Nomenclature
M1 - AR090
M2 - AR120
M3 - AR90F
M4 - AR120F
Description:
INCLUDES FIXED PITCH SHEAVE
INCLUDES FIXED PITCH SHEAVE
VA.)
3 RP-289B 0Rev.

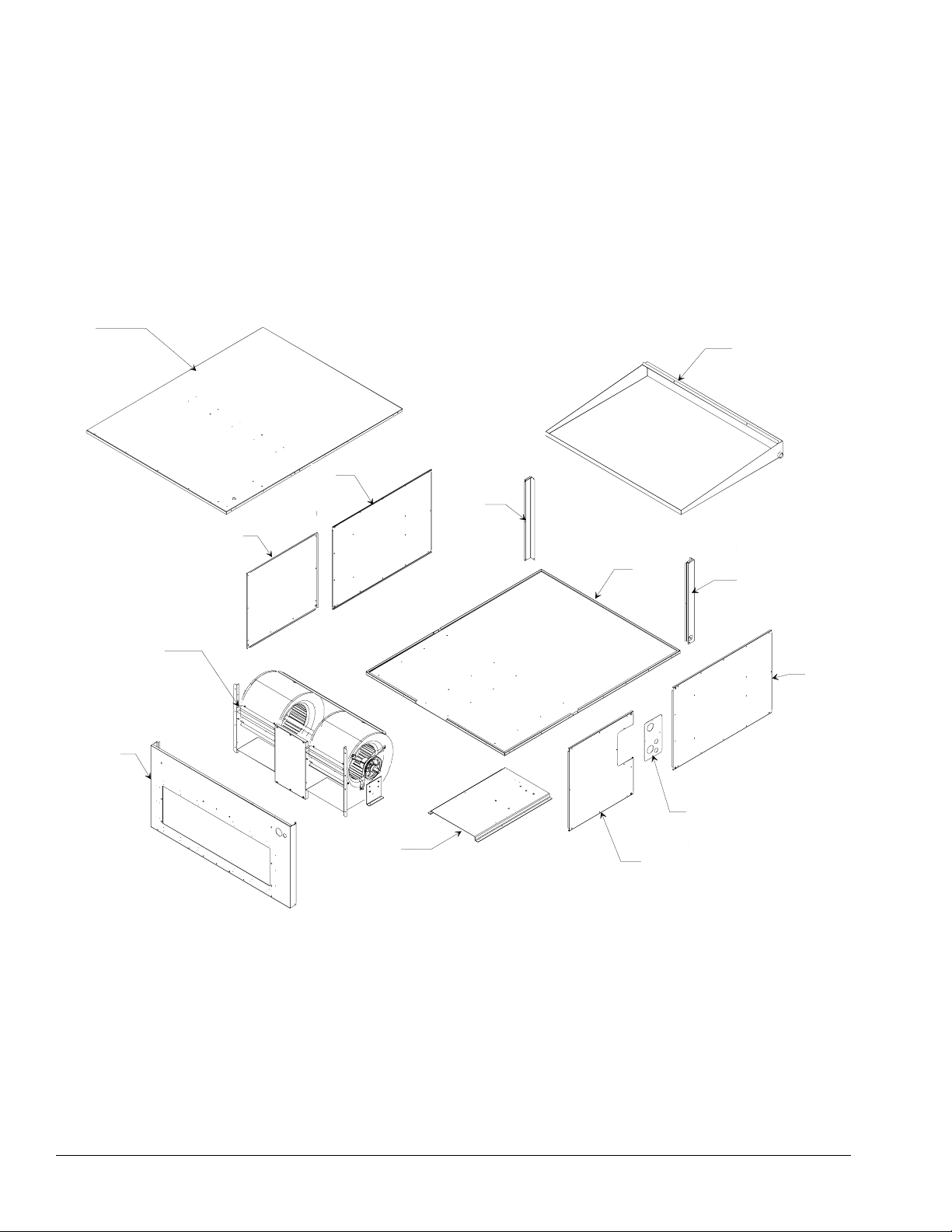

Sheet Metal and Blower
21
111
41
61
31
161
101
91
11
71
51
41
81
4RP-289B 0Rev.
Sheet Metal and Blower
Ref.
Part
No:
No:
Image 1:
Expanded Model Nomenclature
M1 - AR090
M2 - AR120
M3 - AR90F
M4 - AR120F
Description:
LEFT SIDE PANEL INSUL. ASM 2190000FS11
RIGHT SIDE PANEL INSUL. ASM 2190001FS21
TOP PANEL INSUL. ASM 2190002FS31
LOWER ACCESS PANEL INSUL. ASM. (QTY 2)2190003FS41
FRONT COR N ER 2122003F51
REAR CORNER 2122002F61
UPPER ACCESS PANEL INSUL. ASM. 2190004FS71
BLOCK-OFF PANEL INSUL. ASM. 2190006FS81
BLOWER PLATE / INSUL (M3, M4)2190007FS81
SUPPORT PLATE 2124001F91
REAR PANEL INSUL. ASM. 2190005FS101
DRAIN PAN ASSEMBLY 2102000FS111
BLOWER ASSEMBLY 11” X 10” (M1, M3)2100500FS161
BLOWER ASSEMBLY 11” X 10” (M2, M4)2100501FS161
Ref.
No:
Part
No:
Description:
5 RP-289B 0Rev.

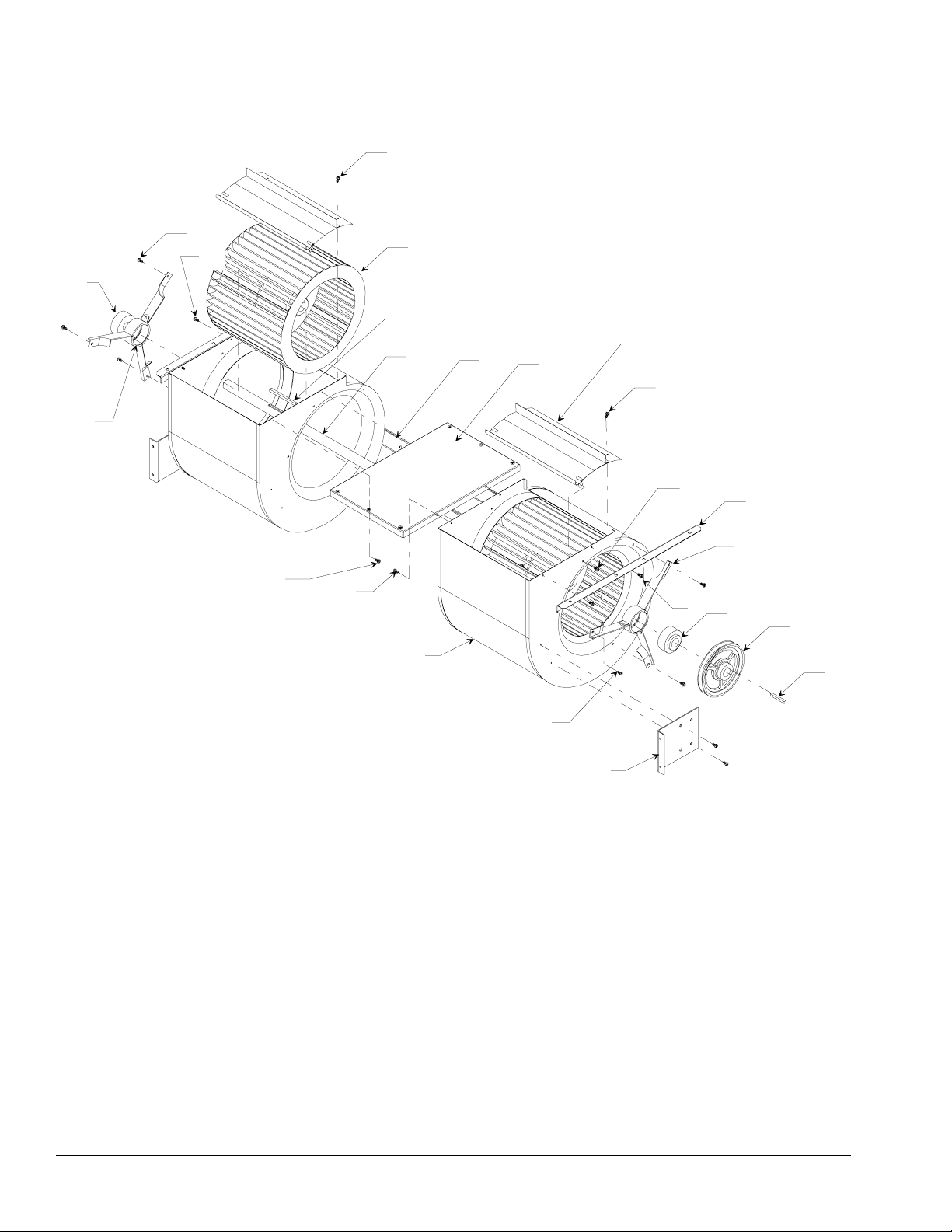

Blower Assembly
41
81
101
51
51
41
41
11
61
91
171
131
161
121
41
41
51
151
101
81
111
71
51
141
6RP-289B 0Rev.
Blower Assembly
Ref.
Part
No:
No:
Image 1:
B3204303111
B3204310111
Expanded Model Nomenclature
M1 - AR090
M2 - AR120
M3 - AR90F
M4 - AR120F
Description:
BLOWER WHEEL (QTY 2)B136805611
SCREW,HWH,10X1/2,A,Y (QTY 4)B139353041
SCREW,HWH,14X5/8,A,B (QTY 18)B139355351
STEEL KEY, 2.0" B139860461
STEEL KEY, 4.5" (QTY 2)B139860371
BRG / BALL, 1.00 (QTY 2)B139950081
SHAFT / EVAP., 1" B320020291
MOUNTING BRACKET BEARING (QTY 2)B3201300101
FIXED PITCH SHEAVE (PITCH DIA. 5.9” BY 1”
BORE) (M1, M3)
FIXED PITCH SHEAVE (PITCH DIA. 6.5” BY 1”
BORE) (M2, M4)
BLOWER CUT OFF, ASM (QTY 2)1864703F121
ANGLE, BLOWER SUPPORT 2122012F131
SUPPORT BLOWER 2124004F141
ANGLE SC ROLL 2155715F151
BLOWER PLATE / INSUL 2190007FS161
BLWR SHL ASM,11X10 2539302F171
FILTER 20 X 16 X 2 (QTY 4)B1369608NS
PLASTIC PLUG, 1" (27 (QTY 4)B1392021NS
Ref.
No:
Part
No:
Description:
7 RP-289B 0Rev.
Tubing and Electrical Components
211
201
211
221
121
151
131
181
191
171
8RP-289B 0Rev.
Tubing and Electrical Components
Ref.
Part
No:
No:
Image 1:
B2120014131
B2120000131
B1141672171
Expanded Model Nomenclature
M1 - AR090
M2 - AR120
M3 - AR90F
M4 - AR120F
Description:
MOTOR (1.5HP 208/230/460V-3-60HZ) (M1, M3)B3240002121
MOTOR (2HP 208/230/460V-3-60HZ) (M2, M4)B3240006121
VARIABLE PITCH SHEAVE (PITCH DIA. 1.9” - 2.9”
BY 5/8” BORE) (M2, M4)
VARIABLE PITCH SHEAVE (PITCH DIA. 2.8” - 3.8”
BY 5/8” BORE) (M1, M3)
FAN BELT (39” BY 1/2”) (M1, M3)B2110005151
FAN BELT (41” BY 1/2”) (M2, M4)B2110011151
TRANSFORMER (PRI. 208/240/480V, SEC. 24V, 75
VA.)
CONTACTOR RELAY B1360315181
LIQUID LINE AND VALVE ASM. (M1, M3)2159207F191
LIQUID LINE AND VALVE ASM. #1 (M2, M4)2159205F191
LIQUID LINE AND VALVE ASM. #2 (M2, M4)2159206F191
COIL TUBING ASSEMBLY (M1, M3)2101000F201
COIL TUBING ASSEMBLY (M2, M4)2101001F201
SUPPORT-FILTER TOP AND BOTTOM 2145000211
SUPPORT-FILTER 2145001221
AIR FILTER 20 X 16 X 2 (M2, M4)B1369608NS
AIR FILTER 20 X 20 X 2 (M2, M4)B1369609NS
ANGLE, BELT TIGHTENER 3225000NS
ASSY-MOTOR BASE 2162505NS
SEQUENCER B1256551NS
Ref.
No:
Part
No:
Description:
9 RP-289B 0Rev.
