Goodman SSX140181BB, SSX140181BC, SSX140241BB, SSX140241BC, SSX140301BB REPAIR PARTS

...
Download

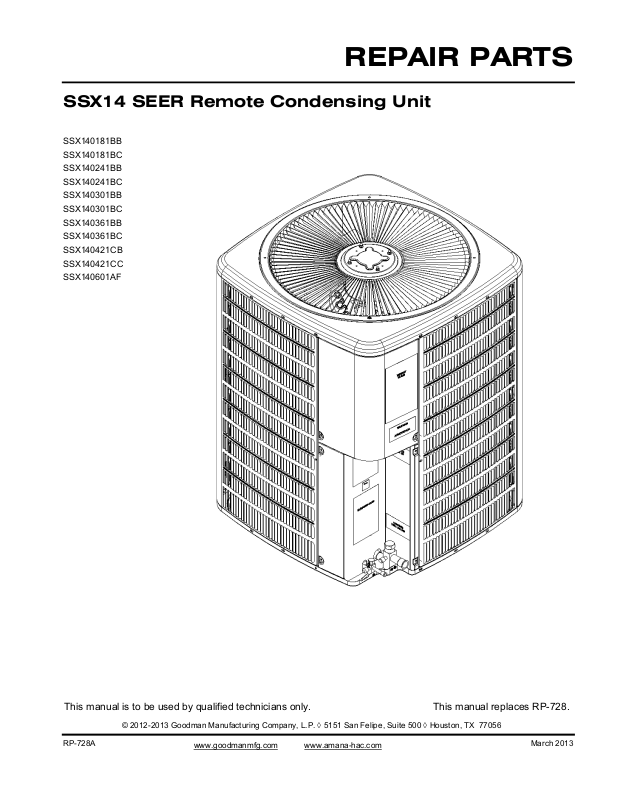

REPAIR PARTS
SSX14 SEER Remote Condensing Unit
This manual is to be used by qualified technicians only. This manual replaces RP-728.
© 2012-2013 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056
RP-728A
www.goodmanmfg.com
www.amana-hac.com
March 2013
Important Information
Index
Functional Parts List
Illustration and Parts
Views shown are for parts illustrations only, not servicing procedures.
Rev A: addition of models with 2 piece louvers.
Text Codes:
AR - As Required NA - Not Available NS - Not Shown 00000000 - See Note QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1) M - Model Example (M1) (If M Code not shown, then part is used on all Models)
Expanded Model Nomenclature:
Example M1 - Model#1 M2 - Model#2 M3 - Model#3
...................................................................................................
...................................................................................................
3
4 - 9
Goodman Manufacturing Company, L.P. is not responsible for personal injury or property damage resulting from improper service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is required after the warranty expires, Goodman Manufacturing Company, L.P. also recommends contacting an authorized technician and using authorized factory parts.
Goodman Manufacturing Company, L.P. reserves the right to discontinue, or change at any time, specifications or designs without notice or without incurring obligations.
For assistance within the U.S.A. contact: Consumer Affairs Department
Goodman Manufacturing Company, L.P. 7401 Security Way Houston, Texas 77040 877-254-4729-Telephone 713-863-2382-Facsimile
2
www.amana-hac.comwww.goodmanmfg.com
For assistance outside the U.S.A. contact:
International Division
International Division Goodman Manufacturing Company, L.P.
Goodman Company, L.P. 7401 Security Way
7401 Security Way Houston, Texas 77040
Houston, Texas 77040 713-861-2500-Telephone
713-861-2500-Telephone 713-863-2382-Facsimile
713-863-2382-Facsimile
RP-728A
Functional Parts
Part No:
B12825171 3/8 BASE VALVE (OPEN)
CAP050700440RT CAP, 5/70 MFD/440V/DUAL RD (M11)
CAP050300440RS CAPACITOR 5/30/370V (M1, M2)
CAP050350440RS CAPACITOR 5/35/440V (M3, M4)
CAP050400440RT CAPACITOR 5/40/440V (M5, M6)
CAP050450440RT CAPACITOR 5/45/440V (M7, M8, M9, M10)
ZP20K5EPFV130 COMP,20000,208/230/60/1 (M3, M4)
ZP16K5EPFV130 COMPRESSOR 15500, 208/230/60/1 (M1, M2)
ZP24K5EPFV130 COMPRESSOR 24000, 208/230/60/1 (M5, M6)
ZP29K5EPFV130 COMPRESSOR 29000, 208/230/60/1 (M7, M8)
ZP31K5EPFV130 COMPRESSOR 31100, 208/230/60/1 (M9, M10)
ZP51K5EPFV130 COMPRESSOR 51000, 208/230/60/1 (M11)
0131M00266 COND 1/8 HP 8 PL PSC (M1, M2)
0131M00019P COND MOTOR 1/12 HP, 1 SP, 8 PL (M3, M4)
0131M00016P COND MOTOR 1/6 HP, 1 SP, 8 PL (M5, M6,
0131M00061 COND MOTOR, 1/4HP, 1SP, 8PL (M11)
CONT1P025024V CONTACTOR 25 AMP, 1P, 24V (M1, M2, M3,
CONT1P030024V CONTACTOR 30 AMP, 1P, 24V (M11)
0150M00001P FAN BLADE 20 INCH (M3, M4)
0150M00012 FAN BLADE- 20" CCW (M1, M2)
0150M00008 FAN BLADE 22" TNT2203-25 (M7, M8)
10625738 FAN BLADE 26" ALUM CCW (M11)
B1086764 FAN BLADE TYPE 2 (M5, M6, M9, M10)
0130M00082 LOW PRESSURE SWITCH
0130M00089 SW-CUTOUT HI PRESS
0151R00032 VALVE, BASE 3/4" OPEN LEFT (M1, M2, M3,
0151R00033 VALVE, BASE 7/8" OPEN LEFT (M9, M10,
Expanded Model Nomenclature
M1 - SSX140181BB
M2 - SSX140181BC
M3 - SSX140241BB
M4 - SSX140241BC
M5 - SSX140301BB
M6 - SSX140301BC
M7 - SSX140361BB
M8 - SSX140361BC
M9 - SSX140421CB
M10 - SSX140421CC
M11 - SSX140601AF
Description:
M7, M8, M9, M10)
M4, M5, M6, M7, M8, M9, M10)
M4, M5, M6, M7, M8)
M11)
RP-728A
www.goodmanmfg.com
www.amana-hac.com
3
Top Panel Assy / Louvered Panels
A
4
www.goodmanmfg.com www.amana-hac.com
RP-728
Top Panel Assy / Louvered Panels
Ref.
Part
No:
No:
Image 1:
0121R00125PDGB11
0121R00139PDG31
0131M00016P61
Image 2:
Description:
LOUVERED SIDE PANEL [LT OF CNTL PNL] (M11)0121R00043PDGB11
LOUVERED SIDE PANEL [LT OF CNTL PNL] (M1)0121R00102PDGB11
LOUVERED SIDE PANEL [LT OF CNTL PNL] (M5, M7)
LOUVERED SIDE PANEL [LT OF CNTL PNL] (M9)0121R00127PDGB11
LOUVERED SIDE PANEL [LT OF CNTL PNL] (M3)0121R00171PDGB11
LOUVERED SIDE PANEL (M11)0121R00047PDGB21
LOUVERED SIDE PANEL (M1)0121R00109PDGB21
LOUVERED SIDE PANEL (M5, M7)0121R00132PDGB21
LOUVERED SIDE PANEL (M9)0121R00134PDGB21
LOUVERED SIDE PANEL (M3)0121R00172PDGB21
LOUVERED SIDE PANEL [RT OF CNTL PNL] (M11)0121R00051PDG31
LOUVERED SIDE PANEL [RT OF CNTL PNL] (M1)0121R0011631
LOUVERED SIDE PANEL [RT OF CNTL PNL] (M5, M7)
LOUVERED SIDE PANEL [RT OF CNTL PNL] (M9)0121R00141PDG31
LOUVERED SIDE PANEL [RT OF CNTL PNL] (M3)0121R00173PDG31
FAN BLADE 20 INCH (M3, M4)0150M00001P51
FAN BLADE- 20" CCW (M1, M2)0150M0001251
FAN BLADE 22" TNT2203-25 (M7, M8)0150M0000851
FAN BLADE 26" ALUM CCW (M11)1062573851
FAN BLADE TYPE 2 (M5, M6, M9, M10)B108676451
COND 1/8 HP 8 PL PSC (M1, M2)0131M0026661
COND MOTOR 1/12 HP, 1 SP, 8 PL (M3, M4)0131M00019P61
COND MOTOR 1/6 HP, 1 SP, 8 PL (M5, M6, M7, M8, M9, M10)
COND MOTOR, 1/4HP, 1SP, 8PL (M11)0131M0006161
TOP PANEL, 29" PNT (M5, M6, M7, M8, M9, M10)0121R00010PDG111
TOP PANEL, 26" PNT (M1, M2, M3, M4)0121R00008PDG111
Top Panel, 35" Pnt (M11)0121R00269PDG111
CONDUIT (M1, M2, M3, M4)0161R00001P121
CONDUIT (M7, M8)0161R00002P121
CONDUIT (M5, M6, M9, M10)0161R00003P121
CONDUIT (M11)0161R00005P121
ACORN NUT 5/16 HEX BLACK (QTY 4)0163M00006P141
Louver Post, PDG 23.73 (M2)0121R00347PDG112
Louver Post, PDG 28.73 (M4, M6, M8)0121R00350PDG112
Louver Post, PDG 32.51 (M10)0121R00352PDG112
Louver Panel, PDG 26"_23.73 (M2)0121R00336PDGR122
Louver Panel, PDG 26"_28.73 (M4)0121R00337PDGR122
Louver Panel, PDG 29"_28.73 (M6, M8)0121R00342PDGR122
Louver Panel, PDG 29"_32.51 (M10)0121R00344PDGR122
Louver Panel, PDG 26"_23.73 (M2)0121R00336PDGL132
Louver Panel, PDG 26"_28.73 (M4)0121R00337PDGL132
Louver Panel, PDG 29"_28.73 (M6, M8)0121R00342PDGL132
Louver Panel, PDG 29"_32.51 (M10)0121R00344PDGL132
Ref.
Part
No:
No:
Description:
Expanded Model Nomenclature
M1 - SSX140181BB
M2 - SSX140181BC
M3 - SSX140241BB
M4 - SSX140241BC
M5 - SSX140301BB
M6 - SSX140301BC
M7 - SSX140361BB
M8 - SSX140361BC
M9 - SSX140421CB
M10 - SSX140421CC
M11 - SSX140601AF
RP-728A
www.goodmanmfg.com
www.amana-hac.com
5
Condenser Coil and Tubing Assy
A
8
www.goodmanmfg.com www.amana-hac.com
RP-728
Condenser Coil and Tubing Assy
Ref.
Part
No:
No:
Image 1:
0151R0003261
B1488810141
0159R00000PNS
NS
Description:
TUBING ASSY, COND COIL (M11)0201R0013711
TUBING ASSY, COND COIL (M5, M6)0201R0023011
TUBING ASSY, COND COIL (M3, M4)0201R0025111
TUBING ASSY, COND COIL (M3, M4)0201R0025211
TUBING ASSY, COND COIL (M1, M2)0201R0027111
TUBING ASSY, COND COIL (M7, M8)0201R0027811
TUBING ASSY, COND COIL (M9, M10)0201R0031511
COMP,20000,208/230/60/1 (M3, M4)ZP20K5EPFV13021
COMPRESSOR 15500, 208/230/60/1 (M1, M2)ZP16K5EPFV13021
COMPRESSOR 24000, 208/230/60/1 (M5, M6)ZP24K5EPFV13021
COMPRESSOR 29000, 208/230/60/1 (M7, M8)ZP29K5EPFV13021
COMPRESSOR 31100, 208/230/60/1 (M9, M10)ZP31K5EPFV13021
COMPRESSOR 51000, 208/230/60/1 (M11)ZP51K5EPFV13021
BASE PAN 26" (M1, M2, M3, M4)0121R00005PDG31
BASE PAN 29" (M5, M6, M7, M8, M9, M10)0121R00006PDG31
BASE PAN 35" (M11)0121R00007PDG31
TF SHOULDER SCREW (QTY 4)M022164141
COMPRESSOR GROMMET (QTY 4)B133953351
VALVE, BASE 3/4" OPEN LEFT (M1, M2, M3, M4, M5, M6, M7, M8)
VALVE, BASE 7/8" OPEN LEFT (M9, M10, M11)0151R0003361
3/8 BASE VALVE (OPEN) B1282517171
FILTER DRIER 0162R0000991
SW-CUTOUT HI PRESS 0130M00089101
LOW PRESSURE SWITCH 0130M00082111
COMPRESSOR SOUND BLANKET (M11)B1488806141
COMPRESSOR SOUND BLANKET (M1, M2, M3, M4, M5, M6, M7, M8, M9, M10)
COMPRESSOR SCROLL HARNESS (M1, M2, M3, M4, M5, M6, M7, M8)
COMPRESSOR SCROLL HARNESS (M9, M10)0159R00002PNS
COMPRESSOR SCROLL HARNESS (M11)0159R00002PNS
FLOW CHECK PISTON KIT .052 (M1, M2)B1789852NS
FLOW CHECK PISTON KIT .055 (M3, M4)B1789855NS
FLOW CHECK PISTON KIT .065 (M5, M6)B1789865NS
FLOW CHECK PISTON KIT .068 (M7, M8)B1789868
FLOW CHECK PISTON KIT .070 (M9, M10)B1789870NS
FLOW CHECK PISTON KIT .088 (M11)B1789888NS
Ref.
Part
No:
No:
Description:
Expanded Model Nomenclature
M1 - SSX140181BB
M2 - SSX140181BC
M3 - SSX140241BB
M4 - SSX140241BC
M5 - SSX140301BB
M6 - SSX140301BC
M7 - SSX140361BB
M8 - SSX140361BC
M9 - SSX140421CB
M10 - SSX140421CC
M11 - SSX140601AF
RP-728A
www.goodmanmfg.com
www.amana-hac.com
9
Control Box and Cover
A
6
www.goodmanmfg.com www.amana-hac.com
RP-728
Control Box and Cover
Ref.
Part
No:
No:
Image 1:
CONT1P025024V71
Expanded Model Nomenclature
M1 - SSX140181BB
M2 - SSX140181BC
M3 - SSX140241BB
M4 - SSX140241BC
M5 - SSX140301BB
M6 - SSX140301BC
M7 - SSX140361BB
M8 - SSX140361BC
M9 - SSX140421CB
M10 - SSX140421CC
M11 - SSX140601AF
Description:
LOWER ACCESS PANEL (M11)0121R0031811
LOWER ACCESS PANEL (M9, M10)0121R0031911
LOWER ACCESS PANEL (M3, M4, M5, M6, M7, M8)0121R0032211
LOWER ACCESS PANEL (M1, M2)0121R0032611
CONTROL COVER 0121R00053PDG21
CONTACTOR 25 AMP, 1P, 24V (M1, M2, M3, M4, M5, M6, M7, M8, M9, M10)
CONTACTOR 30 AMP, 1P, 24V (M11)CONT1P030024V71
CAP, 5/70 MFD/440V/DUAL RD (M11)CAP050700440RT81
CAPACITOR 5/30/370V (M1, M2)CAP050300440RS81
CAPACITOR 5/35/440V (M3, M4)CAP050350440RS81
CAPACITOR 5/40/440V (M5, M6)CAP050400440RT81
CAPACITOR 5/45/440V (M7, M8, M9, M10)CAP050450440RT81
CAPACITOR STRAP 440006591
NAMEPLATE 0161R00009PNS
Ref. No:
Part No:
Description:
RP-728A
www.goodmanmfg.com
www.amana-hac.com
7
