ARUF**14**/ARPT**14**
ASPT**14**/ASUF**14**
AIR HANDLERS INSTALLATION & OPERATING INSTRUCTIONS
1 Important Safety Instructions..................................................1
2 Shipping Inspection ................................................................2
2.1 Parts..............................................................................2
2.2 Handling ........................................................................3
3 Codes & Regulations..............................................................3
4 Replacement Parts .................................................................3
5 Pre-Installation Considerations..............................................3
5.1 Preparation....................................................................3
5.2 System Matches............................................................3
5.3 Interconnecting Tubing..................................................3
5.4 Clearances ....................................................................3
5.5 Horizontal Applications..................................................3
6 Installation Location...............................................................3
6.1 Upflow Installation .........................................................4
6.2 Horizontal Left Installation.............................................4
6.3 Downflow/Horizontal Right Installation..........................4
7 Refrigerant Lines ....................................................................6
7.1 Tubing Size ...................................................................6
7.2 Tubing Preparation ........................................................6
7.3 Special Instructions .......................................................6
7.4 Tubing Connections for Flowrator Model ......................7
7.5 Tubing Connections for TXV Models.............................7
8 Condensate Drain Lines .........................................................7
9 Ductwork.................................................................................8
9.1 Return Ductwork ...........................................................8
10 Return Air Filters...................................................................8
11 Electric Heat .........................................................................8
11.1 No Electric Heat Installed ............................................9
12 Electrical and Control Wiring ..............................................10
12.1 Building Electrical Service Inspection .......................10
12.2 Wire Sizing ...............................................................10
12.3 Maximum Overcurrent Protection (MOP)..................10
12.4 Electrical Connections – Supply Voltage .................. 11
12.4.1 Air Handler Only (Non-Heat Kit Models) ........ 11
12.4.2 Air Handler - Non-Circuit Breaker Heat Kits.......... 11
12.4.3 Air Handler With Circuit Breaker Heat Kit ............. 11
12.5 Low Voltage Connections ......................................... 11
12.5.1 Thermostats ......................................................... 11
12.6 Speed Tap Adjustment .............................................. 11
13 Achieving 2% Low Leakage Rate.......................................12
14 Start-Up Procedure.............................................................12
15 Regular Maintenance .........................................................12
Airflow Data................................................................................13

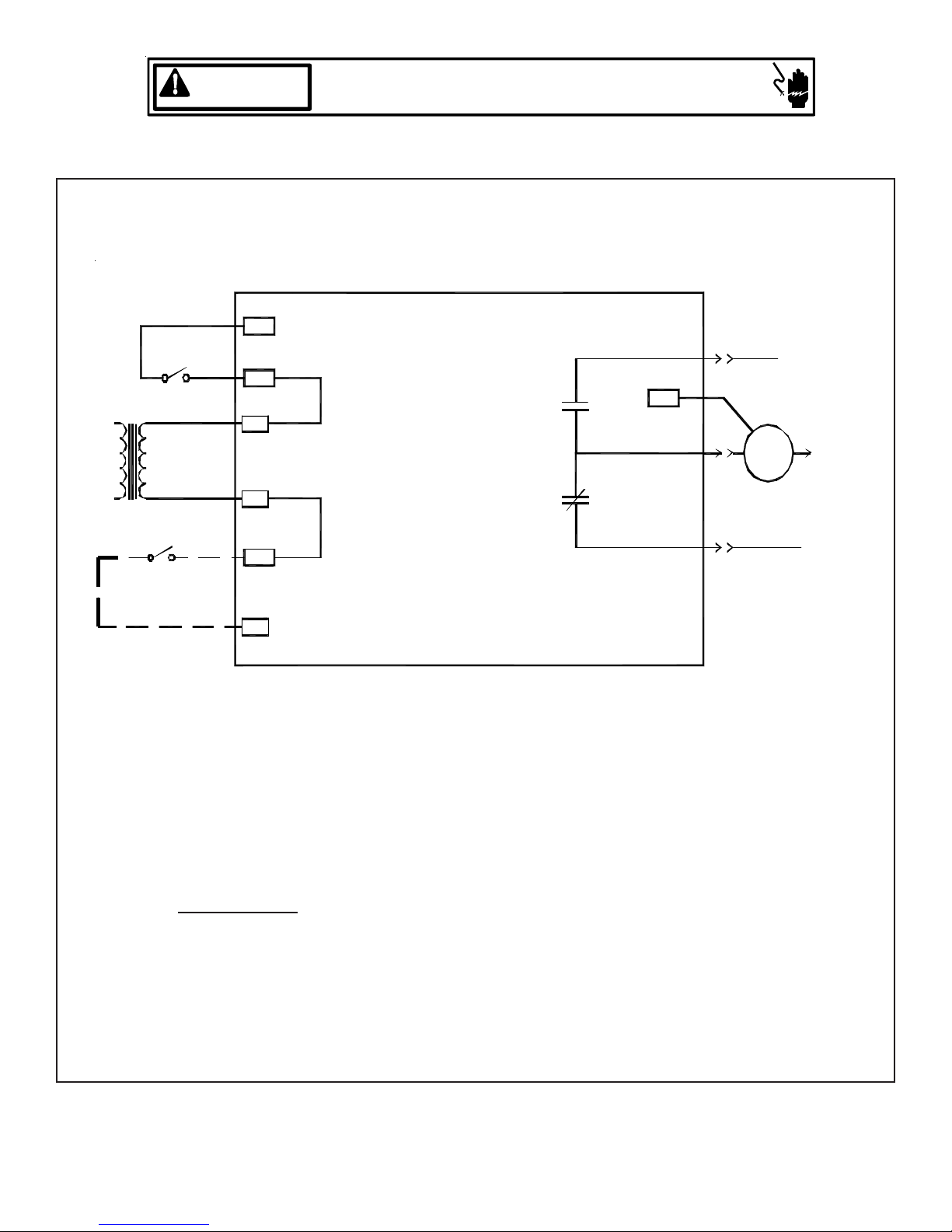

Schematics ................................................................................15
Wiring Diagrams ........................................................................21
1 Important Safety Instructions
The following symbols and labels are used throughout this
manual to indicate immediate or potential safety hazards. It
is the owner’s and installer’s responsibility to read and comply with all safety information and instructions accompanying
these symbols. Failure to heed safety information increases
the risk of personal injury, property damage, and/or product
damage.
RECOGNIZE THIS SYMBOL
AS A SAFETY PRECAUTION.
ATTENTION INSTALLING PERSONNEL
IO-427G
10/2013
It is your responsibility to install the product safely and to educate the customer on its safe use.
Prior to installation, thoroughly familiarize yourself with this Installation Manual.
Observe all safety warnings. During installation or repair, caution is to be observed.
HIGH VOLTA GE!
Disconnect ALL power before servicing.
Multiple power sources may be present.
Failure to do so may cause property dama ge ,
personal inju ry or deat h.
Install ati on an d re pa ir of t hi s u ni t sho ul d b e p erf orm ed
by indiv id uals me et in g the re qui re men ts of an
ONLY
“entry level technician” as specified by
, at a mini mum,
the Ai r-Co ndi ti on in g, H ea ting a nd Re fri g era ti on Inst i tu te
(AHRI). Attempting to install or repair this unit without
such ba ck grou nd may re sul t i n p rod uct da mag e,
personal inju ry or death.
This product is factory-shipped for use with
208/240/1/60 electrical power supply.
DO NOT
reconfigure this air handler to operate with any othe r
power supply.
To avoid property damage, personal injury or death
due to electrical shock, this unit MUST have an
uninterrupted, unbroken
electrical ground. The
electrical ground circuit may consist of an
appropriately sized electrical wi re connecting the
ground lug in the unit control box to the b uilding
electrical service panel.
Other meth ods of gro unding are permitte d i f perfo r med
in accordance with the National Electric Code
(NEC) /Amer ican National Stan dard s Inst itut e
(ANSI)/ Nati onal Fire P rotec tion Assoc iation (NFP A) 70
and local /s ta te c ode s. I n Canad a, e lect ri ca l gro unding
is to be in accordance w it h t he Cana di an El ec tri c C ode
(CSA) C22.1.
When installing or servicing this equipment, safety
clothing, including hand and eye protection, is
strongly recommended. If installing in an area that has
special safety requirements (hard hats, etc.), bserve
o
these requirements.
To prevent the risk of property damage, personal
injury , or dea th, do not store comb ustible m aterials or
use gasoline or other flammable liquids or vapors in
the vicin ity of this unit.
CARBON MONOX IDE POISON ING HAZ ARD
Special Warning for Installation of Furnace or Air Handling Units in
Enclosed Areas such as Garages, Utility Rooms or Parking Areas
Carbon monoxide producing devices (such as an automobile, space
heater, gas water heater, etc.) should not be operated in enclosed areas
such as unventilated garages, utility rooms or parking areas because of
the danger of carbon monoxide (CO) poisoning resulting from the exhaust
emissions. If a furnace or air handler is installed in an enclosed area such
as a garage, utility room or parking area and a carbon monoxide producing
device is operated therein, there must be adequate, direct outside
ventilation.
This ventilation is necessary to avoid the danger of CO poisoning which
can occur if a carbon monoxide producing device continues to operate in
the enclosed area. Carbon monoxide emissions can be (re)circulated
throughout the structure if the furnace or air handler is operating in any
mode.
CO can cause serious illness including permanent brain damage or death.
B10259-216
-
Keep this literature in a safe place for future reference.
2 Shipping Inspection
Always transport the unit upright; laying the unit on its side or
top during transit may cause equipment damage. The installer
should inspect the product upon receipt for shipping damage
and subsequent investigation is the responsibility of the carrier. The installer must verify the model number, specifications, electrical characteristics, and accessories are correct
prior to installation. The distributor or manufacturer will not
accept claims from dealers for transportation damage or installation of incorrectly shipped units.
2.1 Parts
Do not connect to or use any device that is not designcertified by the manufacturer for use with this unit.
Serious property damage, personal injury, reduced
unit performance and/or hazardous conditions may
result from the use of such non-approved devices.
Also inspect the unit to verify all required components
are present and intact. Report any missing components
immediately to the manufacturer or to the distributor. Use
only factory authorized replacement parts (see Section
5). Make sure to include the full product model number
and serial number when reporting and/or obtaining service parts.
2
2.2 Handling
5.2 System Matches
Use caution when transporting/carrying the unit. Do not
move unit using shipping straps. Do not carry unit with
hooks or sharp objects. The preferred method of carrying the unit after arrival at the job site is to carry via a twowheel hand truck from the back or sides or via hand by
carrying at the cabinet corners.
3 Codes & Regulations
This product is designed and manufactured to comply with
applicable national codes. Installation in accordance with such
codes and/or prevailing local codes/regulations is the responsibility of the installer. The manufacturer assumes no responsibility for equipment installed in violation of any codes or regulations.
The United States Environmental Protection Agency
(EPA) has issued various regulations regarding the introduction and disposal of refrigerants. Failure to follow
these regulations may harm the environment and can lead
to the imposition of substantial fines. Should you have
any questions please contact the local office of the EPA and/
or refer to EPA’s website www.epa.gov.
4 Replacement Parts
When reporting shortages or damages, or ordering repair
parts, give the complete product model and serial numbers
as stamped on the product. Replacement parts for this product are available through your contractor or local distributor.
For the location of your nearest distributor consult the white
business pages, the yellow page section of the local telephone
book or contact:
CONSUMER AFFAIRS
GOODMAN MANUFACTURING COMPANY, L.P.
7401 SECURITY WAY
HOUSTON, TEXAS 77040
(877) 254-4729
5 Pre-Installation Considerations
5.1 Preparation
Keep this document with the unit. Carefully read all instructions for the installation prior to installing product.
Make sure each step or procedure is understood and any
special considerations are taken into account before starting installation. Assemble all tools, hardware and supplies needed to complete the installation. Some items may
need to be purchased locally. Make sure everything
needed to install the product is on hand before starting.
The entire system (combination of indoor and outdoor
sections) must be manufacturer approved and Air-Conditioning, Heating, and Refrigeration Institute (AHRI)
listed. NOTE: Installation of unmatched systems is not
permitted and will void the product warranty.
5.3 Interconnecting Tubing
Give special consideration to minimize the length of refrigerant tubing when installing air handlers. Refer to Remote Cooling/Heat Pump Service Manual RS6200006,
and TP-107 Long Line Set Application R-410A for tubing guidelines. If possible, allow adequate length of tubing such that the coil may be removed (for inspection or
cleaning services) from the cabinet without disconnecting the tubing.
5.4 Clearances
The unit clearance from a combustible surface may be
0". However, service clearance must take precedence.
A minimum of 24" in front of the unit for service clearance is required. Additional clearance on one side or
top will be required for electrical wiring connections. Consult all appropriate regulatory codes prior to determining
final clearances. When installing this unit in an area that
may become wet (such as crawl spaces), elevate the
unit with a sturdy, non-porous material. In installations
that may lead to physical damage (i.e. a garage) it is
advised to install a protective barrier to prevent such damage. Always install units such that a positive slope in
condensate line (1/4" per foot) is allowed.
5.5 Horizontal Applications
If installed above a finished living space, a secondary
drain pan (as required by many building codes), must
be installed under the entire unit and its condensate drain
line must be routed to a location such that the user will
see the condensate discharge.
6 Installation Location
NOTE: These air handlers are designed for indoor installa-
tion only.
The ARUF**14**, ARPT**14**, ASPT**14** and ASUF**14**
product lines may be installed in one of the upflow, downflow,
horizontal left or horizontal right orientations as shown in Figures 2, 3, 4 and 5. The unit may be installed in upflow or
horizontal left orientation as shipped (refer to specific sections for more information).
Minor field modifications are necessary to convert to downflow
or horizontal right as indicated in below sections.
3
6.1 Upflow Installation
No field modifications are mandatory however to obtain
maximum efficiency, the horizontal drip shield must be
removed.
Drip Shield Removal: Refer to Figure 1, remove the two
(2) screws that secure the drip shield support brackets to
the condensate collectors (one screw per side). Remove
the two (2) screws that secure the drip shield to the drain
pan. The drip shield and drip shield brackets may now
be removed.
The bottom left drain connection is the primary drain for
this application and condensate drain line must be attached to this drain connection. The top connection of
the three drain connections on the drain pan must remain plugged for this application. The bottom right drain
connection is for the secondary drain line (if used).
Screw
Screw
MODEL LIST FOR DOWNFLOW KITS
DFK-B
Downflow Kit
ARUF18B14** ARUF30C14** ARUF48D14**
ARUF24B14** ARUF36C14** ARUF60D14**
ARUF30B14** ARUF42C14** ARPT36D14**
ARPT18B14** ARPT36C14** ARPT42D14**
ARPT24B14** ASPT30C14** ARPT48D14**
ARPT30B14** ASPT36C14** ARPT60D14**
ASPT24B14** ASUF39C14** ASUF59D14**
ASUF29B14** ASUF49C14** ASPT42D14**
DFK-C
Downflow Kit
DFK-D
Downflow Kit
ASPT48D14**
ASPT60D14**
DOWNFLOW KIT
Table 1
Refer to Figure 6 and 7 for the location of the components referenced in the following steps.
1. Before inverting the air handler, remove blower access
panel and coil access panel. The coil access panel and
tubing panel may remain screwed together during this
procedure. Remove and retain the seven (7) screws securing the coil access panel to the cabinet and the six
(6) screws securing the blower access panel to the cabinet.
2. Slide the coil assembly out using the drain pan to pull
the assembly from the cabinet.
DRIP SHIELD REMOVAL
Figure 1
6.2 Horizontal Left Installation
No field modifications are permissible for this application.
The bottom right drain connection is the primary drain for
this application and condensate drain line must be attached to this drain connection. The top connection of
the three drain connections on the drain pan must remain plugged for this application. The bottom left drain
connection is for the secondary drain line (if used).
6.3 Downflow/Horizontal Right Installation
IMPORTANT NOTE: In the downflow application, to prevent coil pan “sweating”, a downflow kit (DFK) is available through your local distributor. The DFK is not supplied with the air handler and is required by the manufacturer on all downflow installations. See Table 1 for the
correct DFK and follow the instructions provided for installation.
NOTE: DO NOT USE MANIFOLDS OR FLOWRATOR
TO PULL THE COIL ASSEMBLY OUT. FAILURE TO
DO SO MAY RESULT IN BRAZE JOINT DAMAGE
AND LEAKS.
3. Removal of the center support is required on units with
21" wide cabinet. Remove and retain the two (2) screws
that secure the center support to the cabinet. Remove
the center support.
4. Using the drain pan to hold the coil assembly, slide the
coil assembly back into the cabinet on the downflow
brackets as shown in Figure 8.
5. Re-install the center support (if removed) using the two
(2) screws removed in Step 4.
6. Re-install the access panels removed in Step 1 as shown
in Figure 9.
7. The bottom left drain connection is the primary drain for
this application and condensate drain line must be attached to this drain connection. The top connection of
the three drain connections on the drain pan must remain plugged for this application. The bottom left drain
connection is for the secondary drain line (if used).
4
UPFLOW DOWNFLOW
Figure 2 Figure 3
Upper Tie Plate
Control
Deck
Downflow
Bracket
Center
Support
Filter
Bracket
Filter Access
Panel
INTERNAL PART TERMINOLOGY
Figure 6
NOTE: If removing only the coil access panel from the unit,
the filter access panel must be removed first. Failure to do so
will result in panel damage.
HORIZONTAL LEFT
Figure 4
HORIZONTAL RIGHT
Figure 5
Blower
Access
Panel
Coil
Access
Panel
Secondary
Drain Port
for Hori zont al
Application
Thumb
Screw
Secondary Drain Port
for Upflow/Downflow
Application
EXTERNAL PART TERMINOLOGY
Figure 7
Tubing
Panel
5
IMPORTANT NOTE:
Ensure coil slides on the rails
along the groove provided
on the drain pan side walls.
Failure to do so will result in
improper condensate drainage.
COIL INSTALLATION FOR DOWNFLOW
Coil Slides
on the downflow bracket
Figure 8
7 Refrigerant Lines
This product is factory-shipped with R410A and dry
nitrogen mixture gas under pressu re. Use appr opria te
service tools and follow these instructions to prevent
injury .
A quenching cloth is strongly recommended to prevent
scorching or marring of the equipment finish when
brazing close to the painted surfaces. Use brazing
alloy of 5% minimum silver content.
NOTE: Refrigerant tubing must be routed to allow adequate
access for servicing and maintenance of the unit.
Do not install the air handler in a location that violates the
instructions provided with the condenser. If the unit is located
in an unconditioned area with high ambient temperature and/
or high humidity, the air handler may be subject to nuisance
sweating of the casing. On these installations, a wrap of 2"
fiberglass insulation with a vapor barrier is recommended.
7.1 Tubing Size
For the correct tubing size, follow the specification for
the condenser/heat pump.
7.2 Tubing Preparation
All cut ends are to be round, burr free, and clean. Failure
to follow this practice increases the chances for refrigerant leaks. The suction line is spun closed and requires
tubing cutters to remove the closed end.
ACCESS PANEL CONFIGURATION FOR DOWNFLOW
OR HORIZONTAL RIGHT
Figure 9
NOTE: To prevent possible damage to the tubing joints,
do not handle coil assembly with manifold or flowrator
tubes. Always use clean gloves when handling coil assemblies.
CAUTION
Applying too much heat to any tube can melt the tube. T orch
heat required to braze tubes of various sizes mu st be
proportional to the s ize of t h e tub e . S er v ice p e rso n n el m u st
use the appropriate heat level for the size of the tube being
brazed.
7.3 Special Instructions
Units without a factory installed TXV come equipped
with a flowrator piston for refrigerant expansion. For
most installations with matching applications, no
change to the flowrator piston is required. However, in
mix-matched applications, a flowrator piston change
may be required. See the piston kit chart (provided in
the literature packet) or consult your local distributor
for details regarding mix-matched flowrator piston sizing. If the mix-match application requires a different
flowrator piston size, change the flowrator piston in the
flowrator body on the indoor coil before installing the
coil and use the procedure in section 8.4.
6
NOTE: The use of a heat shield is strongly recommended when brazing to avoid burning the serial plate
or the finish of the unit.
Heat trap or wet rags must be
used to protect heat sensitive components such as service valves and TXV valves sensing bulb.
7.4 Tubing Connections for Flowrator Model
1. Loosen the 13/16 nut 1 TURN ONLY to allow high pressure tracer gas to escape. No gas indicates a possible
leak.
2. After the gas has been expelled, remove the nut and
discard the black or brass cap plastic seal.
3. Remove the flowrator piston to verify it is the correct
size for the outdoor unit being installed and then replace
the piston (changing size, if needed). See piston kit chart
in the literature kit for appropriate piston size.
4. Remove the spin closure on the suction line using a
tube cutter and deburr the tube.
5. Insert the suction line into the connection, slide the insulation and the rubber grommet at least 18" away from
the braze joint.
7. Braze tailpiece to the line set liquid tube and braze suction line connection. Quench all brazed joints with a
damp rag upon completion of brazing. Do not allow water
to enter the inside of the tubing.
8. AFTER THE TAILPIECE HAS COOLED, confirm position of the white Teflon® seal and hand tighten the 13/16
nut.
9. Torque the 13/16 nut to 7-25 ft-lbs. or tighten 1/6 turn.
Excessive torque can cause orifices to stick. Use the
proper torque settings when tightening orifices.
7.5 Tubing Connections for TXV Models
TXV models come with factory installed TXV with the
bulb pre-installed on the vapor tube.
1. Remove refrigerant tubing panel or coil (lower) access
panel.
2. Remove access valve fitting cap and depress the valve
stem in access fitting to release pressure. No pressure
indicates possible leak.
SUCTION LINE
WITH SPIN CLOSURE
RUBBER
GROMMET
SUCTION SPUN END AND GROMMET
Figure 10
6. Remove the tailpiece clamped to the exterior of the cabinet or in the literature kit packet and slide the 13/16 nut
into place.
PLASTIC or BRASS CAP
13/16” NUT
TAILPIECE
WHITE
TEFLON SEAL
PISTON
TAILPIECE JOINT
Figure 11
3. Replace the refrigerant tubing panel.
4. Remove the spin closure on both the liquid and suction
tubes using a tubing cutter.
5. Insert liquid line set into liquid tube expansion and slide
grommet about 18" away from braze joint.
6. Insert suction line set into suction tube expansion and
slide insulation and grommet about 18" away from braze
joint.
7. Braze joints. Quench all brazed joints with water or a
wet rag upon completion of brazing.
8 Condensate Drain Lines
The coil drain pan has a primary and a secondary drain with
3/4" NPT female connections. The connectors required are
3/4" NPT male, either PVC or metal pipe, and should be hand
tightened to a torque of no more than 37 in-lbs. to prevent
damage to the drain pan connection. An insertion depth of
approximately 3/8” to 1/2” (3-5 turns) should be expected at
this torque.
1. Ensure drain pan hole is not obstructed.
2. To prevent potential sweating and dripping on to finished
space, it may be necessary to insulate the condensate
drain line located inside the building. Use Armaflex® or
similar material.
7
A secondary condensate drain connection has been provided
for areas where the building codes require it. Pitch all drain
lines a minimum of 1/4" per foot to provide free drainage.
Provide required support to the drain line to prevent bowing.
If the secondary drain line is required, run the line separately
from the primary drain and end it where condensate discharge
can be easily seen.
NOTE: Water coming from secondary line means the coil
primary drain is plugged and needs immediate attention.
Insulate drain lines located inside the building or above a
finished living space to prevent sweating. Install a condensate trap to ensure proper drainage.
NOTE: When units are installed above ceilings, or in other
locations where damage from condensate overflow may
occur, it is MANDATORY to install a field fabricated auxiliary
drain pan under the coil cabinet enclosure.
CAUTION
If secondary drain is not inst a lled, the seconda ry
access must be plugged.
The installation must include a “P” style trap that is located
as close as is practical to the evaporator coil. See Figure 12
for details of a typical condensate line “P” trap.
NOTE: Trapped lines are required by many local codes. In
the absence of any prevailing local codes, please refer to the
requirements listed in the Uniform Mechanical Building Code.
A drain trap in a draw-through application prevents air from
being drawn back through the drain line during fan operation
thus preventing condensate from draining, and if connected
to a sewer line to prevent sewer gases from being drawn into
the airstream during blower operation.
Field experience has shown condensate drain traps with an
open vertical Tee between the air handler and the condensate drain trap can improve condensate drainage in some
applications, but may cause excessive air discharge out of
the open Tee. The manufacturer does not prohibit this type
of drain but we also do not recommend it due to the resulting
air leakage. Regardless of the condensate drain design used,
it is the installer’s responsibility to ensure the condensate
drain system is of sufficient design to ensure proper condensate removal from the coil drain pan.
Drain
Connection
Air Handler
POSITIVE LIQUID
SEAL REQUIRED
AT TRAP
2" MIN.
3" MIN.
Use of a condensate removal pump is permitted when necessary. This condensate pump should have provisions for
shutting off the control voltage should a blocked drain occur.
A trap must be installed between the unit and the condensate pump.
IMPORTANT NOTE: The evaporator coil is fabricated with
oils that may dissolve styrofoam and certain types of plastics.
Therefore, a removal pump or float switch must not contain
any of these materials.
Tip: Priming the “P” trap may avoid improper draining at the
initial installation and at the beginning of the cooling season.
9 Ductwork
This air handler is designed for a complete supply and return
ductwork system.
To ensure correct system performance, the ductwork is to be
sized to accommodate 350-450 CFM per ton of cooling with
the static pressure not to exceed 0.5" in w.c. Refer to ACCA
Manual D, Manual S and Manual RS for information on duct
sizing and application. Flame retardant ductwork is to be
used and sealed to the unit in a manner that will prevent leakage.
NOTE: A downflow application with electric heat must have
an L-shaped sheet metal supply duct without any outlets or
registers located directly below the heater.
9.1 Return Ductwork
DO NOT LOCATE THE RETURN DUCTWORK IN AN
AREA THAT CAN INTRODUCE TOXIC, OR OBJECTIONABLE FUMES/ODORS INTO THE DUCTWORK.
The return ductwork is to be connected to the air handler bottom (upflow configuration).
Do not operate this product without all the ductwork
attached.
10 Return Air Filters
Each installation must include a return air filter. This filtering
may be performed at the air handler using the factory filter
rails or externally such as a return air filter grille. When using
the factory filter rails, a nominal 16x20x1”, 20x20x1” or
24x20x1” (actual dimension must be less than 23-½”x20”)
filter can be installed on a B, C and D cabinet respectively
(the cabinet size is the seventh letter of the model number).
11 Electric Heat
Refer to the installation manual provided with the electric heat
kit for the correct installation procedure. All electric heat must
be field installed. If installing this option, the ONLY heat kits
that are permitted to be used are the HKS series. Refer to
the air handler unit’s Serial and Rating plate or the HKS specification sheets to determine the heat kits compatible with a
given air handler. No other accessory heat kit besides the
HKS series may be installed in these air handlers.
Figure 12
8
The heating mode temperature rise is dependent upon the
system airflow, the supply voltage, and the heat kit size (kW)
selected. Use data provided in Tables 2, 3 and 4 to determine the temperature rise (°F).
NOTE: For installations not indicated above the following
formula is to be used:
TR = (kW x 3412) x (Voltage Correction) x 1.08 / CFM
Where: TR = Temperature Rise
kW = Heater Kit Actual kW
3412 = Btu per kW
VC* = .96 (230 Supply Volts)
= .92 (220 Supply Volts)
= .87 (208 Supply Volts)
1.08 = Constant
CFM = Measured Airflow
*VC (Voltage Correction)
NOTE: The Temperature Rise Tables can also be used to
estimate the air handler airflow delivery. When using these
tables for this purpose set the room thermostat to maximum
heat and allow the system to reach steady state conditions.
Insert two thermometers, one in the return air and one in the
supply air. The temperature rise is the supply air temperature
minus the room air temperature. Using the temperature rise
calculated, CFM can be estimated from the TR formula above.
See Technical Manual and/or Service Manual for more
information.
11.1 No Electric Heat Installed
If no electric heat accessory kit is installed, a cover plate
must be installed over the opening for electric heat. This
cover plate kit is available from Goodman®, Amana® and
Daikin brand distributors.
CFM
800
1000
1200
1400
1600
1800
2000
3568101519/2025
12 19 23 31 37
9 1519253044
8 12152125374962
7 11131821324253
6 9 12 15 19 28 37 46
5 8 10 14 16 25 33 41
5 7 9 12 15 22 30 37
HEAT KIT NOMINAL kW
230/1/60 SUPPLY VOLTAGE - TEMP. RISE °F
Table 2
CFM
800
1000
1200
1400
1600
1800
2000
3568101519/2025
11 18 22 30 35
9 1418242842
7 12152024354759
6 10131720304051
6 9 11 15 18 27 35 44
5 8 10 13 16 24 31 39
4 7 9 12 14 21 28 35
HEAT KIT NOMINAL kW
220/1/60 SUPPLY VOLTAGE - TEMP. RISE °F
Table 3
CFM
800
1000
1200
1400
1600
1800
2000
3568101519/2025
10 17 21 28 33
8 1317222740
7 11141922334556
6 10121619293848
5 8 10 14 17 25 33 42
5 7 9 12 15 22 30 37
4 7 8 11 13 20 27 33
HEAT KIT NOMINAL kW
208/1/60 SUPPLY VOLTAGE - TEMP. RISE °F
Table 4
*ARUF
ARPT
18 715 715 715 715 950
24 715 715 715 715 950
30B 715 715 715 715 875 875
30C 1170 1170 1170 1170 1345 1345
36 1170 1170 1170 1170 1345 1345
42 1170 1170 1170 1170 1345 1345
48 1590 1590 1590 1590 1715 1715 1715
60 1590 1590 1590 1590 1715 1715 1715
*Table applies to ARUF**14**, ARPT**14**
3 5 6 8 10 15 19 20 25
HEATER (kW)
Table 5
MINIMUM CFM REQUIRED FOR HEATER KITS
HEATER (kW)
*ASPT
24 715 715 715 715 875
30 715 715 715 715 950
36 1170 1170 1170 1170 1345 1345
42 1170 1170 1170 1170 1345 1345
48 1590 1590 1590 1590 1715 1715 1715
60 1590 1590 1590 1590 1715 1715 1715
*Table applies to ASPT**14**
3 5 6 8 10 15 19 20 25
Table 6
9
HEATER (kW)
*ASUF
29 715 715 715 715 875
39 1170 1170 1170 1170 1345 1345
49 1170 1170 1170 1170 1345 1345
59 1590 1590 1590 1590 1715 1715 1715
*Table applies to ASUF**14**
3 5 6 81015192025
Table 7
MINIMUM CFM REQUIRED FOR HEATER KITS
12 Electrical and Control Wiring
IMPORTANT: All routing of electrical wiring must be made
through provided electrical knockouts. Do not cut, puncture
or alter the cabinet for electrical wiring.
12.1 Building Electrical Service Inspection
This unit is designed for single-phase electrical supply
only. DO NOT OPERATE ON A THREE-PHASE
POWER SUPPLY. Measure the power supply to the
unit. The supply voltage must be measured and be in
agreement with the unit nameplate power requirements
and within the range shown.
HIGH VOLTAGE!
T o avoid prope rty dama ge , persona l injury or death
due to el ect rical shock, th is uni t MUST have an
uninterrupted, unbroken
electrical ground. The
electrical ground circuit may consist of an
appro pri at ely sized electr ical wi re connecting the
ground lug in the unit control box to the building
electrical service panel.
Other methods of grounding are permit ted if perform ed
in accordance with the National Electric Code
(NEC) /Americ an Nation al Standar ds Institut e
(ANSI)/National Fire Protection Association (NFP A) 70
and local/state codes. In Canada, electrical grounding
is to be in ac co rda nce w ith th e C ana dian Elec tric Cod e
(CSA) C22.1.
• Wire used must carry the Minimum Circuit Ampac-
ity (MCA) listed on the unit’s Series and Rating
Plate.
• Refer to the NEC (USA) or CSA (Canada) for wire sizing. The unit MCA for the air handler and the optional
electric heat kit can be found on the unit Series and
Rating Plate.
Nominal Input Minimum Voltage Maximum Voltage
208 - 240 197 253
ELECTRICAL VOLTAGE
Table 8
12.2 Wire Sizing
Wire size is important to the operation of your equipment. Use the following check list when selecting the
appropriate wire size for your unit.
FIRE HAZARD!
To avoid the risk of property damage, personal injury
or fire, use only copper conductors.
HIGH VOLTAGE!
Disconnect ALL power before servicing.
Multiple power sources may be present.
Failure to do so may cause property dama ge ,
personal inju ry or deat h.
• Wire must be sized to allow no more than a 2% volt-
age drop from the building breaker/fuse panel to
the unit.
• Wires with different insulation temperature rating have
varying ampacities - be sure to check the temperature
rating used.
Refer to the latest edition of the National Electric Code
or in Canada the Canadian Electric Code when determining the correct wire size.
12.3 Maximum Overcurrent Protection (MOP)
Every installation must include an NEC (USA) or CEC
(Canada) approved overcurrent protection device.
Also, check with local or state codes for any special
regional requirements.
Protection can be in the form of fusing or HACR style
circuit breakers. The Series and Rating Plate provides
the maximum overcurrent device permissible.
NOTE: Fuses or circuit breakers are to be sized larger
than the equipment MCA but not to exceed the MOP.
10
12.4 Electrical Connections – Supply Voltage
12.5 Low Voltage Connections
IMPORTANT NOTE: USE COPPER CONDUCTORS
ONLY.
Knockouts are provided on the air handler top panel
and sides of the cabinet to allow for the entry of the
supply voltage conductors, as shown in Figure 13. If
the knockouts on the cabinet sides are used for electrical conduit, an adapter ring must be used in order to
meet UL1995 safety requirements. An NEC or CEC
approved strain relief is to be used at this entry point.
Some codes/municipalities require the supply wire to
be enclosed in conduit. Consult your local codes.
Top of
Cabinet
Side of
Cabinet
KNOCK-OUT FOR ELECTRICAL CONNECTIONS
Figure 13
12.4.1 Air Handler Only (Non-Heat Kit Models)
The power supply connects to the stripped black and
red wires contained in the air handler electrical compartment. Attach the supply wires to the air handler
conductors as shown in the unit wiring diagram using
appropriately sized solderless connectors or other NEC
or CEC approved means. A ground lug is also provided in the electrical compartment. The ground wire
from the power supply must be connected to this ground
lug.
12.4.2 Air Handler - Non-Circuit Breaker Heat Kits
A terminal block is provided with the HKS kit to attach
the power supply and air handler connections. Follow
the HKS Installation Manual and wiring diagram for
complete wiring details.
12.4.3 Air Handler With Circuit Breaker Heat Kit
The air handler has a plastic cover on the upper access panel that will require either one or both sections
to be removed to allow the heat kit circuit breaker(s) to
be installed. The circuit breakers have lugs for power
supply connection. See the HKS Installation Instructions for further details.
Several combinations of low voltage schemes are possible, depending on the presence of a heat kit and
whether the heat kit is single-stage or multi-stage,
whether the outdoor section is an air conditioner or heat
pump, and whether the outdoor section is single-stage
or two-stage. The 24V-control voltage connects the air
handler to the room thermostat and condenser. Low
voltage wiring must be copper conductors. A minimum
of 18AWG must be used for installations up to 50’ and
16AWG for installations over 50’. Low voltage wiring
must be connected through the top of the cabinet or
either side. See the “Thermostat Wiring” section of
this manual for typical low voltage wiring connections.
12.5.1 Thermostats
Second-stage heat can be accomplished by a multistage heating thermostat or the addition of an outdoor
thermostat as shown in wiring schematics on pages
14 and 15. Follow the thermostat manufacturer’s instructions for installation.
12.6 Speed Tap Adjustment
ARUF**14** and ARPT**14** air handlers have multispeed PSC motors. The color of the wire coming from
the motor to the “COM” terminal on the control board
defines at which speed the motor will operate. Black
wire is high speed, blue wire is medium speed and red
wire is low speed. To change speeds, remove the wire
attached to the “COM” terminal on the control board,
and swap it with the wire (on terminal “M1” or “M2”)
with the color that will give the desired speed.
ASPT**14** and ASUF**14** air handlers feature energy efficient blower motors. The motors run at a constant torque with very low power consumption and are
energized by 24 VAC. Adjust the CFM by changing
the 24 VAC leads to the desired speed tap on the terminal block. The ASPT blower motor speeds are programmed to deliver adequate airflow at rated external
static pressure and with 60 second off time delay. For
details, refer to the specification sheet applicable to
your model.
NOTE: In some models, not all speed taps are allowable for certain electric heat applications. Refer to air
handler Series and Ratings plate for minimum speed.
11
13 Achieving 2% Low Leakage Rate
Ensure all the gaskets remain intact on all surfaces as shipped
with the unit. These surfaces are areas between the upper
tie plate and coil access panel, blower access and coil access panels, and between the coil access and filter access
panels. Ensure upon installation, that the plastic breaker cover
is sitting flush on the blower access panel and all access
panels are flush with each other and the cabinet. With these
requirements satisfied, the unit achieves less than 2% airflow leakage when tested in accordance with ASHRAE Standard 193.
14 Start-Up Procedure
• Prior to start-up, ensure that all electrical wires are properly sized and all connections are properly tightened.
• All panels must be in place and secured. For Air Tight
application, gasket must be positioned at prescribed
locations to achieve 2% leakage.
• Tubing must be leak free.
• Condensate line must be trapped and pitched to allow
for drainage.
• Low voltage wiring is properly connected.
15 Regular Maintenance
HIGH VOLTAGE!
Disconnect ALL power before servicing or
installing this unit. Multiple power sources may
be present. Failure to do so may cause property
damage, personal injury or death.
The only item required to be maintained on a regular basis
by the user is the circulating air filter(s). Filter should be
cleaned or replaced regularly, typically once per month. A
certified service technician must perform all other services.
IMPORTANT NOTE: If thumb screws are used to access the
filter, ensure the washer installed on the screw behind the
access panel remains in place after re-installation.
• Auxiliary drain is installed when necessary and pitched
to allow for drainage.
• Unit is protected from vehicular or other physical damage.
• Return air is not obtained from, nor are there any return air duct joints that are unsealed in, areas where
there may be objectionable odors, flammable vapors
or products of combustion such as carbon monoxide
(CO), which may cause serious personal injury or death.
12
Airflow Data
Model Number
ARUF18B14*
ARUF24B14*
ARUF30B14*
ARUF30C14*
ARUF36C14*
ARUF42C14AA
ARUF42C14AB
ARUF48D14*
ARUF60D14*
Blower
Speed
High 1150 1095 1045 1025 950 865 775
Medium
Low
High
Medium
Low
High
Medium 870 820 775 745 705 655 580
Low
High 1485 1435 1385 1345 1275 1205 1125
Medium
Low
High
Medium
Low
High
Medium 1395 1340 1290 1235 1170 1095 1000
Low
High 1655 1590 1515 1430 1340 1225 1080
Medium
Low
High
Medium
Low
High
Medium 2030 1970 1885 1800 1690 1600 1495
Low
0.10.20.30.40.50.60.7
890 855 835 775 715 665 605
640 605 565 530 485 440 360
1150 1095 1045 1025 950 865 775
890 855 835 775 715 665 605
640 605 565 530 485 440 360
1145 1085 1020 950 900 845 765
615 585 565 535 490 435 345
1300 1270 1235 1195 1130 1060 955
1040 1015 980 930 865 790 705
1485 1435 1385 1345 1275 1205 1125
1300 1270 1235 1195 1130 1060 955
1040 1015 980 930 865 790 705
1580 1530 1465 1400 1330 1255 1165
1095 1045 1000 950 895 820 725
1435 1370 1300 1220 1150 1025 925
1115 1040 995 930 845 770 675
1990 1915 1810 1765 1690 1585 1435
1655 1605 1555 1480 1295 1200 1060
1480 1420 1350 1290 1185 1100 1045
2235 2175 2125 2050 1960 1825 1720
1615 1535 1455 1355 1270 1185 1090
Static Pressure (in w.c)
AIRFLOW DATA (CFM) FOR ARUF**14** MODELS
Model Number
ARPT18B14
ARPT24B14
ARPT30B14
ARPT36C14
ARPT36D14
ARPT42D14
ARPT48D14
ARPT60D14
Blower
Speed
High
Medium
Low
High
Medium
Low
High
Medium
Low
High
Medium
Low
High
Medium
Low
High
Medium 1655 1605 1555 1480 1295 1200 1060
Low
High 1960 1905 1845 1780 1715 1645 1570
Medium 1600 1545 1495 1435 1360 1290 1215
Low
High 2205 2140 2080 2010 1945 1870 1795
Medium
Low
AIRFLOW DATA (CFM) FOR ARPT**14** MODELS
Notes: • Airflow data indicated is 230V without air filter in place.
• The chart is for information only. For satisfactory operation, external static pressure must not exceed value shown on rating plate. The shaded
area indicates ranges in excess of maximum design external static pressure.
• Use the CFM adjustment factors of 0.98 for horizontal left and 0.96 for horizontal right & downflow orientations.
Table 9
Static Pressure (in w.c)
0.10.20.30.40.50.60.7
1185 1125 1065 1010 985 910 780
900 850 825 785 715 670 610
630 605 560 525 495 445 355
1185 1125 1065 1010 985 910 780
900 850 825 785 715 670 610
630 605 560 525 495 445 355
1145 1085 1020 950 900 845 765
870 820 775 745 705 655 580
615 585 565 535 490 435 345
1580 1515 1445 1395 1345 1240 1155
1385 1350 1300 1250 1170 1095 1005
1260 1205 1175 1105 1040 975 865
1815 1770 1705 1640 1555 1450 1355
1580 1525 1485 1420 1350 1275 1165
1220 1180 1140 1085 1030 950 865
1990 1915 1810 1765 1690 1585 1435
1480 1420 1350 1290 1185 1100 1045
1395 1340 1280 1220 1150 1090 1020
1985 1935 1865 1815 1755 1695 1635
1600 1555 1505 1455 1405 1345 1295
Table 10
13
Airflow Data
Model Number
ASPT24B14
ASPT30C14
ASPT36C14
ASPT42D14
ASPT48D14
ASPT60D14
Blower
Speed
Tap
1
2
3
4
5
0.10.20.30.40.50.60.70.80.9 1
570 540 520 480 450 415 370 305 270 240
650 605 600 570 530 500 460 425 380 330
740 690 660 650 615 570 525 480 440 405
855 810 775 755 750 720 690 650 620 575
1050 1005 975 940 910 900 885 880 845 820
Static Pressure (in w.c)
1 610 580 540 445 390 330 285 240 205 160
2 705 670 625 570 545 465 425 385 325 270
3 785 740 720 660 640 580 515 475 440 370
4 880 845 810 805 740 700 660 595 550 515
5 1440 1440 1400 1380 1350 1330 1295 1275 1245 1205
1 960 905 890 810 760 720 665 620 550 485
2 1060 1010 995 920 875 835 790 745 690 615
3 1150 1100 1090 1025 990 945 905 860 810 750
4 1250 1220 1205 1145 1110 1070 1035 990 940 885
5 1470 1440 1425 1405 1375 1260 1315 1280 1245 1205
1 1230 1180 1110 1060 1000 945 885 810 745 685
2 1365 1310 1250 1190 1140 1090 1030 980 920 855
3 1460 1410 1355 1305 1255 1210 1155 1115 1060 1010
4 1545 1490 1440 1375 1330 1295 1245 1200 1150 1100
5 1865 1825 1780 1745 1695 1645 1610 1570 1520 1475
1 1485 1425 1400 1325 1270 1220 1165 1115 1080 1005
2 1560 1510 1490 1425 1385 1335 1295 1250 1205 1155
3 1675 1625 1600 1530 1485 1435 1390 1345 1295 1245
4 1820 1770 1745 1685 1640 1595 1555 1510 1470 1420
5 2225 2180 2160 2085 2060 2010 1970 1930 1895 1850
1 1485 1425 1400 1325 1270 1220 1165 1115 1080 1005
2 1675 1625 1600 1530 1485 1435 1390 1345 1295 1245
3 1820 1770 1745 1685 1640 1595 1555 1510 1470 1420
4 2060 2010 1995 1925 1880 1845 1800 1760 1720 1680
5 2225 2180 2160 2085 2060 2010 1970 1930 1895 1850
AIRFLOW DATA (CFM) FOR ASPT**14** MODELS
Blower
Model Number
ASUF29B14
ASUF39C14
ASUF49C14
ASUF59D14
Speed
Tap
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
0.10.20.30.40.50.60.70.80.9 1
570 540 520 480 450 415 370 305 270 240
650 605 600 570 530 500 460 425 380 330
740 690 660 650 615 570 525 480 440 405
855 810 775 755 750 720 690 650 620 575
1050 1005 975 940 910 900 885 880 845 820
960 905 890 810 760 720 665 620 550 485
1060 1010 995 920 875 835 790 745 690 615
1150 1100 1090 1025 990 945 905 860 810 750
1250 1220 1205 1145 1110 1070 1035 990 940 885
1470 1440 1425 1405 1375 1260 1315 1280 1245 1205
1425 1405 1375 1340 1305 1265 1215 1155 1115 1070
1560 1545 1525 1490 1455 1410 1380 1325 1275 1225
1670 1645 1620 1595 1550 1520 1485 1445 1405 1350
1760 1745 1715 1685 1655 1625 1585 1550 1515 1470
1845 1820 1800 1775 1740 1705 1675 1640 1605 1575
1485 1425 1400 1325 1270 1220 1165 1115 1080 1005
1675 1625 1600 1530 1485 1435 1390 1345 1295 1245
1820 1770 1745 1685 1640 1595 1555 1510 1470 1420
2060 2010 1995 1925 1880 1845 1800 1760 1720 1680
2225 2180 2160 2085 2060 2010 1970 1930 1895 1850
AIRFLOW DATA (CFM) FOR ASUF**14** MODELS
Notes: • Airflow data indicated is 230V without air filter in place.
• The chart is for information only. For satisfactory operation, external static pressure must not exceed value shown on rating plate. The shaded
area indicates ranges in excess of maximum design external static pressure.
• Use the CFM adjustment factors of 0.98 for horizontal left and 0.96 for horizontal right & downflow orientations.
Table 11
Static Pressure (in w.c)
Table 12
14
Schematics
WARNING
HIGH VOLTAGE!
MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO
MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
DISCO NNECT ALL POWER BEFORE SERVICING.
CONTACTOR
COIL
ROOM THERMOSTAT
WY
TO CON DENSI NG
UNIT 2 4V. CONNECT ION S
#18 GA. 2 WIRES
GR
R
G
W
Y
#18 GA. 4 WIRES WITH
COOLING 3 WIRES WITHOUT
AR UNIT
RED
GREEN
WHITE
BLUE
Low Voltage Wiring Diagram for Cooling Unit with optional heat kit 10kW and below
#18 GA. 4 WIRE WITH
COOLING 3 WIRE WITHOUT
#18 GA. 2 WIRES
CONTACTOR
COIL
CONDENSING
UN IT 24V. CONN E C TI O NS
W2
AR UNIT
RED
GREEN
WHITE
BROWN
Low Voltage Wiring Diagram for Cooling Unit with optional heat kit 15kW and above
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
BLUE
15
WARNING
ARUF**14**/ARPT**14**
18-60
10 KW & B ELOW
HEAT PUMP
C O
B
Y
R
I
HIGH VOLTAGE!
DISCO NNECT ALL POWER BEFORE SERVICING.
MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO
MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
TYPICAL H/P
ROOM THERMOSTAT
CGR
O
Y
R
E
R
R
#18 GA. 7 WIRE
AT/AR UNIT
R
RED
Y
O
W
BL
#18 GA. 5 WIRE
(OPTIONAL)
OUTDOOR THERMOSTAT
CLOSE ON TEMPERATURE FALL
ARUF**14**/ARPT**14**
18-60
ABOV E 10 KW
HEAT PUMP
C
O R
Y
B
I
R
R
Y
R
Y
O
W
NOTE
TYPICAL H/P
ROOM THERMOSTAT
CO
R
GE
NOTE
BR
G
G
BR
W
BL
#18 GA. 6 WIRE NEEDED WHEN OT IS USED
#18 GA. 7 WIRE
R
G
NOTE
GREEN
W
WHITE
BLUE
BL
AT/AR UNIT
RED
R
G
GREEN
WHITE
W
BROWN
BR
(OPTIONAL)
OUTDOOR THERMOSTAT
CLOSE ON TEMPERATURE FALL
IMPORTANT: If outdoor thermostat is not used, tie white and brown wires from Air Handler together.
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
BL
#18 GA. 5 WIRE
BL
BL
#18 GA. 7 WIRE NEEDED WHEN TWO OT'S ARE USED
16
BLUE
ASPT/ASUF Thermostat Connections
The following composite wiring diagrams detail various configurations in which the ASPT/ASUF air handlers can be used.
Examples include single-stage cooling and heat pump with
single or two-stage electric heating. All these configurations
can be applied with convenient connections to outdoor thermostat applications.
The following sections will be detailed:
• Single-Stage Cooling
• Heat Pump
Each diagram details the connections between room thermostat and ASPT air handlers, and the connections between
the ASPT air handlers and the Condensing Unit (or Heat
Pump) with optional connections to Outdoor Thermostats.
For each configuration, refer to the explanation of the proper
jumper(s) to remove for the corresponding blower speed that
will result in the programmed EEM™ motor.
IMPORTANT: WHEN MATCHING THE ASPT AIR
HANDLERS TO A SINGLE SPEED COOLING OR
HEAT PUMP UNIT, REMEMBER TO CONNECT “Y”
FROM THE THERMOSTAT TO THE “Y2” ON THE
LOW VOLTAGE TERMINAL BOARD.
An equivalent thermostat can be used in place of the
manufacturer’s thermostat part number.
WARNING
HIGH VOLTAGE!
MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO
MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
YL
BL
TO CONDENSING UNIT
24V CONNECTION
DISCO NNECT ALL POWER BEFORE SERVICING.
#18 GA. 4 WIRES WITH COOLING
3 WIRES WITHOUT
YW
GR
RD
GR
WH
YL
YL
BL
ASPT UNIT
ASUF UNIT
C
R
G
W1
W2
Y1
Y2
O
TB
COOLING UNIT WITH OPTIONAL HEAT KITS OF 10 kW AND BELOW
NOTES:
1) OUTDOOR THERMOSTAT (OT-1) SHOULD BE THE
FIRST TO CLOSE AND THE LAST TO OPEN.
2) JUMPER W1 AND W2 TOGETHER IF OT-2 IS NOT
USED.
3) REMOVE WIRE WHEN USING OUTDOOR THERMOSTAT.
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
NOMENCLATURE:
OT - OUTDOOR THERMOSTAT (OPTIONAL)
EHR - EMERGENCY HEAT RELAY (OPTIONAL)
17
COLOR CODES
RD - RED
YL - YELLOW
BL - BLUE
BR - BROWN
OR - ORANGE
WH - WHITE
WARNING
HIGH VOLTAGE!
DISCO NNECT ALL POWER BEFORE SERVICING.
MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO
MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
#18 GA. 5 WIRES WITH COO LIN G
4 WIRES WITHOUT
W2
YGW
R
ASPT UNIT
ASUF UNIT
C
YL
BL
BR
YL
CONDENSING UNIT
24V CONNE C TION
RD
GR
WH
BR
BR
YL
YL
BL
R
G
W1
W2
Y1
Y2
O
TB
COOLING UNIT WITH OPTIONAL HEAT KITS OF 15 kW AND ABOVE
AND ROOM THERMOSTAT WITH TWO STAGES OF HEAT
#18 GA. 7 WIRE
W2
YC
O
R Y O
YL
RD
YL
OR
WH
BL
HEAT PUMP UNIT WITH OPTIONAL HEAT KITS OF 10 kW AND BELOW
NOTES:
1) OUTDOOR THERMOSTAT (OT-1) SHOULD BE THE
FIRST TO CLOSE AND THE LAST TO OPEN.
2) JUMPER W1 AND W2 TOGETHER IF OT-2 IS NOT
USED.
3) REMOVE WIRE WHEN USING OUTDOOR THERMOSTAT.
W2
GC R
WH
WH
BL
NOMENCLATURE:
OT - OUTDOOR THERMOSTAT (OPTIONAL)
EHR - EMERGENCY HEAT RELAY (OPTIONAL)
GR
E
BR
BR
RD
WH
YL
OR
BL
BL
YL
ASPT UNIT
ASUF UNIT
C
R
G
W1
W2
Y1
Y2
O
TB
COLOR CODES
RD - RED
YL - YELLOW
BL - BLUE
BR - BROWN
OR - ORANGE
WH - WHITE
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
18
WARNING
HIGH VOLTAGE!
DISCO NNECT ALL POWER BEFORE SERVICING.
MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO
MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
#18 GA. 7 WIRE
W2
YC
R Y O
O
YL
OR
RD
YL
OR
WH
BL
OR
HEAT PUMP UNIT WITH OPTIONAL HEAT KITS OF 15 kW AND ABOVE
NOTES:
1) OUTDOOR THERMOSTAT (OT-1) SHOULD BE THE
FIRST TO CLOSE AND THE LAST TO OPEN.
2) JUMPER W1 AND W2 TOGETHER IF OT-2 IS NOT
USED.
3) REMOVE WIRE WHEN USING OUTDOOR THERMOSTAT.
W2
GC R
GR
WH
BL
WH
OR
BR
NOMENCLATURE:
OT - OUTDOOR THERMOSTAT (OPTIONAL)
EHR - EMERGENCY HEAT RELAY (OPTIONAL)
E
BR
RD
GR
YL
RD
WH
RD
BL
OR
ASPT UNIT
ASUF UNIT
WH
TB
C
R
G
W1
W2
Y1
Y2
O
COLOR CODES
RD - RED
YL - YELLOW
BL - BLUE
BR - BROWN
OR - ORANGE
WH - WHITE
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
19
WARNING
C
T
P
R
C
P
C
R
R
M
L
L
G
T
R
ELECTRONIC BLOWER TIME DELAY RELAY
HIGH VOLTAGE!
MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO
MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
DISCO NNECT ALL POWER BEFORE SERVICING.
SYSTEM
TRANSFORME
24 VAC
OPTIONAL
SPEEDU
TSTA
XFMR-
K1
M1
PARK TERM INA
120/240VA
MOTO
B13707-35
XFMR-
WIRING DIAGRA
K1
FOR USE W ITH
HEAT KI
SPEEDU
The Electronic Blower Time Delay Relay provides power to the blower motor with a delay of 7
seconds after 24VAC is applied to “G”. After 24VAC is removed from “G”, the blower motor output
is de-energized after a delay of 65 seconds.
Normal Time Delays 60Hz 50Hz
Turn On Delay 7.0 SEC.±1% 8.4 SEC. .±1%
Turn Off Delay 65.0 SEC.±1% 78.0 SEC. .±1%
N E UTRA
Field test mode: Shorting the “speedup” quick connect to “C” decrease times as follows:
Speedup Times 60Hz 50Hz
Turn On Delay 3.0 SEC.±1% 3.6 SEC. .±1%
Turn Off Delay 5.0 SEC.±1% 6.0 SEC. .±1%
Field test mode is cancelled when the “speedup” quick connect to “C” short is removed.
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
20
Wiring Diagrams
WARNING
HIGH VOLTAGE!
MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO
DISCO NNECT ALL POWER BEFORE SERVICING.
MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
ARUF**14**/ARPT**14**
FL
FL
FL
FL
HTR4
BL
BK
M1
YL
RD
M2
BK
BK
RD
L2L1 L1 L2
208/240 VOLTS
EM
HI
LO
SEE NOTE 1
3
5
4
5
PLF
FACT ORY WIRING
HIGH VOLT AGE
LOW VOLTAGE
FIELD WIRING
HIGH VOLT AGE
LOW VOLTAGE
TR
PLF
PLM
FL FUSE LINK
TL
HTR HEAT ELEMEN TS
TL
HTR1
HTR2
HTR3
BK
TL
RD
TL
YL
TL
BL
PU
RD
BL
M3
M7
M5
M6
M4
M8
R1
R2
WH
YL
BL
BK
RD
PLF
3
PLM
NO
NC
M1
EBTDR
M2
COM
C
EBTDR
BL
WIRING CODE
TRANSFORMER
FEMAL E PL UG CO N NE CT OR
MALE PLUG CONNECTOR
THERMAL LIMIT
0140A00058-B
PLF
PLM
FL
TL
HTR2
FL
TL
HTR1
BK
RD
M1M2M3
R
RD
BK
BK
RD
L2L1
L2
L1
RD
BK
23
1
2
1
BK
RD
RD
BK
BK
PU
BL
M4
WH
1
2
RD
3
4
5
6
7
8
9
EQUIPMENT GROUND
USE COPPER WIRE
GRD
4 5 678 9
3
4 5WH6789
PU
BR
BL
NOTE 4
SEE
BK
RD
L1
FL
FL
FL
YL
L2 L1 L2
TL
HTR1
HTR2
HTR3
BK
M1
M2
BK
RD
BK
TL
RD
TL
RD
YL
M3
M1
M4
M2
R1
YL
BK
RD
BK
1
PU
BL
R2
2
3
RD
BL
4
5
BR
6
WH
7
8
9
L1
1
PLF
1
PLM
RC
FL
TL
HTR1
BK
BK
L1 L2
BK
PU
M1
R
M2
BK
BK
RD
BL
WH
1
2
RD
3
4
5
6
7
8
9
ONE (1) ELEMENT ROWS TWO (2) ELEMENT ROWS THREE (3) ELEMENT ROWS FOUR (4) ELEMENT ROWS
NOTE: WHEN INSTALLING HEATER KIT, ENSURE SPEED TAP IS NOT BELOW MINI MUM BLOWER SPEED (MBS) SPECIFIED FOR THE AIR HANDLER/H EATER KIT
COMBINATION ON THIS UNITS SERIAL PLATE. AFTER INST ALLING OPTIONAL HEAT KIT, MARK A "X" IN THE PROVIDED ABOVE. MARK ACCORDING TO THE
NUMBER OF HEATER ELEMENT ROWS INSTALLED. NO MARK INDICATES NO HEAT KIT INSTALLED. 5 ELEMENT ROWS DATA SUPPLIED WITH HEATER KIT.
SEE NOTE 2
BL
RD GR
WH
TERMINAL BL OCK SHOWN
FOR 50 HZ MODELS ON LY
BR
SR
BR
WH
GR
RD
BL
RD
G
R
XFMR-R
XFMR-C
EBTDR
C
BL
SPEEDUP
COPPER POWER SUPPLY
(SEE RATING PLATE)
USE MIN. 7 5 °C FIELD WIRE
THREE SPEED MOTOR WIRING
(SELECT MODE LS ONLY)
SEE NOTE 3
IF REPLA CEMENT OF THE ORIGINA L WIRES
SUPPLIED WITH THIS ASSEMBLY IS NECESSARY
USE WIRE THAT CONFORMS TO THE
NATIONAL ELECTRIC CODE.
SEE NOTE 5
NO
K1
COM
K1
NC
M1
M2
BK
NOTE 3
SEE
RD
PU
(TR 1)
PU
RD
(COM) RD LOW
BL
(M2)
(M1) BK
PU
RC
BK
MEDIUM
HIGH
BR
PU
C
EM
3 SPEED
123
5
24V
BL
RD
4
RD
SEE NOTE 1
240
TR
BL
RC
BR
BR
R G
EBTDR
RD
BK
RD
BLYLBLUE
COMPONENT CODE
EM
RC
RD
PU
BK
EM
SR
RRELAY
EBTDR
N
OTES:
1) RED WIRES TO BE ON TRANSFORMER TERMINAL "3" FOR 240 VOLTS
AND ON TERMINAL "2" FOR 208 VOLTS.
2) SEE COMPOSITE WIRING DIAGRAMS IN INSTALLATION INSTRUCTIONS
FOR PROPER LOW VOLTAGE WIRING CONNECTIONS.
3) CONFIRM SPEED TAP SELECTED IS APPROPRIATE FOR APPLICATION.
IF SPEED TAP NEEDS TO BE CHA NGED, CONNECT APPROPRIATE
MOTOR WIRE (RED FOR LOW, BLUE FOR MEDIUM,AND BLACK FOR
HIGH SPEED) ON "C OM" CONNECTION OF THE EBTDR.
INACT IV E MOT O R WIRE S SH OULD BE CONNECTED TO "M1 OR M2"
ON EBTDR.
4) BROWN AND WHITE WIRES ARE USED WITH HEAT KITS ONLY.
5) EBTDR HAS A 7 SECOND ON DELAY WHEN "G" IS ENERGIZED
AND A 65 SECOND OFF DELAY WHEN "G" IS DE-ENERGIZED.
1
2
TR
24V
4
WH6BR
COLOR CODE
GR
WH
PU
BR
GREEN
PURPLE
BROWN
WHITE
BLACK
RED
YELLOW
EVAPOR ATO R M O TOR
RUN CAPACITOR
STRAIN REL IEF
ELECTRONIC BL OWER TIME
DELAY RELAY
GR
BK
1
2
3
RD
BL
4
5
BR
6
7
8
9
L2
2
2
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
21
Wiring Diagrams
A
A
WARNING
HIGH VOLTAGE!
MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO
DISCO NNECT ALL POWER BEFORE SERVICING.
MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
ASPT**14**/ASUF**14**
FL
HTR1
FL
HTR2
FL
HTR3
YL
RD
YL
BK
M1
M3
M1
M2
RD
M4
M2
R1
BK
BK
RD
YL
BK
RD
L1
L2 L1 L2
THREE (3) ELEMENT ROWS
208/240 V OLTS
EM
LGN
65PLM4
SEE NOTE 1
B
5
123
424V
W2R W1C G 4Y1 OY2 1DH 32 5
VOLTAGE WIRING CONNECTIONS.
TL
BK
TL
RD
TL
BK
1
2
PU
3
BL
RD
BL
4
R2
5
BR
6
WH
7
8
9
L2
2
PLF
2
PLM
3
4
CR
1
LTERNAT E HE AT REL AY
1
7
FL
TL
HTR1
FL
FL
FL
BL
YL
RD
BK
BK
L2L1 L1 L2
5
2
4
CR
1
2
EM
3
4
C
5
EBTDR
BK
TL
HTR2
RD
TL
HTR3
YL
TL
HTR4
BL
PU
RD
BK
M1
M2
RD
BL
M3
M7
M5
M6
M4
M8
R1
R2
WH
YL
BL
BK
RD
FOUR (4) ELEMENT ROWS
WIRING CODE
FACTORY WIRING
HIGH VOLTAGE
LOW VOLTAGE
FIEL D W IRIN G
HIGH VOLTAGE
LOW VOLTAGE
TRANSFORMER
TR
FEMALE PLUG CONNECTOR
PLF
MALE PLUG CONNECTOR
PLM
FL FUSE LINK
TL
THERMAL LIMIT
HTR HEAT ELEMENTS
COLOR CODE
BK
BLACK
GR
RD
RED
PU
YELLOW
BR
BLYLBLUE
COMPONENT C ODE
EVAPORATOR MOTOR
EM
TERMINAL BOARD
TB
RELAY
R
CR C ONT ROL RELAY
ELECTRONIC BLOWER TIME
DELAY RELAY
BK
RD
BL
BR
GREEN
PURPLE
BROWN
WHITEWH
1
2
3
4
5
6
7
8
9
0140A00063-A
BK
L1 L2
FL
BK
TL
HTR1
BK
BK
M1
R
M2
BK
RD
1
2
RD
PU
3
BL
4
5
6
WH
7
8
9
FL
FL
RD
BK
L2L1
RD
HTR1
HTR2
M1M2M3
R
BK
BK
TL
TL
BK
BK
1
RD
2
RD
PU
3
BL
4
M4
RD
5
6
WH
7
8
9
ONE (1) ELEMENT ROW S TWO (2) ELEMENT ROWS
NOTE: WHEN INSTALLING HEATER KIT, ENSURE SPEED TAP DOES NOT EXCEED MINIMUM BLOWER SPEED (MBS) SPECIFIED FOR THE AIRHANDLER/HEATER KIT COMBINATION ON THIS
UNIT'S S&R PLATE. AFTER INSTALLING OPTIONAL HEAT KIT, MARK A "X" IN THE BOX PROVIDED ABOVE. MARK ACCORDING TO NUMBER OF HEATER ELEMENT ROWS INSTALLED. NO MARK
INDICATES NO HEAT KIT INSTALLED.
D
T
N
N
E
U
M
I
O
U
R
P
Q
G
E
T
E
E
O
S
N
2
1
DH325
W2R
W1C
G4Y1O
Y
2
D
R
R
G
L
B
R
D
IF REPLACEMENT OF TH E ORIGINAL WIRES
SUPPLIED WITH THIS ASSEMBLY IS NECESSARY,
USE WIRE THA T C ON F ORMS TO THE NA TIO NAL
ELECTRIC CODE.
R
B
H
W
H
W
R
C
D
R
4
R
G
A
B
D
R
COPPER POWER SUPPLY
(USE RATING PLAT E)
USE MIN. 75 ° C FI ELD WIRE
P
U
7
1
B
L
R
G
L
2
L
1
2345678
1
P
L
F
2
P
L
M
1
K
B
D
R
H
W
D
R
L
B
D
R
2
G
R
1
ALTERNATE HEAT RELAY
E
D
4
5
3
B
L
B
R
S
E
U
C
O
678
H
W
E
R
I
W
R
E
P
P
9
9
SEE
NOTE 4
L1
1
PLF
PLM
1
TR
K
B
D
R
SEE
NOTE 1
B
K
123
C
2
4
0
T
R
4
5
4
2
V
L
B
L
B
F
B
L
H
D
R
P
U
4
H
W
5
3
B
L
B
U
P
H
W
E
S
U
L
D
O
E
R
R
R
Y
B
O
L
21435
M
E
L
NCG
L
B
K
B
D
R
L
FUSE
HOLDER
ES:
NOT
1) RED WI R E S TO BE O N TR AN S FO RM E R TE RMI NA L "3" FOR 24 0 VOLT S AND O N
TERMIN AL "2" FOR 2 80 VOLTS.
2) SEE COMPL ETE WIRING DIAG RAMS I N INSTALLATION INSTRU CTION S FOR
PROPER LOW
3) CONFIRM SPEED TAP SELECTION IS APPROPRIATE FOR APPLICATION. IF
NEEDS TO BE CHANGED, CONNECT PURPLE WIRE FROM TERMINAL 4 OF CR
SPEED TAP
APPROPRIATE TAP AT TB.
RELAY TO
4) BROWN AND WHITE WIRES ARE USED FOR HEAT KITS ONLY.
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
22
WARNING
3-Phase Heat Kit
HIGH VOLTAGE!
DISCO NNECT ALL POWER BEFORE SERVICING.
MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO
MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
25kW Heat Kit
CB3
L1
BK
BK
RD
PU
CB1 CB2
L2
RD
CB4
TL
HTR1
FL
TL
HTR2
TL
YL
L1
TL
BK
HTR3
HTR4
HTR5
BK
M2R1M4
M1
BK
RD
L2
RD
FL
FL
FL
FL
RD
M3
YL
BL
BK
RD
TL
BL
L2
L1
BK
RD
YL
BL
PU
BL
M7
M6
M5
M8
R2
WH
M10
M9
BL
PU
PC
1
BK
2
3
RD
BL
4
5
BR
6
7
8
9
COMPONENT CODE
PC = 9 PIN CONNECTOR
HTR = HEATER ELEME NT
TL = THERMAL LMT
R3
RS = RELAY/SEQUENCER
TB = TERMINAL BLOCK
CB = CIRCUIT BREAKER
CC = CONTACTOR
FL = FUSE LINK
EM = EVAPORATOR MOTOR
EBTDR = ELEC. BLOWER TIME DELAY
RC = RUN CAPACITOR
TR = TRANSFORMER
SR = STRAIN RELIEF
WIRING CODE:
WH
HIGH VOLTAGE
LOW
VOLTAGE
PU
NOTE: WHEN INSTALLING HEATER KIT, ENSURE SPEED TAP MUST EXCEED OR
EQUAL THE MINIMUM BLOWER SPEED (MBS) SPECIFIED FOR THE AIRHANDLER /
HEATER KIT COMBINATION ON THIS UNIT'S SERIAL PLATE.
OPTIONAL HEAT KIT, MARK AN "X" IN THE PROVIDED BELOW.
NO MARK INDICATES NO HEAT KIT INSTALLED.
COLOR CODE
BK = BLACK
BL = BLU E
BR = BROWN
GR = GREEN
OR = ORANGE
PK = PINK
PU = PURPLE
RD = RED
WH = WHITE
YL = YELLOW
FIVE (5) ELEMENT ROWS
NOTE:THIS LABEL MUST BE ATTACHED ON THE
AIRHANDLER IN A PROMINENT LOCATION
AFTER INSTALLING
L2L1
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
0140M00274-A
23
SPLIT SYSTEMS
AIR CONDITIONING AND HEAT PUMP HOMEOWNER’S ROUTINE MAINTENANCE RECOMMENDATIONS
We strongly recommend a bi-annual maintenance checkup be performed before the heating and cooling seasons begin by a qualified servicer.
Replace or Clean Filter
IMPORTANT NOTE: Never operate unit without a filter installed as dust
and lint will build up on internal parts resulting in loss of efficiency, equipment damage and possible fire.
An indoor air filter must be used with your comfort system. A properly
maintained filter will keep the indoor coil of your comfort system clean.
A dirty coil could cause poor operation and/or severe equipment damage.
Your air filter or filters could be located in your furnace, in a blower unit,
or in “filter grilles” in your ceiling or walls. The installer of your air conditioner or heat pump can tell you where your filter(s) are, and how to
clean or replace them.
Check your filter(s) at least once a month. When they are dirty, replace
or clean as required. Disposable type filters should be replaced. Reusable type filters may be cleaned.
You may want to ask your dealer about high efficiency filters. High efficiency filters are available in both electronic and non-electronic types.
These filters can do a better job of catching small airborne particles.
Compressor
The compressor motor is hermetically sealed and does not require additional oiling.
Motors
Indoor and outdoor fan motors are permanently lubricated and do not
require additional oiling.
Clean Outside Coil (Qualified Servicer Only)
Air must be able to flow through the outdoor unit of your comfort system.
Do not construct a fence near the unit or build a deck or patio over the
unit without first discussing your plans with your dealer or other qualified servicer. Restricted airflow could lead to poor operation and/or severe equipment damage.
Likewise, it is important to keep the outdoor coil clean. Dirt, leaves, or
debris could also restrict the airflow. If cleaning of the outdoor coil becomes necessary, hire a qualified servicer. Inexperienced people could
easily puncture the tubing in the coil. Even a small hole in the tubing
could eventually cause a large loss of refrigerant. Loss of refrigerant
can cause poor operation and/or severe equipment damage.
Do not use a condensing unit cover to “protect” the outdoor unit during
the winter, unless you first discuss it with your dealer. Any cover used
must include “breathable” fabric to avoid moisture buildup.
Before calling your servicer
• Check the thermostat to confirm that it is properly set.
•
Wait 15 minutes. Some devices in the outdoor unit or in programmable thermostats will prevent compressor operation for
awhile, and then reset automatically. Also, some power companies will install devices which shut off air conditioners for several
minutes on hot days. If you wait several minutes, the unit may
begin operation on its own.
TO
AVOID THE RISK OF EQUIPMENT DAMAGE OR FIRE, INSTALL
SAME AMPERAGE BREAKER OR FUSE AS YOU ARE
THE
REPLACING
AGAIN
TO
F YOU REPEATEDLY RESET THE BREAKER OR REPLACE
I
THE
YOU RUN THE RISK OF SEVERE EQUIPMENT DAMAGE
. IF
WITHIN THIRTY DAYS, CONTACT A QUALIFIED SERVICER
CORRECT THE PROBLEM
FUSE WITHOUT HAVING THE PROBLEM CORRECTED
THE CIRCUIT BREAKER OR FUSE SHOULD OPEN
.
.
,
• Check the electrical panel for tripped circuit breakers or failed
fuses. Reset the circuit breakers or replace fuses as necessary.
Check the disconnect switch near the indoor furnace or blower
•
to confirm that it is closed.
Check for obstructions on the outdoor unit . Confirm that it has
•
not been covered on the sides or the top. Remove any obstruction that can be safely removed. If the unit is covered with dirt or
debris, call a qualified servicer to clean it.
•
Check for blockage of the indoor air inlets and outlets. Confirm
that they are open and have not been blocked by objects (rugs,
curtains or furniture).
Check the filter. If it is dirty, clean or replace it.
•
Listen for any unusual noise(s), other than normal operating
•
noise, that might be coming from the outdoor unit. If you hear
unusual noise(s) coming from the unit, call a qualified servicer.
NOTE: SPECIFICATIONS AND PERFORMANCE DATA LISTED HEREIN ARE SUBJECT TO CHANGE WITHOUT NOTICE
Visit our website at www.daikincomfort.com, www.goodmanmfg.com or www .amana-hac.com for information on:
• Products
• Warranties
© 2012 - 2013 Goodman Manufacturing Company, L.P.
is a registered trademark of Maytag Corporation or its related companies and is used under license. All rights reserved.
• Customer Services
• Parts
• Contractor Program and Training
• Financing Options
5151 San Felipe, Suite 500, Houston, TX 77056
24
Loading...
