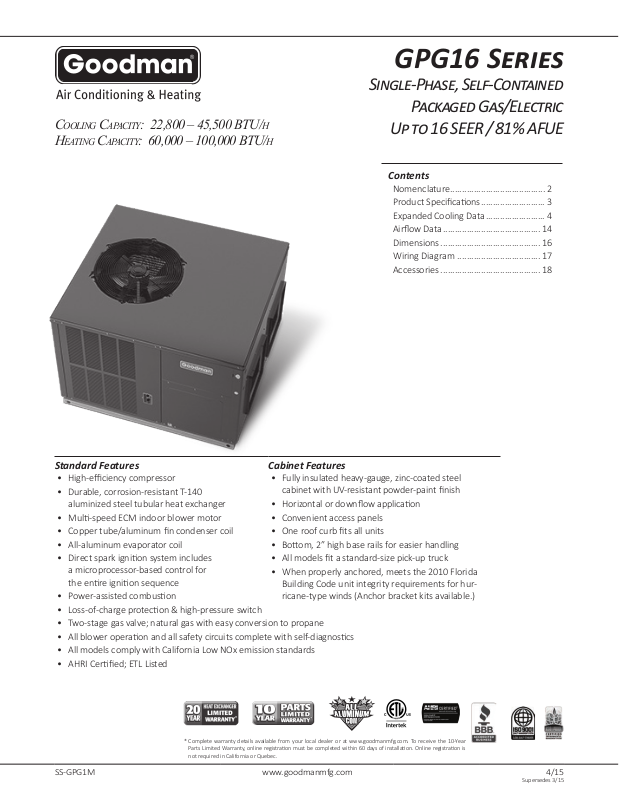

Page 1

Cooling CapaCity: 22,800 – 45,500 BtU/h heating CapaCity: 60,000 – 100,000 BtU/h

GPG16 Series

Single-Phase, Self-Contained

Packaged Gas/Electric

Up to 16 SEER / 81% AFUE

Contents

Nomenclature ........................................ 2

Product Specicaons ........................... 3

Expanded Cooling Data ......................... 4

Airow Data ......................................... 14

Dimensions .......................................... 16

Wiring Diagram ................................... 17

Accessories .......................................... 18

Standard Features

• High-eciency compressor

• Durable, corrosion-resistant T-140 aluminized steel tubular heat exchanger

• Mul-speed ECM indoor blower motor

• Copper tube/aluminum n condenser coil

• All-aluminum evaporator coil

• Direct spark ignion system includes a microprocessor-based control for

the enre ignion sequence

• Power-assisted combuson

• Loss-of-charge protecon & high-pressure switch

• Two-stage gas valve; natural gas with easy conversion to propane

• All blower operaon and all safety circuits complete with self-diagnoscs

• All models comply with California Low NOx emission standards

• AHRI Cered; ETL Listed

* Complete warranty details available from your local dealer or at www.goodmanmfg.com. To receive the 10-Year

Parts Limited Warranty, online registraon must be completed within 60 days of installaon. Online registraon is

not required in California or Quebec.

SS-GPG1M www.goodmanmfg.com 4/15

Cabinet Features

• Fully insulated heavy-gauge, zinc-coated steel

cabinet with UV-resistant powder-paint nish

• Horizontal or downow applicaon

• Convenient access panels

• One roof curb ts all units

• Boom, 2” high base rails for easier handling

• All models t a standard-size pick-up truck

• When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Supersedes 3/15

Page 2

G P G 16 36 080 M 4 1 **

 1 2 3

4,5

6,7

8,9,10 11 12 13 14,15

Brand Engineering

G Goodman®brand Major/MinorRevisions

ProductCategory Electrical

P PackagedUnit 1208230/1/60   3208230/3/60

Type

D DualFuel Refrigerant G Gas/Electric 4R410A

Efficiency Configuration

14 14SEER 1515SEER HHorizontal

1616SEER MMultiposition

NominalCapacity HeatInput

24 2Tons 36

3Tons

484Tons 4040MBTU/h 100100MBTU/h

30 2½tons 423½Tons 605Tons 6060MBTU/h 120120MBTU/h

8080MBTU/h

Nomenclature

2 www.goodmanmfg.com SS-GPG16M

Page 3

Product Specifications

GPG1624

060M41AA

Cooling Capacity

Total BTU/h 22,800 28,600 34,200 40,000 45,500

Sensible BTU/h 18,200 21,500 26,600 30,400 34,100

SEER / EER 16.0 / 12.0 15.5 / 12.0 16.0 / 12.0 16.0 / 12.0 16.0 / 12.0

Decibels 76 76 76 78 78

AHRI Reference #s 8082387 8082383 8082384 8082385 8082386

Heating Capacity (BTU/h)

High-Fire Input / Output 60,000 / 47,000 80,000 / 62,000 80,000 / 62,000 100,000 / 78,000 100,000 / 78,000

Low-Fire Input / Output 45,000 / 35,000 60,000 / 47,000 60,000 / 47,000 75,000 / 58,000 75,000 / 58,000

AFUE 81 81 81 81 81

Temperature Rise Range 35 - 65 35 - 65 35 - 65 35 - 65 35 - 65

No. of Burners 3 4 4 5 5

Orice Size (Natural/Propane) 45 / 1.25MM 45 / 1.25MM 45 / 1.25MM 45 / 1.25MM 45 / 1.25MM

Evaporator Motor

Type EEM EEM EEM EEM EEM

Wheel (D x W) 10” x 8” 10” x 9” 11” x 10” 11” x 10” 11” x 10”

Indoor Nominal CFM 800 950 1,200 1,250 1,300

Motor Speed Tap (Cooling) T3 L / T4 H T3 L / T4 H T3 L / T4 H T3 L / T4 H T3 L / T4 H

RPM/Amps (Cooling) 1050 / 3.8 1050 / 3.8 1050 / 3.8 1050 / 5.4 1050 / 5.4

Horsepower 1/2 1/2 1/2 3/4 3/4

Evaporator Coil

Face Area (²) 4.3 4.3 5.7 5.7 5.7

Rows Deep/Fins per Inch 3 / 14 3 / 14 4 / 14 4 / 14 4 / 14

Piston Size (Cooling) TXV TXV TXV TXV TXV

Filter Size (²) 3.5 4.3 4.3 5.6 5.6

Drain Size (NPT) ¾” ¾” ¾” ¾” ¾”

Refrigerant Charge (oz.) 70 70 158 143 100

Condenser Fan / Coil

Horsepower - RPM 1/6 - 815 1/4 - 830 1/4 - 830 1/4 - 1,075 1/4 - 1,075

Diameter / # of Blades 22” / 3 22” / 3 22” / 3 22” / 3 22” / 3

Outdoor Nominal CFM 2,200 2,200 2,600 3,200 3,100

Face Area (²) 12.3 8.7 14.9 14.9 14.4

Rows Deep/Fins per Inch 1 / 24 2 / 27 2 / 16 2 / 16 2 / 27

Compressor

Quanty / Type / Stage 1 / Scroll / 2 1 / Scroll / 2 1 / Scroll / 2 1 / Scroll / 2 1 / Scroll / 2

Compressor RLA/LRA 11.7 / 58.3 13.1 / 73.0 15.3 / 83.0 17.9 / 96.0 21.2 / 104.0

Electrical Data

Voltage-Phase (Frequency 60Hz) 208/230-1 208/230-1 208/230-1 208/230-1 208/230-1

Indoor Blower FLA/LRA 3.8 3.8 3.8 5.4 5.4

Outdoor Fan FLA/LRA 1.1 / 1.7 1.5 / 3.0 1.5 / 3.0 1.4 / 2.9 1.4 / 2.9

Total Unit Amps 16.6 18.4 20.6 24.7 28.0

Min. Circuit Ampacity ¹ 19.5 21.7 24.4 29.2 33.3

Max. Overcurrent Protecon ² 30 amps 30 amps 35 amps 45 amps 50 amps

Entrance Size Power Supply 1⅛” 1⅛” 1⅛” 1⅛” 1⅛”

Entrance Size Control Voltage ⅞” ⅞” ⅞” ⅞” ⅞”

Operating / Ship Weights (lbs) 370 / 380 397 / 407 470 / 480 495 / 505 490 / 500

¹ Wire size should be determined in accordance with Naonal Electrical Codes. Extensive wire runs will require larger wire sizes. ² Must use me-delay fuses or HACR-type circuit breakers of the same size as noted. Note: Always check the S&R plate for electrical data on the unit being installed.

GPG1630

080M41AA

GPG1636

080M41AA

GPG1642

100M41AA

GPG1648

100M41AA

SS-GPG16M www.goodmanmfg.com 3

Page 4

Expanded Cooling Data — GPG1624***M41**

Outdoor Ambient Temperature

Entering Indoor Wet Bulb Temperature

65ºF 75ºF 85ºF 95ºF 105ºF 115ºF

- 19.4 20.1 22.0 - 18.4 19.1 20.9 - 17.1 17.7 19.4 -

23 21 17 12 23 21 17 12 23 21 17 12 21 20 16 11

6.8 7.0 - 7.1 7.3 7.5 - 7.7 7.8 8.1 - 8.1 8.3 8.6 - 8.6 8.8 9.1 - 9.1 9.3 9.6 -

7.0 7.2 7.5 7.4 7.5 7.7 8.0 7.9 8.1 8.3 8.6 8.4 8.6 8.9 9.2 8.9 9.1 9.4 9.7 9.4 9.6 9.9 10.2

IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71

∆ T 19 16 12 - 19 16 13 - 19 16 13 - 19 17 13 - 19 16 12 - 18 15 12 -

S/T 0.80 0.67 0.46 - 0.83 0.69 0.48 - 0.85 0.71 0.49 - 0.88 0.73 0.51 - 0.91 0.76 0.53 - 0.92 0.77 0.53 -

MBh 23.3 24.1 26.4 - 22.7 23.5 25.8 - 22.2 23.0 25.2 - 21.6 22.4 24.6 - 20.5 21.3 23.3 - 19.0 19.7 21.6 -

kW 1.56 1.59 1.64 - 1.68 1.72 1.78 - 1.79 1.83 1.89 - 1.89 1.93 2.00 - 1.97 2.02 2.09 - 2.04 2.09 2.16 -

910

HI PR 237 255 269 - 266 286 302 - 302 325 344 - 344 371 391 - 388 417 440 - 428 461 487 -

Amps 6.9 7.0 7.2 - 7.4 7.5 7.7 - 7.9 8.1 8.3 - 8.4 8.6 8.9 - 8.9 9.1 9.4 - 9.4 9.6 9.9 -

LO PR 112 119 130 - 118 126 137 - 123 131 143 - 129 137 150 - 135 144 157 - 140 149 162 -

∆ T 20 17 13 - 20 17 13 - 20 17 13 - 20 17 13 - 20 17 13 - 18 16 12 -

S/T 0.76 0.64 0.44 - 0.79 0.66 0.46 - 0.81 0.68 0.47 - 0.84 0.70 0.48 - 0.87 0.73 0.50 - 0.88 0.73 0.51 -

MBh 22.6 23.4 25.6 - 22.0 22.9 25.0 - 21.5 22.3 24.4 - 21.0 21.8 23.8 - 19.9 20.7 22.7 - 18.5 19.2 21.0 -

kW 1.54 1.58 1.63 - 1.67 1.71 1.76 - 1.78 1.82 1.88 - 1.87 1.92 1.98 - 1.95 2.00 2.07 - 2.03 2.07 2.14 -

811

HI PR 235 253 267 - 263 283 299 - 299 322 340 - 341 367 388 - 384 413 436 - 424 456 482 -

Amps 6.8 7.0 7.2 - 7.3 7.5 7.7 - 7.9 8.0 8.3 - 8.3 8.5 8.8 - 8.8 9.0 9.3 - 9.3 9.5 9.8 -

LO PR 111 118 129 - 117 124 136 - 122 129 141 - 128 136 148 - 134 142 155 - 138 147 161 -

MBh 20.8 21.6 23.7 - 20.4 21.1 23.1 - 19.9 20.6 22.6

∆ T 20 17 13 - 20 17 13 - 20 17 13 - 20 18 13 - 20 17 13 - 19 16 12 -

S/T 0.74 0.62 0.43 - 0.76 0.64 0.44 - 0.78 0.65 0.45 - 0.81 0.67 0.47 - 0.84 0.70 0.49 - 0.85 0.71 0.49 -

kW 1.51 1.54 1.59 - 1.63 1.66 1.72 - 1.73 1.77 1.83 - 1.82 1.87 1.93 - 1.90 1.95 2.01 - 1.97 2.02 2.09 -

HI PR 228 245 259 - 255 275 290 - 290 313 330 - 331 356 376 - 372 401 423 - 411 443 467 -

Amps 6.6

LO PR 107 114 125 - 113 121 132 - 118 125 137 - 124 132 144 - 130 138 151 - 134 143 156 -

711

MBh 23.6 24.3 26.4 28.3 23.1 23.8 25.7 27.6 22.5 23.2 25.1 27.0 22.0 22.6 24.5 26.3 20.9 21.5 23.3 25.0 19.4 19.9 21.6 23.2

S/T 0.91 0.81 0.62 0.40 0.94 0.84 0.64 0.41 0.97 0.87 0.65 0.42 1.00 0.89 0.68 0.43 1.00 0.93 0.70 0.45 1.00 0.93 0.71 0.46

∆ T 22 20 16 11 22 20 17 11 22 20 17 11 22 20 17 12 21 20 17 11 20 19 15 11

kW 1.57 1.61 1.66 1.71 1.70 1.73 1.79 1.85 1.81 1.85 1.91 1.98 1.91 1.95 2.02 2.09 1.99 2.03 2.10 2.18 2.06 2.11 2.18 2.26

910

Amps 6.9 7.1 7.3 7.5 7.4 7.6 7.8 8.1 8.0 8.2 8.4 8.7 8.5 8.7 8.9 9.2 9.0 9.2 9.5 9.8 9.5 9.7 10.0 10.3

HI PR 239 258 272 284 269 289 305 318 306 329 347 362 348 375 395 412 392 421 445 464 433 466 492 513

LO PR 113 120 131 140 119 127 139 148 124 132 144 153 130 139 151 161 137 145 159 169 141 150 164 175

MBh 23.0 23.6 25.6 27.5 22.4 23.1 25.0 26.8 21.9 22.5 24.4 26.2 21.4 22.0 23.8 25.5 20.3 20.9 22.6 24.3 18.8 19.3 20.9 22.5

S/T 0.87 0.78 0.59 0.38 0.90 0.80 0.61 0.39 0.92 0.83 0.62 0.40 0.95 0.85 0.64 0.41 0.99 0.88 0.67 0.43 1.00 0.89 0.67 0.43

kW 1.56 1.59 1.64 1.70 1.68 1.72 1.78 1.84 1.79 1.83 1.89 1.96 1.89 1.93 2.00 2.07 1.97 2.02 2.09 2.16 2.04 2.09 2.16 2.24

811

Amps 6.9

HI PR 237 255 269 281 266 286 302 315 303 326 344 359 345 371 392 408 388 417 440 459 428 461 487 508

LO PR 112 119 130 138 118 126 137 146 123 131 143 152 129 137 150 160 135 144 157 167 140 149 162 173

∆ T 23 21 17 12 23 21 17 12

MBh 21.2 21.8 23.6 25.3 20.7 21.3 23.1 24.8 20.2 20.8 22.5 24.2 19.7 20.3 22.0 23.6 18.7 19.3 20.9 22.4 17.3 17.9 19.3 20.7

S/T 0.84 0.75 0.57 0.36 0.87 0.78 0.59 0.38 0.89 0.80 0.60 0.39 0.92 0.82 0.62 0.40 0.95 0.85 0.65 0.42 0.96 0.86 0.65 0.42

∆ T 23 21 17 12 23 21 18 12 23 21 18 12 23 22 18 12 23 21 17 12 22 20 16 11

kW 1.52 1.55 1.60 1.66 1.64 1.68 1.73 1.79 1.75 1.79 1.85 1.91 1.84 1.88 1.95 2.01 1.92 1.96 2.03 2.10 1.99 2.04 2.11 2.18

711

Amps 6.7 6.8 7.0 7.3 7.2 7.3 7.5 7.8 7.7 7.9 8.1 8.4 8.2 8.4 8.6 8.9 8.7 8.9 9.1 9.5 9.1 9.3 9.6 10.0

HI PR 230 247 261 273 258 278 293 306 293 316 333 348 334 360 380 396 376 405 427 446 415 447 472 492

LO PR 108 115 126 134 115 122 133 142 119 127 138 147 125 133 145 155 131 140 152 162 136 144 158 168

IDB: Entering Indoor Dry Bulb Temperature Shaded area reects ACCA (TVA) condions kW = Total system power

4 www.goodmanmfg.com SS-GPG16M

High and low pressures are measured at the liquid and sucon service valves. Amps = outdoor unit amps (comp.+fan)

Page 5

Expanded Cooling Data — GPG1624***M41**

Outdoor Ambient Temperature

Entering Indoor Wet Bulb Temperature

65ºF 75ºF 85ºF 95ºF 105ºF 115ºF

24.0 20.1 20.5 21.9 23.4 19.1 19.5 20.8 22.2 17.7 18.0 19.3 20.6

6.9 7.1 7.3 7.2 7.4 7.6 7.9 7.8 8.0 8.2 8.5 8.3 8.5 8.7 9.0 8.7 8.9 9.2 9.5 9.2 9.4 9.7 10.1

26 26 25 22 25 26 26 22 24 24 25 22 22 23 24 20

7.1 7.3 7.6 7.5 7.6 7.9 8.1 8.1 8.2 8.5 8.8 8.6 8.7 9.0 9.3 9.1 9.3 9.5 9.9 9.5 9.8 10.1 10.4

LO PR 115 123 134 143 122 130 141 151 127 135 147 157 133 141 154 164 139 148 162 172 144 153 167 178

MBh 23.8 24.2 25.4 27.1 23.2 23.7 24.8 26.4 22.7 23.1 24.2 25.8 22.1 22.5 23.6 25.2 21.0 21.4 22.4 23.9 19.5 19.8 20.8 22.2

S/T 1.00 0.96 0.87 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.92 0.75 1.00 1.00 0.95 0.77 1.00 1.00 0.99 0.80 1.00 1.00 1.00 0.81

kW 1.58 1.62 1.67 1.73 1.71 1.75 1.81 1.87 1.82 1.86 1.93 1.99 1.92 1.97 2.03 2.10 2.01 2.05 2.12 2.20 2.08 2.13 2.20 2.28

811

Amps 7.0

HI PR 242 260 275 287 271 292 308 322 309 332 351 366 352 378 399 417 395 426 449 469 437 470 497 518

LO PR 114 121 133 141 121 128 140 149 125 133 146 155 132 140 153 163 138 147 160 171 143 152 166 176

MBh 21.9 22.4 23.4 25.0 21.4 21.8 22.9 24.4 20.9 21.3 22.3 23.8 20.4 20.8 21.8 23.2 19.4 19.8 20.7 22.1 18.0 18.3 19.2 20.5

S/T 0.96 0.93 0.84 0.68 1.00 0.96 0.87 0.70 1.00 0.99 0.89 0.72 1.00 1.00 0.92 0.75 1.00 1.00 0.95 0.77 1.00 1.00 0.96 0.78

∆ T 27 27 25 22 28 27 26 22 27 27 26 22 26 27 26 22 25 26 26 22 23 24 24 21

kW 1.54 1.58 1.63 1.68 1.67 1.70 1.76 1.82 1.78 1.82 1.88 1.94 1.87 1.92 1.98 2.05 1.95 2.00 2.07 2.14 2.02 2.07 2.14 2.22

711

Amps 6.8 7.0 7.2 7.4 7.3 7.4 7.7 7.9 7.9 8.0 8.3 8.5 8.3 8.5 8.8 9.1 8.8 9.0 9.3 9.6 9.3 9.5 9.8 10.1

HI PR 235 252 267 278 263 283 299 312 299 322 340 355 341 367 387 404 384 413 436 455 424 456 482 502

LO PR 111 118 129 137 117 124 136 145 122 129 141 150 128 136 148 158 134 142 155 165 138 147 161 171

IDB: Entering Indoor Dry Bulb Temperature Shaded area reects AHRI (TVA) condions kW = Total system power

IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71

MBh 24.1 24.6 26.3 28.1 23.5 24.0 25.7 27.4 22.9 23.4 25.1 26.8 22.4 22.9 24.4 26.1 21.3 21.7 23.2 24.8 19.7 20.1 21.5 23.0

S/T 1.00 0.94 0.76 0.57 1.00 0.97 0.79 0.59 1.00 1.00 0.81 0.61 1.00 1.00 0.84 0.62 1.00 1.00 0.87 0.65 1.00 1.00 0.87 0.65

∆ T 24 23 20 16 24 24 20 16 23 24 20 16 23 23 21 16 21 22 20 16 20 20 19 15

kW 1.58 1.62 1.67 1.73 1.71 1.75 1.81 1.87 1.82 1.86 1.93 1.99 1.92 1.97 2.03 2.10 2.01 2.05 2.12 2.20 2.08 2.13 2.20 2.28

910

Amps 7.0 7.1 7.3 7.6 7.5 7.6 7.9 8.1 8.1 8.2 8.5 8.8 8.6 8.7 9.0 9.3 9.1 9.3 9.5 9.9 9.5 9.8 10.1 10.4

HI PR 242 260 275 287 271 292 308 322 309 332 351 366 352 378 399 417 395 426 449 469 437 470 497 518

LO PR 114 121 133 141 121 128 140 149 125 133 146 155 132 140 153 163 138 147 160 171 143 152 166 176

MBh 23.4 23.9 25.5 27.3 22.8 23.3 24.9 26.6 22.3 22.8 24.3 26.0 21.7 22.2 23.7 25.4 20.6 21.1 22.5 24.1 19.1 19.5 20.9 22.3

S/T 0.95 0.89 0.73 0.54 0.99 0.93 0.75 0.56 1.00 0.95 0.77 0.58 1.00 0.98 0.80 0.60 1.00 1.00 0.83 0.62 1.00 1.00 0.83 0.62

∆ T 25 24 21 17 26 24 21 17 25 25 21 17 25 25 21 17 23 24 21 17 22 22 20 16

kW 1.57 1.61 1.66 1.71 1.70 1.73 1.79 1.85 1.81 1.85 1.91 1.98 1.91 1.95 2.02 2.09 1.99 2.03 2.10 2.18 2.06 2.11 2.18 2.26

811

Amps 6.9 7.1 7.3 7.5 7.4 7.6 7.8 8.1 8.0 8.2 8.4 8.7 8.5 8.7 8.9 9.2 9.0 9.2 9.5 9.8 9.5 9.7 10.0 10.3

HI PR 239 258 272 284 269 289 305 318 306 329 347 362 348 375 396 413 392 421 445 464 433 466 492 513

LO PR 113 120 131 140 119 127 139 148 124 132 144 153 130 139 151 161 137 145 159 169 141 150 164 175

MBh 21.6 22.0 23.5 25.2 21.1 21.5 23.0 24.6 20.6 21.0 22.4

S/T 0.92 0.86 0.70 0.52 0.95 0.89 0.73 0.54 0.98 0.92 0.74 0.56 1.01 0.94 0.77 0.57 1.05 0.98 0.80 0.60 1.05 0.99 0.80 0.60

∆ T 26 25 21 17 26 25 22 17 26 25 22 17 26 25 22 17 26 25 21 17 24 23 20 16

kW 1.53 1.57 1.62 1.67 1.65 1.69 1.75 1.81 1.76 1.80 1.86 1.93 1.86 1.90 1.96 2.03 1.94 1.98 2.05 2.12 2.01 2.05 2.12 2.20

711

Amps 6.8

HI PR 232 250 264 275 261 280 296 309 296 319 337 351 338 363 384 400 380 409 432 450 420 452 477 497

LO PR 110 117 127 136 116 123 134 143 120 128 140 149 126 134 147 156 132 141 154 164 137 146 159 169

MBh 24.5 25.0 26.1 27.9 23.9 24.4 25.5 27.2 23.3 23.8 24.9 26.6 22.8 23.2 24.3 25.9 21.6 22.1 23.1 24.6 20.0 20.4 21.4 22.8

S/T 1.00 1.00 0.91 0.74 1.00 1.00 0.94 0.77 1.00 1.00 0.97 0.79 1.00 1.00 1.00 0.81 1.00 1.00 1.00 0.84 1.00 1.00 1.00 0.85

∆ T 25 25 24 21 24 25 24 21 24 24 24 21 23 23 25 21 22 22 23 21 20 21 22 20

kW 1.60 1.63 1.69 1.74 1.73 1.76 1.82 1.88 1.84 1.88 1.94 2.01 1.94 1.98 2.05 2.12 2.02 2.07 2.14 2.22 2.10 2.15 2.22 2.30

910

Amps 7.0 7.2 7.4 7.6 7.5 7.7 7.9 8.2 8.1 8.3 8.5 8.8 8.6 8.8 9.1 9.4 9.1 9.3 9.6 10.0 9.6 9.8 10.1 10.5

HI PR 244 263 278 290 274 295 311 325 312 335 354 369 355 382 403 421 399 430 454 473 441 475 501 523

∆ T 27 26 25 22 26 27 25 22

SS-GPG16M www.goodmanmfg.com 5

High and low pressures are measured at the liquid and sucon service valves. Amps = outdoor unit amps (comp.+fan)

Page 6

Expanded Cooling Data — GPG1630***M41**

Outdoor Ambient Temperature

Entering Indoor Wet Bulb Temperature

65ºF 75ºF 85ºF 95ºF 105ºF 115ºF

- 24.7 25.6 28.1 - 23.5 24.3 26.7 - 21.8 22.6 24.7 -

24 22 18 13 24 22 18 13 24 22 18 12 22 21 17 12

8.5 8.7 - 8.9 9.0 9.3 - 9.5 9.7 10.0 - 10.1 10.3 10.6 - 10.7 10.9 11.2 - 11.2 11.5 11.8 -

8.7 9.0 9.3 9.1 9.3 9.6 9.9 9.8 10.0 10.3 10.7 10.4 10.7 11.0 11.4 11.0 11.3 11.6 12.0 11.6 11.9 12.2 12.7

IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71

∆ T 20 17 13 - 20 17 13 - 20 17 13 - 20 17 13 - 20 17 13 - 19 16 12 -

S/T 0.77 0.64 0.44 - 0.80 0.66 0.46 - 0.82 0.68 0.47 - 0.84 0.70 0.49 - 0.87 0.73 0.51 - 0.88 0.74 0.51 -

MBh 29.7 30.7 33.7 - 29.0 30.0 32.9 - 28.3 29.3 32.1 - 27.6 28.6 31.3 - 26.2 27.2 29.8 - 24.3 25.2 27.6 -

kW 1.98 2.02 2.08 - 2.13 2.18 2.25 - 2.27 2.32 2.39 - 2.39 2.44 2.52 - 2.49 2.55 2.63 - 2.58 2.64 2.73 -

1062

HI PR 238 257 271 - 268 288 304 - 304 327 346 - 347 373 394 - 390 420 443 - 431 464 490 -

Amps 8.5 8.7 9.0 - 9.1 9.3 9.6 - 9.8 10.0 10.3 - 10.4 10.7 11.0 - 11.0 11.3 11.6 - 11.6 11.9 12.2 -

LO PR 108 114 125 - 114 121 132 - 118 126 137 - 124 132 144 - 130 138 151 - 134 143 156 -

∆ T 20 18 13 - 21 18 14 - 21 18 14 - 21 18 14 - 21 18 14 - 19 17 13 -

S/T 0.73 0.61 0.42 - 0.76 0.63 0.44 - 0.78 0.65 0.45 - 0.80 0.67 0.46 - 0.83 0.70 0.48 - 0.84 0.70 0.49 -

MBh 28.8 29.9 32.7 - 28.1 29.2 31.9 - 27.5 28.5 31.2 - 26.8 27.8 30.4 - 25.5 26.4 28.9 - 23.6 24.4 26.8 -

kW 1.96 2.00 2.07 - 2.11 2.16 2.23 - 2.25 2.30 2.37 - 2.37 2.42 2.50 - 2.47 2.53 2.61 - 2.56 2.62 2.70 -

946

HI PR 236 254 268 - 265 285 301 - 301 324 342 - 343 369 390 - 386 415 439 - 427 459 485 -

Amps 8.5 8.7 8.9 - 9.1 9.3 9.5 - 9.8 10.0 10.3 - 10.3 10.6 10.9 - 10.9 11.2 11.5 - 11.5 11.8 12.1 -

LO PR 106 113 124 - 112 120 131 - 117 124 136 - 123 131 143 - 129 137 149 - 133 142 155 -

MBh 26.6 27.6 30.2 - 26.0 26.9 29.5 - 25.3 26.3 28.8

∆ T 21 18 14 - 21 18 14 - 21 18 14 - 21 18 14 - 21 18 14 - 20 17 13 -

S/T 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.63 0.43 - 0.77 0.65 0.45 - 0.80 0.67 0.46 - 0.81 0.68 0.47 -

kW 1.91 1.95 2.02 - 2.06 2.11 2.17 - 2.19 2.24 2.31 - 2.31 2.36 2.44 - 2.41 2.46 2.54 - 2.49 2.55 2.63 -

HI PR 229 246 260 - 257 277 292 - 292 314 332 - 333 358 378 - 374 403 426 - 414 445 470 -

Amps 8.3

LO PR 103 110 120 - 109 116 127 - 113 121 132 - 119 127 138 - 125 133 145 - 129 137 150 -

830

MBh 30.2 31.1 33.6 36.1 29.5 30.3 32.8 35.2 28.8 29.6 32.1 34.4 28.1 28.9 31.3 33.6 26.7 27.4 29.7 31.9 24.7 25.4 27.5 29.5

S/T 0.87 0.78 0.59 0.38 0.90 0.81 0.61 0.39 0.93 0.83 0.63 0.40 0.96 0.86 0.65 0.42 0.99 0.89 0.67 0.43 1.00 0.90 0.68 0.44

∆ T 23 21 17 12 23 21 17 12 23 21 17 12 23 21 18 12 23 21 17 12 21 20 16 11

kW 1.99 2.04 2.10 2.17 2.15 2.20 2.27 2.34 2.29 2.34 2.42 2.50 2.41 2.46 2.55 2.63 2.51 2.57 2.66 2.75 2.60 2.66 2.75 2.85

1062

Amps 8.6 8.8 9.0 9.3 9.2 9.4 9.7 10.0 9.9 10.1 10.4 10.8 10.5 10.8 11.1 11.4 11.1 11.4 11.7 12.1 11.7 12.0 12.3 12.8

HI PR 241 259 274 285 270 291 307 320 307 331 349 364 350 377 398 415 394 424 448 467 435 468 495 516

LO PR 109 116 126 134 115 122 133 142 119 127 139 148 125 133 146 155 131 140 152 162 136 144 158 168

MBh 29.3 30.2 32.6 35.0 28.6 29.5 31.9 34.2 27.9 28.8 31.1 33.4 27.2 28.1 30.4 32.6 25.9 26.6 28.8 31.0 24.0 24.7 26.7 28.7

S/T 0.83 0.74 0.56 0.36 0.86 0.77 0.58 0.38 0.88 0.79 0.60 0.39 0.91 0.82 0.62 0.40 0.95 0.85 0.64 0.41 0.96 0.85 0.65 0.42

kW 1.98 2.02 2.08 2.15 2.13 2.18 2.25 2.32 2.27 2.32 2.40 2.48 2.39 2.44 2.52 2.61 2.49 2.55 2.63 2.72 2.58 2.64 2.73 2.82

946

Amps 8.5

HI PR 238 257 271 283 268 288 304 317 304 328 346 361 347 373 394 411 390 420 443 462 431 464 490 511

LO PR 108 114 125 133 114 121 132 141 118 126 137 146 124 132 144 153 130 138 151 161 134 143 156 166

∆ T 24 22 18 12 24 22 18 12

MBh 27.0 27.8 30.1 32.3 26.4 27.2 29.4 31.6 25.8 26.5 28.7 30.8 25.1 25.9 28.0 30.1 23.9 24.6 26.6 28.6 22.1 22.8 24.7 26.5

S/T 0.80 0.72 0.54 0.35 0.83 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.88 0.79 0.60 0.38 0.91 0.82 0.62 0.40 0.92 0.82 0.62 0.40

∆ T 24 22 18 13 24 22 18 13 24 22 18 13 25 23 19 13 24 22 18 13 23 21 17 12

kW 1.93 1.97 2.03 2.10 2.08 2.12 2.19 2.27 2.21 2.26 2.33 2.41 2.33 2.38 2.46 2.54 2.43 2.48 2.57 2.65 2.51 2.57 2.66 2.75

830

Amps 8.4 8.5 8.8 9.0 8.9 9.1 9.4 9.7 9.6 9.8 10.1 10.4 10.2 10.4 10.7 11.1 10.8 11.0 11.3 11.7 11.3 11.6 11.9 12.3

HI PR 231 249 263 274 260 279 295 308 295 318 335 350 336 362 382 399 378 407 430 448 418 450 475 495

LO PR 104 111 121 129 110 117 128 136 115 122 133 142 120 128 140 149 126 134 146 156 130 139 151 161

IDB: Entering Indoor Dry Bulb Temperature Shaded area reects ACCA (TVA) condions kW = Total system power

6 www.goodmanmfg.com SS-GPG16M

High and low pressures are measured at the liquid and sucon service valves. Amps = outdoor unit amps (comp.+fan)

Page 7

Expanded Cooling Data — GPG1630***M41**

Outdoor Ambient Temperature

Entering Indoor Wet Bulb Temperature

65ºF 75ºF 85ºF 95ºF 105ºF 115ºF

30.6 25.6 26.2 27.9 29.9 24.3 24.8 26.5 28.4 22.5 23.0 24.6 26.3

8.6 8.8 9.1 9.0 9.2 9.5 9.8 9.7 9.9 10.2 10.5 10.3 10.5 10.8 11.2 10.8 11.1 11.4 11.8 11.4 11.7 12.0 12.4

28 28 27 23 27 28 27 23 26 27 26 23 24 25 25 21

8.9 9.1 9.4 9.3 9.5 9.8 10.1 10.0 10.2 10.5 10.9 10.6 10.8 11.2 11.5 11.2 11.5 11.8 12.2 11.8 12.1 12.5 12.9

LO PR 111 118 129 137 117 125 136 145 122 129 141 151 128 136 148 158 134 143 156 166 139 147 161 171

MBh 30.3 30.9 32.4 34.5 29.6 30.2 31.6 33.7 28.9 29.5 30.9 32.9 28.2 28.8 30.1 32.1 26.8 27.3 28.6 30.5 24.8 25.3 26.5 28.3

S/T 0.96 0.92 0.83 0.68 0.99 0.96 0.86 0.70 1.00 0.98 0.89 0.72 1.00 1.00 0.91 0.74 1.00 1.00 0.95 0.77 1.00 1.00 0.96 0.78

kW 2.01 2.05 2.12 2.19 2.17 2.21 2.29 2.36 2.31 2.36 2.44 2.52 2.43 2.48 2.57 2.65 2.53 2.59 2.68 2.77 2.62 2.68 2.78 2.87

946

Amps 8.7

HI PR 243 262 276 288 273 294 310 324 311 334 353 368 354 381 402 419 398 428 452 472 440 473 500 521

LO PR 110 117 127 136 116 123 135 143 120 128 140 149 127 135 147 157 133 141 154 164 137 146 159 170

MBh 28.0 28.5 29.9 31.9 27.3 27.9 29.2 31.1 26.7 27.2 28.5 30.4 26.0 26.5 27.8 29.7 24.7 25.2 26.4 28.2 22.9 23.4 24.5 26.1

S/T 0.92 0.89 0.80 0.65 0.96 0.92 0.83 0.68 0.98 0.95 0.85 0.69 1.00 0.98 0.88 0.72 1.00 1.00 0.91 0.74 1.00 1.00 0.92 0.75

∆ T 29 28 27 23 29 28 27 23 29 29 27 23 29 29 27 23 27 28 27 23 25 26 25 22

kW 1.96 2.00 2.07 2.13 2.11 2.16 2.23 2.30 2.25 2.30 2.37 2.45 2.37 2.42 2.50 2.59 2.47 2.52 2.61 2.70 2.56 2.61 2.70 2.80

830

Amps 8.5 8.7 8.9 9.2 9.1 9.3 9.5 9.8 9.8 10.0 10.3 10.6 10.3 10.6 10.9 11.3 10.9 11.2 11.5 11.9 11.5 11.8 12.1 12.6

HI PR 236 254 268 280 265 285 301 314 301 324 342 357 343 369 390 407 386 415 439 457 426 459 485 505

LO PR 106 113 124 132 112 120 131 139 117 124 136 145 123 131 143 152 129 137 149 159 133 142 155 165

IDB: Entering Indoor Dry Bulb Temperature Shaded area reects AHRI (TVA) condions kW = Total system power

IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71

MBh 30.7 31.4 33.5 35.8 30.0 30.6 32.7 35.0 29.3 29.9 32.0 34.2 28.6 29.2 31.2 33.3 27.1 27.7 29.6 31.7 25.1 25.7 27.4 29.3

S/T 0.96 0.90 0.73 0.55 1.00 0.93 0.76 0.57 1.00 0.95 0.78 0.58 1.00 1.00 0.80 0.60 1.00 1.00 0.83 0.62 1.00 1.00 0.84 0.63

∆ T 25 24 21 17 26 25 21 17 25 25 21 17 25 25 22 17 23 24 21 17 22 22 20 16

kW 2.01 2.05 2.12 2.19 2.17 2.21 2.29 2.36 2.31 2.36 2.44 2.52 2.43 2.48 2.57 2.65 2.53 2.59 2.68 2.77 2.62 2.68 2.78 2.87

1062

Amps 8.7 8.9 9.1 9.4 9.3 9.5 9.8 10.1 10.0 10.2 10.5 10.9 10.6 10.8 11.2 11.5 11.2 11.5 11.8 12.2 11.8 12.1 12.5 12.9

HI PR 243 262 276 288 273 294 310 324 311 334 353 368 354 381 402 419 398 428 452 472 440 473 500 521

LO PR 110 117 127 136 116 123 135 143 120 128 140 149 127 135 147 157 133 141 154 164 137 146 159 170

MBh 29.8 30.5 32.5 34.8 29.1 29.8 31.8 34.0 28.4 29.0 31.0 33.2 27.7 28.3 30.3 32.4 26.3 26.9 28.8 30.7 24.4 24.9 26.6 28.5

S/T 0.91 0.86 0.70 0.52 0.95 0.89 0.72 0.54 0.97 0.91 0.74 0.55 1.00 0.94 0.76 0.57 1.00 0.97 0.79 0.59 1.00 0.98 0.80 0.60

∆ T 26 25 22 18 27 26 22 18 27 26 22 18 27 26 22 18 26 25 22 18 24 24 21 17

kW 1.99 2.04 2.10 2.17 2.15 2.20 2.27 2.34 2.29 2.34 2.42 2.50 2.41 2.46 2.55 2.63 2.51 2.57 2.66 2.75 2.60 2.66 2.75 2.85

946

Amps 8.6 8.8 9.0 9.3 9.2 9.4 9.7 10.0 9.9 10.1 10.4 10.8 10.5 10.8 11.1 11.4 11.1 11.4 11.7 12.1 11.7 12.0 12.3 12.8

HI PR 241 259 274 286 270 291 307 320 307 331 349 364 350 377 398 415 394 424 448 467 435 468 495 516

LO PR 109 116 126 134 115 122 133 142 119 127 139 148 125 133 146 155 131 140 153 162 136 144 158 168

MBh 27.5 28.1 30.0 32.1 26.9 27.5 29.3 31.4 26.2 26.8 28.6

S/T 0.88 0.83 0.67 0.50 0.91 0.86 0.70 0.52 0.94 0.88 0.71 0.53 0.97 0.91 0.74 0.55 1.00 0.94 0.76 0.57 1.01 0.95 0.77 0.58

∆ T 27 26 22 18 27 26 23 18 27 26 23 18 27 26 23 18 27 26 22 18 25 24 21 17

kW 1.94 1.99 2.05 2.12 2.10 2.14 2.21 2.28 2.23 2.28 2.35 2.43 2.35 2.40 2.48 2.56 2.45 2.50 2.59 2.68 2.54 2.59 2.68 2.77

830

Amps 8.4

HI PR 234 251 266 277 262 282 298 311 298 321 339 353 340 366 386 403 382 411 434 453 422 454 480 500

LO PR 105 112 122 130 111 118 129 138 116 123 134 143 122 129 141 150 127 136 148 158 132 140 153 163

MBh 31.2 31.8 33.4 35.6 30.5 31.1 32.6 34.8 29.8 30.4 31.8 33.9 29.1 29.6 31.0 33.1 27.6 28.1 29.5 31.4 25.6 26.1 27.3 29.1

S/T 1.00 0.97 0.87 0.71 1.00 1.00 0.91 0.73 1.00 1.00 0.93 0.75 1.00 1.00 0.96 0.78 1.00 1.00 0.99 0.81 1.00 1.00 1.00 0.81

∆ T 27 27 25 22 26 27 26 22 26 26 26 22 25 26 26 22 24 24 25 22 22 23 24 21

kW 2.03 2.07 2.14 2.21 2.18 2.23 2.31 2.38 2.33 2.38 2.46 2.54 2.45 2.51 2.59 2.68 2.56 2.61 2.70 2.79 2.65 2.71 2.80 2.90

1062

Amps 8.8 8.9 9.2 9.5 9.4 9.6 9.8 10.2 10.1 10.3 10.6 11.0 10.7 10.9 11.3 11.6 11.3 11.6 11.9 12.3 11.9 12.2 12.6 13.0

HI PR 246 264 279 291 276 297 313 327 314 337 356 372 357 384 406 423 402 432 457 476 444 478 505 526

∆ T 28 28 26 23 29 28 27 23

SS-GPG16M www.goodmanmfg.com 7

High and low pressures are measured at the liquid and sucon service valves. Amps = outdoor unit amps (comp.+fan)

Page 8

Expanded Cooling Data — GPG1636***M41**

Outdoor Ambient Temperature

Entering Indoor Wet Bulb Temperature

65ºF 75ºF 85ºF 95ºF 105ºF 115ºF

- 30.3 31.4 34.4 - 28.8 29.9 32.7 - 26.7 27.7 30.3 -

24 22 18 12 24 22 18 12 24 22 18 12 22 20 17 12

11.0 11.3 - 11.5 11.7 12.1 - 12.3 12.6 12.9 - 13.0 13.3 13.7 - 13.7 14.0 14.4 - 14.4 14.7 15.1 -

11.4 11.7 12.0 11.9 12.1 12.4 12.8 12.7 13.0 13.3 13.7 13.4 13.7 14.1 14.6 14.2 14.5 14.9 15.4 14.9 15.2 15.6 16.2

IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71

∆ T 20 17 13 - 20 17 13 - 20 17 13 - 20 17 13 - 20 17 13 - 18 16 12 -

S/T 0.80 0.67 0.46 - 0.83 0.69 0.48 - 0.85 0.71 0.49 - 0.88 0.73 0.51 - 0.91 0.76 0.53 - 0.92 0.77 0.53 -

MBh 36.4 37.7 41.3 - 35.5 36.8 40.3 - 34.7 35.9 39.4 - 33.8 35.1 38.4 - 32.1 33.3 36.5 - 29.8 30.9 33.8 -

kW 2.42 2.47 2.54 - 2.60 2.66 2.74 - 2.77 2.83 2.92 - 2.91 2.97 3.07 - 3.03 3.10 3.20 - 3.14 3.21 3.32 -

1366

HI PR 224 241 254 - 251 270 285 - 286 307 325 - 325 350 370 - 366 394 416 - 404 435 460 -

Amps 11.1 11.4 11.7 - 11.9 12.1 12.4 - 12.7 13.0 13.3 - 13.4 13.7 14.1 - 14.2 14.5 14.9 - 14.9 15.2 15.6 -

LO PR 112 119 130 - 118 126 137 - 123 131 143 - 129 137 150 - 135 144 157 - 140 149 163 -

∆ T 20 18 13 - 21 18 14 - 21 18 14 - 21 18 14 - 20 18 13 - 19 17 13 -

S/T 0.76 0.64 0.44 - 0.79 0.66 0.46 - 0.81 0.68 0.47 - 0.84 0.70 0.48 - 0.87 0.72 0.50 - 0.87 0.73 0.51 -

MBh 35.3 36.6 40.1 - 34.5 35.8 39.2 - 33.7 34.9 38.2 - 32.8 34.0 37.3 - 31.2 32.3 35.4 - 28.9 30.0 32.8 -

kW 2.40 2.45 2.52 - 2.58 2.64 2.72 - 2.74 2.80 2.89 - 2.89 2.95 3.05 - 3.01 3.07 3.18 - 3.11 3.18 3.29 -

1217

HI PR 222 238 252 - 249 268 283 - 283 304 321 - 322 347 366 - 362 390 412 - 400 431 455 -

Amps 11.1 11.3 11.6 - 11.8 12.0 12.3 - 12.6 12.9 13.2 - 13.3 13.6 14.0 - 14.1 14.3 14.8 - 14.8 15.1 15.5 -

LO PR 111 118 129 - 117 125 136 - 122 129 141 - 128 136 148 - 134 143 156 - 139 147 161 -

MBh 32.6 33.8 37.0 - 31.8 33.0 36.2 - 31.1 32.2 35.3

∆ T 21 18 14 - 21 18 14 - 21 18 14 - 21 18 14 - 21 18 14 - 19 17 13 -

S/T 0.73 0.61 0.42 - 0.76 0.64 0.44 - 0.78 0.65 0.45 - 0.81 0.67 0.47 - 0.84 0.70 0.48 - 0.84 0.70 0.49 -

kW 2.34 2.39 2.46 - 2.52 2.57 2.65 - 2.68 2.73 2.82 - 2.81 2.88 2.97 - 2.93 3.00 3.10 - 3.03 3.10 3.20 -

HI PR 215 231 244 - 241 260 274 - 274 295 312 - 312 336 355 - 351 378 399 - 388 418 441 -

Amps 10.8

LO PR 108 114 125 - 114 121 132 - 118 126 137 - 124 132 144 - 130 138 151 - 134 143 156 -

1067

MBh 37.0 38.1 41.2 44.2 36.1 37.2 40.3 43.2 35.3 36.3 39.3 42.2 34.4 35.4 38.3 41.2 32.7 33.7 36.4 39.1 30.3 31.2 33.7 36.2

S/T 0.91 0.81 0.61 0.40 0.94 0.84 0.64 0.41 0.96 0.86 0.65 0.42 1.00 0.89 0.67 0.43 1.00 0.92 0.70 0.45 1.00 0.93 0.71 0.45

∆ T 23 21 17 12 23 21 17 12 23 21 17 12 23 21 17 12 22 21 17 12 20 20 16 11

kW 2.44 2.49 2.57 2.65 2.62 2.68 2.77 2.86 2.79 2.85 2.94 3.04 2.93 3.00 3.10 3.20 3.06 3.13 3.23 3.34 3.17 3.24 3.34 3.46

1366

Amps 11.2 11.4 11.7 12.1 12.0 12.2 12.5 12.9 12.8 13.1 13.4 13.9 13.5 13.8 14.2 14.7 14.3 14.6 15.0 15.5 15.0 15.3 15.8 16.3

HI PR 226 243 257 268 254 273 288 301 289 311 328 342 329 354 373 390 370 398 420 438 409 440 464 484

LO PR 113 120 131 140 119 127 139 148 124 132 144 154 130 139 152 161 137 145 159 169 141 150 164 175

MBh 35.9 37.0 40.0 43.0 35.1 36.1 39.1 42.0 34.2 35.3 38.2 41.0 33.4 34.4 37.2 40.0 31.7 32.7 35.4 38.0 29.4 30.3 32.8 35.2

S/T 0.87 0.77 0.59 0.38 0.90 0.80 0.61 0.39 0.92 0.82 0.62 0.40 0.95 0.85 0.64 0.41 0.99 0.88 0.67 0.43 0.99 0.89 0.67 0.43

kW 2.42 2.47 2.55 2.63 2.60 2.66 2.74 2.83 2.77 2.83 2.92 3.01 2.91 2.97 3.07 3.17 3.03 3.10 3.20 3.31 3.14 3.21 3.32 3.43

1217

Amps 11.1

HI PR 224 241 254 265 251 270 285 298 286 307 325 339 325 350 370 386 366 394 416 434 404 435 460 479

LO PR 112 119 130 139 118 126 137 146 123 131 143 152 129 137 150 160 135 144 157 167 140 149 163 173

∆ T 23 22 18 12 24 22 18 12

MBh 33.1 34.1 36.9 39.6 32.4 33.3 36.1 38.7 31.6 32.5 35.2 37.8 30.8 31.7 34.4 36.9 29.3 30.2 32.6 35.0 27.1 27.9 30.2 32.5

S/T 0.83 0.75 0.57 0.36 0.87 0.77 0.59 0.38 0.89 0.79 0.60 0.39 0.92 0.82 0.62 0.40 0.95 0.85 0.64 0.41 0.96 0.86 0.65 0.42

∆ T 24 22 18 12 24 22 18 13 24 22 18 13 24 22 18 13 24 22 18 12 22 21 17 12

kW 2.36 2.41 2.48 2.56 2.54 2.59 2.68 2.76 2.70 2.76 2.85 2.94 2.84 2.90 2.99 3.09 2.96 3.02 3.12 3.23 3.06 3.13 3.23 3.34

1067

Amps 10.9 11.1 11.4 11.7 11.6 11.8 12.2 12.5 12.4 12.7 13.0 13.4 13.1 13.4 13.8 14.2 13.8 14.1 14.5 15.0 14.5 14.8 15.3 15.8

HI PR 217 234 247 257 244 262 277 289 277 298 315 328 316 340 359 374 355 382 404 421 392 422 446 465

LO PR 109 116 126 134 115 122 133 142 119 127 139 148 125 133 146 155 131 140 152 162 136 144 158 168

IDB: Entering Indoor Dry Bulb Temperature Shaded area reects ACCA (TVA) condions kW = Total system power

8 www.goodmanmfg.com SS-GPG16M

High and low pressures are measured at the liquid and sucon service valves. Amps = outdoor unit amps (comp.+fan)

Page 9

Expanded Cooling Data — GPG1636***M41**

Outdoor Ambient Temperature

Entering Indoor Wet Bulb Temperature

65ºF 75ºF 85ºF 95ºF 105ºF 115ºF

37.5 31.4 32.1 34.3 36.6 29.8 30.5 32.5 34.8 27.6 28.2 30.1 32.2

11.2 11.5 11.8 11.7 11.9 12.2 12.6 12.5 12.8 13.1 13.5 13.2 13.5 13.9 14.3 13.9 14.2 14.6 15.1 14.6 15.0 15.4 15.9

27 27 26 23 26 27 27 23 25 25 26 23 23 23 24 21

11.5 11.8 12.2 12.0 12.3 12.6 13.0 12.9 13.2 13.5 14.0 13.6 13.9 14.3 14.8 14.4 14.7 15.1 15.6 15.1 15.4 15.9 16.4

LO PR 115 123 134 143 122 130 142 151 127 135 147 157 133 142 155 165 139 148 162 173 144 153 168 178

MBh 37.2 37.9 39.7 42.4 36.3 37.0 38.8 41.4 35.5 36.1 37.9 40.4 34.6 35.3 36.9 39.4 32.9 33.5 35.1 37.4 30.4 31.0 32.5 34.7

S/T 1.00 0.96 0.87 0.70 1.00 1.00 0.90 0.73 1.00 1.00 0.92 0.75 1.00 1.00 0.95 0.77 1.00 1.00 0.99 0.80 1.00 1.00 1.00 0.81

kW 2.46 2.51 2.59 2.67 2.64 2.70 2.79 2.88 2.81 2.87 2.97 3.07 2.96 3.02 3.12 3.23 3.08 3.15 3.26 3.37 3.19 3.26 3.37 3.49

1217

Amps 11.3

HI PR 228 246 260 271 256 276 291 304 291 314 331 345 332 357 377 393 373 402 424 443 413 444 469 489

LO PR 114 122 133 141 121 128 140 149 125 133 146 155 132 140 153 163 138 147 160 171 143 152 166 177

MBh 34.3 35.0 36.6 39.1 33.5 34.2 35.8 38.2 32.7 33.4 34.9 37.3 31.9 32.5 34.1 36.4 30.3 30.9 32.4 34.5 28.1 28.6 30.0 32.0

S/T 0.96 0.93 0.84 0.68 0.99 0.96 0.87 0.70 1.00 0.98 0.89 0.72 1.00 1.00 0.92 0.74 1.00 1.00 0.95 0.77 1.00 1.00 0.96 0.78

∆ T 28 28 26 23 29 28 27 23 28 28 27 23 28 28 27 23 26 27 27 23 24 25 25 21

kW 2.40 2.45 2.52 2.60 2.58 2.64 2.72 2.81 2.74 2.80 2.89 2.99 2.89 2.95 3.05 3.15 3.01 3.07 3.17 3.28 3.11 3.18 3.29 3.40

1067

Amps 11.1 11.3 11.6 11.9 11.8 12.0 12.3 12.7 12.6 12.9 13.2 13.6 13.3 13.6 14.0 14.4 14.0 14.3 14.8 15.2 14.8 15.1 15.5 16.0

HI PR 222 238 252 263 249 268 282 295 283 304 321 335 322 347 366 382 362 390 412 429 400 431 455 474

LO PR 111 118 129 137 117 125 136 145 122 129 141 151 128 136 148 158 134 143 156 166 139 147 161 171

IDB: Entering Indoor Dry Bulb Temperature Shaded area reects AHRI (TVA) condions kW = Total system power

IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71

MBh 37.6 38.5 41.1 43.9 36.8 37.6 40.1 42.9 35.9 36.7 39.2 41.9 35.0 35.8 38.2 40.9 33.3 34.0 36.3 38.8 30.8 31.5 33.6 36.0

S/T 1.00 0.93 0.76 0.57 1.00 0.97 0.79 0.59 1.00 1.00 0.81 0.60 1.00 1.00 0.83 0.62 1.00 1.00 0.87 0.65 1.00 1.00 0.87 0.65

∆ T 25 24 21 17 25 24 21 17 24 25 21 17 24 24 21 17 22 23 21 17 21 21 20 16

kW 2.46 2.51 2.59 2.67 2.64 2.70 2.79 2.88 2.81 2.87 2.97 3.07 2.96 3.02 3.12 3.23 3.08 3.15 3.26 3.37 3.19 3.26 3.37 3.49

1366

Amps 11.3 11.5 11.8 12.2 12.0 12.3 12.6 13.0 12.9 13.2 13.5 14.0 13.6 13.9 14.3 14.8 14.4 14.7 15.1 15.6 15.1 15.4 15.9 16.4

HI PR 228 246 260 271 256 276 291 304 291 314 331 345 332 357 377 393 373 402 424 443 413 444 469 489

LO PR 114 122 133 141 121 128 140 149 125 133 146 155 132 140 153 163 138 147 160 171 143 152 166 177

MBh 36.6 37.3 39.9 42.7 35.7 36.5 39.0 41.7 34.9 35.6 38.0 40.7 34.0 34.7 37.1 39.7 32.3 33.0 35.3 37.7 29.9 30.6 32.7 34.9

S/T 0.95 0.89 0.72 0.54 0.98 0.92 0.75 0.56 1.00 0.95 0.77 0.58 1.00 0.98 0.80 0.59 1.00 1.00 0.83 0.62 1.00 1.00 0.83 0.62

∆ T 26 25 22 17 27 25 22 18 26 25 22 18 26 26 22 18 24 25 22 18 23 23 21 16

kW 2.44 2.49 2.57 2.65 2.62 2.68 2.77 2.86 2.79 2.85 2.94 3.04 2.93 3.00 3.10 3.20 3.06 3.13 3.23 3.34 3.17 3.24 3.34 3.46

1217

Amps 11.2 11.4 11.7 12.1 12.0 12.2 12.5 12.9 12.8 13.1 13.4 13.9 13.5 13.8 14.2 14.7 14.3 14.6 15.0 15.5 15.0 15.3 15.8 16.3

HI PR 226 243 257 268 254 273 288 301 289 311 328 342 329 354 374 390 370 398 420 438 409 440 464 484

LO PR 113 120 131 140 120 127 139 148 124 132 144 154 130 139 152 161 137 145 159 169 141 150 164 175

MBh 33.7 34.5 36.8 39.4 33.0 33.7 36.0 38.5 32.2 32.9 35.1

S/T 0.92 0.86 0.70 0.52 0.95 0.89 0.72 0.54 0.97 0.91 0.74 0.56 1.00 0.94 0.77 0.57 1.04 0.98 0.80 0.59 1.05 0.99 0.80 0.60

∆ T 27 26 22 18 27 26 22 18 27 26 22 18 27 26 23 18 27 26 22 18 25 24 21 17

kW 2.38 2.43 2.50 2.58 2.56 2.61 2.70 2.79 2.72 2.78 2.87 2.96 2.86 2.92 3.02 3.12 2.98 3.05 3.15 3.25 3.09 3.15 3.26 3.37

1067

Amps 11.0

HI PR 219 236 249 260 246 265 280 292 280 301 318 332 319 343 362 378 359 386 408 425 396 426 450 470

LO PR 110 117 127 136 116 123 135 143 120 128 140 149 127 135 147 157 133 141 154 164 137 146 159 170

MBh 38.3 39.0 40.9 43.6 37.4 38.1 39.9 42.6 36.5 37.2 39.0 41.6 35.6 36.3 38.0 40.6 33.9 34.5 36.1 38.6 31.4 32.0 33.5 35.7

S/T 1.00 1.00 0.91 0.74 1.00 1.00 0.94 0.76 1.00 1.00 0.97 0.78 1.00 1.00 1.00 0.81 1.00 1.00 1.00 0.84 1.00 1.00 1.00 0.85

∆ T 26 26 25 22 25 26 25 22 25 25 25 22 24 24 26 22 23 23 24 22 21 22 23 20

kW 2.47 2.53 2.61 2.69 2.67 2.72 2.81 2.90 2.83 2.90 2.99 3.09 2.98 3.05 3.15 3.26 3.11 3.18 3.29 3.40 3.22 3.29 3.40 3.52

1366

Amps 11.4 11.6 11.9 12.3 12.1 12.4 12.7 13.1 13.0 13.3 13.6 14.1 13.8 14.0 14.4 14.9 14.5 14.8 15.2 15.7 15.2 15.6 16.0 16.5

HI PR 231 248 262 273 259 279 294 307 294 317 335 349 335 361 381 397 377 406 429 447 417 448 474 494

∆ T 28 28 26 23 27 28 26 23

SS-GPG16M www.goodmanmfg.com 9

High and low pressures are measured at the liquid and sucon service valves. Amps = outdoor unit amps (comp.+fan)

Page 10

Expanded Cooling Data — GPG1642***M41**

Outdoor Ambient Temperature

Entering Indoor Wet Bulb Temperature

65ºF 75ºF 85ºF 95ºF 105ºF 115ºF

- 35.6 36.9 40.5 - 33.9 35.1 38.4 - 31.4 32.5 35.6 -

25 23 19 13 26 24 19 13 25 23 19 13 24 22 18 12

12.0 12.4 - 12.6 12.9 13.2 - 13.5 13.8 14.2 - 14.3 14.6 15.1 - 15.1 15.5 15.9 - 15.9 16.3 16.8 -

12.4 12.8 13.2 13.0 13.3 13.7 14.1 14.0 14.3 14.7 15.2 14.8 15.1 15.6 16.1 15.7 16.0 16.5 17.0 16.5 16.8 17.3 17.9

IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71

∆ T 21 18 14 - 21 18 14 - 21 18 14 - 21 18 14 - 21 18 14 - 20 17 13 -

S/T 0.75 0.62 0.43 - 0.77 0.65 0.45 - 0.79 0.66 0.46 - 0.82 0.68 0.47 - 0.85 0.71 0.49 - 0.86 0.72 0.50 -

MBh 42.8 44.3 48.6 - 41.8 43.3 47.4 - 40.8 42.3 46.3 - 39.8 41.2 45.2 - 37.8 39.2 42.9 - 35.0 36.3 39.7 -

kW 2.76 2.82 2.91 - 2.98 3.04 3.14 - 3.16 3.23 3.34 - 3.33 3.40 3.52 - 3.47 3.55 3.67 - 3.59 3.67 3.80 -

1410

HI PR 239 257 272 - 268 289 305 - 305 328 347 - 347 374 395 - 391 420 444 - 432 465 491 -

Amps 12.2 12.4 12.8 - 13.0 13.3 13.7 - 14.0 14.3 14.7 - 14.8 15.1 15.6 - 15.6 16.0 16.5 - 16.5 16.8 17.3 -

LO PR 109 116 126 - 115 122 134 - 119 127 139 - 125 134 146 - 132 140 153 - 136 145 158 -

∆ T 22 19 14 - 22 19 14 - 22 19 14 - 22 19 15 - 22 19 14 - 20 18 13 -

S/T 0.71 0.59 0.41 - 0.74 0.62 0.43 - 0.76 0.63 0.44 - 0.78 0.65 0.45 - 0.81 0.68 0.47 - 0.82 0.68 0.47 -

MBh 41.5 43.0 47.1 - 40.5 42.0 46.0 - 39.6 41.0 44.9 - 38.6 40.0 43.8 - 36.7 38.0 41.7 - 34.0 35.2 38.6 -

kW 2.74 2.80 2.89 - 2.95 3.02 3.11 - 3.14 3.21 3.31 - 3.30 3.38 3.49 - 3.44 3.52 3.64 - 3.56 3.64 3.76 -

1255

HI PR 237 255 269 - 265 286 302 - 302 325 343 - 344 370 391 - 387 416 440 - 427 460 486 -

Amps 12.1 12.3 12.7 - 12.9 13.2 13.6 - 13.9 14.2 14.6 - 14.7 15.0 15.4 - 15.5 15.9 16.3 - 16.3 16.7 17.2 -

LO PR 108 115 125 - 114 121 132 - 118 126 137 - 124 132 144 - 130 139 151 - 135 143 156 -

MBh 38.3 39.7 43.5 - 37.4 38.8 42.5 - 36.5 37.9 41.5

∆ T 22 19 14 - 22 19 15 - 22 19 15 - 22 19 15 - 22 19 15 - 21 18 14 -

S/T 0.69 0.57 0.40 - 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.63 0.44 - 0.78 0.65 0.45 - 0.79 0.66 0.46 -

kW 2.68 2.73 2.82 - 2.88 2.94 3.04 - 3.06 3.13 3.23 - 3.22 3.29 3.40 - 3.36 3.43 3.54 - 3.47 3.55 3.67 -

HI PR 229 247 261 - 258 277 293 - 293 315 333 - 334 359 379 - 375 404 426 - 415 446 471 -

Amps 11.8

LO PR 104 111 121 - 110 117 128 - 115 122 133 - 121 128 140 - 126 134 147 - 131 139 152 -

1101

MBh 43.5 44.8 48.5 52.0 42.5 43.7 47.3 50.8 41.5 42.7 46.2 49.6 40.4 41.6 45.1 48.4 38.4 39.6 42.8 46.0 35.6 36.6 39.7 42.6

S/T 0.85 0.76 0.57 0.37 0.88 0.79 0.60 0.38 0.90 0.81 0.61 0.39 0.93 0.83 0.63 0.41 0.97 0.86 0.65 0.42 0.97 0.87 0.66 0.42

∆ T 24 22 18 13 24 22 18 13 24 22 18 13 25 23 19 13 24 22 18 13 23 21 17 12

kW 2.79 2.85 2.94 3.03 3.00 3.07 3.16 3.27 3.19 3.26 3.37 3.48 3.36 3.43 3.55 3.66 3.50 3.58 3.70 3.82 3.62 3.70 3.83 3.96

1410

Amps 12.3 12.5 12.9 13.3 13.1 13.4 13.8 14.2 14.1 14.4 14.8 15.3 14.9 15.3 15.7 16.2 15.8 16.1 16.6 17.2 16.6 17.0 17.5 18.1

HI PR 241 260 274 286 271 291 308 321 308 332 350 365 351 378 399 416 395 425 449 468 436 469 496 517

LO PR 110 117 128 136 116 124 135 144 121 128 140 149 127 135 147 157 133 141 154 164 137 146 160 170

MBh 42.2 43.5 47.0 50.5 41.2 42.5 45.9 49.3 40.2 41.4 44.9 48.1 39.3 40.4 43.8 47.0 37.3 38.4 41.6 44.6 34.6 35.6 38.5 41.3

S/T 0.81 0.72 0.55 0.35 0.84 0.75 0.57 0.37 0.86 0.77 0.58 0.37 0.89 0.79 0.60 0.39 0.92 0.82 0.62 0.40 0.93 0.83 0.63 0.40

kW 2.76 2.82 2.91 3.01 2.98 3.04 3.14 3.24 3.16 3.23 3.34 3.45 3.33 3.40 3.52 3.63 3.47 3.55 3.67 3.79 3.59 3.67 3.80 3.93

1255

Amps 12.2

HI PR 239 257 272 283 268 289 305 318 305 328 347 362 347 374 395 412 391 421 444 463 432 465 491 512

LO PR 109 116 126 135 115 122 134 142 119 127 139 148 126 134 146 155 132 140 153 163 136 145 158 168

∆ T 25 23 19 13 25 23 19 13

MBh 39.0 40.1 43.4 46.6 38.1 39.2 42.4 45.5 37.2 38.3 41.4 44.4 36.2 37.3 40.4 43.4 34.4 35.5 38.4 41.2 31.9 32.8 35.5 38.1

S/T 0.78 0.70 0.53 0.34 0.81 0.72 0.55 0.35 0.83 0.74 0.56 0.36 0.86 0.77 0.58 0.37 0.89 0.79 0.60 0.39 0.90 0.80 0.61 0.39

∆ T 25 23 19 13 26 24 19 13 26 24 19 13 26 24 20 13 26 24 19 13 24 22 18 12

kW 2.70 2.75 2.84 2.93 2.90 2.97 3.06 3.16 3.09 3.15 3.26 3.36 3.25 3.32 3.43 3.54 3.38 3.46 3.57 3.69 3.50 3.58 3.70 3.82

1101

Amps 11.9 12.1 12.5 12.9 12.7 13.0 13.3 13.8 13.6 13.9 14.3 14.8 14.5 14.8 15.2 15.7 15.3 15.6 16.1 16.6 16.1 16.4 16.9 17.5

HI PR 232 249 263 275 260 280 296 308 296 318 336 351 337 363 383 399 379 408 431 449 419 451 476 496

LO PR 106 112 123 131 112 119 130 138 116 123 135 143 122 130 141 151 128 136 148 158 132 140 153 163

IDB: Entering Indoor Dry Bulb Temperature Shaded area reects ACCA (TVA) condions kW = Total system power

10 www.goodmanmfg.com SS-GPG16M

High and low pressures are measured at the liquid and sucon service valves. Amps = outdoor unit amps (comp.+fan)

Page 11

Expanded Cooling Data — GPG1642***M41**

Outdoor Ambient Temperature

Entering Indoor Wet Bulb Temperature

65ºF 75ºF 85ºF 95ºF 105ºF 115ºF

44.1 36.9 37.7 40.3 43.1 35.0 35.8 38.3 40.9 32.5 33.2 35.4 37.9

12.2 12.6 13.0 12.8 13.1 13.4 13.9 13.8 14.0 14.5 14.9 14.6 14.9 15.3 15.8 15.4 15.7 16.2 16.7 16.2 16.6 17.1 17.6

30 30 28 24 30 30 28 24 28 29 28 24 26 27 26 23

12.6 13.0 13.4 13.2 13.5 13.9 14.3 14.2 14.5 14.9 15.4 15.1 15.4 15.8 16.4 15.9 16.3 16.7 17.3 16.7 17.1 17.6 18.2

LO PR 112 119 130 139 118 126 138 147 123 131 143 152 129 138 150 160 136 144 157 168 140 149 163 173

MBh 43.7 44.6 46.7 49.8 42.7 43.5 45.6 48.6 41.7 42.5 44.5 47.5 40.7 41.5 43.4 46.3 38.6 39.4 41.2 44.0 35.8 36.5 38.2 40.8

S/T 0.93 0.90 0.81 0.66 0.96 0.93 0.84 0.68 0.99 0.95 0.86 0.70 1.00 0.98 0.89 0.72 1.00 1.00 0.92 0.75 1.00 1.00 0.93 0.75

kW 2.81 2.87 2.96 3.05 3.03 3.09 3.19 3.30 3.22 3.29 3.40 3.51 3.39 3.46 3.58 3.70 3.53 3.61 3.73 3.86 3.65 3.74 3.86 3.99

1255

Amps 12.4

HI PR 244 262 277 289 274 294 311 324 311 335 354 369 354 381 403 420 399 429 453 473 441 474 501 522

LO PR 111 118 129 137 117 125 136 145 122 130 142 151 128 136 149 158 134 143 156 166 139 148 161 172

MBh 40.3 41.1 43.1 46.0 39.4 40.2 42.1 44.9 38.5 39.2 41.1 43.8 37.5 38.3 40.1 42.7 35.7 36.3 38.1 40.6 33.0 33.7 35.3 37.6

S/T 0.90 0.87 0.78 0.63 0.93 0.90 0.81 0.66 0.95 0.92 0.83 0.67 0.98 0.95 0.86 0.70 1.00 0.99 0.89 0.72 1.00 0.99 0.90 0.73

∆ T 30 30 28 24 31 30 28 25 31 30 28 25 31 30 29 25 30 30 28 24 28 28 26 23

kW 2.74 2.80 2.89 2.98 2.95 3.02 3.11 3.21 3.14 3.21 3.31 3.42 3.30 3.37 3.49 3.60 3.44 3.52 3.63 3.76 3.56 3.64 3.76 3.89

1101

Amps 12.1 12.3 12.7 13.1 12.9 13.2 13.5 14.0 13.9 14.2 14.6 15.0 14.7 15.0 15.4 16.0 15.5 15.9 16.3 16.9 16.3 16.7 17.2 17.8

HI PR 237 255 269 280 265 286 302 315 302 325 343 358 344 370 391 407 387 416 439 458 427 460 486 506

LO PR 108 115 125 133 114 121 132 141 118 126 137 146 124 132 144 154 130 138 151 161 135 143 156 167

IDB: Entering Indoor Dry Bulb Temperature Shaded area reects AHRI (TVA) condions kW = Total system power

IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71

MBh 44.3 45.2 48.3 51.6 43.2 44.2 47.2 50.4 42.2 43.1 46.1 49.2 41.2 42.1 44.9 48.0 39.1 40.0 42.7 45.6 36.2 37.0 39.5 42.3

S/T 0.93 0.87 0.71 0.53 0.96 0.90 0.74 0.55 1.00 0.93 0.75 0.56 1.00 0.96 0.78 0.58 1.00 1.00 0.81 0.60 1.00 1.00 0.82 0.61

∆ T 27 26 22 18 27 26 23 18 28 26 23 18 27 26 23 18 26 26 23 18 24 24 21 17

kW 2.81 2.87 2.96 3.05 3.03 3.09 3.19 3.30 3.22 3.29 3.40 3.51 3.39 3.46 3.58 3.70 3.53 3.61 3.73 3.86 3.65 3.74 3.86 3.99

1410

Amps 12.4 12.6 13.0 13.4 13.2 13.5 13.9 14.3 14.2 14.5 14.9 15.4 15.1 15.4 15.8 16.4 15.9 16.3 16.7 17.3 16.7 17.1 17.6 18.2

HI PR 244 262 277 289 274 294 311 324 311 335 354 369 354 381 403 420 399 429 453 473 441 474 501 522

LO PR 111 118 129 137 117 125 136 145 122 130 142 151 128 136 149 158 134 143 156 166 139 148 161 172

MBh 43.0 43.9 46.9 50.1 42.0 42.9 45.8 49.0 41.0 41.9 44.7 47.8 40.0 40.8 43.6 46.6 38.0 38.8 41.4 44.3 35.2 35.9 38.4 41.0

S/T 0.89 0.83 0.68 0.51 0.92 0.86 0.70 0.52 0.94 0.88 0.72 0.54 0.97 0.91 0.74 0.56 1.00 0.95 0.77 0.58 1.00 0.96 0.78 0.58

∆ T 28 27 23 19 28 27 24 19 28 27 24 19 28 27 24 19 28 27 23 19 26 25 22 17

kW 2.79 2.85 2.94 3.03 3.00 3.07 3.16 3.27 3.19 3.26 3.37 3.48 3.36 3.43 3.55 3.67 3.50 3.58 3.70 3.82 3.62 3.71 3.83 3.96

1255

Amps 12.3 12.5 12.9 13.3 13.1 13.4 13.8 14.2 14.1 14.4 14.8 15.3 14.9 15.3 15.7 16.2 15.8 16.1 16.6 17.2 16.6 17.0 17.5 18.1

HI PR 241 260 274 286 271 292 308 321 308 332 350 365 351 378 399 416 395 425 449 468 436 469 496 517

LO PR 110 117 128 136 116 124 135 144 121 128 140 149 127 135 147 157 133 141 154 164 137 146 160 170

MBh 39.7 40.5 43.3 46.3 38.7 39.6 42.3 45.2 37.8 38.6 41.3

S/T 0.86 0.80 0.65 0.49 0.89 0.83 0.68 0.51 0.91 0.85 0.69 0.52 0.94 0.88 0.72 0.54 0.97 0.91 0.74 0.56 0.98 0.92 0.75 0.56

∆ T 28 27 24 19 29 27 24 19 29 28 24 19 29 28 24 19 28 27 24 19 27 26 22 18

kW 2.72 2.78 2.86 2.96 2.93 2.99 3.09 3.19 3.11 3.18 3.28 3.39 3.27 3.35 3.46 3.57 3.41 3.49 3.60 3.73 3.53 3.61 3.73 3.86

1101

Amps 12.0

HI PR 234 252 266 278 263 283 299 311 299 322 340 354 340 366 387 403 383 412 435 454 423 455 481 501

LO PR 107 113 124 132 113 120 131 139 117 125 136 145 123 131 143 152 129 137 150 159 133 142 155 165

MBh 45.0 45.9 48.1 51.3 44.0 44.8 47.0 50.1 42.9 43.8 45.8 48.9 41.9 42.7 44.7 47.7 39.8 40.6 42.5 45.3 36.9 37.6 39.3 42.0

S/T 0.98 0.94 0.85 0.69 1.00 0.98 0.88 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.93 0.76 1.00 1.00 0.97 0.78 1.00 1.00 0.98 0.79

∆ T 29 28 27 23 29 29 27 23 28 29 27 23 27 28 27 24 26 26 27 23 24 25 25 22

kW 2.83 2.89 2.98 3.08 3.05 3.12 3.22 3.32 3.24 3.32 3.42 3.54 3.41 3.49 3.61 3.73 3.56 3.64 3.76 3.89 3.68 3.77 3.89 4.03

1410

Amps 12.5 12.7 13.1 13.5 13.3 13.6 14.0 14.4 14.3 14.6 15.0 15.5 15.2 15.5 16.0 16.5 16.0 16.4 16.9 17.5 16.9 17.3 17.8 18.4

HI PR 246 265 280 292 276 297 314 328 314 338 357 372 358 385 407 424 403 433 458 477 445 479 506 527

∆ T 30 29 28 24 30 30 28 24

SS-GPG16M www.goodmanmfg.com 11

High and low pressures are measured at the liquid and sucon service valves. Amps = outdoor unit amps (comp.+fan)

Page 12

Expanded Cooling Data — GPG1648***M41**

Outdoor Ambient Temperature

Entering Indoor Wet Bulb Temperature

65ºF 75ºF 85ºF 95ºF 105ºF 115ºF

- 38.5 39.9 43.7 - 36.6 37.9 41.6 - 33.9 35.1 38.5 -

26 24 19 13 26 24 20 14 26 24 19 13 24 22 18 12

14.2 14.6 - 14.8 15.1 15.6 - 15.9 16.2 16.7 - 16.9 17.2 17.7 - 17.8 18.2 18.7 - 18.7 19.1 19.7 -

14.6 15.0 15.5 15.3 15.6 16.1 16.6 16.4 16.8 17.3 17.8 17.4 17.8 18.3 18.9 18.4 18.8 19.3 20.0 19.3 19.7 20.3 21.0

IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71

∆ T 21 18 14 - 21 19 14 - 21 19 14 - 22 19 14 - 21 18 14 - 20 17 13 -

S/T 0.72 0.60 0.42 - 0.75 0.62 0.43 - 0.77 0.64 0.44 - 0.79 0.66 0.46 - 0.82 0.69 0.47 - 0.83 0.69 0.48 -

MBh 46.2 47.9 52.5 - 45.1 46.8 51.3 - 44.1 45.7 50.0 - 43.0 44.6 48.8 - 40.8 42.3 46.4 - 37.8 39.2 43.0 -

kW 3.05 3.11 3.21 - 3.28 3.35 3.46 - 3.49 3.56 3.68 - 3.67 3.75 3.87 - 3.83 3.91 4.04 - 3.96 4.05 4.18 -

1443

HI PR 239 257 271 - 268 288 304 - 305 328 346 - 347 373 394 - 390 420 443 - 431 464 490 -

Amps 14.3 14.6 15.0 - 15.3 15.6 16.1 - 16.4 16.8 17.3 - 17.4 17.8 18.3 - 18.4 18.8 19.3 - 19.3 19.7 20.3 -

LO PR 106 113 123 - 112 119 130 - 116 124 135 - 122 130 142 - 128 136 149 - 132 141 154 -

∆ T 22 19 14 - 22 19 15 - 22 19 15 - 23 19 15 - 22 19 15 - 21 18 14 -

S/T 0.69 0.57 0.40 - 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.63 0.44 - 0.78 0.65 0.45 - 0.79 0.66 0.46 -

MBh 44.9 46.5 51.0 - 43.8 45.4 49.8 - 42.8 44.3 48.6 - 41.7 43.3 47.4 - 39.7 41.1 45.0 - 36.7 38.1 41.7 -

kW 3.02 3.09 3.18 - 3.25 3.32 3.43 - 3.46 3.53 3.65 - 3.64 3.72 3.84 - 3.79 3.88 4.01 - 3.93 4.01 4.15 -

1286

HI PR 236 254 269 - 265 285 301 - 302 325 343 - 343 370 390 - 386 416 439 - 427 459 485 -

Amps 14.2 14.5 14.9 - 15.2 15.5 15.9 - 16.3 16.6 17.1 - 17.3 17.6 18.1 - 18.2 18.6 19.2 - 19.2 19.6 20.2 -

LO PR 105 111 122 - 111 118 129 - 115 122 134 - 121 129 140 - 127 135 147 - 131 139 152 -

MBh 41.4 42.9 47.0 - 40.4 41.9 45.9 - 39.5 40.9 44.8

∆ T 22 19 15 - 23 20 15 - 23 20 15 - 23 20 15 - 23 19 15 - 21 18 14 -

S/T 0.66 0.55 0.38 - 0.69 0.57 0.40 - 0.70 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.63 0.44 - 0.76 0.64 0.44 -

kW 2.95 3.01 3.11 - 3.18 3.24 3.35 - 3.37 3.45 3.56 - 3.55 3.63 3.75 - 3.70 3.78 3.91 - 3.83 3.91 4.04 -

HI PR 229 247 260 - 257 277 292 - 293 315 332 - 333 359 379 - 375 403 426 - 414 446 471 -

Amps 13.9

LO PR 102 108 118 - 107 114 125 - 112 119 130 - 117 125 136 - 123 131 143 - 127 135 148 -

1128

MBh 47.0 48.4 52.4 56.2 45.9 47.3 51.2 54.9 44.8 46.1 49.9 53.6 43.7 45.0 48.7 52.3 41.5 42.8 46.3 49.7 38.5 39.6 42.9 46.0

S/T 0.82 0.73 0.55 0.36 0.85 0.76 0.57 0.37 0.87 0.78 0.59 0.38 0.90 0.80 0.61 0.39 0.93 0.83 0.63 0.41 0.94 0.84 0.64 0.41

∆ T 25 23 19 13 25 23 19 13 25 23 19 13 25 23 19 13 25 23 19 13 23 21 17 12

kW 3.07 3.14 3.24 3.34 3.31 3.38 3.49 3.60 3.52 3.59 3.71 3.83 3.70 3.78 3.91 4.04 3.86 3.94 4.08 4.21 3.99 4.08 4.22 4.36

1443

Amps 14.5 14.7 15.1 15.6 15.4 15.7 16.2 16.7 16.6 16.9 17.4 18.0 17.5 17.9 18.4 19.0 18.5 18.9 19.5 20.1 19.5 19.9 20.5 21.2

HI PR 241 259 274 286 271 291 307 321 308 331 350 365 350 377 398 415 394 424 448 467 436 469 495 516

LO PR 107 114 124 132 113 120 131 140 117 125 136 145 123 131 143 152 129 137 150 160 134 142 155 165

MBh 45.6 47.0 50.8 54.6 44.6 45.9 49.7 53.3 43.5 44.8 48.5 52.0 42.4 43.7 47.3 50.8 40.3 41.5 44.9 48.2 37.4 38.5 41.6 44.7

S/T 0.78 0.70 0.53 0.34 0.81 0.72 0.55 0.35 0.83 0.74 0.56 0.36 0.86 0.77 0.58 0.37 0.89 0.80 0.60 0.39 0.90 0.80 0.61 0.39

kW 3.05 3.11 3.21 3.31 3.28 3.35 3.46 3.57 3.49 3.56 3.68 3.80 3.67 3.75 3.88 4.01 3.83 3.91 4.04 4.18 3.96 4.05 4.18 4.33

1286

Amps 14.3

HI PR 239 257 271 283 268 288 304 317 305 328 346 361 347 373 394 411 390 420 444 463 431 464 490 511

LO PR 106 113 123 131 112 119 130 138 116 124 135 144 122 130 142 151 128 136 149 158 132 141 154 164

∆ T 25 23 19 13 26 24 19 13

MBh 42.1 43.4 46.9 50.4 41.1 42.4 45.8 49.2 40.2 41.3 44.8 48.0 39.2 40.3 43.7 46.9 37.2 38.3 41.5 44.5 34.5 35.5 38.4 41.2

S/T 0.75 0.67 0.51 0.33 0.78 0.70 0.53 0.34 0.80 0.72 0.54 0.35 0.83 0.74 0.56 0.36 0.86 0.77 0.58 0.37 0.86 0.77 0.59 0.38

∆ T 26 24 20 13 26 24 20 14 26 24 20 14 26 24 20 14 26 24 20 14 24 22 18 13

kW 2.97 3.04 3.13 3.23 3.20 3.27 3.37 3.48 3.40 3.48 3.59 3.71 3.58 3.66 3.78 3.90 3.73 3.81 3.94 4.07 3.86 3.95 4.08 4.22

1128

Amps 14.0 14.3 14.7 15.1 15.0 15.3 15.7 16.2 16.0 16.4 16.8 17.4 17.0 17.3 17.8 18.4 17.9 18.3 18.8 19.5 18.8 19.3 19.8 20.5

HI PR 232 249 263 274 260 280 295 308 295 318 336 350 337 362 382 399 379 407 430 449 418 450 475 496

LO PR 103 109 119 127 108 115 126 134 113 120 131 139 118 126 138 146 124 132 144 153 128 137 149 159

IDB: Entering Indoor Dry Bulb Temperature Shaded area reects ACCA (TVA) condions kW = Total system power

12 www.goodmanmfg.com SS-GPG16M

High and low pressures are measured at the liquid and sucon service valves. Amps = outdoor unit amps (comp.+fan)

Page 13

Expanded Cooling Data — GPG1648***M41**

Outdoor Ambient Temperature

Entering Indoor Wet Bulb Temperature

65ºF 75ºF 85ºF 95ºF 105ºF 115ºF

47.7 39.9 40.7 43.5 46.5 37.9 38.7 41.4 44.2 35.1 35.9 38.3 40.9

14.4 14.8 15.3 15.1 15.4 15.8 16.3 16.2 16.5 17.0 17.5 17.1 17.5 18.0 18.6 18.1 18.5 19.0 19.6 19.0 19.4 20.0 20.7

31 30 29 25 31 30 29 25 30 30 28 25 28 28 27 23

14.9 15.3 15.7 15.6 15.9 16.3 16.8 16.7 17.0 17.5 18.1 17.7 18.1 18.6 19.2 18.7 19.1 19.6 20.3 19.6 20.1 20.7 21.4

LO PR 109 116 127 135 115 123 134 143 120 127 139 148 126 134 146 156 132 140 153 163 136 145 158 169

MBh 47.2 48.2 50.4 53.8 46.2 47.0 49.3 52.6 45.1 45.9 48.1 51.3 44.0 44.8 46.9 50.1 41.8 42.6 44.6 47.6 38.7 39.4 41.3 44.1

S/T 0.90 0.87 0.78 0.63 0.93 0.90 0.81 0.66 0.95 0.92 0.83 0.67 0.99 0.95 0.86 0.70 1.00 0.99 0.89 0.72 1.00 1.00 0.90 0.73

kW 3.10 3.16 3.26 3.37 3.33 3.41 3.52 3.63 3.55 3.62 3.74 3.87 3.73 3.82 3.94 4.07 3.89 3.98 4.11 4.25 4.03 4.12 4.26 4.40

1286

Amps 14.6

HI PR 244 262 277 289 273 294 311 324 311 334 353 368 354 381 402 420 398 429 453 472 440 473 500 521

LO PR 108 115 125 134 114 121 132 141 119 126 138 147 125 132 145 154 131 139 152 161 135 144 157 167

MBh 43.6 44.5 46.6 49.7 42.6 43.4 45.5 48.5 41.6 42.4 44.4 47.4 40.6 41.4 43.3 46.2 38.5 39.3 41.1 43.9 35.7 36.4 38.1 40.7

S/T 0.87 0.84 0.75 0.61 0.90 0.87 0.78 0.63 0.92 0.89 0.80 0.65 0.95 0.92 0.83 0.67 0.99 0.95 0.86 0.70 0.99 0.96 0.87 0.70

∆ T 31 30 29 25 31 31 29 25 31 31 29 25 31 31 29 25 31 30 29 25 29 28 27 23

kW 3.02 3.09 3.18 3.28 3.25 3.32 3.43 3.54 3.46 3.53 3.65 3.77 3.64 3.72 3.84 3.97 3.79 3.88 4.01 4.14 3.93 4.01 4.15 4.29

1128

Amps 14.2 14.5 14.9 15.4 15.2 15.5 15.9 16.4 16.3 16.6 17.1 17.7 17.3 17.6 18.1 18.7 18.2 18.6 19.1 19.8 19.2 19.6 20.2 20.8

HI PR 236 254 268 280 265 285 301 314 301 324 343 357 343 369 390 407 386 416 439 458 427 459 485 506

LO PR 105 111 122 130 111 118 129 137 115 122 134 142 121 129 140 149 127 135 147 157 131 139 152 162

IDB: Entering Indoor Dry Bulb Temperature Shaded area reects AHRI (TVA) condions kW = Total system power

IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71

MBh 47.8 48.9 52.2 55.8 46.7 47.7 51.0 54.5 45.6 46.6 49.8 53.2 44.5 45.5 48.6 51.9 42.3 43.2 46.1 49.3 39.2 40.0 42.7 45.7

S/T 0.90 0.84 0.69 0.51 0.93 0.87 0.71 0.53 0.95 0.90 0.73 0.54 1.00 0.92 0.75 0.56 1.00 0.96 0.78 0.58 1.00 0.97 0.79 0.59

∆ T 27 26 23 18 28 27 23 18 28 27 23 18 28 27 23 19 27 26 23 18 25 25 21 17

kW 3.10 3.16 3.26 3.37 3.33 3.41 3.52 3.63 3.55 3.62 3.74 3.87 3.73 3.82 3.94 4.07 3.89 3.98 4.11 4.25 4.03 4.12 4.26 4.40

1443

Amps 14.6 14.9 15.3 15.7 15.6 15.9 16.3 16.8 16.7 17.0 17.5 18.1 17.7 18.1 18.6 19.2 18.7 19.1 19.6 20.3 19.6 20.1 20.7 21.4

HI PR 244 262 277 289 273 294 311 324 311 334 353 368 354 381 402 420 398 429 453 472 440 473 500 521

LO PR 108 115 125 134 114 121 132 141 119 126 138 147 125 132 145 154 131 139 152 161 135 144 157 167

MBh 46.4 47.5 50.7 54.2 45.4 46.3 49.5 52.9 44.3 45.2 48.3 51.7 43.2 44.1 47.2 50.4 41.0 41.9 44.8 47.9 38.0 38.8 41.5 44.4

S/T 0.86 0.80 0.65 0.49 0.89 0.83 0.68 0.51 0.91 0.85 0.70 0.52 0.94 0.88 0.72 0.54 0.98 0.92 0.74 0.56 0.98 0.92 0.75 0.56

∆ T 28 27 24 19 29 28 24 19 29 28 24 19 29 28 24 19 29 27 24 19 27 26 22 18

kW 3.07 3.14 3.24 3.34 3.31 3.38 3.49 3.60 3.52 3.59 3.71 3.83 3.70 3.78 3.91 4.04 3.86 3.94 4.08 4.21 3.99 4.08 4.22 4.36

1286

Amps 14.5 14.7 15.1 15.6 15.4 15.7 16.2 16.7 16.6 16.9 17.4 18.0 17.5 17.9 18.4 19.0 18.5 18.9 19.5 20.1 19.5 19.9 20.5 21.2

HI PR 241 259 274 286 271 291 307 321 308 331 350 365 350 377 398 415 394 424 448 467 436 469 495 516

LO PR 107 114 124 132 113 120 131 140 117 125 136 145 123 131 143 153 129 137 150 160 134 142 155 165

MBh 42.9 43.8 46.8 50.0 41.9 42.8 45.7 48.9 40.9 41.8 44.6

S/T 0.83 0.78 0.63 0.47 0.86 0.80 0.65 0.49 0.88 0.82 0.67 0.50 0.91 0.85 0.69 0.52 0.94 0.88 0.72 0.54 0.95 0.89 0.72 0.54

∆ T 29 28 24 19 29 28 24 19 29 28 24 19 29 28 25 20 29 28 24 19 27 26 23 18

kW 3.00 3.06 3.16 3.26 3.23 3.30 3.40 3.51 3.43 3.51 3.62 3.74 3.61 3.69 3.81 3.94 3.76 3.85 3.97 4.11 3.89 3.98 4.11 4.25

1128

Amps 14.1

HI PR 234 252 266 277 262 282 298 311 298 321 339 354 340 366 386 403 382 412 435 453 423 455 480 501

LO PR 104 110 120 128 110 117 127 136 114 121 132 141 120 127 139 148 125 133 146 155 130 138 151 160

MBh 48.7 49.6 52.0 55.4 47.5 48.5 50.7 54.1 46.4 47.3 49.5 52.9 45.3 46.1 48.3 51.6 43.0 43.8 45.9 49.0 39.8 40.6 42.5 45.4

S/T 0.94 0.91 0.82 0.67 0.98 0.94 0.85 0.69 1.00 0.97 0.87 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.93 0.76 1.00 1.00 0.94 0.76

∆ T 29 29 27 23 30 29 27 24 30 29 28 24 29 29 28 24 27 28 27 24 25 26 26 22

kW 3.12 3.19 3.29 3.39 3.36 3.43 3.55 3.66 3.58 3.65 3.77 3.90 3.76 3.85 3.97 4.11 3.92 4.01 4.15 4.29 4.06 4.15 4.29 4.44

1443

Amps 14.7 15.0 15.4 15.9 15.7 16.0 16.4 17.0 16.8 17.2 17.7 18.2 17.8 18.2 18.7 19.3 18.8 19.2 19.8 20.5 19.8 20.2 20.8 21.5

HI PR 246 265 280 292 276 297 314 327 314 338 357 372 358 385 406 424 402 433 457 477 444 478 505 527

∆ T 30 30 28 24 31 30 29 25

SS-GPG16M www.goodmanmfg.com 13

High and low pressures are measured at the liquid and sucon service valves. Amps = outdoor unit amps (comp.+fan)

Page 14

Airflow Data

GPG1624060M41** - Rise Range: 35° - 65°

T1 Low-Stage

E.S.P.

0.1 625 53 54 855 107 53 625 51 850 104 1,090 197

0.2 585 61 58 815 114 55 590 60 810 116 1,055 201

0.3 550 70 61 785 125 57 555 68 775 122 1,020 207

0.4 495 78 X 750 135 60 505 79 735 129 995 212

0.5 445 85 X 705 141 64 450 86 705 136 955 230

0.6 400 93 X 660 149 X 410 93 655 147 915 240

0.7 345 99 X 615 157 X 330 101 600 154 880 255

0.8 ---- ---- ---- 570 166 X ---- ---- 565 160 835 246

E.S.P.

0.1 1,035 156 43 1,300 287 46 945 130 1,095 185 1,295 289

0.2 990 165 45 1,265 293 47 905 136 1,055 195 1,260 294

0.3 950 173 47 1,220 310 49 865 143 1,020 202 1,220 304

0.4 910 184 49 1,190 306 50 815 152 970 210 1,180 313

0.5 865 190 52 1,145 319 52 770 160 930 215 1,140 319

0.6 820 200 55 1,105 320 54 715 173 885 222 1,105 326

0.7 765 204 59 1,070 330 56 660 173 840 233 1,055 334

0.8 725 211 62 1,015 338 59 610 183 785 234 1,015 337

Heating Speed

CFM WAT TS RISE CFM WAT TS RISE CFM WAT TS CFM WAT TS CFM WAT TS

T1 Low-Stage

Heating Speed

CFM WAT TS RISE CFM WAT TS RISE CFM WAT TS CFM WAT TS CFM WAT TS

T2 High-Stage Heating Speed

GPG1630080M41** - Rise Range: 35° - 65°

T2 High-Stage Heating Speed

T3 Low-Stage

Cooling Speed

T3 Low-Stage

Cooling Speed

T4 High-Stage

Cooling Speed

T4 High-Stage

Cooling Speed

T5 Cooling Speed

GPG1636080M41** - Rise Range: 35° - 65°

T1 Low-Stage

E.S.P.

0.1 950 115 47 1,245 230 48 1,045 149 1,280 258 1,440 354

0.2 895 124 50 1,195 238 50 990 160 1,225 259 1,390 365

0.3 840 134 54 1,150 247 52 935 167 1,180 274 1,355 369

0.4 775 146 58 1,095 256 55 875 179 1,130 280 1,300 383

0.5 710 152 63 1,045 263 57 820 186 1,085 293 1,260 396

0.6 650 160 X 990 277 61 755 194 1,030 295 1,210 402

0.7 590 163 X 935 285 64 700 197 975 304 1,160 397

0.8 540 171 X 870 288 X 650 214 920 315 1,110 415

Heating Speed

CFM WAT TS RISE CFM WAT TS RISE CFM WAT TS CFM WAT TS CFM WAT TS

T2 High-Stage Heating Speed

T3 Low-Stage

Cooling Speed

T4 High-Stage

Cooling Speed

T5 Cooling Speed

14 www.goodmanmfg.com SS-GPG16M

Page 15

GPG1642100M41** - Rise Range: 35° - 65°

Airflow Data (cont.)

T1 Low-Stage

E.S.P.

0.1 1,100 172 51 1,420 325 53 1,075 162 1,335 274 1,620 484

0.2 1,040 181 54 1,360 331 55 1,015 172 1,290 288 1,575 489

0.3 985 185 57 1,310 342 57 960 185 1,230 297 1,530 497

0.4 920 193 61 1,275 353 59 900 188 1,185 304 1,490 500

0.5 875 203 64 1,210 360 62 845 200 1,130 321 1,450 507

0.6 815 207 X 1,165 368 64 790 208 1,075 321 1,405 518

0.7 765 215 X 1,115 369 X 740 211 1,030 325 1,345 516

0.8 710 216 X 1,075 385 X 680 217 980 330 1,300 528

E.S.P.

0.1 1,085 171 52 1,410 326 53 1,225 227 1,475 367 1,790 641

0.2 1,035 178 54 1,365 329 55 1,190 240 1,430 366 1,745 650

0.3 985 184 57 1,315 337 57 1,120 246 1,375 378 1,710 659

0.4 925 193 61 1,270 353 59 1,070 254 1,320 383 1,670 663

0.5 870 198 65 1,220 360 61 1,015 266 1,270 397 1,625 674

0.6 815 208 X 1,175 372 64 970 265 1,230 400 1,585 672

0.7 760 213 X 1,115 375 X 920 279 1,185 409 1,540 675

0.8 710 219 X 1,080 381 X 875 280 1,140 417 1,495 683

Heating Speed

CFM WAT TS RISE CFM WAT TS RISE CFM WAT TS CFM WAT TS CFM WAT TS

T1 Low-Stage

Heating Speed

CFM WAT TS RISE CFM WAT TS RISE CFM WAT TS CFM WAT TS CFM WAT TS

T2 High-Stage Heating Speed

GPG1648100M41** - Rise Range: 35° - 65°

T2 High-Stage Heating Speed

T3 Low-Stage

Cooling Speed

T3 Low-Stage

Cooling Speed

T4 High-Stage

Cooling Speed

T4 High-Stage

Cooling Speed

T5 Cooling Speed

SS-GPG16M www.goodmanmfg.com 15

Page 16

Dimensions

COMBUSTION AIR INTAKE

EXHAUST FLUE HOOD

CONTROL WIRE ENTRANC E

POWER WIRE ENTRANCE

7 7/8

7 5/16

SUCTION/L IQUID PRESSURE PORTS

BEHIND COM PRESSOR ACCESS PANE L

HEAT EXCHANGE ACCESS PANEL

GAS SUPPLY E NTRANC E

CONDENSATE DRAIN C ONNECTION

3/4" NPT F EMALE

16 1/8

19 1/8

EVAPORATO R/CONTROL PANEL ACCESS P ANEL

4 3/4

7 15/16

5 1/2

1 3/8

2 3/4

18 7/16

FLUE EXHAUST

BLOWER ACC ESS PANEL

SUPPLY

RETURN

SUPPLY

RETURN

5 3/4

5 1/4

COMBUSTION AIR INTAKE

FLUE EXHAUST

HOOD

7”

Model

Dimensions

W” D” H”

GPG1624***M41 47 51 34¾ Medium 32” 16”

GPG1630***M41 47 51 34¾ Medium 32” 16”

Chassi

SizeA DimensB Dimens

GPG1636***M41 47 51 42¾ Large 40” 18”

GPG1642***M41 47 51 42¾ Large 40” 18”

GPG1648***M41 47 51 42¾ Large 40” 18”

16 www.goodmanmfg.com SS-GPG16M

Page 17

Wiring Diagram

0140G03218-A

IGN

ALS

SOL

SEE NOTE 3

208

NG L

T5T4T3T2

240

24V

208-230/1/60

POWER SUPPLY

GND

COMP

T2T1

L2L1

SEE NOTE 3

SEE NOTE 2

ECON

HI COOL

LO COOL

HI HEAT

LO HEAT

MVC

MVH

MVL

PSW

HLO

564

579

863

SOL

ALS

RCCF

208-230/1/60

RT1S

COMP

SUPPLY VOLTAGE

INTEGRATED IGNITION CONTROL

COM

HLI

SEE NOTE 2

INTERGRATED IGNITION

CONTROL

MICRO

INTEGRATED IGNITION CONTROL

SOL

HPS

SEE NOTE 5

RUN CAPACITOR FOR COMPRESSOR/FAN

CTORY WIRING

SOLENOID (2ND STAGE COOL)

SOL

RCCF

FUSE

COMPRESSORCOMP

LINE VOLTAGE

OPTIONAL HIGH VOLTAGE

HIGH VOLTAGE

FIELD

WIRING

LOW VOLTAGE

BK BLACK

IRE CODE

PK PINK

OR ORANGE

GR GREEN

BR BROWN

BL BLUE

RD RED

WH WHITE

YL YELLOW

PU PURPLE

ALS

COMPONE

NT LEGEND

CONTACTOR

AUXILLARY LIMIT SWITCH

GAS VALVE

GND

IGNITOR

IGN

IIC

EQUIPMENT GROUND

PRESSURE SWITCH

LIMIT SWITCH

INTEGRATED IGNITION CONTROL

FLAME SENSOR

TRANSFORMER

ROLLOUT SWITCH

EVAPORATOR MOTOR

ODF

OUTDOOR FAN

HIGH PRESSURE SWITCH

HPS

NOTES

1. REPLACEMENT WIRE MUST BE THE SAME SIZE AND TYPE OF

INSULATION AS ORIGINAL.(USE COPPER CONDUCTOR ONLY).

2. FOR 208 VOLT TRANSFORMER OPERATION MOVE BLACK WIRE

FROM TERMINAL 3 TO TERMINAL 2 ON TRANSFORMER.

3. USE COPPER CONDUCTORS ONLY

4. FOR 208V OPERATION, REMOVE BLUE LEAD FROM INDUCER LOW

TERMINAL. MOVE BLACK LEAD FROM PARK TERMINAL ONTO

INDUCER LOW TERMINAL. PLACE BLUE LEAD ON PARK TERMINAL.

5. USE NEC CLASS 2 WIRE FOR THERMOSTAT FIELD WIRING.

REPLACE CONTROL

3 MIN COMP. SHORT

CYCLE DELAY

COMPR. SHORT CYCLE DELAY

6 FLASHES

FLASHES

CHECK FOR SHORTS IN

FLAME SENSOR WIRING

CHECK GAS VALVE

CHECK ROLLOUT LIMIT SW.

CHECK AUXILIARY LIMIT SW.

CHECK MAIN LIMIT SWITCH

CHECK WIRING FOR SHORTS

CHECK PRESSURE SWITCH

PRESSURE SWITCH CLOSED

CHECK VENT MOTOR

CHECK TUBING

CHECK FUSE(S)

CHECK INPUT POWER

GAS PRESSURE

FLAME SENSOR

GAS VALVE

GAS FLOW

CHECK PRESSURE SWITCH

OFF

1 FLASH

3 FLASHES

2 FLASHES

4 FLASHES

5 FLASHES

FALSE FLAME DETECTED

OPEN LIMIT SWITCH

WITHOUT INDUCER ON

PRESSURE SWITCH OPEN

IGNITION FAILURE

NORMAL OPERATION

NO POWER OR

INTERNAL CONTROL

FAULT

STATUS

CHECK

CHECK FOR SHORTS IN

FLAME SENSOR WIRING

NORMAL FLAME PRESENT

GAS PRESSURE

FLAME SENSOR

GAS VALVE

GAS FLOW

CHECK GAS VALVE

OFF

1 FLASH

2 FLASHES

FALSE FLAME DETECTED

LOW FLAME SIGNAL

NO FLAME PRESENT

PSW/LOC OPEN

9 FLASHES

CHECK JUMPER BETWEEN 1

AND 4 ON 6-CIRCUIT

CONNECTOR

IDT/ODT OPEN

8 FLASHES

CHECK AUXILIARY LIMIT SW.

CHECK MAIN LIMIT SWITCH

LIMIT OPEN 5 TIMES IN SAME

CALL FOR HEAT

7 FLASHES

CHECK REFRIGERANT

SWITCHES FOR LOSS OF

CHARGE OR HIGH HEAD

PRESSURE

EQUIPMENT GROUND

FIELD GROUND

FIELD SPLICE

SWITCH (TEMP)

IGNITER

SWITCH (PRESS.)

OVERCURRENT

PROT. DEVICE

JUNCTION

TERMINAL

INTERNAL TO

INTEGRATED CONTROL

PLUG CONNECTION

CM CONDENSER MOTOR

VENT MOTOR

GY GRAY

DIAGNOSTIC

LED

RED

AMBER

HPS

LOW

ODF

HIGH

LOW

INDUCER

PARK

NONE

5 MIN

10 MIN

180

150

120

GW2

BLOWER

OFF DELAY

STAGE

DELAY

ECON

LO HEAT

HI HEAT

HI COOL

LO COOL

24VAC COM

SEE NOTE 5

GAS VALVE

W. R.

121

RCCF

YLPUPU

SEE

NOTE 4

SEE NOTE 4

⚡

SS-GPG16M www.goodmanmfg.com 17

High Voltage: Disconnect all power before servicing or installing this unit. Mulple power

sources may be present. Failure to do so may cause property damage, personal injury, or death.

⚠ Warning

Wiring is subject to change. Always

refer to the wiring diagram or the

unit for the most up-to-date wiring.

Page 18

Product Specifications

Accessories

Accessory

Description

Concentric Kit CDK36 CDK4872

Downow Economizer DDNECNJPGMM DDNECNJPGML

Downow Manual Damper PGMDD102 PGMDD103

Downow Motorized Damper PGMDMD102 PGMDMD103

Downow Square-to-Round SQRPG102 SQRPG103

Downow Internal Filter Rack PGFR102 PGFR103

External Horizontal Filter Rack GPGHFR102 GPGHFR103

Horizontal Duct Cover 20464501NGK 20464502NGK

Horizontal Economizer DHZECNJPGCHM DHZECNJPGCHL

Horizontal Manual Damper PGMDH102 PGMDH103

Horizontal Motorized Damper PGMDMH102 PGMDMH103

Horizontal Square-to-Round SQRPGH102 SQRPGH103

LP Conversion Kit (for 80% AFUE units) LPM-06 LPM-06

LP Conversion Kit (for 81% AFUE units) LPM-08 LPM-08

Outdoor Thermostat w/ Housing OTDFPKG-01 OTDFPKG-01

Medium Chassis Large Chassis

Item Number

Roof Curb D14CRBPGCHMA D14CRBPGCHMA

18 www.goodmanmfg.com SS-GPG16M

Page 19

Notes

SS-GPG16M www.goodmanmfg.com 19

Page 20

Notes

Goodman Manufacturing Company, L.P., reserves the right to disconnue, or change at any me, specicaons or designs without

20 www.goodmanmfg.com SS-GPG16M
