Good Life UP1621 User Manual

The Guardian™ Instruction Manual

www.pestrepellerultimate.com

Good Life® is proud to introduce the world’s first indoor and outdoor 12-in-1 pest repeller, The Guardian™. Carefully designed with a
tremendous amount of research, the Guardian includes more features than any other pest repeller on the market. Whether you use it to
repel pests or as a personal safety device you can enjoy the multiple power options, convenient remote control, strobe light, motion
sensor, Select a Pest™ Technology, and much more!

In This Package

1 Guardian™
1 Plastic Rain Jacket
1 Keychain Remote
1 AC Adapter
1 Instruction Manual

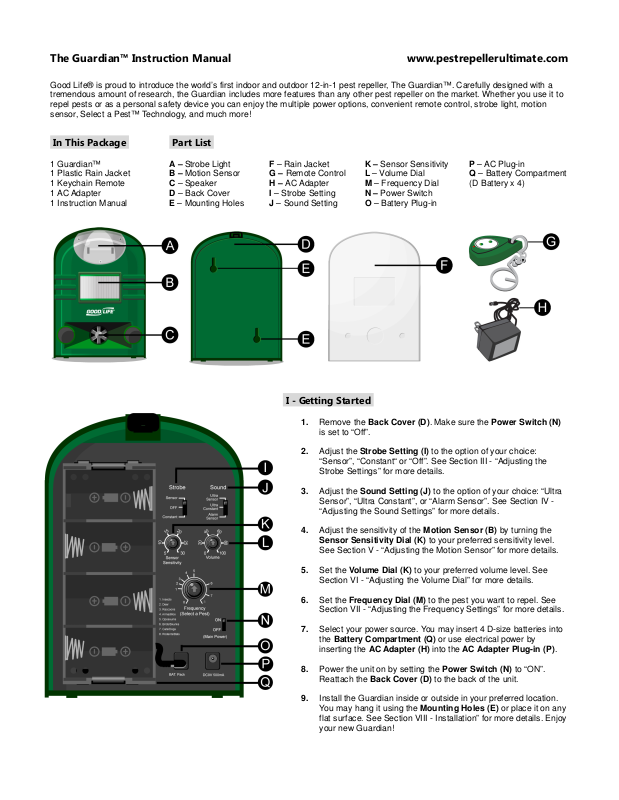

Part List

A – Strobe Light
B – Motion Sensor
C – Speaker
D – Back Cover
E – Mounting Holes

F – Rain Jacket
G – Remote Control
H – AC Adapter
I – Strobe Setting
J – Sound Setting

K – Sensor Sensitivity
L – Volume Dial
M – Frequency Dial
N – Power Switch
O – Battery Plug-in

P – AC Plug-in
Q – Battery Compartment

(D Battery x 4)

I - Getting Started

1. Remove the Back Cover (D). Make sure the Power Switch (N)
is set to “Off”.

2. Adjust the Strobe Setting (I) to the option of your choice:
“Sensor”, “Constant“ or “Off”. See Section III - “Adjusting the
Strobe Settings” for more details.

3. Adjust the Sound Setting (J) to the option of your choice: “Ultra
Sensor”, “Ultra Constant”, or “Alarm Sensor”. See Section IV ­“Adjusting the Sound Settings” for more details.

4. Adjust the sensitivity of the Motion Sensor (B) by turning the
Sensor Sensitivity Dial (K) to your preferred sensitivity level.

See Section V - “Adjusting the Motion Sensor” for more details.

5. Set the Volume Dial (K) to your preferred volume level. See
Section VI - “Adjusting the Volume Dial” for more details.

6. Set the Frequency Dial (M) to the pest you want to repel. See
Section VII - “Adjusting the Frequency Settings” for more details.

7. Select your power source. You may insert 4 D-size batteries into

8. Power the unit on by setting the Power Switch (N) to “ON”.

9. Install the Guardian inside or outside in your preferred location.

the Battery Compartment (Q) or use electrical power by
inserting the AC Adapter (H) into the AC Adapter Plug-in (P).

Reattach the Back Cover (D) to the back of the unit.

You may hang it using the Mounting Holes (E) or place it on any
flat surface. See Section VIII - Installation” for more details. Enjoy
your new Guardian!

II – Quick Settings for Common Pests

Below you will find the recommended Strobe, Sound, Frequency, and Installation settings for several common pests and uses. If you do
not see your pest listed below or would like more detailed information please read Sections III – VIII in this manual.

Bats in Attic
Strobe: Constant
Sound: Ultra Constant
Frequency Dial: 6-8
To Install: Place in attic or where you suspect the bats are

entering the roof area.

Medium Sized Pests in Yard
Strobe: Constant or Off
Sound: Ultra Sensor / Constant
Frequency Dial: 2-8
Motion Sensor: Adjust to preference
To Install: Place near ground level for small pests. For larger

pests place at body level of pest

Squirrels / Raccoons in Attic
Strobe: Constant or Off
Sound: Ultra Constant
Frequency Dial: 3-6
To Install: Place in attic or crawl space depending on location of

pest.

To Use for Personal Safety
Strobe: Sensor
Sound: Alarm Sensor
Volume: 40-100
Motion Sensor: Adjust to preference
To Install: Place near area you want to protect such as hallways,

doorways, yard areas, RVs, etc

III - Adjusting the Strobe Settings

I. Sensor: The Strobe Light (A) will activate only when triggered by the

Motion Sensor (B)

■

Best used to repel large pests that will easily set off the Motion
Sensor

■

If you are using batteries, this setting conserves power compared
to the “Constant” setting

■

If the Strobe Light is set to “Sensor”, then the sound must be set to
either “Ultra Sensor” or “Alarm Sensor”

II. Off: The Strobe Light (A) is turned off.

III. Constant: The Strobe Light (A) will activate continuously.

IV - Adjusting the Sound Settings

I. Ultra Sensor: The Speaker (C) will emit Ultrasonic Sound only when it

I. Ultra Constant: The Speaker (C) will emit Ultrasonic Sound

■

Can be used with any sound setting.

■

Best used to repel small pests (such as insects) that will not be
detected by the Motion Sensor

■

If you are not sure exactly where the pests are located, this setting
may be easier for you to use than the Motion Sensor.

■

If the Strobe Light is set to “Constant”, then the sound must also be
set to “Ultra Constant”.

is activated by the Motion Sensor (B).

■

Best used to repel large pests that will easily set off the Motion
Sensor

■

If you are using batteries, this setting conserves power compared
to the “Constant” setting

■

If the sound is set to “Ultra Sensor”, then the Strobe Light must also
be set to “Sensor” (or “Off”).

continuously.

■

Best used to repel small pests (such as insects) that will not be
detected by the Motion Sensor

■

If you are not sure exactly where the pests are located, this setting
may be easier for you to use than the motion sensor.

■

We recommend using the AC Adapter (H) with this setting
because the continuous sound will drain the batteries quickly.

■

If the sound is set to “Ultra Constant”, then the Strobe Light must
