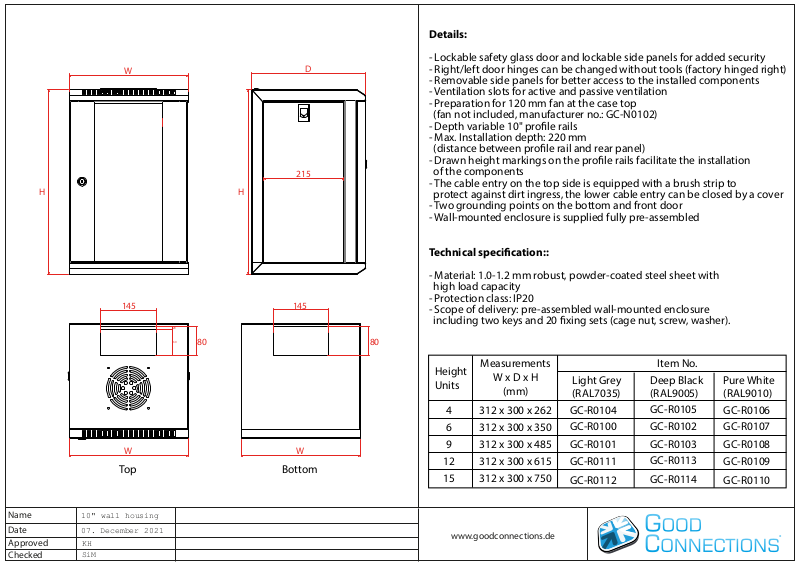

GOOD CONNECTIONS R0110 Datasheet

Details:

- Lockable safety glass door and lockable side panels for added security

W

D

- Right/left door hinges can be changed without tools (factory hinged right)

- Removable side panels for better access to the installed components

- Ventilation slots for active and passive ventilation

- Preparation for 120 mm fan at the case top
(fan not included, manufacturer no.: GC-N0102)

- Depth variable 10" prole rails

- Max. Installation depth: 220 mm
(distance between prole rail and rear panel)

- Drawn height markings on the prole rails facilitate the installation

215

of the components

- The cable entry on the top side is equipped with a brush strip to

H

H

protect against dirt ingress, the lower cable entry can be closed by a cover

- Two grounding points on the bottom and front door

- Wall-mounted enclosure is supplied fully pre-assembled

Technical specification::

- Material: 1.0-1.2 mm robust, powder-coated steel sheet with
high load capacity

145

145

20

60

80

80

- Protection class: IP20

- Scope of delivery: pre-assembled wall-mounted enclosure
including two keys and 20 xing sets (cage nut, screw, washer).

W

Top Bottom

Name

Date 07. December 2021
Approved

Checked

10" wall housing

KH

SiM

W

Height
Units

4

6

9

12

15

www.goodconnections.de

Measurements

W x D x H

(mm)

312 x 300 x 262

312 x 300 x 350

312 x 300 x 485

312 x 300 x 615

312 x 300 x 750

Light Grey
(RAL7035)

GC-R0104
GC-R0100

GC-R0101

GC-R0111

GC-R0112

Item No.

Deep Black
(RAL9005)

GC-R0105
GC-R0102

GC-R0103

GC-R0113

GC-R0114

Pure White
(RAL9010)

GC-R0106
GC-R0107

GC-R0108

GC-R0109

GC-R0110

®
