NOTE:
1.Electrical test:
(1).100% open short & miss wire test;
(2).Insulation resistance: DC 300V/5s 10M
(3).Contactor resistance: 3 max;
(4).Support 4K*2K/60Hz, 18Gbps.
2.RoHS/Reach compliant
MATERIAL LIST
PACKAGE
7
6
PRINTING
5
CABLE
(1/0.25BC*1P+1/0.25BC+WAM)*5PCS+1/0.25BC*4C+AL+1/0.25BC+
144/0.12ALMG+PVC, OD: 6.0±0.2mm, COLOR: BLACK
P2
1
TINPLATE
PIN OUT
P1 P2 P1 P2
min;
WHITE
1
BROWN
3
DRAIN
WHITE
4
BLUE
6
DRAIN
WHITE
7
GREEN
9
DRAIN
WHITE
10
RED
12
DRAIN
1
14
19
3
17 17
55
4
13
6
15
22
7
16
9
18
1111
SHELL
10
12
88
WHITE
ORANGE
DRAIN
GREEN
WHITE
GREY
RED
DRAIN
14
19
13
15
16
18
SHELL
MODEL LIST
Model
GC-M0135
GC-M0136
1GOOD CONNECTIONS ZIP BAG
GC-M0137
GC-M0138
GC-M0139
GC-M0140
L
Length
0.5M
1.0M
1.5M
2.0M
3.0M
5.0M
PACKING DRAW
7
®
4
OUTER MOLD
3
SHIELD
2
INNER MOLD
PVC 88A, COLOR: BLACK
LD-PE
CONNECTOR1HDMI 19PIN A MALE, GOLD PLATED PIN, GOLD PLATED SHELL
No.
PART NAME
DESCRIPTION
2
2TINPLATE, FULL SHIELD
2
2
QTY
DRAW No.
CUSTOMER
MODEL No.
APPROVE BY
KH GR
NAME
Good Connections
GC-Mxxxx SERIES
CHECK BY

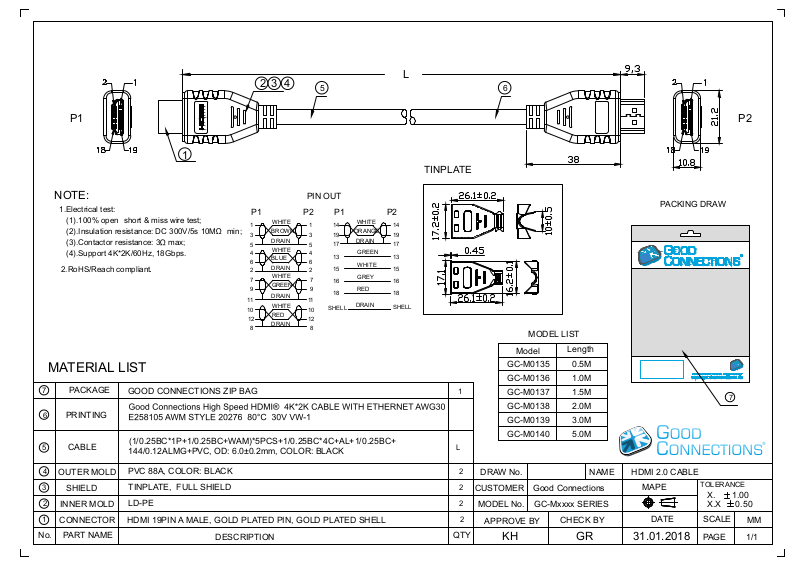

HDMI 2.0 CABLE
MAPE
DATE
31.01.2018
TOLERANCE
X. 1.00
X.X
0.50
SCALE
PAGE
MM
1/1
