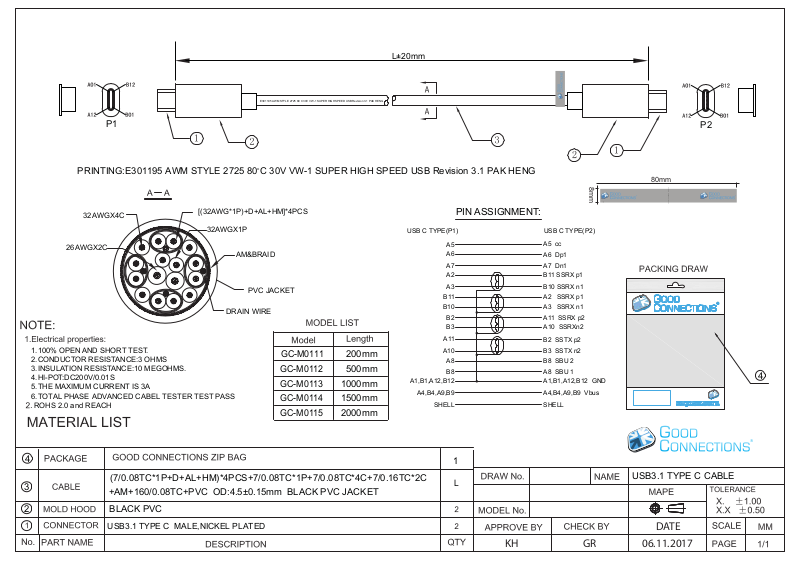

E301195 AWM STYLE 2725 80 C 30V VW-1 SUPER HIGH SPEED USB Revision 3.1 PAK HENG
L+20mm
-
P1
PRINTING:E301195 AWM STYLE 2725 80 C 30V VW-1 SUPER HIGH SPEED USB Revision 3.1 PAK HENG
32AWGX4C
26AWGX2C
1.100% OPEN AND SHORT TEST.
2.CONDUCTOR RESISTANCE:3 OHMS
3.INSULATION RESISTANCE:10 MEGOHMS.
4.HI-POT:DC200V/0.01S
5.THE MAXIMUM CURRENT IS 3A
6.TOTAL PHASE ADVANCED CABEL TESTER TEST PASS
ROHS 2.0 and REACH
[(32AWG*1P)+D+AL+HM]*4PCS
32AWGX1P
DRAIN WIRE
O
AM&BRAID
PVC JACKET
GC-M0111
GC-M0112
GC-M0113
GC-M0114
GC-M0115
200mm
500mm
1000mm
1500mm
2000mm
PIN ASSIGNMENT:
USB C TYPE(P1)
A5
A6
A7
A2
A3
B11
B10
B2
B3
A11
A10
A8
B8
A1,B1,A12,B12
A4,B4,A9,B9 A4,B4,A9,B9 Vbus
SHELL SHELL
USB C TYPE(P2)
A5 cc
A6 Dp1
A7 Dn1
B11 SSRX p1
B10 SSRX n1
A2 SSRX p1
A3 SSRX n1
A11 SSRX p2
A10 SSRXn2
B2 SSTX p2
B3 SSTX n2
B8 SBU 2
A8 SBU 1
A1,B1,A12,B12 GND
8mm
P2
80mm
4
®
4
(7/0.08TC*1P+D+AL+HM)*4PCS+7/0.08TC*1P+7/0.08TC*4C+7/0.16TC*2C
3
2
+AM+160/0.08TC+PVC
OD:4.5±0.15mm BLACK PVC JACKET
BLACK PVC
USB3.1 TYPE C MALE,NICKEL PLATED
1
L
USB3.1 TYPE C CABLE
DATE
KH
GR 06.11.2017
