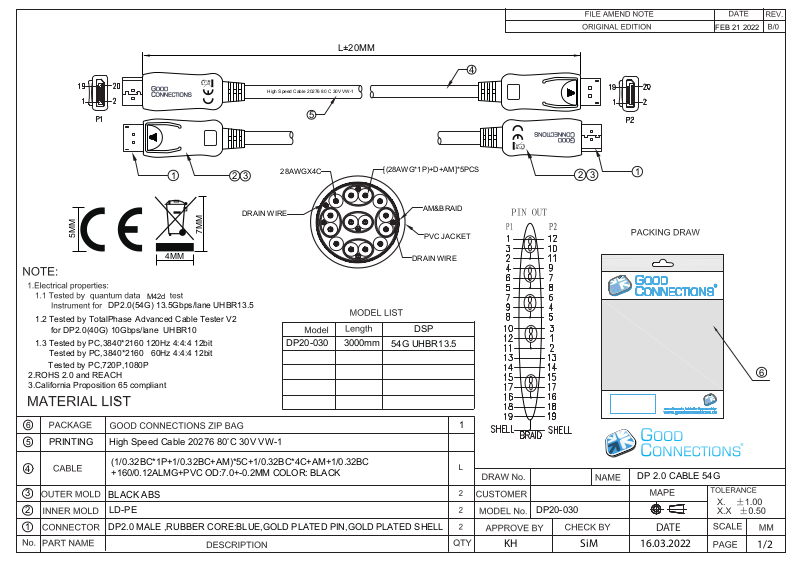

Page 1
L+20MM
-
High Speed Cable 20276 80 C 30V VW-1
5
FEB 21 2022
4
1
5MM
4MM
M42d
DP2.0(54G) 13.5Gbps/lane UHBR13.5
1.2 Tested by TotalPhase
for DP2.0(40G) 10Gbps/lane UHBR10
1.3 Tested by PC,3840*2160 120Hz 4:4:4 12bit
Tested by PC,3840*2160 60Hz 4:4:4 12bit
Tested by PC,720P,1080P
2.ROHS 2.0 and REACH
3.California Proposition 65 compliant
6
5
PRINTING
Advanced Cable Tester V2
High Speed Cable 20276 80 C 30V VW-1
7MM
2
3
DRAIN WIRE
O
28AWGX4C
[(28AWG*1P)+D+AM]*5PCS
AM&BRAID
PVC JACKET
DRAIN WIRE
3
2
1
DSP
3000mmDP20-030
54G UHBR13.5
6
1
®
4
3
2
1
(1/0.32BC*1P+1/0.32BC+AM)*5C+1/0.32BC*4C+AM+1/0.32BC
+160/0.12ALMG+PVC OD:7.0+-0.2MM COLOR: BLACK
BLACK ABS
LD-PE
DP2.0 MALE ,RUBBER CORE:BLUE,GOLD PLATED PIN,GOLD PLATED SHELL
KH
DP20-030
SiM
DP 2.0 CABLE 54G
DATE
16.03.2022
1/2
Page 2
L+20MM
-
High Speed Cable 20276 80 C 30V VW-1
5
FEB 21 2022
4
1
5MM
4MM
M42d
DP2.0(54G) 13.5Gbps/lane UHBR13.5
1.2 Tested by TotalPhase
for DP2.0(40G) 10Gbps/lane UHBR10
1.3 Tested by PC,3840*2160 120Hz 4:4:4 12bit
Tested by PC,3840*2160 60Hz 4:4:4 12bit
Tested by PC,720P,1080P
2.ROHS 2.0 and REACH
3.California Proposition 65 compliant
6
5
PRINTING
Advanced Cable Tester V2
High Speed Cable 20276 80 C 30V VW-1
7MM
2
3
DRAIN WIRE
O
30AWGX4C
DP20-010
DP20-015
DP20-020
500mmDP20-005
1000mm
1500mm
2000mm
[(30AWG*1P)+D+AM]*5PCS
AM&BRAID
PVC JACKET
DRAIN WIRE
DSP
54G UHBR13.5
54G UHBR13.5
54G UHBR13.5
54G UHBR13.5
1
3
2
1
6
®
4
3
2
1
(1/0.254BC*1P+1/0.254BC+AM)*5C+1/0.254BC*4C+AM+1/0.254BC
+128/0.12ALMG+PVC OD:6.0+-0.2MM COLOR: BLACK
BLACK ABS
LD-PE
DP2.0 MALE ,RUBBER CORE:BLUE,GOLD PLATED PIN,GOLD PLATED SHELL
KH
DP0-005~020
SiM
DP 2.0 CABLE 54G
DATE
16.03.2022
2/2
