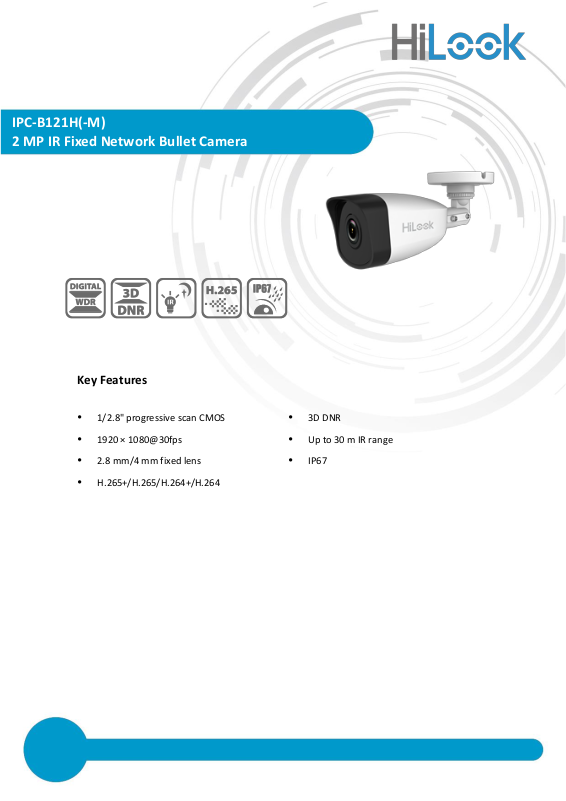

Page 1
Key Features
1/2.8" progressive scan CMOS
3D DNR
1920 × 1080@30fps
Up to 30 m IR range
2.8 mm/4 mm fixed lens
IP67
H.265+/H.265/H.264+/H.264
IPC-B121H(-M)
2 MP IR Fixed Network Bullet Camera
Page 2
Camera
Image Sensor
1/2.8" progressive scan CMOS
Min. Illumination
Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed
1/3 s to 1/100, 000 s
Slow Shutter
Yes
Auto-Iris
No
Day &Night
IR cut filter
Digital Noise Reduction
3D DNR
WDR
DWDR
Angle Adjustment (Bracket)
Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
Lens
Focal length
2.8 mm, 4 mm
Aperture
F2.0
Focus
Fixed
FOV
2.8 mm, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5°
4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°
Lens Mount
M12
IR
IR Range
Up to 30 m
Wavelength
850 nm
Compression Standard
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265/H.264/MJPEG
H.264 Type
Main Profile/High Profile/Baseline Profile
H.265 Type
Main Profile
Video Bit Rate
32 Kbps to 8 Mbps
Smart Feature-set
Region of Interest
1 fixed region for main stream
Max. Resolution
1920 × 1080
Main Stream
Max. Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement
BLC, 3D DNR
Image Setting
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or
web browser
Day/Night Switch
Auto, scheduled, day, night
Network
Alarm Trigger
Motion detection, video tampering alarm, illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Firmware Version
V5.5.83
API
ONVIF (PROFILE S), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator, and User
Specification
Page 3
Available Models
IPC-B121H (2.8/4 mm), IPC-B121H-M (2.8/4 mm)
Client
HiLookVision PC Client, HiLookVision App
Web Browser
IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and Current
12 VDC, 0.3 A, Max: 3.5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W
Protection Level
IP67
Material
Without –M model:
Front cover: metal, camera body: plastic, bracket: plastic
-M model:
Front cover: metal, camera body: metal, bracket: metal
Dimensions
Without –M model:
Ø 70 mm × 186.3 mm (Ø 2.8" × 7.3")
With –M model:
Ø 70 mm × 181.6 mm (Ø 2.8" × 7.1")
Weight
Without –M model:
Camera: Approx. 270 g (0.6 lb.)
With package: Approx. 510 g (1.1 lb.)
-M model:
Camera: Approx. 390 g (0.9 lb.)
With package: Approx. 630 g (1.4 lb.)
Page 4
Dimensions
120°
71.4(2.8")
66.7(2.6")
186.3(7.3")
Without –M Model
181.6(7.1")
71.4(2.8")
66.7(2.6")
With –M Model
Accessory
HIA-J101
Junction Box
