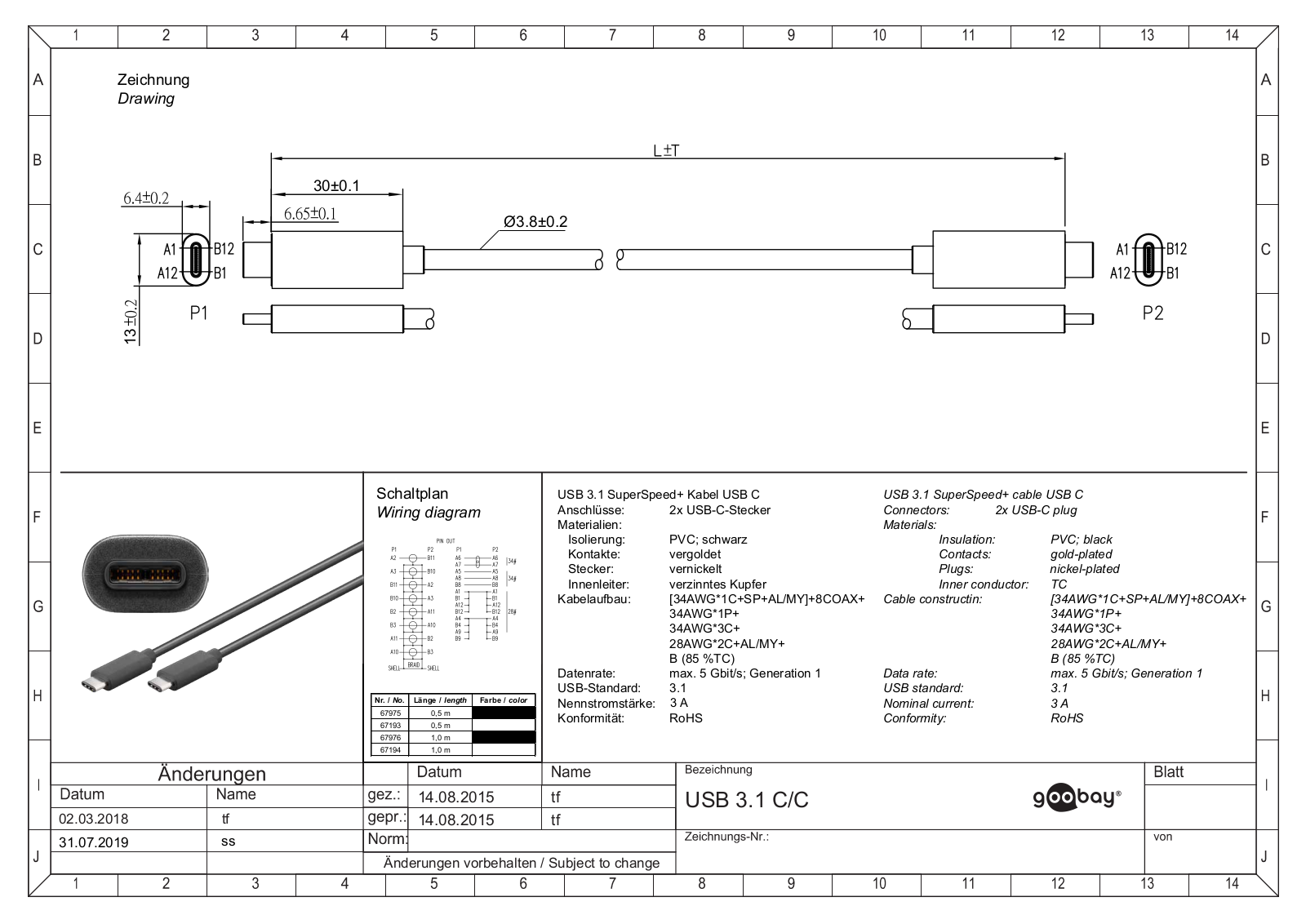

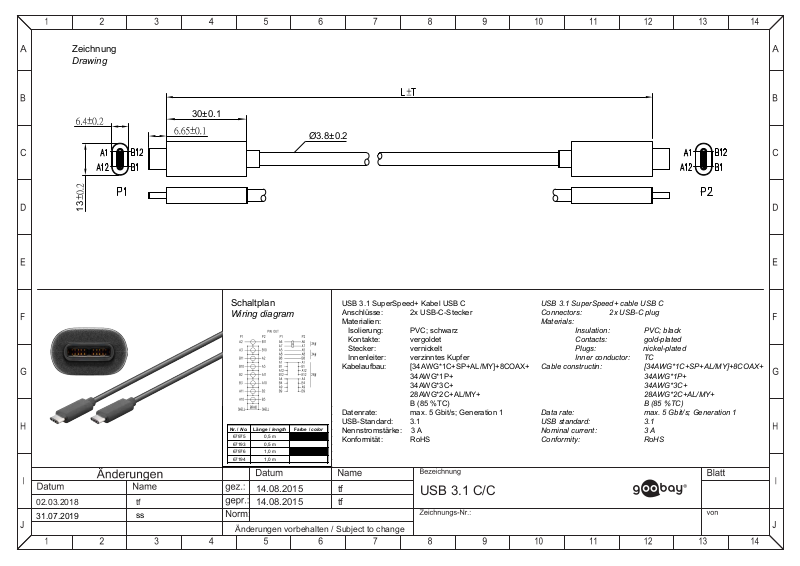

Zeichnung
Nr. / No. Län ge / length Farbe / color
Drawing
13
30±0.1
Ø3.8±0.2
02.03.2018 tf
31.07.2019
ss
Schaltplan
Wiring diagram
67975 0,5 m
67193 0,5 m
67976 1,0 m
67194 1,0 m
USB 3.1 SuperSpeed+ Kabel USB C
Anschlüsse: 2x USB-C-Stecker
Materialien:
Isolierung: PVC; schwarz
Kontakte: vergoldet
Stecker: vernickelt
Innenleiter: verzinntes Kupfer
Kabelaufbau: [34AWG*1C+SP+AL/MY]+8COAX+
34AWG*1P+
34AWG*3C+
28AWG*2C+AL/MY+
Datenrate: max. 5 Gbit/s; Generation 1
USB-Standard: 3.1
Nennstromstärke:
Konformität: RoHS
14.08.2015 tf
14.08.2015 tf
Änderungen vorbehalten / Subject to change
B (85 %TC)
3 A
USB 3.1 C/C
USB 3.1 SuperSpeed+ cable USB C
Connectors: 2x USB-C plug
Materials:
Insulation: PVC; black
Contacts: gold-plated
Plugs: nickel-plated
Inner conductor: TC
Cable constructin: [34AWG*1C+SP+AL/MY]+8COAX+
34AWG*1P+
34AWG*3C+
28AWG*2C+AL/MY+
B (85 %TC)
Data rate: max. 5 Gbit/s; Generation 1
USB standard: 3.1
Nominal current: 3 A
Conformity: RoHS
