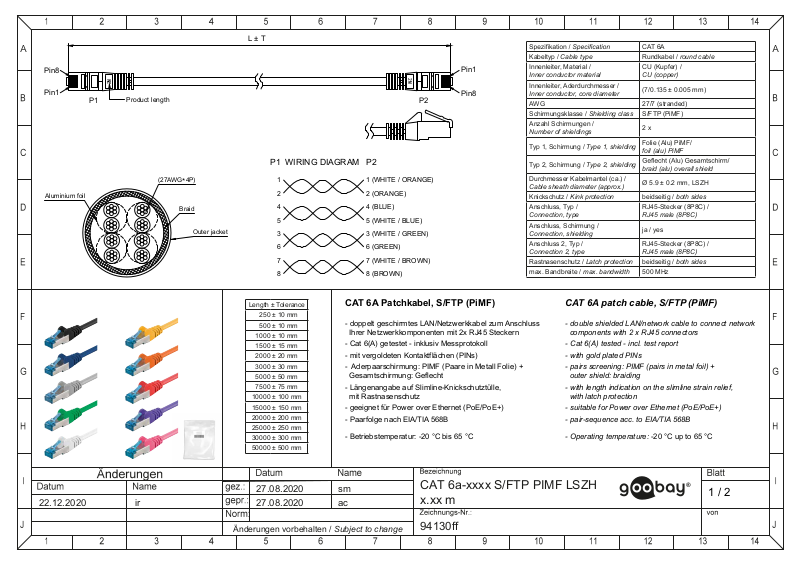

Page 1
Pin8
Pin1
Aluminium foil
2M
Product length
(27AWG
4P)
*
Braid
Outer jacket
L ± T
CAT 6A
Kabeltyp / Cable type Rundkabel / round cable
2M
P2P1
Pin1
Pin8
P2P1 WIRING DIAGRAM
1
2
4
5
3
6
7
8
1 (WHITE / ORANGE)
2 (ORANGE)
4 (BLUE)
5 (WHITE / BLUE)
3 (WHITE / GREEN)
6 (GREEN)
7 (WHITE / BROWN)
8 (BROWN)
Innenleiter, Material /
Inner conductor material
Innenleiter, Aderdurchmesser /
Inner conductor, core diameter
AWG 27/7 (stranded)
Schirmungsklasse / Shielding class S/FTP (PiMF)
Anzahl Schirmungen /
Number of shieldings
Typ 1, Schirmung / Type 1, shielding
Typ 2, Schirmung / Type 2, shielding
Durchmesser Kabelmantel (ca.) /
Cable sheath diameter (approx.)
Knickschutz / Kink protection beidseitig / both sides
Anschluss, Typ /
Connection, type
Anschluss, Schirmung /
Connection, shielding
Anschluss 2, Typ /
Connection 2, type
Rastnasenschutz / Latch protection beidseitig / both sides
max. Bandbreite / max. bandwidth 500 MHz
CU (Kupfer) /
CU (copper)
(7/0.135 ± 0.005 mm)
2 x
Folie (Alu) PiMF/
foil (alu) PiMF
braid (alu) overall shield
Ø 5.9 ± 0.2 mm, LSZH
RJ45-Stecker (8P8C) /
RJ45 male (8P8C)
ja / yes
RJ45-Stecker (8P8C) /
RJ45 male (8P8C)
22.12.2020
Length ± Tolerance
250 ± 10 mm
500 ± 10 mm
1000 ± 10 mm
1500 ± 15 mm
2000 ± 20 mm
3000 ± 30 mm
5000 ± 50 mm
7500 ± 75 mm
10000 ± 100 mm
15000 ± 150 mm
20000 ± 200 mm
25000 ± 250 mm
30000 ± 300 mm
50000 ± 500 mm
27.08.2020 sm
ir
27.08.2020 ac
Änderungen vorbehalten / Subject to change
CAT 6A Patchkabel, S/FTP (PiMF)
- doppelt geschirmtes LAN/Netzwerkkabel zum Anschluss
Ihrer Netzwerkkomponenten mit 2x RJ45 Steckern
- Cat 6(A) getestet - inklusiv Messprotokoll
- mit vergoldeten Kontaktflächen (PINs)
- Aderpaarschirmung: PIMF (Paare in Metall Folie) +
Gesamtschirmung: Geflecht
- Längenangabe auf Slimline-Knickschutztülle,
mit Rastnasenschutz
- geeignet für Power over Ethernet (PoE/PoE+)
- Paarfolge nach EIA/TIA 568B
- Betriebstemperatur: -20 °C bis 65 °C
CAT 6a-xxxx S/FTP PIMF LSZH
x.xx m
94130ff
CAT 6A patch cable, S/FTP (PiMF)
- double shielded LAN/network cable to connect network
components with 2 x RJ45 connectors
- Cat 6(A) tested - incl. test report
- with gold plated PINs
- pairs screening: PIMF (pairs in metal foil) +
outer shield: braiding
- with length indication on the slimline strain relief,
with latch protection
- suitable for Power over Ethernet (PoE/PoE+)
- pair-sequence acc. to EIA/TIA 568B
- Operating temperature: -20 °C up to 65 °C
1 / 2
Page 2
Farbe / Colour Art. L [m]
schwarz / black 94152 0.25
93664 0.50
93685 1.00
95607 1.50
93746 2.00
93787 3.00
93820 5.00
93853 7.50
93706 10.00
94153 15.00
94154 20.00
94905 30.00
94906 50.00
blau / blue 94130 0.25
93656 0.50
93677 1.00
95599 1.50
93738 2.00
93779 3.00
93812 5.00
93845 7.50
93698 10.00
94131 15.00
94133 20.00
94911 30.00
Farbe / Colour Art. L [m]
grau / grey 94137 0.25
93659 0.50
93680 1.00
95602 1.50
93741 2.00
93782 3.00
93815 5.00
93848 7.50
93701 10.00
94138 15.00
94139 20.00
94907 30.00
94908 50.00
grün / green 94140 0.25
93660 0.50
93681 1.00
95603 1.50
93742 2.00
93783 3.00
93816 5.00
93849 7.50
93702 10.00
94141 15.00
94142 20.00
Farbe / Colour Art. L [m]
weiß / white 94158 0.25
93667 0.50
93688 1.00
95609 1.50
93749 2.00
93790 3.00
93823 5.00
93856 7.50
93709 10.00
94159 15.00
94160 20.00
94909 30.00
94910 50.00
gelb / yellow 94134 0.25
93658 0.50
93679 1.00
95601 1.50
93740 2.00
93781 3.00
93814 5.00
93847 7.50
93700 10.00
94135 15.00
Farbe / Colour Art. L [m]
orange / orange 94146 0.25
93662 0.50
93683 1.00
95605 1.50
93744 2.00
93785 3.00
93818 5.00
93851 7.50
93704 10.00
rot / red 94149 0.25
93663 0.50
93684 1.00
95606 1.50
93745 2.00
93786 3.00
93819 5.00
93852 7.50
93705 10.00
94150 15.00
94151 20.00
Farbe / Colour Art. L [m]
violett / violett 94155 0.25
93666 0.50
93687 1.00
95608 1.50
93748 2.00
93789 3.00
93822 5.00
93855 7.50
93708 10.00
94156 15.00
magenta / magenta
94143 0.25
93661 0.50
93682 1.00
95604 1.50
93743 2.00
93784 3.00
93817 5.00
93850 7.50
93703 10.00
94144 15.00
27.08.2020 sm
27.08.2020 ac
Änderungen vorbehalten / Subject to change
CAT 6a-xxxx S/FTP PIMF LSZH
x.xx m
94130ff
2 / 2
