Page 1
2-INSULATION
3-PIMF:every pair with the AL FOIL shield
4-Braiding
THICKNES:0.60mm
NEXT
ELFEXT
4
62,5
100
VELOCITY OF PROPAGATION
Characteristic impedance
(1 at 100 MHz)
Ω
1
ELECTRICAL CHARACTERISTICS
31,25
10
16
20
25
50

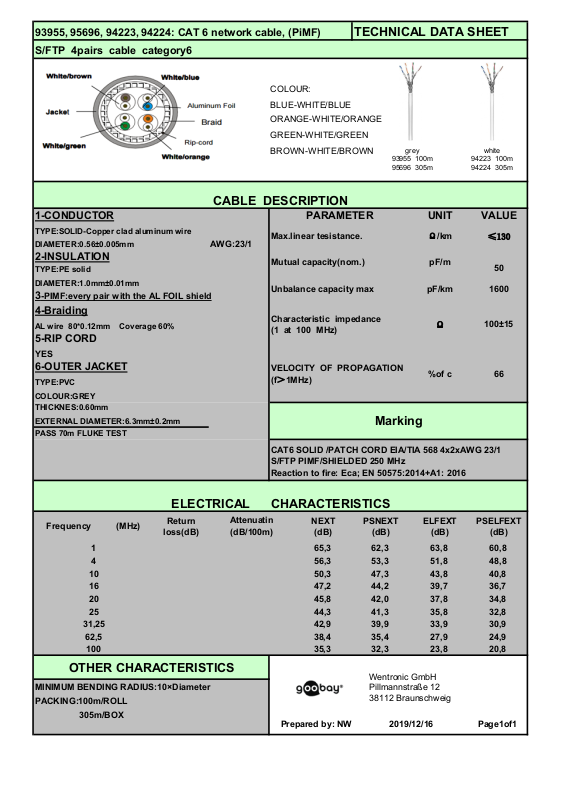

TECHNICAL DATA SHEET
S/FTP 4pairs cable category6
CABLE DESCRIPTION
Ω
≤130
PARAMETER
93955, 95696, 94223, 94224: CAT 6 network cable, (PiMF)
COLOUR:
BLUE-WHITE/BLUE
ORANGE-WHITE/ORANGE
GREEN-WHITE/GREEN
BROWN-W HITE/BROWN
grey
93955 100m
95696 305m
white
94223 100m
94224 305m
1-CONDUCTOR UNIT VALUE
TYPE:SOLID-Copper clad aluminum wire
DIAMETER:0.56±0.005mm
AWG:23/1
Max.linear tesistance.
/km
TYPE:PE solid
DIAMETER:1.0mm±0.01mm
AL wire 80*0.12mm Coverage 60%
5-RIP CORD
YES
6-OUTER JACKET
TYPE:PVC
COLOUR:GREY
EXTERNAL DIAMETER:6.3mm±0.2mm
PASS 70m FLUKE TEST
Frequency (MHz)
Return
loss(dB)
Mutual capacity(nom.)
Unbalance capacity max
(f＞1MHz)
CAT6 SOLID /PATCH CORD EIA/TIA 568 4x2xAWG 23/1
S/FTP PIMF/SHIELDED 250 MHz
Reaction to fire: Eca; EN 50575:2014+A1: 2016
Attenuatin
(dB/100m)
(dB)
Marking
PSNEXT
(dB)
pF/m
pF/km
%of c
(dB)
1600
100±15
66
PSELFEXT
(dB)
OTHER CHARACTERISTICS
MINIMUM BENDING RADIUS:10×Diameter
PACKING:100m/ROLL
305m/BOX
Prepared by: NW
65,3 62,3 63,8 60,8
56,3 53,3 51,8 48,8
50,3 47,3 43,8 40,8
47,2 44,2 39,7 36,7
45,8 42,0 37,8 34,8
44,3 41,3 35,8 32,8
42,9 39,9 33,9 30,9
38,4 35,4 27,9 24,9
35,3 32,3 23,8 20,8
Wentronic GmbH
Pillmannstraße 12
38112 Braunschweig
2019/12/16
Page1of1
