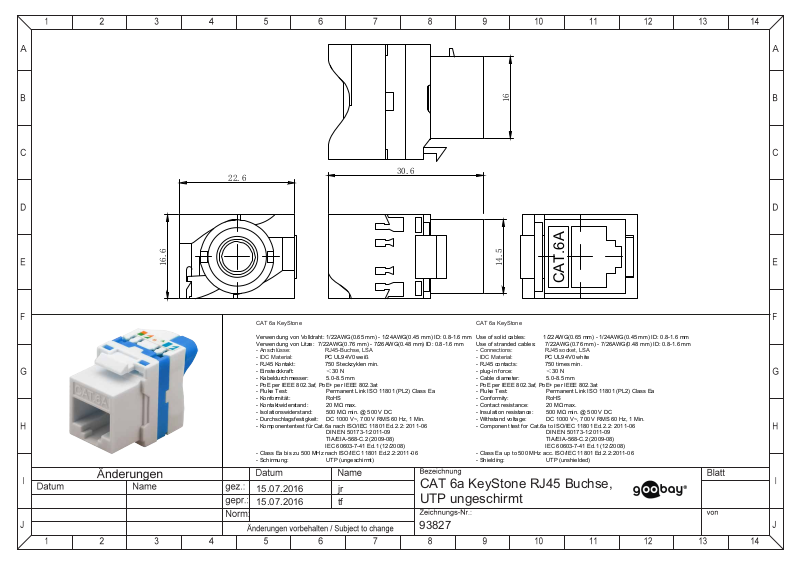

Page 1
16
16.6
22.6
30.6
CAT 6a KeyStone
Verwendung von Volldraht: 1/22AWG(0.65 mm) - 1/24AWG(0.45 mm) ID: 0.8-1.6 mm
Verwendung von Litze: 7/22AWG(0.76 mm) - 7/26AWG(0.48 mm) ID: 0.8-1.6 mm
- Anschlüsse: RJ45-Buchse, LSA
- IDC Material: PC UL94V0 weiß
- RJ45 Kontakt: 750 Steckzyklen min.
- Einsteckkraft: ＜30 N
- Kabeldurchmesser: 5.0-8.5 mm
- PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
- Fluke Test: Permanent Link ISO 11801 (PL2) Class Ea
- Konformität: RoHS
- Kontaktwiderstand: 20 MΩ max.
- Isolationswiderstand: 500 MΩ min. @ 500 V DC
- Durchschlagsfestigkeit: DC 1000 V~, 700 V RMS 60 Hz, 1 Min.
- Komponententest für Cat.6a nach ISO/IEC 11801 Ed.2.2: 2011-06
DIN EN 50173-1:2011-09
TIA/EIA-568-C.2 (2009-08)
IEC 60603-7-41 Ed.1 (12/2008)
- Class Ea bis zu 500 MHz nach ISO/IEC 11801 Ed.2.2:2011-06
- Schirmung: UTP (ungeschirmt)
14.5
CAT.6A
CAT 6a KeyStone
Use of solid cables: 1/22AWG(0.65 mm) - 1/24AWG(0.45 mm) ID: 0.8-1.6 mm
Use of stranded cables: 7/22AWG(0.76 mm) - 7/26AWG(0.48 mm) ID: 0.8-1.6 mm
- Connections: RJ45 socket, LSA
- IDC Material: PC UL94V0 white
- RJ45 contacts: 750 times min.
- plug-in force: ＜30 N
- Cable diameter: 5.0-8.5 mm
- PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
- Fluke Test: Permanent Link ISO 11801 (PL2) Class Ea
- Conformity: RoHS
- Contact resistance: 20 MΩ max.
- Insulation resistance: 500 MΩ min. @ 500 V DC
- Withstand voltage: DC 1000 V~, 700 V RMS 60 Hz, 1 Min.
- Component test for Cat.6a to ISO/IEC 11801 Ed.2.2: 2011-06
DIN EN 50173-1:2011-09
TIA/EIA-568-C.2 (2009-08)
IEC 60603-7-41 Ed.1 (12/2008)
- Class Ea up to 500 MHz acc. ISO/IEC 11801 Ed.2.2:2011-06
- Shieldíng: UTP (unshielded)
15.07.2016 jr
15.07.2016 tf
CAT 6a KeyStone RJ45 Buchse,
UTP ungeschirmt
93827
