Goobay 90658, 90659, 90660 User guide

Ultra HDMI Splitter 1 x 2 Modell: 90658

Ultra HDMI Splitter 1 x 2 Model: 90658

Ultra HDMI Splitter 1 x 4 Modell: 90659

Ultra HDMI Splitter 1 x 4 Model: 90659

Ultra HDMI Splitter 1 x 8 Modell: 90660

Ultra HDMI Splitter 1 x 8 Model: 90660

User‘s manual

User‘s manual

Ultra HDMI Splitter 1 x 2

Model: 90658

Ultra HDMI Splitter 1 x 4

Model: 90659

Ultra HDMI Splitter 1 x 8

Model: 90660

ATTENTION! Please read the user User‘s manualcompletely and carefully. It is
part of the product and includes important information for proper installation and
use. Keep this guide to have it available, when there are uncertainties, or the
product will be passed on.

Contents Page

1 Description and Function 8

2 Intended Use 8

3 Notes on Safety 9

4 Parts Package 9

5 Operating Elements 9
6 Preparation 10
7 Connection, Implementing and Operation 10
8 Care, Maintenance, Storage, and Transport 10
9 Troubleshooting 11
10 Specications 11
11 Warranty and Liability 12
12 General Note 12
13 Note on Waste Disposal 12
14 EC Declaration 12

1 Description and Function

Enlarge your Home Entertainment System with the 4K/2K Splitter serie. The 4K/2K Splitters
offer the possibility to connect one source device (e.g. DVD Player) to up to 8 Quad HD
output sources.at the same time.

Source Devices: sources like SAT Receiver, DVD-Player, Blue Ray- Player, PCs, etc.
Output Devices: drains like monitors, video projectors, HDTVs, etc.

2 Intended Use:

Your 4K/2K Splitter is provided for audio-/video use only. It is not allowed to
use the device in other ways than described in chapter “Description and
Function”. Use this device only in dry interior rooms. The symbol with the
house reminds you of that. If you do not attend to these regulations and notes on

safety, it might causes fatal accidents, injuries and damages to persons and property.

8

3 Notes on Safety

ATTENTION! Only skilled electricians may assemble and disassemble the
housing of the product. There is a risk of electric shock and short circuit!

• Your product is not a toy and is not meant for children, because it contains small parts
which can be swallowed and can injure when used inappropriately!

• Install the system and devices attached to it in a way that persons cannot be injured, or
objects not be damaged for example by dropping or stumbling.

• Remove the packing materials, because children may cut themselves on them
while playing. Furthermore, there is a risk of swallowing and inhalation of incidentals and
insulating material.

• We recommend that the installation only be performed by qualied technicians.

• Remove the mains plug from mains during thunder storms an when not in use.

• Avoid extreme conditions, such as extreme heat, cold, humidity or direct exposure to the
sun, as well as vibrations and mechanical pressure.

• Do not install the product close to openings of air conditioners, or at places with an
excessive amount of dust or smoke.

• Do not install the product at places subject to vibration, or oscillation.

• Do not modify and alter the product and any accessories! Make sure you also read the
Chapter “Warranty and Liability”. Do not use any damaged parts.

• Do not plug things like metal parts and untting cables into ventilation slots or ports.
There is a risk of electric shock and short circuit!

• Plug and unplug all cables slowly and carefully.

• During transport, observe the details listed in the Chapter “Specications”, and imple-
ment measures suitable for transport, e.g. use the original package.

• For questions, defects, mechanical damages, malfunctions, and other functional
problems which cannot be resolved by this guide, please contact your dealer for repair or
replacement, as described in the Chapter “Warranty and Liability”.

4 Parts Package

• 1 pc. 4K/2K Splitter

• 1 pc. power supply

• 1 pc. user User‘s manual

5 Operating Elements

(1) 5V DC electric supply (5) channel LED for indication
(2) HDMITM outputs (6) RESET button
(3) HDMITM input (7) SIGNAL LED for operation mode
(4) HDMITM outputs (8) ON/OFF switch (only 90660)

9

User‘s manual

6 Preparation

• To set the audio output caliber, read the User‘s manual of the source device.

• We recommend making sure, that the same high resolution, color depth and audio
caliber are supported by the connected source and output devices.

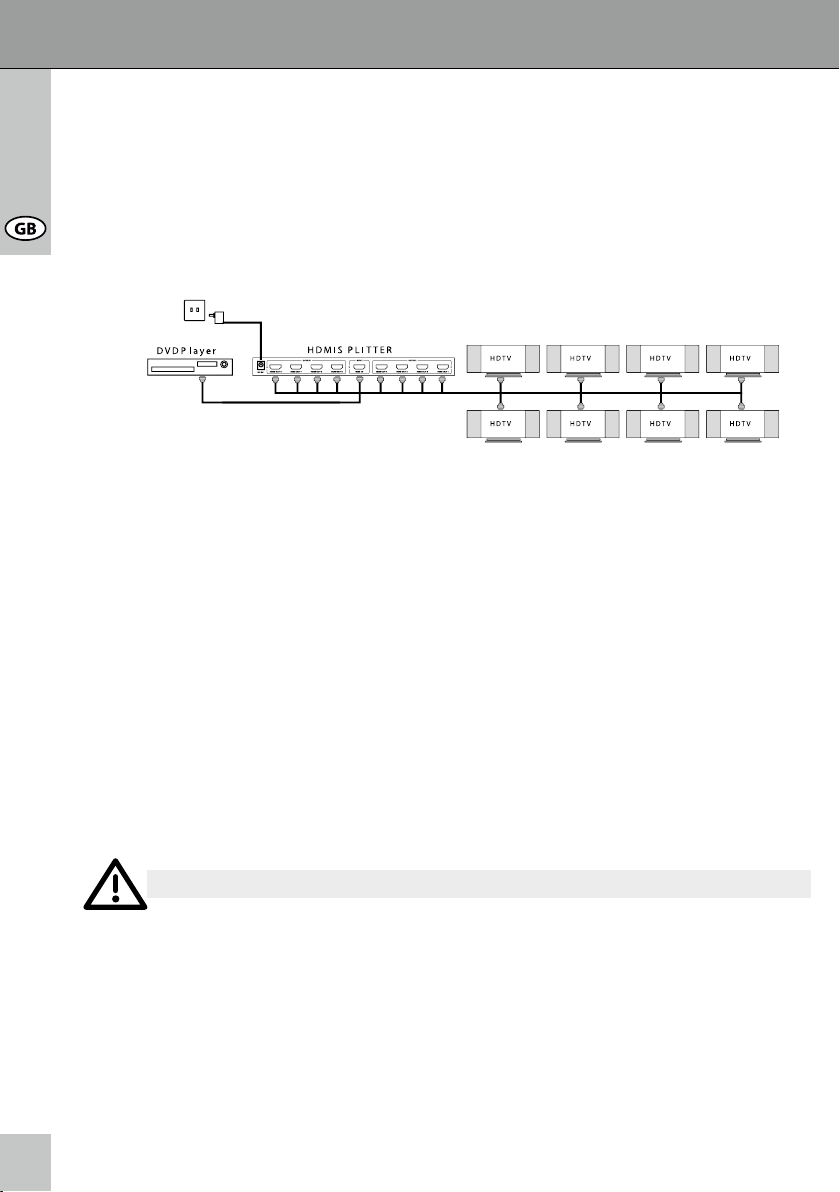

7 Connection, Implementing and Operation

1. Connect the output devices (e.g. HDTV) to the outputs of the 4K/2K Splitter with a
HDMITM cable. After connecting the output devices, the corresponding channel LED will
ash on green.

2. Connect the source device (e.g. DVD Player) to the input of the 4K/2K Splitter with a
HDMITM cable. The signal LED will ash on red.

3. Connect the power supply of the splitter to the DC socket.

4. Primary switch on the splitter before switching on source device and output devices.
All channel LEDs ash on green for a short time before they change to a durable
illumination on the allocated ports.

10

In case of a not ashing channel LED, this channel can be damaged.Please read the

instructions of chapter “Troubleshooting” or contact your dealer.

8 Care, Maintenance, Storage, and Transport

ATTENTION! There is a risk of electric shock and short circuit!

• Remove the mains plug from mains! Use a dry and soft cloth to clean your product, or
use a slightly moist cloth for heavy stains. Look out for live cables of your device during
cleaning!

• Attend avoiding risks of stumbling by installing the cables.

• Make sure there is sufcient space around the system to ensure proper ventilation, and
check the clearance of the system, if necessary.

• Avoid places with high temperatures, humidity, or places which can become wet, also
during care, maintenance, storage, and transport.

• Drill holes are still visible on the wall after the device and the wall installation kit is
removed. After use for a longer time period, a spot may remain on the wall.

• Follow the safety symbols on the packing during transport.

9 Troubleshooting

Problem Action

No picture - Make sure, all connections to source devices and output device

are properly plugged in by HDMITM cables.

- Check if all devices are connected with a power cable and if they
are switched on.

- Check all connections and cables for damages.

Pictures without
tone

HDCP does not
work during the rst

connection

Resolution does not
reach 2160p.

- Mind conclusive connections of the cables.

- Check, if the used cable only can transmit pictures like DVI
cables. By using a DVI to HDMI

TM

adaptor, pictures are only

transmitted, too.

- If you connect the output devices with a source device, HDCP
will lock the audio track or the complete function.

- Push the RESET button for about 3 seconds or switch the
4K/2K Splitter off and on for one time.

- Make sure that the source devices (e.g. DVD Player) and output
devices (e.g. a TV) support a resolution of 2160p.

- Also check your HDMI

TM

cables, supporting 2160p.

10 Specications

Model 4K/2K Splitter 1 x 2 4K/2K Splitter 1 x 4 4K/2K Splitter 1 x 8

Operating voltage 100-240V AC / 50-60Hz (5V DC)

Outputs

Weight in g 115 277 1000

Measurements in mm 8 4 x 48 x 24.5 150 x 65 x 26 276 x 156 x 24.5

Inputs

Pulse frequency up to 225MHz

Resolution/color depth up to 2160p Quad HD / 12Bit

Signal Speed up to 10.2 Gbps

Housing Metal

Sockets

Max. cable length

Supported formats

Bandwidth

Power Consumption 2.5W 3.25W 6.5W

Temperature range 0°C to 70°C

2 x HDMI

TM

sockets 4 x HDMITM sockets 8 x HDMITM sockets

TM

socket

TM

gold plated

up to 340 MHz

HD Dolby

1 pc. HDMI

19 PIN HDMI

10.0 m without ampli cation

TM

, True HD, 3D, HDCP 2.0 copy protection

11

User‘s manual

11 Warranty and Liability

• The producer grants a 2 years guarantee to a new device..

• As the manufacturer has no inuence on installation, warranty of the product only

applies to the product.

• If any fault or damage is detected on your device, please contact your dealer and provide

your sales slip or invoice as evidence of the purchase, if necessary. Your dealer will
repair the fault either on site, or send the device to the manufacturer. You make the work
of our technicians considerably easier, when you describe possible faults in detail – only
then you can be assured that faults occurring only rarely will be found and repaired with
certainty! If your dealer cannot be contacted, you can also contact us directly.

• The manufacturer is not liable for damages to persons or property caused by improper

installation or operation not described in this guide. This includes, among others, any
alteration and modication of the product and its accessories.

• Any use other than described in this user‘s guide is not permitted, and causes loss of

warranty, loss of guarantee, and non-liability.

• We reserve our right for misprints and changes of the device, packing, or user‘s guide.

12 General Notes

• HDMI, the HDMI Logo and High-Denition-Multimedia-Interface are registered brands or

trademarks of the HDMI Licencing LLC.

• All Brands and trademarks are the property of their respective owners.

• The 4K/2K Splitter includes HDMITM technology.

• PS3 is a brand label of Sony Computer Entertainment Inc.

12

13 Note on Waste Disposal

In according to the European WEEE directive, electrical and electronic equipment
must not be disposed with consumers waste. The consumer is committed by law
to reposit electrical and electronic devices to public collecting points or to the
dealer at the end of the devices lifetime for free. Particulars are regulated in

national right. The symbol on the product, in the User‘s manual or at the pa­ckaging alludes to these terms. With this kind of application of used devices you achieve an
important share to environmental protection.

14 EC Declaration

With the CE sign the Goobay®, a registered trademark of the Wentronic GmbH
ensures, that the product is conformed to the basic standards and directives.

13

Revision Date 2013-12-20

Vers ion 1

®

Goobay
Pillmannstraße 12
38112 Braunschweig
Germany

Made in China

Hotline: [phone]
E-Mail: [e-mail]
Web: www.goobay.de
