Page 1
Pin
8
P
in 1
Pin 1
P1
PIN1 PIN1
PIN2 PIN2
3
PIN
PIN4 PIN4
5
PIN
6
PIN
PIN7 PIN7
8
PIN
Nr. / No. bl
77554 77555
77556
77558
77560
77562
77564
77566
77568
77570
P
P
P
P
Nr. / No. wh
Ø6.0 mm
P2
IN3
IN5
IN6
IN8
77557
77559
77561
77563
77565
77567
77569
77571
Farbe/C
olor
L±T (mm)
500 15
±
1000 30
±
1500 30
±
2000 50
±
3000 50
±
4000 75
±
5000 75
±
7500 75
±
10000 100
±
25.0

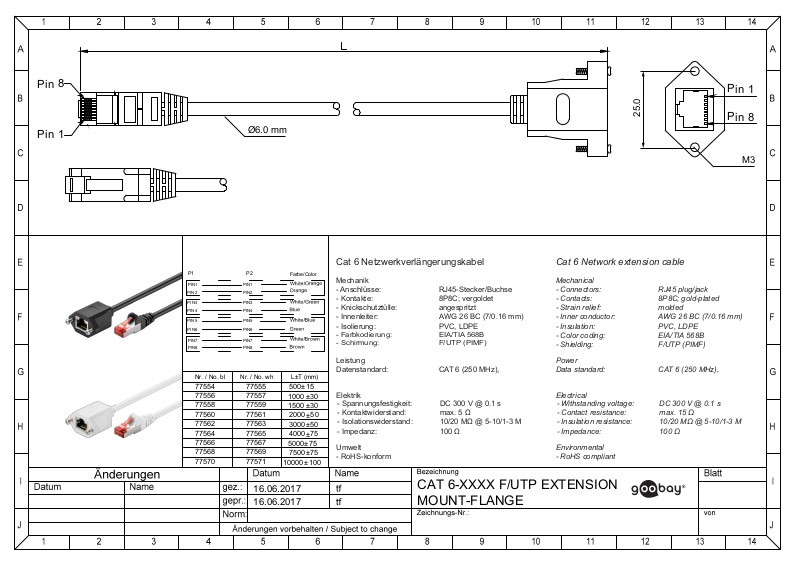

Cat 6 Netzwerkverlängerungskabel
Mechanik
- Anschlüsse: RJ45-Stecker/Buchse
- Kontakte: 8P8C; vergoldet
- Knickschutztülle: angespritzt
- Innenleiter: AWG 26 BC (7/0.16 mm)
- Isolierung: PVC, LDPE
- Farbkodierung: EIA/TIA 568B
- Schirmung:
Leistung
Datenstandard: CAT 6 (250 MHz),
Elektrik
- Spannungsfestigkeit: DC 300 V @ 0.1 s
- Kontaktwiderstand:
- Isolationswiderstand: 10/20 MΩ @ 5-10/1-3 M
- Impedanz: 100 Ω - Impedance: 100 Ω
max. 5 Ω
Umwelt
- RoHS-konform
F/UTP (PIMF)
Cat 6 Network extension cable
Mechanical
- Connectors: RJ45 plug/jack
- Contacts: 8P8C; gold-plated
- Strain relief: molded
- Inner conductor: AWG 26 BC (7/0.16 mm)
- Insulation: PVC, LDPE
- Color coding: EIA/TIA 568B
- Shielding: F/UTP (PIMF)
Power
Data standard: CAT 6 (250 MHz),
Electrical
- Withstanding voltage:
- Contact resistance:
- Insulation resistance:
Environmental
- RoHS compliant
DC 300 V @ 0.1 s
max. 15 Ω
10/20 MΩ @ 5-10/1-3 M
P
8
in
M3
16.06.2017
16.06.2017
CAT 6-XXXX F/UTP EXTENSION
MOUNT-FLANGE
