Belegung / Wiring
P1 P2
_______________________________________________________________________________________
_______________________________________________________________________________________
+ 1
- 2
Terminal Block 2-pin > BNC-Stecker
- für die schnelle Verdrahtung
mit abisolierten Kabelenden
- einsetzbar im Hobbybereich,
in der Alarmtechnik, im AV-Bereich
oder bei Testaufbauten
- Kontaktabstände: 5 mm
- Anschluss, Typ: BNC-Stecker
- Anschluss 2, Typ: Terminal Block 2-pin
- Materialien: PVC; schwarz,
ABS; grün,
Stahl
- Gewicht: 11.8 g
- Konformität: RoHS
Terminal Block 2-pin > BNC male
- for fast wiring with stripped
cable ends
- can be used for DIY, alarm techno logy or in the AV field or test
setups
- contact pitch: 5 mm
- Connection, type: BNC male
- Connection 2, type: Terminal Block 2-pin
- Materials: PVC; black,
ABS; green,
steel
- Weight: 11.8 g
- Conformity: RoHS
10.12.2018
10.12.2018

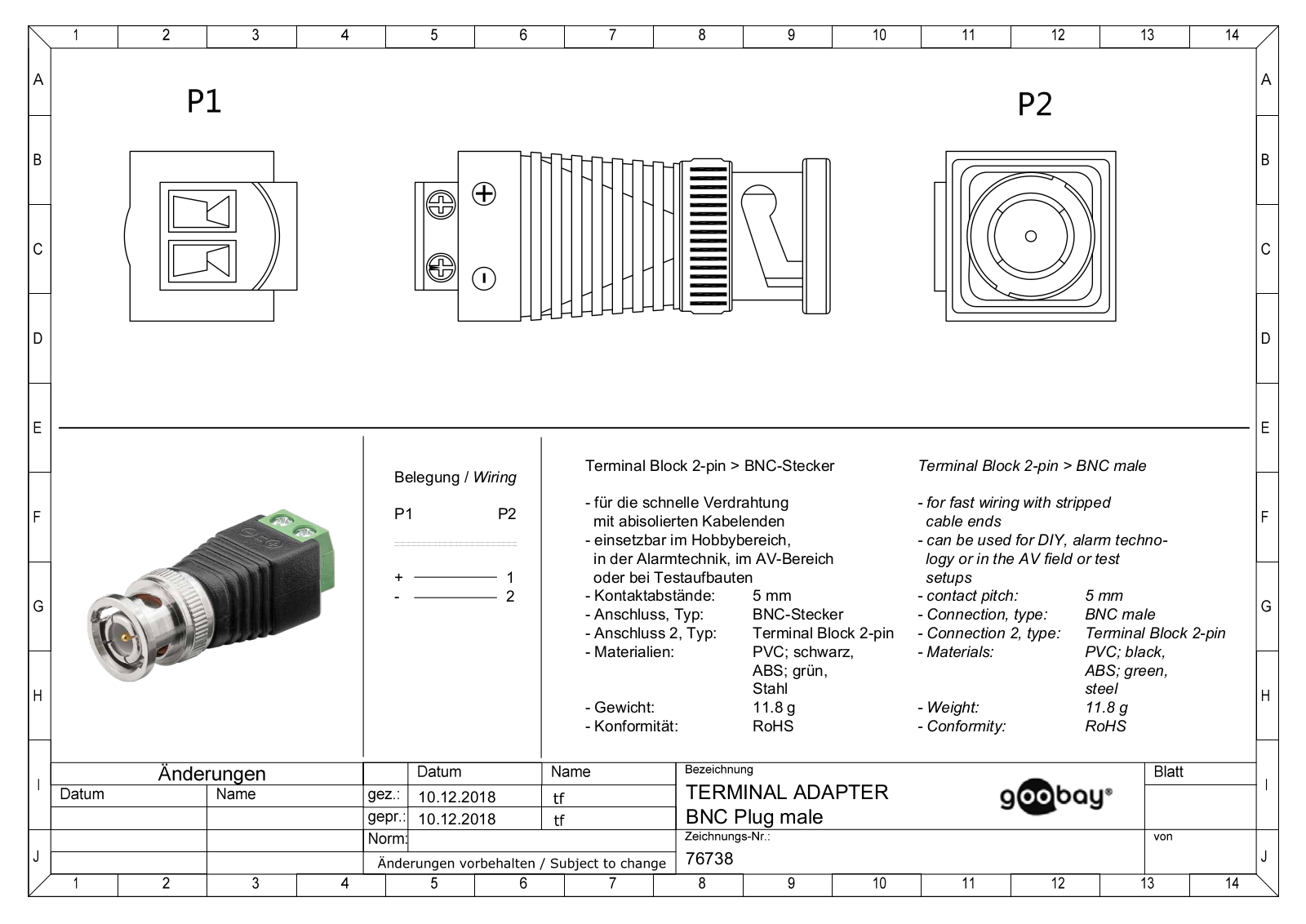

TERMINAL ADAPTER
BNC Plug male
76738
