0.5MHz 68MHz
125MHz 862MHz
TV
120MHz
88MHz
RADIO
2400MHz950MHz
SAT
- female con. for SAT, IEC connector male for
TV and FEMALE for RADIO
- RFI shielded zinc die-casting housing
- Screening efficiency acc. EN 50083-2 Class A
- Power passing 24V DC, 0.5A, IN <> SAT
Frequencyrange (MHz) Strength (dB)
Insertion loss (IN-RADIO) 0.15-26 -
88-108 2.0
111-120
120-139
Insertion loss (IN-TV)
Return loss (IN-SAT)
5-30
47-68
120-139
139-150
150-862
950-1750
1750-2150
2150-2400
IN/OUT/TV/RADIO/SAT
4.0
-
2.5
4.0
2.5
2.0
2.5
8.0
- 3-Loch Antennen-Dose (SAT/TV/Radio)
BK-, SAT und
Rundfunkanlagen
- mit DC-Durchgang
28.01.2014 tf
28.01.2014 tf
Änderungen vorbehalten / Subject to change

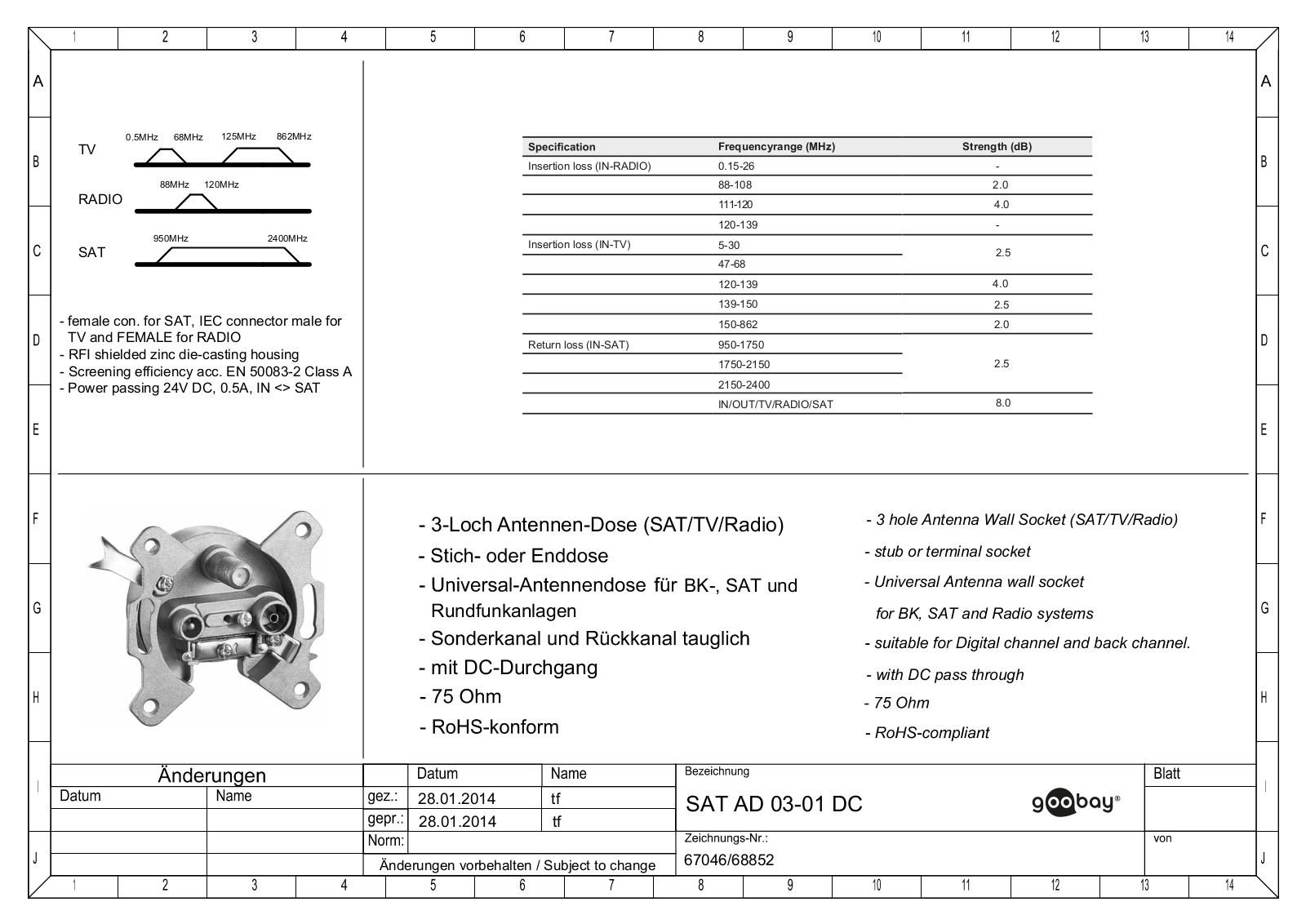

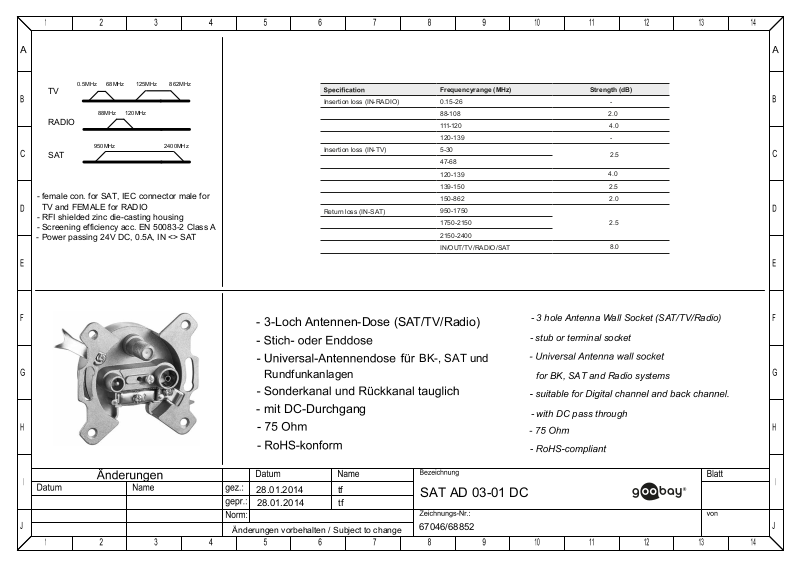

SAT AD 03-01 DC
67046/68852
- 3 hole Antenna Wall Socket (SAT/TV/Radio)
- stub or terminal socket
for BK, SAT and Radio systems
- with DC pass through
