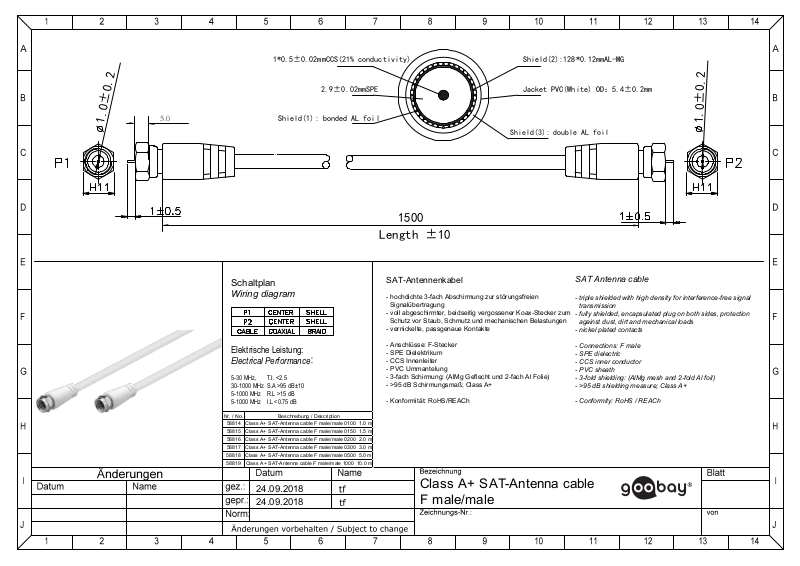

1*0.5±0.02mmCCS(21% conductivity)
Shield(2):128*0.12mmAL-MG
1.0±0.2
5.0
2.9±0.02mmSPE
Shield(1): bonded AL foil
Schaltplan
Wiring diagram
Elektrische Leistung:
Electrical Performance：
5-30 MHz, T.I. <2.5
30-1000 MHz S.A >95 dB±10
5-1000 MHz R.L >15 dB
5-1000 MHz I.L <0.75 dB
Nr. / No. Beschreibung / Description
58814 Class A+ SAT-Antenna cable F male/male 0100 1.0 m
58815 Class A+ SAT-Antenna cable F male/male 0150 1.5 m
58816 Class A+ SAT-Antenna cable F male/male 0200 2.0 m
58817 Class A+ SAT-Antenna cable F male/male 0300 3.0 m
58818 Class A+ SAT-Antenna cable F male/male 0500 5.0 m
58819
Jacket PVC(White) OD：5.4±0.2mm
Shield(3): double AL foil
1500
Length ±10
SAT-Antennenkabel
- hochdichte 3-fach Abschirmung zur störungsfreien
Signalübertragung
- voll abgeschirmter, beidseitig vergossener Koax-Stecker zum
Schutz vor Staub, Schmutz und mechanischen Belastungen
- vernickelte, passgenaue Kontakte
- Anschlüsse: F-Stecker
- SPE Dielektrikum
- CCS Innenleiter
- PVC Ummantelung
- 3-fach Schirmung: (AlMg Geflecht und 2-fach Al Folie)
- >95 dB Schirmungsmaß; Class A+
- Konformität: RoHS/REACh
1.0±0.2
SAT Antenna cable
- triple shielded with high density for interference-free signal
transmission
- fully shielded, encapsulated plug on both sides, protection
against dust, dirt and mechanical loads
- nickel plated contacts
- Connections: F male
- SPE dielectric
- CCS inner conductor
- PVC sheath
- 3-fold shielding: (AlMg mesh and 2-fold Al foil)
- >95 dB shielding measure; Class A+
- Conformity: RoHS / REACh
24.09.2018
24.09.2018
Class A+ SAT-Antenna cable
F male/male
