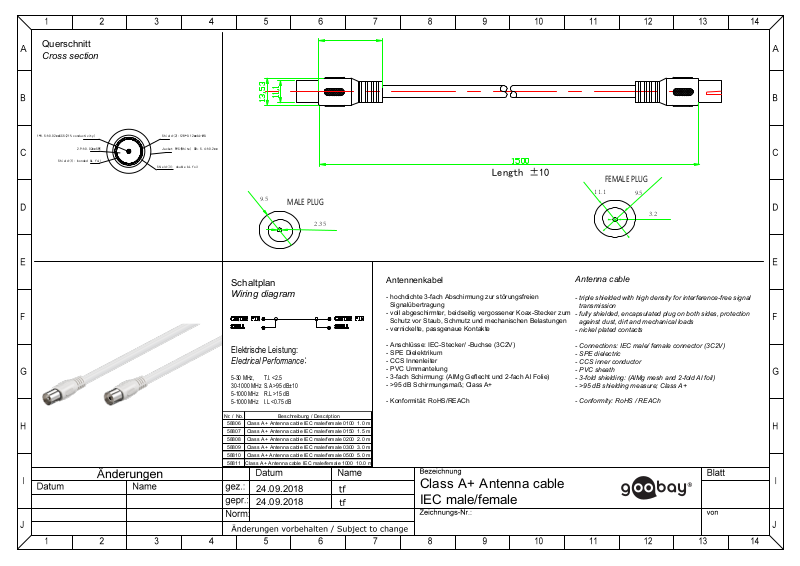

Page 1

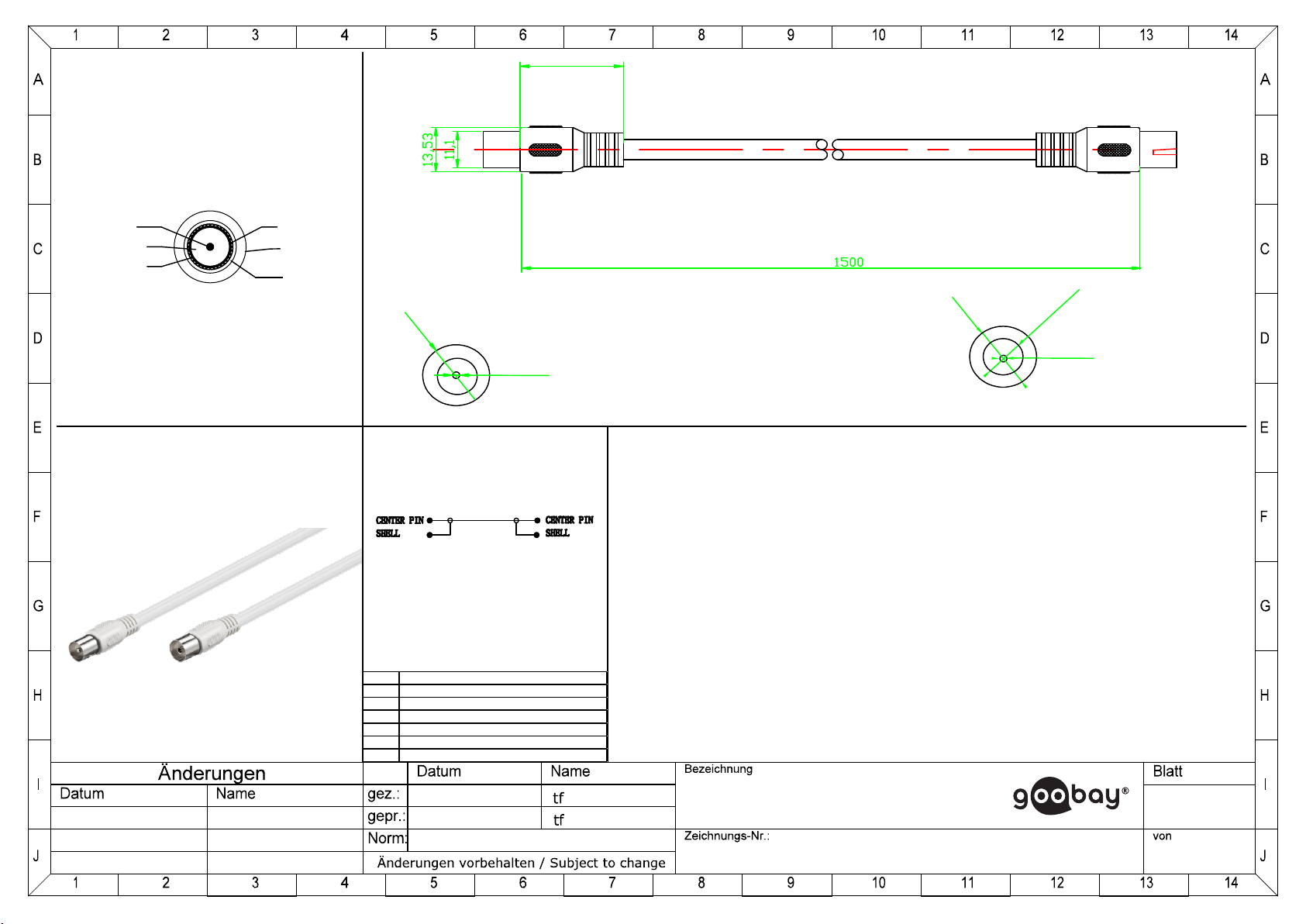

Querschnitt
Nr. / No. Beschreibung / Description
Class A+ Antenna cable IEC male/female 1000 10.0 m
Cross section
1*0.5±0.02mmCCS(21% conductivity)
2.9±0.02mmSPE
Shield(1): bonded AL foil
Shield(2):128*0.12mmAL-MG
Jacket PVC(White) OD：5.4±0.2mm
Shield(3): double AL foil
9.5
MALE PLUG
Length ±10
FEMALE PLUG
11.1
9.5
3.2
2.35
Schaltplan
Wiring diagram
Elektrische Leistung:
Electrical Performance：
5-30 MHz, T.I. <2.5
30-1000 MHz S.A >95 dB±10
5-1000 MHz R.L >15 dB
5-1000 MHz I.L <0.75 dB
Antennenkabel
- hochdichte 3-fach Abschirmung zur störungsfreien
Signalübertragung
- voll abgeschirmter, beidseitig vergossener Koax-Stecker zum
Schutz vor Staub, Schmutz und mechanischen Belastungen
- vernickelte, passgenaue Kontakte
- Anschlüsse: IEC-Stecker/ -Buchse (3C2V)
- SPE Dielektrikum
- CCS Innenleiter
- PVC Ummantelung
- 3-fach Schirmung: (AlMg Geflecht und 2-fach Al Folie)
- >95 dB Schirmungsmaß; Class A+
- Konformität: RoHS/REACh
Antenna cable
- triple shielded with high density for interference-free signal
transmission
- fully shielded, encapsulated plug on both sides, protection
against dust, dirt and mechanical loads
- nickel plated contacts
- Connections: IEC male/ female connector (3C2V)
- SPE dielectric
- CCS inner conductor
- PVC sheath
- 3-fold shielding: (AlMg mesh and 2-fold Al foil)
- >95 dB shielding measure; Class A+
- Conformity: RoHS / REACh
58806 Class A + Antenna cable IEC male/female 0100 1.0 m
58807 Class A + Antenna cable IEC male/female 0150 1.5 m
58808 Class A + Antenna cable IEC male/female 0200 2.0 m
58809 Class A + Antenna cable IEC male/female 0300 3.0 m
58810 Class A + Antenna cable IEC male/female 0500 5.0 m
58811
24.09.2018
24.09.2018
Class A+ Antenna cable
IEC male/female
