9.0 ± 0.2
L ± TP1
P2
19
1
Artikel-Nr. / Item No.
58438
58439
58440
58441
58442
58443
58445
58446
18
2
Länge ± Toleranz /
Length ± Tolerance (L ± T)
500 ± 20 mm
1000 ± 20 mm
1500 ± 20 mm
2000 ± 20 mm
3000 ± 30 mm
5000 ± 30 mm
10000 ± 50 mm
15000 ± 100 mm
AD / OD Innenleiter / Inner conductor
5.5 mm
30# (1/0.254CCS)*1P+AL}*5P+30# (1/0.254CCS)*4C+D(1/0.254CCS)+AL
5.5 mm
30# (1/0.254CCS)*1P+AL}*5P+30# (1/0.254CCS)*4C+D(1/0.254CCS)+AL
5.5 mm
30# (1/0.254CCS)*1P+AL}*5P+30# (1/0.254CCS)*4C+D(1/0.254CCS)+AL
6.0 mm
30# (1/0.254CCS)*1P+AL}*5P+30# (1/0.254CCS)*4C+D(1/0.254CCS)+AL
6.0 mm
30# (1/0.254CCS)*1P+AL}*5P+30# (1/0.254CCS)*4C+D(1/0.254CCS)+AL
6.0 mm
30# (1/0.254CCS)*1P+AL}*5P+30# (1/0.254CCS)*4C+D(1/0.254CCS)+AL
6.0 mm
30# (1/0.254CCS)*1P+AL}*5P+30# (1/0.254CCS)*4C+D(1/0.254CCS)+AL
6.0 mm
28# (1/0.32CCS)*1P+AL}*5P+30# (1/0.254CCS)*4C+D(1/0.254CCS)+AL
Kabel P / Wire P Farbe / Colour
P1 P2
1
3
4
6
7
9
10
12
14
19

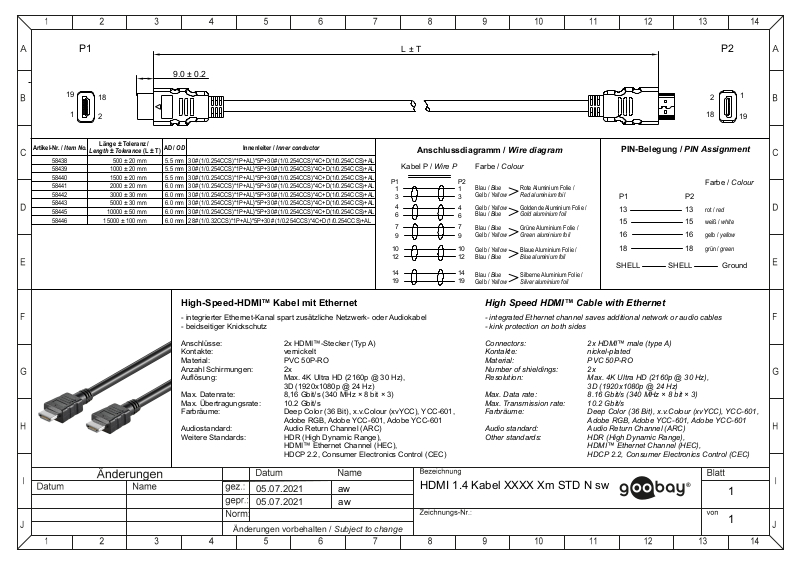

High-Speed-HDMI™ Kabel mit Ethernet
- integrierter Ethernet-Kanal spart zusätzliche Netzwerk- oder Audiokabel
- beidseitiger Knickschutz
Anschlüsse: 2x HDMI™-Stecker (Typ A)
Kontakte: vernickelt
Material: PVC 50P-RO
Anzahl Schirmungen: 2x
Auflösung: Max. 4K Ultra HD (2160p @ 30 Hz),
3D (1920x1080p @ 24 Hz)
Max. Datenrate: 8,16 Gbit/s (340 MHz × 8 bit × 3)
Max. Übertragungsrate: 10.2 Gbit/s
Farbräume: Deep Color (36 Bit), x.v.Colour (xvYCC), YCC-601,
Adobe RGB, Adobe YCC-601, Adobe YCC-601
Audiostandard: Audio Return Channel (ARC)
Weitere Standards: HDR (High Dynamic Range),
HDMI™ Ethernet Channel (HEC),
HDCP 2.2, Consumer Electronics Control (CEC)
Anschlussdiagramm / Wire diagram
1
3
4
6
7
9
10
12
14
19
Blau / Blue
Gelb / Yellow
Gelb / Yellow
Blau / Blue
Blau / Blue
Gelb / Yellow
Gelb / Yellow
Blau / Blue
Blau / Blue
Gelb / Yellow
Rote Aluminium Folie /
Red aluminium foil
Goldende Aluminium Folie /
Gold aluminium foil
Grüne Aluminium Folie /
Green aluminium foil
Blaue Aluminium Folie /
Blue aluminium foil
Silberne Aluminium Folie /
Silver aluminium foil
High Speed HDMI™ Cable with Ethernet
- integrated Ethernet channel saves additional network or audio cables
- kink protection on both sides
Connectors: 2x HDMI™ male (type A)
Kontakte: nickel-plated
Material: PVC 50P-RO
Number of shieldings: 2x
Resolution: Max. 4K Ultra HD (2160p @ 30 Hz),
3D (1920x1080p @ 24 Hz)
Max. Data rate: 8.16 Gbit/s (340 MHz × 8 bit × 3)
Max. Transmission rate: 10.2 Gbit/s
Farbräume: Deep Color (36 Bit), x.v.Colour (xvYCC), YCC-601,
Adobe RGB, Adobe YCC-601, Adobe YCC-601
Audio standard: Audio Return Channel (ARC)
Other standards: HDR (High Dynamic Range),
HDMI™ Ethernet Channel (HEC),
HDCP 2.2, Consumer Electronics Control (CEC)
2
18
PIN-Belegung / PIN Assignment
Farbe / Colour
P2P1
13
15
16
18
SHELL
SHELL
13
15
16
18
rot / red
weiß / white
gelb / yellow
grün / green
Ground
1
19
05.07.2021
05.07.2021
aw
aw
