Page 1
2-INSULATION
4
62,5
100
1
ELECTRICAL CHARACTERISTICS
31,25
10
16
20
25
50

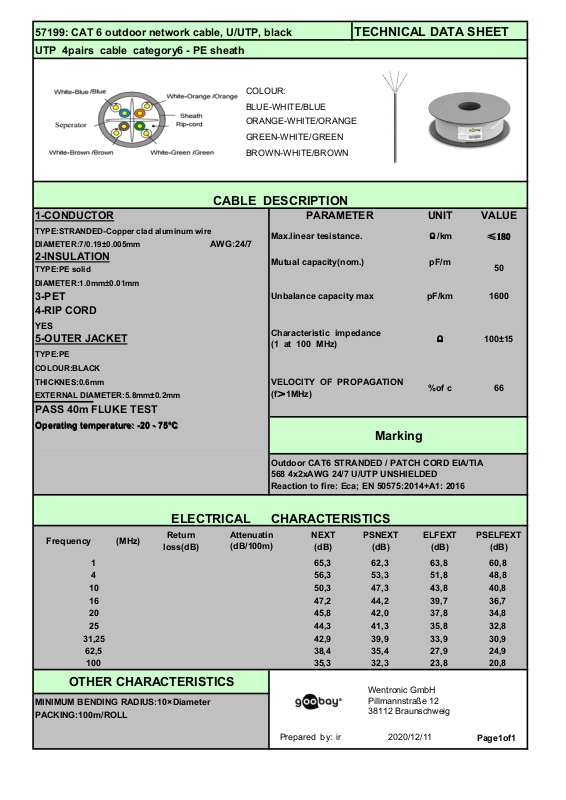

TECHNICAL DATA SHEET
UTP 4pairs cable category6 - PE sheath
CABLE DESCRIPTION
PARAMETER
57199: CAT 6 outdoor network cable, U/UTP, black
COLOUR:
BLUE-WHITE/BLUE
ORANGE-WHITE/ORANGE
GREEN-WHITE/GREEN
BROWN-WHITE/BROWN
1-CONDUCTOR UNIT VALUE
TYPE:STRANDED-Copper clad aluminum wire
DIAMETER:7/0.19±0.005mm
AWG:24/7
Max.linear tesistance.
Ω/km
≤
180
TYPE:PE solid
DIAMETER:1.0mm±0.01mm
3-PET
4-RIP CORD
YES
5-OUTER JACKET
TYPE:PE
COLOUR:BLACK
THICKNES:0.6mm
EXTERNAL DIAMETER:5.8mm±0.2mm
PASS 40m FLUKE TEST
Operating temperature: -20 - 75°C
Operating temperature: -20 - 75°C
Mutual capacity(nom.)
Unbalance capacity max
Characteristic impedance
(1 at 100 MHz)
VELOCITY OF PROPAGATION
(f＞1MHz)
pF/m
pF/km
Ω
%of c
Marking
Outdoor CAT6 STRANDED / PATCH CORD EIA/TIA
568 4x2xAWG 24/7 U/UTP UNSHIELDED
Reaction to fire: Eca; EN 50575:2014+A1: 2016
1600
100±15
66
Frequency (MHz)
Return
loss(dB)
OTHER CHARACTERISTICS
MINIMUM BENDING RADIUS:10×Diameter
PACKING:100m/ROLL
Attenuatin
(dB/100m)
NEXT
(dB)
65,3 62,3 63,8 60,8
56,3 53,3 51,8 48,8
50,3 47,3 43,8 40,8
47,2 44,2 39,7 36,7
45,8 42,0 37,8 34,8
44,3 41,3 35,8 32,8
42,9 39,9 33,9 30,9
38,4 35,4 27,9 24,9
35,3 32,3 23,8 20,8
Prepared by: ir
PSNEXT
(dB)
Wentronic GmbH
Pillmannstraße 12
38112 Braunschweig
2020/12/11
ELFEXT
(dB)
PSELFEXT
(dB)
Page1of1
