Page 1
2-INSULATION
3-PIMF:every pair with the AL FOIL shield
4-Braiding
THICKNES:0.60mm
4
62,5
100
1
ELECTRICAL CHARACTERISTICS
31,25
10
16
20
25
50

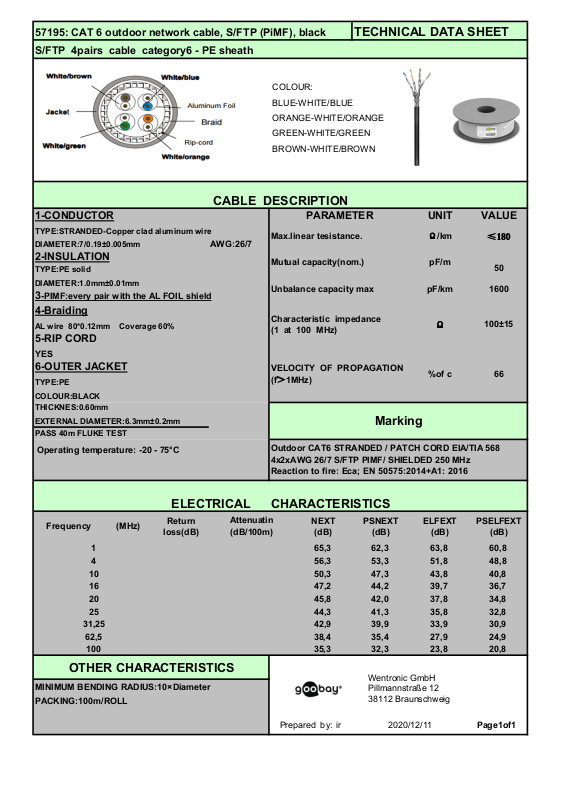

TECHNICAL DATA SHEET
S/FTP 4pairs cable category6 - PE sheath
CABLE DESCRIPTION
PARAMETER
57195: CAT 6 outdoor network cable, S/FTP (PiMF), black
COLOUR:
BLUE-WHITE/BLUE
ORANGE-WHITE/ORANGE
GREEN-WHITE/GREEN
BROWN-WHITE/BROWN
1-CONDUCTOR UNIT VALUE
TYPE:STRANDED-Copper clad aluminum wire
DIAMETER:7/0.19±0.005mm
AWG:26/7
Max.linear tesistance.
Ω/km
≤
180
TYPE:PE solid
DIAMETER:1.0mm±0.01mm
AL wire 80*0.12mm Coverage 60%
5-RIP CORD
YES
6-OUTER JACKET
TYPE:PE
COLOUR:BLACK
EXTERNAL DIAMETER:6.3mm±0.2mm
PASS 40m FLUKE TEST
Operating temperature: -20 - 75°C
Frequency (MHz)
Return
loss(dB)
Mutual capacity(nom.)
Unbalance capacity max
Characteristic impedance
(1 at 100 MHz)
VELOCITY OF PROPAGATION
(f＞1MHz)
Outdoor CAT6 STRANDED / PATCH CORD EIA/TIA 568
4x2xAWG 26/7 S/FTP PIMF/ SHIELDED 250 MHz
Reaction to fire: Eca; EN 50575:2014+A1: 2016
Attenuatin
(dB/100m)
NEXT
(dB)
Marking
PSNEXT
(dB)
pF/m
pF/km
Ω
%of c
ELFEXT
(dB)
1600
100±15
66
PSELFEXT
(dB)
OTHER CHARACTERISTICS
MINIMUM BENDING RADIUS:10×Diameter
PACKING:100m/ROLL
65,3 62,3 63,8 60,8
56,3 53,3 51,8 48,8
50,3 47,3 43,8 40,8
47,2 44,2 39,7 36,7
45,8 42,0 37,8 34,8
44,3 41,3 35,8 32,8
42,9 39,9 33,9 30,9
38,4 35,4 27,9 24,9
35,3 32,3 23,8 20,8
Prepared by: ir
Wentronic GmbH
Pillmannstraße 12
38112 Braunschweig
2020/12/11
Page1of1
