Nr. / No. Beschreibung / Description
45657 CAT 8-0025 S/FTP PIMF LSZH BLUE 0.25 m
45658 CAT 8-0050 S/FTP PIMF LSZH BLUE 0.50 m
45659 CAT 8-0100 S/FTP PIMF LSZH BLUE 1.00 m
45660 CAT 8-0200 S/FTP PIMF LSZH BLUE 2.00 m
45661 CAT 8-0300 S/FTP PIMF LSZH BLUE 3.00 m
45662 CAT 8-0500 S/FTP PIMF LSZH BLUE 5.00 m
45663 CAT 8-0750 S/FTP PIMF LSZH BLUE 7.50 m
45664 CAT 8-1000 S/FTP PIMF LSZH BLUE 10.00 m
45665 CAT 8
55119 CAT 8-2000 S/FTP PIMF LSZH BLUE 20.00 m
55120 CAT 8-2500 S/FTP PIMF LSZH BLUE 25.00 m
55122 CAT 8-0025 S/FTP PIMF LSZH WHITE 0.25 m
55123 CAT 8-0050 S/FTP PIMF LSZH WHITE 0.50 m
55124 CAT 8-0100 S/FTP PIMF LSZH WHITE 1.00 m
55125 CAT 8-0200 S/FTP PIMF LSZH WHITE 2.00 m
55126 CAT 8-0300 S/FTP PIMF LSZH WHITE 3.00 m
55127 CAT 8-0500 S/FTP PIMF LSZH WHITE 5.00 m
55128
55129 CAT 8-1000 S/FTP PIMF LSZH WHITE 10.00 m
55130 CAT 8-1500 S/FTP PIMF LSZH WHITE 15.00 m
55131 CAT 8-2000 S/FTP PIMF LSZH WHITE 20.00 m
55132 CAT 8-2500 S/FTP PIMF LSZH WHITE 25.00 m
55134 CAT 8-0025 S/FTP PIMF LSZH GREY 0.25 m
55135 CAT 8-0050 S/FTP PIMF LSZH GREY 0.50 m
55136 CAT 8-0100 S/FTP PIMF LSZH GREY 1.00 m
55137 CAT 8-0200 S/FTP PIMF LSZH GREY 2.00 m
55138 CAT 8-0300 S/FTP PIMF LSZH GREY 3.00 m
55139 CAT 8-0500 S/FTP PIMF LSZH GREY 5.00 m
55140 CAT 8-0750 S/FTP PIMF LSZH GREY 7.50 m
55141 CAT 8-1000 S/FTP PIMF LSZH GREY 10.00 m
55142 CAT 8-1500 S/FTP PIMF LSZH GREY 15.00 m
55143 CAT 8-2000 S/FTP PIMF LSZH GREY 20.00 m
55144 CAT 8-2500 S/FTP PIMF LSZH GREY 25.00 m
66719 CAT 8-0025 S/FTP PIMF LSZH BLACK 0.25 m
66720 CAT 8-0050 S/FTP PIMF LSZH BLACK 0.50
66721 CAT 8-0100 S/FTP PIMF LSZH BLACK 1.00 m
66722 CAT 8-0200 S/FTP PIMF LSZH BLACK 2.00 m
66723 CAT 8-0300 S/FTP PIMF LSZH BLACK 3.00 m
66724 CAT 8-0500 S/FTP PIMF LSZH BLACK 5.00 m
66725 CAT 8-0750 S/FTP PIMF LSZH BLACK 7.50 m
66726 CAT 8-1000 S/FTP PIMF LSZH BLACK 10.00 m
66727 CAT 8-1500 S/FTP PIMF LSZH BLACK 15.00 m
66728 CAT 8-2000 S/FTP PIMF LSZH BLACK 20.00 m
66729 CAT 8-2500 S/FTP PIMF LSZH BLA
-1500 S/FTP PIMF LSZH BLUE 15.00 m
CAT 8-0750 S/FTP PIMF LSZH WHITE 7.50 m
m
CK 25.00 m

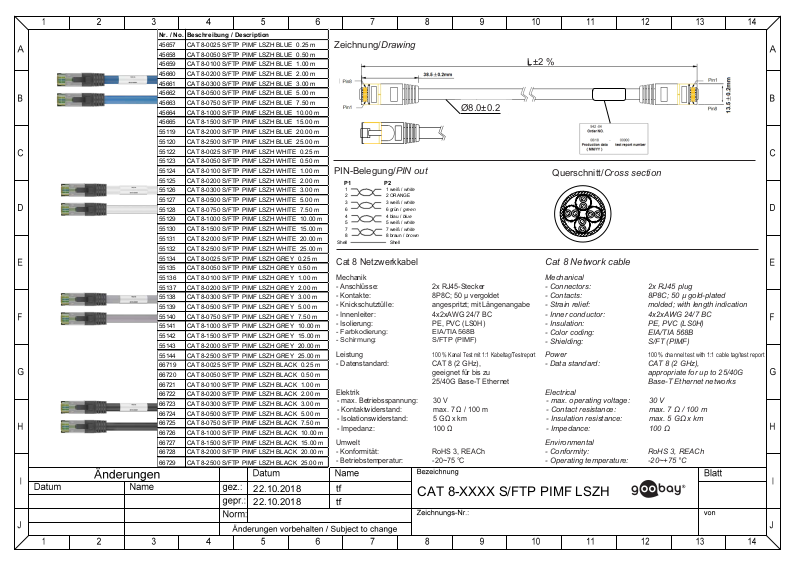

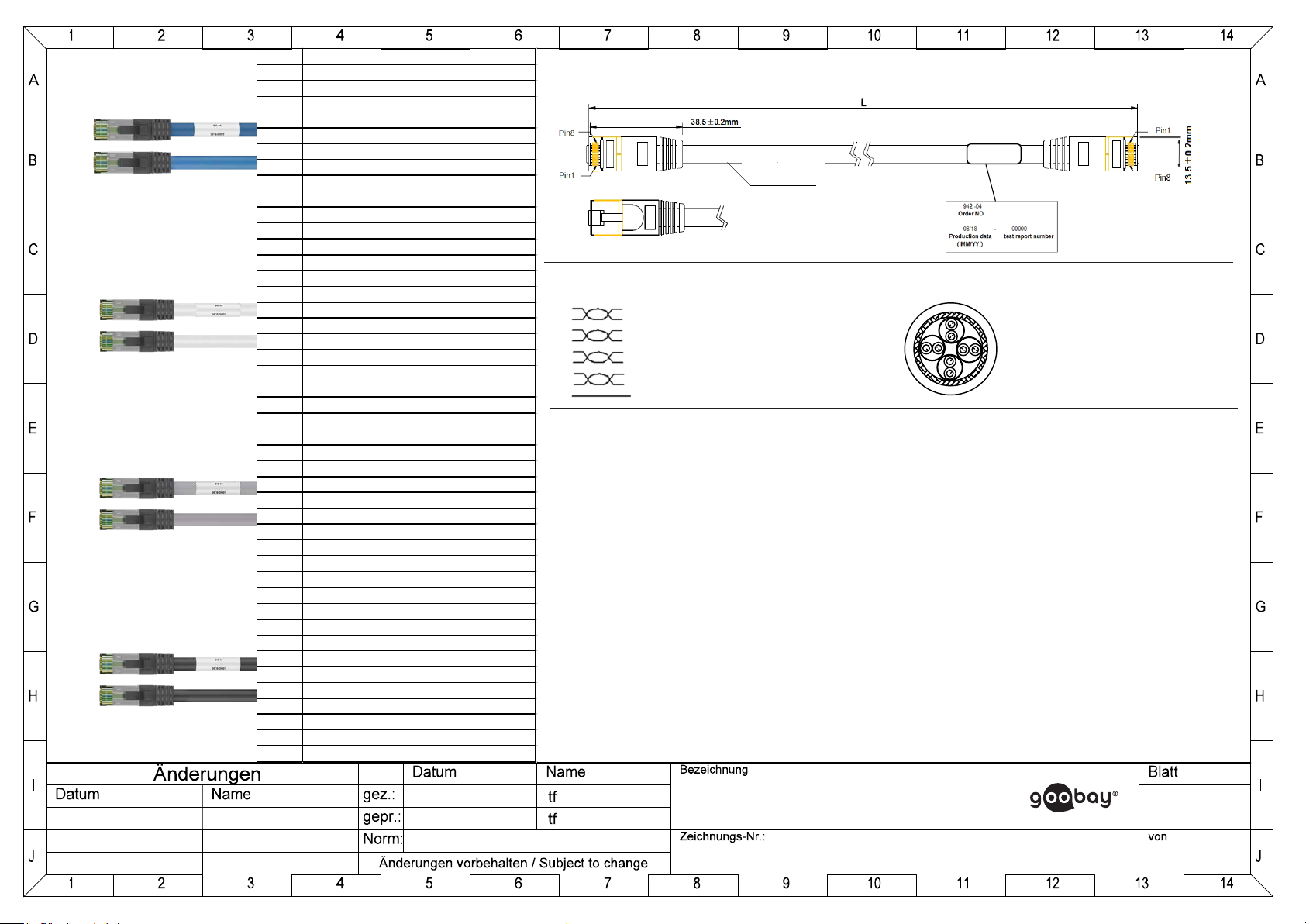

Zeichnung/Drawing
Ø8.0±0.2
CONNECTOR
PIN-Belegung/PIN out
P1 P2
1 1 weiß / white
2 2 ORANGE
3 3 weiß / white
6 6 grün / green
4 4 blau / blue
5 5 weiß / white
7 7 weiß / white
8 8 braun / brown
Shell Shell
Cat 8 Netzwerkkabel
Mechanik
- Anschlüsse: 2x RJ45-Stecker
- Kontakte: 8P8C; 50 µ vergoldet
- Knickschutztülle: angespritzt; mit Längenangabe
- Innenleiter: 4x2xAWG 24/7 BC
- Isolierung: PE, PVC (LS0H)
- Farbkodierung: EIA/TIA 568B
- Schirmung:
Leistung
- Datenstandard: CAT 8 (2 GHz),
geeignet für bis zu
Elektrik
- max. Betriebsspannung: 30 V
- Kontaktwiderstand:
- Isolationswiderstand: 5 GΩ x km
- Impedanz: 100 Ω
max. 7 Ω / 100 m
Umwelt
- Konformität: RoHS 3, REACh
- Betriebstemperatur: -20~75 °C
S/FTP (PIMF)
100 % Kanal Test mit 1:1 Kabeltag/Testreport
25/40G Base-T Ethernet
L±2 %
(T568B)
Querschnitt/Cross section
Cat 8 Network cable
Mechanical
- Connectors: 2x RJ45 plug
- Contacts: 8P8C; 50 µ gold-plated
- Strain relief: molded; with length indication
- Inner conductor: 4x2xAWG 24/7 BC
- Insulation: PE, PVC (LS0H)
- Color coding: EIA/TIA 568B
- Shielding: S/FT (PIMF)
Power
- Data standard: CAT 8 (2 GHz),
appropriate for up to 25/40G
Electrical
- max. operating voltage: 30 V
- Contact resistance:
- Insulation resistance:
- Impedance: 100 Ω
Environmental
- Conformity: RoHS 3, REACh
- Operating temperature: -20~+75 °C
100 % channel test with 1:1 cable tag/test report
Base-T Ethernet networks
max. 7 Ω / 100 m
max. 5 GΩ x km
22.10.2018
22.10.2018
CAT 8-XXXX S/FTP PIMF LSZH
