Pin-Belegung /
Pin Assignment
P1
P2
Art.-Nr. /
Item No.
41081
41082
41083
41084
47575
52766
Beschreibung / Description
HDMI 2.1 Kabel 0050 0,5m STD sw
HDMI 2.1 Kabel 0100 1,0m STD sw
HDMI 2.1 Kabel 0150 1,5m STD sw
HDMI 2.1 Kabel 0200 2,0m STD sw
HDMI 2.1 Kabel 0300 3,0m STD sw
HDMI 2.1 Kabel 0500 5,0m STD sw
Länge /
Length (L)
500 ± 20 mm
1000 ± 30 mm
1500 ± 50 mm
2000 ± 50 mm
3000 ± 50 mm
5000 ± 70 mm
AD / OD
6.0 ± 0.15 mm
6.0 ± 0.15 mm
6.0 ± 0.15 mm
6.0 ± 0.15 mm
7.3 ± 0.15 mm
7.8 ± 0.2 mm
Innenleiter Material / Material inner conductor
(1/0.254 x 1P + D (1/0.254) + AM + M) x 5 PCS + 1/0.254 x 4C + AM + D (1/0.254) + B (64/0.12ALM)
(1/0.254 x 1P + D (1/0.254) + AM + M) x 5 PCS + 1/0.254 x 4C + AM + D (1/0.254) + B (64/0.12ALM)
(1/0.254 x 1P + D (1/0.254) + AM + M) x 5 PCS + 1/0.254 x 4C + AM + D (1/0.254) + B (64/0.12ALM)
(1/0.254 x 1P + D (1/0.254) + AM + M) x 5 PCS + 1/0.254 x 4C + AM + D (1/0.254) + B (64/0.12ALM)
(7/0.12BC x 1P + 1/0.25TC + AM + M) x 5 PCS + 7/0.12BC x 4C + AM 1/0.25TC + 128/0.12ALM
(1/0.40 x 1P + D (1/0.32) + AM +HM) x 5 PCS + 1/0.40 x 4C + AM + D (1/0.40) + B (128/0.12ALM)
DRAIN
P1 P2
L
2

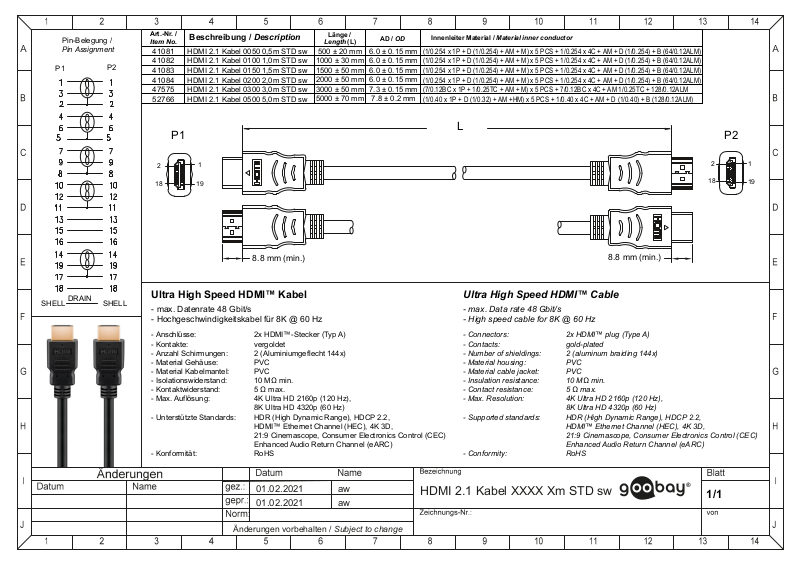

Ultra High Speed HDMI™ Kabel
SHELLSHELL
- max. Datenrate 48 Gbit/s
- Hochgeschwindigkeitskabel für 8K @ 60 Hz
- Anschlüsse: 2x HDMI™-Stecker (Typ A)
- Kontakte: vergoldet
- Anzahl Schirmungen: 2 (Aluminiumgeflecht 144x)
- Material Gehäuse: PVC
- Material Kabelmantel: PVC
- Isolationswiderstand: 10 MΩ min.
- Kontaktwiderstand: 5 Ω max.
- Max. Auflösung: 4K Ultra HD 2160p (120 Hz),
8K Ultra HD 4320p (60 Hz)
- Unterstützte Standards: HDR (High Dynamic Range), HDCP 2.2,
HDMI™ Ethernet Channel (HEC), 4K 3D,
21:9 Cinemascope, Consumer Electronics Control (CEC)
Enhanced Audio Return Channel (eARC)
- Konformität: RoHS
1
1918
8.8 mm (min.)
8.8 mm (min.)
Ultra High Speed HDMI™ Cable
- max. Data rate 48 Gbit/s
- High speed cable for 8K @ 60 Hz
- Connectors: 2x HDMI™ plug (Type A)
- Contacts: gold-plated
- Number of shieldings: 2 (aluminum braiding 144x)
- Material housing: PVC
- Material cable jacket: PVC
- Insulation resistance: 10 MΩ min.
- Contact resistance: 5 Ω max.
- Max. Resolution: 4K Ultra HD 2160p (120 Hz),
8K Ultra HD 4320p (60 Hz)
- Supported standards: HDR (High Dynamic Range), HDCP 2.2,
HDMI™ Ethernet Channel (HEC), 4K 3D,
21:9 Cinemascope, Consumer Electronics Control (CEC)
Enhanced Audio Return Channel (eARC)
- Conformity: RoHS
2 1
18
19
01.02.2021 aw
01.02.2021 aw
Änderungen vorbehalten / Subject to change
HDMI 2.1 Kabel XXXX Xm STD sw
1/1
