Art.-Nr. /
Item No.
69122
51818
51819
51820
51821
51822
69123
51824
31897
Beschreibung / Description
HDMI 1.4 Kabel 0050 0,5m STD sw
HDMI 1.4 Kabel 0100 1,0m STD sw
HDMI 1.4 Kabel 0150 1,5m STD sw
HDMI 1.4 Kabel 0200 2,0m STD sw
HDMI 1.4 Kabel 0300 3,0m STD sw
HDMI 1.4 Kabel 0500 5,0m STD sw
HDMI 1.4 Kabel 0750 7,5m STD sw
HDMI 1.4 Kabel 1000 10,0m STD sw
HDMI 1.4 Kabel 1500 15,0m STD sw
Länge /
Length (L)
0.5 m
1.0 m
1.5 m
2.0 m
3.0 m
5.0 m
7.5 m
10.0 m
15.0 m
AD / OD
5.5 mm
5.5 mm
5.5 mm
6.0 mm
6.0 mm
6.0 mm
6.0 mm
6.0 mm
6.0 mm
AWG
Innenleiter Material / Material inner conductor
30
30＃(1/0.254CCS) x 1P + AL} x 5P + 30＃(1/0.254CCS) x 4C D (1/0.254CCS) + AL
30
30＃(1/0.254CCS) x 1P + AL} x 5P + 30＃(1/0.254CCS) x 4C D (1/0.254CCS) + AL
30
30＃(1/0.254CCS) x 1P + AL} x 5P + 30＃(1/0.254CCS) x 4C D (1/0.254CCS) + AL
30
30＃(1/0.254CCS) x 1P + AL} x 5P + 30＃(1/0.254CCS) x 4C D (1/0.254CCS) + AL
30
30＃(1/0.254CCS) x 1P + AL} x 5P + 30＃(1/0.254CCS) x 4C D (1/0.254CCS) + AL
30
30＃(1/0.254CCS) x 1P + AL} x 5P + 30＃(1/0.254CCS) x 4C D (1/0.254CCS) + AL
30
30＃(1/0.254CCS) x 1P + AL} x 5P + 30＃(1/0.254CCS) x 4C D (1/0.254CCS) + AL
30
30＃(1/0.254CCS) x 1P + AL} x 5P + 30＃(1/0.254CCS) x 4C D (1/0.254CCS) + AL
28
28＃(1/0.32CCS) x 1P + AL} x 5P + 30＃(1/0.254CCS) x 4C D (1/0.254CCS) + AL
Pin-Belegung /
Pin Assignment
P1
13
15
16
18
Shell Shell Ground
Farbe / Colour
P2
13
15
16
18
Rot / Red
Weiß / White
Gelb / Yellow
Grün / Green
P1 P2
19 18
21
L

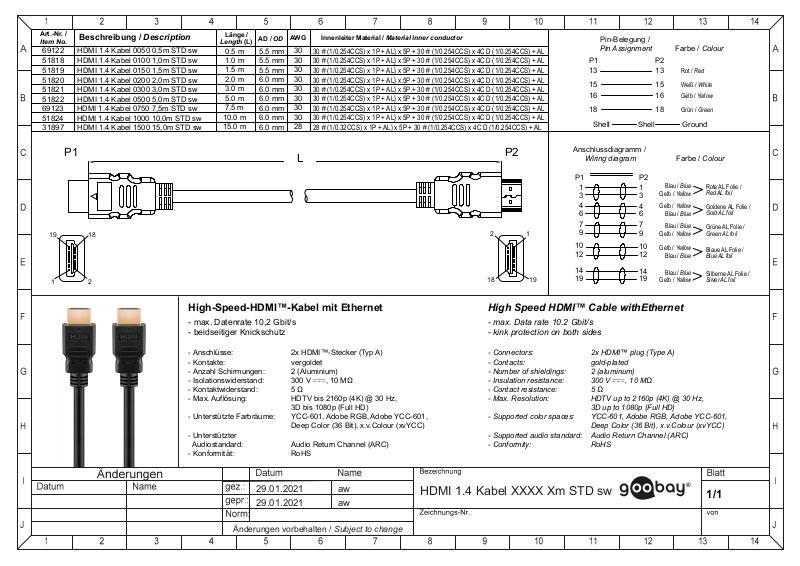

High-Speed-HDMI™-Kabel mit Ethernet
- max. Datenrate 10,2 Gbit/s
- beidseitiger Knickschutz
- Anschlüsse: 2x HDMI™-Stecker (Typ A)
- Kontakte: vergoldet
- Anzahl Schirmungen: 2 (Aluminium)
- Isolationswiderstand: 300 V , 10 MΩ
- Kontaktwiderstand: 5 Ω
- Max. Auflösung: HDTV bis 2160p (4K) @ 30 Hz,
3D bis 1080p (Full HD)
- Unterstützte Farbräume: YCC-601, Adobe RGB, Adobe YCC-601,
Deep Color (36 Bit), x.v.Colour (xvYCC)
- Unterstützter
Audiostandard: Audio Return Channel (ARC)
- Konformität: RoHS
Anschlussdiagramm /
Wiring diagram
P1
1
3
4
6
7
2
1
1918
9
10
12
14
19
P2
1
3
4
6
7
9
10
12
14
19
Farbe / Colour
Blau / Blue
Gelb / Yellow
Gelb / Yellow
Blau / Blue
Blau / Blue
Gelb / Yellow
Gelb / Yellow
Blau / Blue
Blau / Blue
Gelb / Yellow
Rote AL Folie /
Red AL foil
Goldene AL Folie /
Gold AL foil
Grüne AL Folie /
Green AL foil
Blaue AL Folie /
Blue AL foil
Silberne AL Folie /
Silver AL foil
High Speed HDMI™ Cable withEthernet
- max. Data rate 10.2 Gbit/s
- kink protection on both sides
- Connectors: 2x HDMI™ plug (Type A)
- Contacts: gold-plated
- Number of shieldings: 2 (aluminum)
- Insulation resistance: 300 V , 10 MΩ
- Contact resistance: 5 Ω
- Max. Resolution: HDTV up to 2160p (4K) @ 30 Hz,
3D up to 1080p (Full HD)
- Supported color spaces: YCC-601, Adobe RGB, Adobe YCC-601,
Deep Color (36 Bit), x.v.Colour (xvYCC)
- Supported audio standard: Audio Return Channel (ARC)
- Conformity: RoHS
29.01.2021 aw
29.01.2021 aw
Änderungen vorbehalten / Subject to change
HDMI 1.4 Kabel XXXX Xm STD sw
1/1
