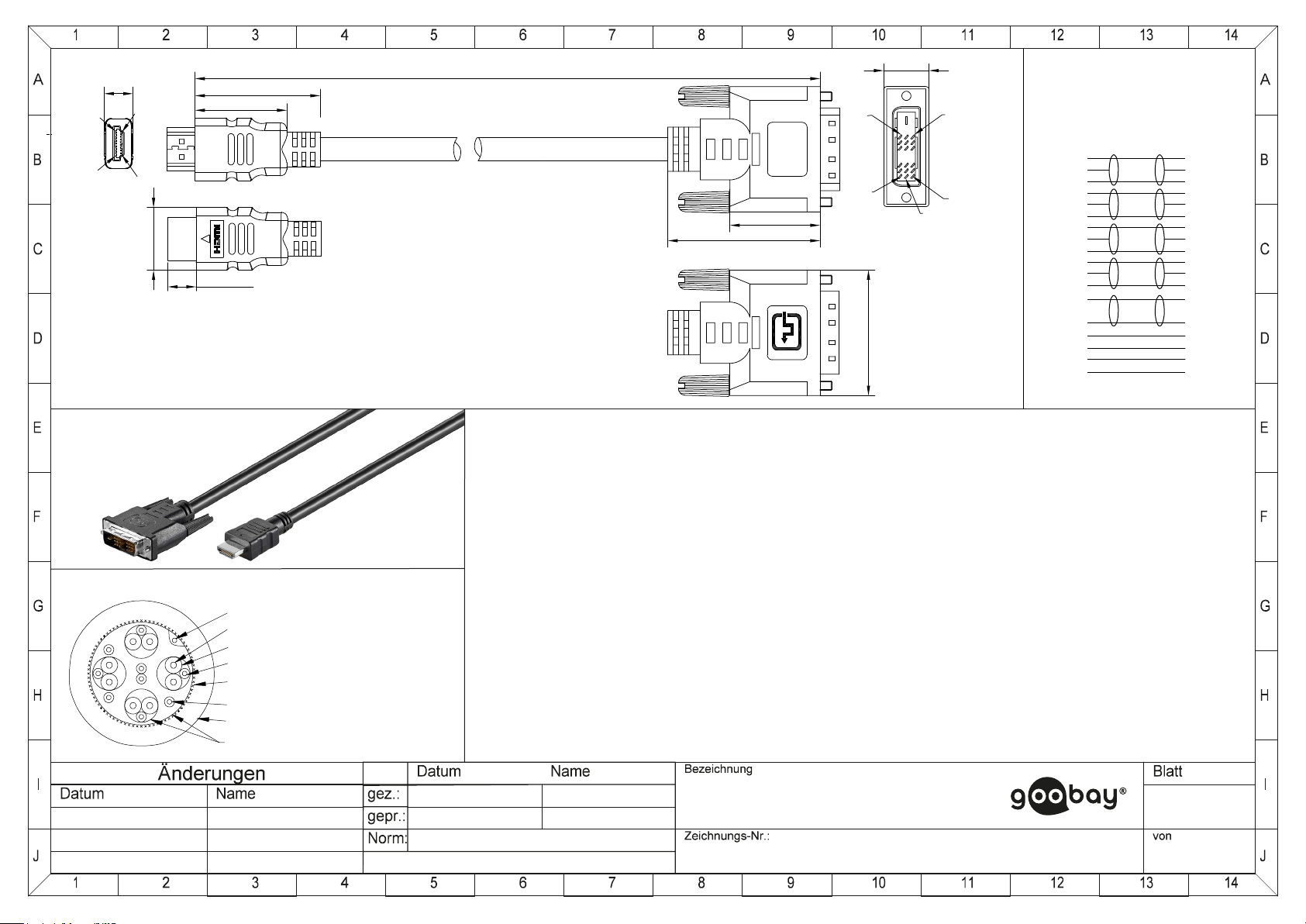

Page 1
10.8 ± 0.2
19
1
10000 ± 100 mm 15.5 ± 0.2
40 ± 0.2
18
2
20 ± 0.2
28.9 ± 0.2
9.2 ± 0.2
46.5 ± 0.2
28 ± 0.2
24
17
8
1
9
41 ± 0.2
Pin-Belegung / Pin Assignment
P1
HDMI AM
1
2
3
4
5
6
7
8
9
10
11
12
15
16
17
18
19
Shell
P2
DVI M (24+1)
2
3
1
10
11
9
18
19
17
23
22
24
6
7
15
14
16
Shell
Aderquerschnitt / Wire cross section
Erdung / Drain: 1C/0.23CCS
Leiter / Conductor: 1C/0.32CCS
Isolation / Insulation: FM-PE+SKIN; ID: Ø0.85 ± 0.05 (4P)
Erdung / Drain: 1C/0.23CCS + HDPE ID: Ø 0.5 ± 0.05
Kabelgeflecht / Braid: 16#/5C/0.12AM
(1C/0.23CCS + HDPE ID: Ø 0.5 ± 0.05) X 5C
Mantel / Jacket
Aluminium

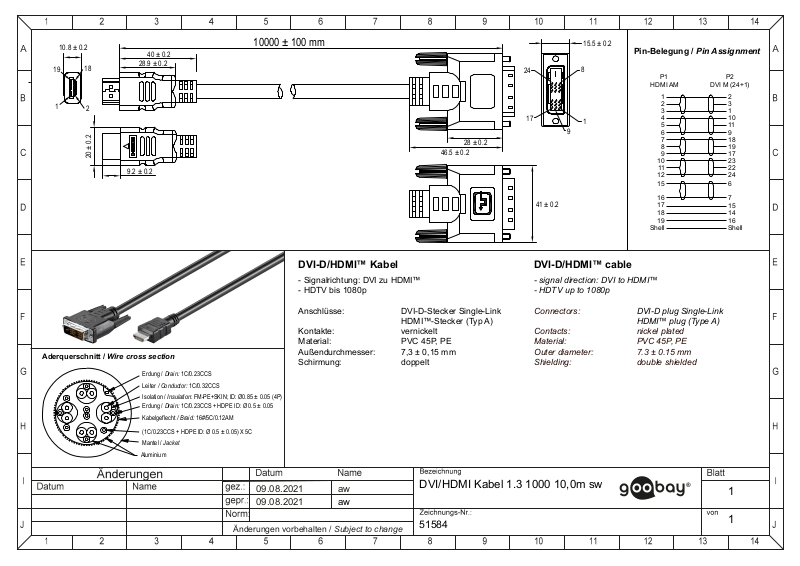

DVI-D/HDMI™ Kabel
- Signalrichtung: DVI zu HDMI™
- HDTV bis 1080p
Anschlüsse: DVI-D-Stecker Single-Link
HDMI™-Stecker (Typ A)
Kontakte: vernickelt
Material: PVC 45P, PE
Außendurchmesser: 7,3 ± 0,15 mm
Schirmung: doppelt
09.08.2021
09.08.2021
Änderungen vorbehalten / Subject to change
aw
aw
DVI-D/HDMI™ cable
- signal direction: DVI to HDMI™
- HDTV up to 1080p
Connectors: DVI-D plug Single-Link
HDMI™ plug (Type A)
Contacts: nickel plated
Material: PVC 45P, PE
Outer diameter: 7.3 ± 0.15 mm
Shielding: double shielded
DVI/HDMI Kabel 1.3 1000 10,0m sw
51584
1
1
