Page 1
10.8 ± 0.2
19
1
18
2
20 ± 0.2
Artikel-Nr. / Article No.
50579
50580
50581
50582
40 ± 0.2
28.9 ± 0.2
9.2 ± 0.2
Länge / Length (L)
1000 ± 30 mm
2000 ± 30 mm
3000 ± 30 mm
5000 ± 50 mm
L 15.5 ± 0.2
24
17
28 ± 0.2
46.5 ± 0.2
41 ± 0.2
8
1
9
Pin-Belegung / Pin Assignment
P1
HDMI AM
1
2
3
4
5
6
7
8
9
10
11
12
15
16
17
18
19
Shell
P2
DVI M (24+1)
2
3
1
10
11
9
18
19
17
23
22
24
6
7
15
14
16
Shell
Aderquerschnitt / Wire cross section
Erdung / Drain: 1C/0.23CCS
Leiter / Conductor: 1C/0.23CCS
Isolation / Insulation: FM-PE+SKIN; ID: Ø0.63 ± 0.05 (4P)
Erdung / Drain: 1C/0.23CCS + HDPE
Kabelgeflecht / Braid: 16#/4C/0.12AM
(1C/0.23CCS + HDPE) X 5C
Mantel / Jacket
Aluminium
30.07.2021
aw

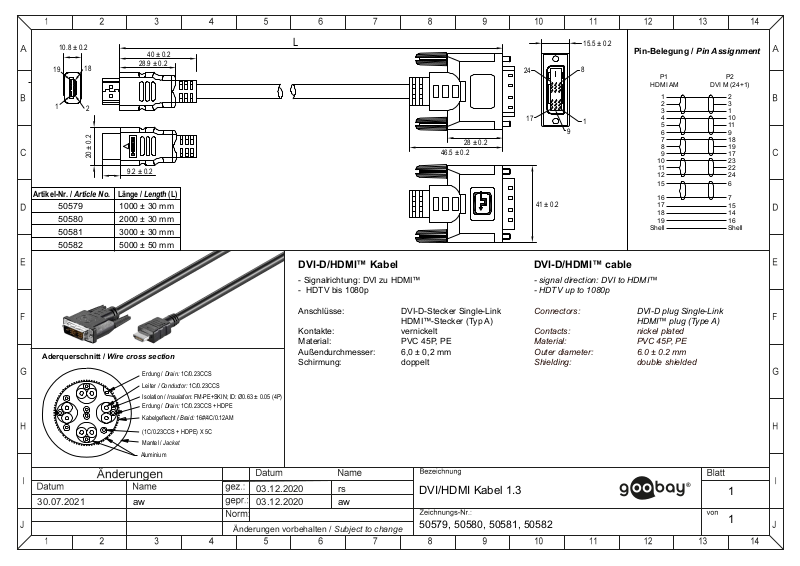

DVI-D/HDMI™ Kabel
- Signalrichtung: DVI zu HDMI™
- HDTV bis 1080p
Anschlüsse: DVI-D-Stecker Single-Link
HDMI™-Stecker (Typ A)
Kontakte: vernickelt
Material: PVC 45P, PE
Außendurchmesser: 6,0 ± 0,2 mm
Schirmung: doppelt
03.12.2020
03.12.2020
Änderungen vorbehalten / Subject to change
rs
aw
DVI-D/HDMI™ cable
- signal direction: DVI to HDMI™
- HDTV up to 1080p
Connectors: DVI-D plug Single-Link
HDMI™ plug (Type A)
Contacts: nickel plated
Material: PVC 45P, PE
Outer diameter: 6.0 ± 0.2 mm
Shielding: double shielded
DVI/HDMI Kabel 1.3
50579, 50580, 50581, 50582
