GND
GND
4-40UNC

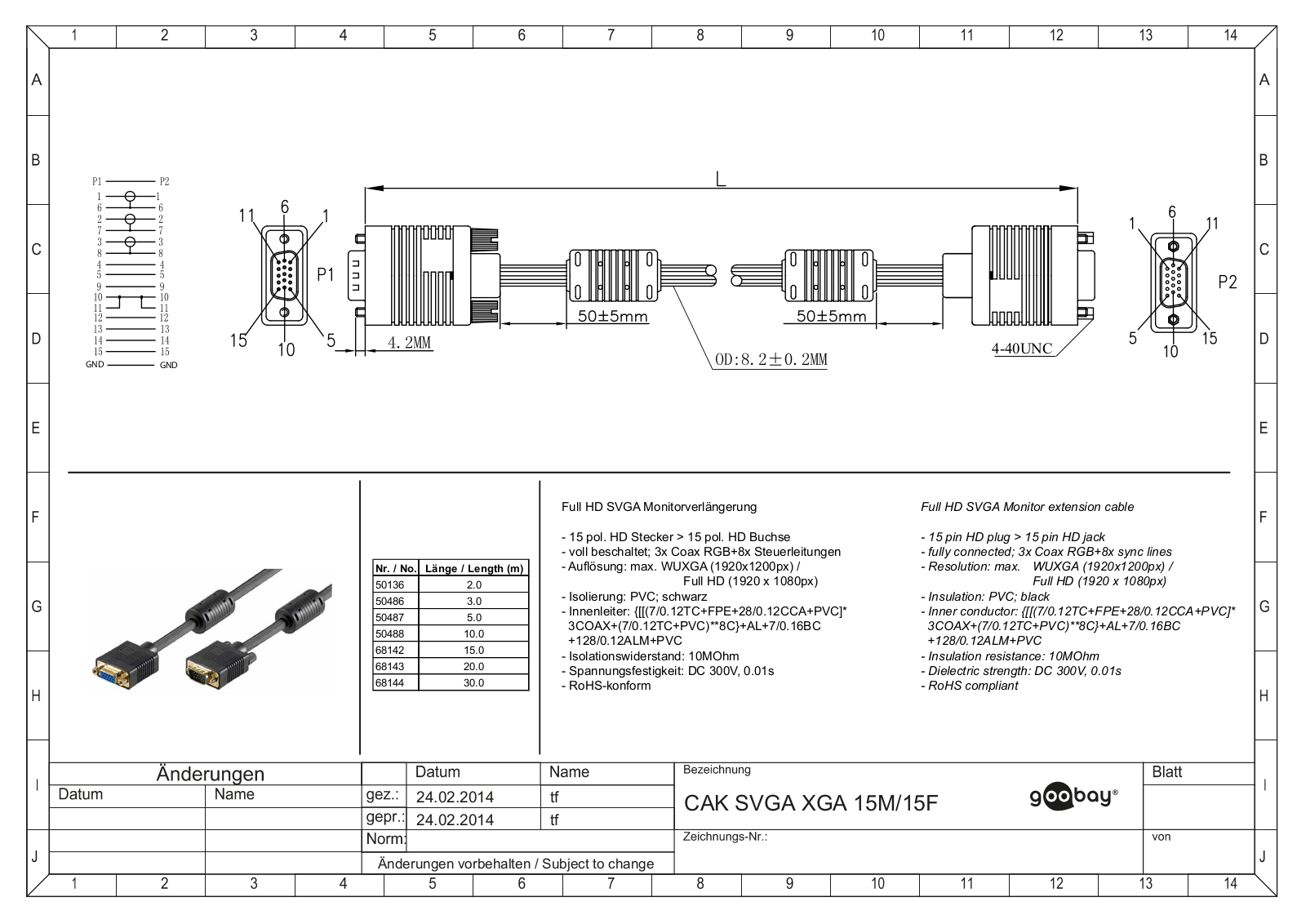

Full HD SVGA Monitorverlängerung
- 15 pol. HD Stecker > 15 pol. HD Buchse
- voll beschaltet; 3x Coax RGB+8x Steuerleitungen
Nr. / No. Länge / Le ngth (m)
50136 2.0
50486 3.0
50487 5.0
50488 10.0
68142 15.0
68143 20.0
68144 30.0
- Auflösung: max. WUXGA (1920x1200px) /
Full HD (1920 x 1080px)
- Isolierung: PVC; schwarz
- Innenleiter: {[[(7/0.12TC+FPE+28/0.12CCA+PVC]*
3COAX+(7/0.12TC+PVC)**8C}+AL+7/0.16BC
+128/0.12ALM+PVC
- Isolationswiderstand: 10MOhm
- Spannungsfestigkeit: DC 300V, 0.01s
- RoHS-konform
24.02.2014 tf
24.02.2014 tf
Änderungen vorbehalten / Subject to change
Full HD SVGA Monitor extension cable
- 15 pin HD plug > 15 pin HD jack
- fully connected; 3x Coax RGB+8x sync lines
- Resolution: max. WUXGA (1920x1200px) /
Full HD (1920 x 1080px)
- Insulation: PVC; black
- Inner conductor: {[[(7/0.12TC+FPE+28/0.12CCA+PVC]*
3COAX+(7/0.12TC+PVC)**8C}+AL+7/0.16BC
+128/0.12ALM+PVC
- Insulation resistance: 10MOhm
- Dielectric strength: DC 300V, 0.01s
- RoHS compliant
CAK SVGA XGA 15M/15F
