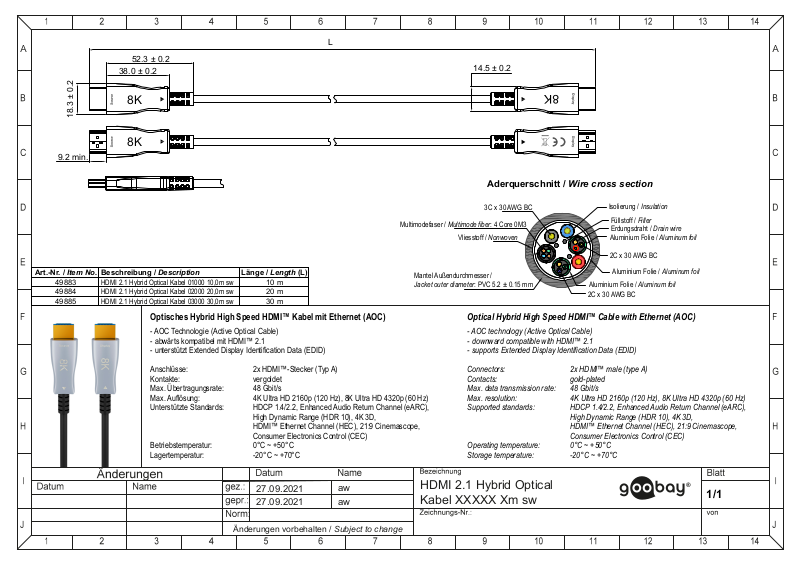

Page 1
52.3 ± 0.2
38.0 ± 0.2
L
14.5 ± 0.2
18.3 ± 0.2
9.2 min.
Art.-Nr. / Item No.
49883
49884
49885
8K
8K
Beschreibung / Description
HDMI 2.1 Hybrid Optical Kabel 01000 10,0m sw
HDMI 2.1 Hybrid Optical Kabel 02000 20,0m sw
HDMI 2.1 Hybrid Optical Kabel 03000 30,0m sw
Optisches Hybrid High Speed HDMI™ Kabel mit Ethernet (AOC) Optical Hybrid High Speed HDMI™ Cable with Ethernet (AOC)
- AOC Technologie (Active Optical Cable)
- abwärts kompatibel mit HDMI™ 2.1
- unterstützt Extended Display Identification Data (EDID)
Länge / Length (L)
10 m
20 m
30 m
Aderquerschnitt / Wire cross section
3C x 30 AWG BC
Multimodefaser / Multimode fiber: 4 Core 0M3
Vliesstoff / Nonwoven
Mantel Außendurchmesser /
Jacket outer diameter: PVC 5.2 ± 0.15 mm
- AOC technology (Active Optical Cable)
- downward compatible with HDMI™ 2.1
- supports Extended Display Identification Data (EDID)
8K
Isolierung / Insulation
Füllstoff / Filler
Erdungsdraht / Drain wire
Aluminium Folie / Aluminum foil
2C x 30 AWG BC
Aluminium Folie / Aluminum foil
Aluminium Folie / Aluminum foil
2C x 30 AWG BC
Anschlüsse: 2x HDMI™-Stecker (Typ A)
Kontakte: vergoldet
Max. Übertragungsrate: 48 Gbit/s
Max. Auflösung: 4K Ultra HD 2160p (120 Hz), 8K Ultra HD 4320p (60 Hz)
Unterstützte Standards: HDCP 1.4/2.2, Enhanced Audio Return Channel (eARC),
High Dynamic Range (HDR 10), 4K 3D,
HDMI™ Ethernet Channel (HEC), 21:9 Cinemascope,
Consumer Electronics Control (CEC)
Betriebstemperatur: 0°C ~ +50°C
Lagertemperatur: -20°C ~ +70°C
27.09.2021
27.09.2021
Änderungen vorbehalten / Subject to change
aw
aw
HDMI 2.1 Hybrid Optical
Kabel XXXXX Xm sw
Connectors: 2x HDMI™ male (type A)
Contacts: gold-plated
Max. data transmission rate: 48 Gbit/s
Max. resolution: 4K Ultra HD 2160p (120 Hz), 8K Ultra HD 4320p (60 Hz)
Supported standards: HDCP 1.4/2.2, Enhanced Audio Return Channel (eARC),
High Dynamic Range (HDR 10), 4K 3D,
HDMI™ Ethernet Channel (HEC), 21:9 Cinemascope,
Consumer Electronics Control (CEC)
Operating temperature: 0°C ~ +50°C
Storage temperature: -20°C ~ +70°C
